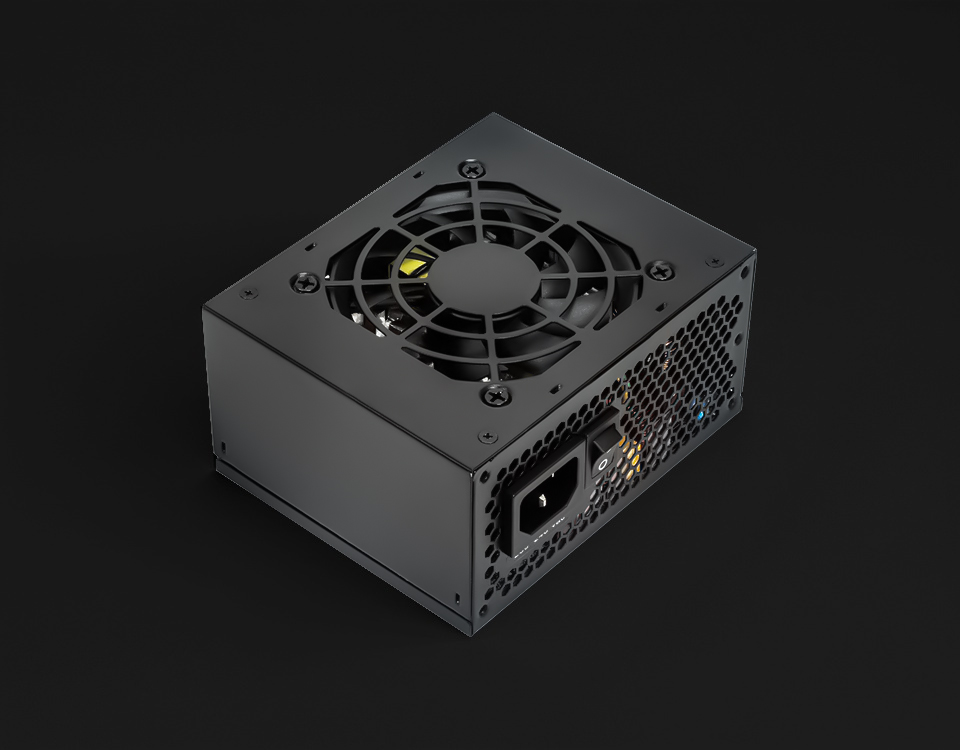

WSFX-400

The WSFX series power supplies provide reliable safety protections (OVP, UVP, OPP, SCP) and an elegant casing design for improved airflow. With sufficient cable length, a 6+2pin/450mm PCIe cable, and high-quality components, they ensure easy installation and dependable performance.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

WSFX-400-1920x960

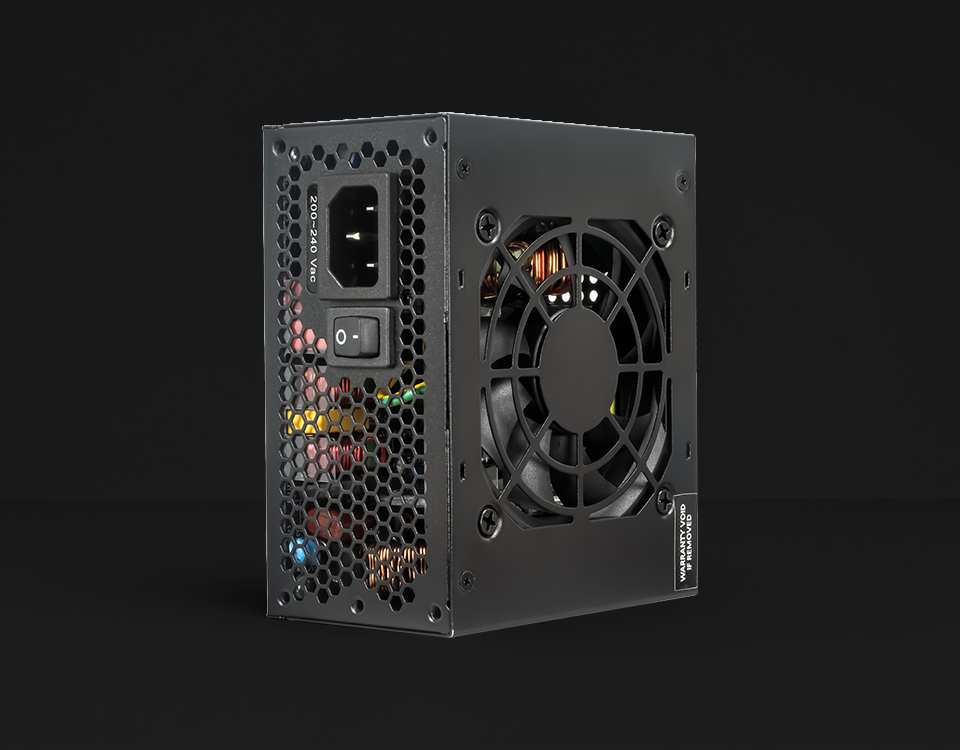

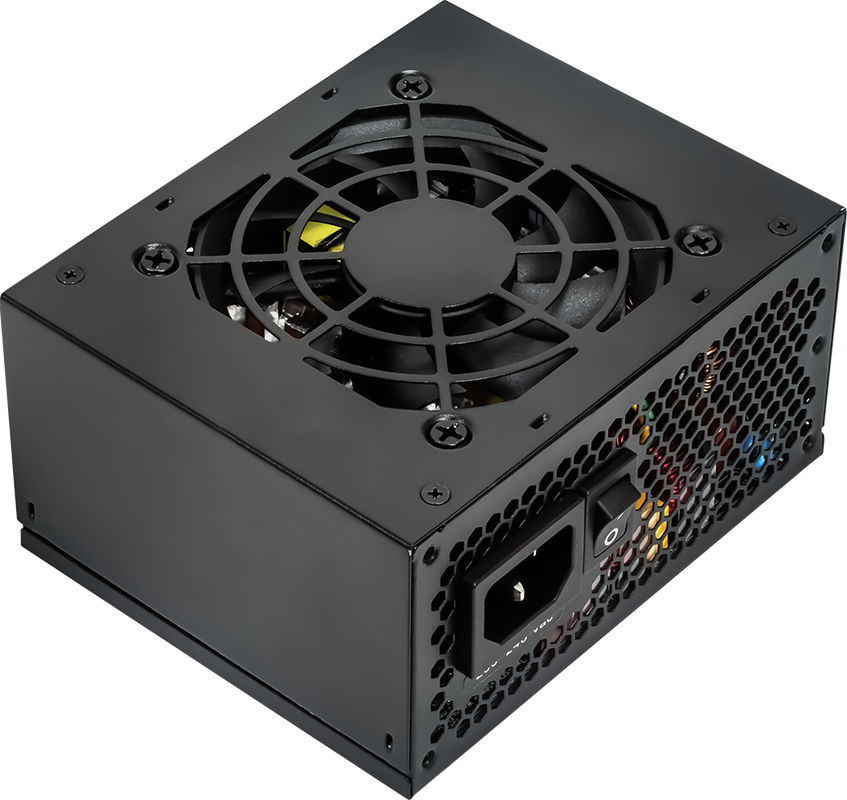

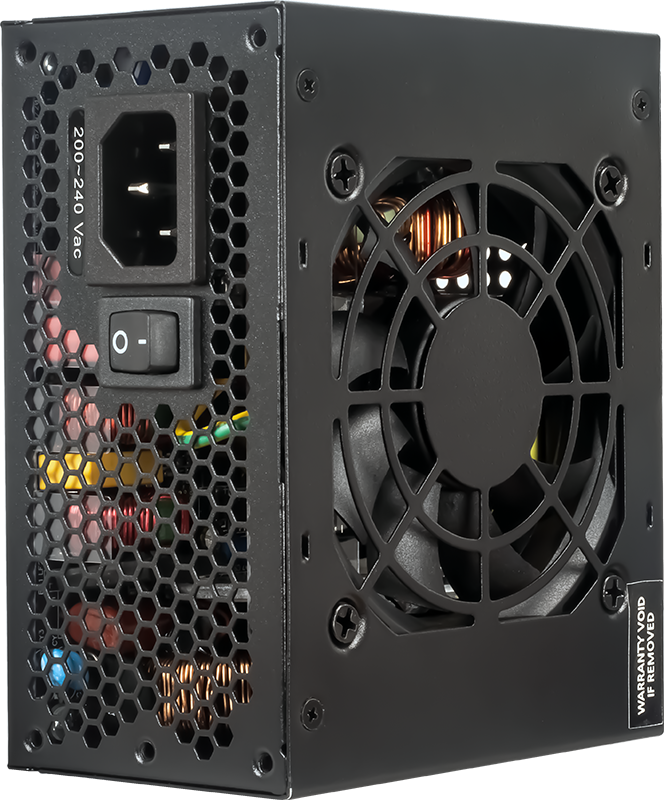

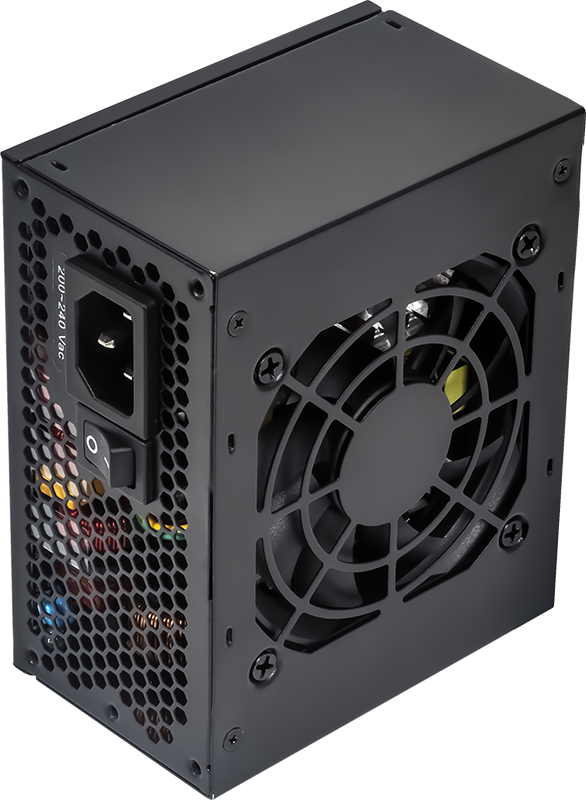

Elegant And Enhanced Airflow Casing Design

    • Elegant And Enhanced Airflow Casing Design

      The power supply’s sleek casing is designed to enhance airflow, promoting better cooling and system performance.

    • Sufficient Power Cable Length And Connectors

      With ample cable length and a variety of connectors, the power supply ensures compatibility and easy installation in various cases.

Power Up with Confidence: The Ultimate Protection in Your PSU

Engineered with top-quality components and rigorous testing, it’s built to withstand the most demanding usage scenarios, ensuring a stable and reliable power supply with OVP, UVP, OPP, SCP protection for your system.

    • High-Quality Components Used for Trustable Reliability

      The use of high-quality components ensures dependable reliability and long-lasting performance for your system.

Specifications

  • Model

    WSFX-400

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    400W

  • Efficiency

    80Plus

  • Input Voltage

    230V

  • PFC

    APFC

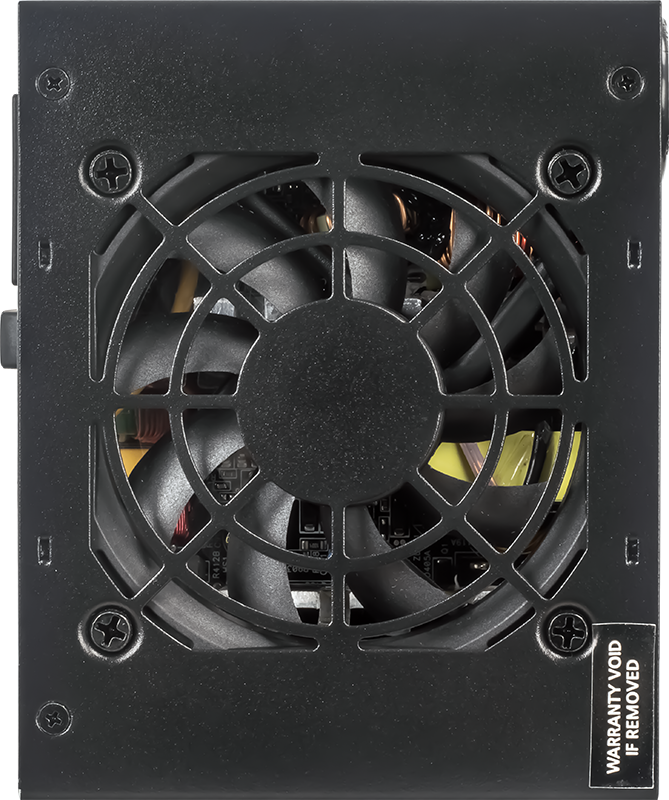

  • Fan

    80mm

  • Modular

    Direct Cable

  • Net Weight

    10.80 kg

  • Gross Weight

    11.68 kg

  • EAN

    WSFX-400: 4711401661603

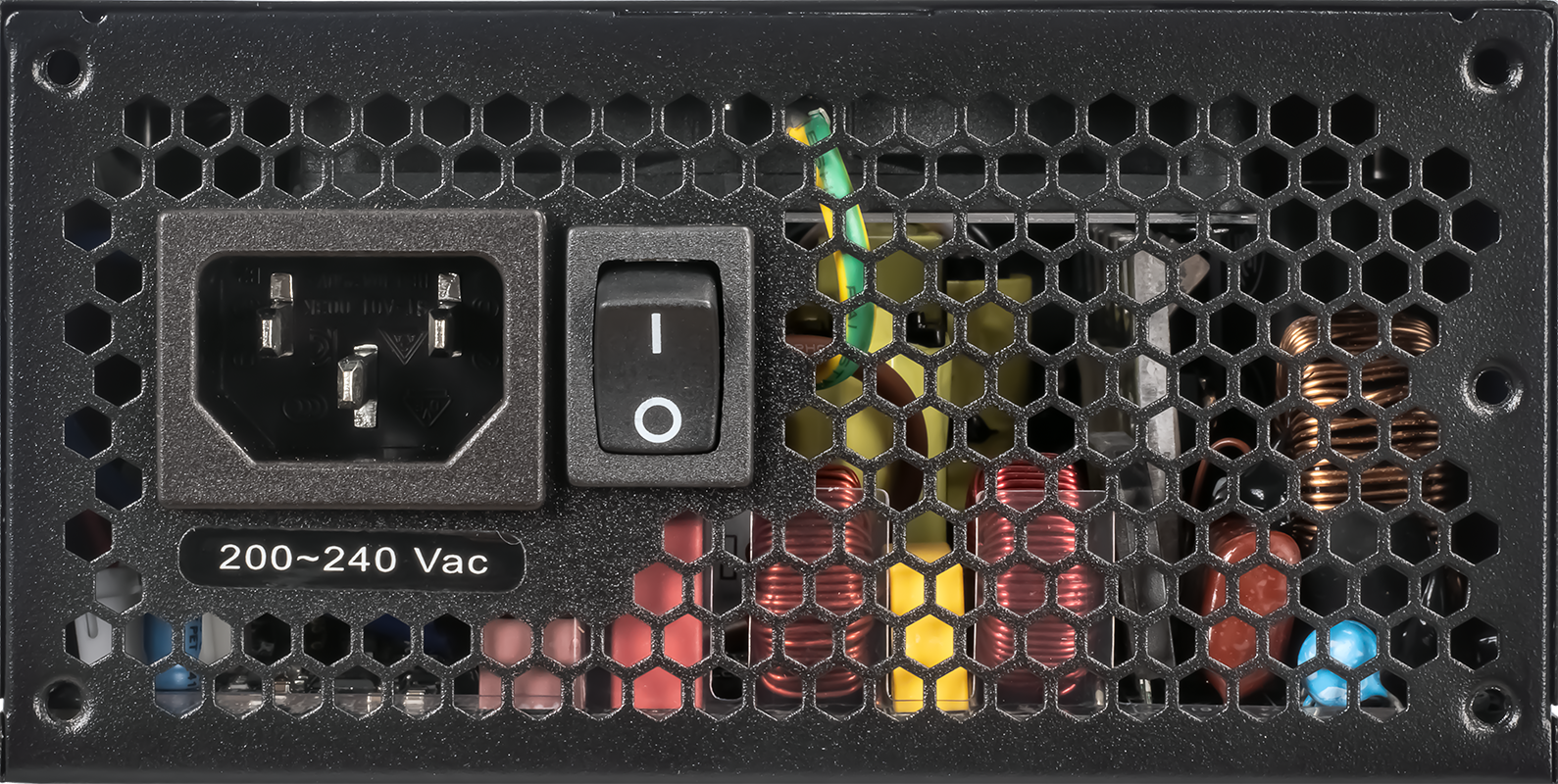

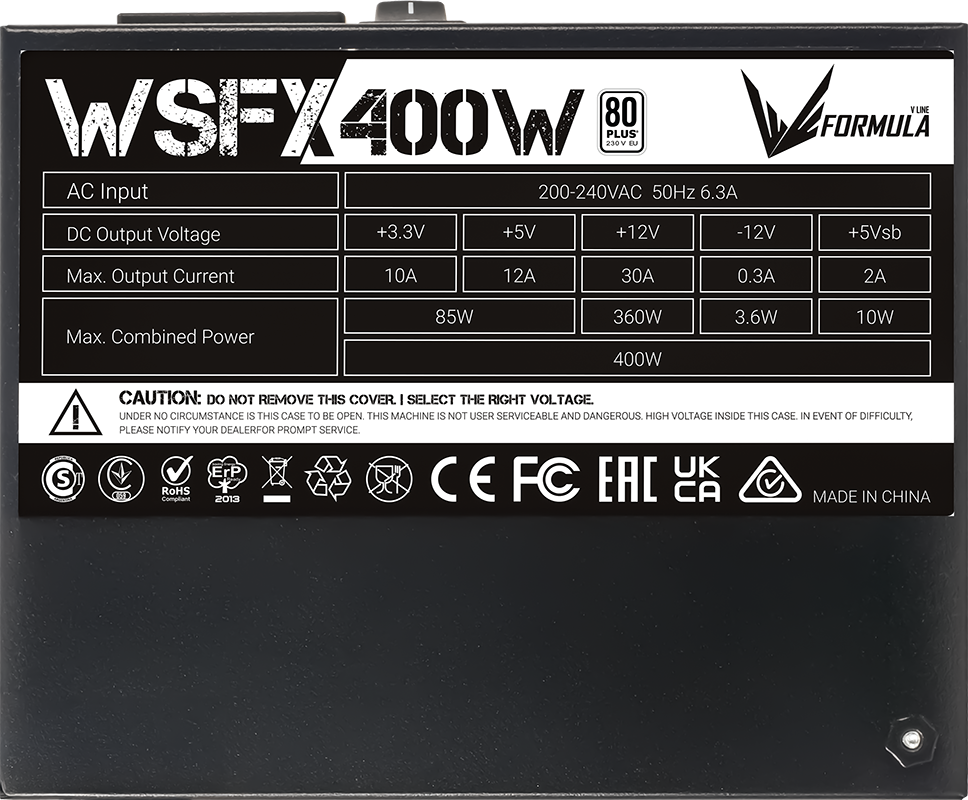

AC Input

  • AC

    200-240VAC 50Hz 6.3A

DC Output

  • 3.3V

    10A

  • 5V

    12A

  • 3.3V and 5V combined

    85W

  • +12V

    30A

  • -12V

    0.3A

  • +5Vsb

    2A

  • Total Power

    400W

Cable SPEC

  • Mainboard

    20+4Pin(370MM) x1

  • CPU

    4+4/(450mm) x1

  • PCI-E

    6+2pin/450mm x1

  • SATA / IDE

    Sata+ Sata+ Sata/370+ 150+ 150+ 150mm x1

  • SATA / IDE

    Molex+ Molex/370+ 150mm x1
