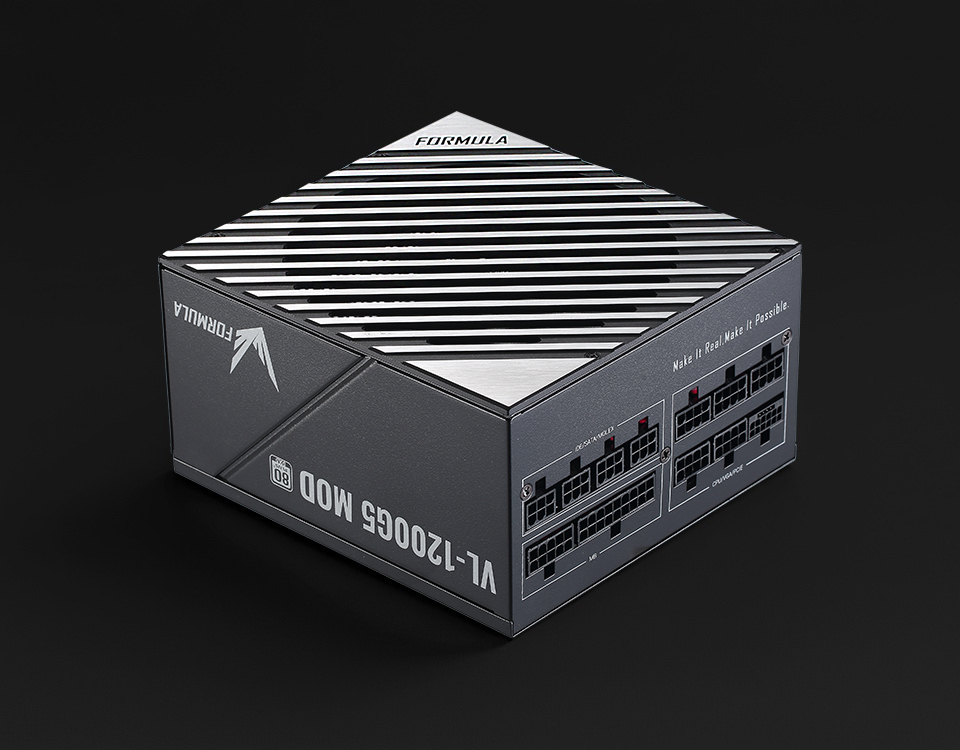

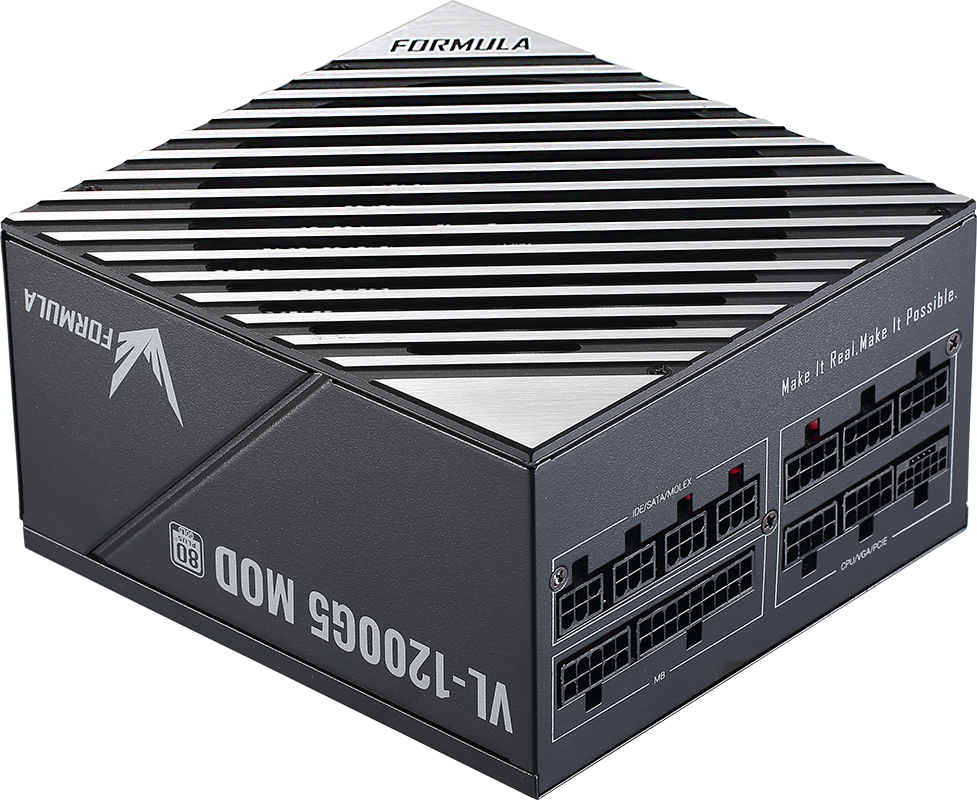

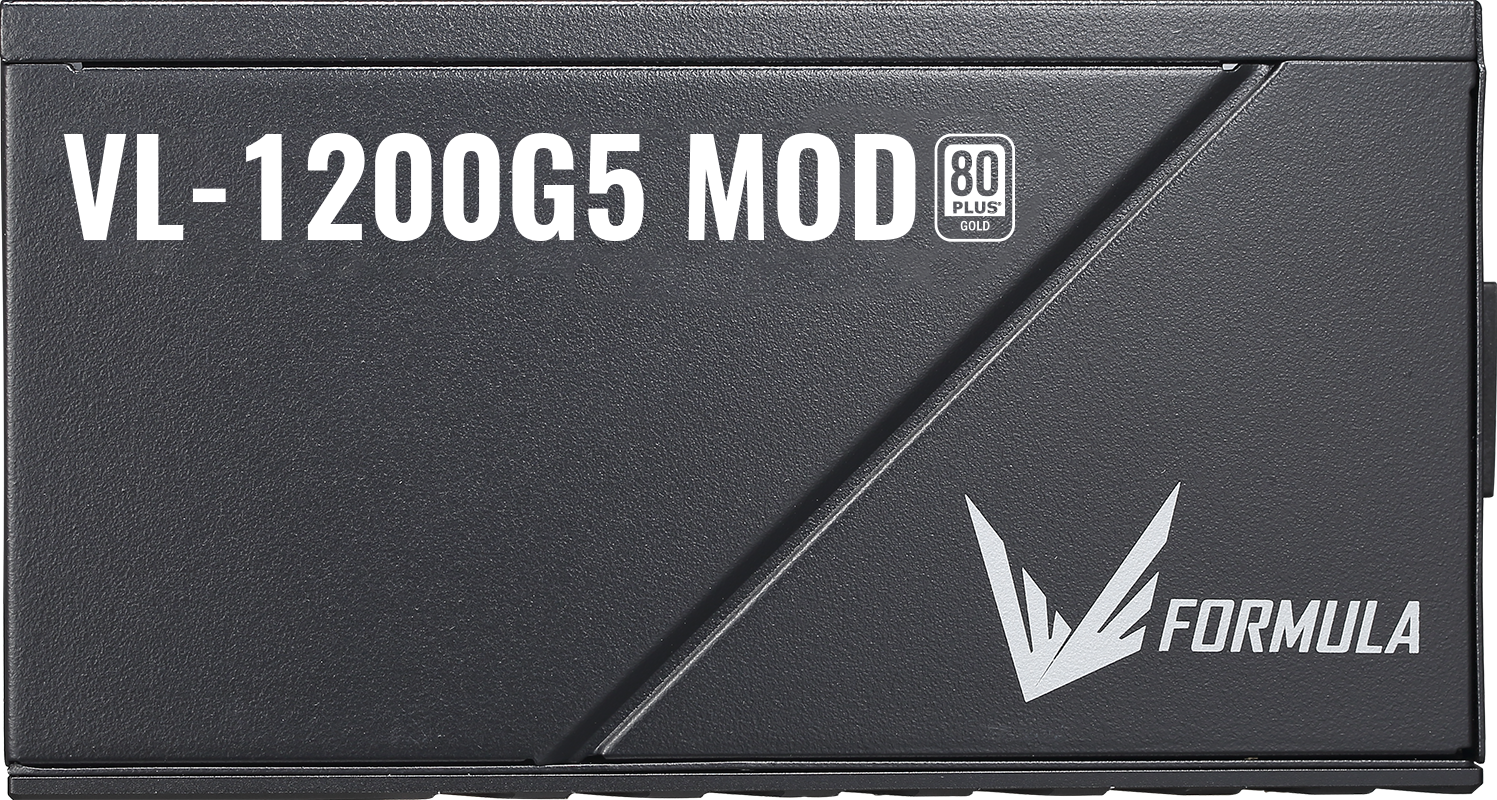

VL-1200G5-MOD

VL-1200G5 MOD is a high-performance and reliable PC PSU boasting an elegant Aluminum – Steel case design, delivering an impressive 1200 watts of continuous power for seamless operation under heavy workloads.

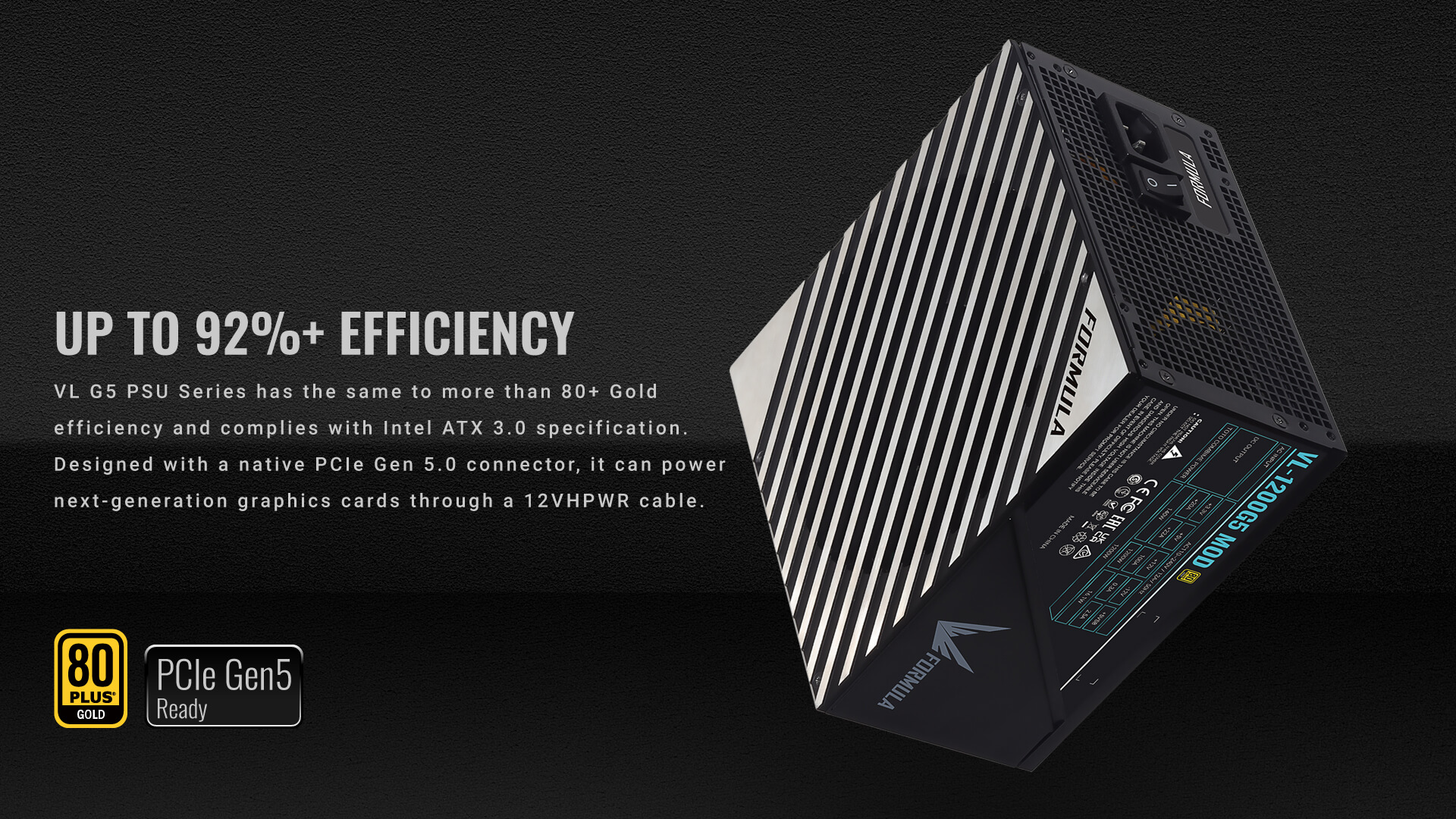

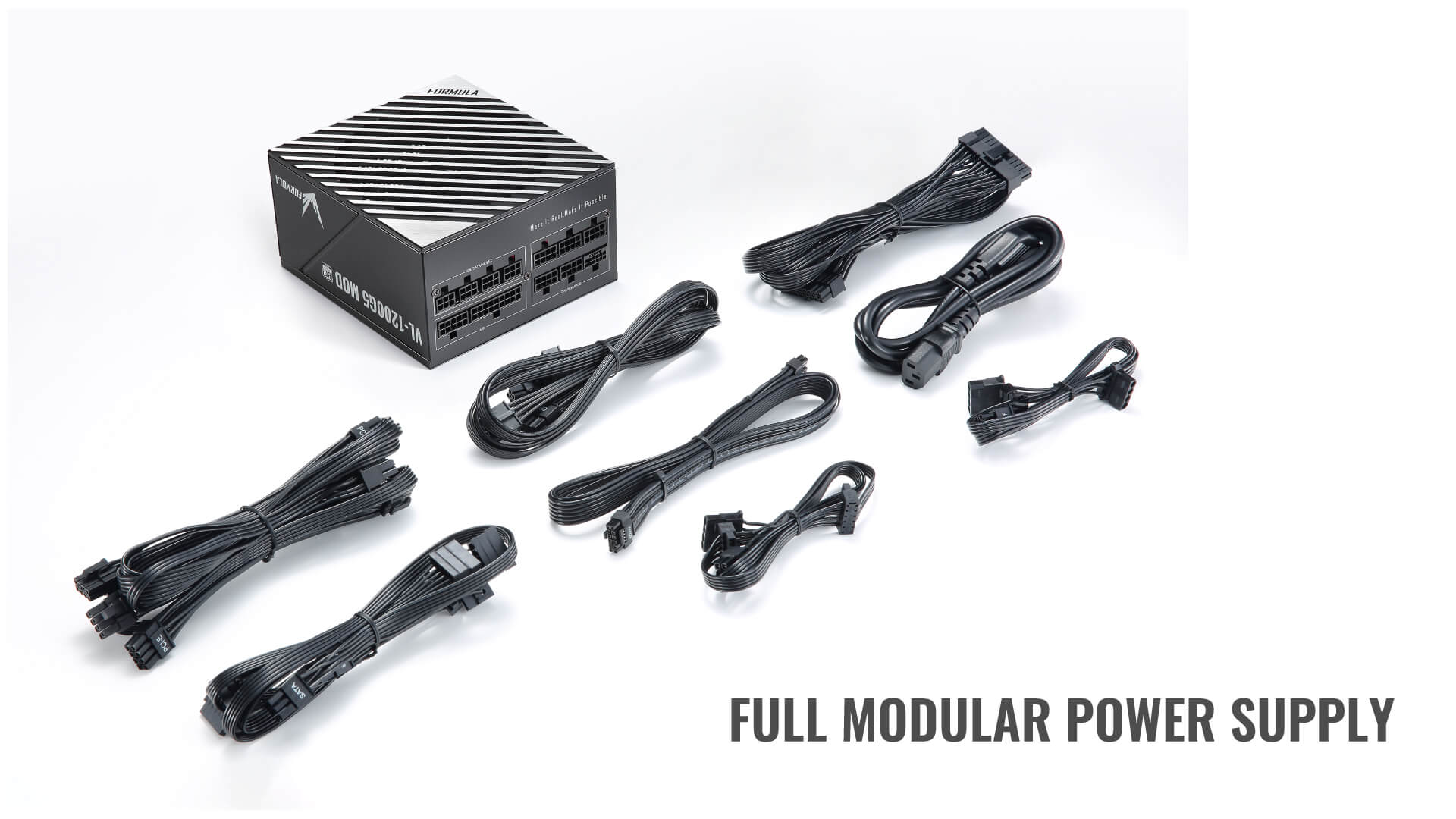

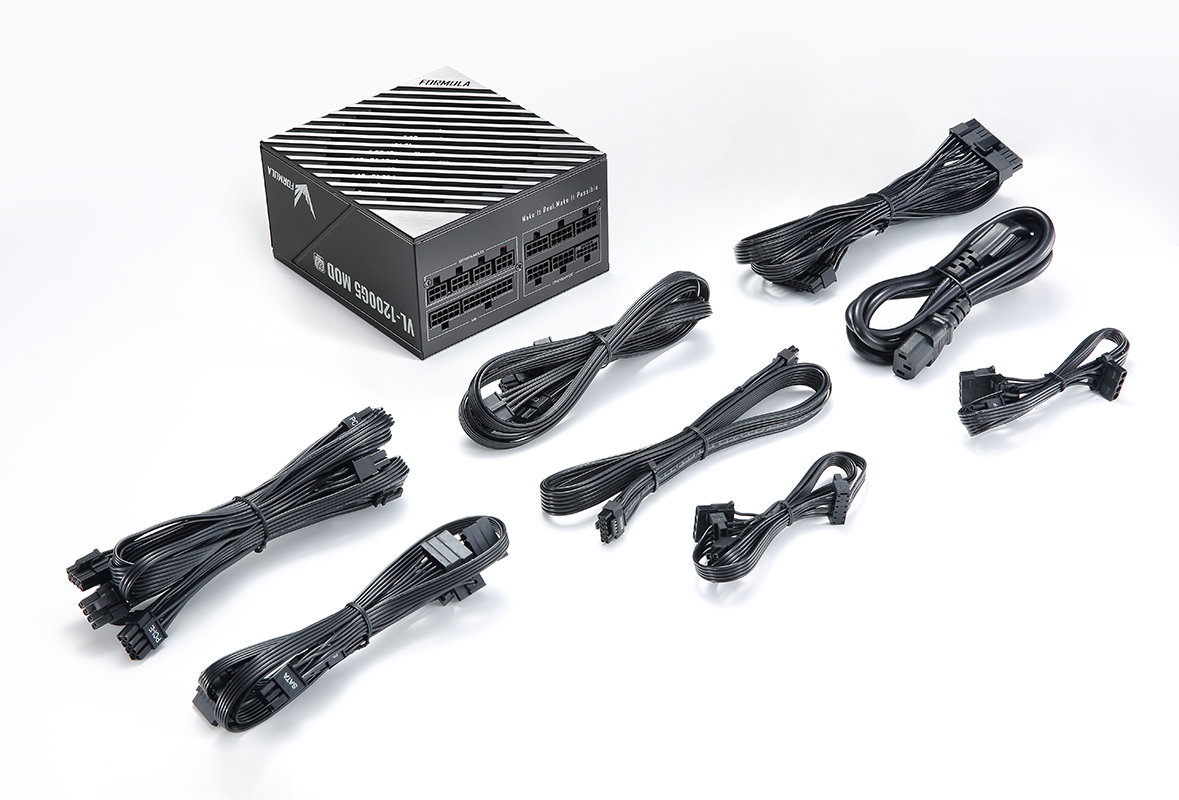

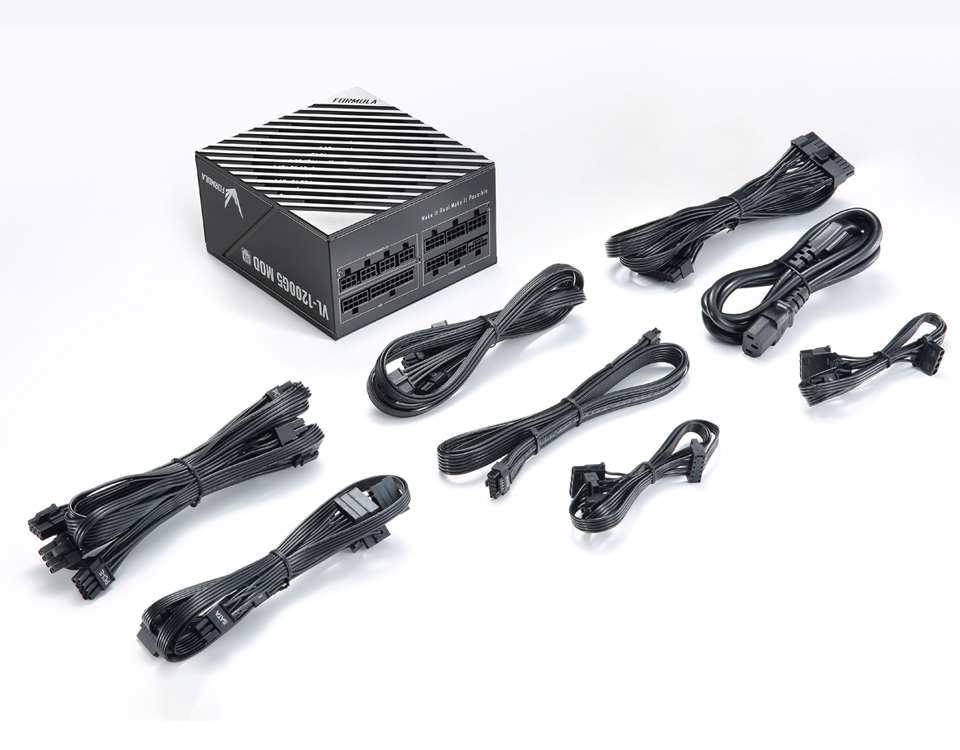

Designed with efficiency in mind, the PSU V incorporates advanced components and cutting-edge technology to ensure optimal power delivery with minimal energy loss, meeting 80 PLUS Gold certification standards. Its modular cabling system offers flexibility, allowing users to connect only the necessary cables, optimizing airflow and improving cable management within the PC chassis.
Equipped with multiple safety features including OVP, OCP, UVP, OPP, SCP, the PSU V prioritizes the safety of your valuable components. Its quiet and efficient cooling system, aided by intelligent fan control, maintains low noise levels even during demanding usage, ensuring a quieter and cooler system overall.

Specifications

AC INPUT

AC110~240V / 12A-/ 50Hz

DC OUTPUT

+3.3V	+5V	+12V	+12V	+5VSB
+20A	+22A	100A	0.3A	2.5A
140W	1200W	16.1W

TOTAL COMBINE POWER

1200W

Cable SPEC	20+4 PIN 18AWG exposed length (600mm) x1
	4+4PIN 18AWG exposed length (700mm) x2
	PCI-E exposed length 6+2PIN(550mm) + 6+2PIN(150mm) x3
	SATA 18AWG exposed length (500mm)+SATA(150mm)+SATA(150mm) x2
	SATA 18AWG exposed length (500mm)+SATA(150mm)+Molex(150mm) x1
	Molex 18AWG exposed length (500mm)+Molex(150mm)+Molex(150mm) x1
	PCIe Gen5 16AWG exposed length (600mm) x1
