VL-1000G5 MOD

VL-1000G5 MOD is a high-performance and reliable PC PSU boasting an elegant Aluminum – Steel case design, delivering an impressive 1000 watts of continuous power for seamless operation under heavy workloads.


Designed with efficiency in mind, the PSU V incorporates advanced components and cutting-edge technology to ensure optimal power delivery with minimal energy loss, meeting 80 PLUS Gold certification standards. Its modular cabling system offers flexibility, allowing users to connect only the necessary cables, optimizing airflow and improving cable management within the PC chassis.


Equipped with multiple safety features including OVP, OCP, UVP, OPP, SCP, the PSU V prioritizes the safety of your valuable components. Its quiet and efficient cooling system, aided by intelligent fan control, maintains low noise levels even during demanding usage, ensuring a quieter and cooler system overall.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

VL-1000G5-MOD-1920x960

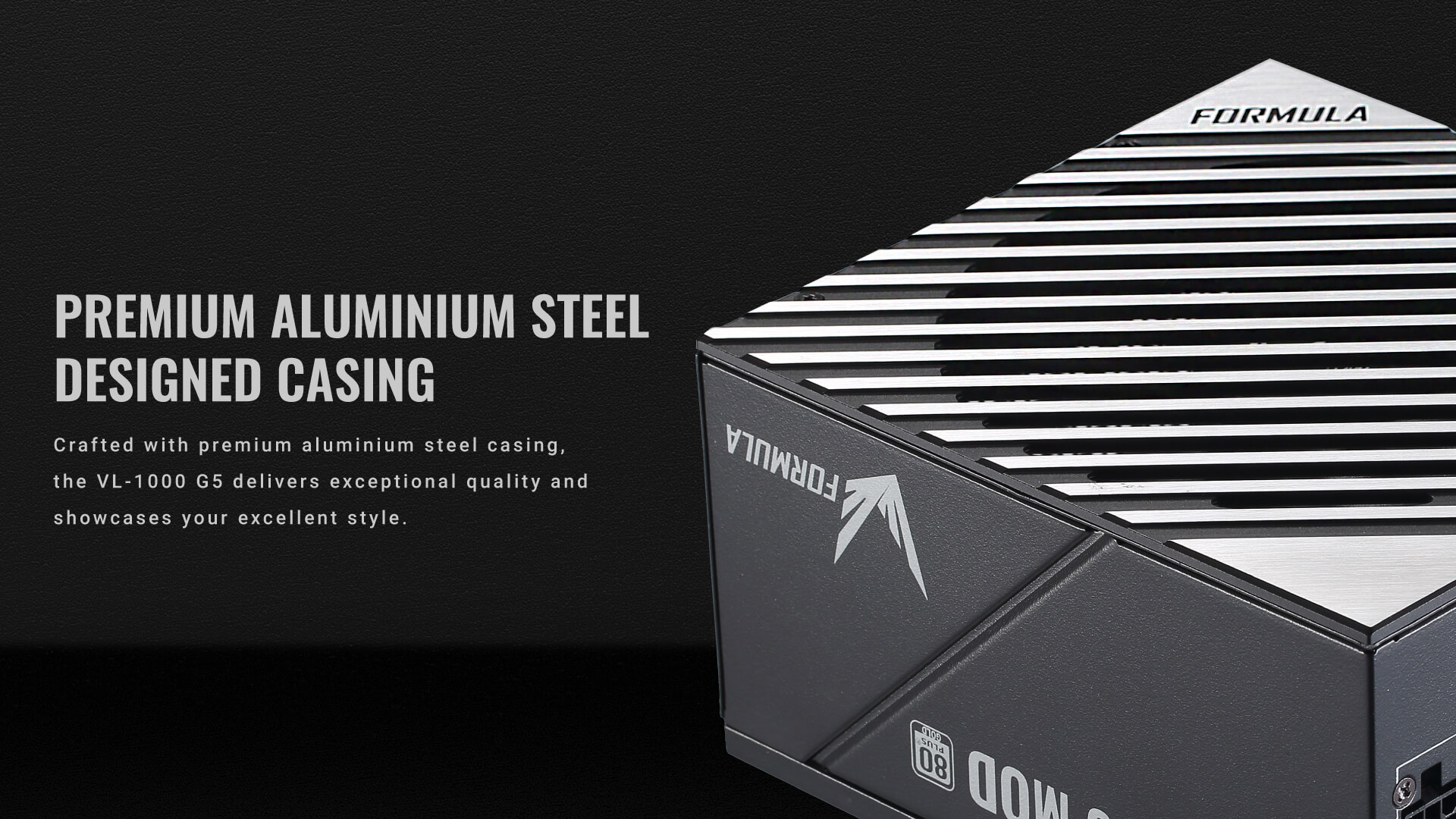

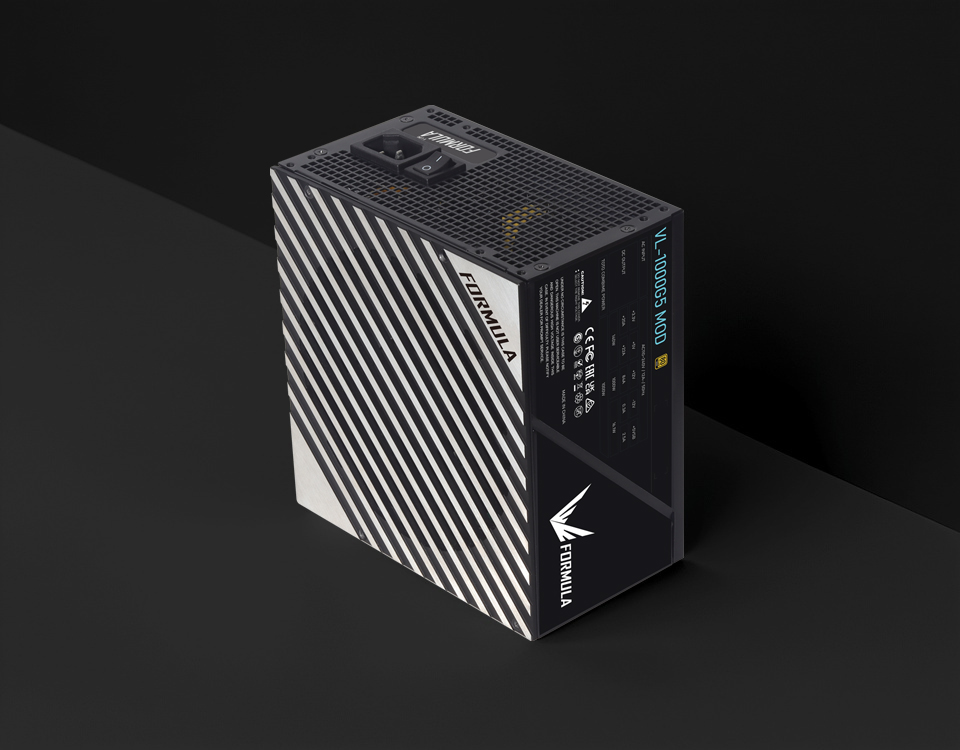

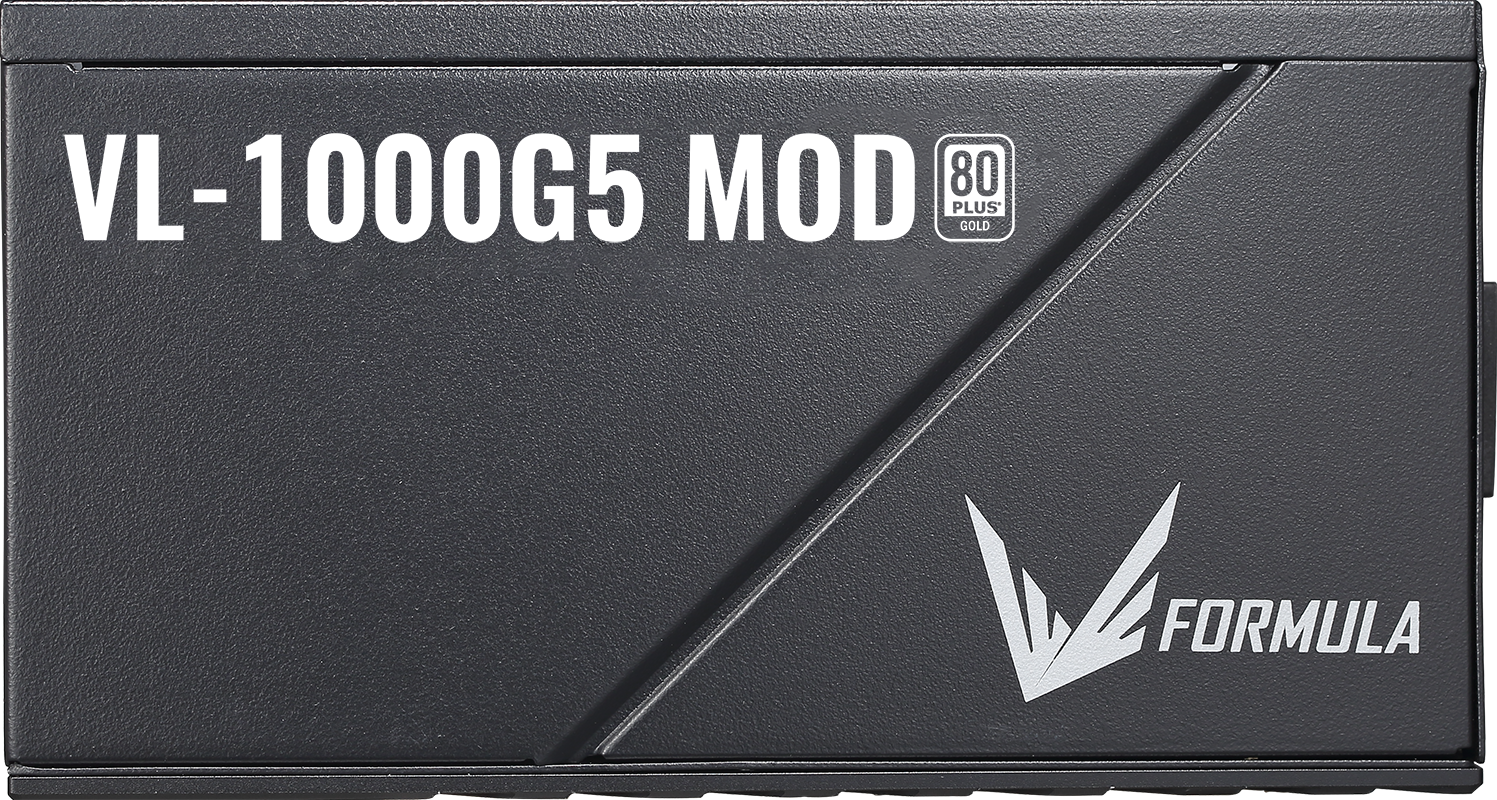

Premium Aluminium Steel Designed Casing

    • Premium Aluminium Steel Designed Casing

      Crafted with premium aluminium steel casing, the VL-1000 G5 delivers exceptional quality and showcases your excellent style.

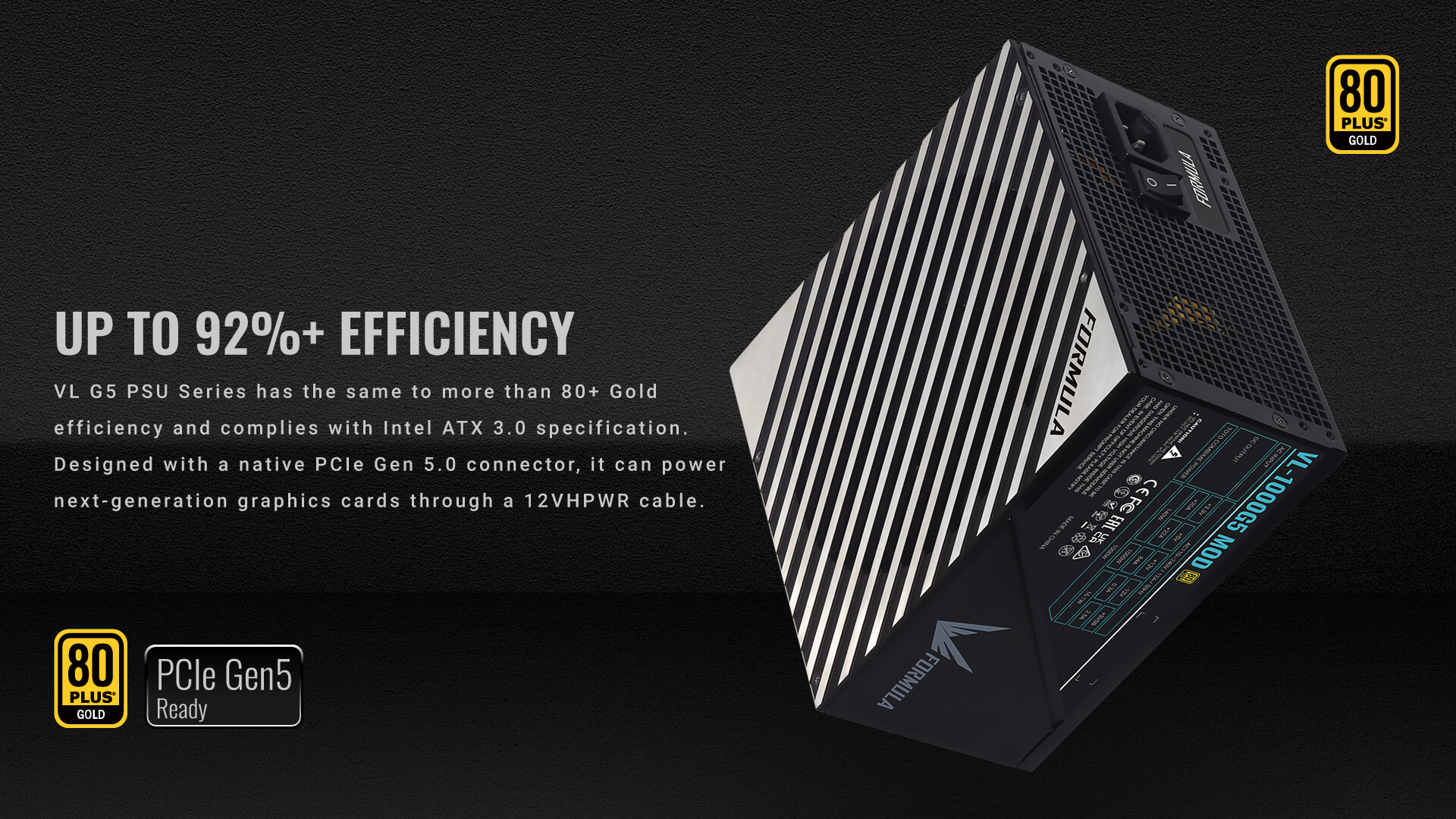

    • Up To 92%+ Efficiency

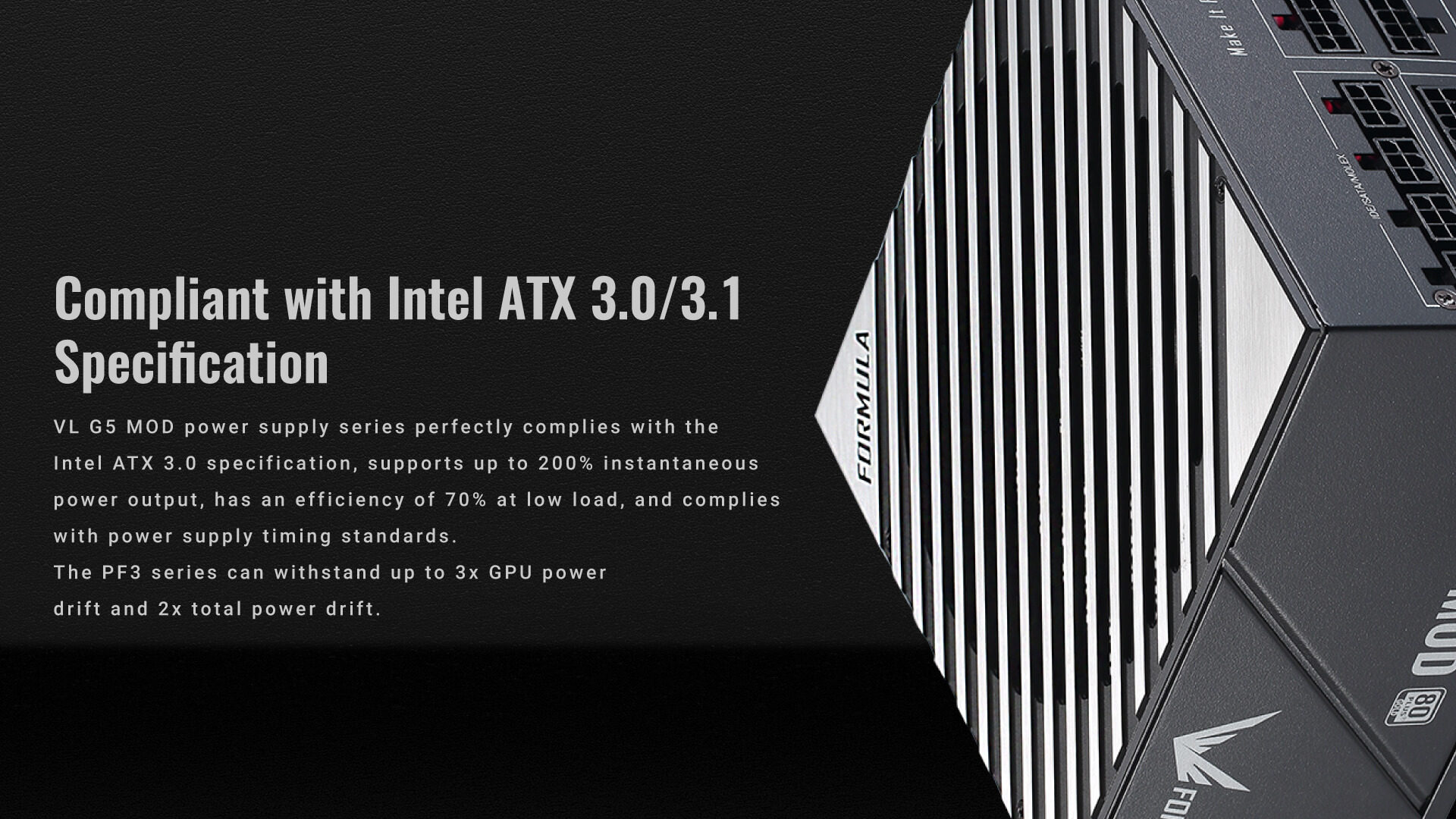

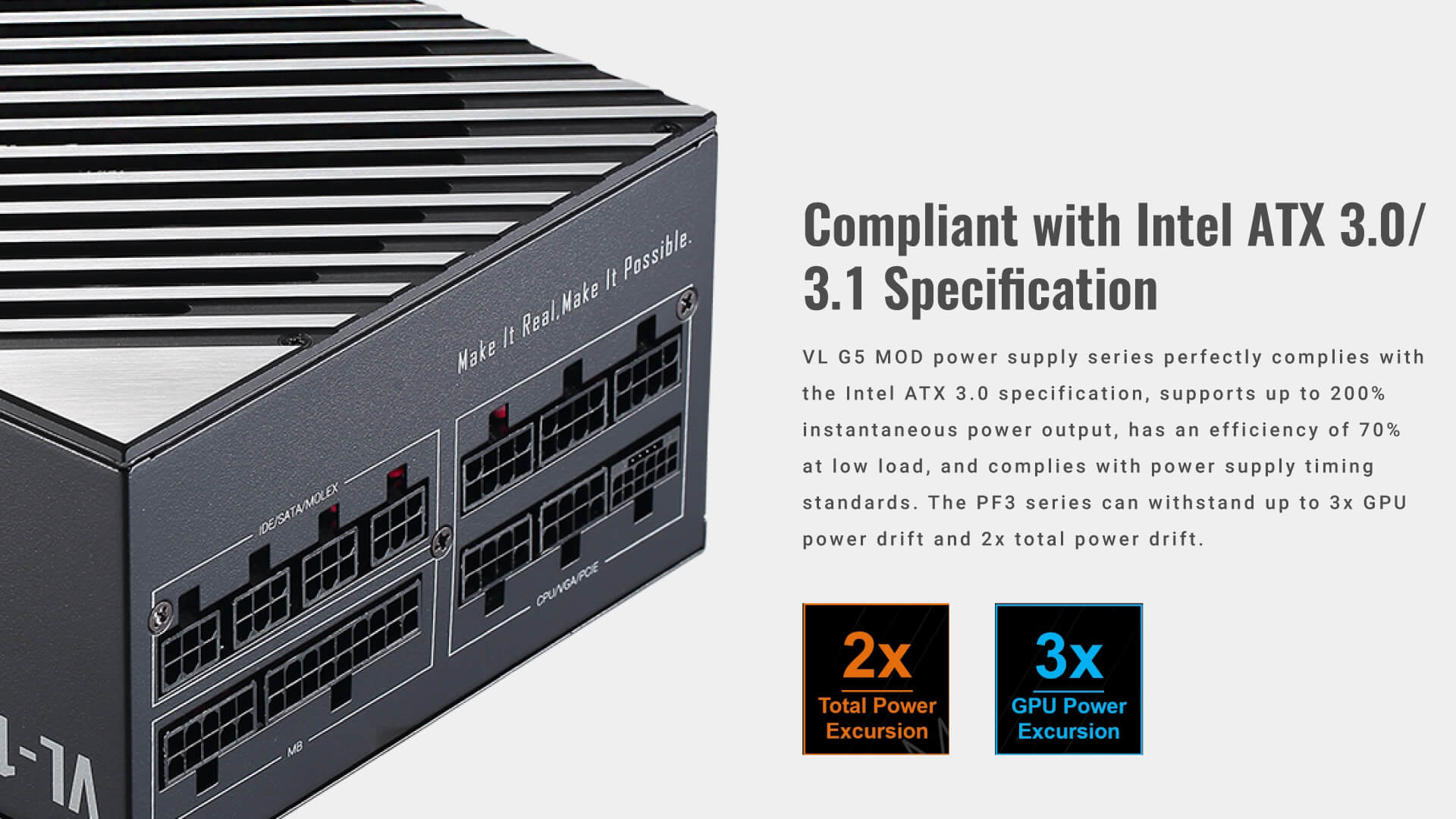

      VL G5 PSU Series has the same to more than 80+ Gold efficiency and complies with Intel ATX 3.0 specification. Designed with a native PCIe Gen 5.0 connector, it can power next-generation graphics cards through a 12VHPWR cable.

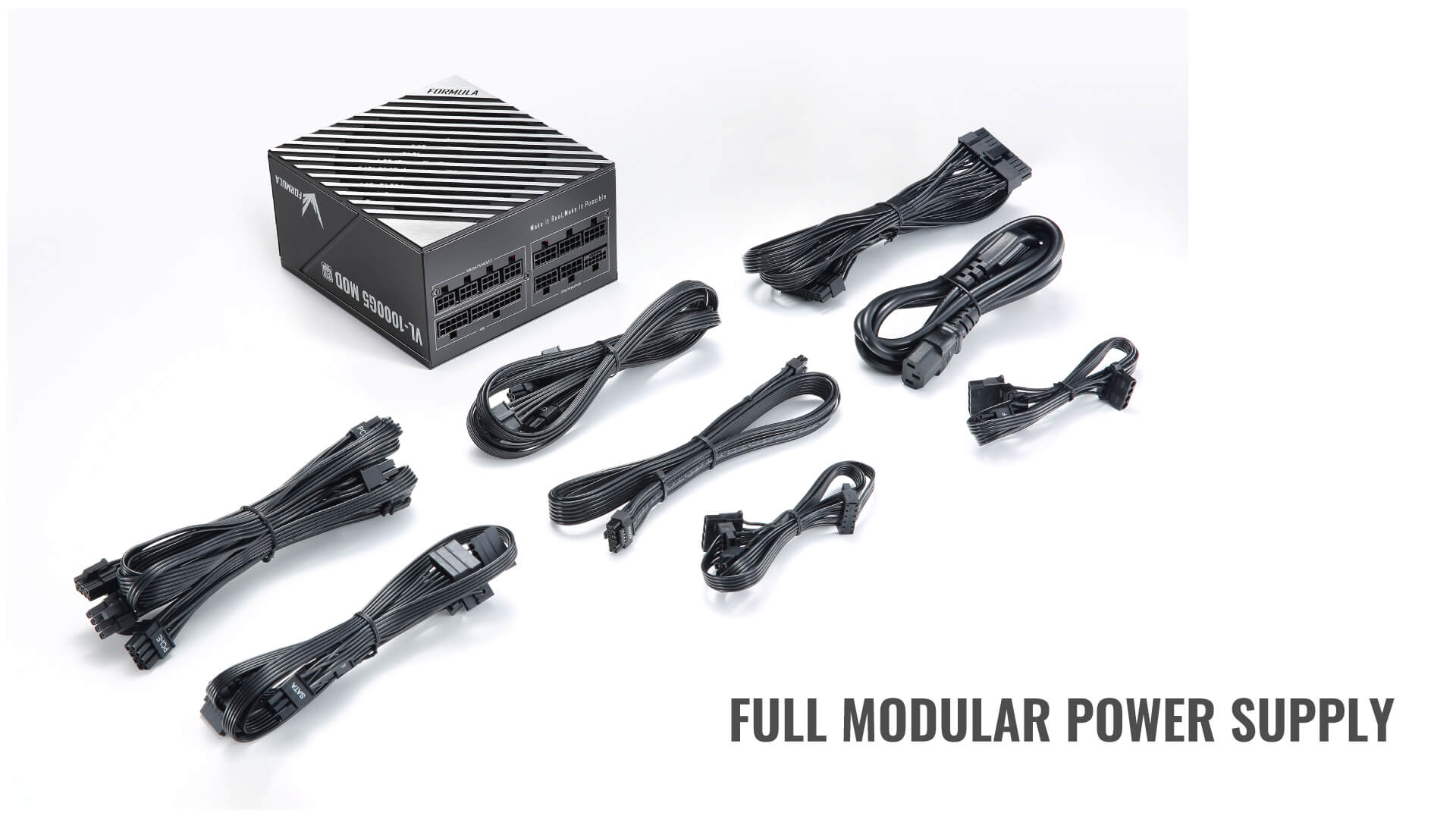

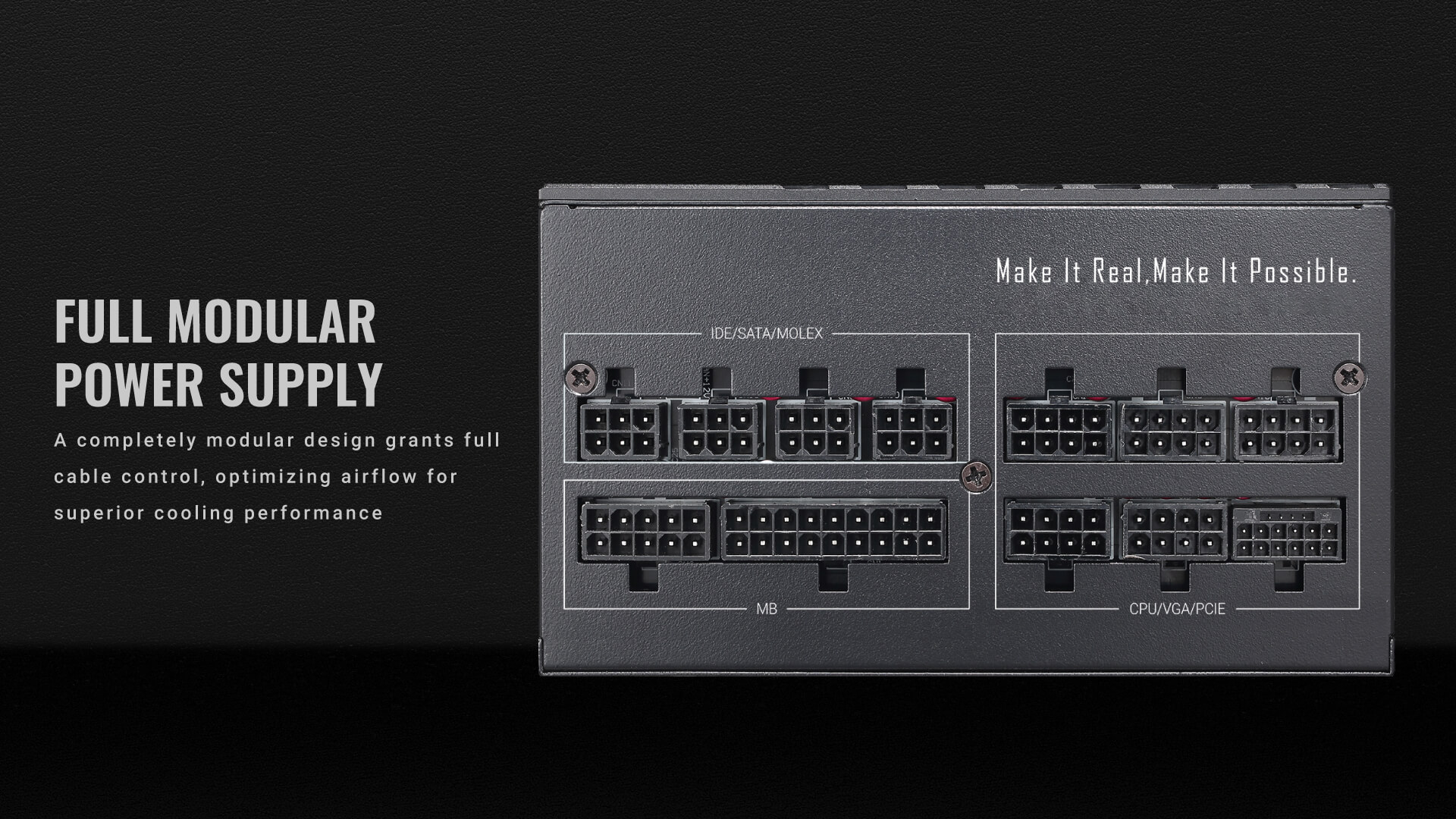

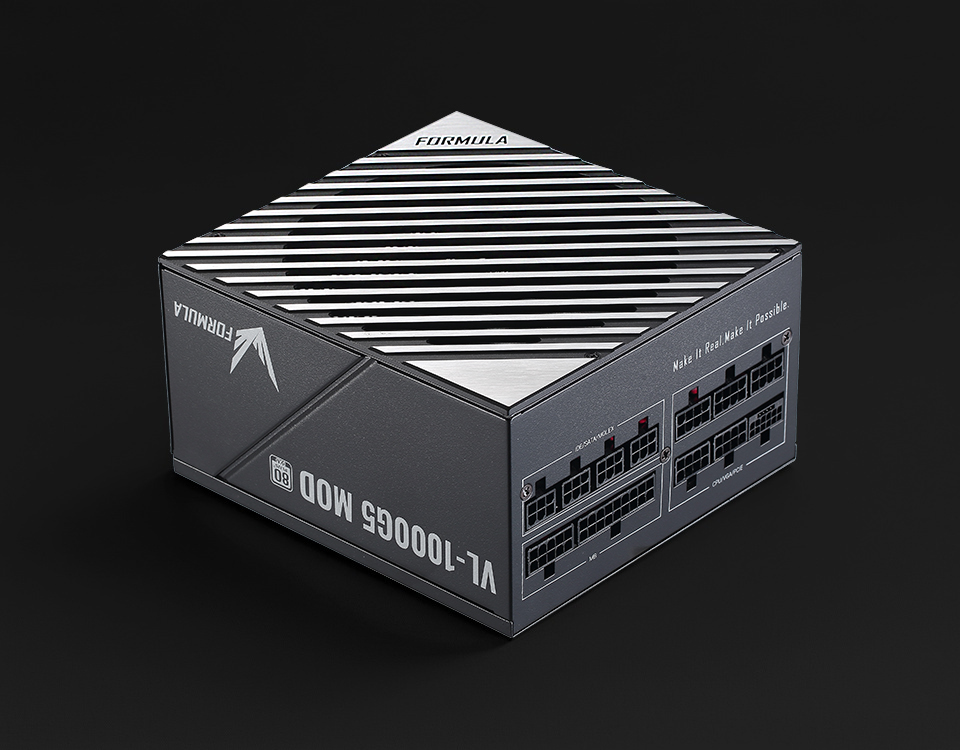

    • Full Modular Power Supply

      A completely modular design grants full cable control, optimizing airflow for superior cooling performance.

Comprehensive Protection

The comprehensive protection (OVP, OCP, UVP, OPP, SCP) allows you to use your power supply completely securely and confidently.

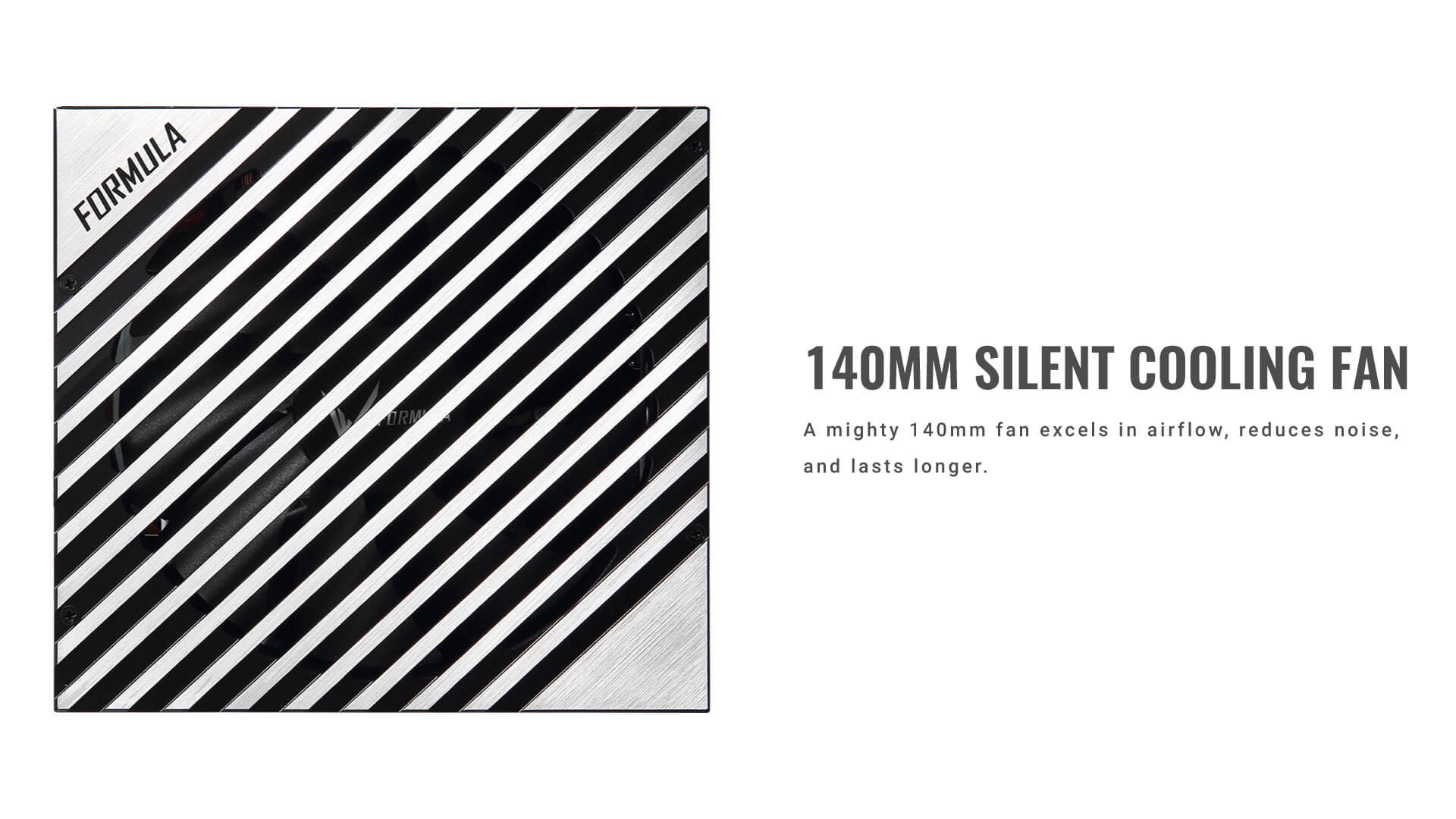

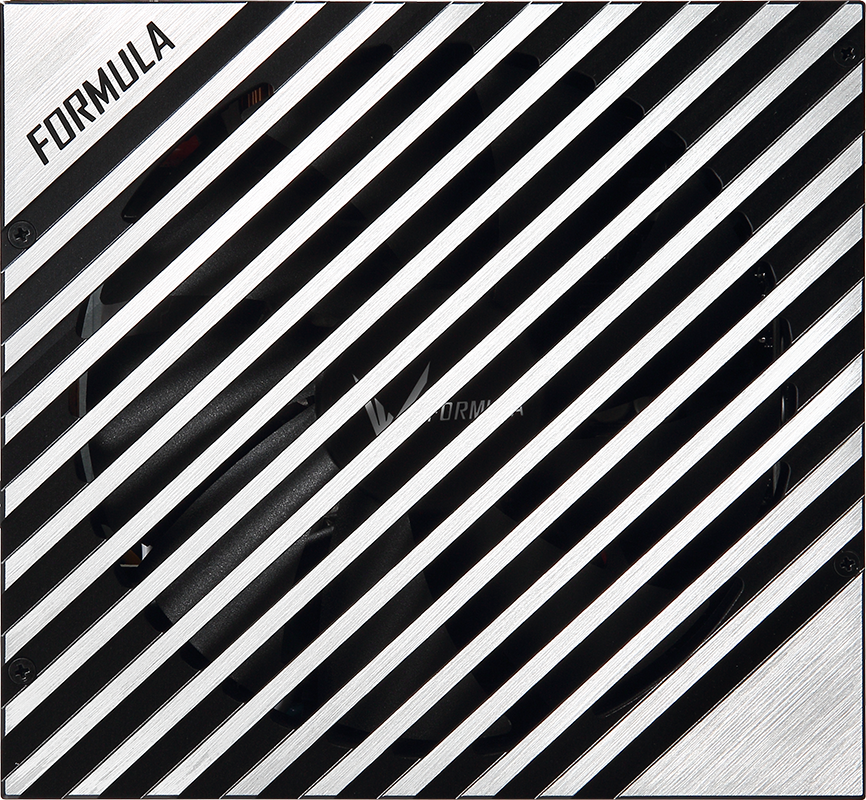

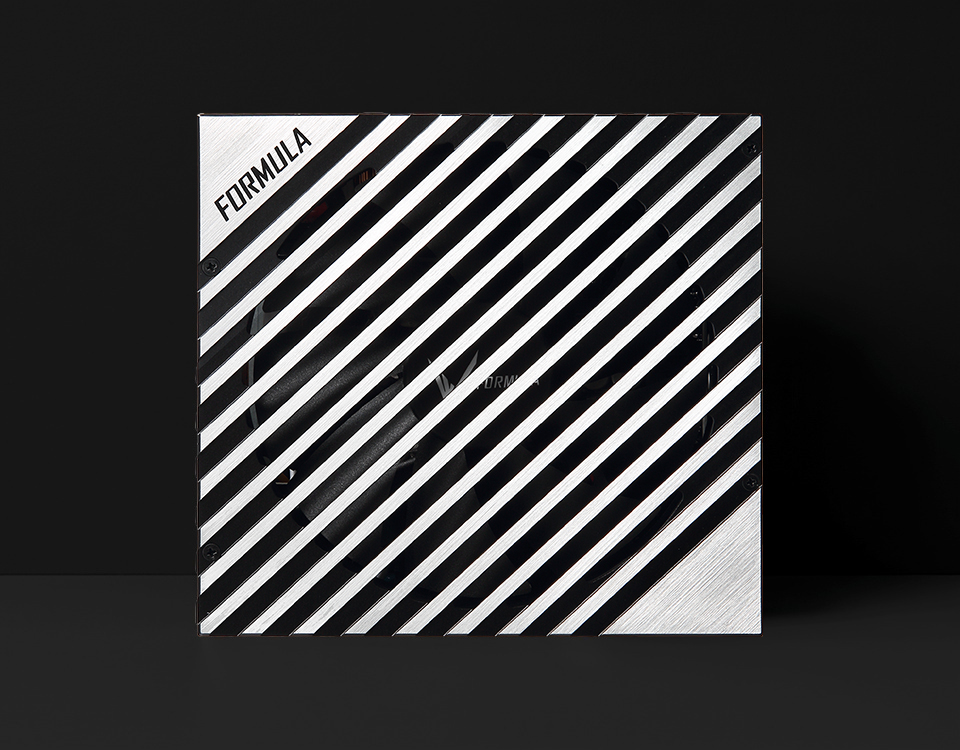

    • 140mm Silent Cooling Fan + Auto Thermal Control

      A mighty 140mm silent cooling fan with auto thermal control function excel in air flow, reduce noise and last longer.

    • More stable and efficient

      Supports the C6/C7 energy-saving state of intel’s latest processors, providing a more stable, efficient and energy-saving solution.

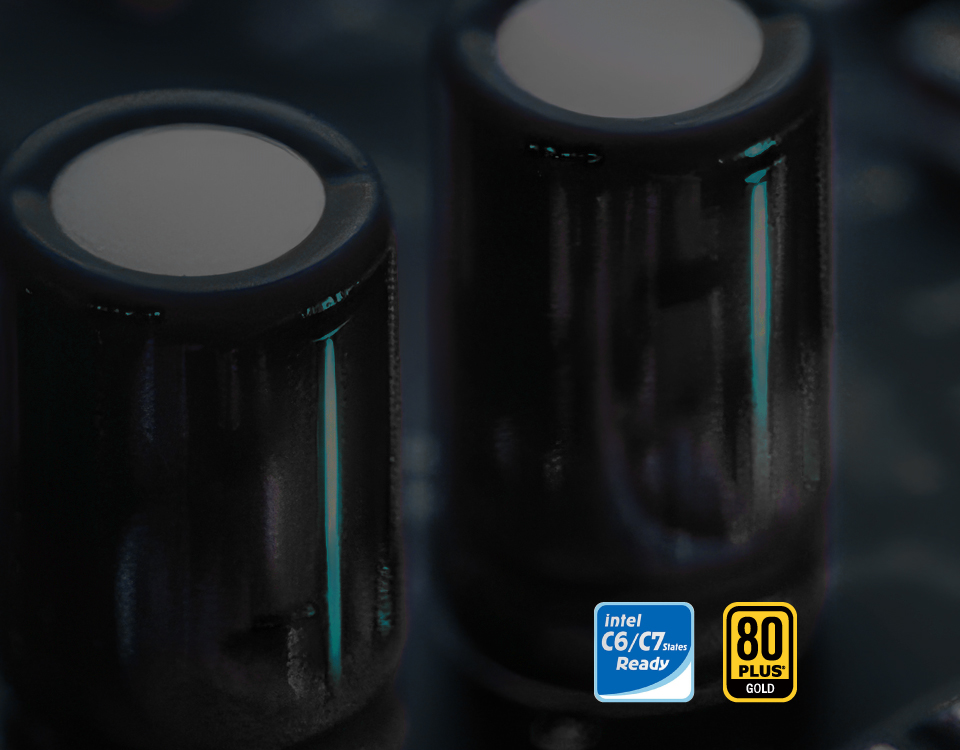

    • Uncompromising craftsmanship

      Using 100% high-quality Japanese electrolytic capacitors, it has high stability and reliability, extending the service life of the power supply.

Specifications

  • Model

    VL-1000G5 MOD

  • Dimension

    160 x 150 x 86mm

  • Real Watts

    1000W

  • Efficiency

    80Plus Gold

  • Input Voltage

    Full range

  • Type

    ATX3.1 / PCIe5.1

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    14CM Silent Black Fan

  • Modular

    Full Modular

  • Net Weight

    16.50 kg

  • Gross Weight

    17.40 kg

  • EAN

    VL-1000G5 MOD: 4711401660422

AC Input

  • AC

    110~240V / 12A-/ 50Hz

DC Output

  • 3.3V

    20A

  • 5V

    22A

  • 3.3V and 5V combined

    140W

  • +12V

    84A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    1000W

Cable SPEC

  • Mainboard

    20+4Pin 18AWG exposed length(600mm) x1

  • CPU

    4+4Pin 18AWG exposed length(700mm) x2

  • PCI-E

    PCI-E exposed length 6+2Pin(550mm)+ 6+2Pin(150mm) x3

  • PCIe5.1

    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (16AWG, 600mm, 600W) x1

  • SATA / IDE

    Sata 18AWG exposed length(500mm)+ Sata(150mm)+ Sata(150mm) x2

  • SATA / IDE

    Sata 18AWG exposed length(500mm)+ Sata(150mm)+ Molex(150mm) x1

  • SATA / IDE

    Molex 18AWG exposed length(500mm)+ Molex(150mm)+ Molex(150mm) x1
