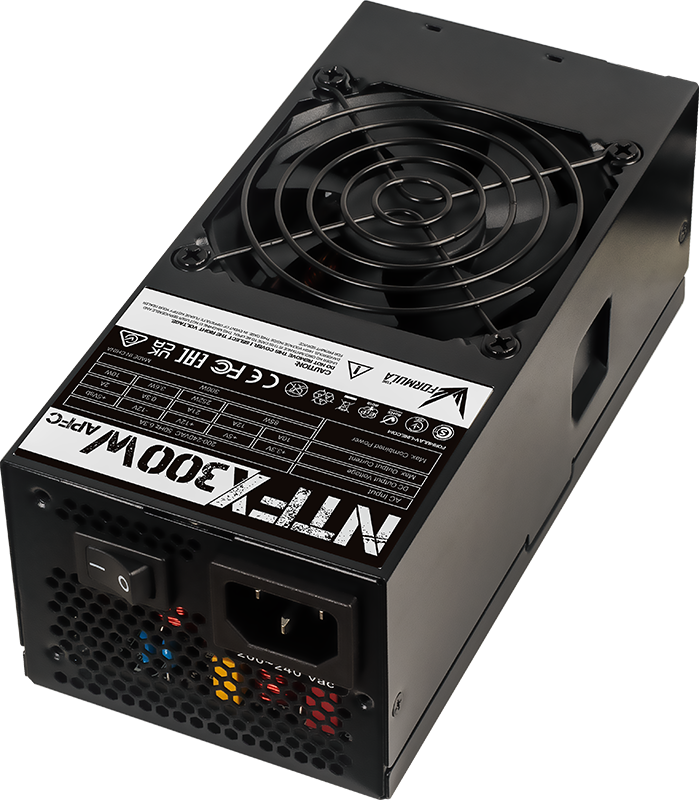

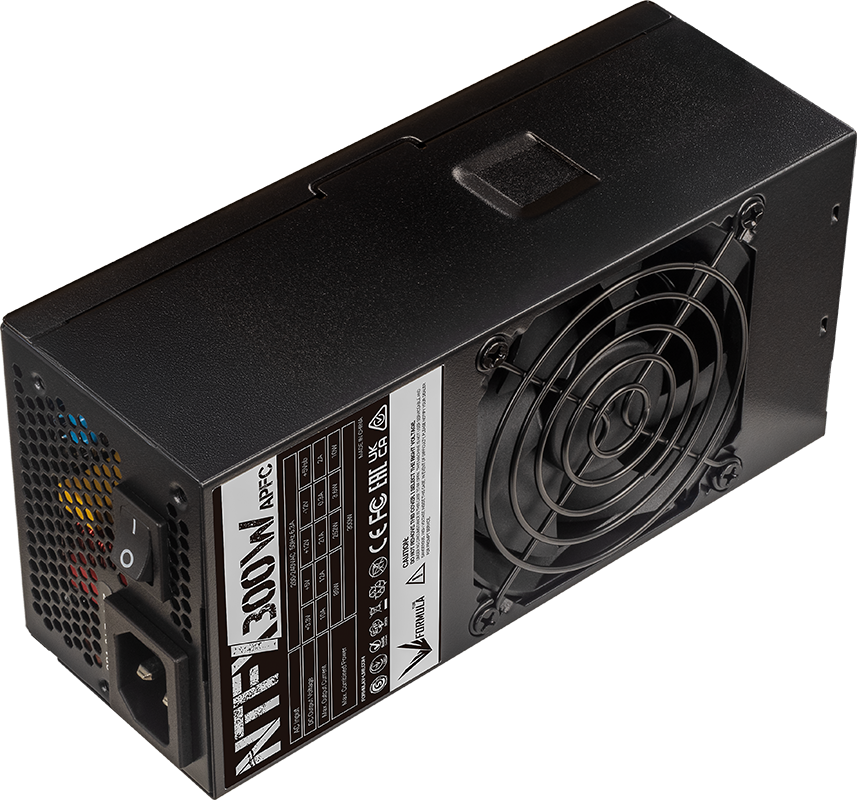

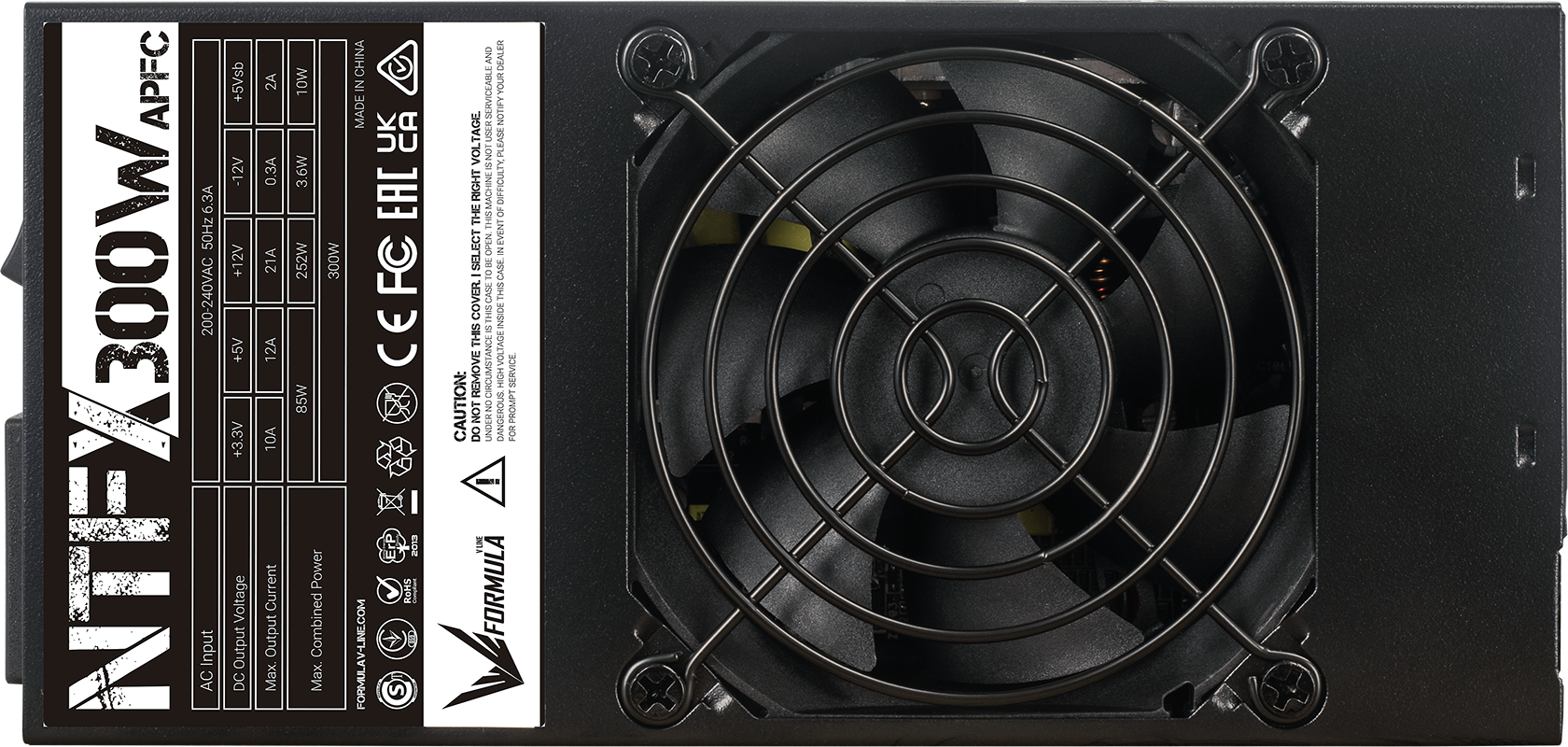

NTFX-300
The NTFX series power supplies provide reliable safety protections, including OVP, UVP, OPP, and SCP, to safeguard your system. They feature an elegant casing design that enhances airflow and ensure easy installation with sufficient cable length and connectors. Built with high-quality components, the NTFX series delivers trustworthy reliability for your system’s performance.
Variation

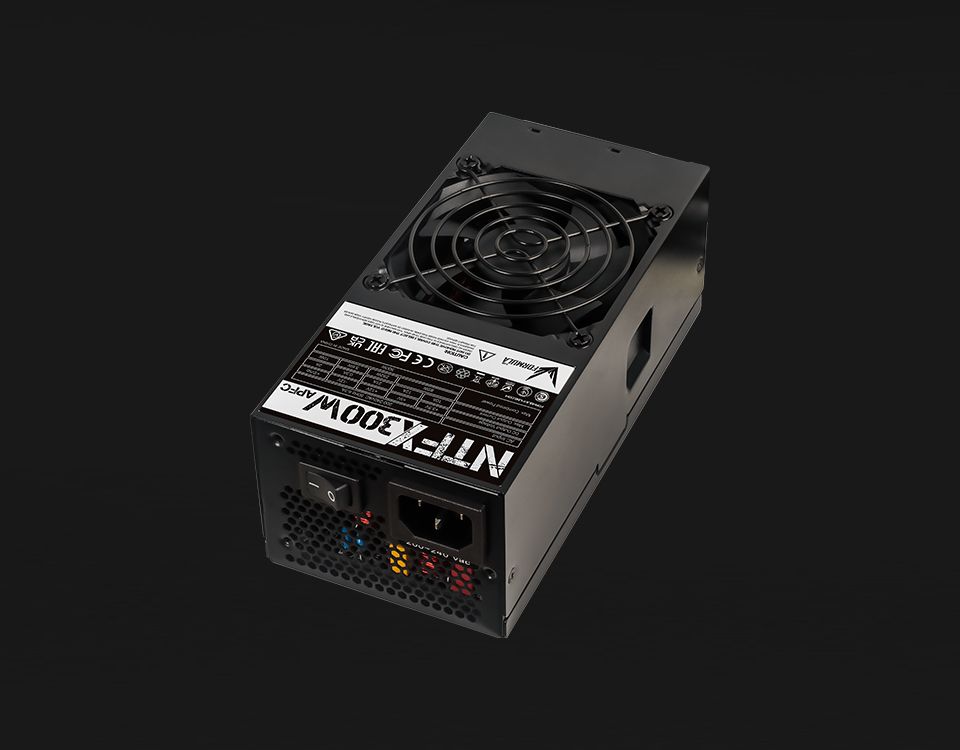

Elegant And Enhanced Airflow Casing Design
-
-
-
Elegant And Enhanced Airflow Casing Design
The power supply’s sleek casing is designed to enhance airflow, promoting better cooling and system performance.
-
-
-
-

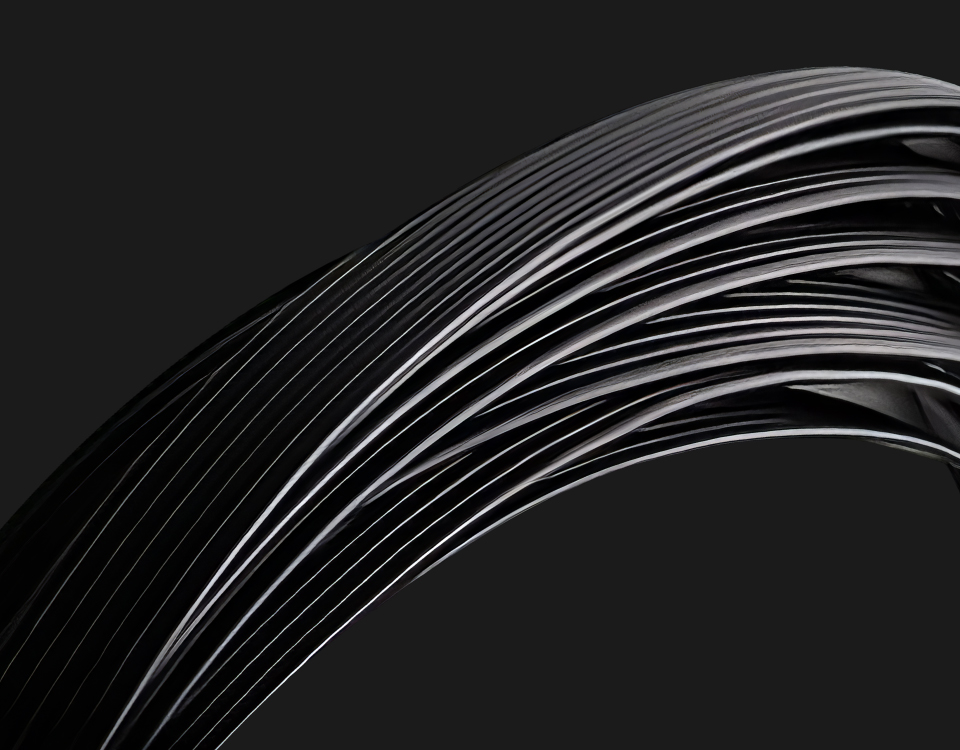

Sufficient Power Cable Length And Connectors
With ample cable length and a variety of connectors, the power supply ensures compatibility and easy installation in various cases.
-

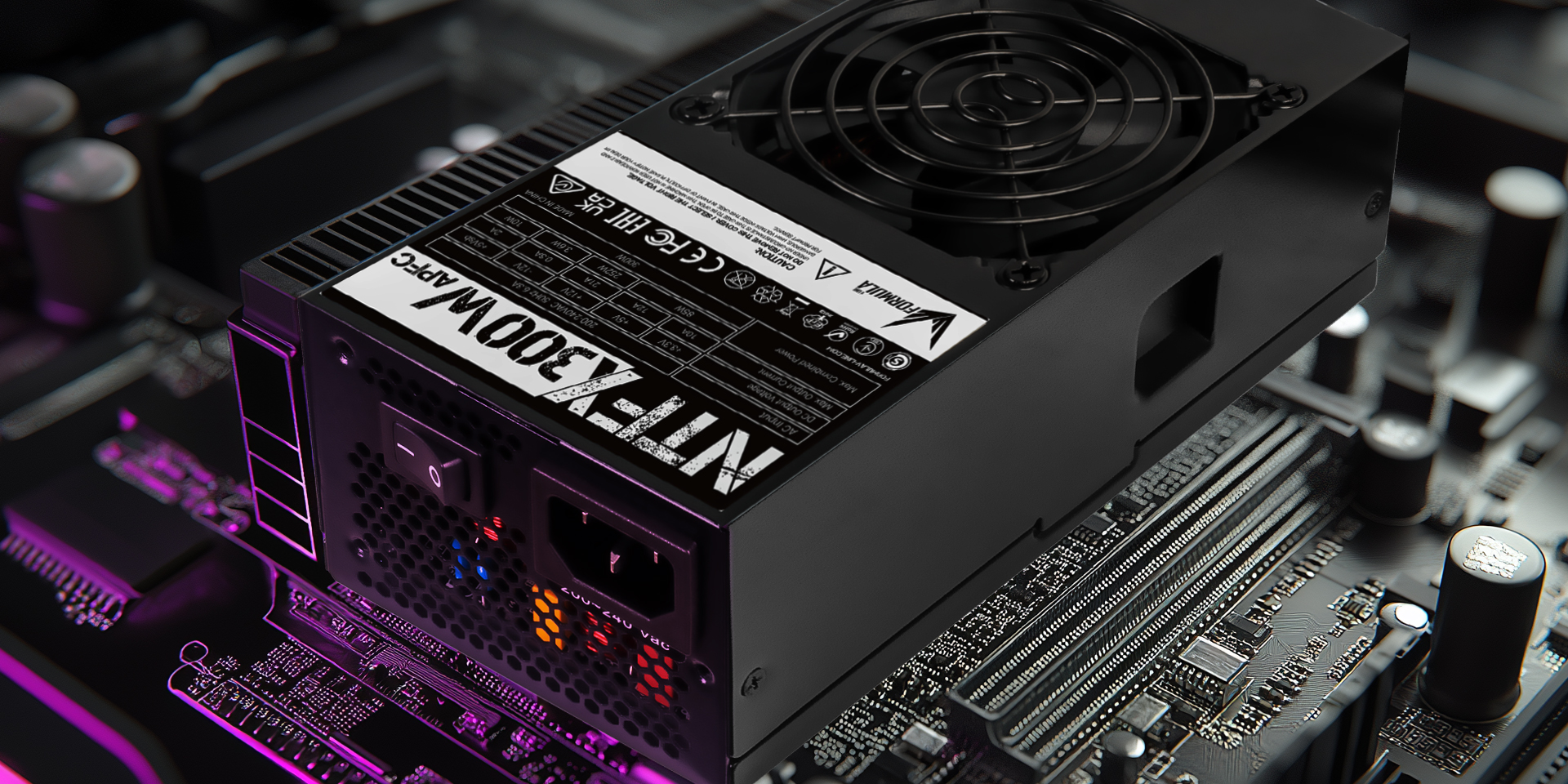

Power Up with Confidence: The Ultimate Protection in Your PSU
Engineered with top-quality components and rigorous testing, it’s built to withstand the most demanding usage scenarios, ensuring a stable and reliable power supply with OVP, UVP, OPP, SCP protection for your system.
-
-
-

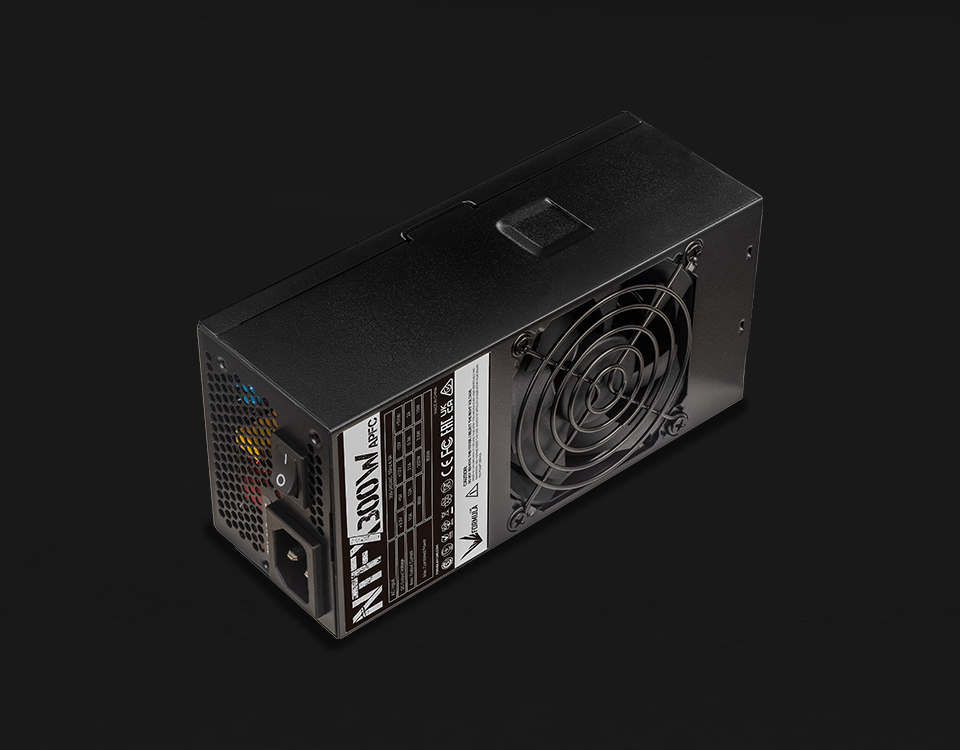

High-Quality Components Used for Trustable Reliability
The use of high-quality components ensures dependable reliability and long-lasting performance for your system.
-
Specifications
-
Model
NTFX-300
-
Dimension
175 x 82 x 41mm
-
Real Watts
300W
-
Input Voltage
230V
-
PFC
APFC
-
Fan
80mm
-
Modular
Direct Cable
-
Net Weight
11.20 kg
-
Gross Weight
11.88 kg
-
EAN
NTFX-300: 4711401662099

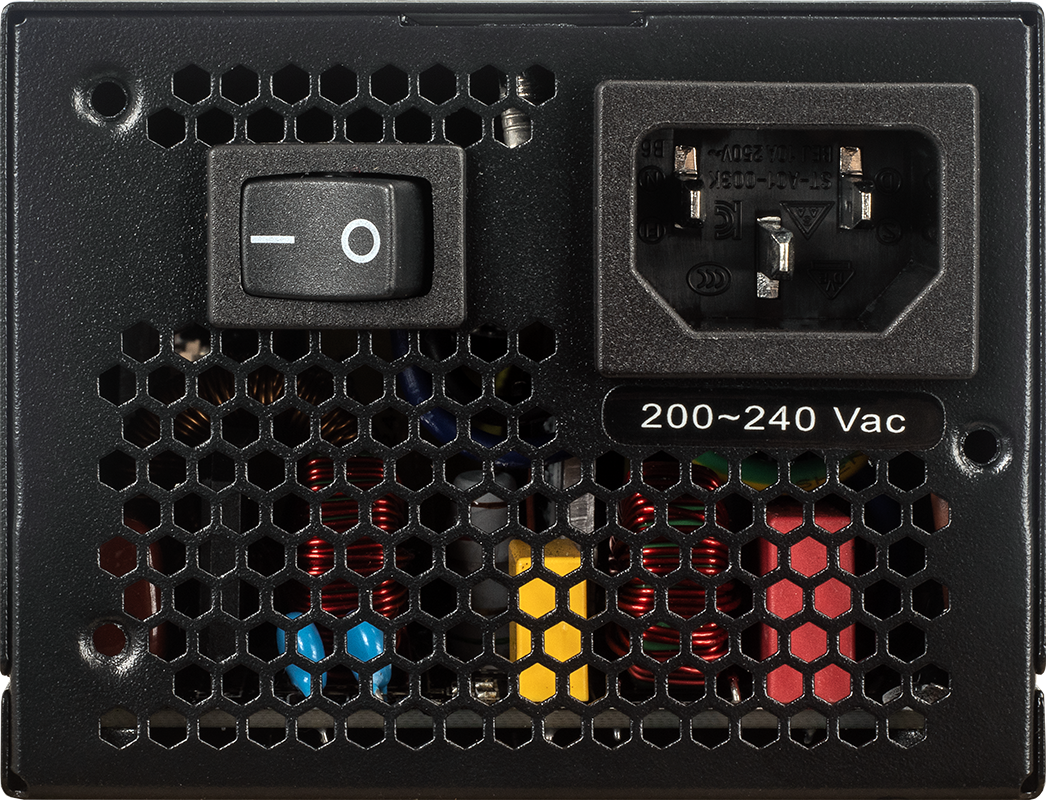

AC Input
-
AC
200-240VAC 50Hz 6.3A
DC Output
-
3.3V
10A
-
5V
12A
-
3.3V and 5V combined
85W
-
+12V
21A
-
-12V
0.3A
-
+5Vsb
2A
-
Total Power
300W
Cable SPEC
-
Mainboard
20+4Pin(370MM) x1
-
CPU
4+4/(400mm) x1
-
SATA / IDE
Sata+ Sata+ Molex+ Molex/370+150+150+150mm x1
-
SATA / IDE
