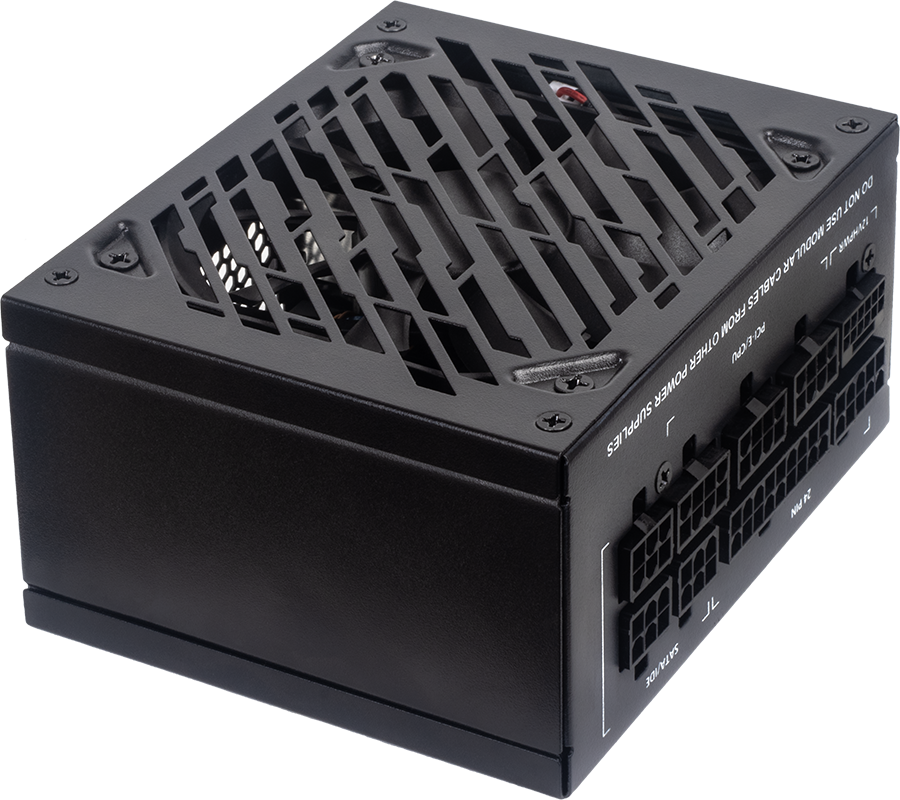

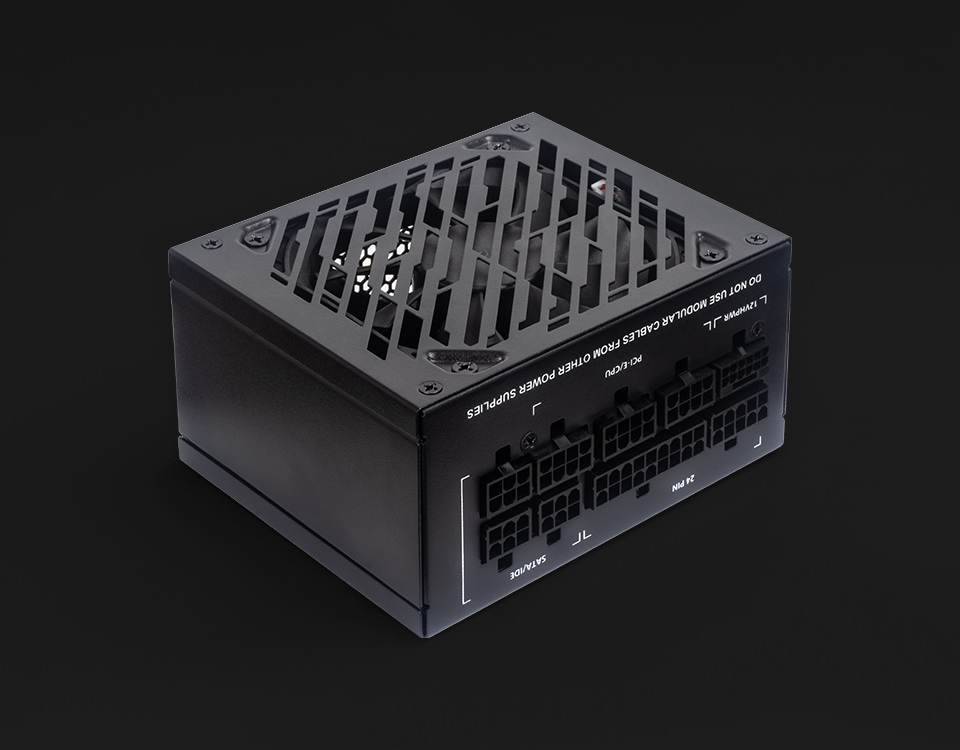

GSFX-800

The GSFX series power supplies feature a fully modular design for better cable management and airflow, along with an elegant casing for improved ventilation. With Japanese capacitors, 80Plus Gold efficiency, and ATX 3.1 & PCIe 5.1 compatibility, they offer reliable performance and robust safety features. The power supplies also provide sufficient cable length and connectors for versatility.

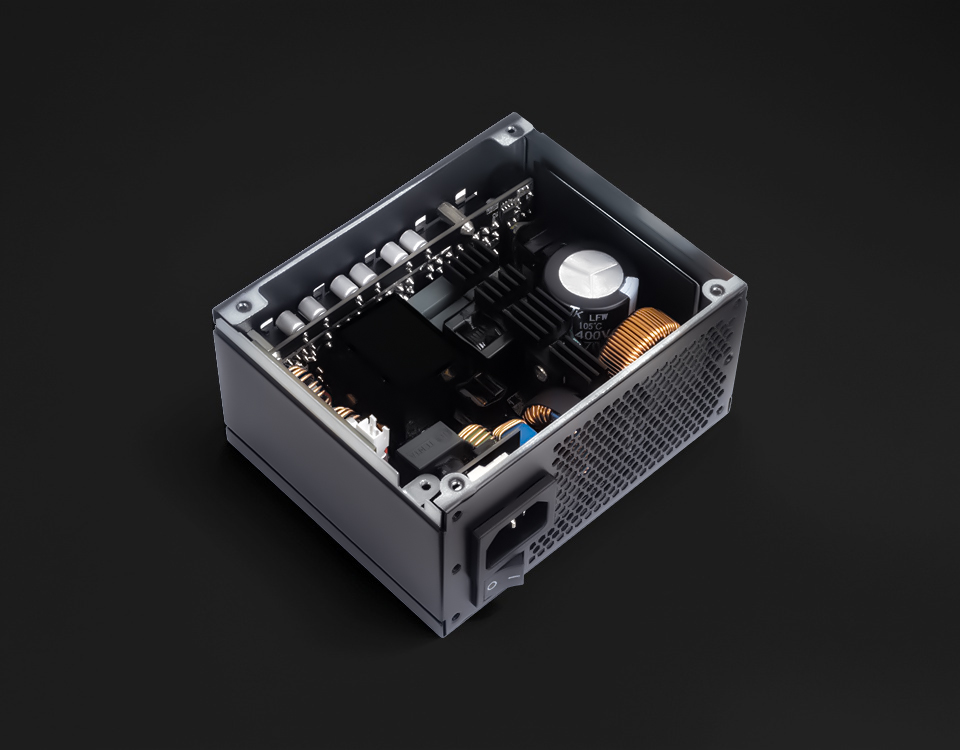

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

GSFX-1920x960

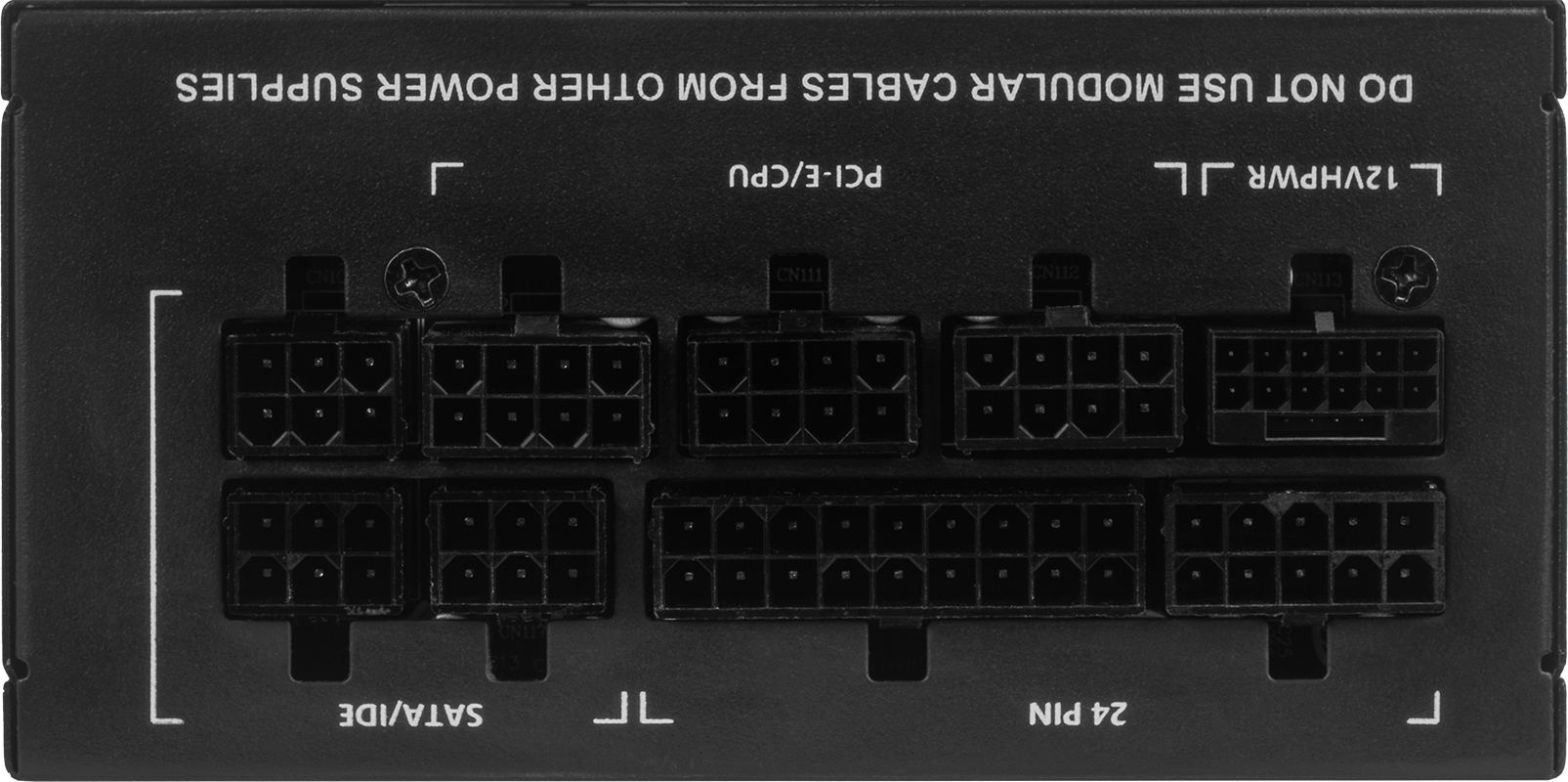

Efficient, Fully Modular Power

    • Efficient, Fully Modular Power

      The GSFX series fully modular power supplies provide dependable 80 PLUS Gold EU 230V efficiency, allowing you to use only the necessary cables for a tidier build..

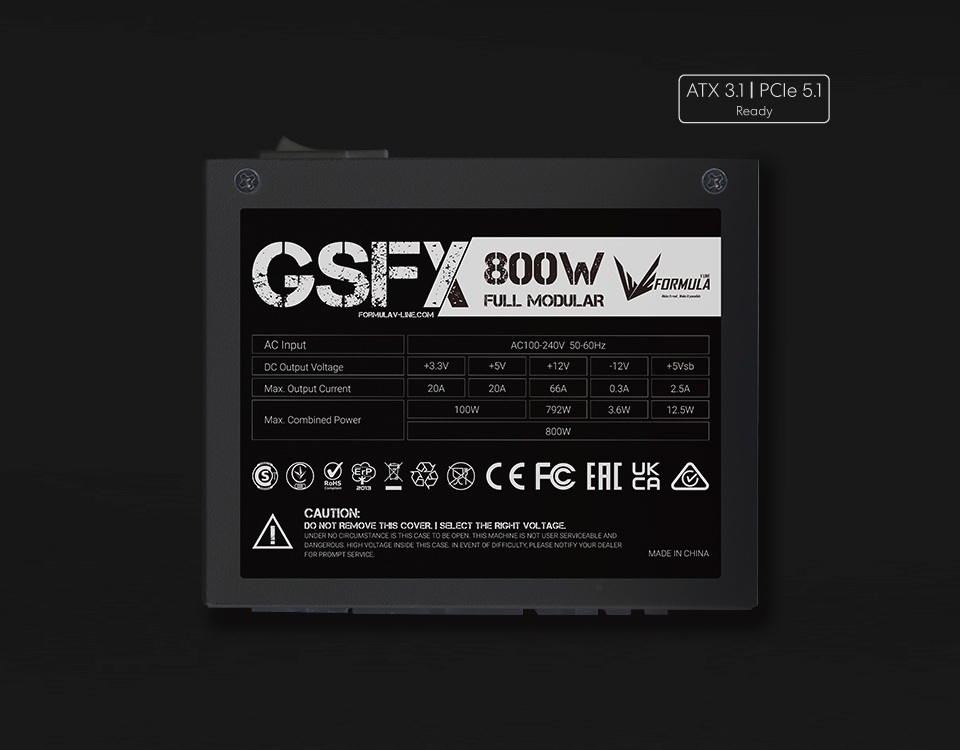

    • ATX 3.1 Ready: Embrace the Future

      The latest power specifications are here. ATX 3.1 introduces stricter voltage and current regulation standards for next-gen hardware. Included with the PSU is a 16-pin PCIe cable capable of delivering up to 800W to PCIe Gen 5.1 graphics cards, enabling high-performance power delivery for compact builds.

    • Uncompromising Craftsmanship

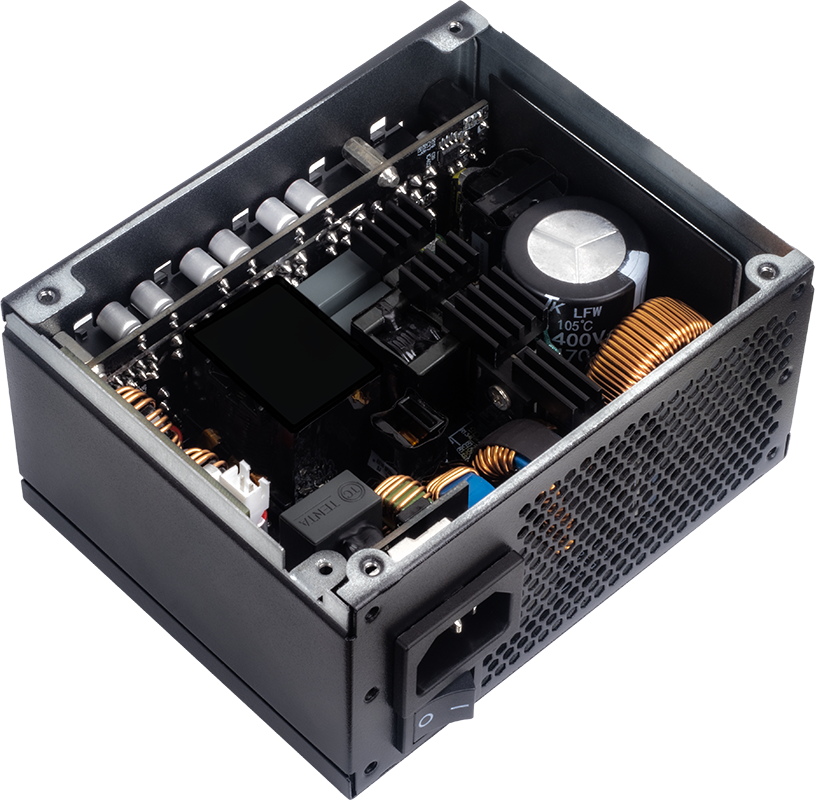

      Using 100% high-quality Japanese electrolytic capacitors, it has high stability and reliability, extending the service life of the power supply.

Power Up with Confidence: The Ultimate Protection in Your PSU

Engineered with top-quality components and rigorous testing, it’s built to withstand the most demanding usage scenarios, ensuring a stable and reliable power supply with OVP, UVP, OPP, SCP protection for your system.

    • Redefining Expectations

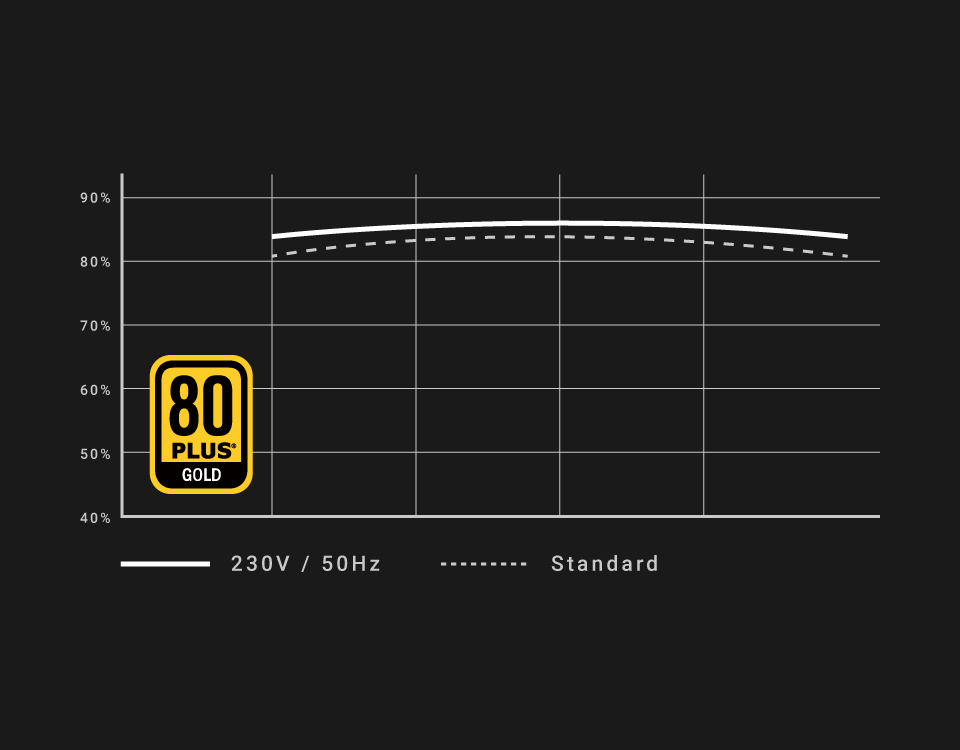

      Our 80Plus Gold 110-240V full-range PSU ensures an impressive 92% efficiency and 92% PFC ≥ 0.90 at a 50% load, minimizing energy waste and maintaining lower temperatures. This leads to substantial cost savings while ensuring optimal performance.

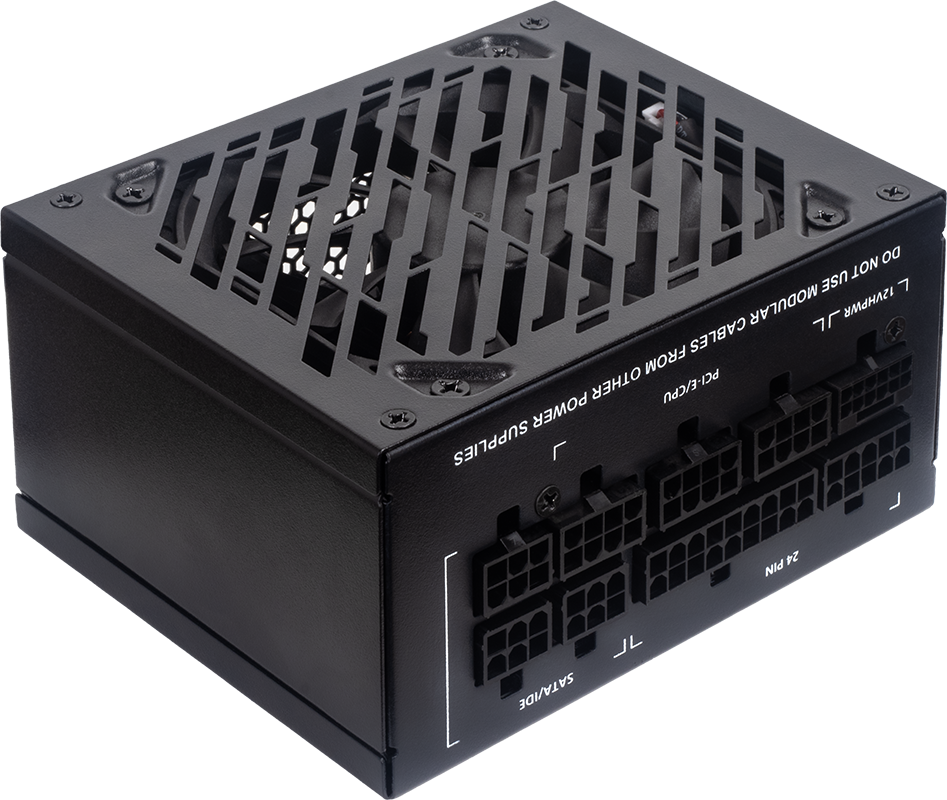

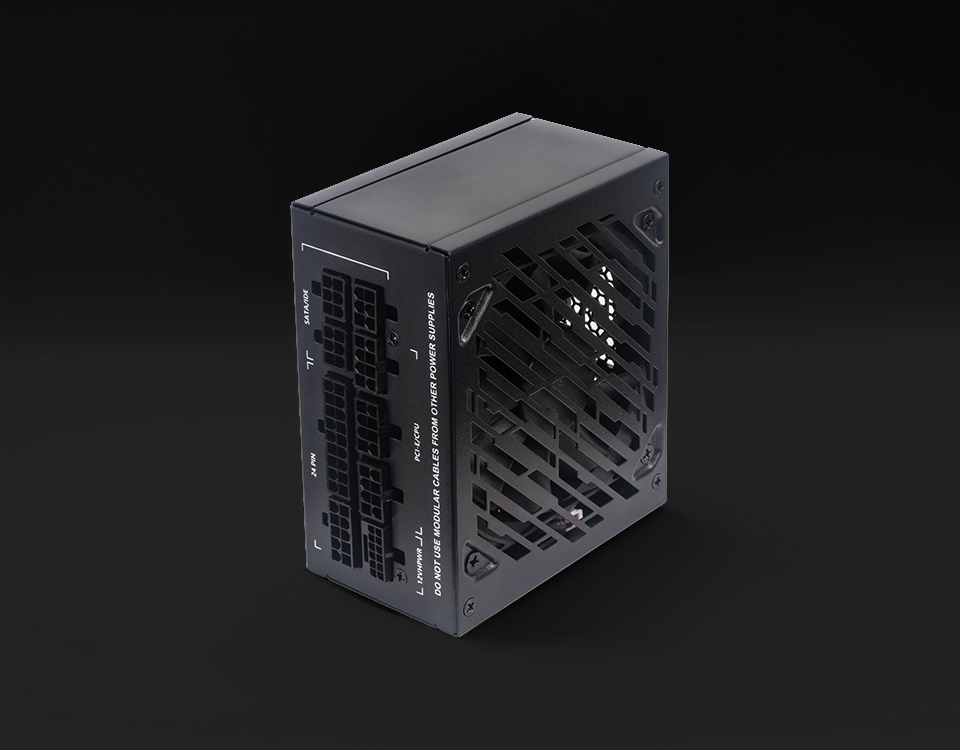

    • Elegant and enhanced airflow casing design

      The power supply’s sleek casing is designed to enhance airflow, promoting better cooling and system performance.

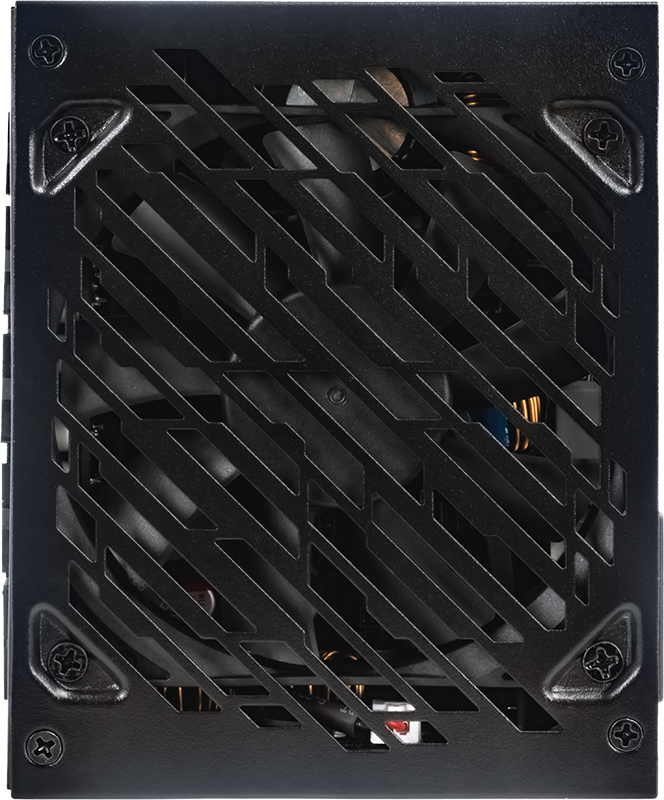

    • Whisper-Quiet Cooling Mastery For Your PSU

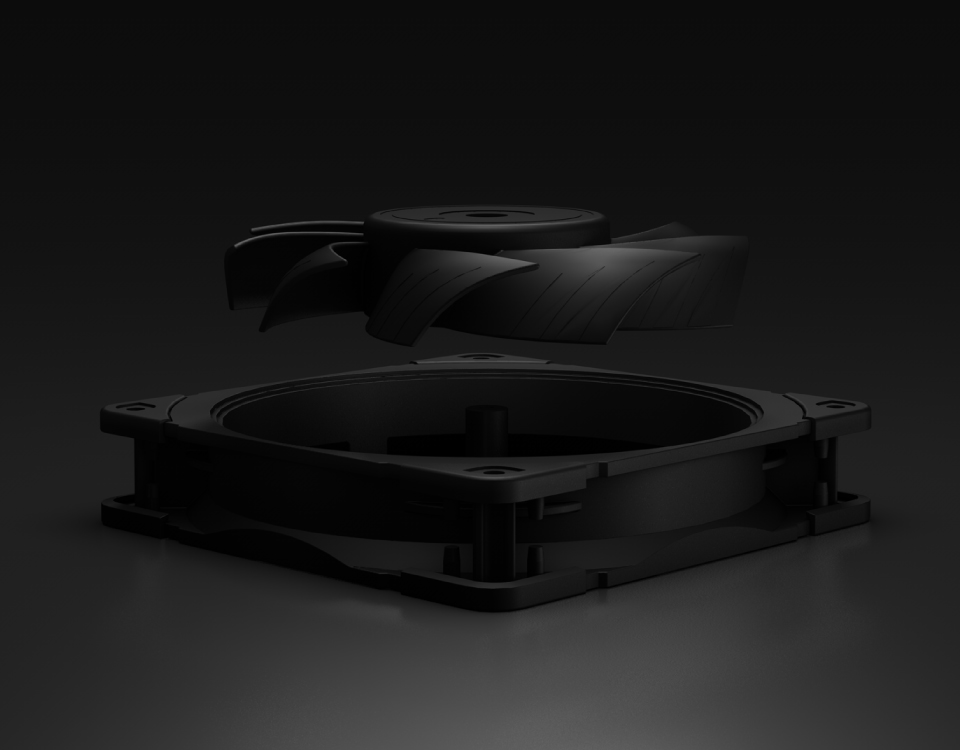

      Upgrade your PC’s cooling game with our Silent 12cm Hydro Bearing Fan featuring Smart Auto Thermal Control. This powerhouse addition to your PSU brings unparalleled tranquility and efficiency to your computing experience.

Specifications

  • Model

    GSFX-800

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    800W

  • Efficiency

    80Plus Gold

  • Input Voltage

    Full range

  • Type

    ATX3.1 / PCIe5.1

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    80mm

  • Modular

    Full Modular

  • Net Weight

    17.20 kg

  • Gross Weight

    18.09 kg

  • EAN

    GSFX-800: 4711401661559

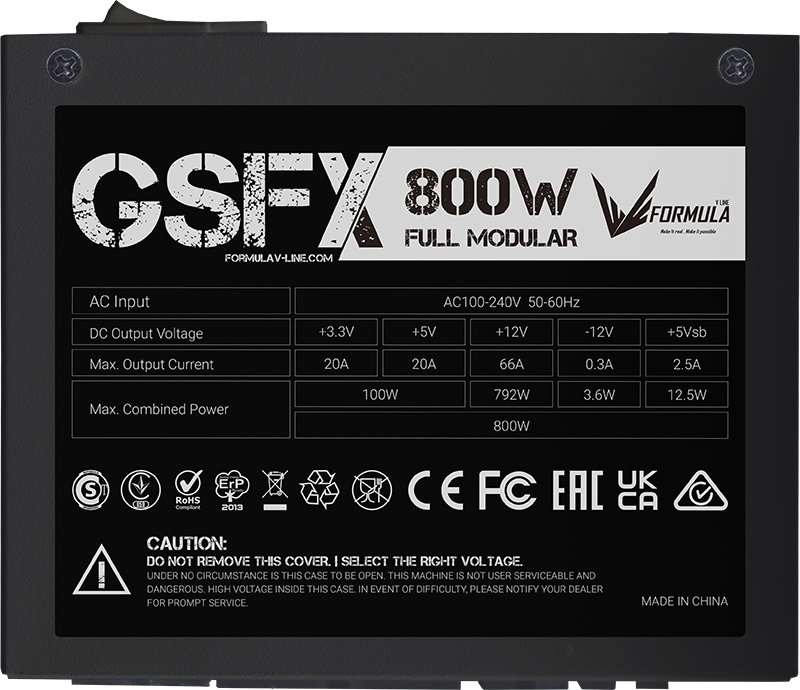

AC Input

  • AC

    100-240V 50-60Hz

DC Output

  • 3.3V

    20A

  • 5V

    20A

  • 3.3V and 5V combined

    100W

  • +12V

    66A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    800W

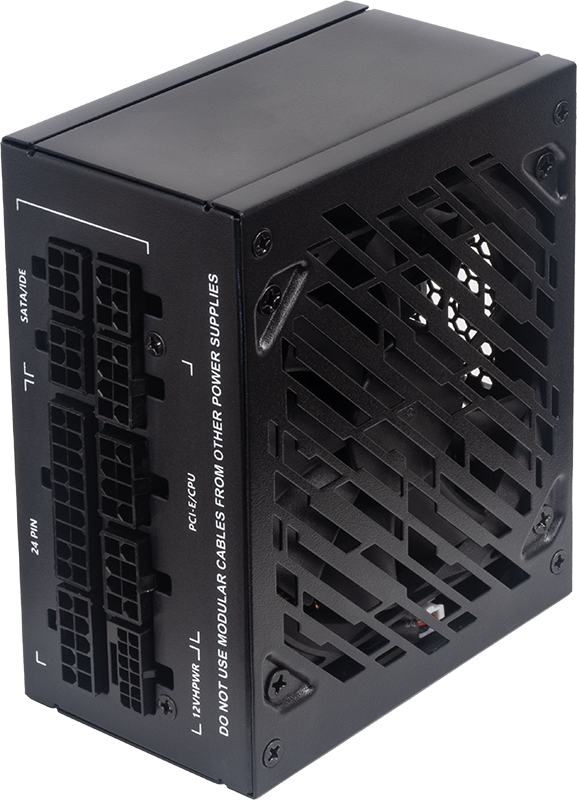

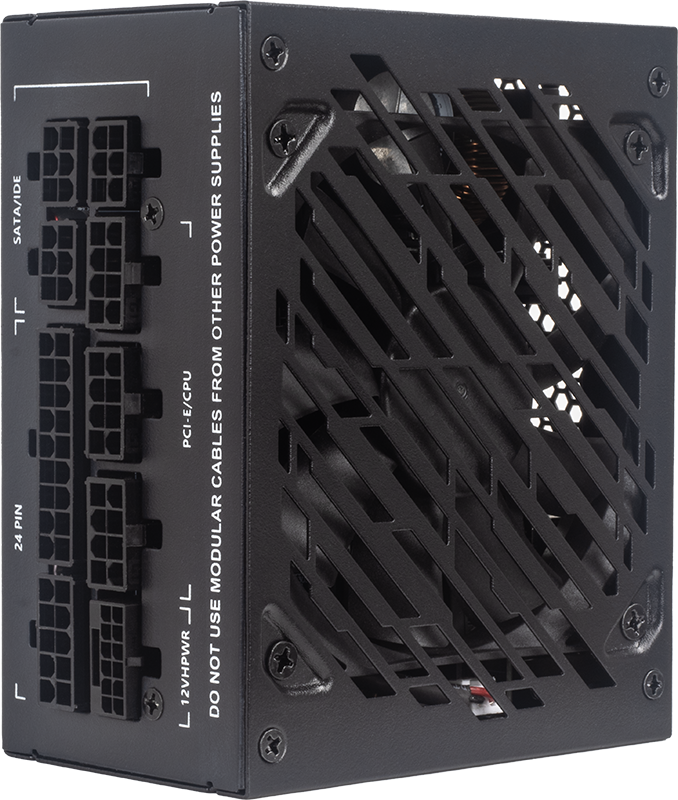

Cable SPEC

  • Mainboard

    （18+10）P To 20+4Pin(450MM) x1

  • CPU

    8P to P8(4+4)/(500+150mm) x2

  • PCI-E

    8P to (6+2)P to (6+2)P/450mm+150mm x2

  • PCIe5.1

    PCIe 5.1 H++ 12V-2X6 12VHPWR 16Pin (450mm, 600W) x1

  • SATA / IDE

    6P to Sata+ Sata+ Sata/450+ 150+ 150mm x2

  • SATA / IDE

    6P to Molex+ Molex+ Molex/450+ 150+ 150mm x1
