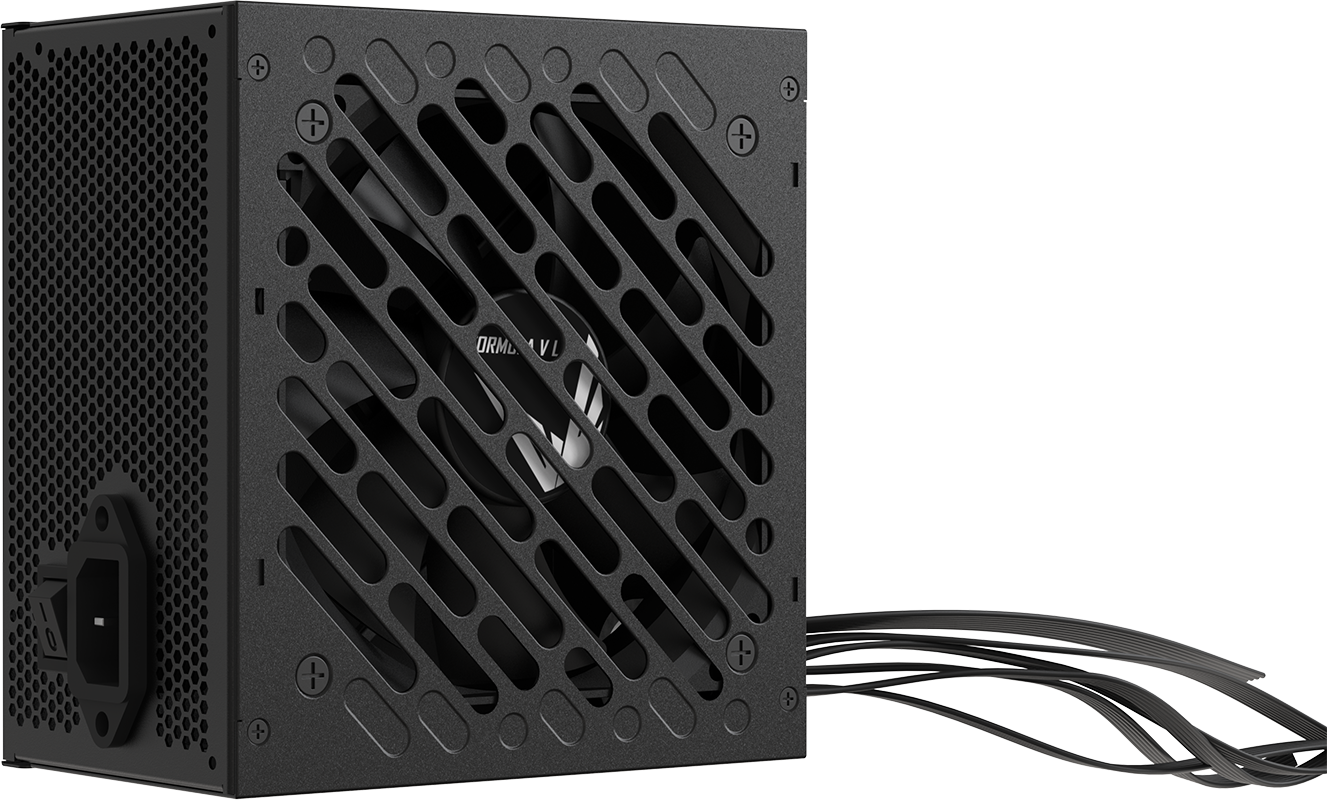

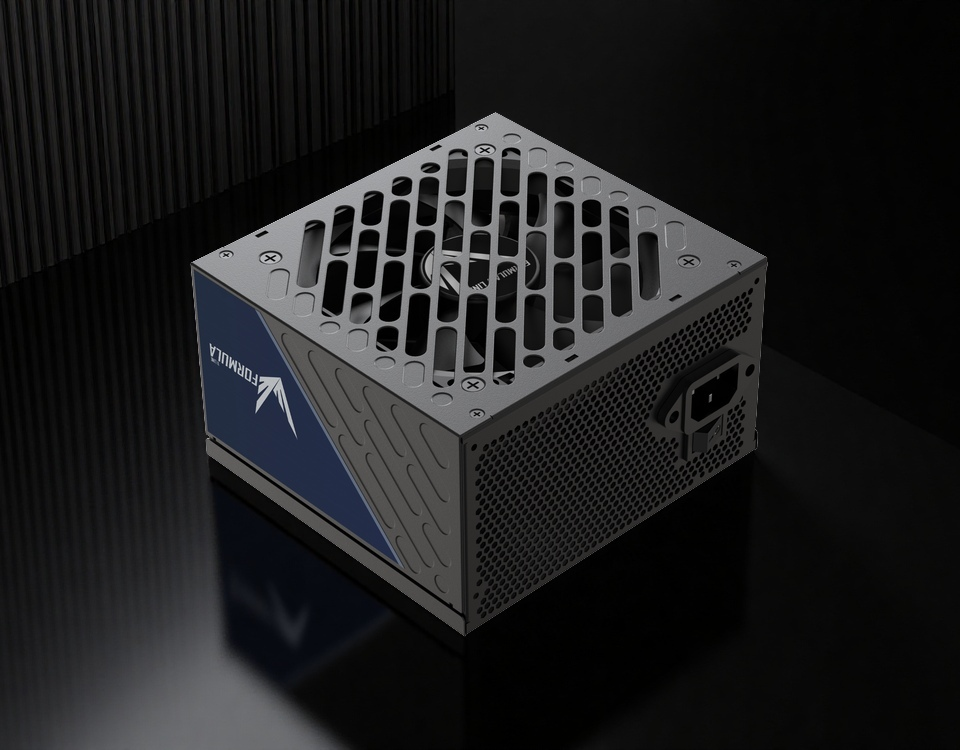

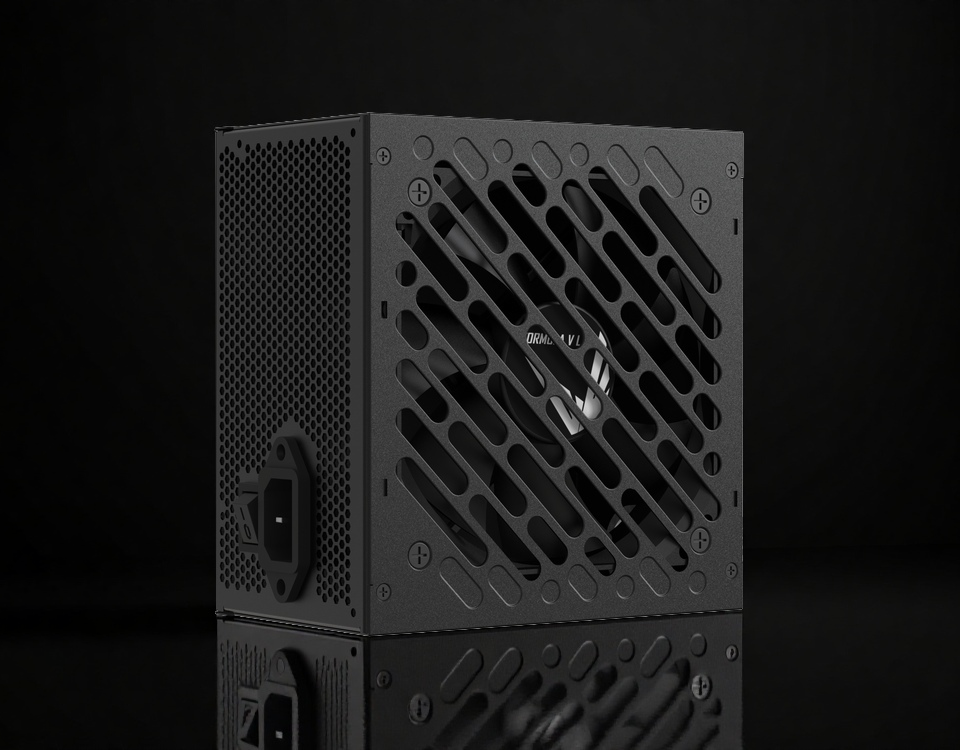

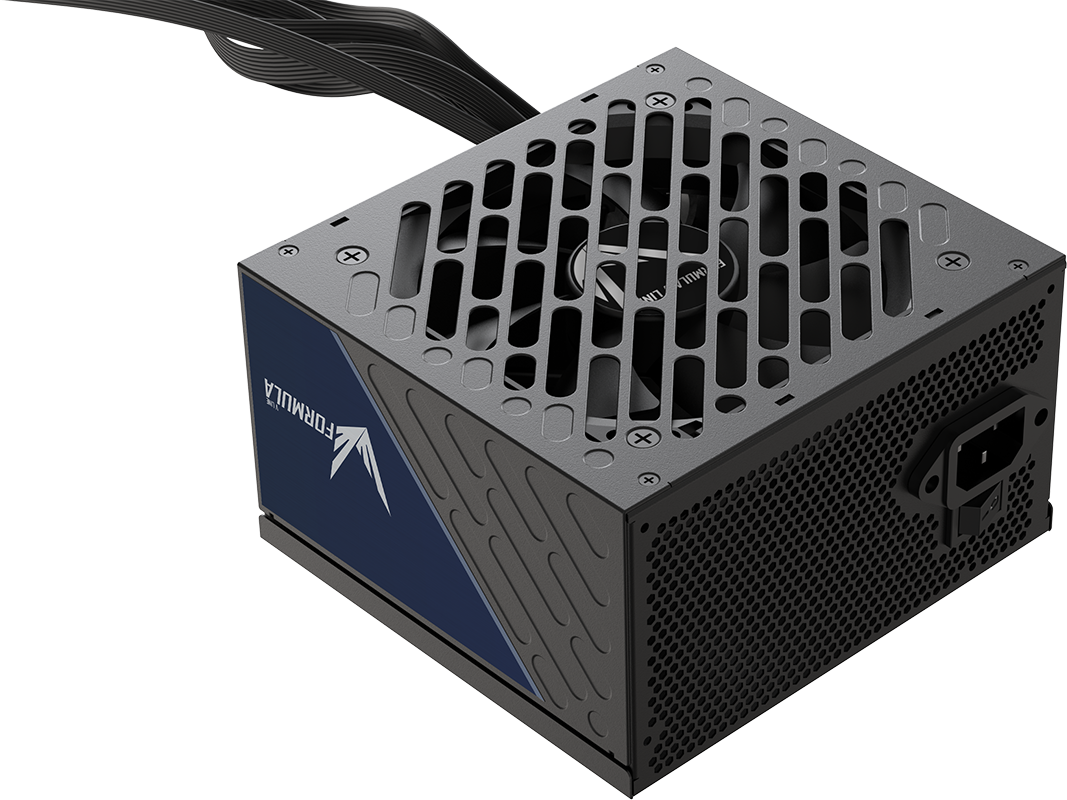

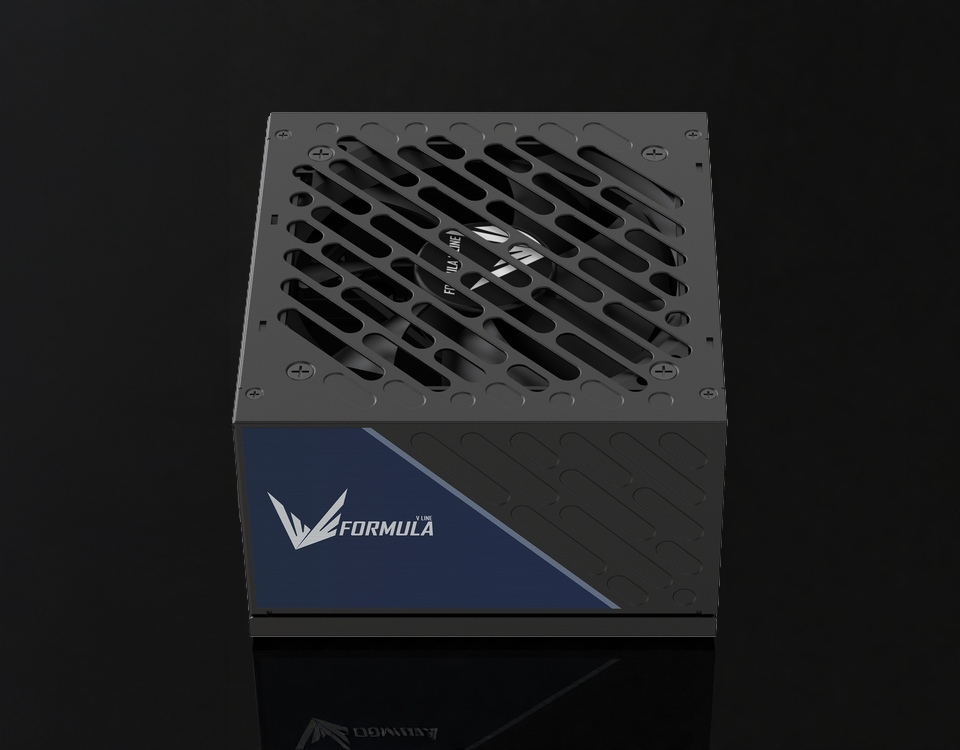

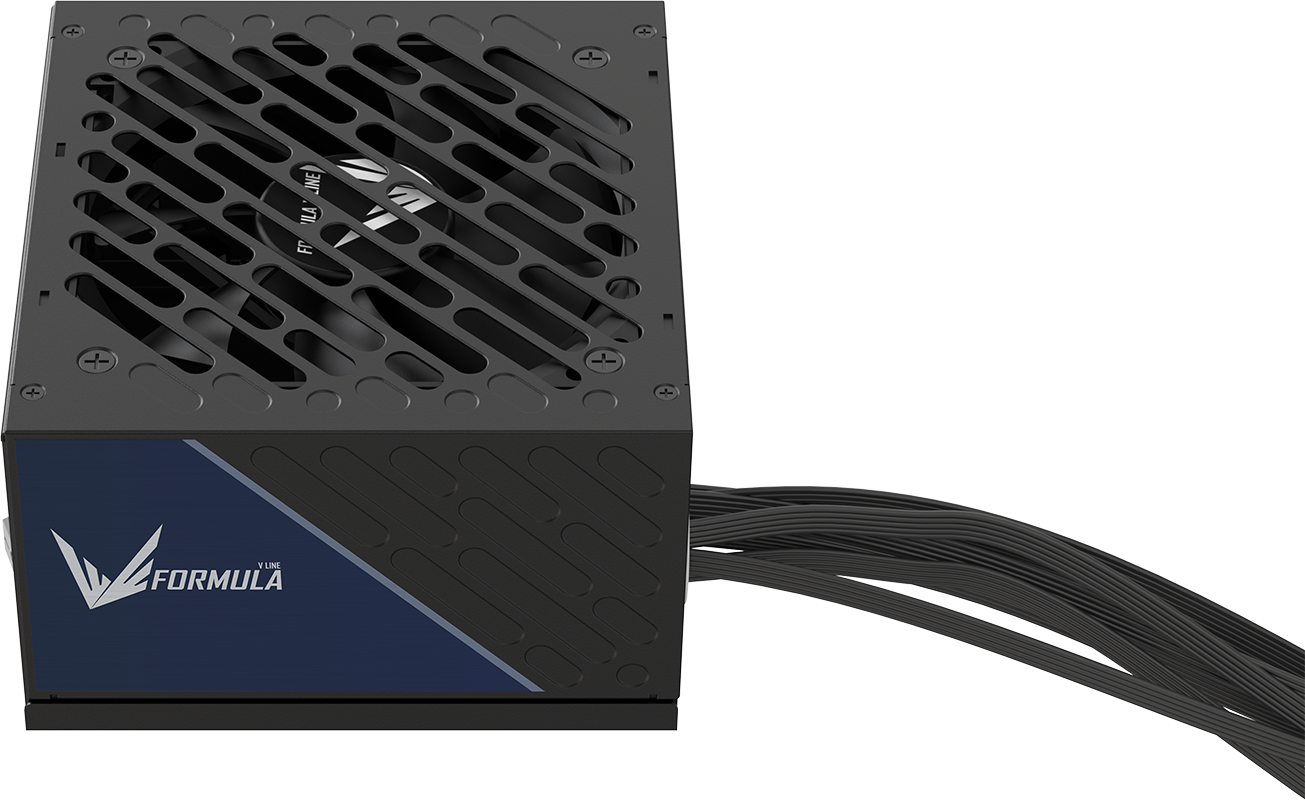

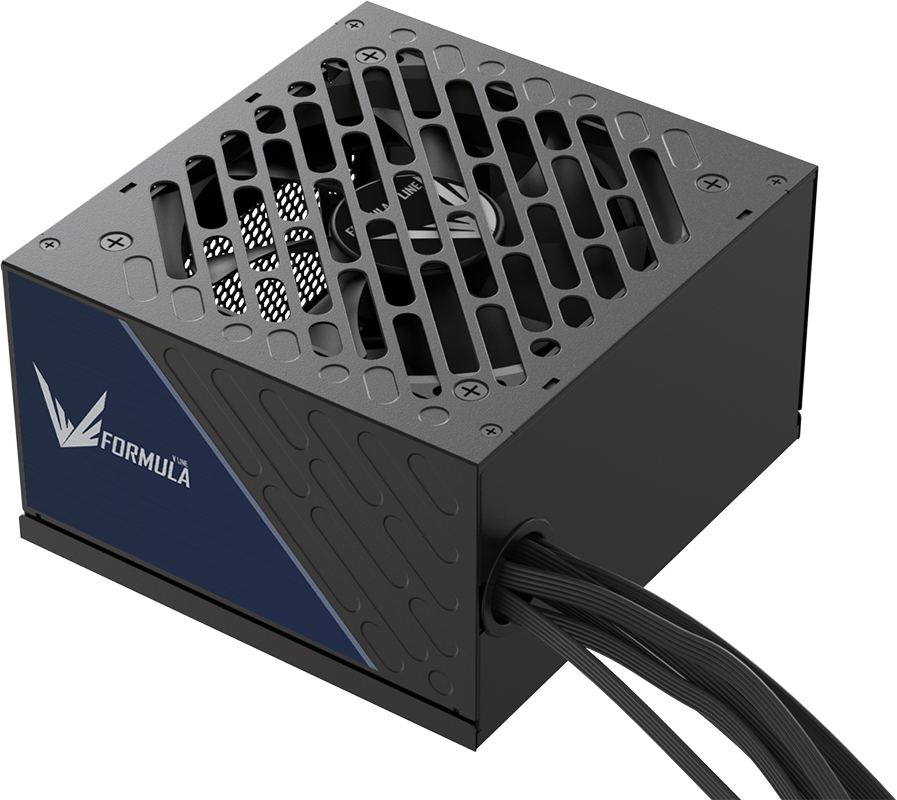

FV-650LT

The FV LT Series is designed for stable daily operation in office PCs and entry-level systems. With built-in Active PFC and optimized cooling design, it provides consistent output and quiet performance for everyday use.

Warranty periods may vary by region; please inquire with your point of purchase for details.

Variation

Color

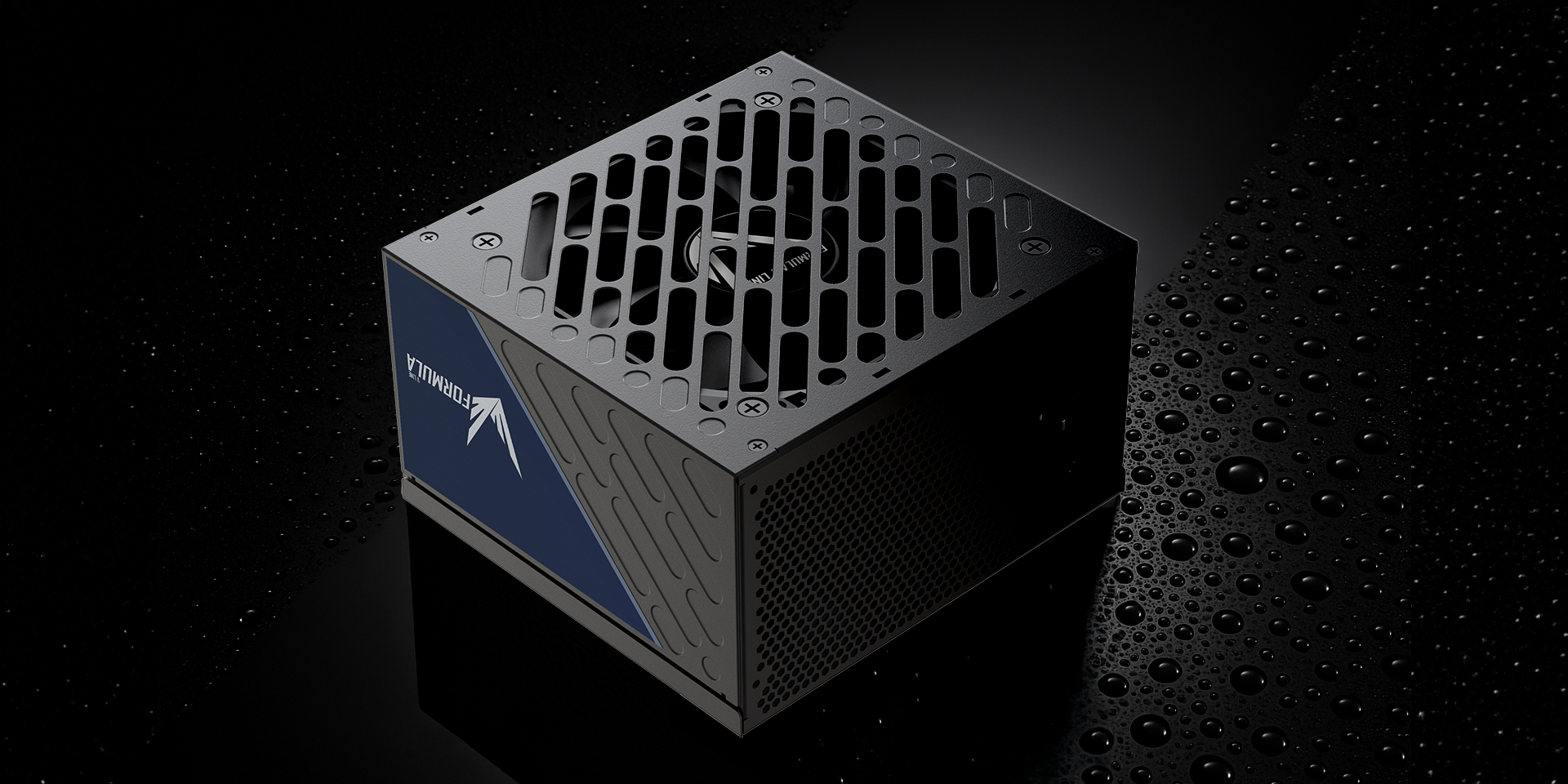

FV-LT-1920x960-(1)

Reliable Power. Smart Choice.

    • Real Rated Power Output

      Delivers stable and reliable continuous wattage output, ensuring your system receives true rated power without compromise. Ideal for everyday builds and entry-level gaming systems.

    • Built-in Active PFC (APFC)

      Active PFC improves power conversion efficiency and reduces electrical noise, delivering cleaner and more stable power to all components.

    • 230V Single Voltage / 100–240V Full Range Input Options

      Available in both 230V only and 100–240V full-range versions, giving users flexibility for different regions and system requirements.

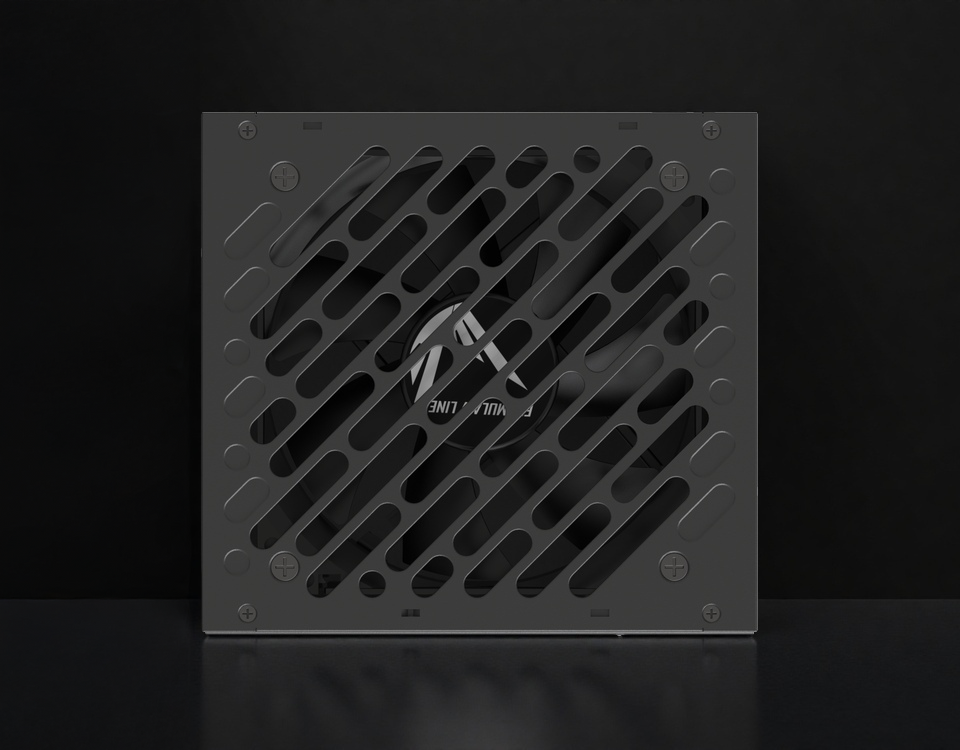

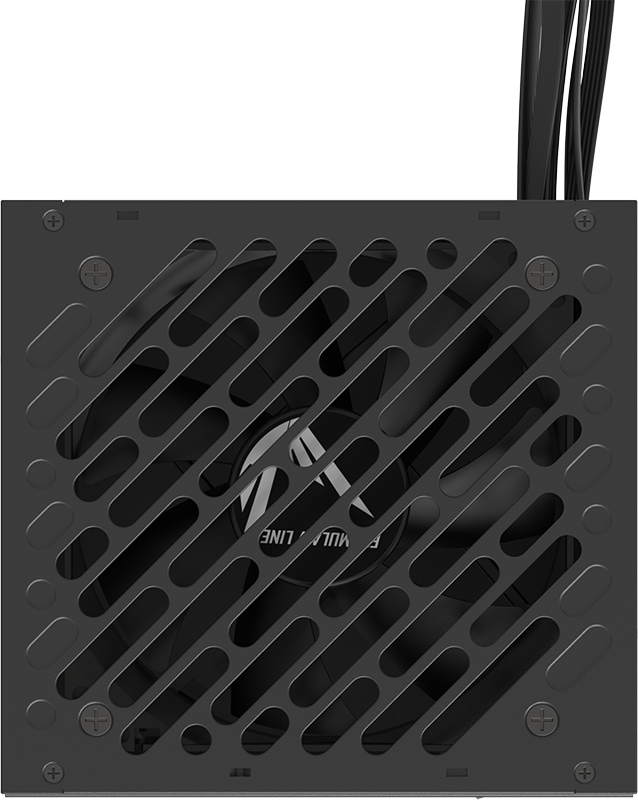

    • Silent Cooling Fan Design

      Equipped with a silent fan optimized for low noise and effective cooling, balancing quiet operation with stable thermal performance.

    • Multi-Protection Design

      Includes OVP, OPP, SCP, and UVP safety protections to secure system components and ensure stable operation under all conditions.

    • Cost-Effective Power Solution

      Offers essential features, stable performance, and reliable power delivery at an affordable price—an ideal choice for budget-friendly builds.

    • 2-Year Warranty for Essential Protection

      Covered by a solid 2-year warranty, this PSU delivers dependable performance and reliable coverage for everyday computing and entry-level builds.

      Warranty periods may vary by region. Please consult your point of purchase for local details.

Specification

  • Model

    FV-650LT

    FV-650LT (US)

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    650W

  • Input Voltage

    FV-650LT: 230V

    FV-650LT (US): 100-240V

  • PFC

    APFC

  • Fan

    120mm

  • Modular

    Direct Cable

  • Net Weight

    kg

  • Gross Weight

    kg

  • EAN

    FV-650LT: 4711401667773

    FV-650LT (US): 4711401667834

AC Input

  • AC

    FV-650LT:200-240V~50-60Hz 6.5A

    FV-650LT (US): 100-240V~50-60Hz 10A

DC Output

  • 3.3V

    20A

  • 5V

    16A

  • +12V

    50A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    650W

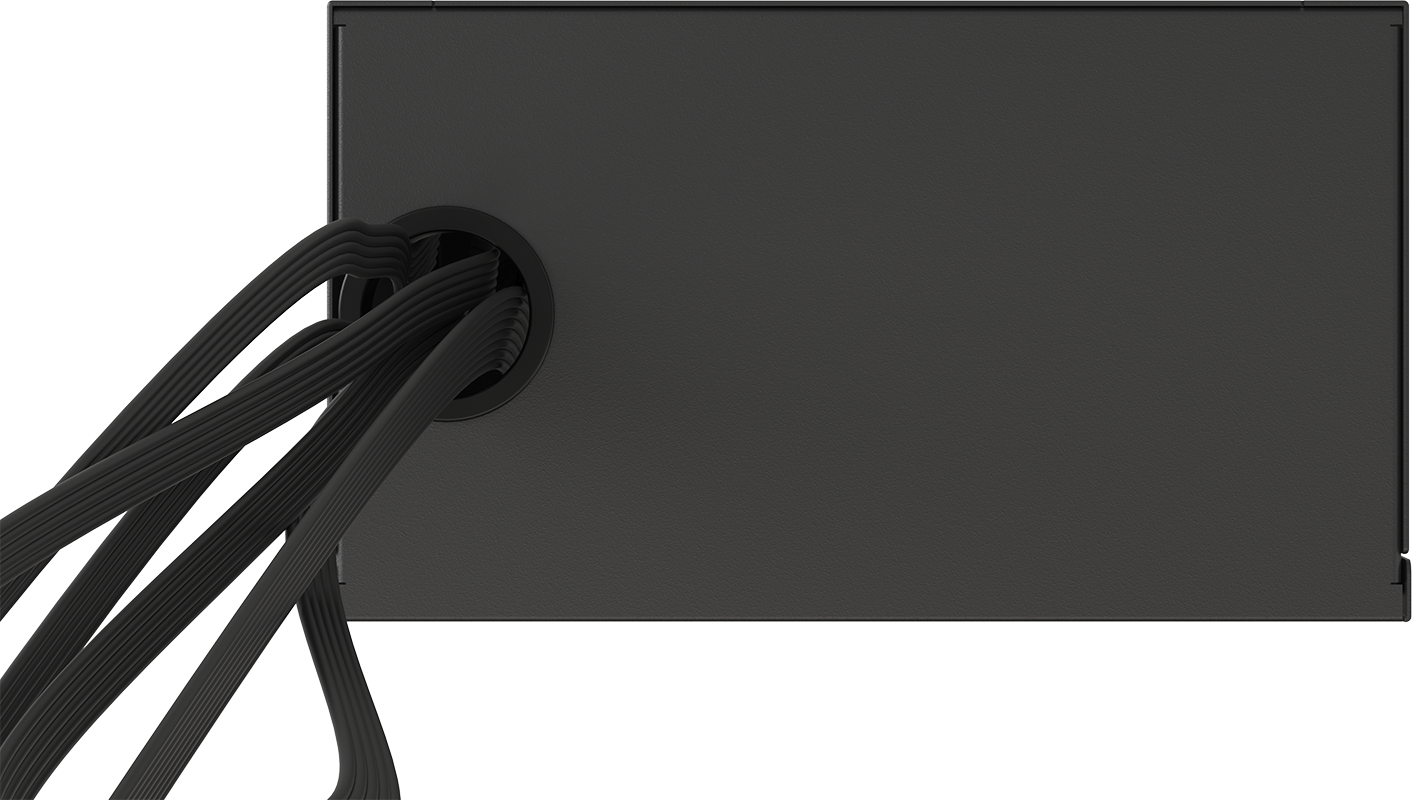

Cable SPEC

  • Mainboard

    20+4P(500mm) x1

  • CPU

    4+4P(550mm) x1

  • PCI-E

    6+2P(400mm) + PCIe6+2P(150mm) x1

  • SATA / IDE

    SATA(350mm) + PATA(150mm) x1

    SATA(350mm) + SATA(150mm) + SATA(150mm) + PATA(150mm) x1
