Crystal Z1CM | Z1CM Plus

Crystal Z1CM Series

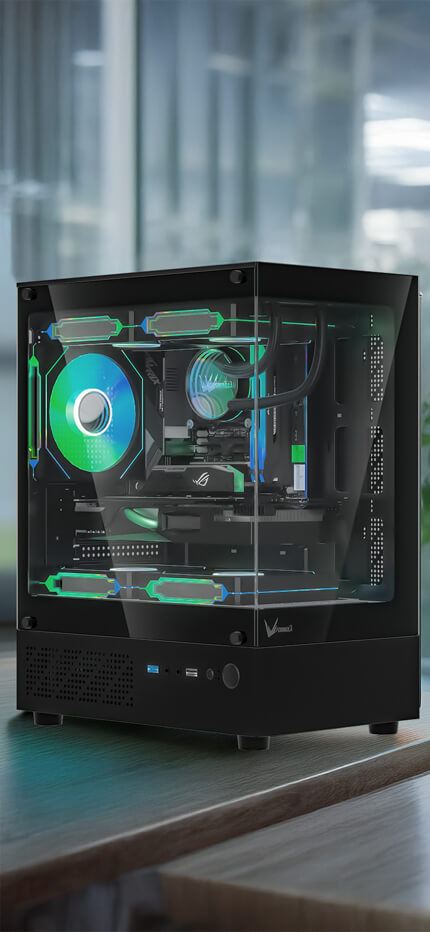

Experience a stunning panoramic view with the Crystal Z1CM series. Both models feature full tempered glass front and side panels for a clear showcase of your hardware and a sleek, modern aesthetic.

The standard Z1CM combines elegant design, optimized cooling, and clean cable management—ideal for gamers who want style and performance.

The Z1CM Plus enhances the experience with ARGB or FRGB fan options and refined layout improvements, offering a balance of performance, aesthetics, and lighting personalization.

The cooling and hardware layout shown in the product photos is for reference only.

Please check the website’s product specifications for the actual configuration.

Variation

Type

Z1CM-1920x960-(2)

Seamless Glass Showcase

    • Seamless Glass Showcase

      Showcase your build with elegance using panoramic tempered glass front and side panels, offering a wide, unobstructed view of your PC’s interior.

    • Versatile Cooling Options

      The Crystal Z1CM series supports up to 5 fans to help you fine-tune airflow and cooling performance. Side panel air vents improve circulation, while bottom-mounted fans provide direct cooling for your GPU.

      The Z1CM Plus model comes with fan options—choose Cosmic 12 ARPW for customizable lighting or Cosmic 12 FR for a fixed, radiant glow—letting you match performance with your personal style.

Compatibility and Expandability

The Crystal Z1CM series supports Micro-ATX and Mini-ITX motherboards, offering flexibility for compact builds. It accommodates CPU coolers up to 160mm tall and graphics cards up to 280mm, allowing you to make the most of your hardware.

The Z1CM Plus model shares the same compatibility but adds enhanced cable routing space and cooling clearance for an optimized building experience.

    • Dual Chamber Design

      The Crystal Z1CM series features a practical dual chamber layout that makes cable management simple and efficient. This design improves airflow and keeps the interior clean and organized to maximize performance.

      Both the Z1CM and Z1CM Plus offer ample space for routing and concealing cables, with the Plus version providing enhanced layout refinement for even tidier builds.

Convenient Access To Your Media

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top. Featuring USB 3.0 and Type C ports, along with HD audio, you’ll have all your essential connections readily accessible.

Crystal Z1CM

  • Model

    Crystal Z1CM

  • Color

    Black | White

  • Case Type

    Mini Tower

  • Steel Thickness

    0.45mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    452 x 242 x 356mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    280mm Max.

  • CPU Cooler Clearance

    160mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, HD Audio

  • Power Supply

    ATX

  • Top Radiator

    240mm Max.

  • Rear Fan

    1 x 120mm Max.

  • Top Fans

    2 x 120mm Max.

  • Bottom Fans

    2 x 120mm Max.

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z1CM Black: 4711401663195

    Crystal Z1CM White: 4711401663225

Crystal Z1CM Plus FR

  • Model

    Crystal Z1CM Plus FR

  • Color

    Black | White

  • Case Type

    Mini Tower

  • Steel Thickness

    0.45mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    452 x 242 x 356mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    280mm Max.

  • CPU Cooler Clearance

    160mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, HD Audio

  • Power Supply

    ATX

  • Top Radiator

    240mm Max.

  • Rear Fan

    1 x Cosmic 12BK FR

  • Top Fans

    2 x Cosmic 12BK FR

  • Bottom Fans

    2 x 120mm Max.

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z1CM Plus Black FR: 4711401663201

    Crystal Z1CM Plus White FR: 4711401663232

Crystal Z1CM Plus AR

  • Model

    Crystal Z1CM Plus AR

  • Color

    Black | White

  • Case Type

    Mini Tower

  • Steel Thickness

    0.45mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    452 x 242 x 356mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    280mm Max.

  • CPU Cooler Clearance

    160mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, HD Audio

  • Power Supply

    ATX

  • Top Radiator

    240mm Max.

  • Rear Fan

    1 x Cosmic 12BK/WH ARPW

  • Top Fans

    2 x Cosmic 12BK/WH ARPW

  • Bottom Fans

    2 x 120mm Max.

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z1CM Plus Black AR: 4711401663218

    Crystal Z1CM Plus White AR: 4711401663249
