Crystal Z1CM V2 | Z1CM Plus V2

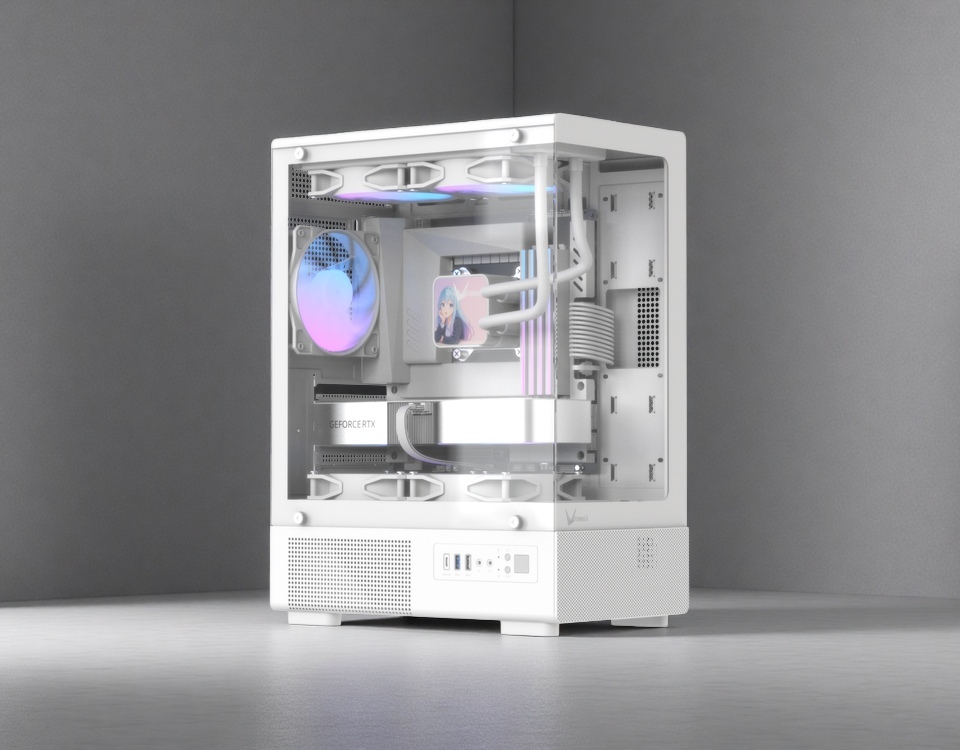

Crystal Z1CM V2 is a compact mATX case with a dual-panel tempered glass design, offering a clean showcase of your build. Flexible fan support and up to 240mm radiator compatibility deliver reliable cooling in a space-efficient layout.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

Variation

Color

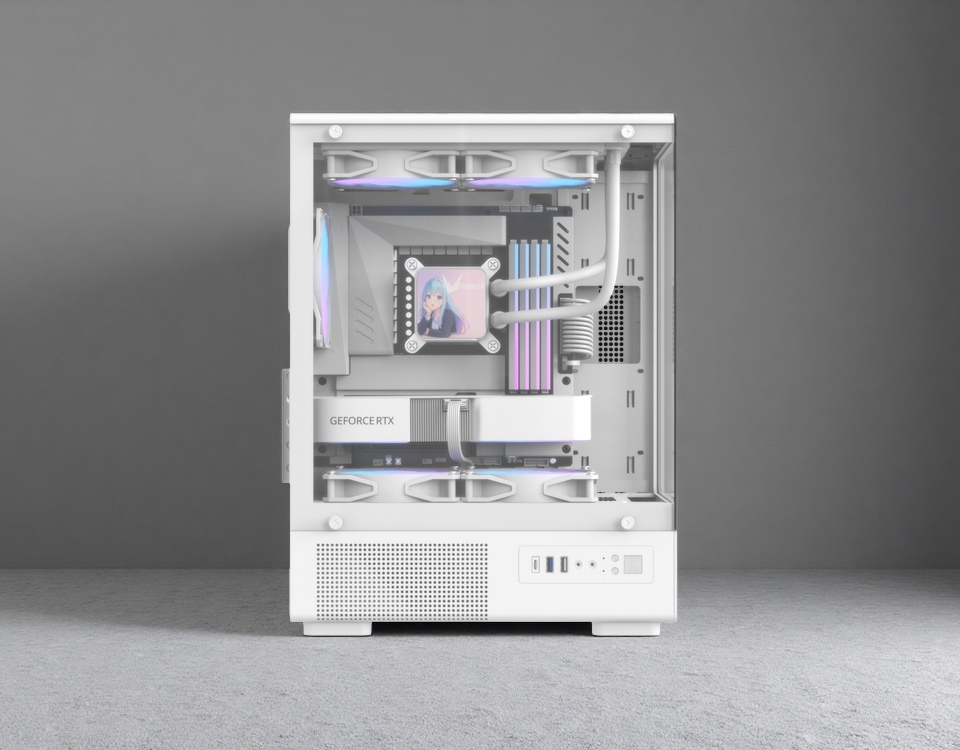

Crystal Z1CM V2 Scenario Photo 1920x960 (1)

Minimal Size. Maximum Display.

Model Comparison

Crystal Z1CM V2 builds upon the original Z1CM with refined cooling support, improved internal layout, and enhanced installation flexibility.

Discover how these updates optimize airflow efficiency and deliver a smoother building experience for compact mATX systems.



→ View Z1CM vs Z1CM V2 Comparison (PDF)

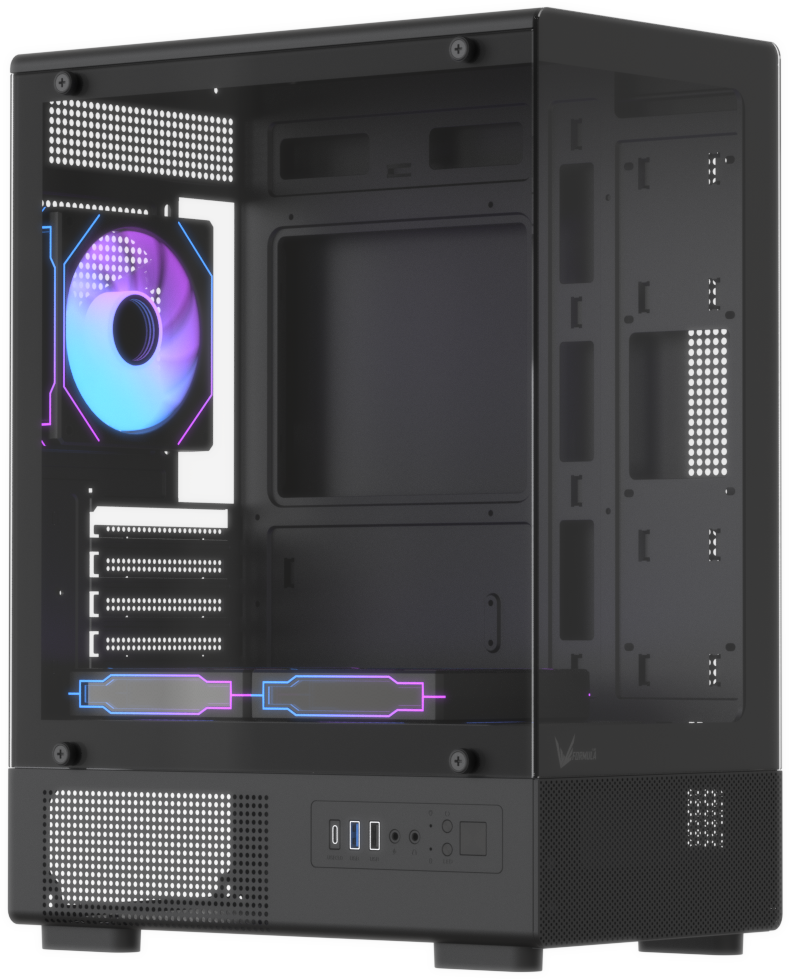

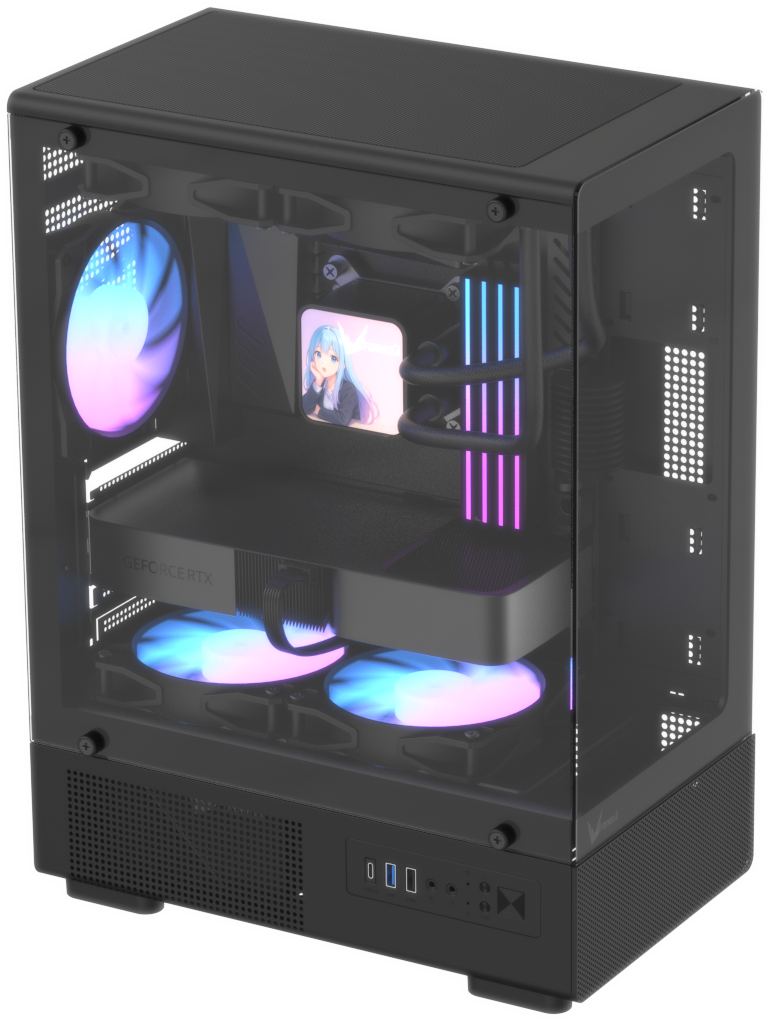

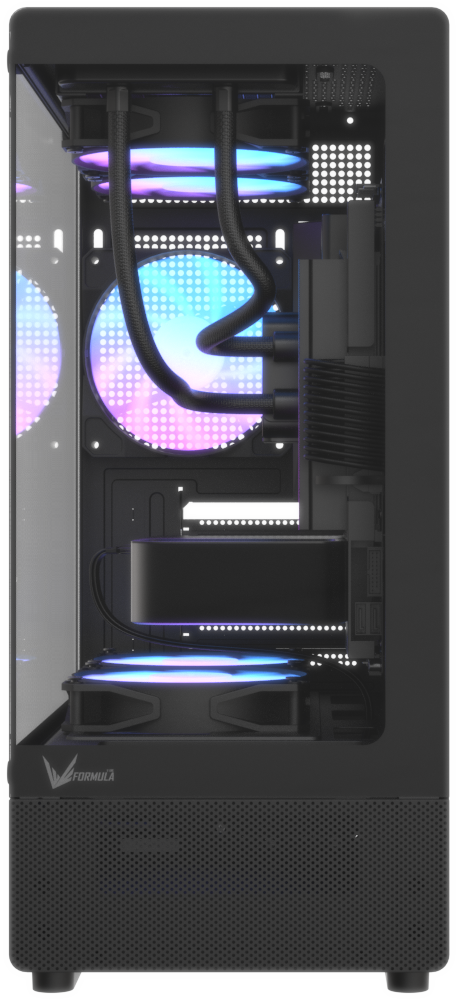

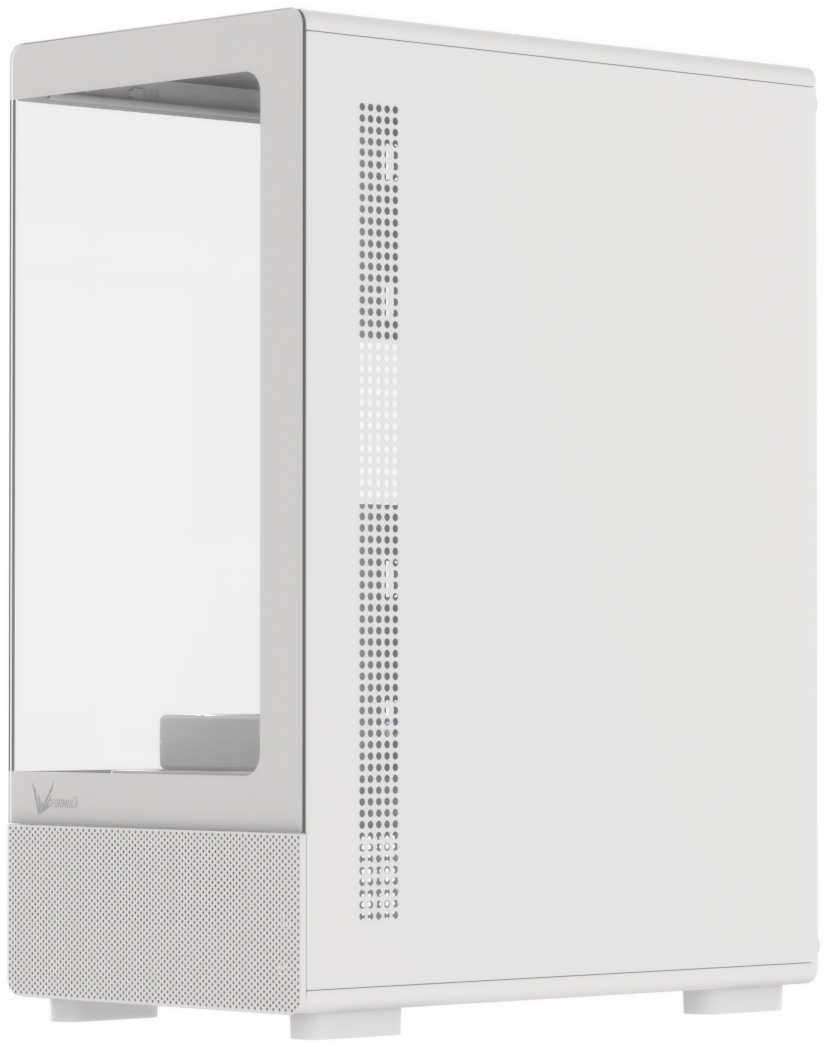

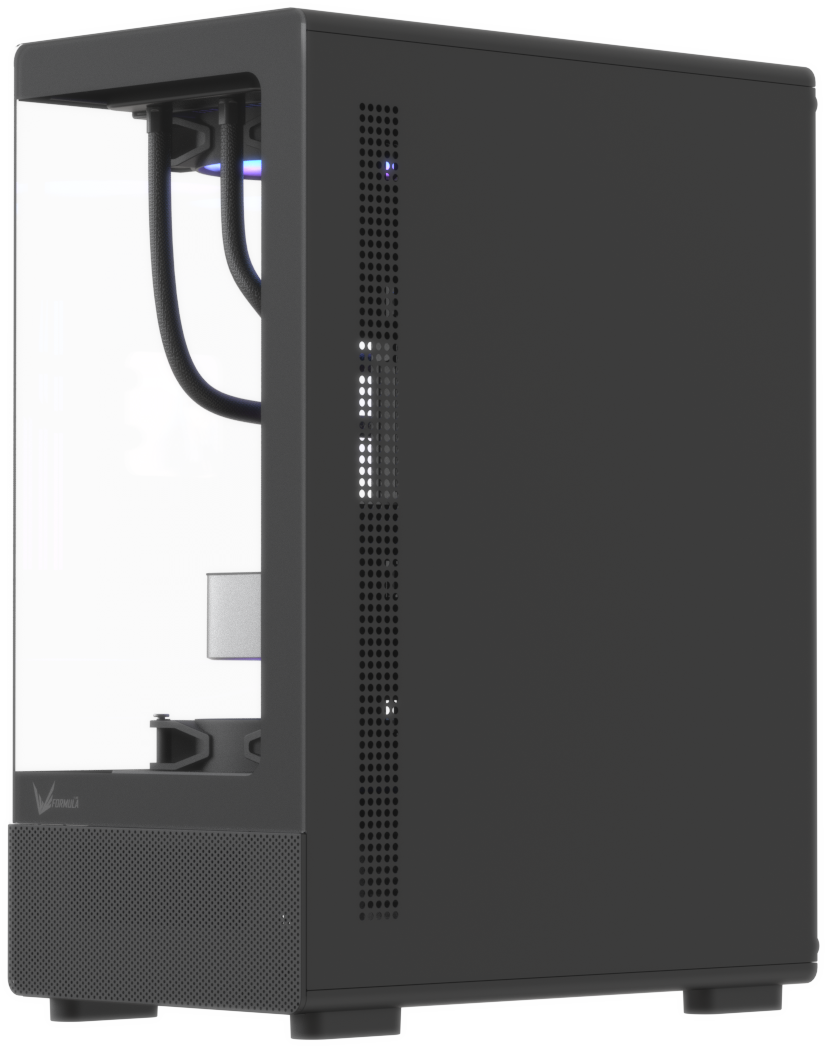

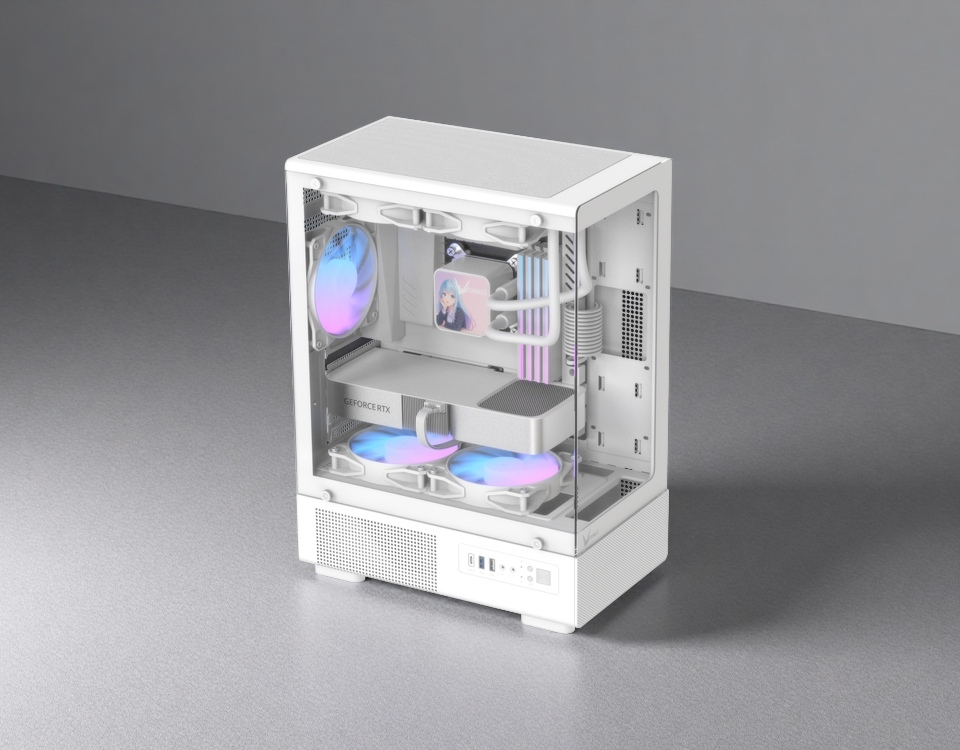

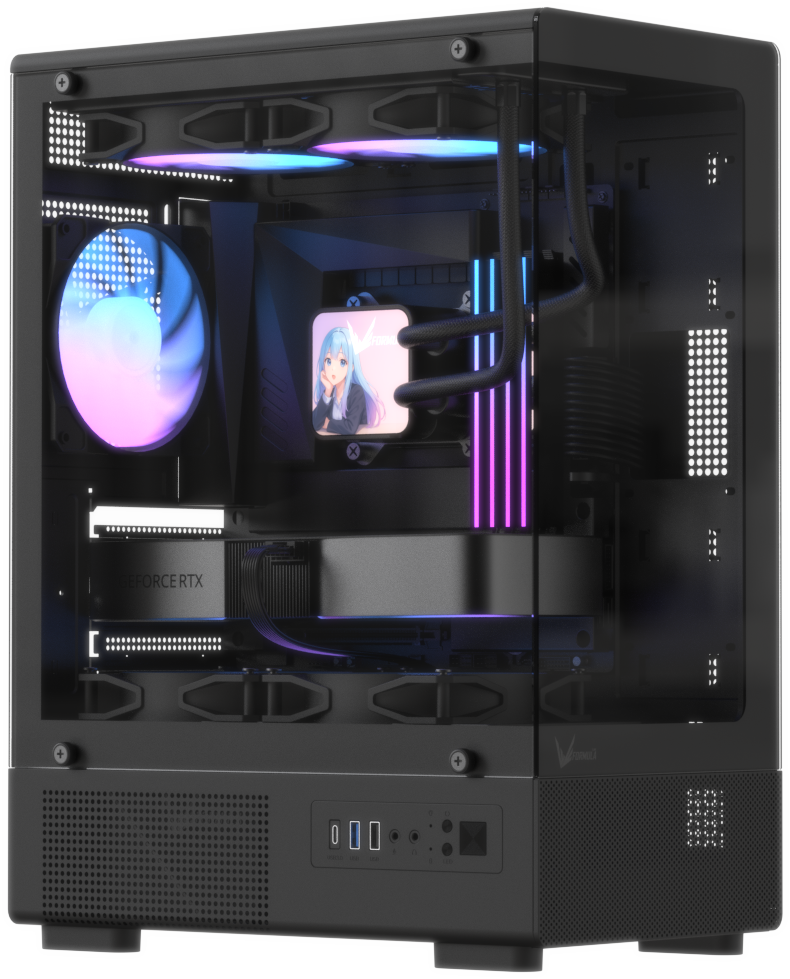

    • Dual-Panel Tempered Glass Design

      Front and side tempered glass panels provide a clean showcase view while maintaining a compact mATX footprint.

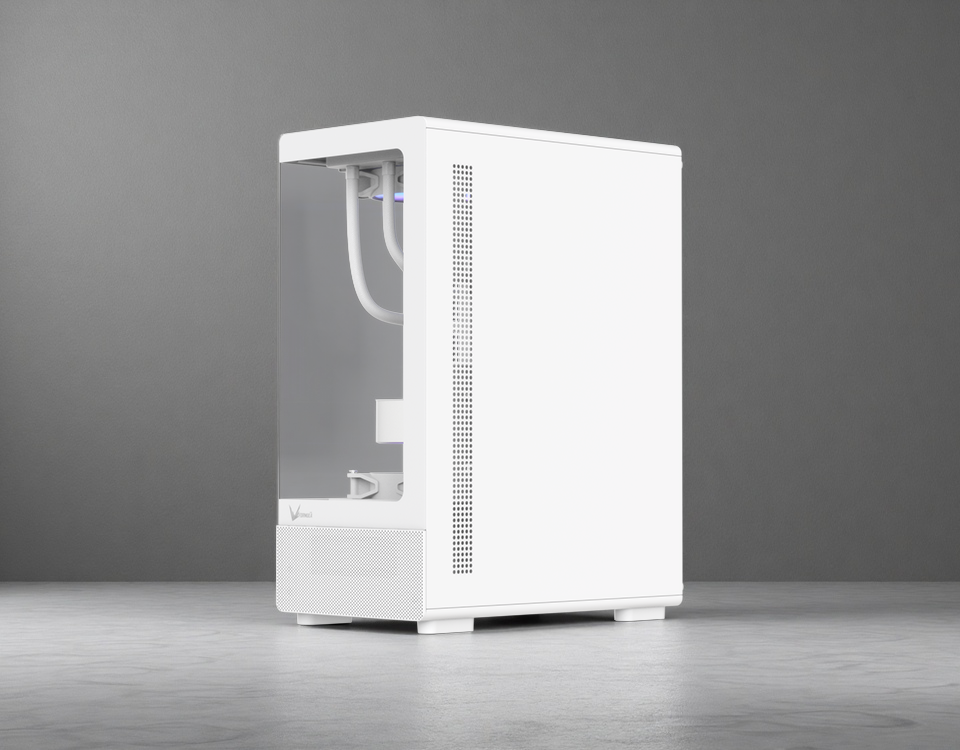

    • Compact mATX Form Factor

      Designed for Micro-ATX and Mini-ITX systems, offering efficient use of space without sacrificing compatibility.

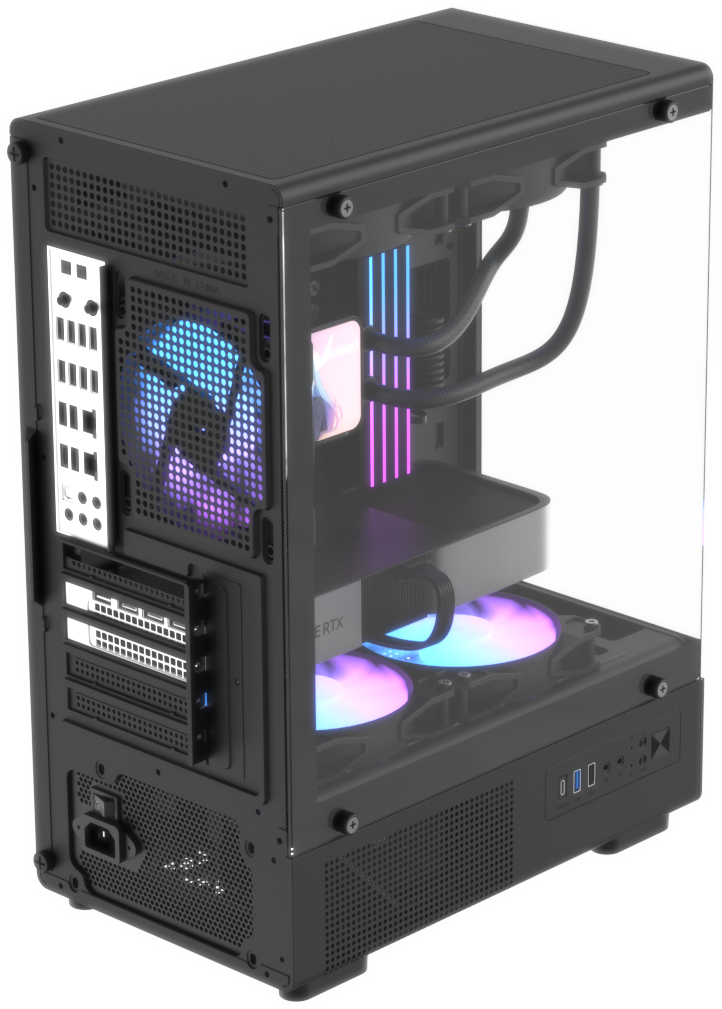

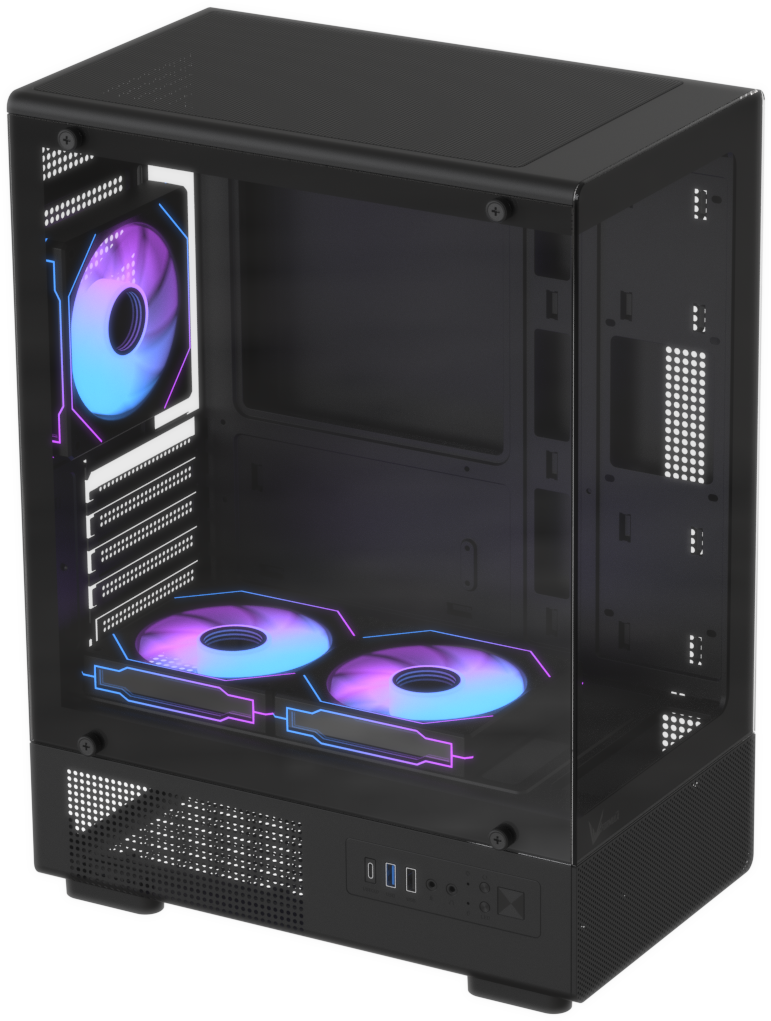

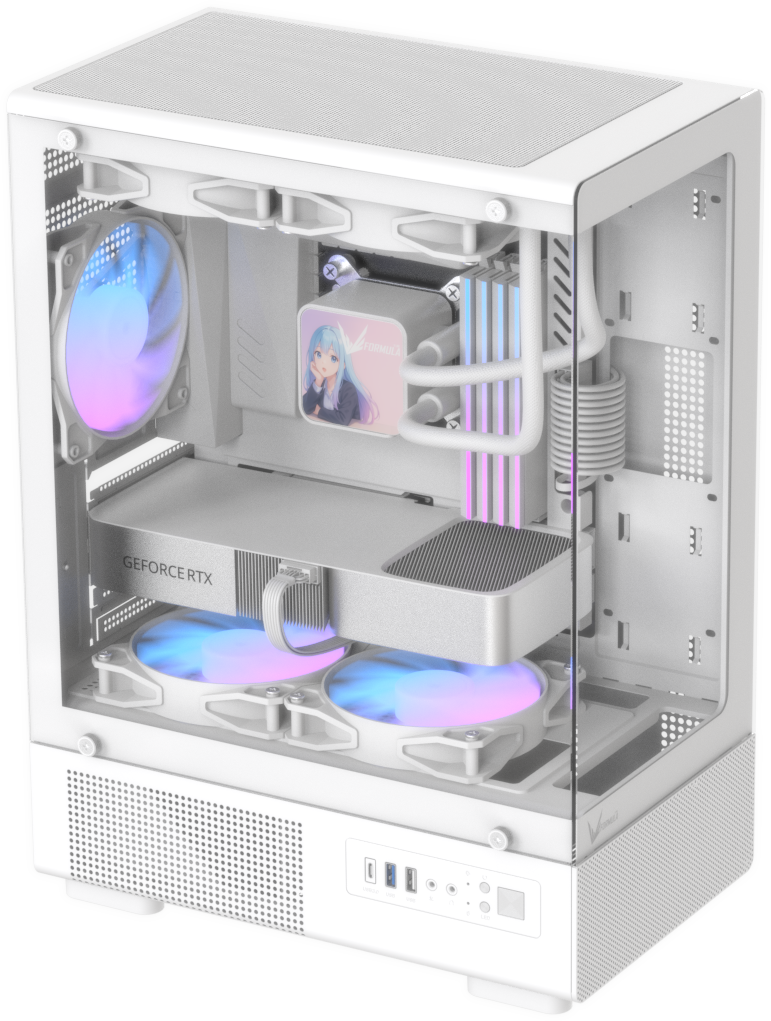

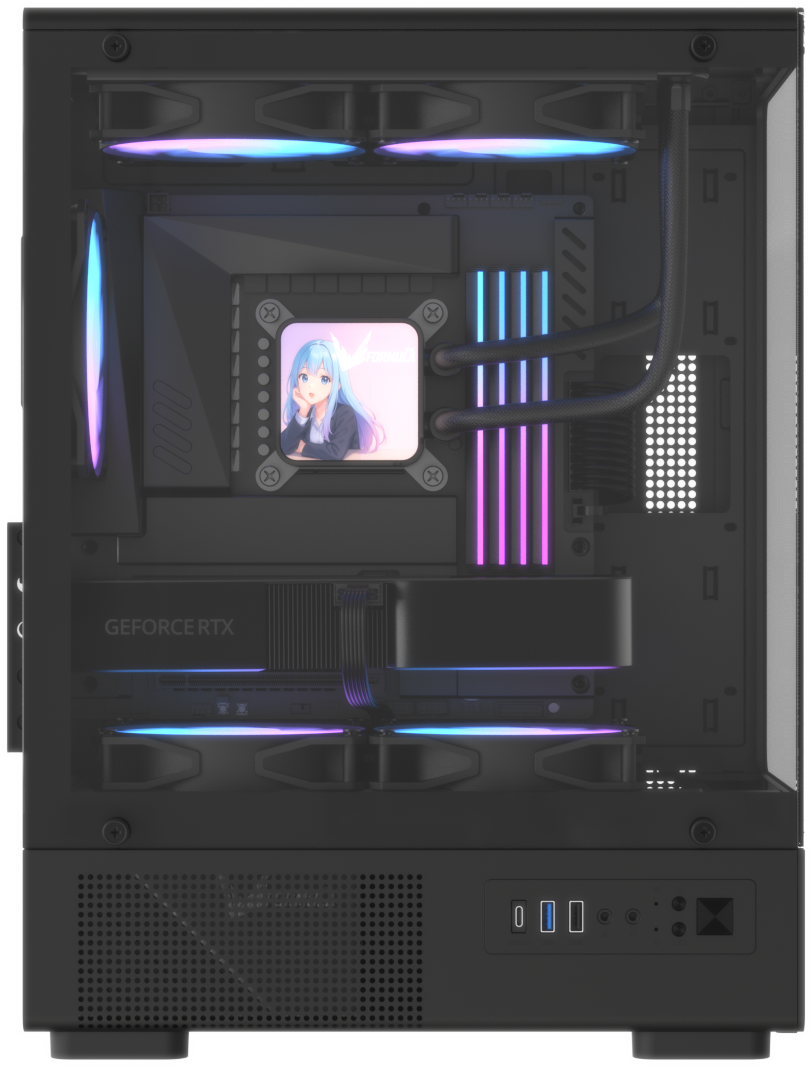

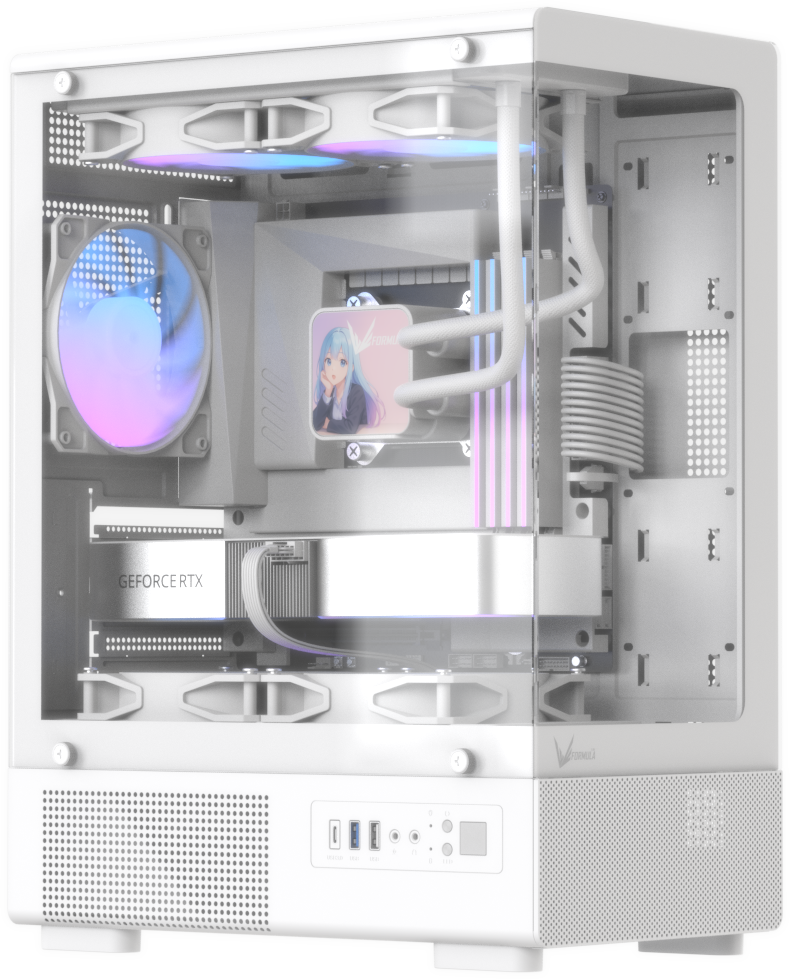

    • Flexible Cooling Support

      Supports multiple fan configurations and up to a 240mm radiator for adaptable airflow setups.

Crystal Z1CM V2 Scenario Photo 1920x960 (2)

    • Optimized Airflow Layout

      Well-placed ventilation and fan mounts ensure stable airflow for everyday and gaming builds.

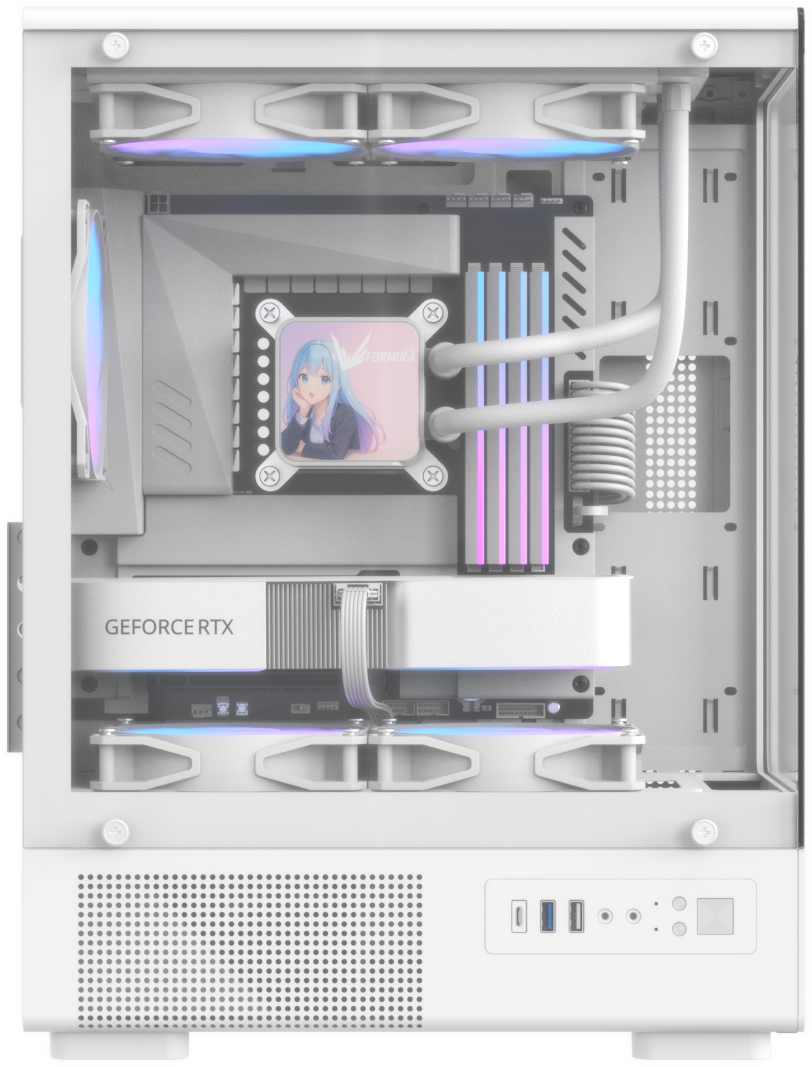

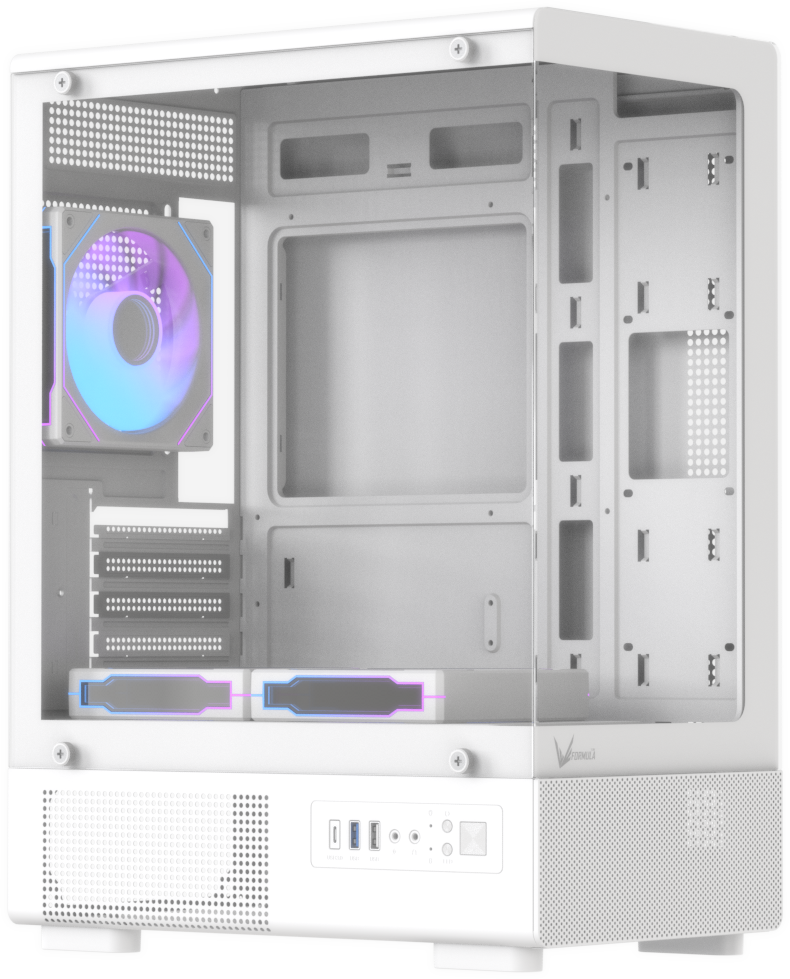

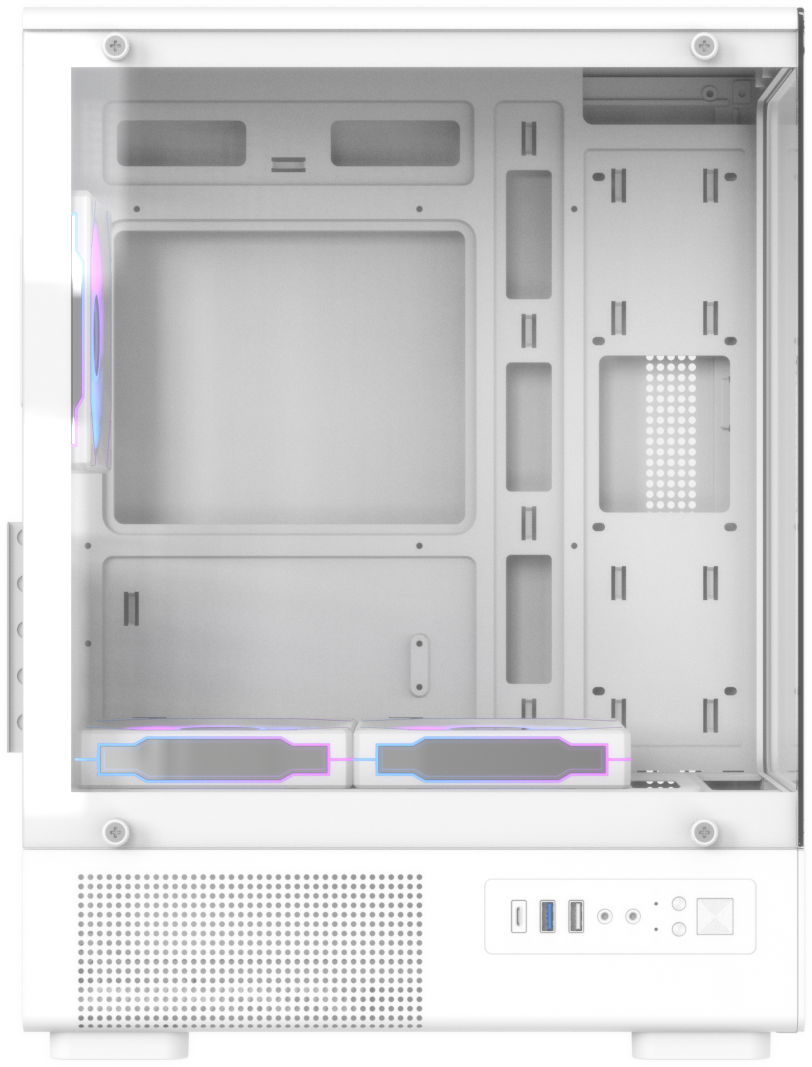

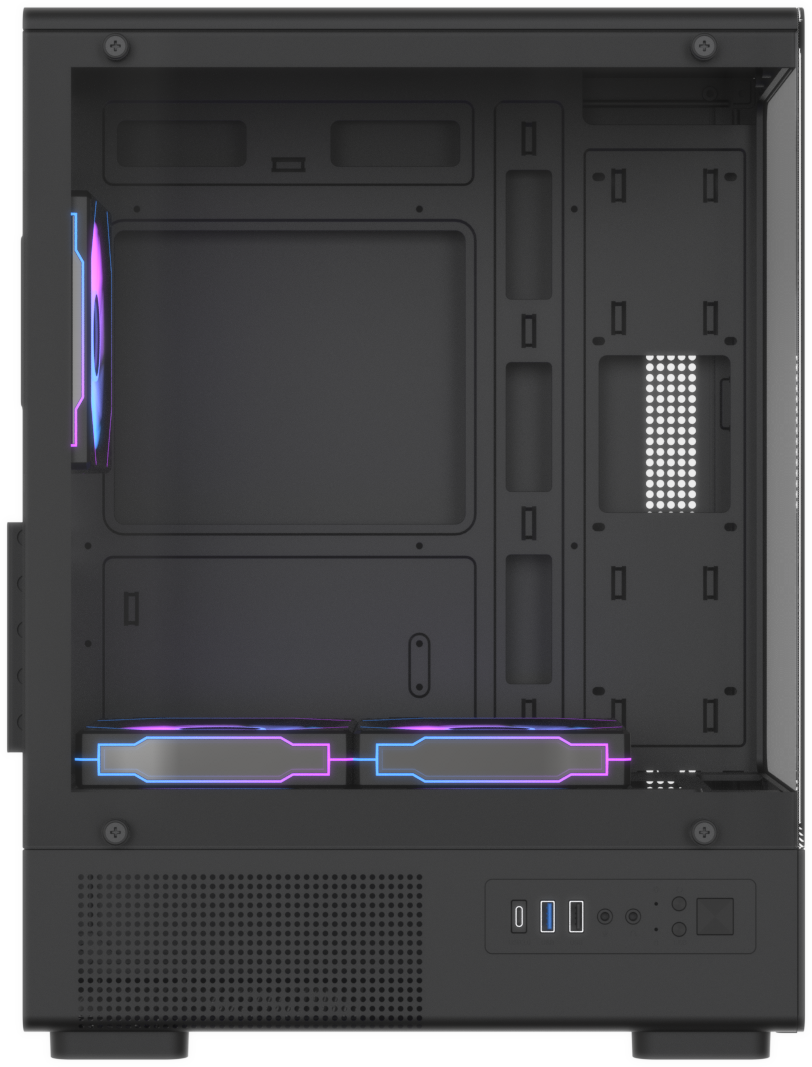

    • Clean Interior Layout

      An improved internal structure allows easier installation and tidy cable routing.

    • Modern Front I/O Connectivity

      Equipped with USB Type-C, USB ports, and audio jacks for convenient daily use.

Crystal Z1CM V2 Scenario Photo 1920x960 (3)

Crystal Z1CM V2

  • Model

    Crystal Z1CM V2

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    MATX / ITX

  • Case Dimensions

    360 x 200 x 460mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    5

  • GPU Clearance

    329mm

  • CPU Cooler Clearance

    160mm

  • Top Fans

    2 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x 120mm Max.

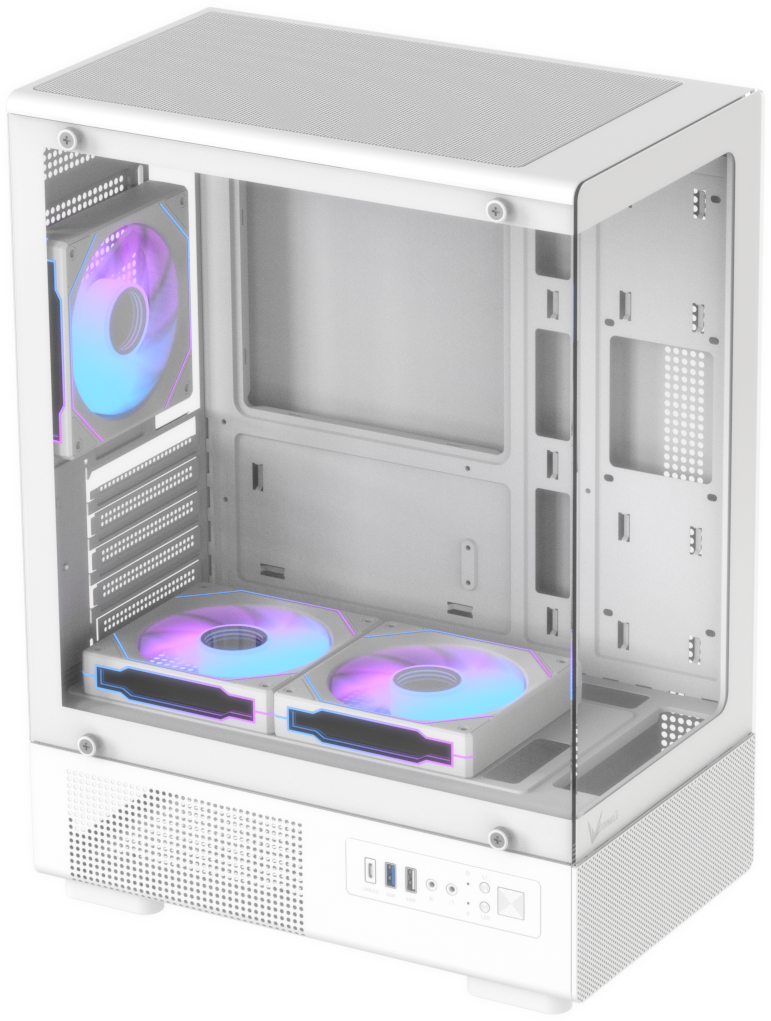

  • Bottom Fans

    2 x 120mm Max.

  • Top radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, USB2.0 x 1, HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z1CM Black V2: 4711401667131

    Crystal Z1CM White V2: 4711401667155

Crystal Z1CM Plus V2

  • Model

    Crystal Z1CM Plus V2

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    MATX / ITX

  • Case Dimensions

    360 x 200 x 460mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    5

  • GPU Clearance

    329mm

  • CPU Cooler Clearance

    160mm

  • Top Fans

    2 x 120 ARGB Fans.

  • Rear Fan

    1 x 120 ARGB Fans.

  • Bottom Fans

    2 x 120mm Max.

  • Top radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, USB2.0 x 1, HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z1CM Plus Black AR V2: 4711401667148

    Crystal Z1CM Plus White AR V2: 4711401667162
