AIR POWER G5

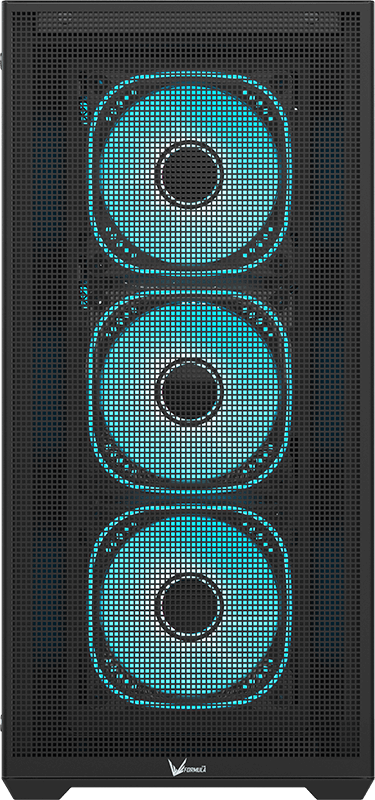

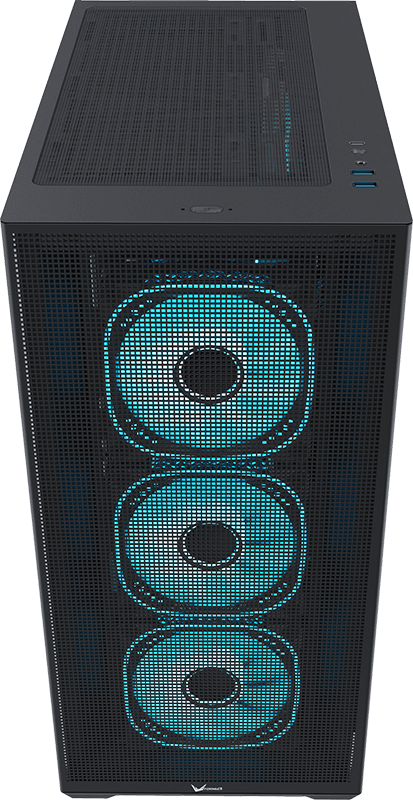

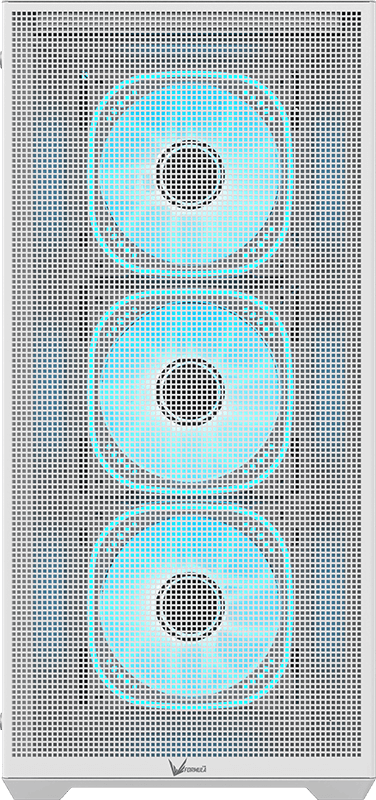

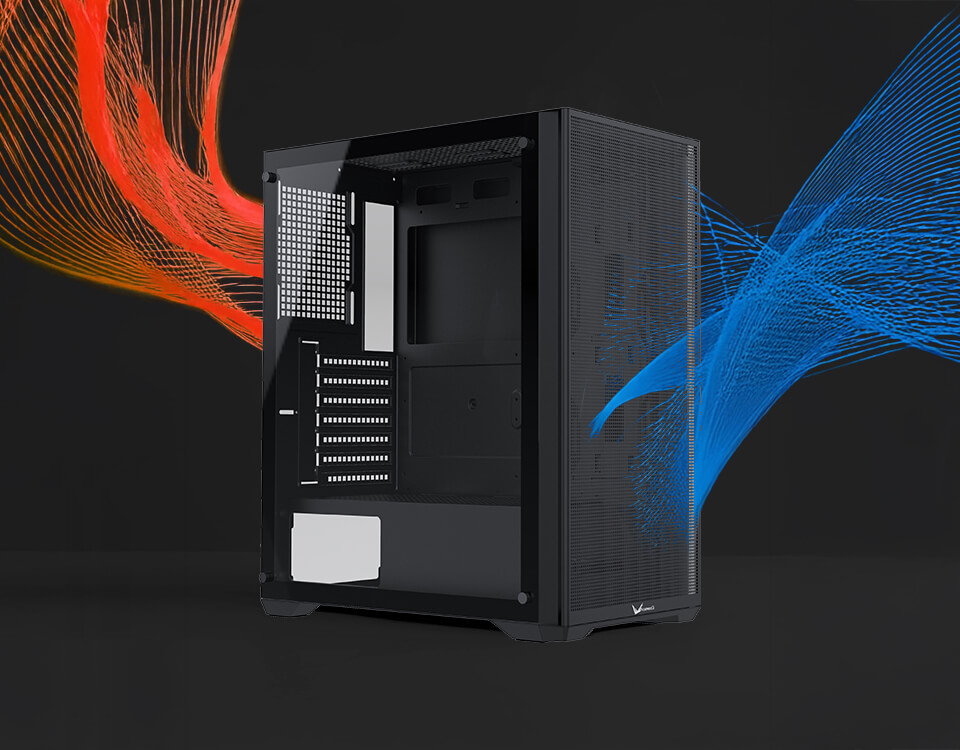

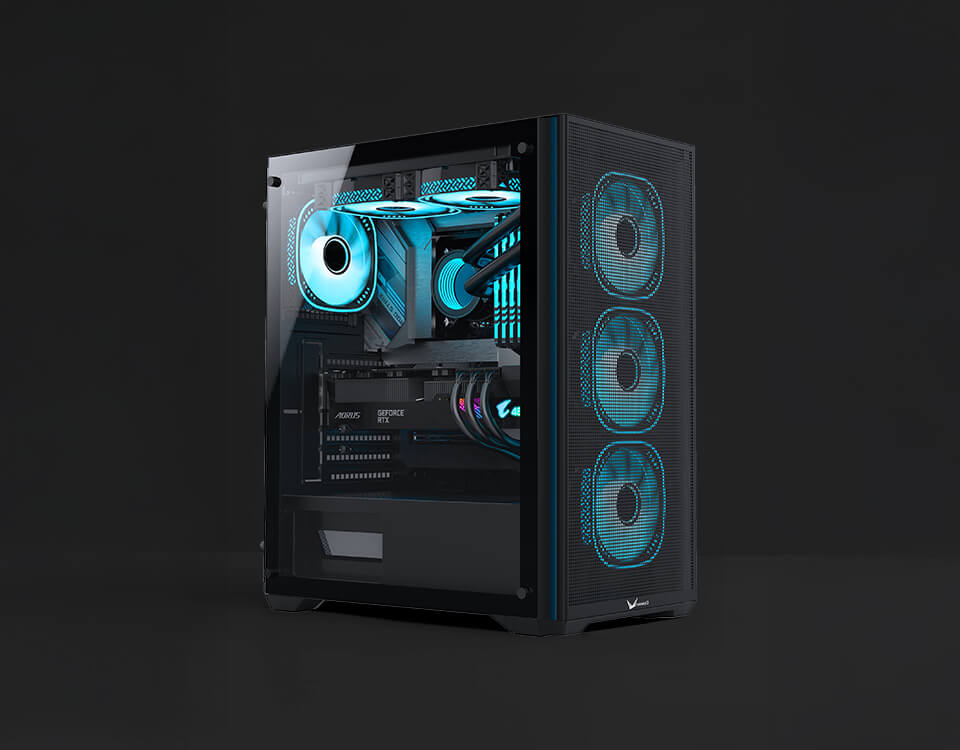

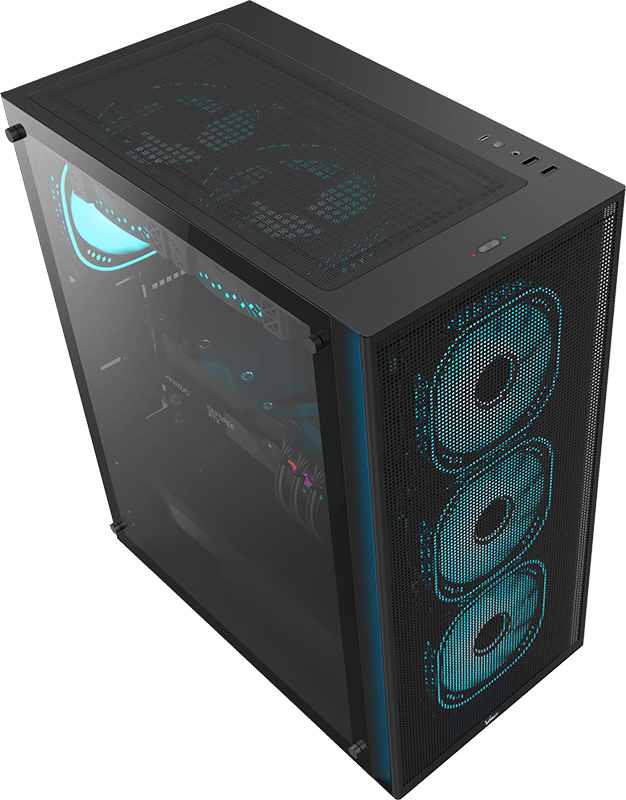

The perforated front panel design increases the airflow and superior cooling performance.

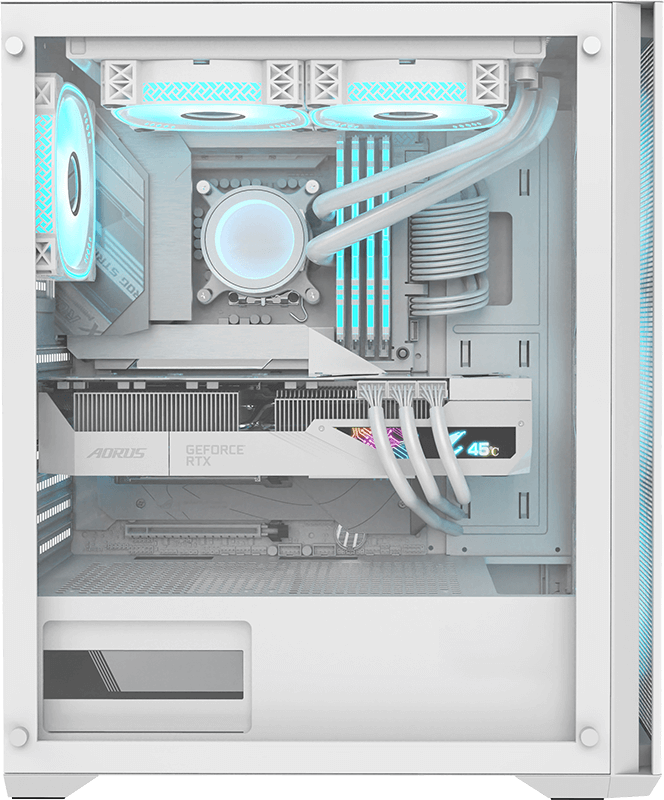

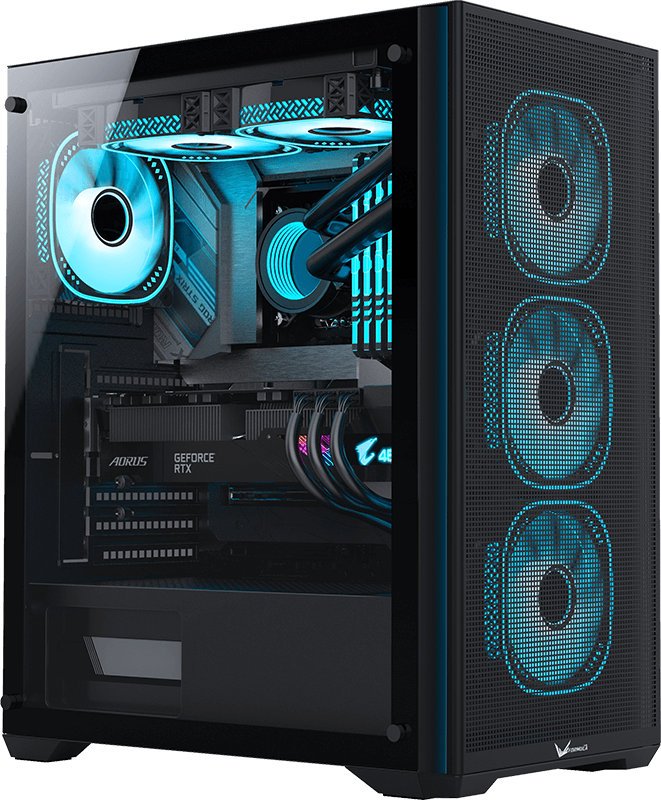

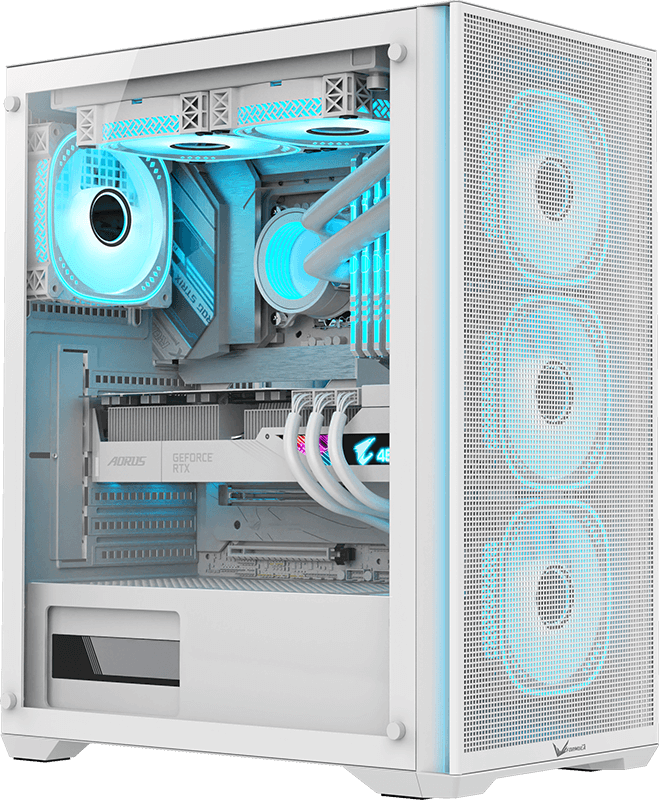

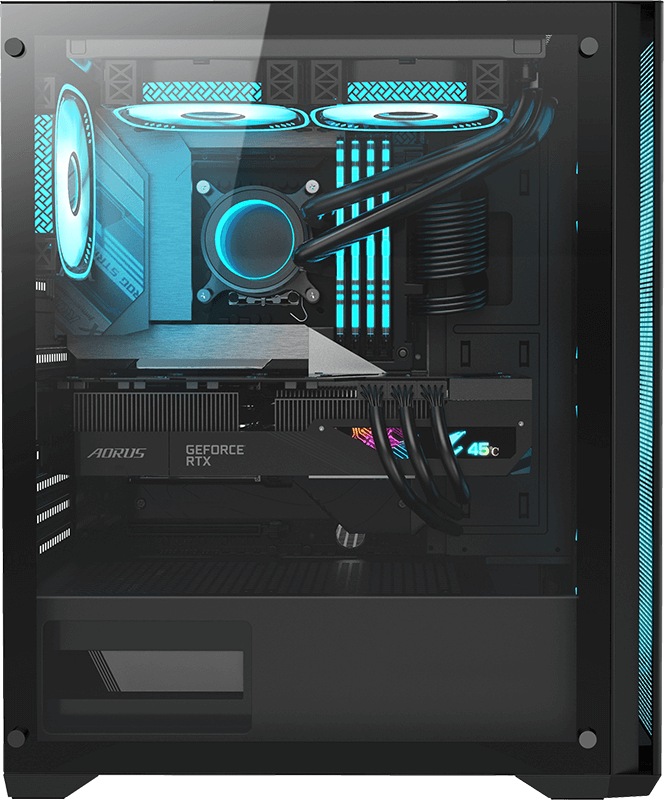

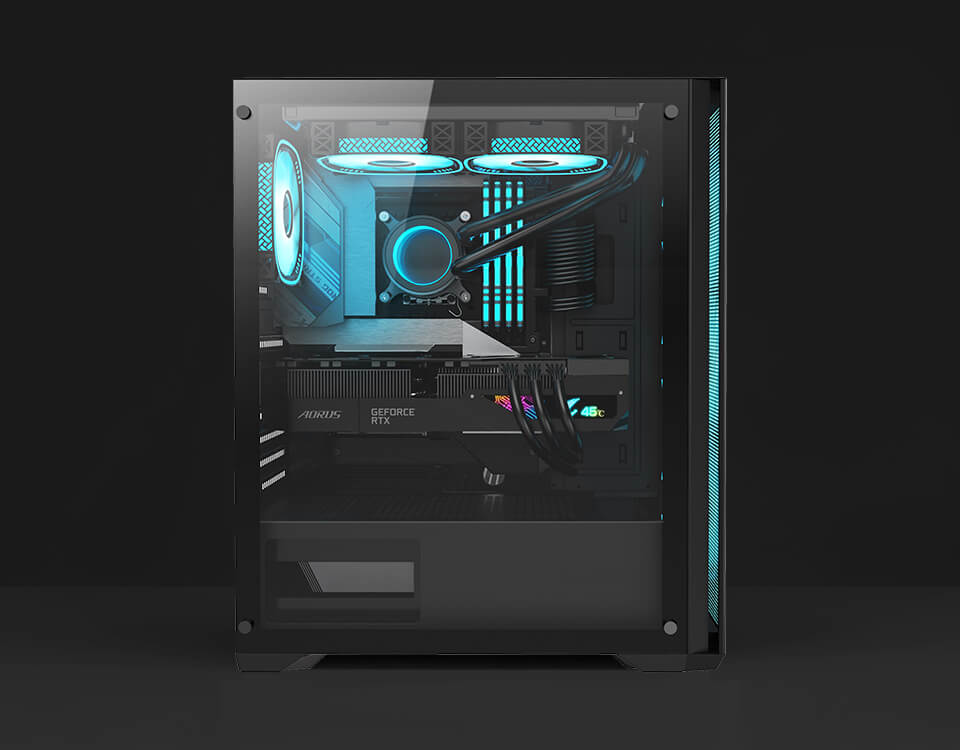

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

Black
White
section-0 section-1 section-2 section-3 section-4 section-5

Specifications

  • Model AIR POWER G5
    Case Type Mid Tower
    Color Black | White
    Body Material SPCC
    Steel Thickness 0.5mm
    Motherboards ATX/micro ATX/mini-ITX
    Case Dimensions 365 x 200 x 450mm
    3.5” Drive Bays 2
    2.5” Drive Bays 2
    Expansion Slots 7
  • GPU Clearance Supports GPU up to 327mm
    CPU Cooler Clearance Supports CPU cooler up to 160mm
    Switch control 1
    Air Cooling Front: 3 x 120 or 2 x 140mm Fans Max.
    Rear: 1 x 120mm Fan Max.(1 x 120mm Black Fan Included)
    Top: 2 x 120 or 140mm Fans Max.
    Liquid Cooling Front: 240/280mm Max.
    Top: 240/360mm Max.
    I/O Ports TYPE-C x 1, USB3.0 x 1, HD Audio
    Power Supply ATX PSU
