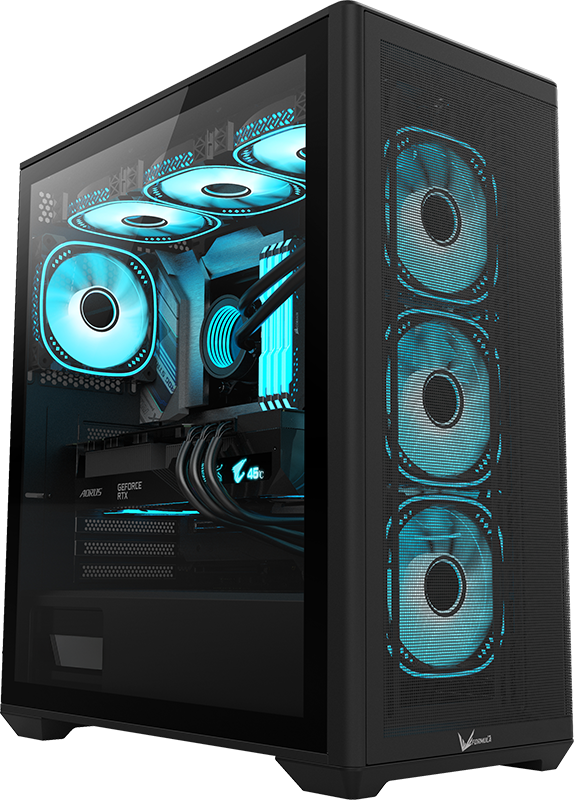

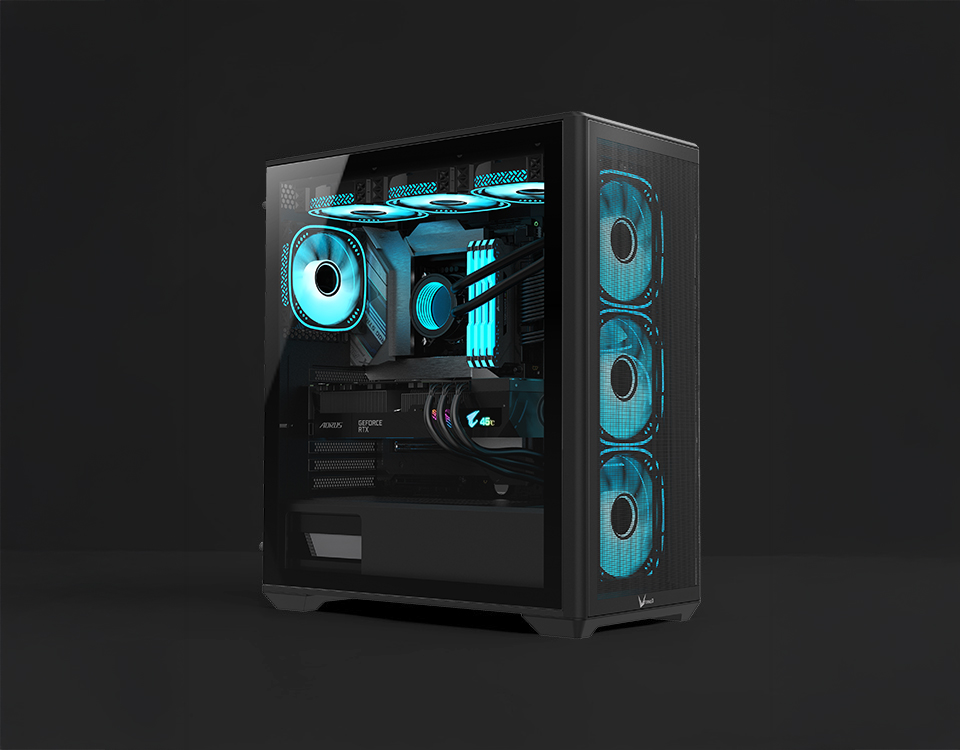

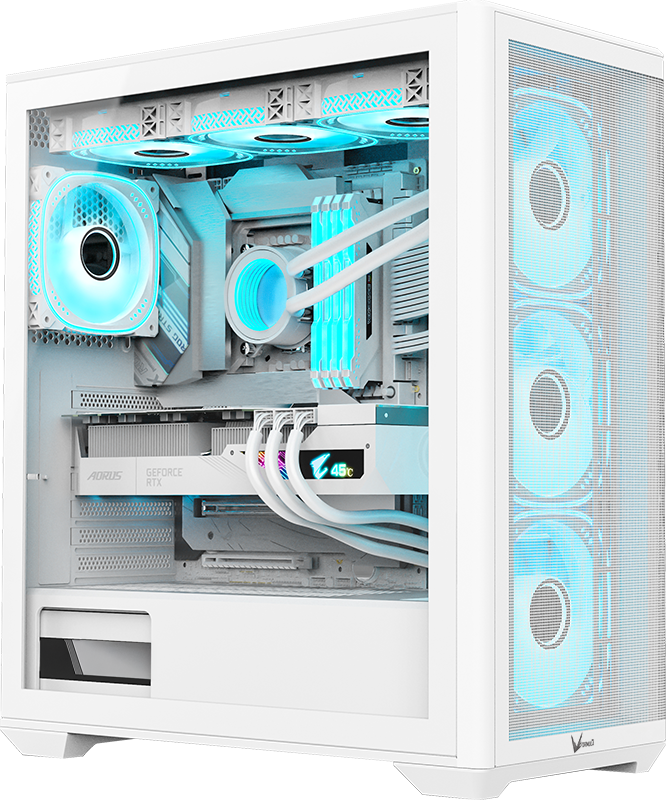

Air Power G5 Plus

The perforated front panel design increases the airflow and superior cooling performance.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

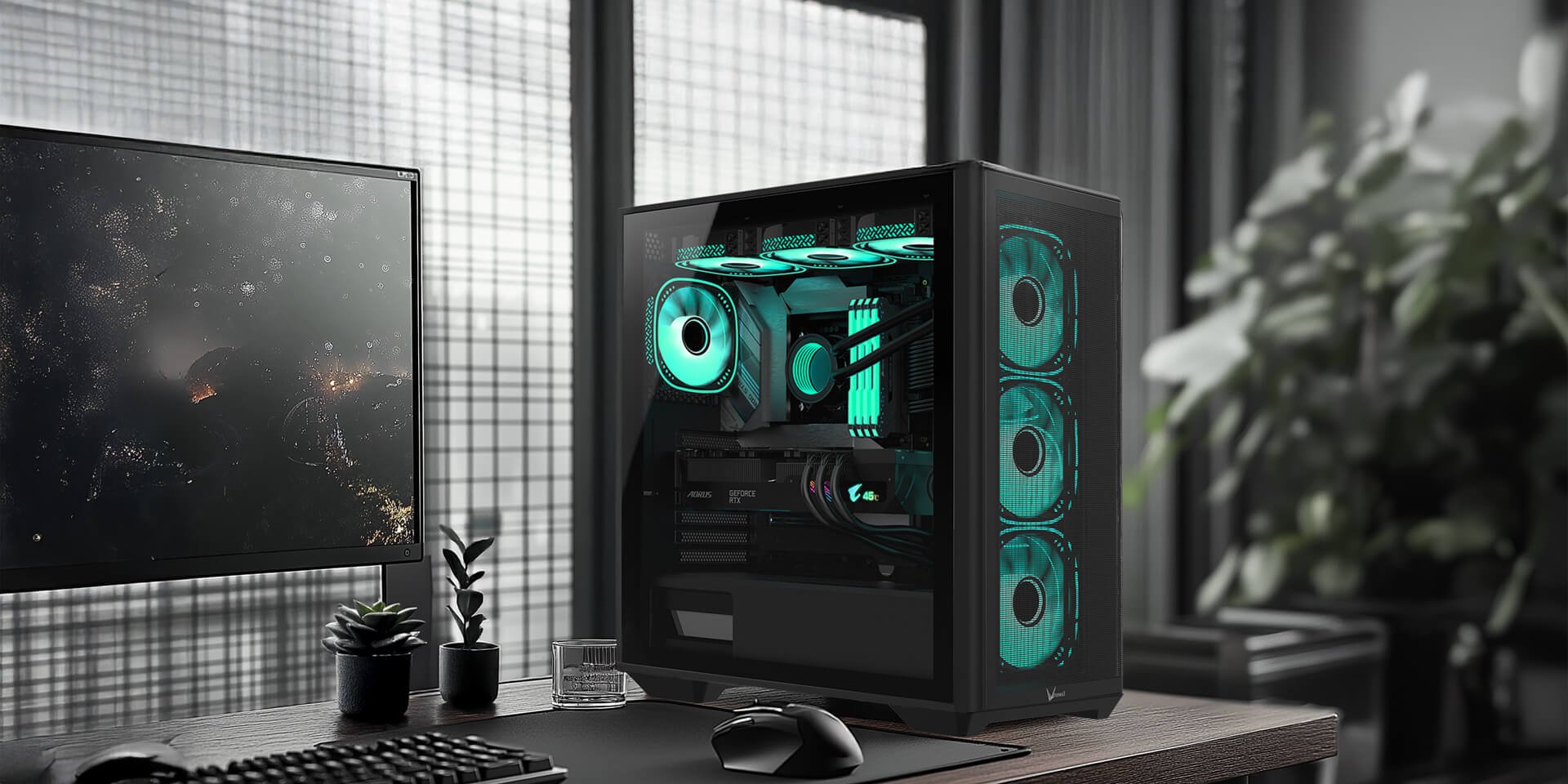

Airpower-G5-1920x960

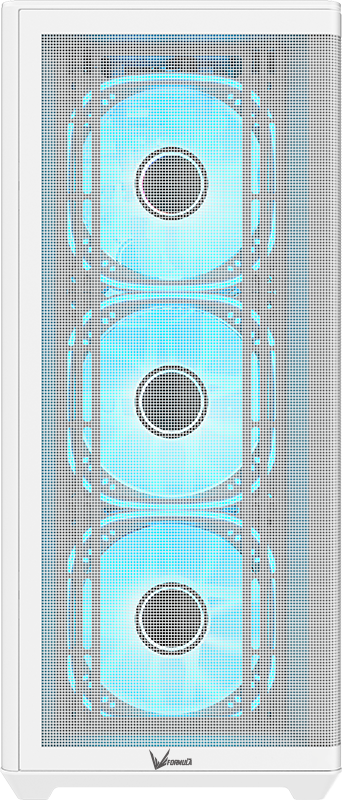

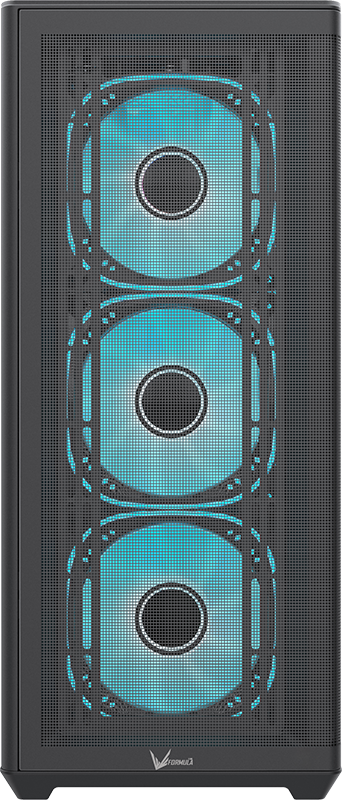

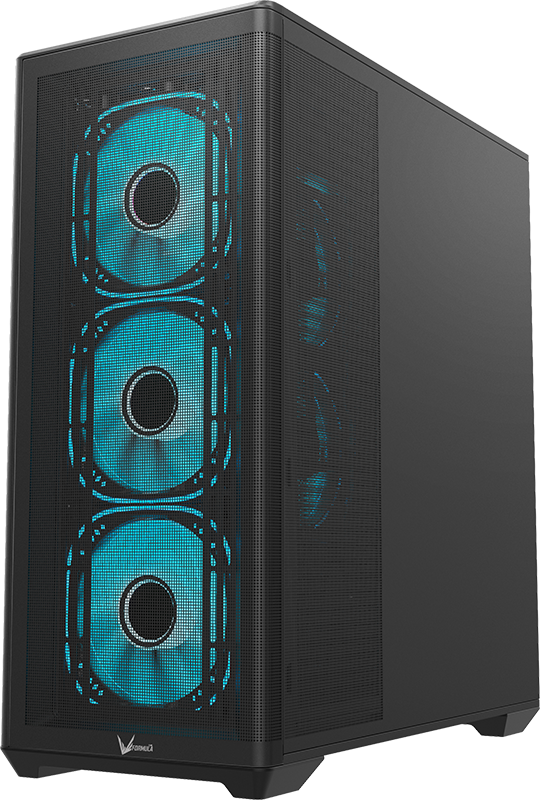

Array Mesh Front Panel Design

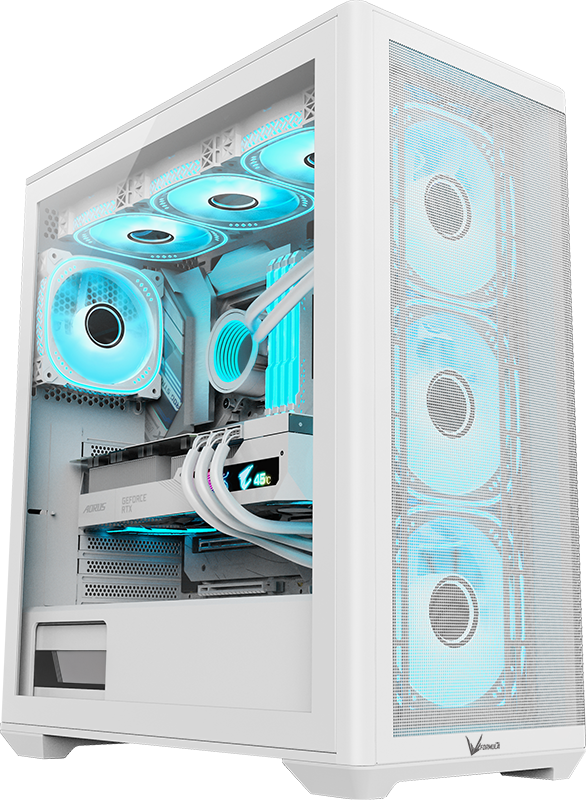

    • Array Mesh Front Panel Design

      The perforated front panel design increases the airflow and superior cooling performance.

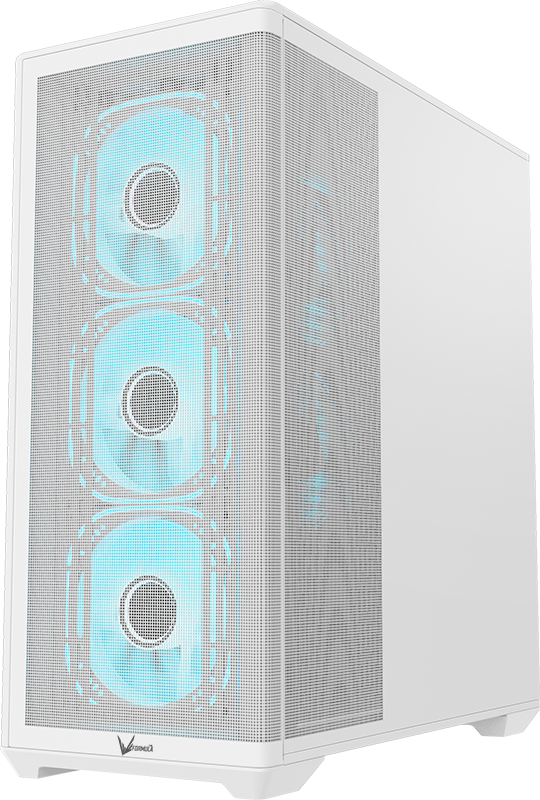

      Available In Black | White , Colors Based On Your Preference.

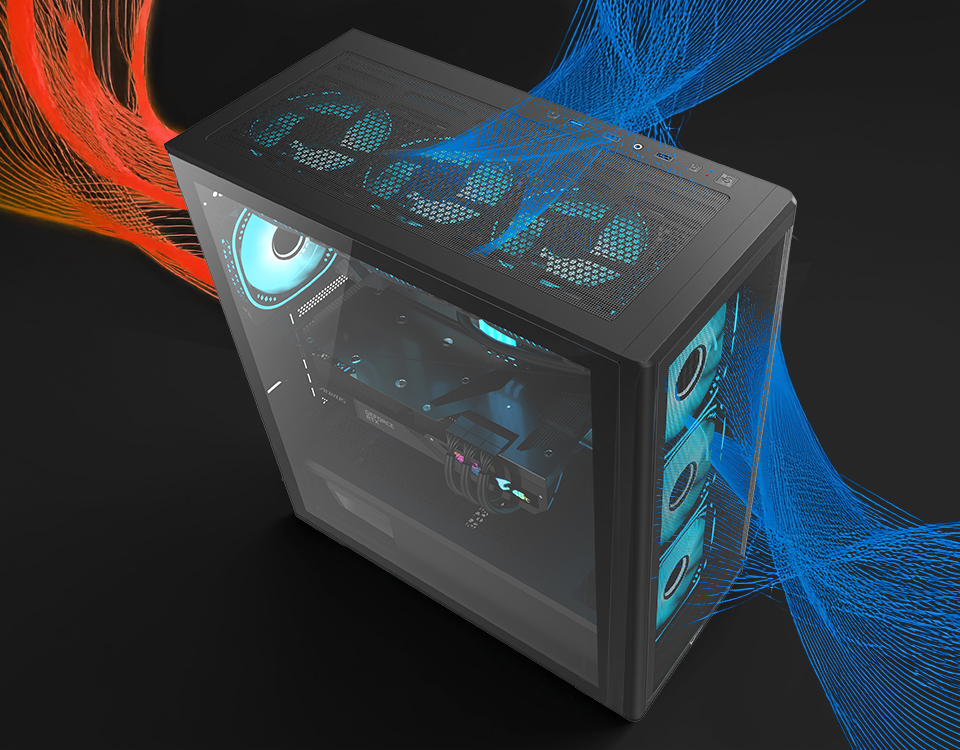

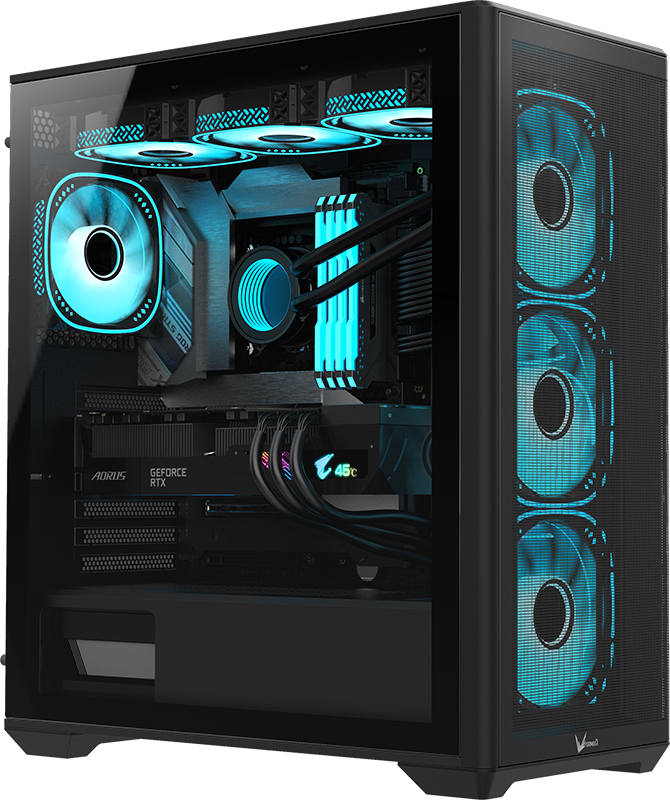

    • Efficient Heat Dissipation System

      The multi-directional heat dissipation and air inlet channels with a three-dimensional heat dissipation system ensure efficient cooling from all directions.

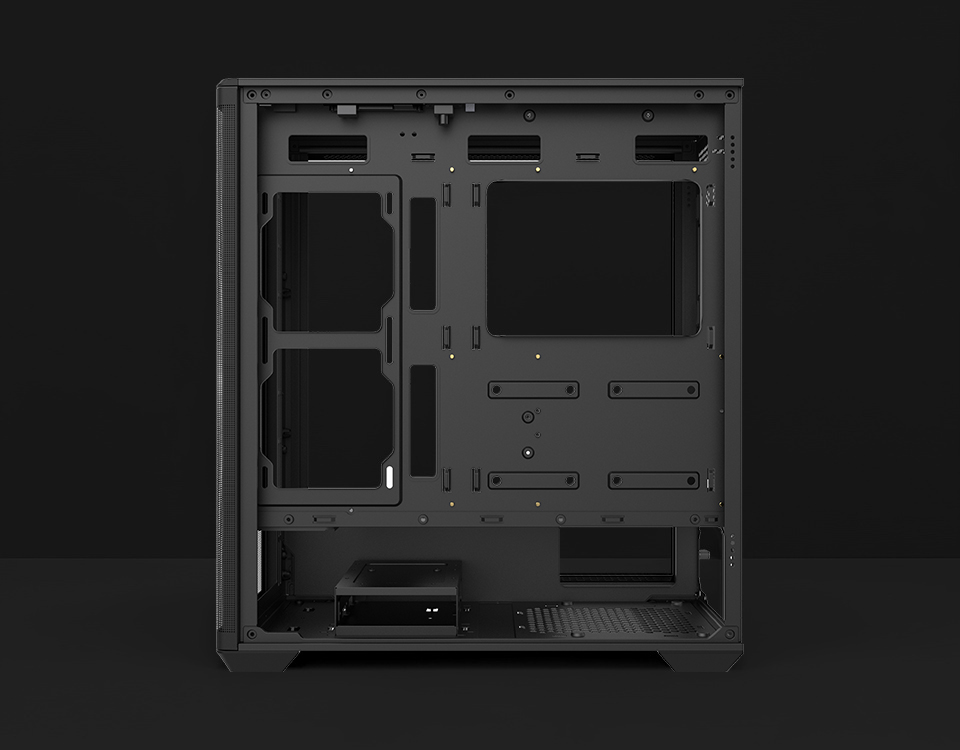

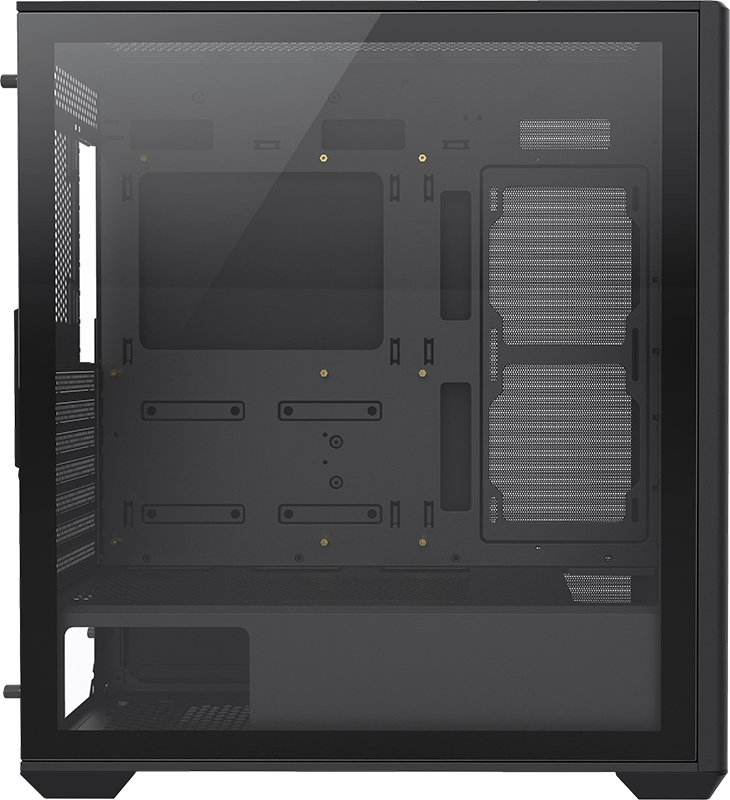

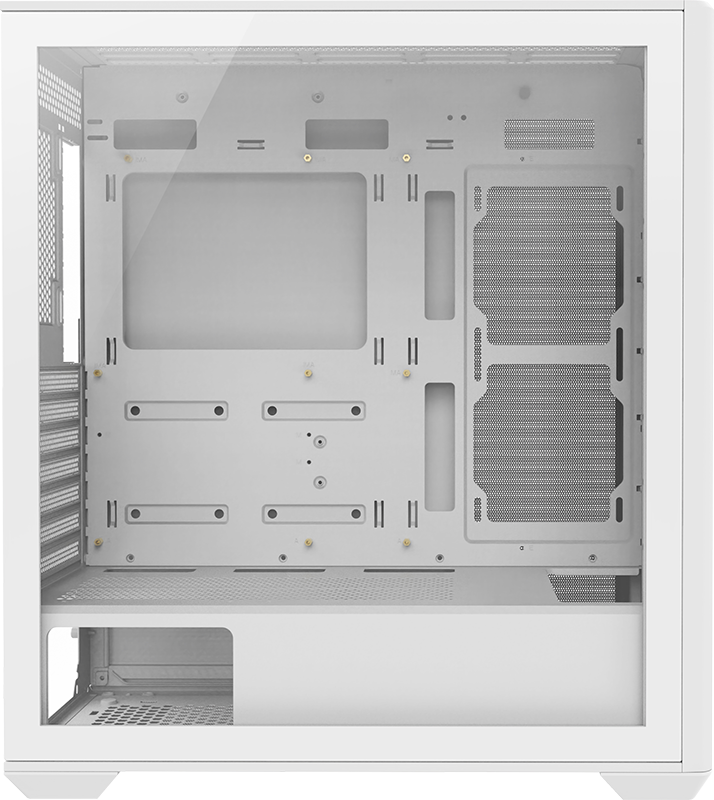

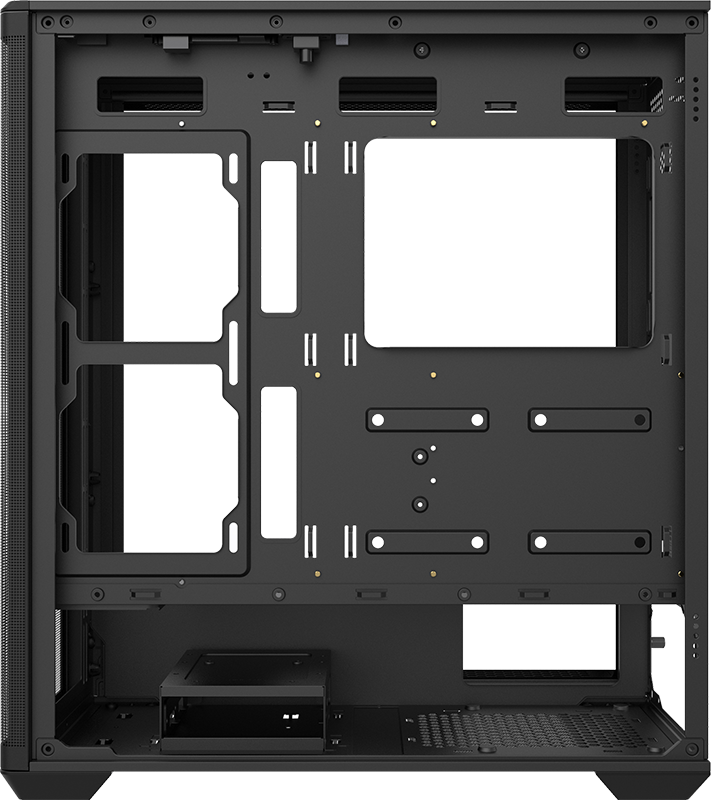

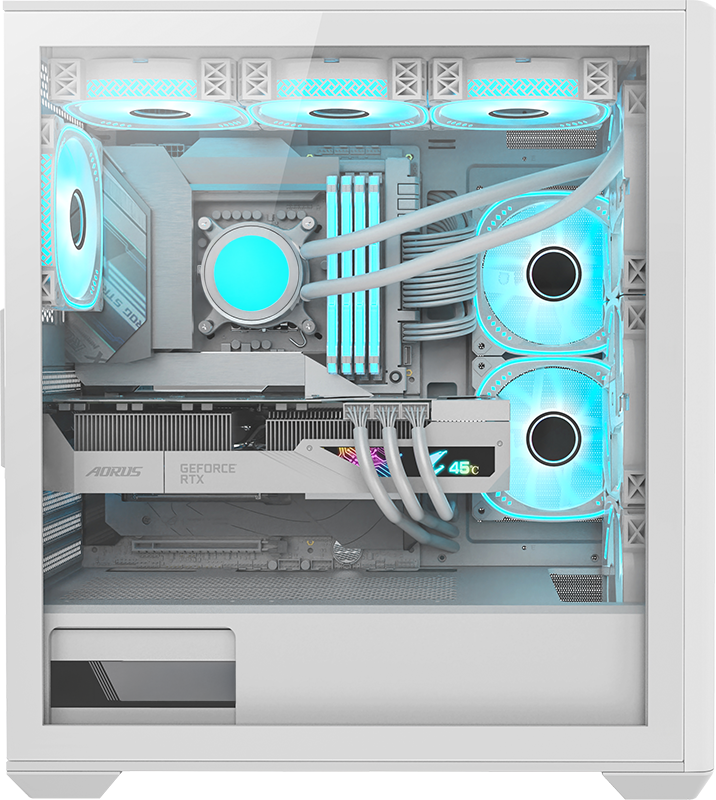

Spacious Interior Space

Crafted from a thick 0.6mm SPCC steel plate, it provides exceptional durability
with a touch of elegance in the color M/B Support: EATX / ATX / MATX / ITX

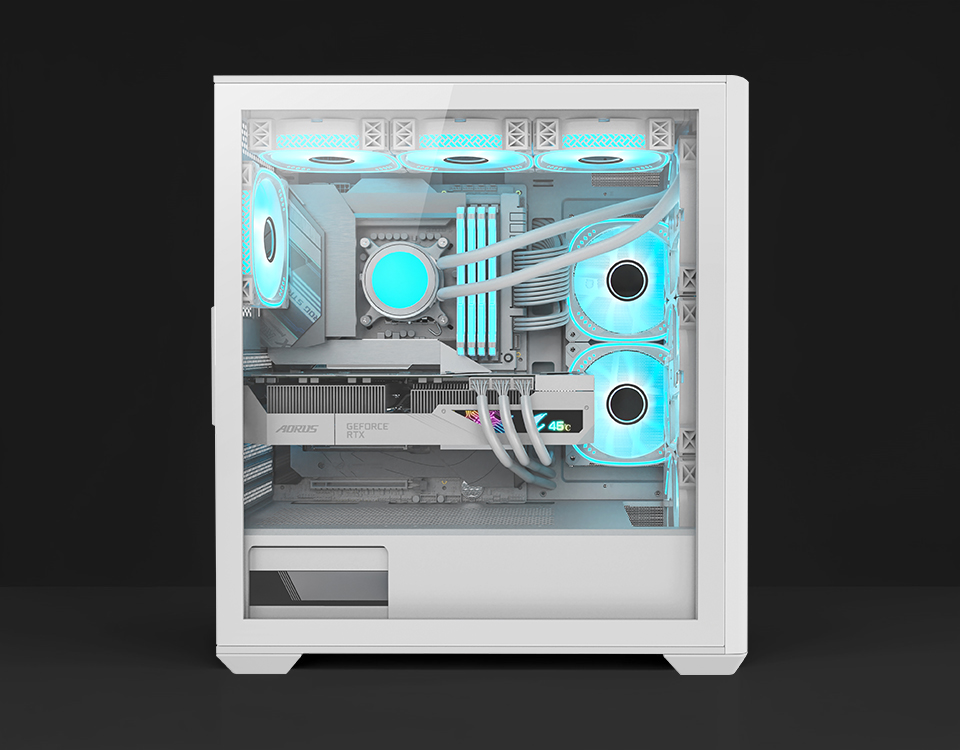

    • Support up to 360 max water cooling

      With up to 360mm cooling installation at the font & top, it offers superior dissipation.

    • Storage Capability

      Supports up to 2 x 3.5” HDDs
      Supports up to 2 x 2.5” SSDs

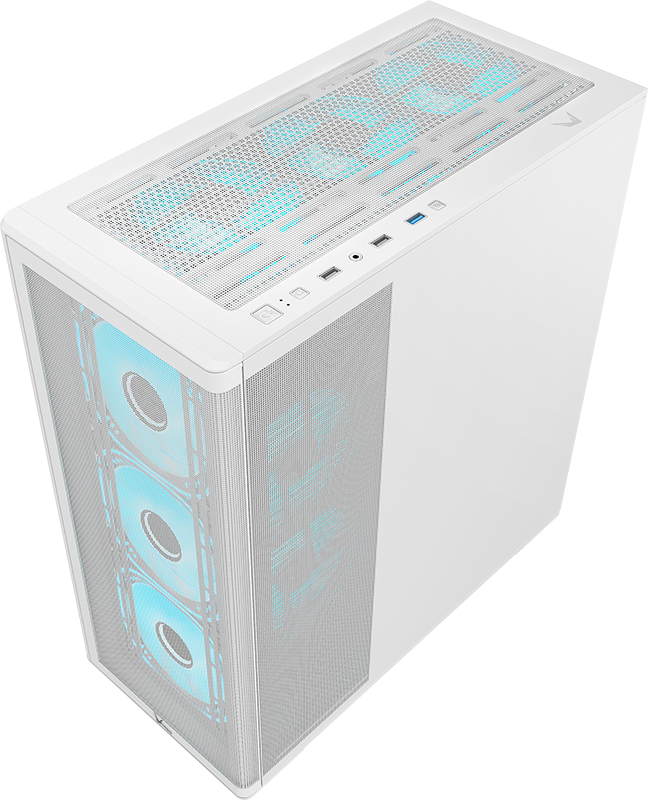

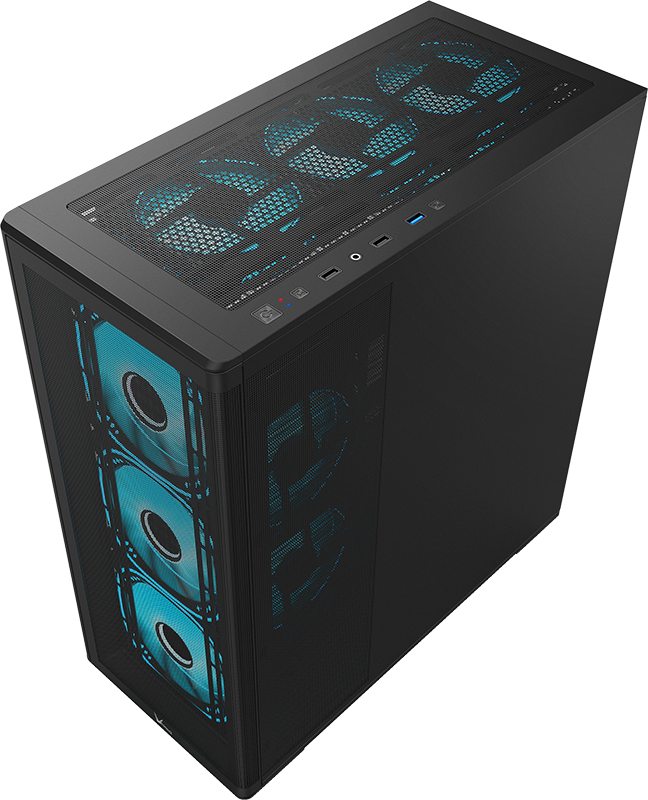

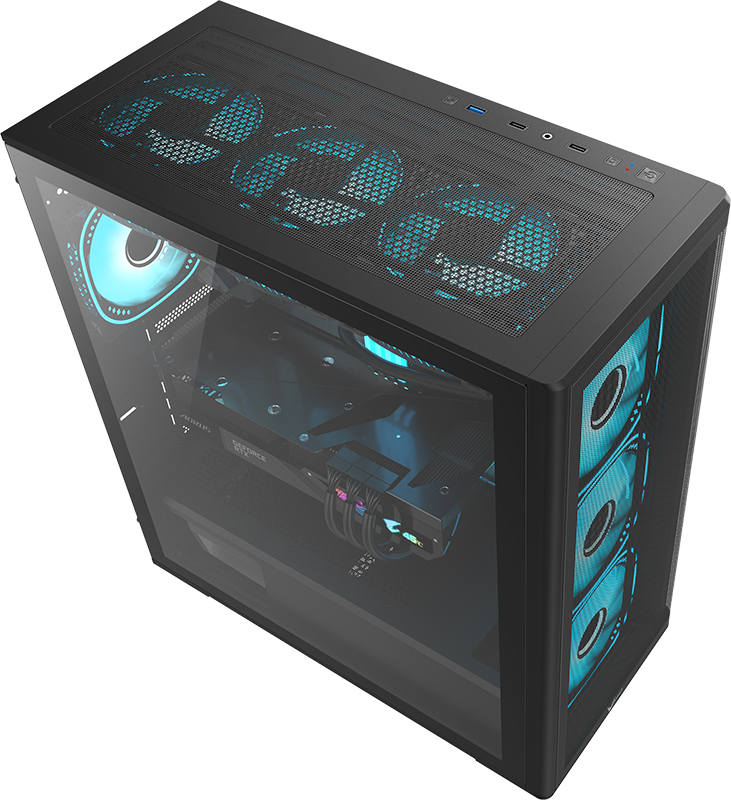

New Generation I/O Ports With Type C Equipped

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring Type-C / USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Specifications

  • Model

    Air Power G5 Plus

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.6mm

  • Motherboards

    EATX/ATX/micro ATX/mini-ITX

  • Case Dimensions

    469 x 210 x 485mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    2

  • Expansion Slots

    7

  • GPU Clearance

    410mm Max.

  • CPU Cooler Clearance

    165mm Max.

  • Switch control

    1

  • Front Fans

    3 x 120mm Max.

  • Rear Fan

    1 x 120mm Max.

  • Top Fans

    3 x 120mm Max.

  • MB Side Plate Fans

    2 x 120mm Max.

  • Front radiator

    360mm Max.

  • Rear radiator

    120mm Max.

  • Top radiator

    360mm Max.

  • I/O Ports

    TYPE-C x 1, USB3.0 x 2, HD Audio

  • Power Supply

    ATX

  • Net weight

    7.05kg

  • Gross weight

    8.35kg

  • EAN

    Air Power G5 Plus Black: 4711401660484

    Air Power G5 Plus White: 4711401660477
