TimberLine T0

The TimberLine T0 combines a stylish wood-accented design with excellent cooling options, including support for multiple fans and 360mm liquid coolers. It offers spacious compatibility for high-end components like ATX motherboards and large graphics cards, along with modern front I/O connectivity featuring USB Type-C. The build quality is highlighted by tempered glass panels, providing both durability and a clear view of your system.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

TimberLine-T0-1920x960

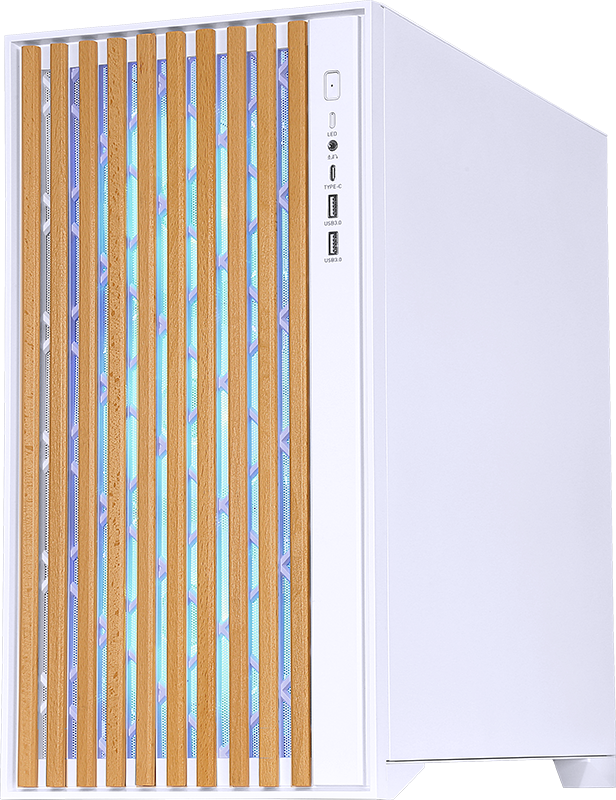

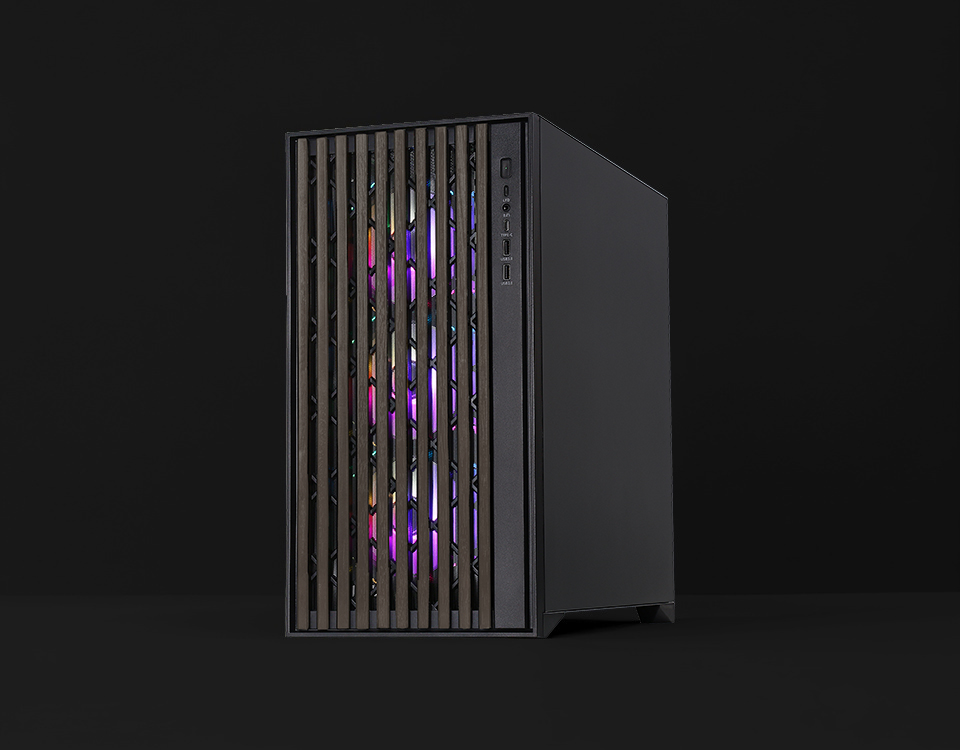

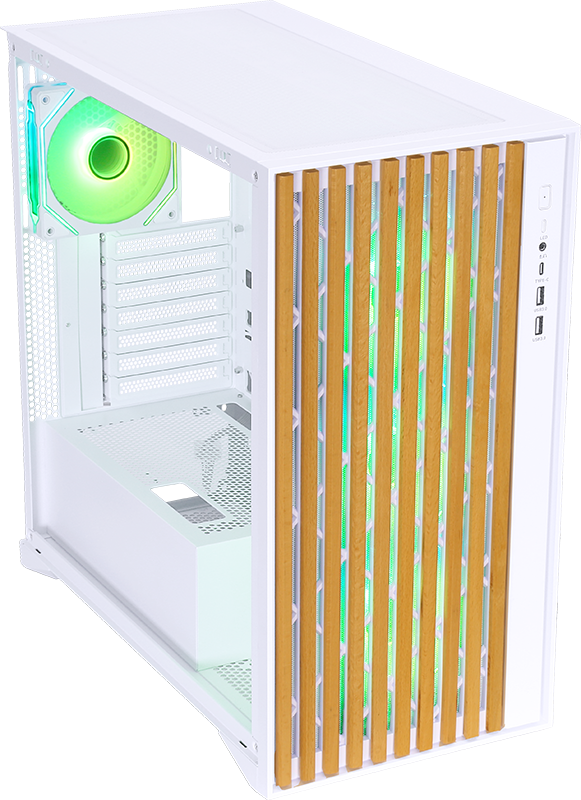

Unique Aesthetic Design With Wooden Accents

    • Unique Aesthetic Design With Wooden Accents

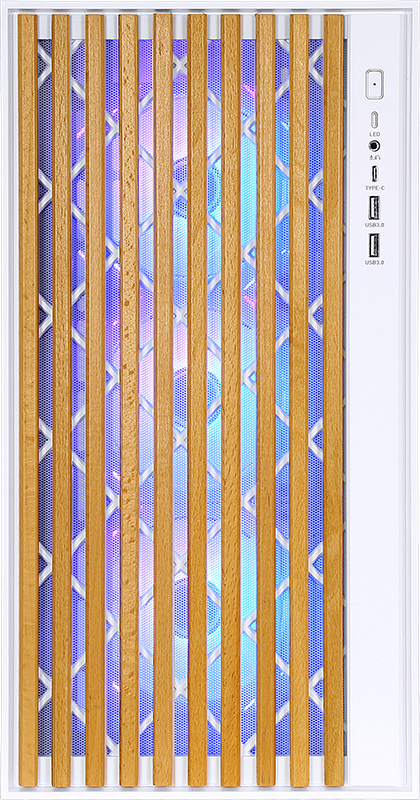

      The case boasts a stylish front panel featuring a blend of wood and plastic, offering a natural look while optimizing airflow.

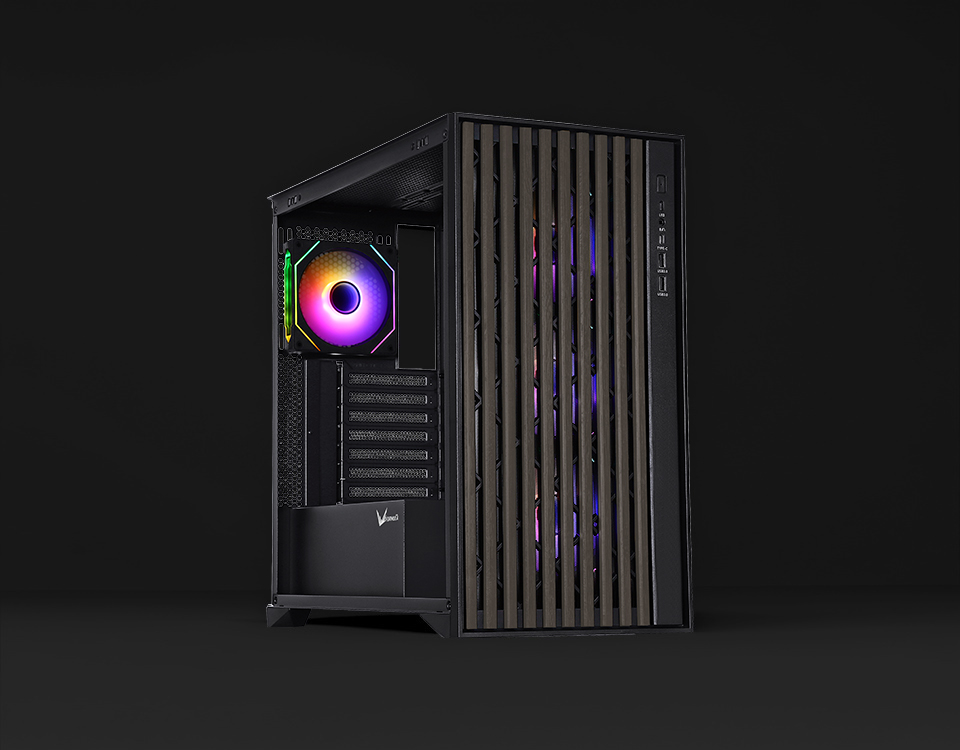

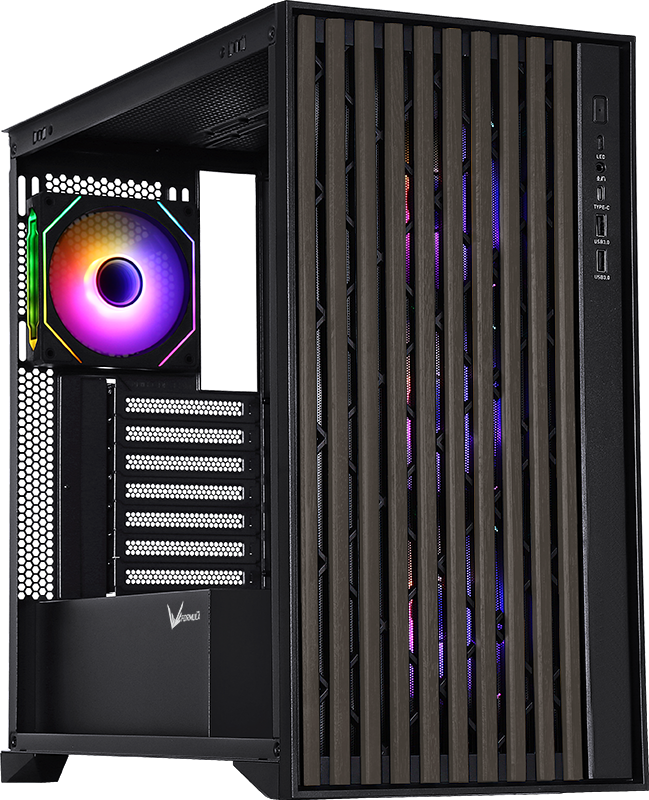

    • Extensive Cooling Options

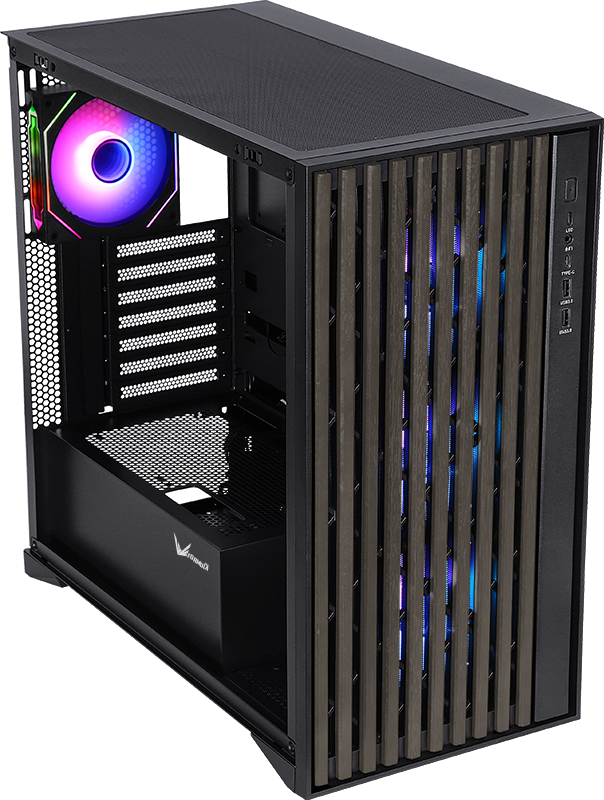

      Equipped with multiple fan mounting points and compatibility with 360mm liquid coolers, This case provides excellent cooling potential for high-performance builds. It also includes four cosmic 12cm frgb fans.

Spacious Interior For High-End Components

With support for ATX motherboards, 410mm graphics cards, and 181mm CPU coolers, this case offers ample space for powerful configurations.

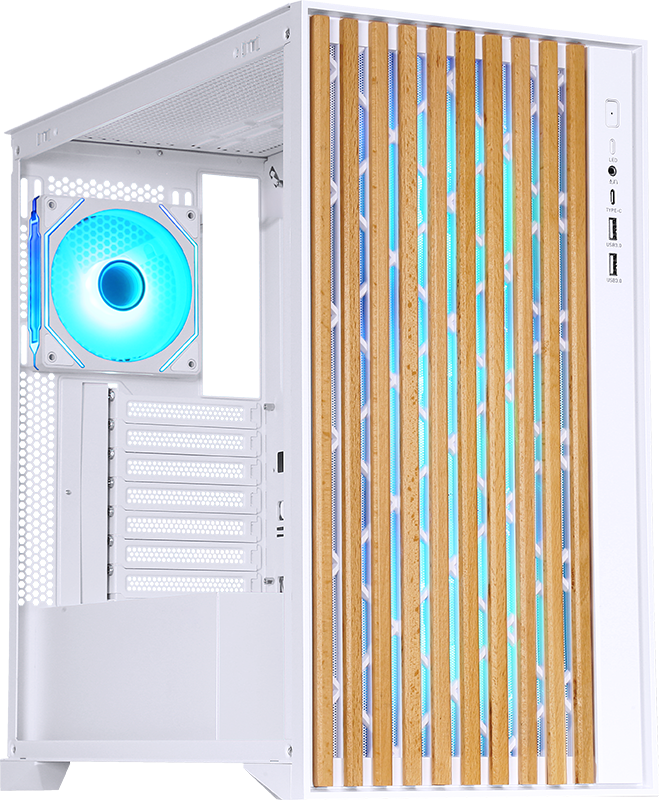

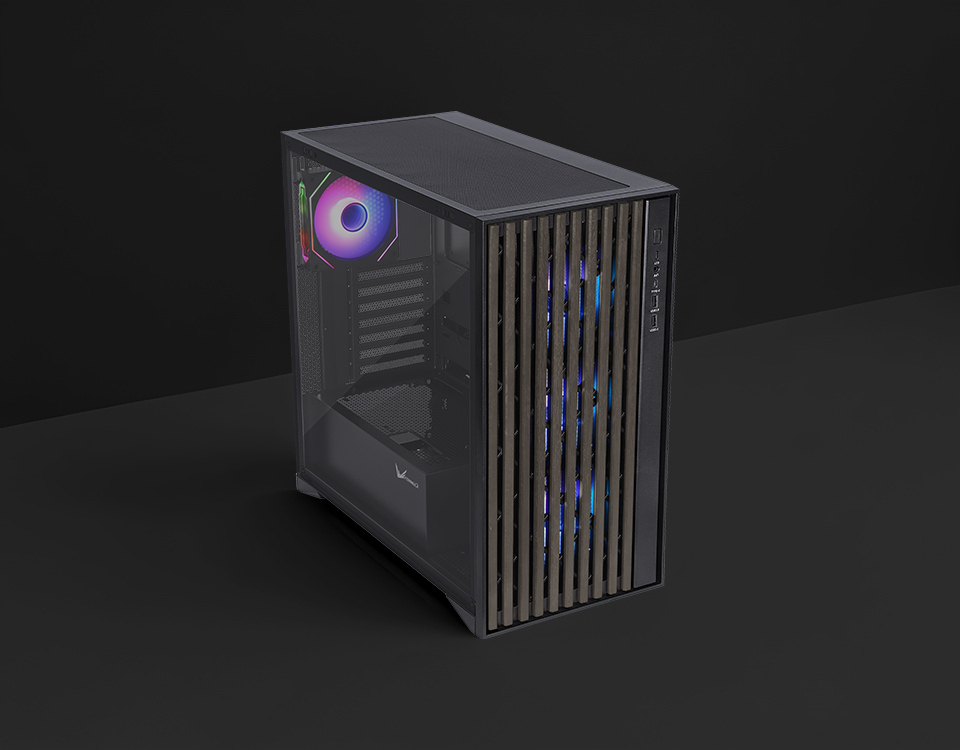

    • Premium Build Quality With Tempered Glass Panels

      The left and front panels are made from tempered glass, Highlighting internal components while maintaining a sturdy and durable design.

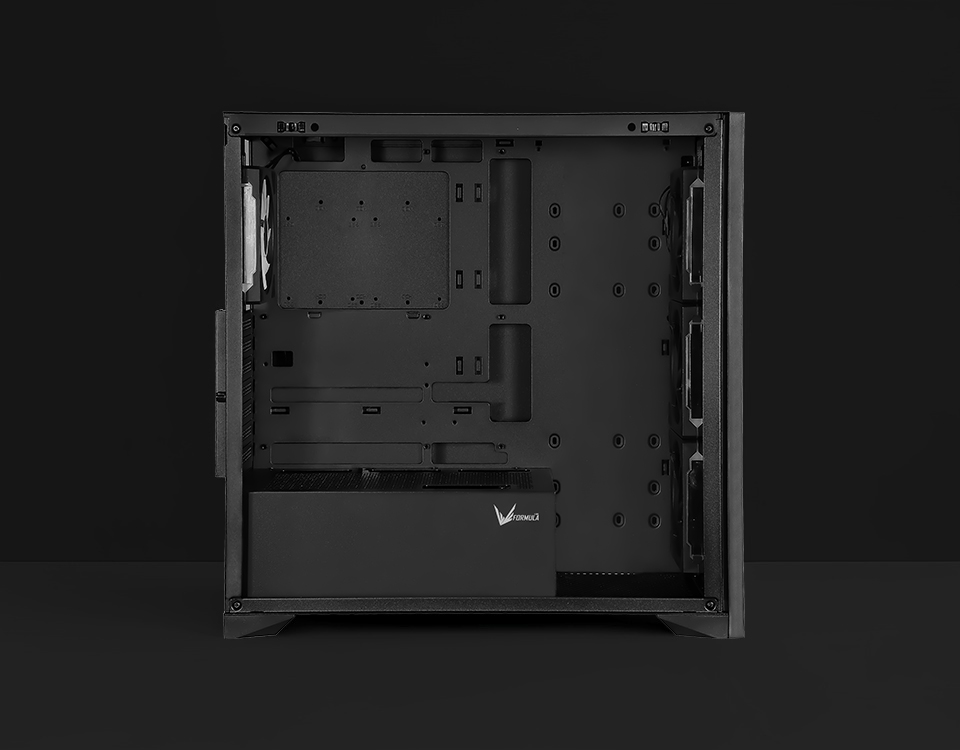

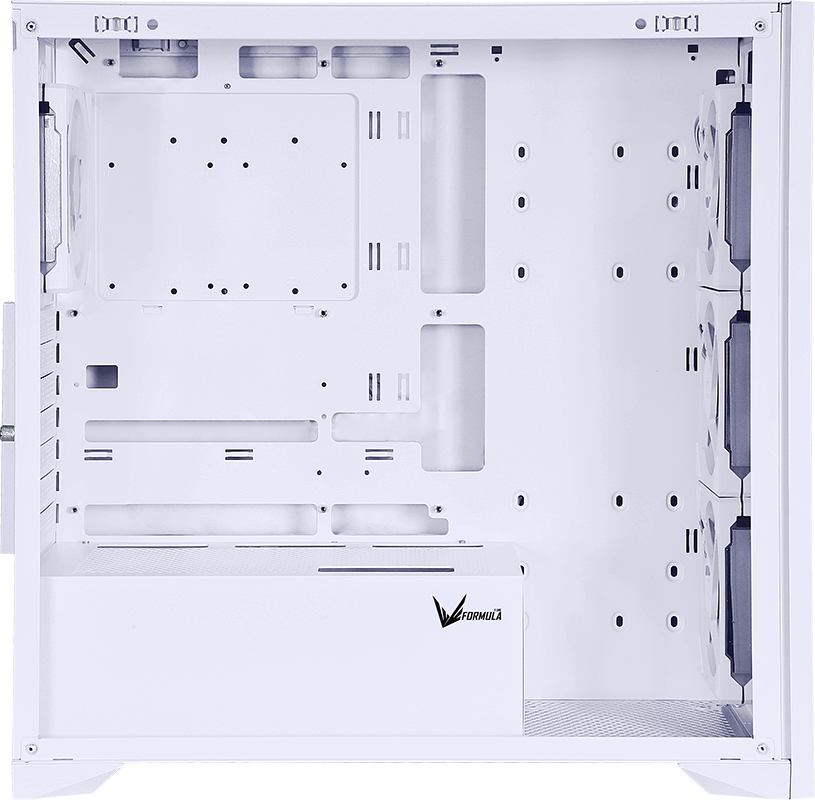

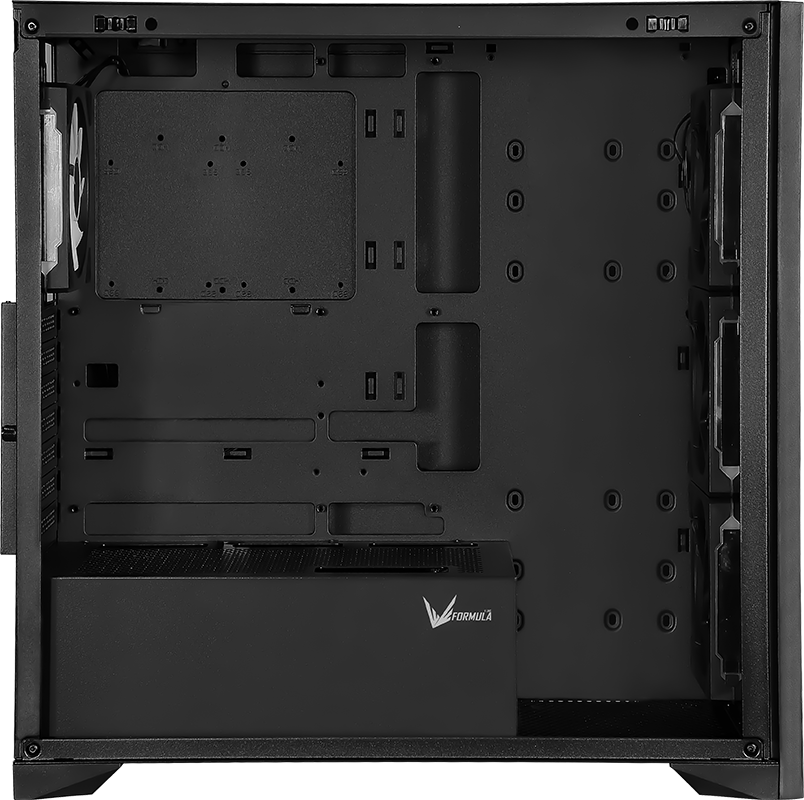

    • Compatible With Back-Connect Motherboards

      The timberline to supports back-connect motherboards, Enabling seamless cable management by routing connections behind components. This design ensures a cleaner look, improved airflow, and easier assembly.

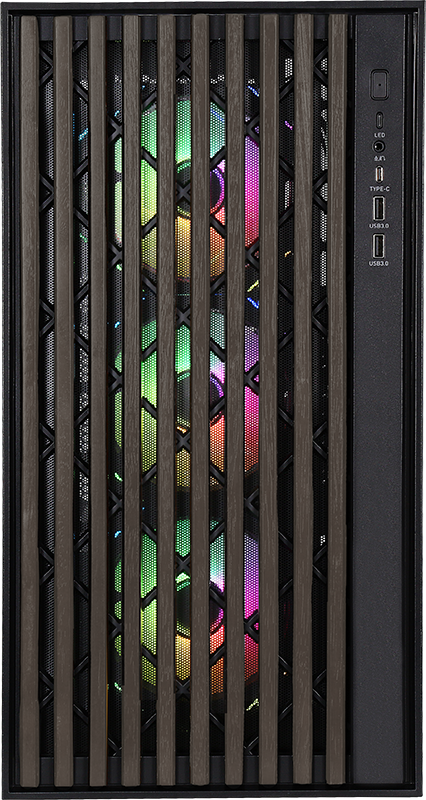

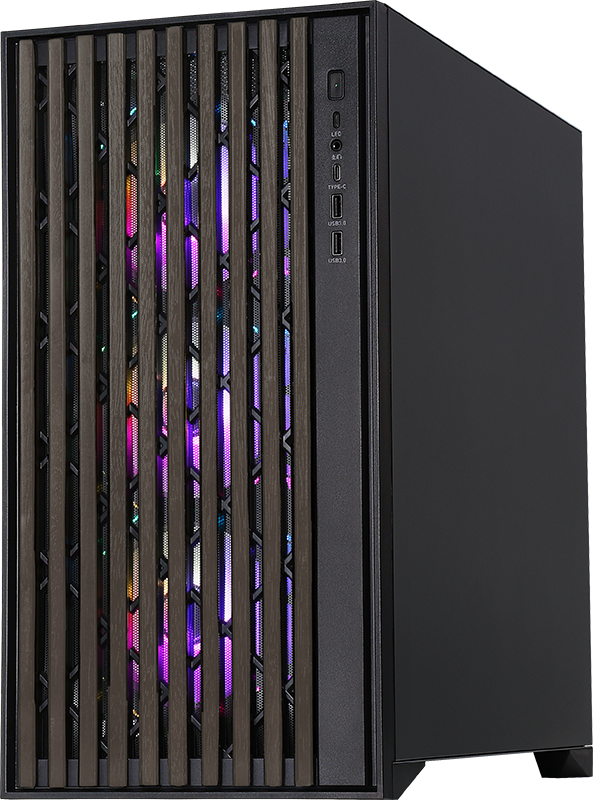

Enhanced Front I/O With Modern Connectivity

The front I/O panel includes a USB type-c port, dual USB 3.0 ports, and HD audio, ensuring quick access to essential connectivity options.

Specifications

  • Model

    Timberline T0

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.7mm

  • Front Materia

    ABS + woodenl

  • Motherboards

    ATX / micro ATX / mini-ITX

  • Case Dimensions

    453 x 235 x 450mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    2

  • Expansion Slots

    7

  • GPU Clearance

    410mm Max.

  • CPU Cooler Clearance

    181mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 2 , HD AUDIO

  • Front radiator

    360mm Max.

  • Top radiator

    360mm Max.

  • Front fans

    3 x 120mm or 140mm or 2 x 160mm Max.

  • Top fans

    3 x 120mm or 2 x 140mm Max.

  • Bottom fan

    1 x 120mm Max

  • Power Box fans

    2 x 120mm Max.

  • Power Supply

    ATX

  • Net weight

    6.76 kg

  • Gross weight

    8.08 kg

  • EAN

    TimberLine T0 Black: 4711401660606

    TimberLine T0 White: 4711401660613
