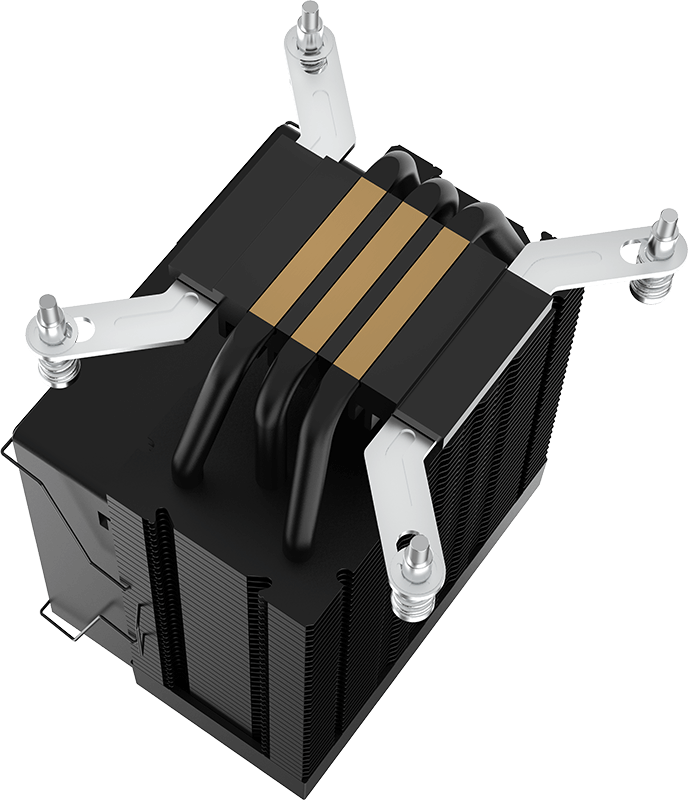

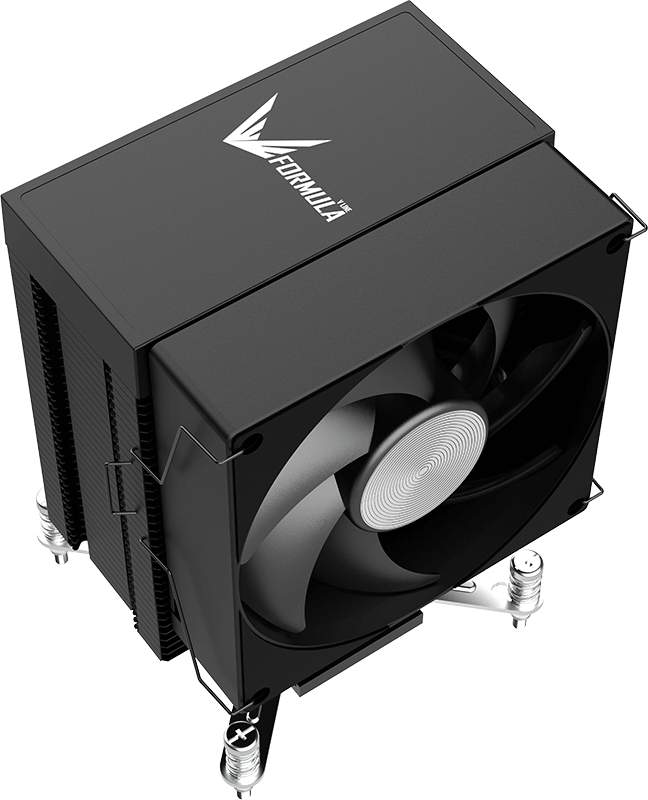

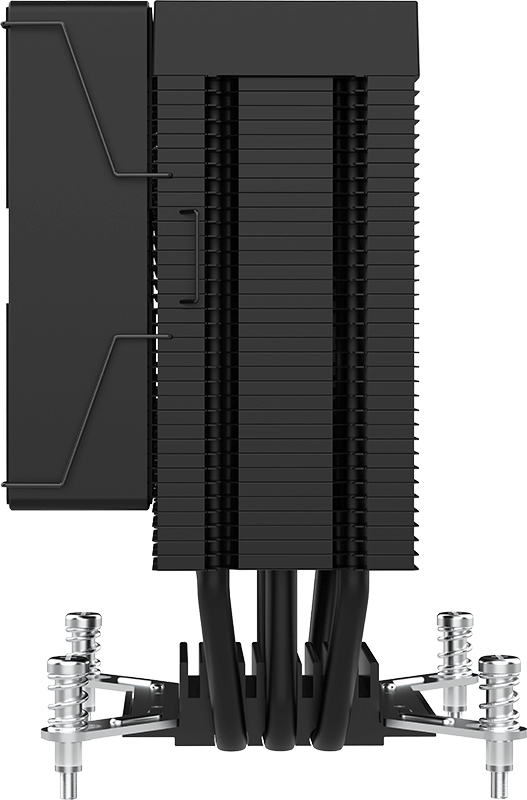

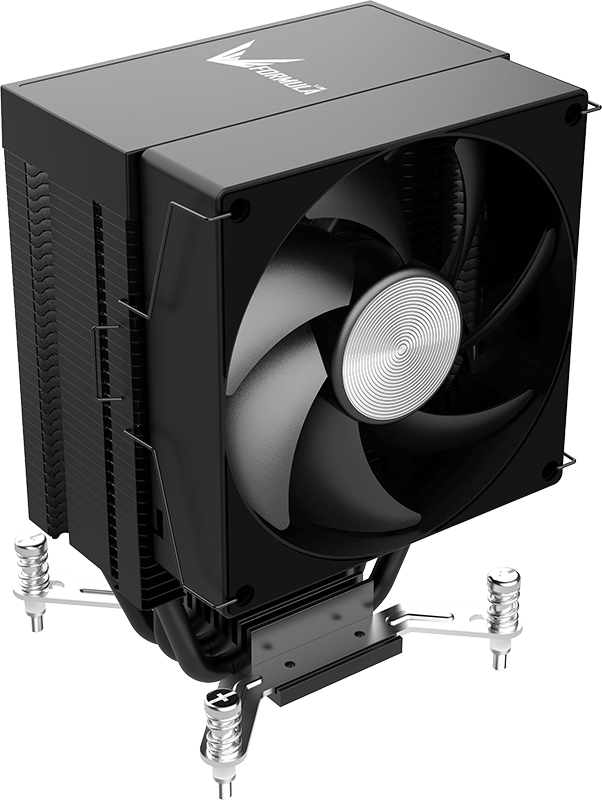

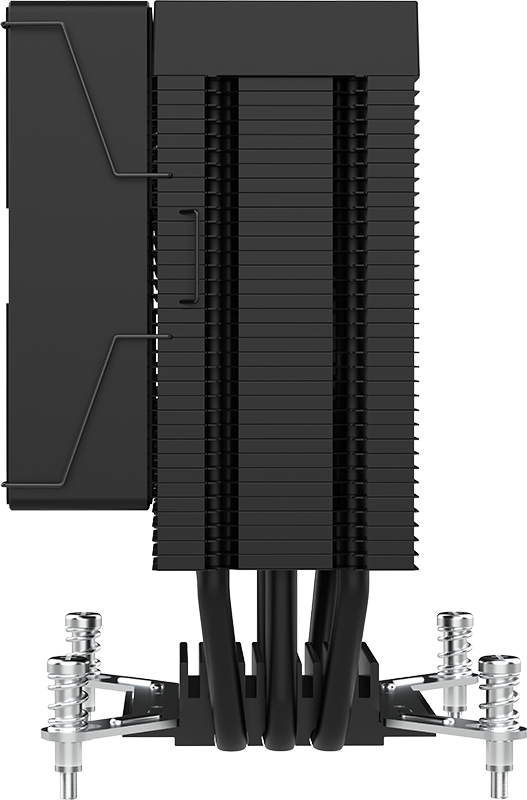

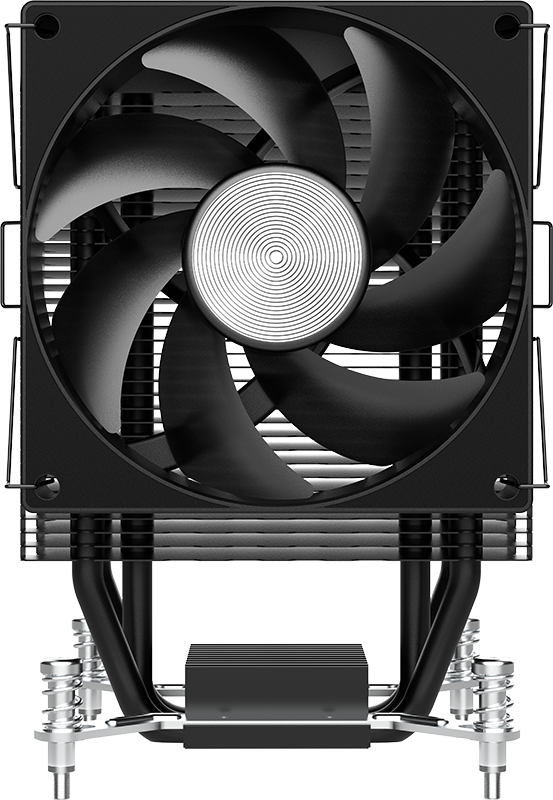

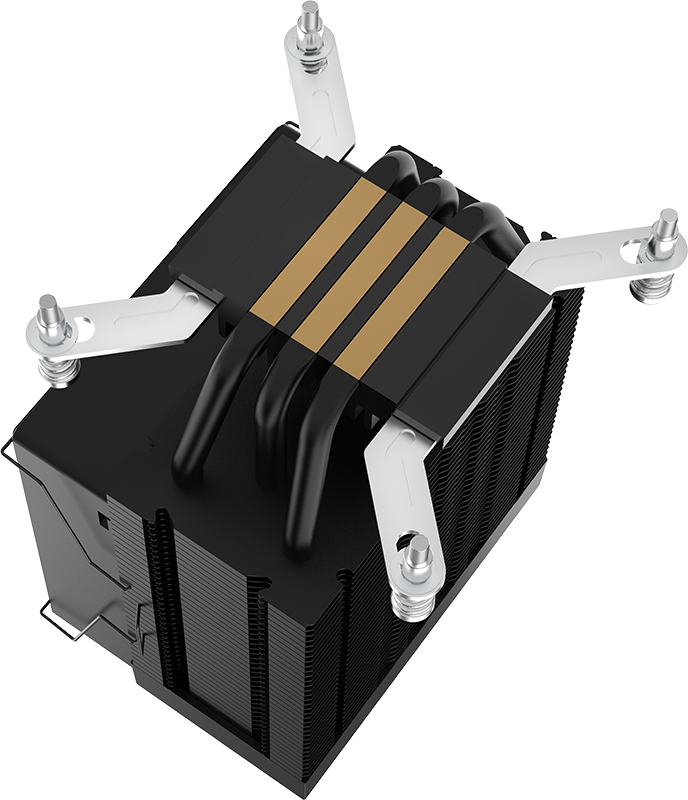

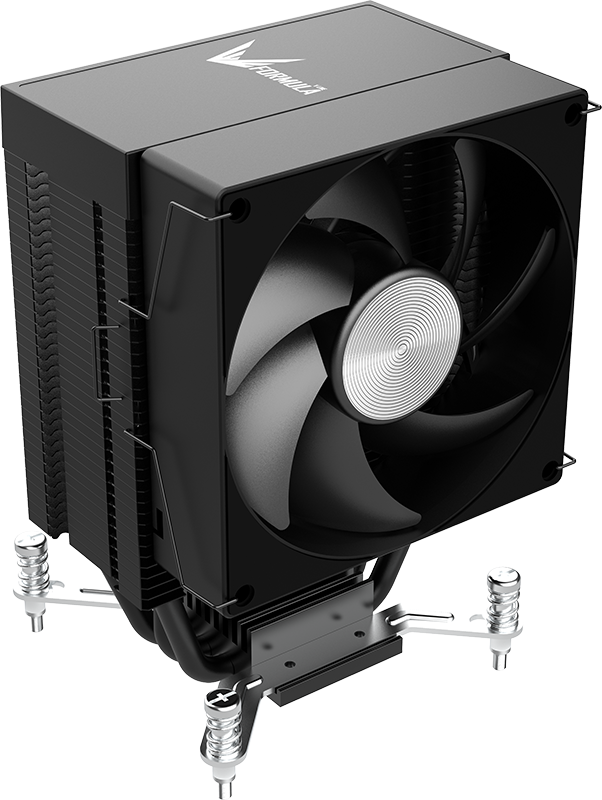

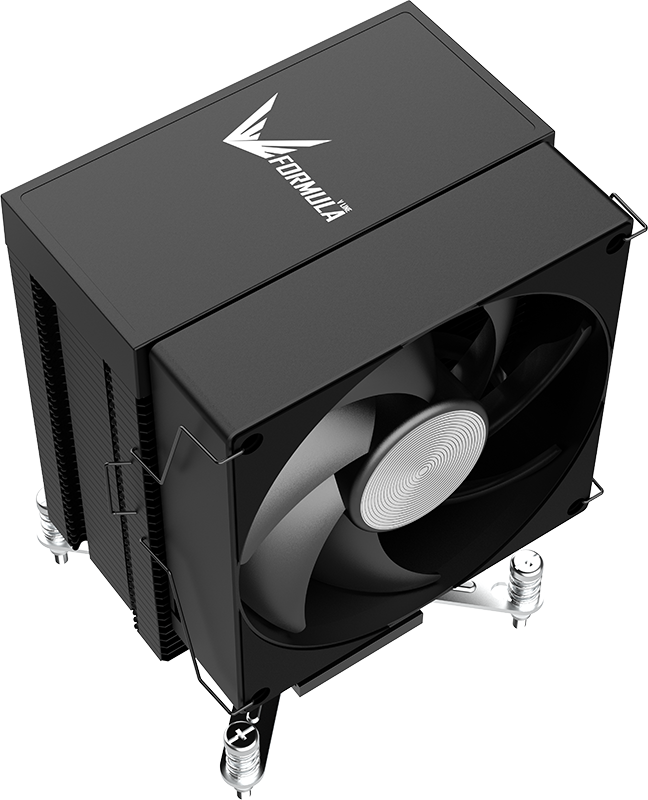

Ice Boid 3PSD9

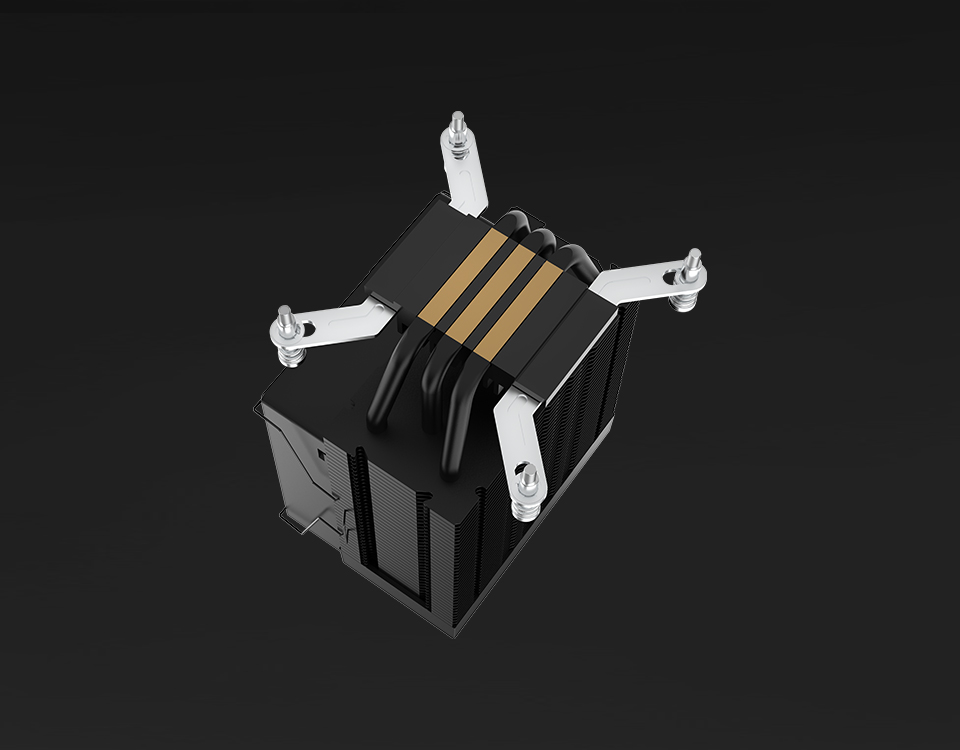

The Ice Boid 3PSD9 air cooler delivers efficient cooling performance, utilizing the heat pipe technology.

Equipped with high-efficiency fins for improved heat dissipation, it supports single 90mm fan setups and is compatible with most modern motherboard designs.

The cooling and hardware layout shown in the product photos is for reference only.

Please check the website’s product specifications for the actual configuration.

Variation

Color

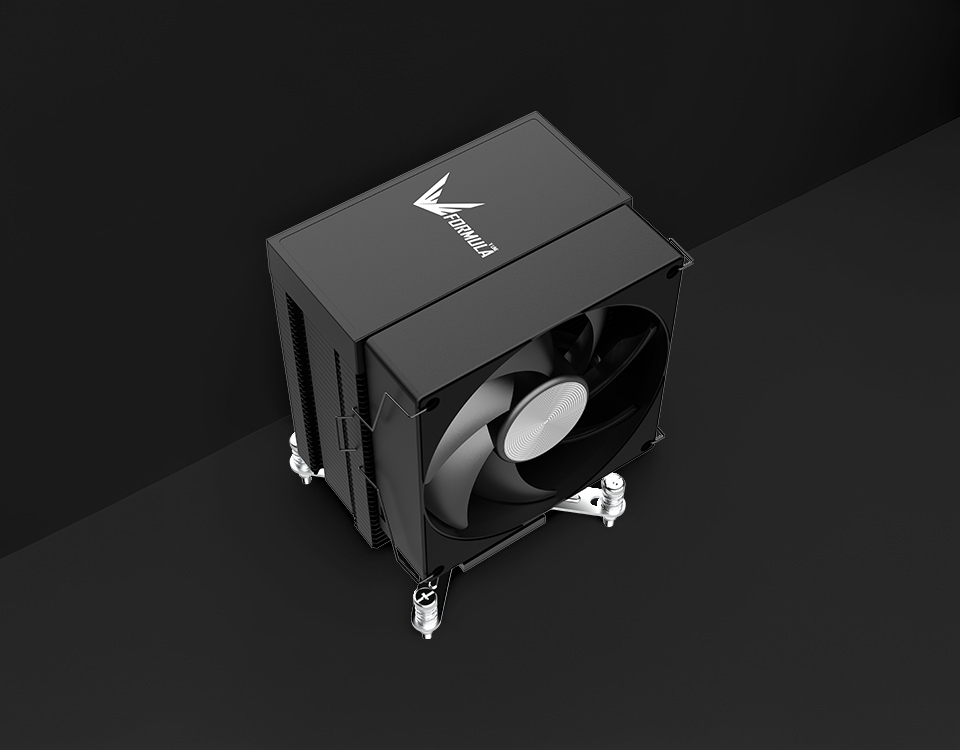

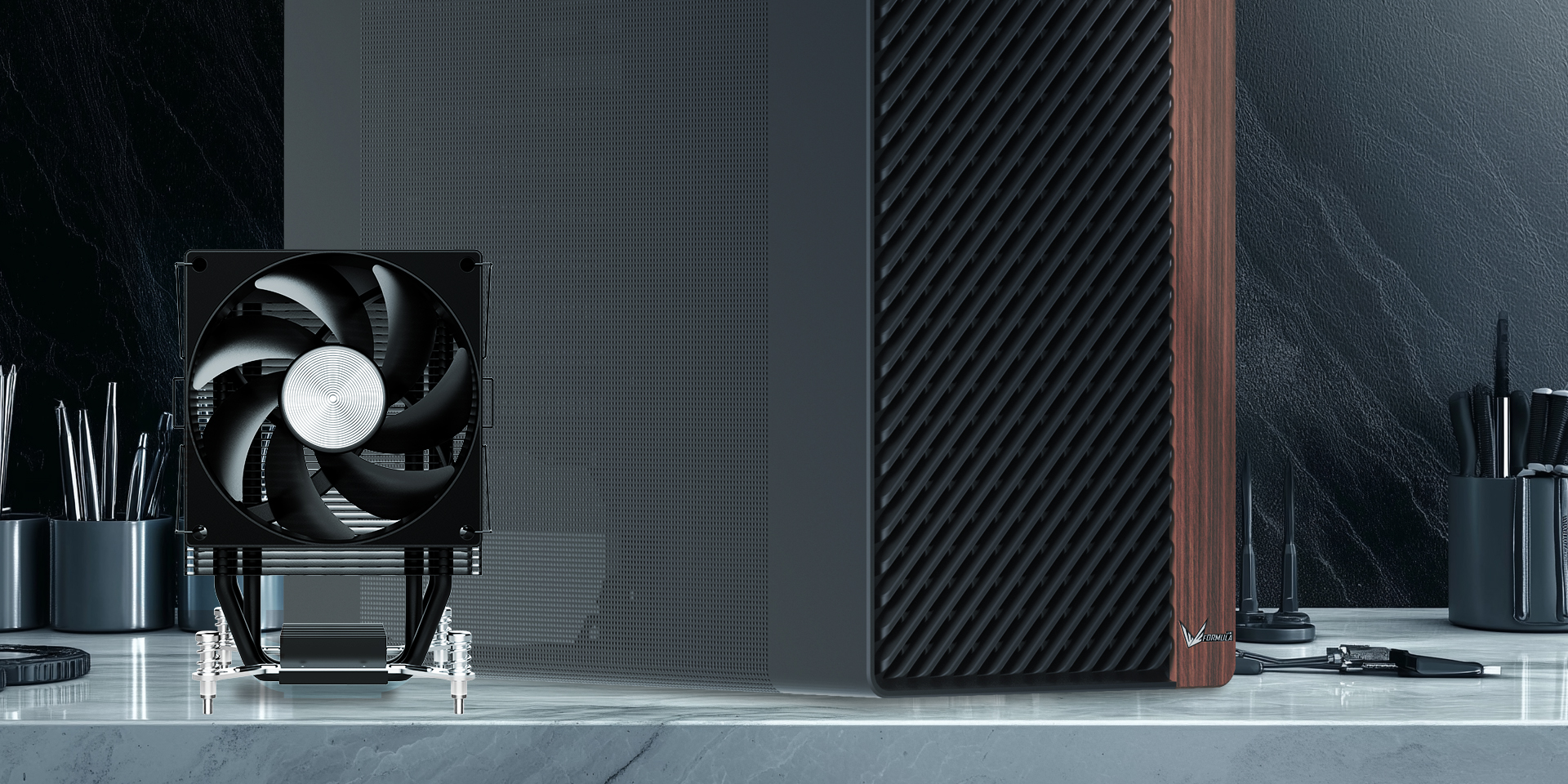

Ice-Boid-3PSD9-1920x960

Accommodates single 120mm fan setups

    • Accommodates single 90mm fan setups

    • Enhanced high-efficiency fins ensure optimal thermal performance

    • Compact design ensures maximum compatibility

    • Supports TDP (Thermal Design Power) of up to 140W

    • Works with most modern motherboard designs

Ice Boid 3PSD9

  • Model

    Ice Boid 3PSD9

  • Pipe Dimension

    6mm

  • Copper Base

    Y

  • Overall (WxDxH)

    97 x 73 x 134mm

  • Fan Size

    90mm

  • Fan Frame Color

    Black

  • Fan Blade Color

    Black

  • Bearing

    Hydraulic Bearing

  • Connector Type

    4pin

  • Fan Speed

    400-2200 RPM

  • Max AirFlow

    40.71CFM

  • Max. Static Pressure

    1.87mmH2O

  • Rated Voltage

    12VDC(4Pin PWM)

  • Operating Voltage

    10.8~13.2VDC

  • Started Voltage

    7VDC

  • Rated Current

    0.2A

  • Power Input

    2.4W

  • Noice Level

    26.43dBA

  • With LED

    No

  • TDP

    140

  • Socket

    LGA 2066 / 2011 / 1700 / 1851 / 1200 / 115X

    AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

  • Net weight

    0.51kg

  • Gross weight

    0.58kg

  • EAN

    Ice Boid 3PSD9: 4711401662945
