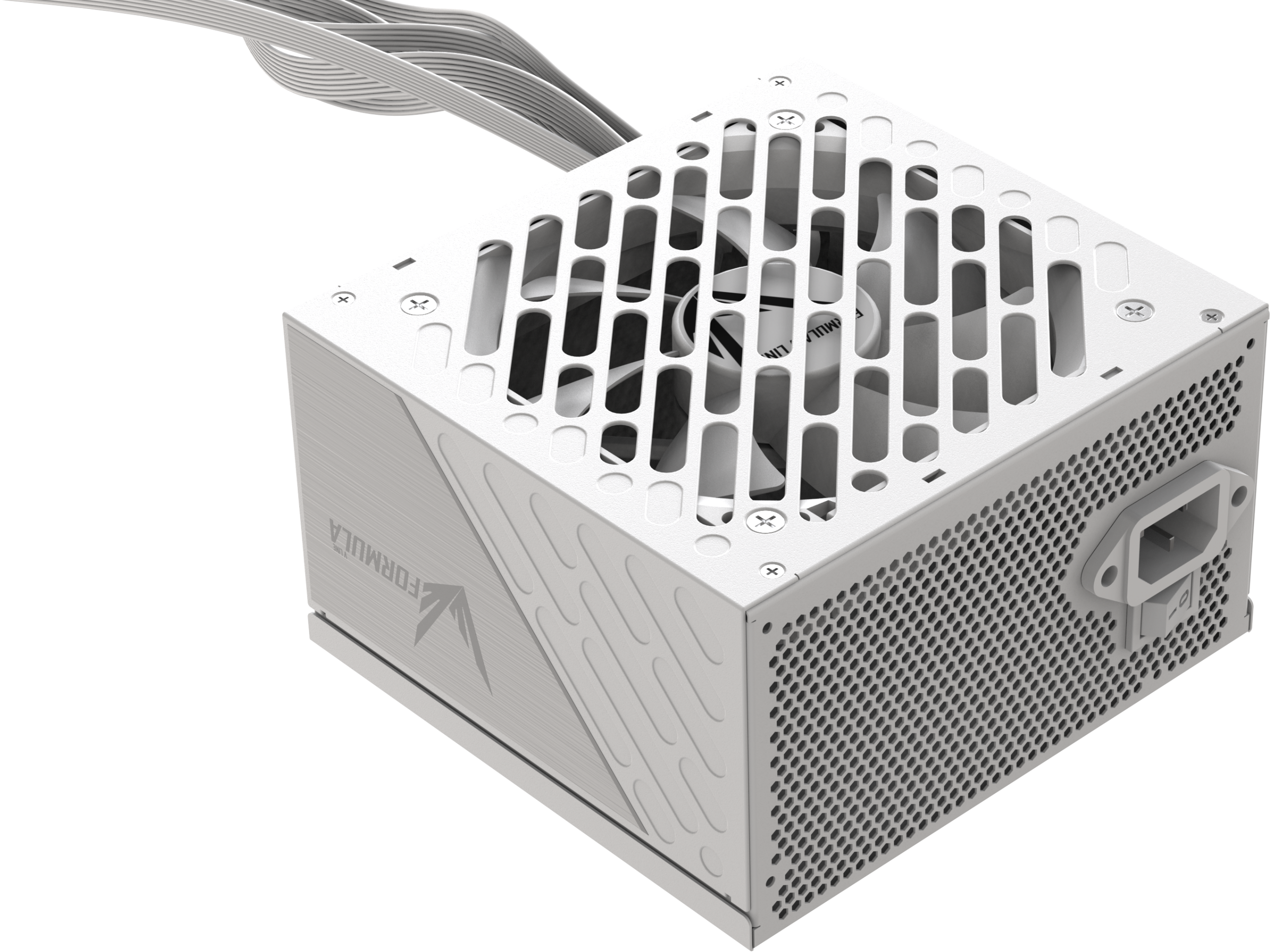

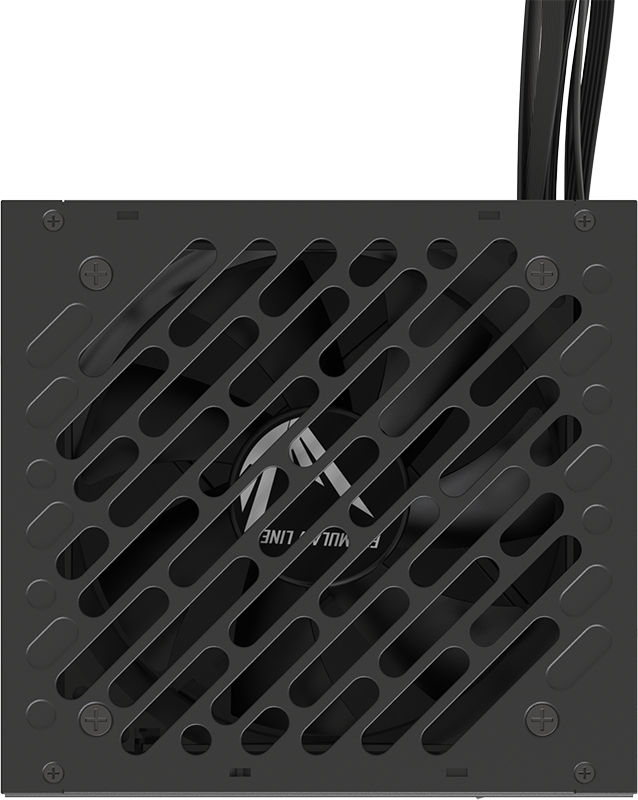

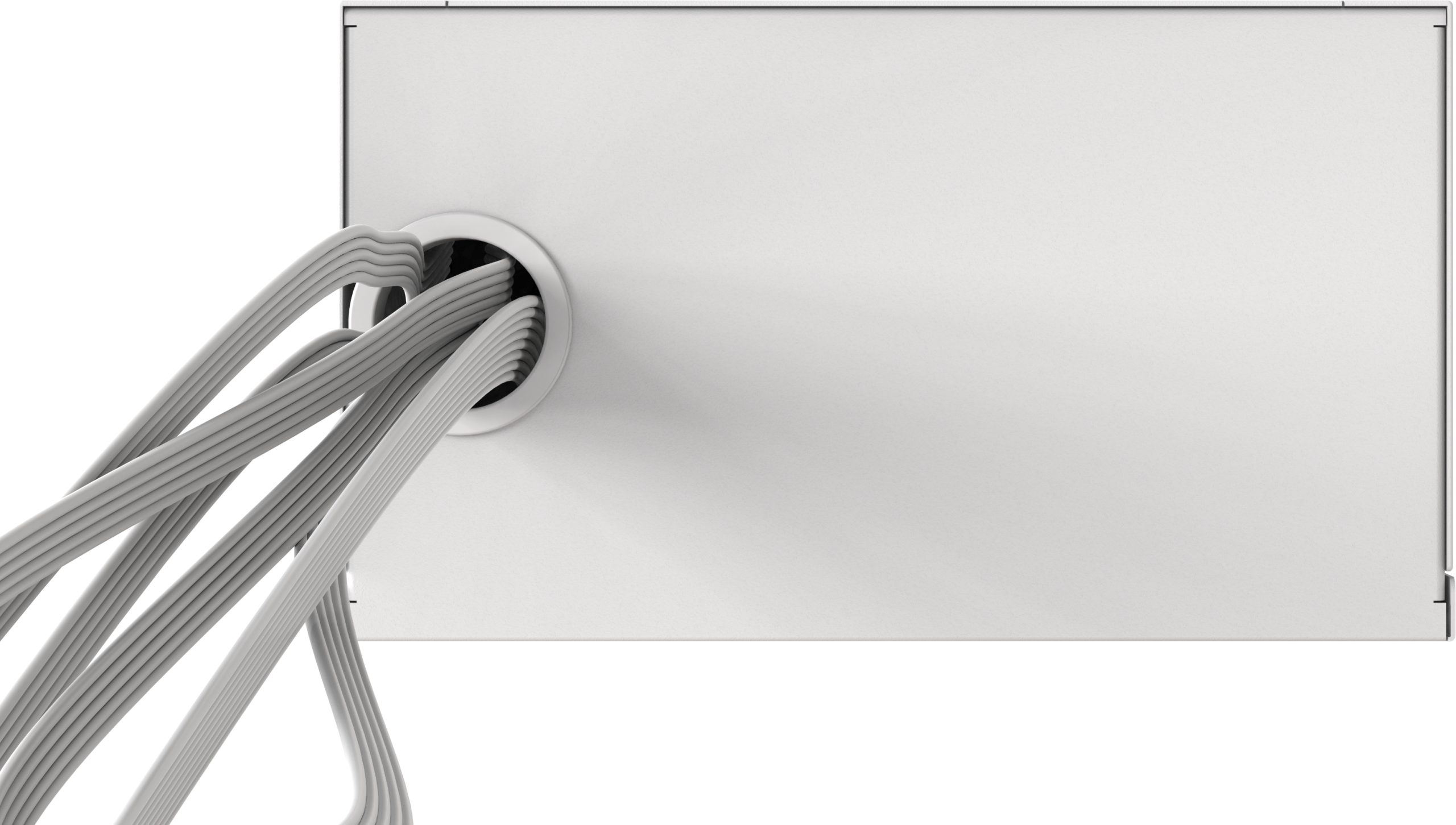

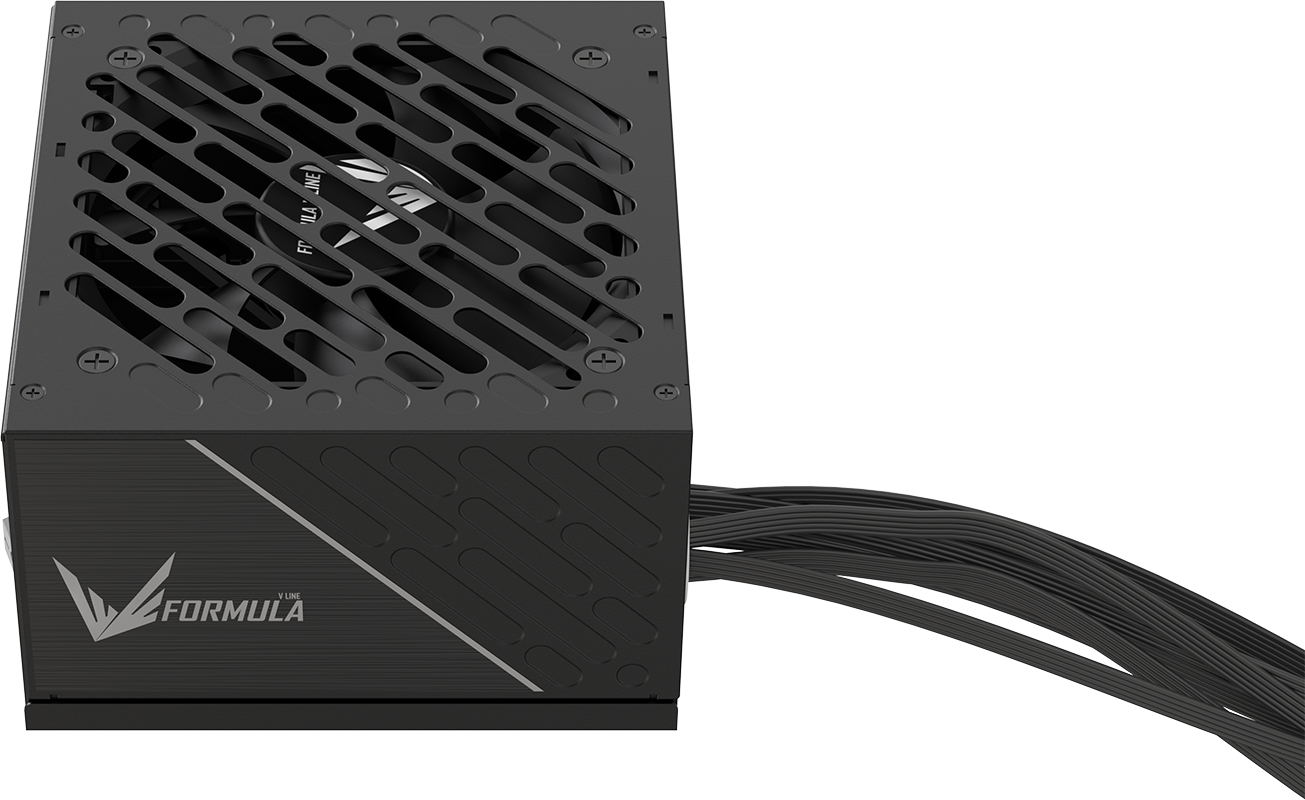

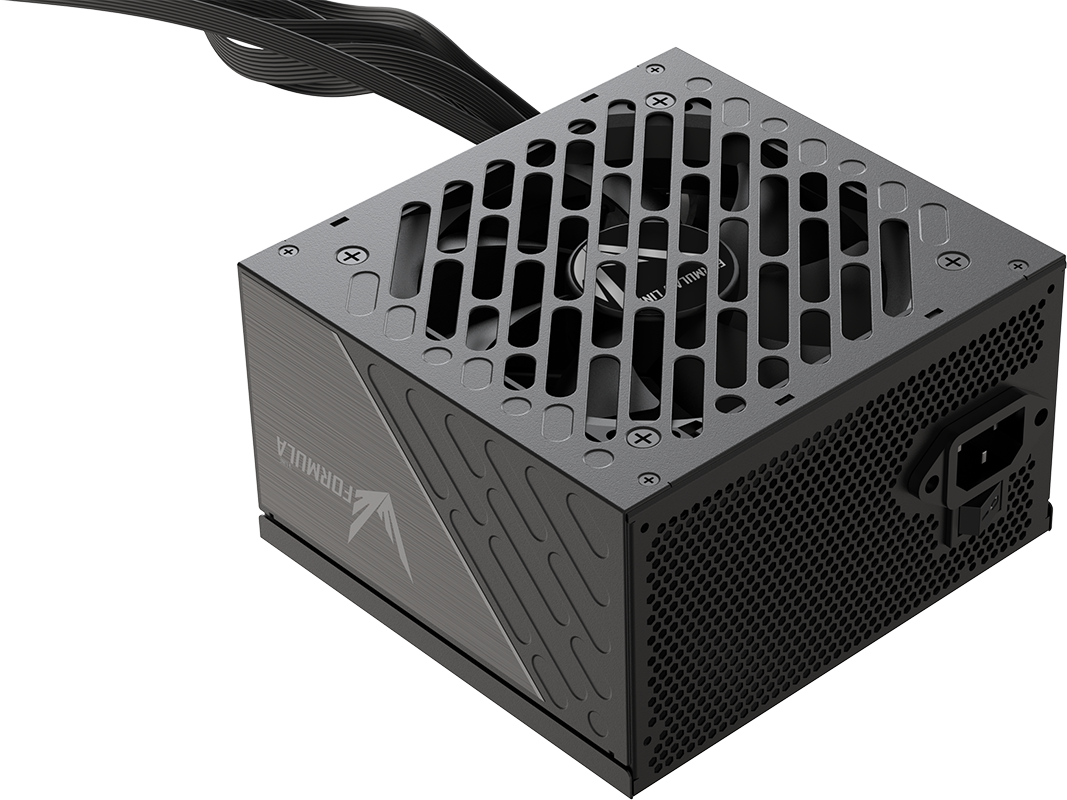

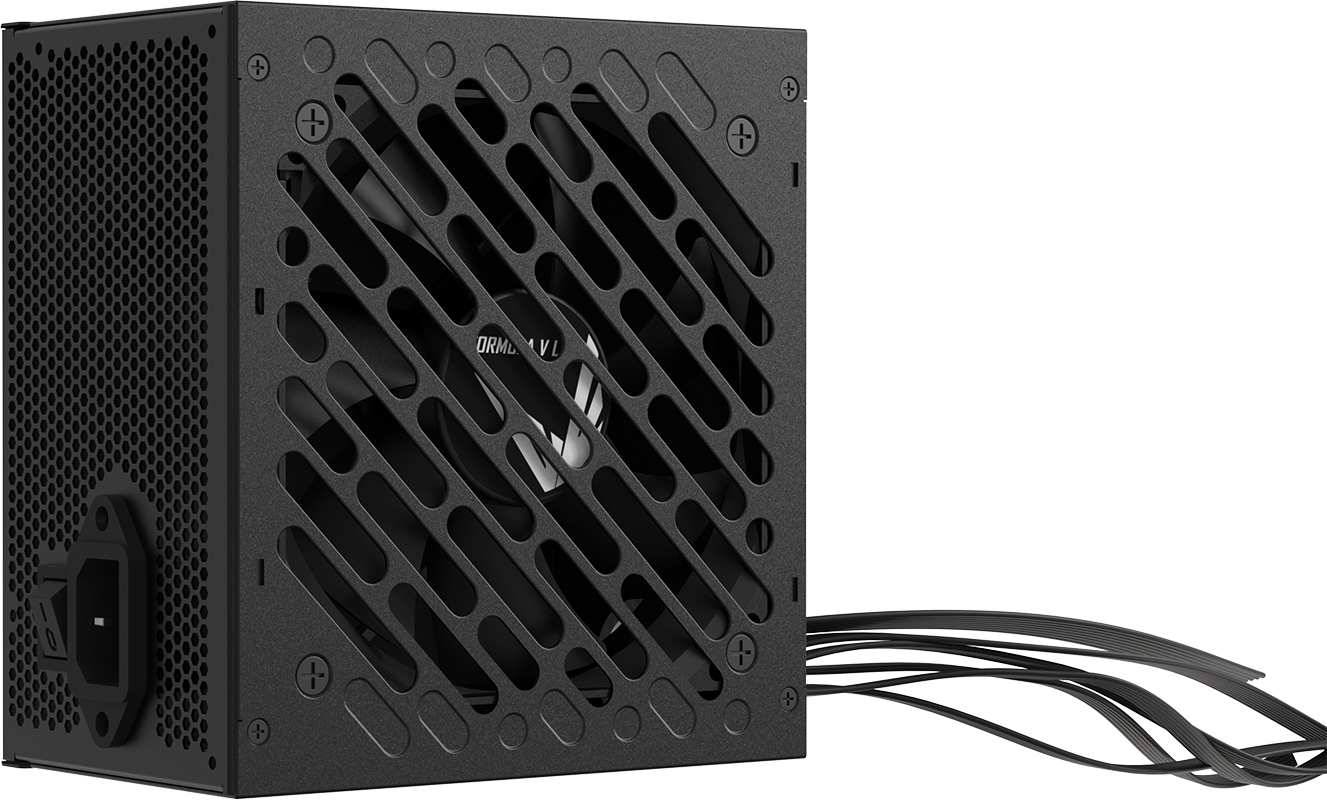

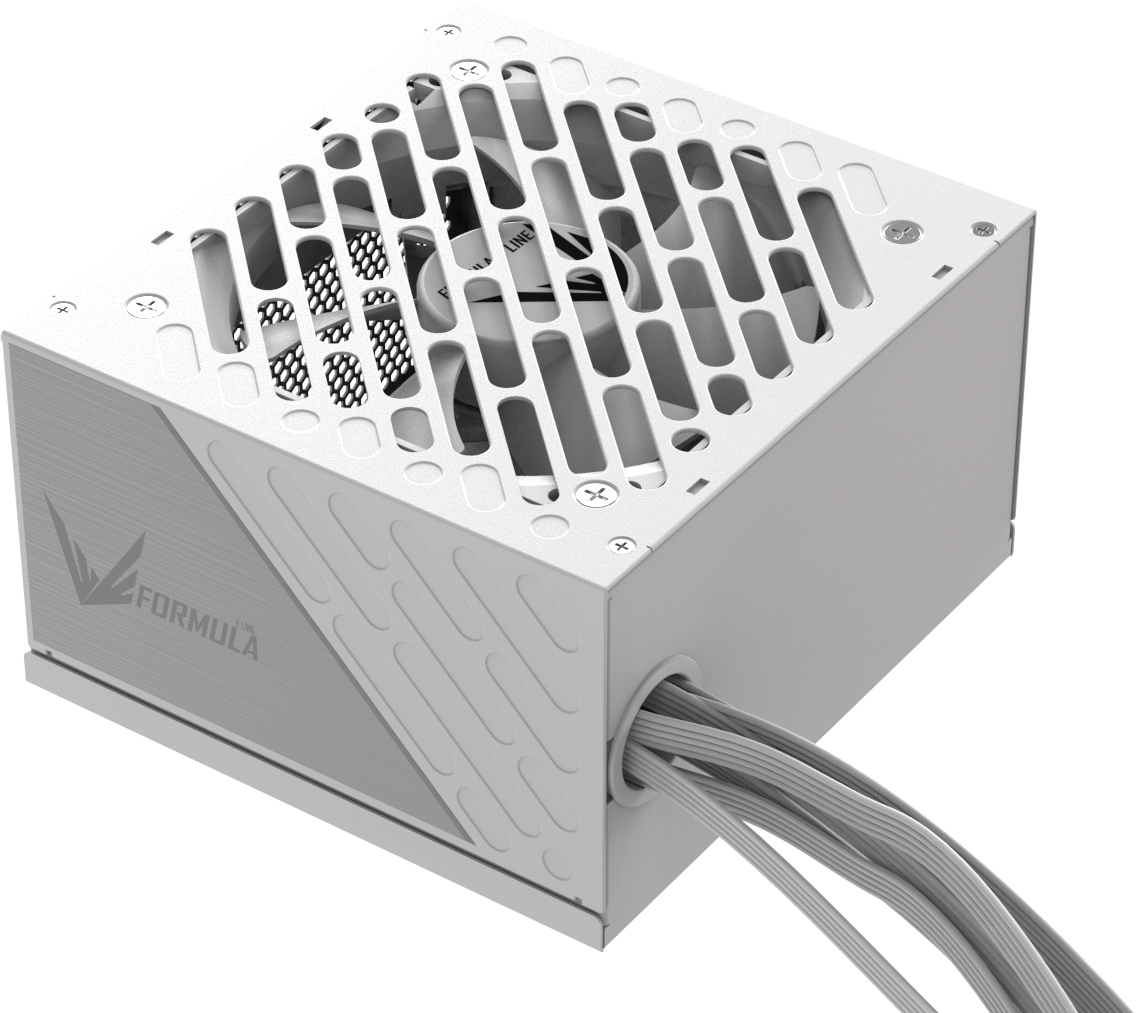

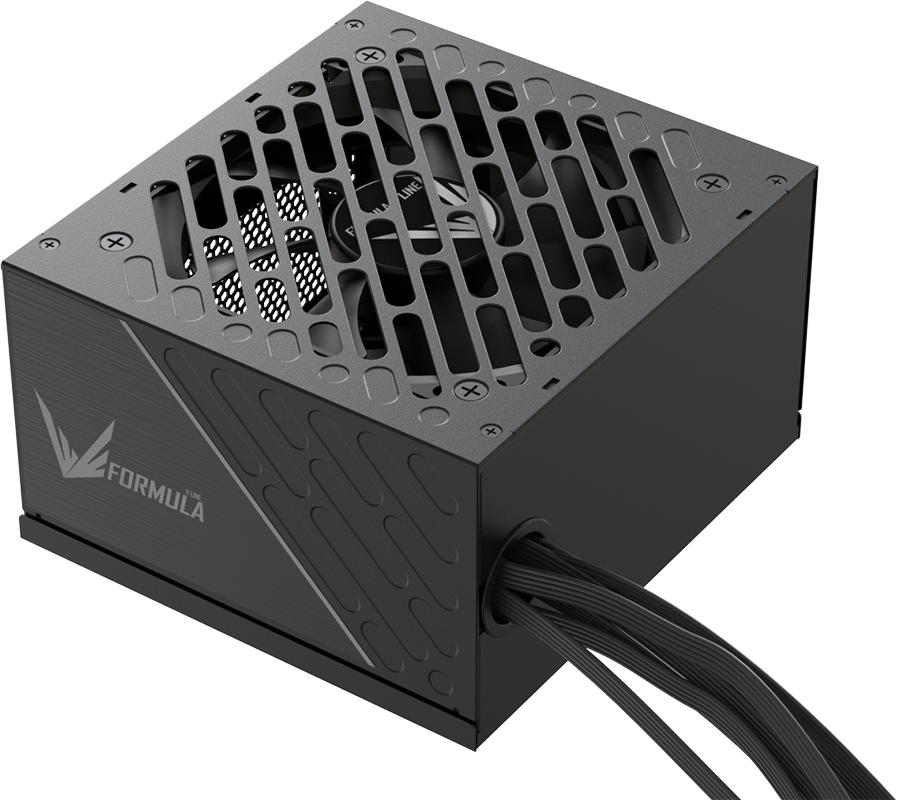

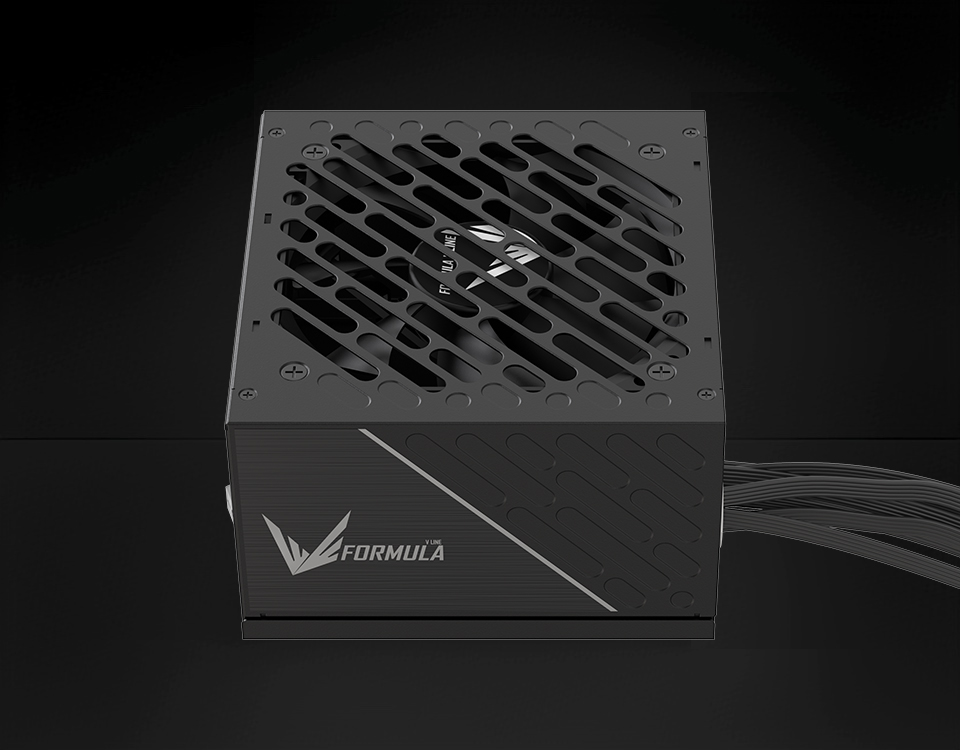

FV-750WD

The FV-WD series delivers up to 88% efficiency with 80+ EU White 230V certification.

Its DC-to-DC design and ripple filtering ensure clean, stable power for modern GPUs and CPUs.

Smart fan control keeps noise low during light use and cooling strong when needed.

Comprehensive protections guard against surges, overheating, and short circuits.

Warranty periods may vary by region; please inquire with your point of purchase for details.

Variation

Color

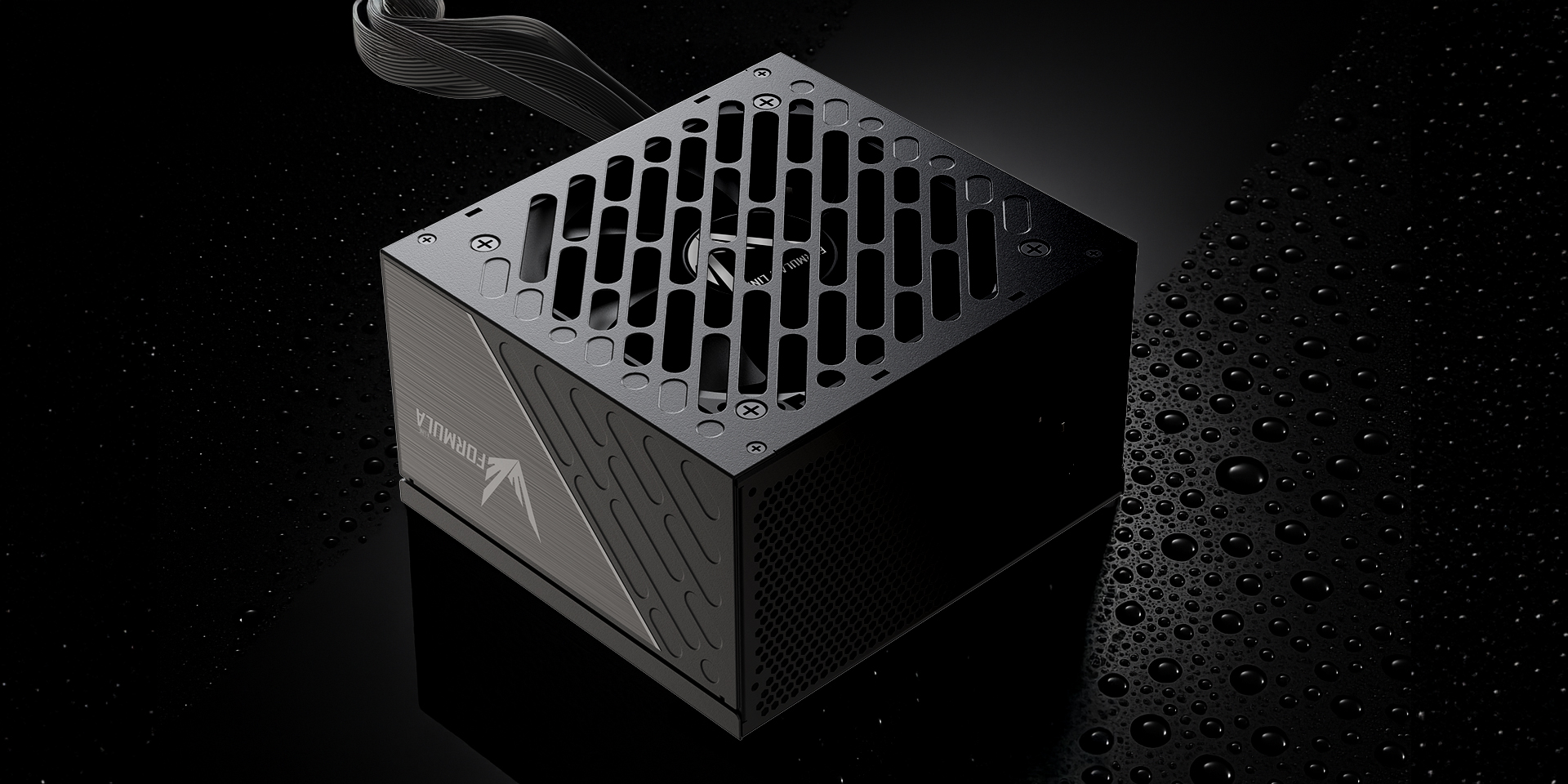

FV-WD-1920x960

    • Active PFC – Smarter Power Management

      With a near-perfect power factor of 0.98, the advanced Active PFC system ensures efficient energy use and reduces electrical waste and harmonic distortion—especially critical during high-load gaming or creative workflows.

      “Without Active PFC” → High power waste, low energy efficiency

      “With Active PFC” → Power factor up to 0.98, reduces energy loss and saves electricity

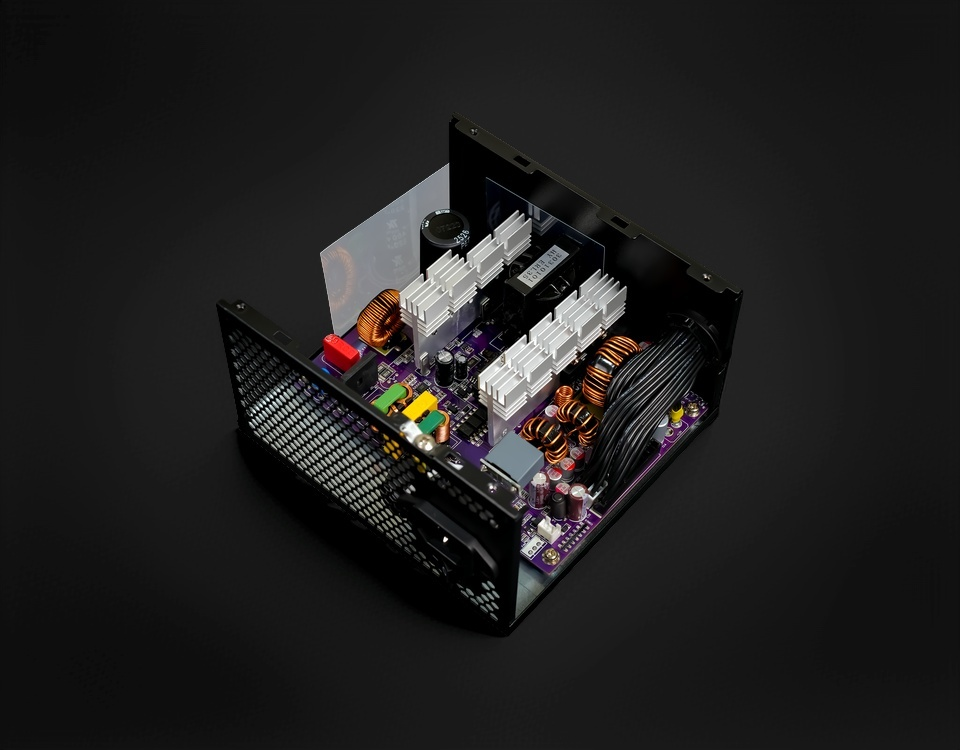

    • Independent DC-to-DC Architecture

      12V / 5V / 3.3V rails each feature independent DC-DC converters, minimizing ripple and cross-talk. Ensures rock-solid voltage stability during sudden GPU or CPU load spikes.

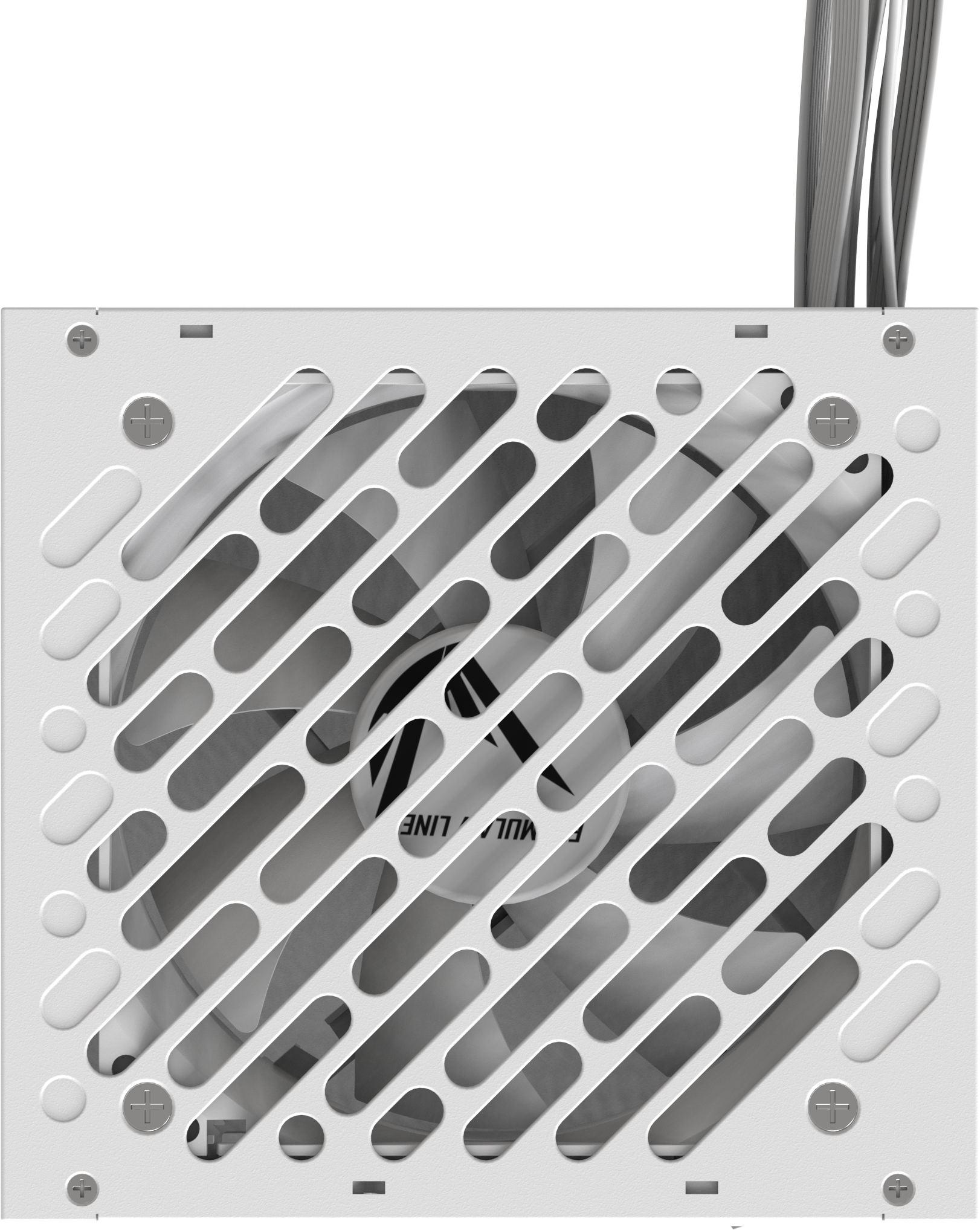

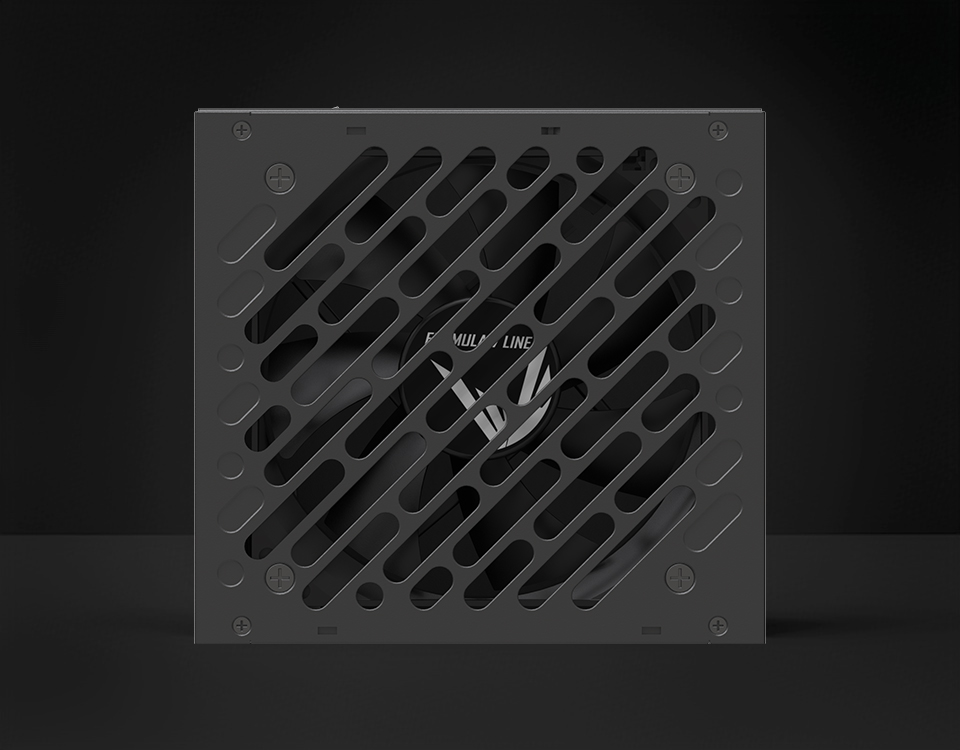

    • Smart Fan Control – Quiet When Idle, Cool When Needed

      Temperature-sensitive fan operation intelligently balances cooling and silence.

      Ideal for long hours of work or gaming without distracting noise.

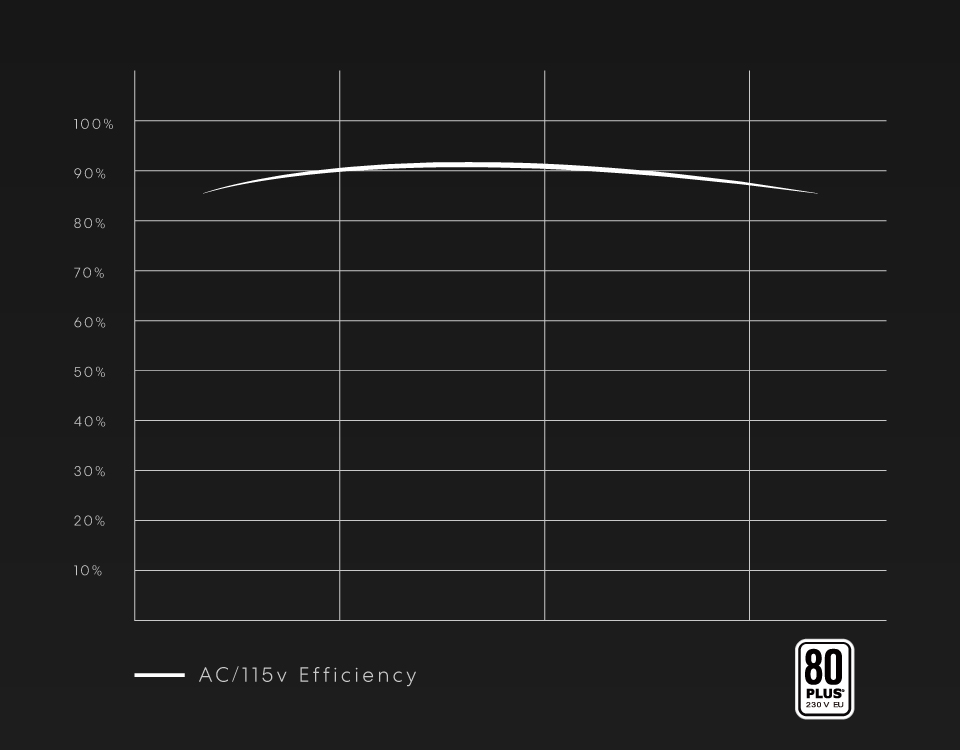

    • High Efficiency, Certified Performance

      80+ EU White 230V Certified – Delivers up to 88% power conversion efficiency, reducing heat and saving on electricity bills. Built for users who care about performance and cost.

Comprehensive Hardware Protection

Built-in protections including OVP, UVP, SCP, OCP, OTP, and OPP. Your system is protected from voltage surges, overcurrent, overheating, and short circuits—so you can run with confidence.

    • Triple-Layer Ripple Filtering

      A refined EMI + LC + Pi filtering design, combined with premium-grade solid capacitors and inductors, delivers ultra-clean output with ripple as low as 25mV—well below industry standards.

      This means better long-term stability for your CPU, GPU, and storage.

    • 12V Rail Optimized for Modern Builds

      Power-hungry components demand stable 12V output. This PSU is fine-tuned to meet the requirements of today’s high-performance GPUs and multi-core CPUs.

    • 105°C Japanese Main Capacitors

      Uses top-tier Japanese main Capacitor with high-temperature tolerance for 50% longer lifespan in hot environments.

    • Low ESR Japanese Capacitors

      Effectively suppress ripple voltage for stable output.

    • 3-Year Warranty for Essential Protection

      Covered by a solid 3-year warranty, this PSU delivers dependable performance and reliable coverage for everyday computing and entry-level builds.

      Warranty periods may vary by region. Please consult your point of purchase for local details.

FV-750WD

  • Model

    FV-750WD

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    750W

  • Efficiency

    80Plus White

  • Input Voltage

    230V

  • Type

    ATX3.1 / PCIe5.1

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    120mm

  • Modular

    Direct Cable

  • Net Weight

    1420g

  • Gross Weight

    1720g

  • EAN

    FV-750WD: 4711401664086

AC Input

  • AC

    200-240Vac 8A, 50Hz

DC Output

  • 3.3V

    15A

  • 5V

    15A

  • +12V

    62.5A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    750W

Cable SPEC

  • Mainboard

    20+4P(550mm) x1

  • CPU

    P8(4+4)to(P4+4)(650mm) x1

  • PCI-E

    P8(6+2)toP8(6+2)(550mm) x1

  • PCI-E

    P8(6+2)(550mm) x1

  • PCIe5.1

    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (600W, 650mm) x1

  • SATA / IDE

    SATA(550mm) / SATA(150mm)/SATA(150mm)/MOLEX(150mm) x2
