FV-650GD
The FV-GD series delivers Gold-level efficiency and rock-solid stability in a straightforward direct-cable design.
Engineered for up to 89% efficiency, its Half-Bridge LLC + DC-DC core supplies clean, ripple-free power to CPUs and GPUs, even under heavy 24/7 workloads.
A long-life HYB hydraulic fan with smart thermal control keeps operation whisper-quiet at low loads and ramps up only when cooling is needed.
With premium 105 °C Japanese capacitors, a seven-shield protection suite, and flat black cables for clean builds, the FV-GD is built for gamers, workstations, and always-on systems that demand reliability without the extra cost of modular cabling.
Fully ready for ATX 3.1, it’s the dependable choice for powering next-gen platforms.
Warranty periods may vary by region; please inquire with your point of purchase for details.
Variation
-
Universal Input (100–240V)
Auto-ranging design supports global voltage standards—from 100V to 240V with no manual switching required. Provides stable performance across fluctuating power grids.
-

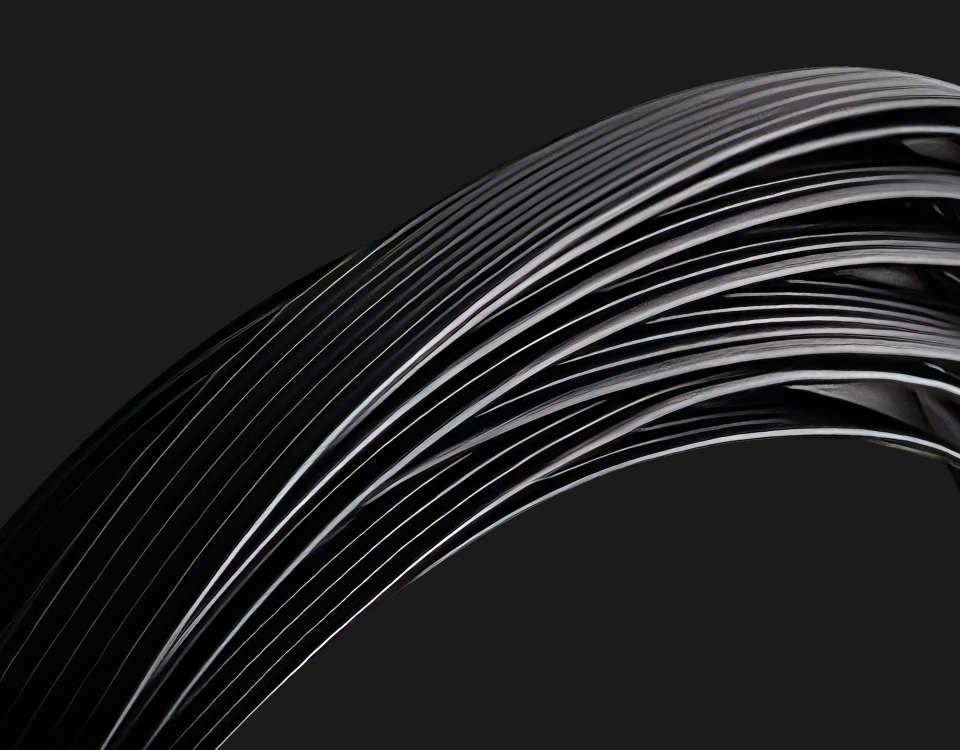

Flat Black Direct Cables
Durable, easy-to-route flat cables improve airflow and simplify installation. Resistant to bending and breakage during cable management.
-
650GD Model Version
ATX 3.1 Ready
Supports the ATX 3.1 standard for stable peak load handling. (Note: PCIe 5.1 12V-2×6 cable not included on 650W model.)
-
Active PFC up to 0.99
Maximizes power factor to reduce harmonic distortion and improve grid compatibility, especially in older buildings.
-
Half-Bridge LLC + DC-DC Architecture
Offers 50% improved reliability over traditional designs, ideal for high-load, long-runtime systems like servers and workstations.
Independent DC-DC modules for 5V, 3.3V, and -12V ensure clean, isolated power delivery to sensitive components. Delivers 30% faster dynamic response, minimizing voltage ripple and extending hardware lifespan.
-

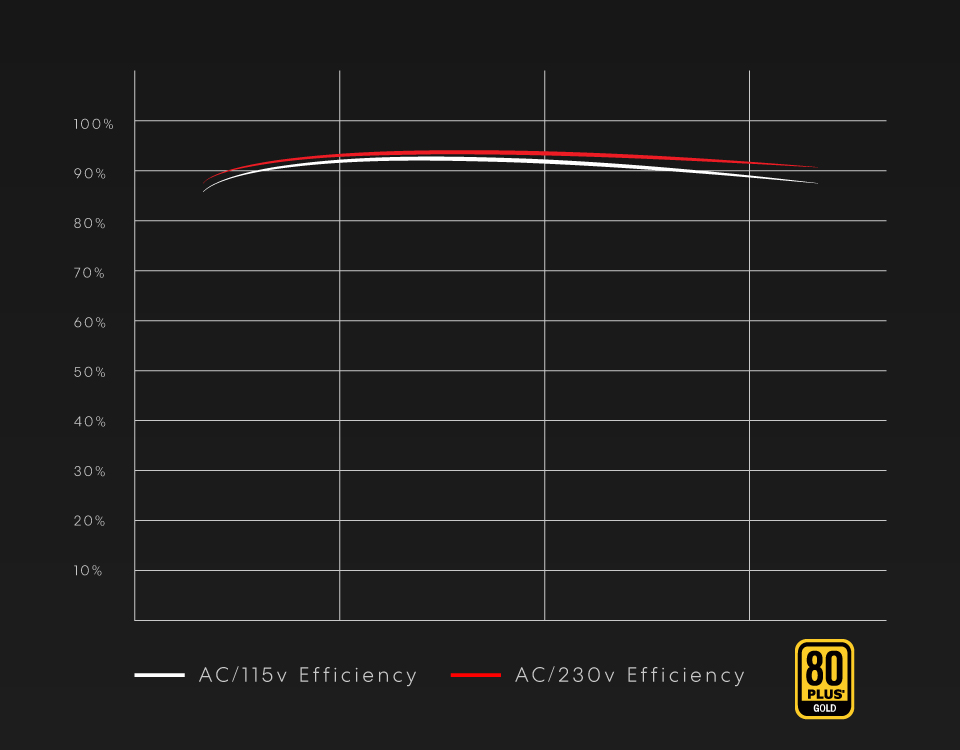

80 PLUS Gold Certified (115V)
Achieves 87%+ efficiency at 115V and up to 89% at 230V, reducing energy loss, cutting electricity bills, and lowering carbon emissions for eco-friendly builds.
Comprehensive Protection Suite
OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power), SCP (Short Circuit <1ms), OCP (Over Current), OTP (Over Temp 50–60 °C), and SPD (Surge) protections safeguard critical components.
-
HYB Hydraulic Fan (50,000 hrs lifespan)
Long-life hydraulic bearing reduces noise from wear.
Equipped with a 120mm 7 blade fan for +20% airflow and +15% pressure, optimized for heat sink penetration.
-
Smart Thermal Control with Fan Stop
Zero-RPM fan stop under light loads for absolute silence.
Intelligent fan curve dynamically scales 800–1800/2000/2200 RPM under load, balancing cooling with low noise (<25 / 28 / 30 dB).
Ultra-Low Ripple & Noise
Keeps ripple under 40mV for 5V/3.3V/5VSB and 80mV for 12V, ensuring clean power delivery and hardware longevity.
-
Smart Thermal Control with Fan Stop
Backed by a decade-long warranty for added peace of mind, making it a trustworthy investment for demanding and long-lasting PC builds.
*Warranty periods may vary by region. Please consult your point of purchase for local details.
FV-650GD
Model
FV-650GD
Dimension
140 x 150 x 86mm
Real Watts
650W
Efficiency
80Plus Gold
Input Voltage
Full range
Type
ATX3.1
Main Capacitor
Japanese Capacitor
PFC
APFC
Fan
120mm
Modular
Direct Cable
Net Weight
1555g
Gross Weight
g
EAN
FV-650GD: 4711401666301
AC Input
AC
100-240V~,8-4A / 50-60Hz
DC Output
3.3V
18A
5V
18A
+12V
54.1A
-12V
0.3A
+5Vsb
3.0A
Total Power
650W
Cable SPEC
Mainboard
24P(550mm) x1
CPU
P8(P8)(650mm)to(P4+4)(150mm) x1
PCI-E
P8(6+2)(500mm)to(6+2)(150mm) x1
SATA / IDE
SATA(500mm)/SATA(150mm)/SATA(150mm)/PATA(150mm) x2
