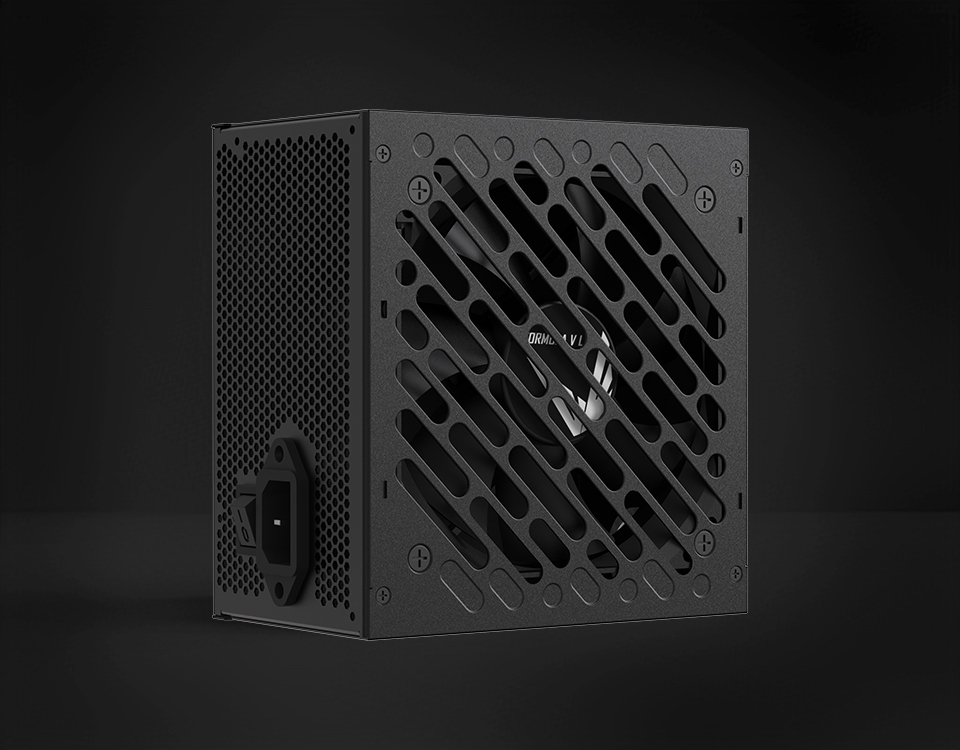

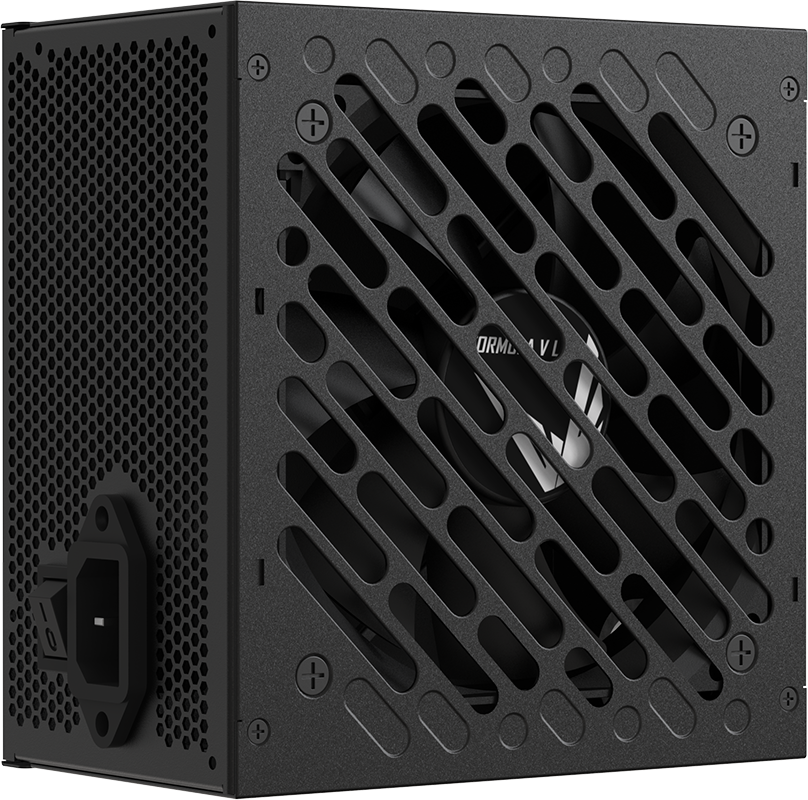

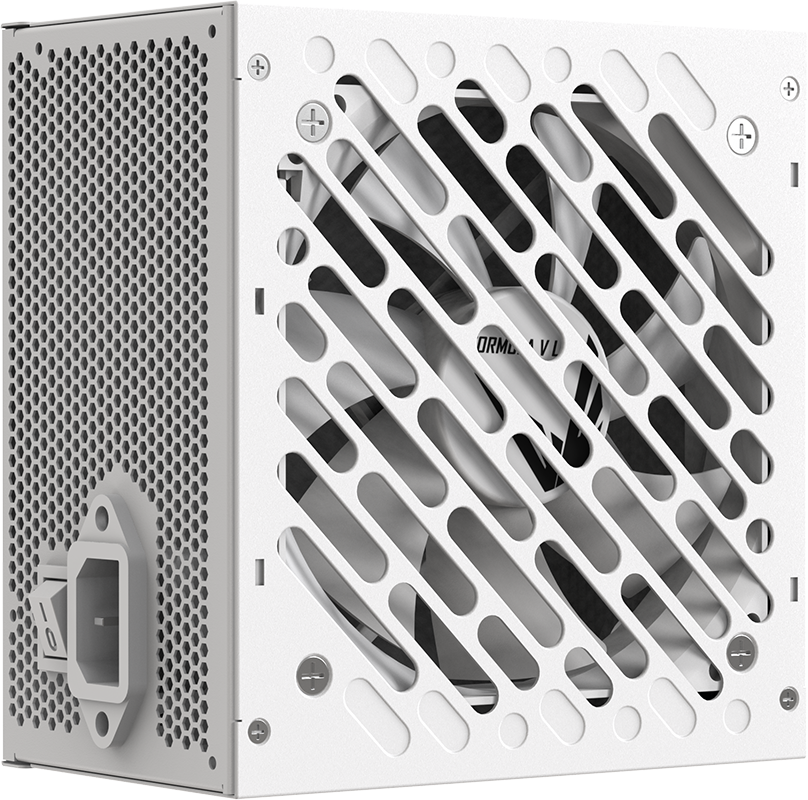

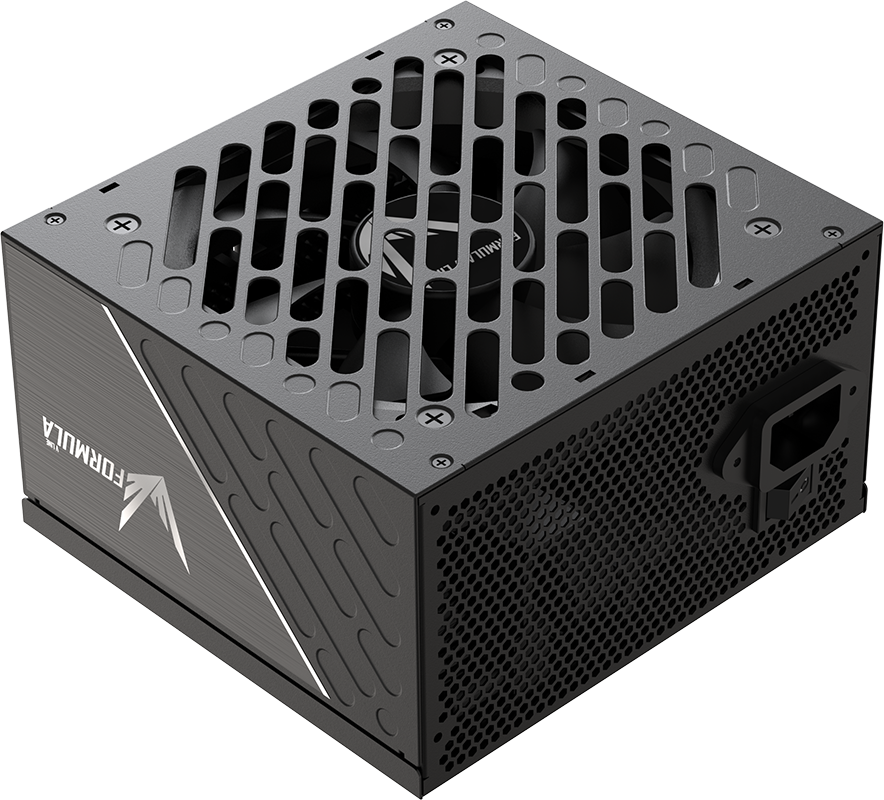

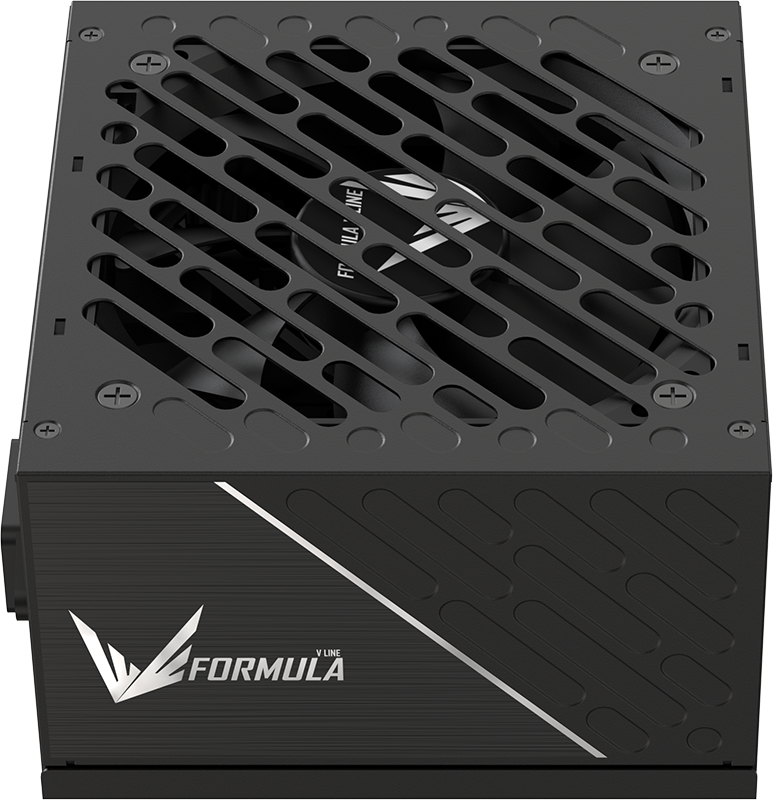

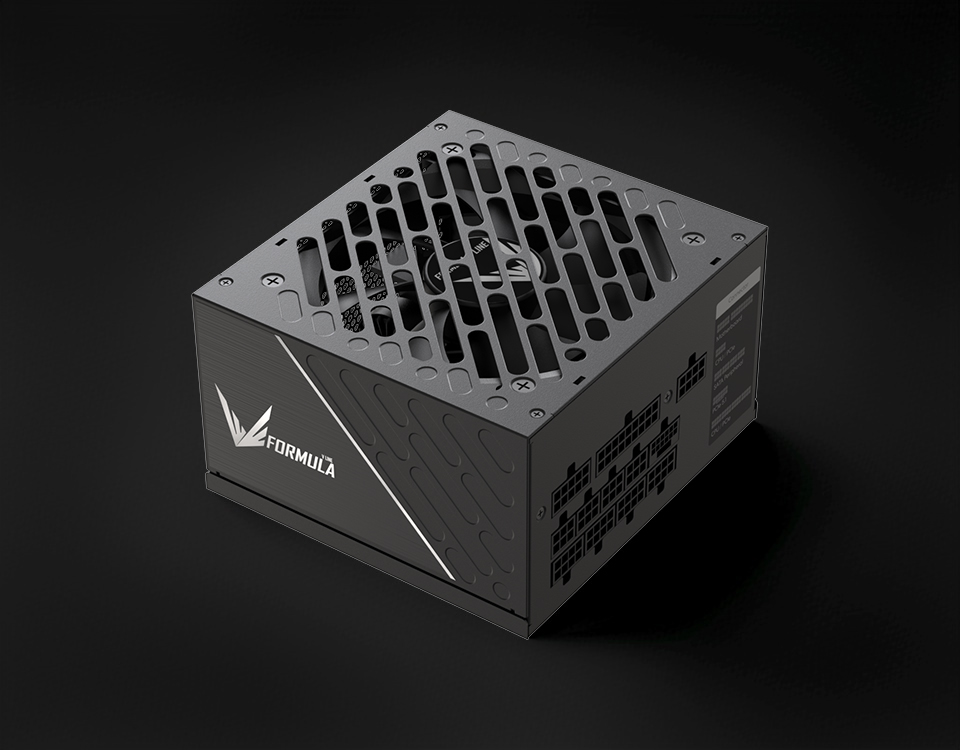

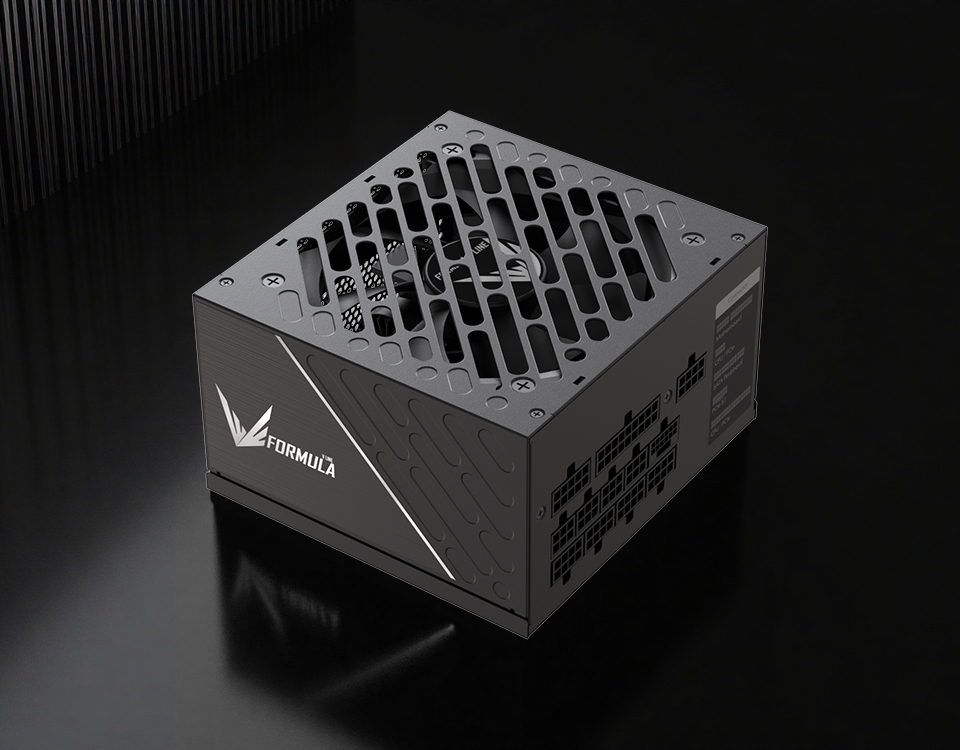

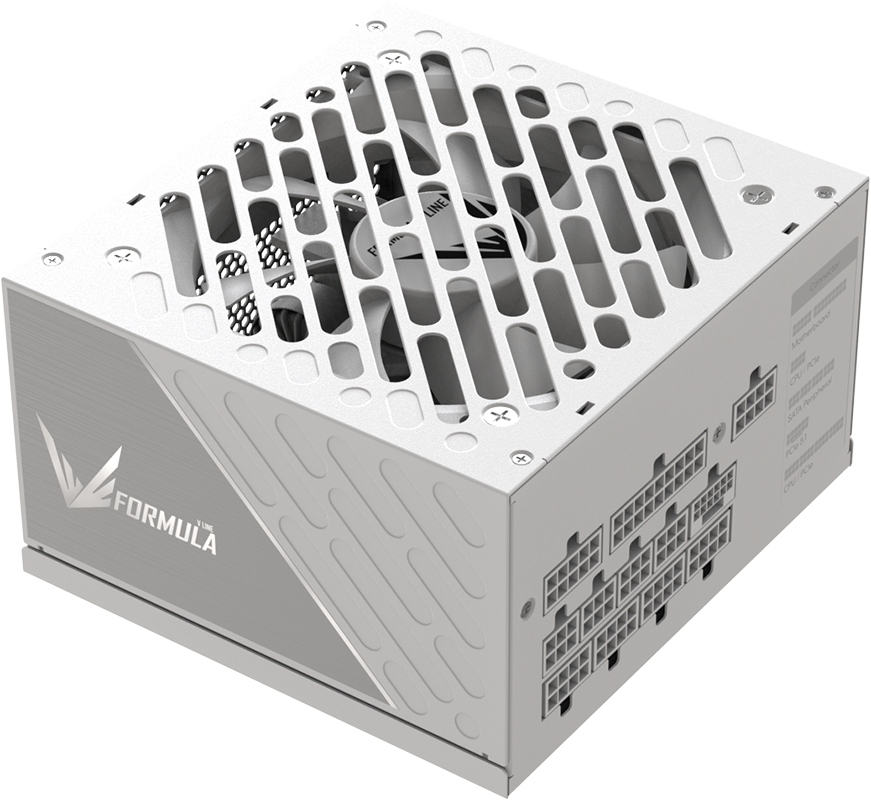

FV-1000PM

Dominate every match with an 80 PLUS Platinum PSU that unleashes up to 90 % efficiency and battlefield-proven stability on any grid worldwide (100–240 V).

Its advanced LLC + DC-DC core feeds GPUs clean, ripple-free power, while the zero-RPM HYB fan stays silent until the action heats up—then ramps hard to keep temps ice-cold.

Premium 105 °C Japanese caps, a six-shield protection suite, and fully modular cabling ensure rock-solid reliability and clutter-free airflow.

Locked and loaded for ATX 3.1 and PCIe 5.1, it’s the perfect power weapon for your next-gen rig, from ultra-high-FPS esports towers to maxed-out dream builds.

Warranty periods may vary by region; please inquire with your point of purchase for details.

Variation

Color

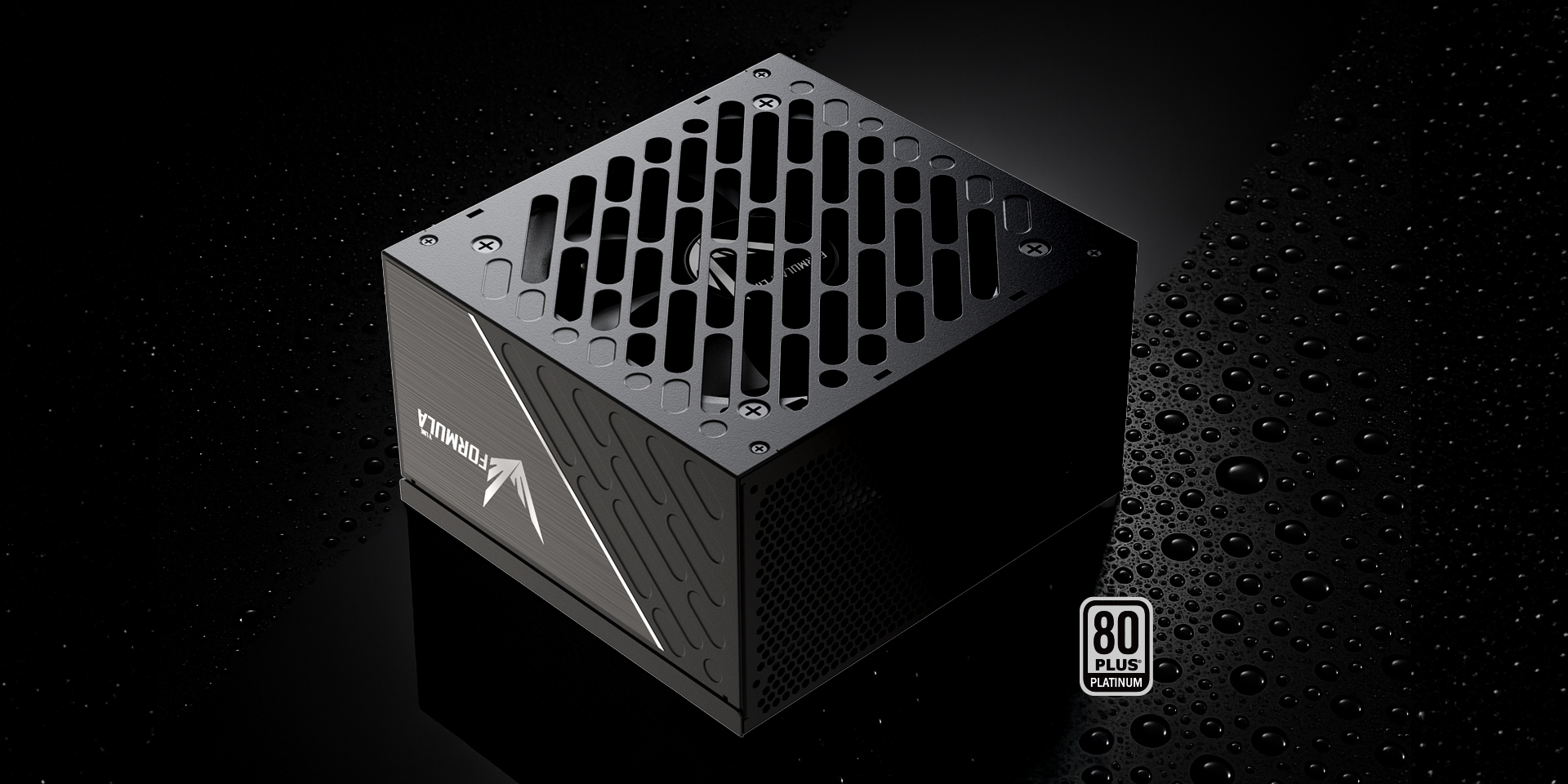

FV-PM-1920x960

    • Universal Input (100–240V)

      Auto-ranging design supports global voltage standards—from 100V to 240V with no manual switching required. Provides stable performance across fluctuating power grids.

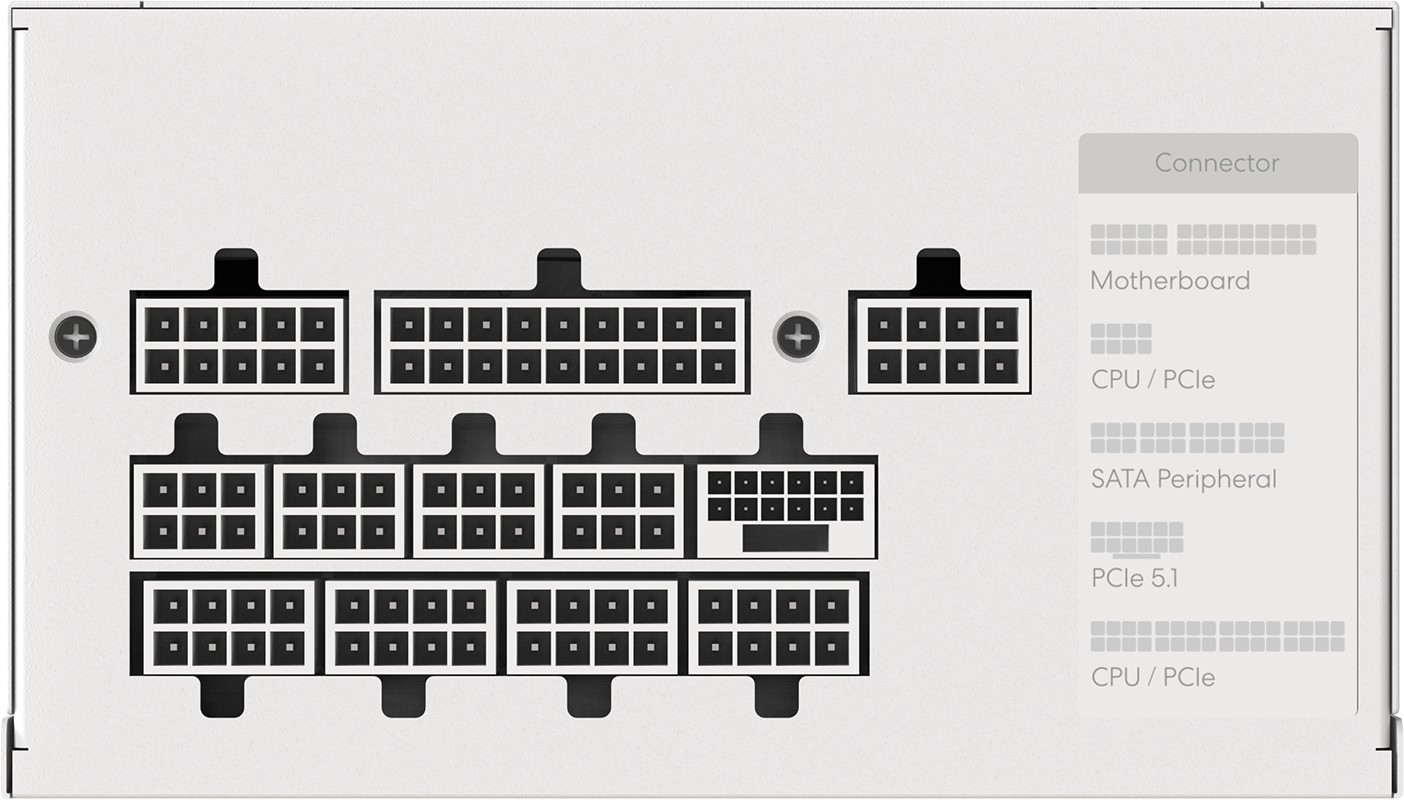

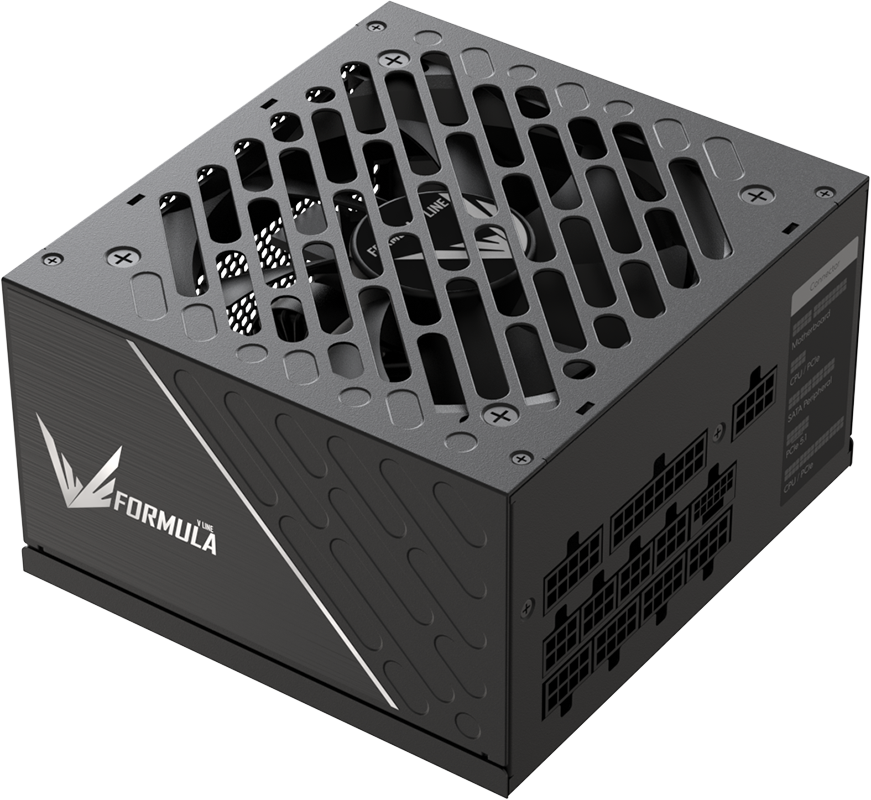

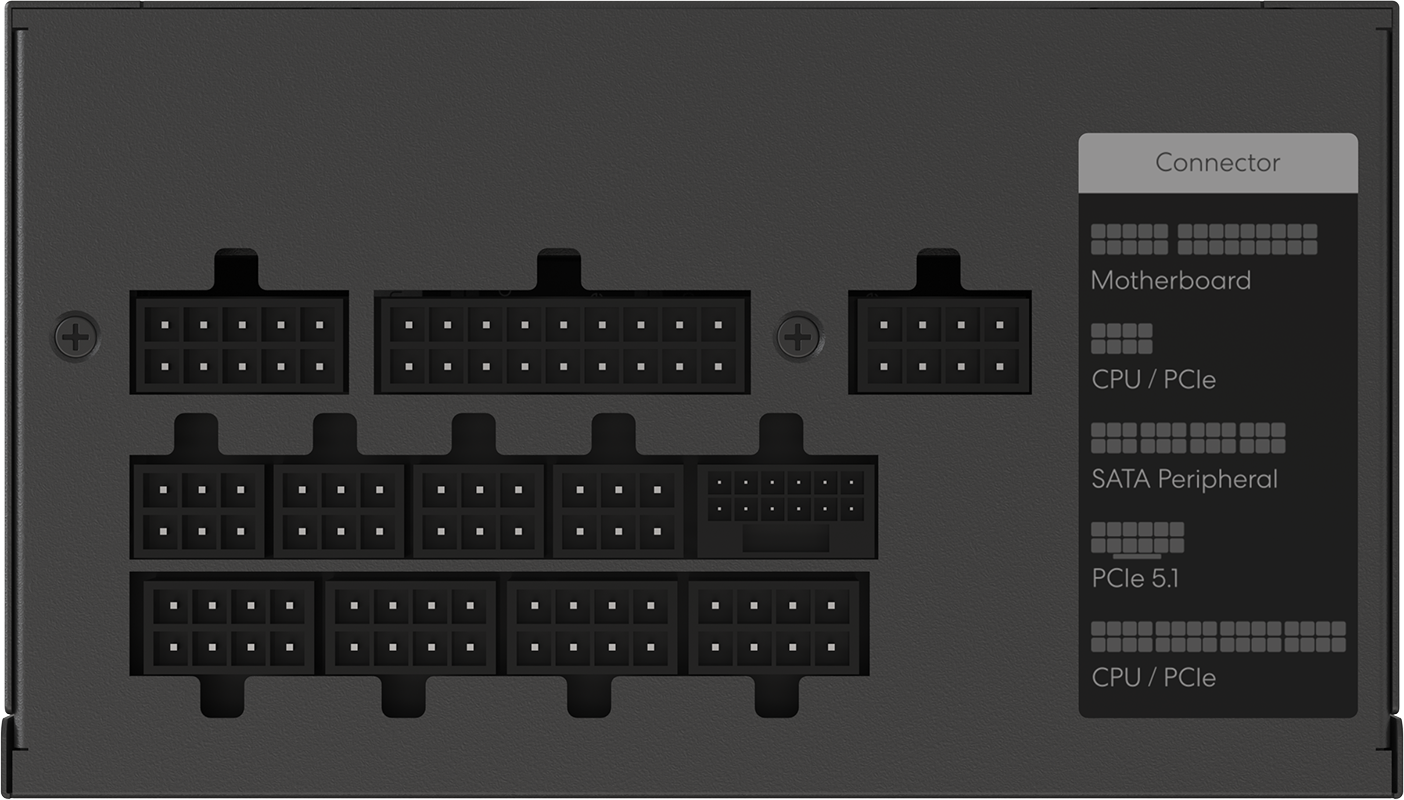

    • Fully Modular Cable Design

      Plug only what you need. Reduces clutter, improves airflow, and enhances cable management aesthetics.

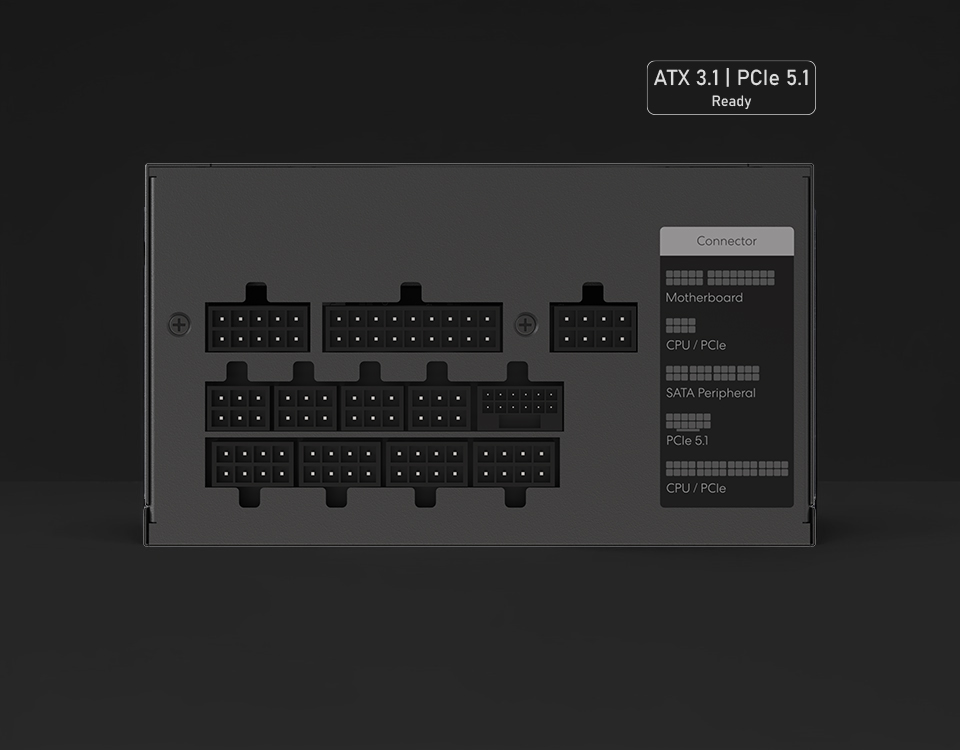

    • PCIe 5.1 & ATX3.1 Ready

      Supports latest GPUs with 2x total system peak power and 3x GPU peak power handling capacity.

    • Active PFC up to 0.99

      Maximizes power factor to reduce harmonic distortion and improve grid compatibility, especially in older buildings.

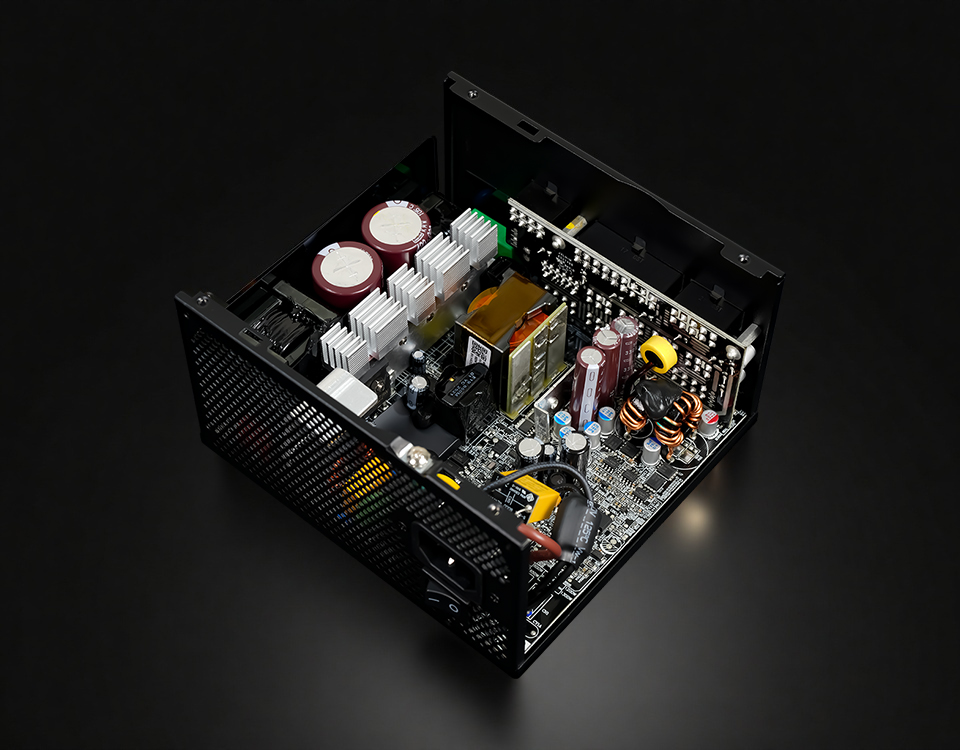

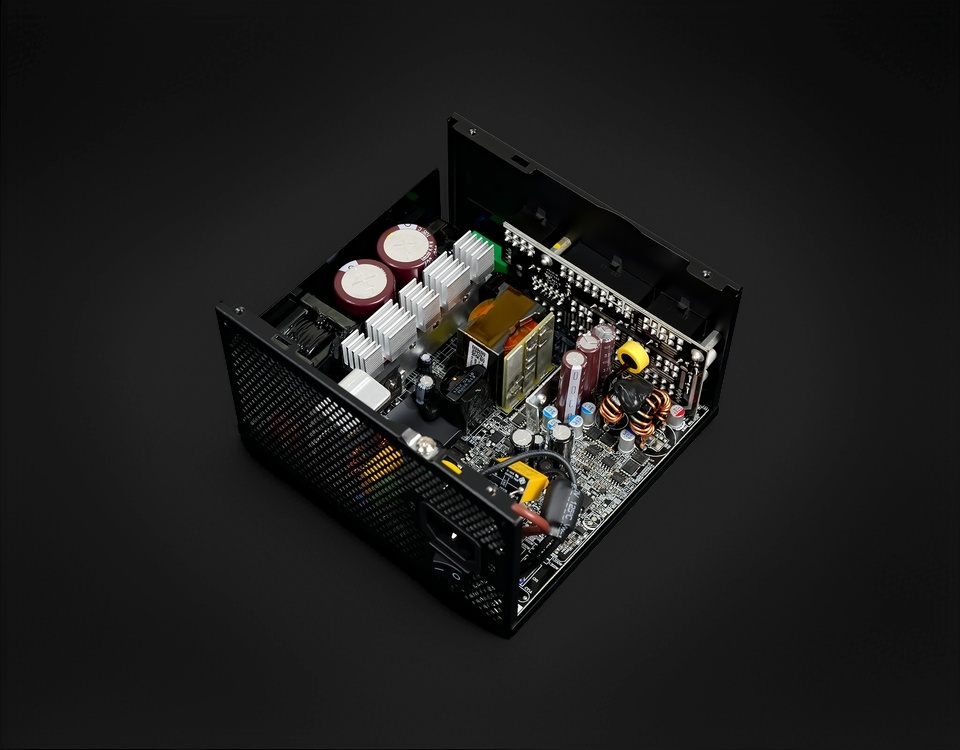

    • Half-Bridge LLC + DC-DC Architecture

      Offers 50% improved reliability over traditional designs, ideal for high-load, long-runtime systems like servers and workstations.

      Independent DC-DC modules for 5V, 3.3V, and -12V ensure clean, isolated power delivery to sensitive components. Delivers 30% faster dynamic response, minimizing voltage ripple and extending hardware lifespan.

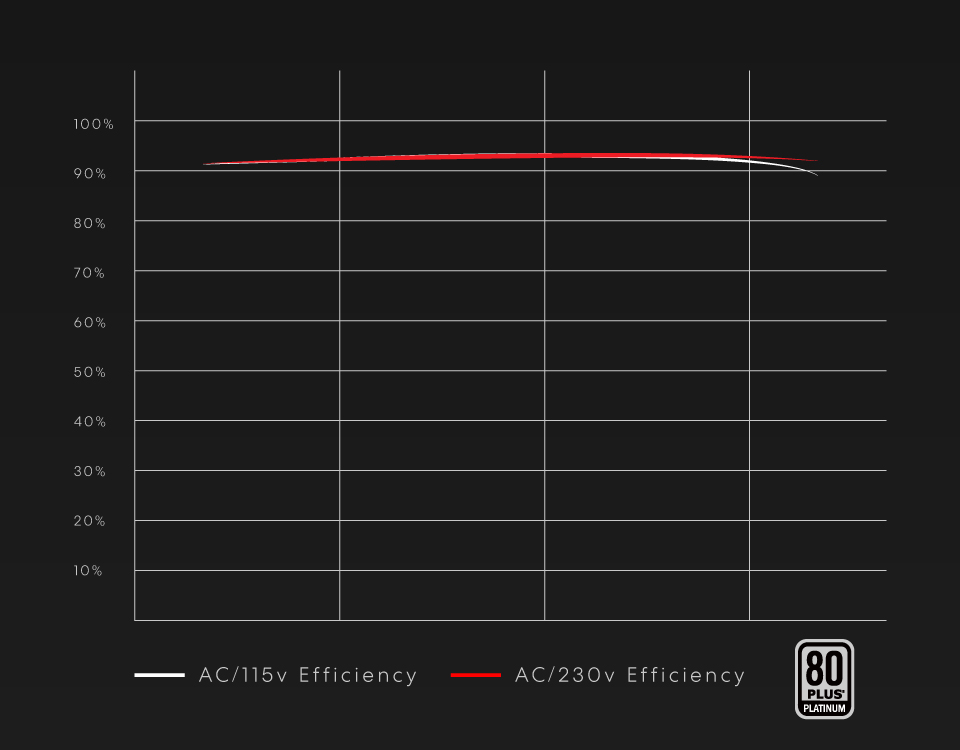

    • 80 PLUS Platinum Certified (115V)

      Certified for 80 PLUS Platinum efficiency under 115V input, delivering over 89% efficiency at 115V and 90%+ at 230V. Reduces energy waste, lowers electricity costs, and supports eco-friendly data center initiatives.

Comprehensive Protection Suite

Includes OVP, UVP, OPP, SCP, OCP, and OTP to safeguard against power anomalies and extend system lifespan.

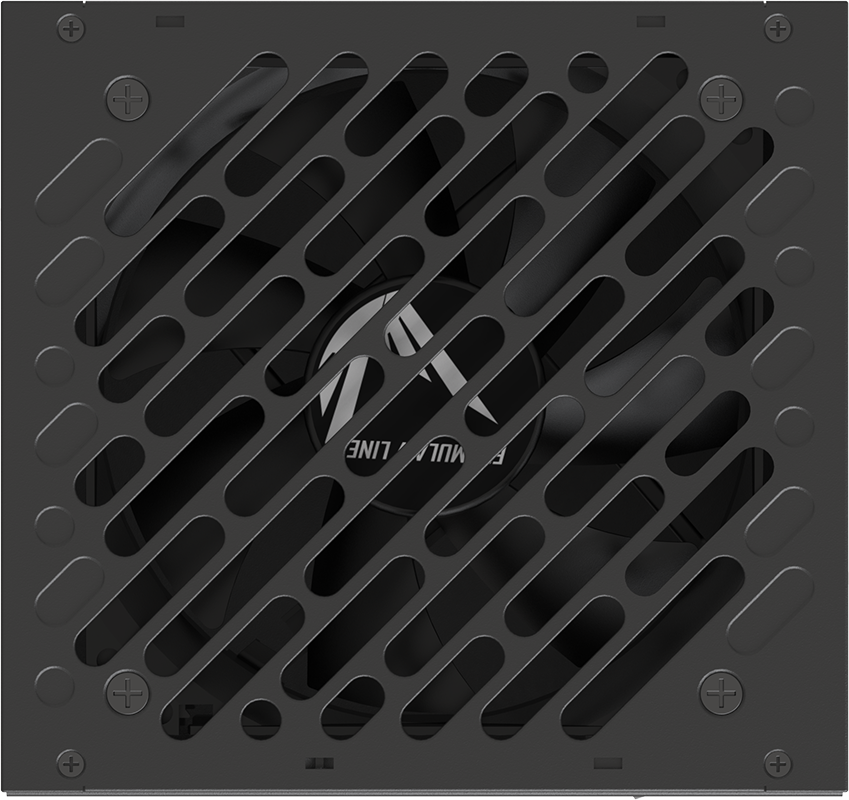

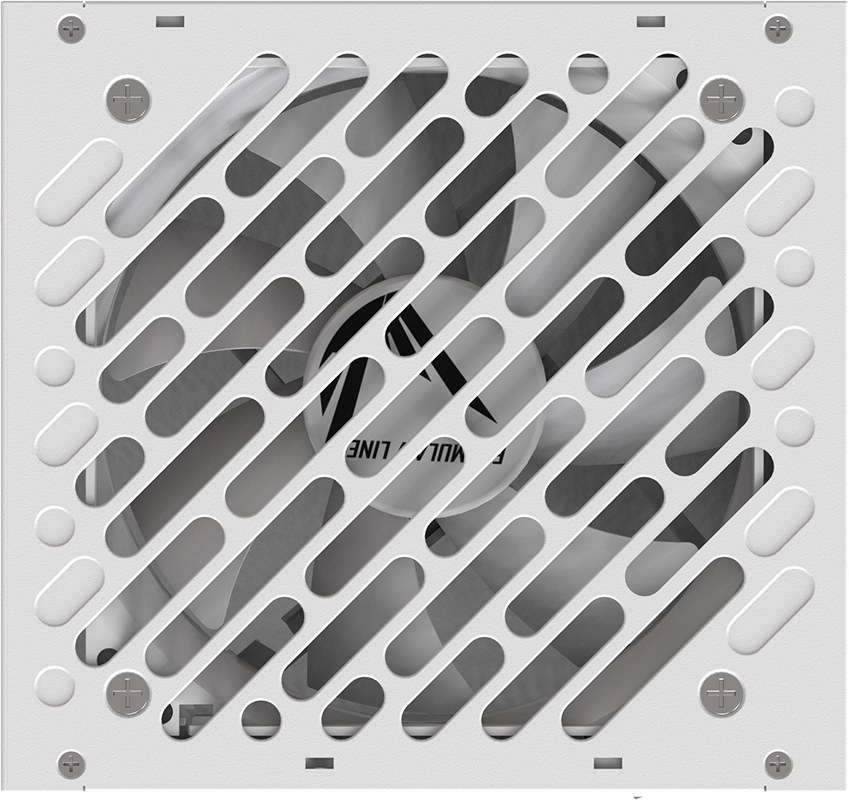

    • HYB Hydraulic Fan (50,000 hrs lifespan)

      Long-life hydraulic bearing reduces noise from wear.

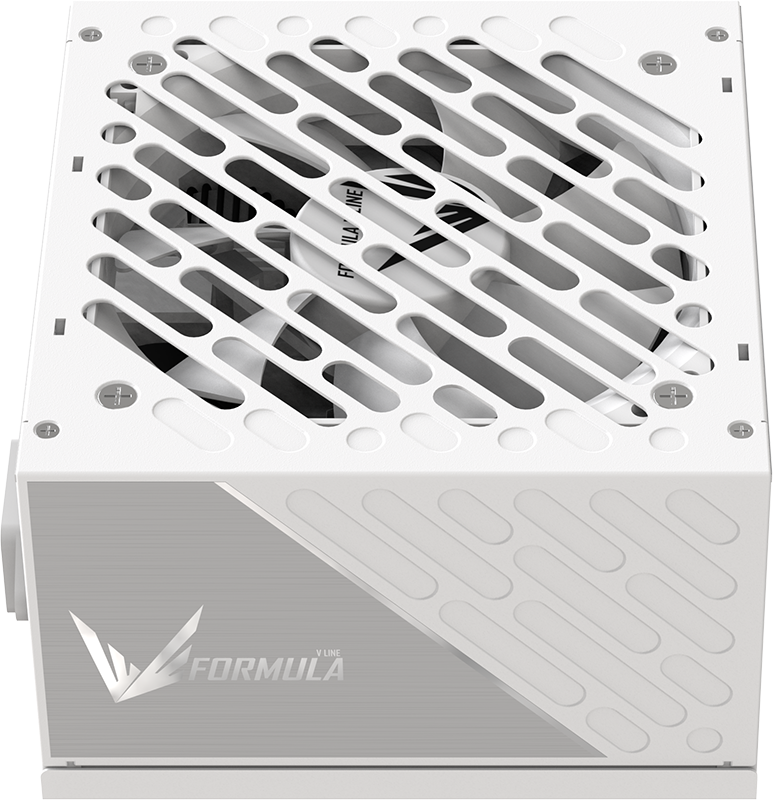

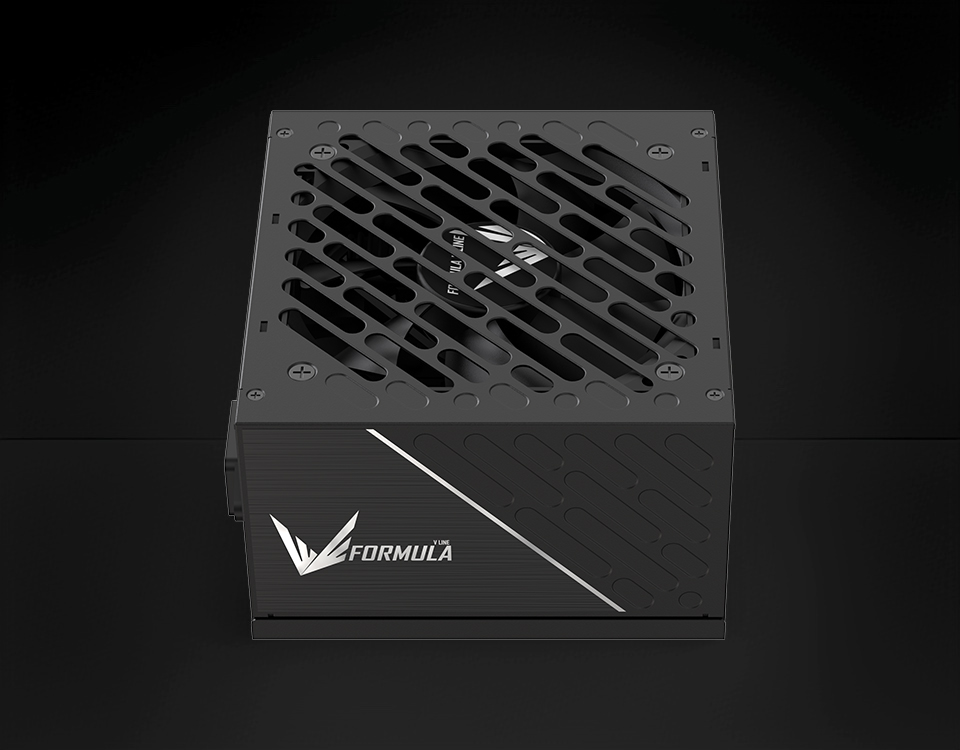

      Equipped with a 120mm 7-blade fan for +20% airflow and +15% pressure, optimized for heat sink penetration.

    • Smart Thermal Control

      Fan stops completely under low loads for silent operation, and ramps intelligently (800–1800RPM) during high loads, balancing performance and noise (<25dB).

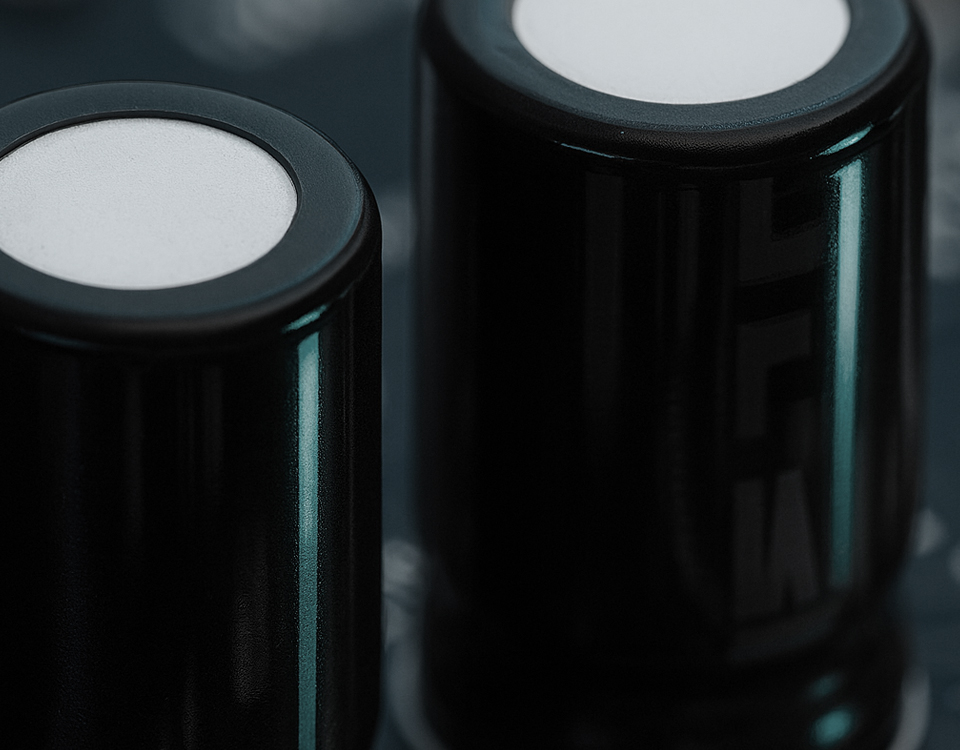

    • 105°C Japanese Main Capacitors

      Uses top-tier Japanese main Capacitor with high-temperature tolerance for 50% longer lifespan in hot environments.

    • Low ESR Japanese Capacitors

      Effectively suppress ripple voltage for stable output.

    • 10-Year Warranty for Long-Term Reliability

      Backed by a decade-long warranty for added peace of mind, making it a trustworthy investment for demanding and long-lasting PC builds.

FV-1000PM

  • Model

    FV-1000PM

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    1000W

  • Efficiency

    80Plus Platinum

  • Input Voltage

    Full range

  • Type

    ATX3.1 / PCIe5.1

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    120mm

  • Modular

    Full Modular

  • Net Weight

    1360g

  • Gross Weight

    2786g

  • EAN

    FV-1000PM: 4711401664192

AC Input

  • AC

    100-240V / 13-6.5A / 47-63Hz

DC Output

  • 3.3V

    20A

  • 5V

    20A

  • +12V

    83A

  • -12V

    0.3A

  • +5Vsb

    3.0A

  • Total Power

    1000W

Cable SPEC

  • Mainboard

    20+4P(600mm) x1

  • CPU

    P8(4+4)(650mm) x2

  • PCI-E

    P8(6+2)(600mm) x3

  • PCIe5.1

    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (600W, 600mm) x1

  • SATA / IDE

    SATA(450mm) / SATA(150mm) / SATA(150mm) / SATA(150mm) x2

  • SATA / IDE

    MOLEX(500mm) / MOLEX(150mm) / MOLEX(150mm) x1
