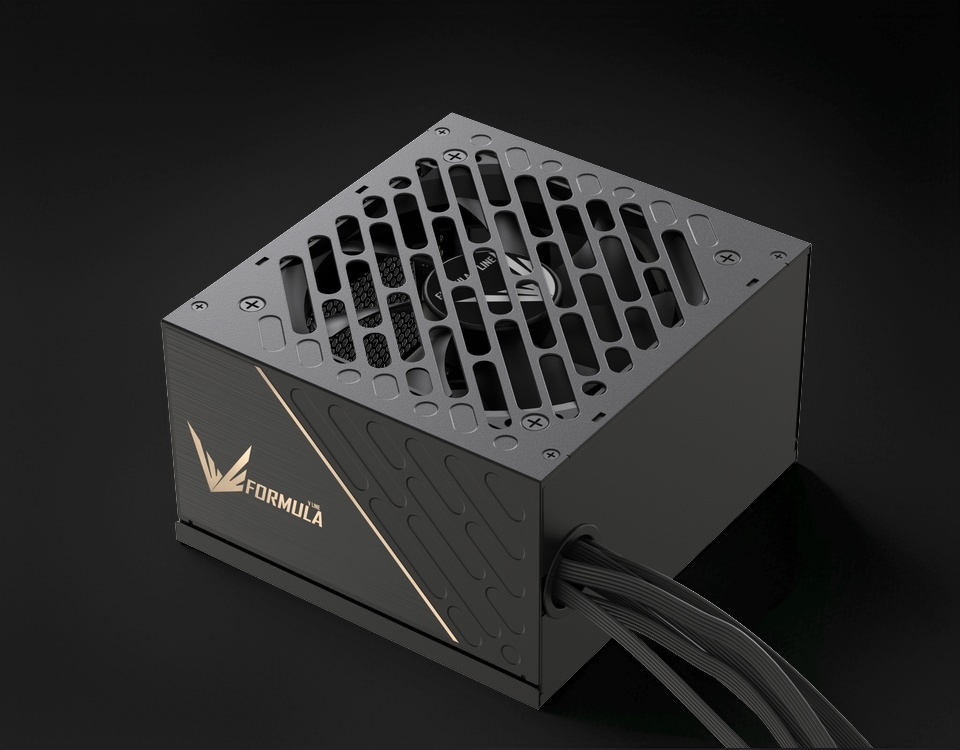

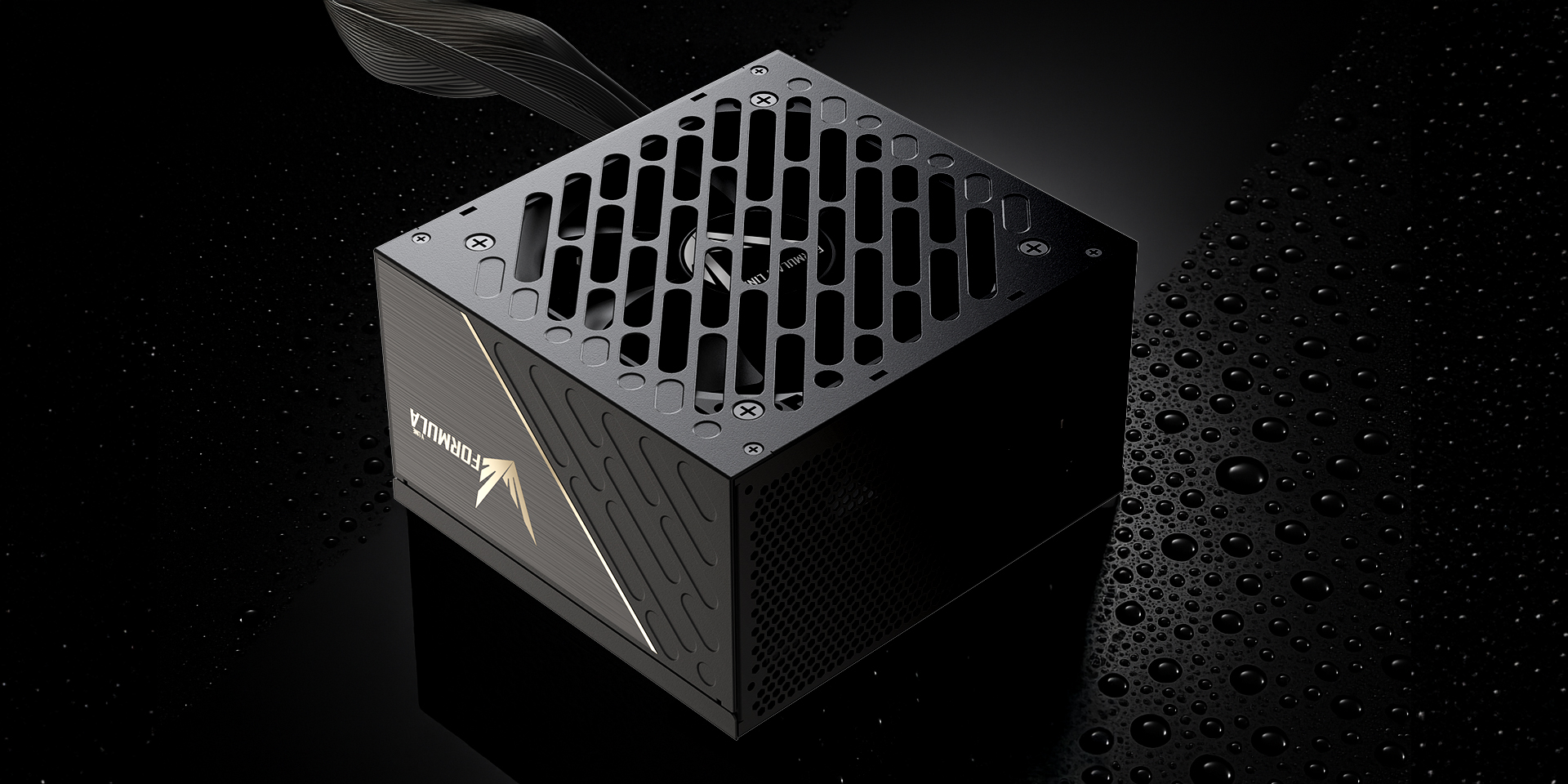

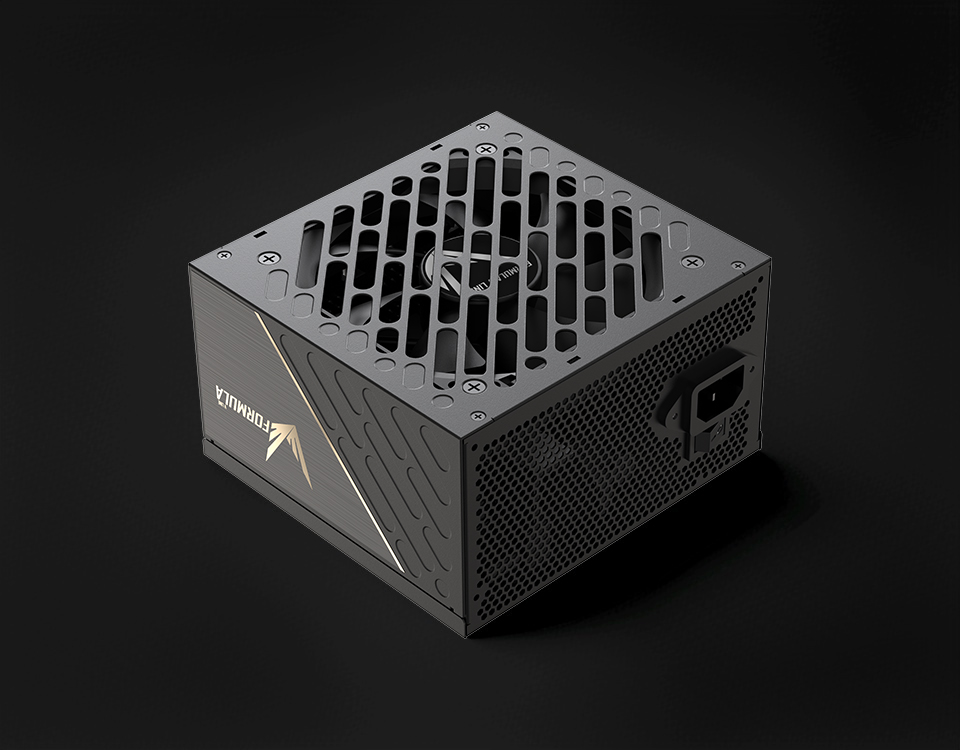

FV-1000GD
The FV-GD series delivers Gold-level efficiency and rock-solid stability in a straightforward direct-cable design.
Engineered for up to 89% efficiency, its Half-Bridge LLC + DC-DC core supplies clean, ripple-free power to CPUs and GPUs, even under heavy 24/7 workloads.
A long-life HYB hydraulic fan with smart thermal control keeps operation whisper-quiet at low loads and ramps up only when cooling is needed.
With premium 105 °C Japanese capacitors, a seven-shield protection suite, and flat black cables for clean builds, the FV-GD is built for gamers, workstations, and always-on systems that demand reliability without the extra cost of modular cabling.
Fully ready for ATX 3.1 and PCIe 5.1, it’s the dependable choice for powering next-gen platforms.
Warranty periods may vary by region; please inquire with your point of purchase for details.
Variation
-
-
-

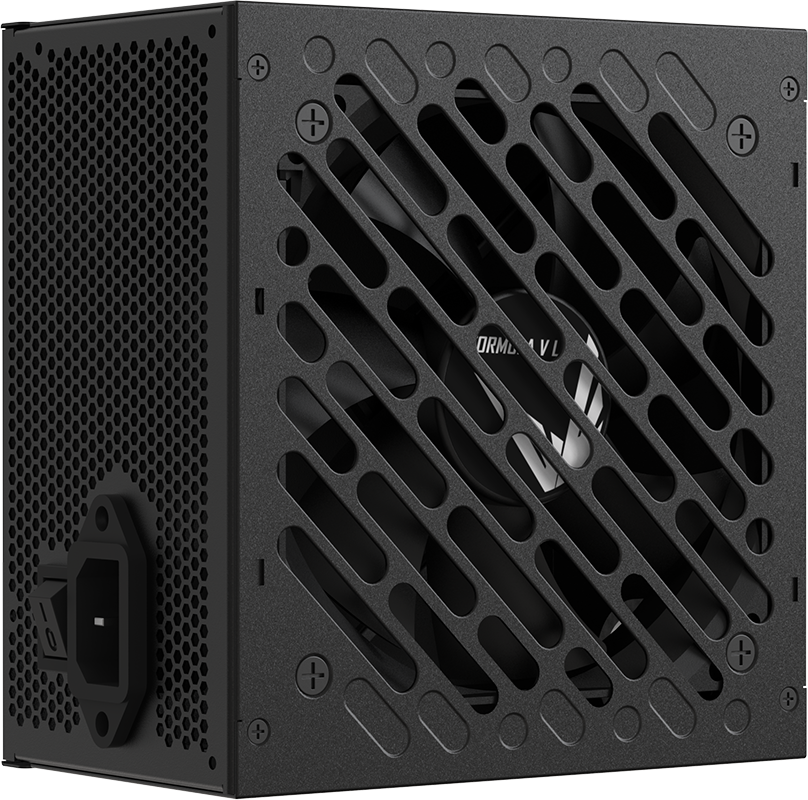

Universal Input (100–240V)
Auto-ranging design supports global voltage standards—from 100V to 240V with no manual switching required. Provides stable performance across fluctuating power grids.
-
-
-
-

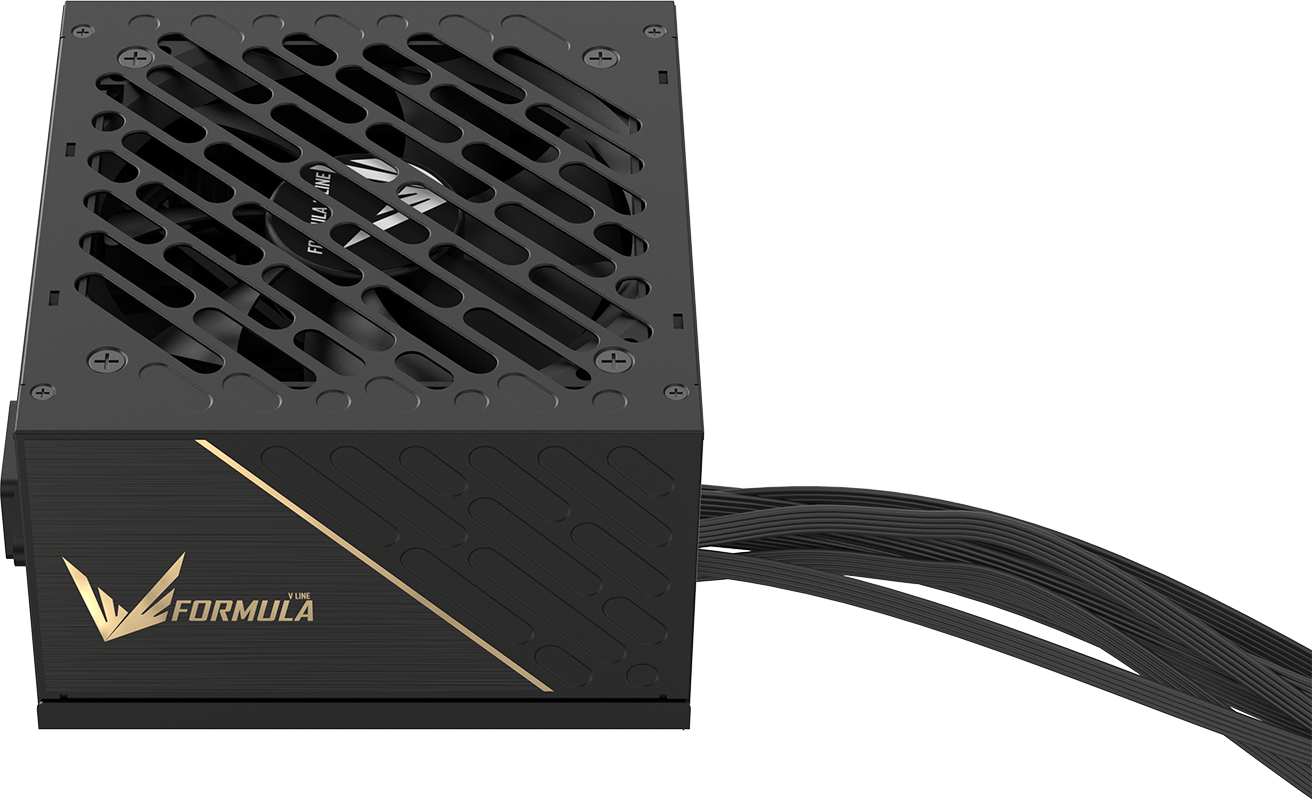

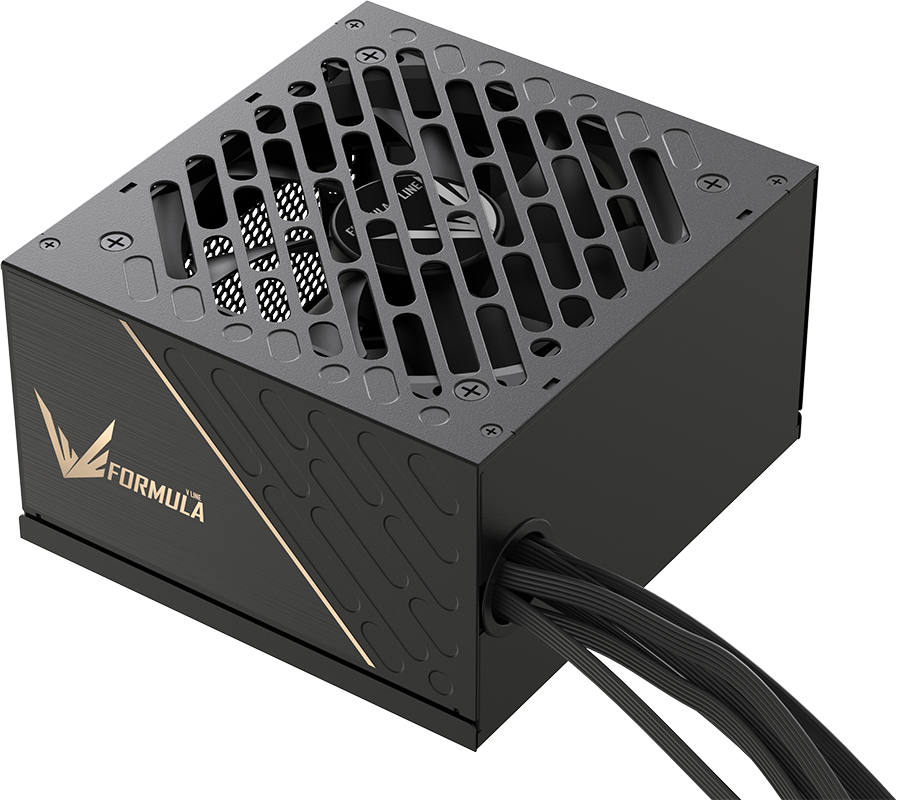

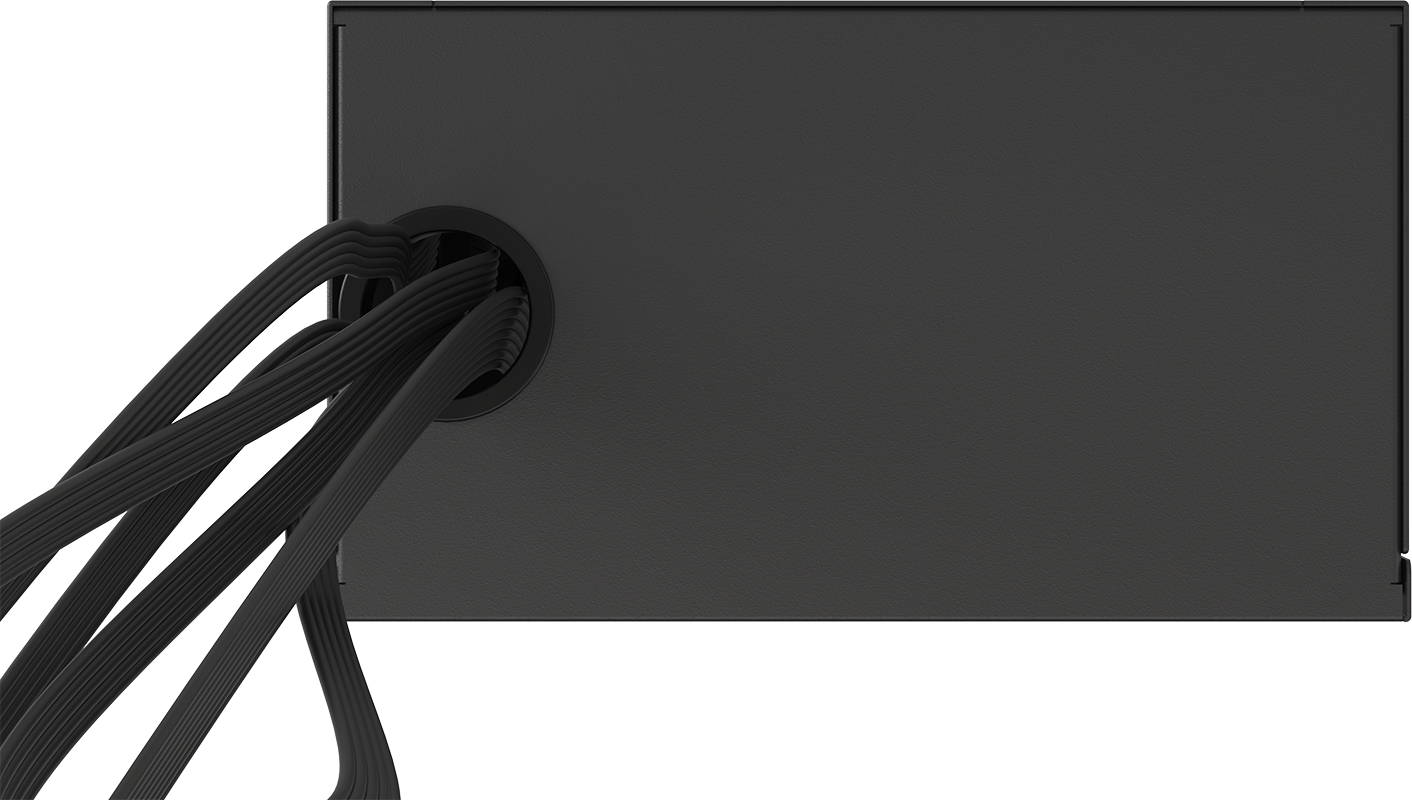

Flat Black Direct Cables
Durable, easy-to-route flat cables improve airflow and simplify installation. Resistant to bending and breakage during cable management.
-
-
-
-
1000GD Model Version
ATX 3.1 Ready, PCIe 5.1 Cable
Supports ATX12V 2×6, ATX3.1, and PCIe 5.1 interface. Delivers 2× total system peak power and 3× GPU peak power capacity for RTX 40 / RTX 50 series graphics cards.
-
-
-
-
Active PFC up to 0.99
Maximizes power factor to reduce harmonic distortion and improve grid compatibility, especially in older buildings.
-
-
-
-
Half-Bridge LLC + DC-DC Architecture
Offers 50% improved reliability over traditional designs, ideal for high-load, long-runtime systems like servers and workstations.
Independent DC-DC modules for 5V, 3.3V, and -12V ensure clean, isolated power delivery to sensitive components. Delivers 30% faster dynamic response, minimizing voltage ripple and extending hardware lifespan.
-
-
-
-

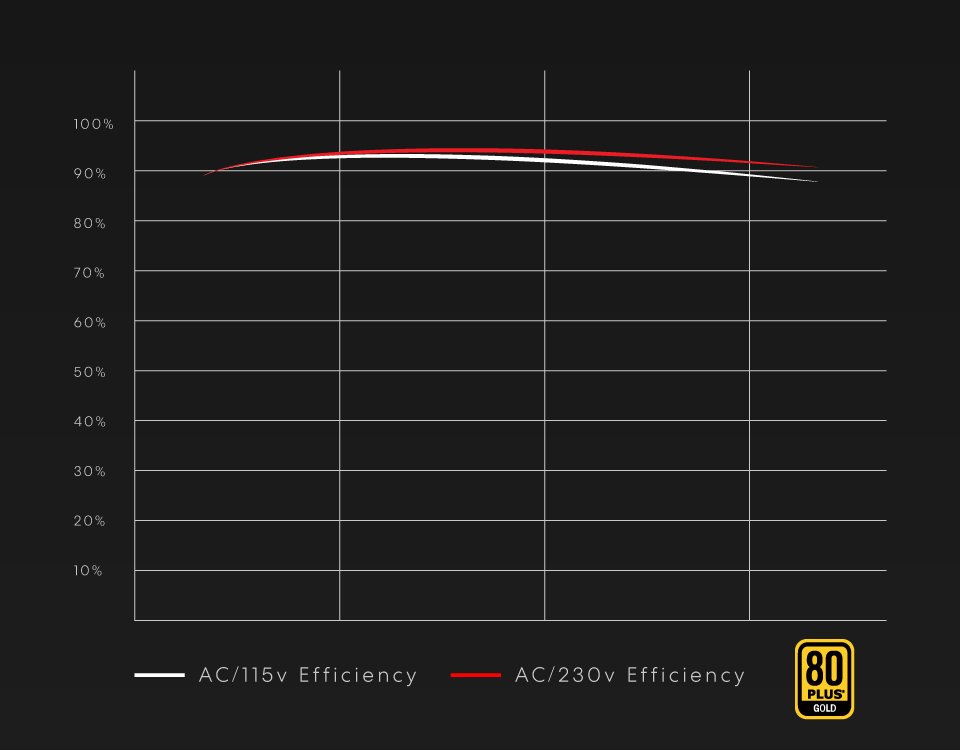

80 PLUS Gold Certified (115V)
Achieves 87%+ efficiency at 115V and up to 89% at 230V, reducing energy loss, cutting electricity bills, and lowering carbon emissions for eco-friendly builds.
-
Comprehensive Protection Suite
OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power), SCP (Short Circuit <1ms), OCP (Over Current), OTP (Over Temp 50–60 °C), and SPD (Surge) protections safeguard critical components.
-
-
-

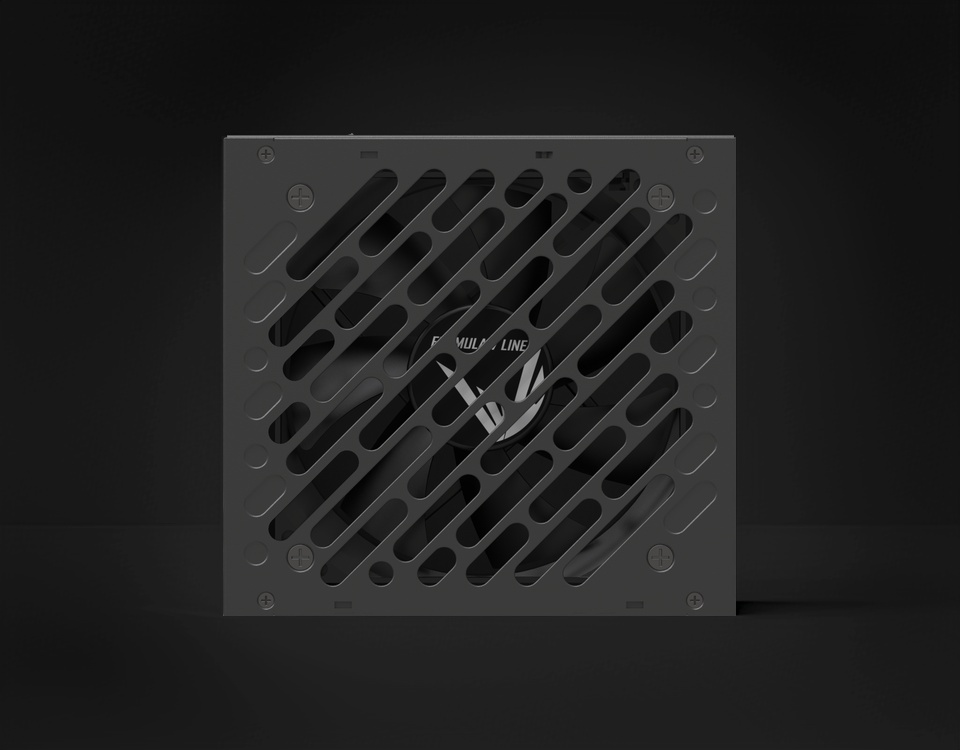

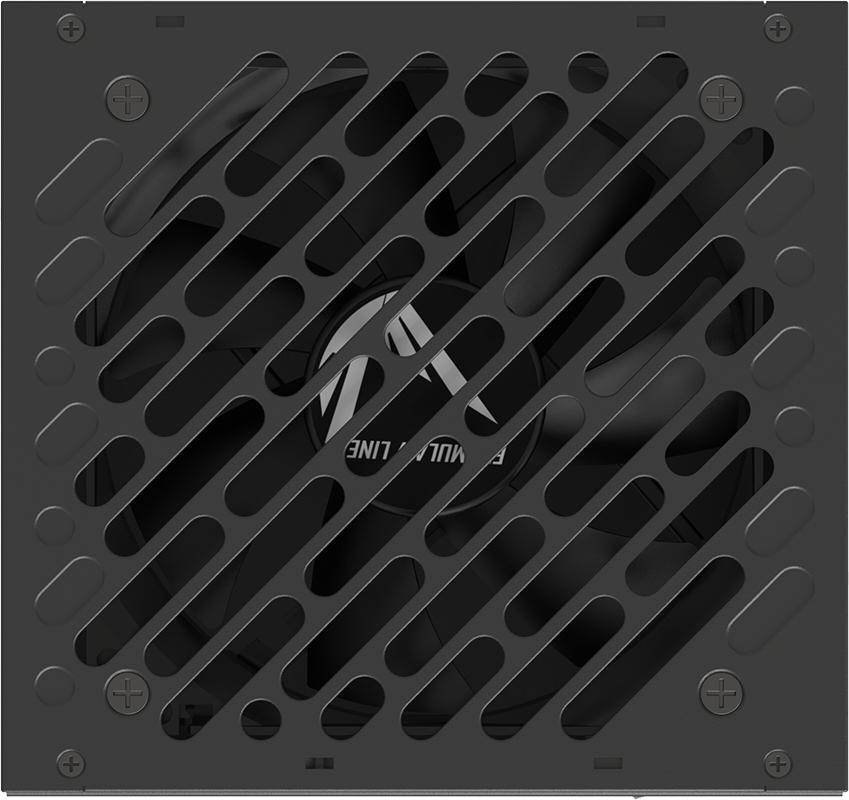

HYB Hydraulic Fan (50,000 hrs lifespan)
Long-life hydraulic bearing reduces noise from wear.
Equipped with a 120mm 7 blade fan for +20% airflow and +15% pressure, optimized for heat sink penetration.
-
-
-
-
Smart Thermal Control with Fan Stop
Zero-RPM fan stop under light loads for absolute silence.
Intelligent fan curve dynamically scales 800–1800/2000/2200 RPM under load, balancing cooling with low noise (<25 / 28 / 30 dB).
-
Ultra-Low Ripple & Noise
Keeps ripple under 40mV for 5V/3.3V/5VSB and 80mV for 12V, ensuring clean power delivery and hardware longevity.
-
-
-
-
Smart Thermal Control with Fan Stop
Backed by a decade-long warranty for added peace of mind, making it a trustworthy investment for demanding and long-lasting PC builds.
*Warranty periods may vary by region. Please consult your point of purchase for local details.
-
FV-1000GD
-
Model
FV-1000GD
-
Dimension
140 x 150 x 86mm
-
Real Watts
1000W
-
Efficiency
80Plus Gold
-
Input Voltage
Full range
-
Type
ATX3.1 / PCIe5.1
-
Main Capacitor
Japanese Capacitor
-
PFC
APFC
-
Fan
120mm
-
Modular
Direct Cable
-
Net Weight
1900g
-
Gross Weight
g
-
EAN
FV-1000GD: 4711401666332
AC Input
-
AC
100-240V~,12-6A / 50-60Hz
DC Output
-
3.3V
18A
-
5V
18A
-
+12V
83.3A
-
-12V
0.3A
-
+5Vsb
3A
-
Total Power
1000W
Cable SPEC
-
Mainboard
24P(550mm) x1
-
CPU
P8(P8)(650mm)to(P4+4)(150mm) x1
-
PCI-E
P8(6+2)(500mm) x3
-
PCIe5.1
PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (600W, 600mm) x1
-
SATA / IDE
SATA(500mm)/SATA(150mm)/SATA(150mm)/PATA(150mm) x2
