Crystal Z9ML

- 270-degree frameless panoramic design
- Superior Cooling Performance
- Effective Heat Dissipation System
- Flexible Configuration
- Intelligent storage for HDD and cable management solution
- New generation I/O Ports with Type C equipped.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

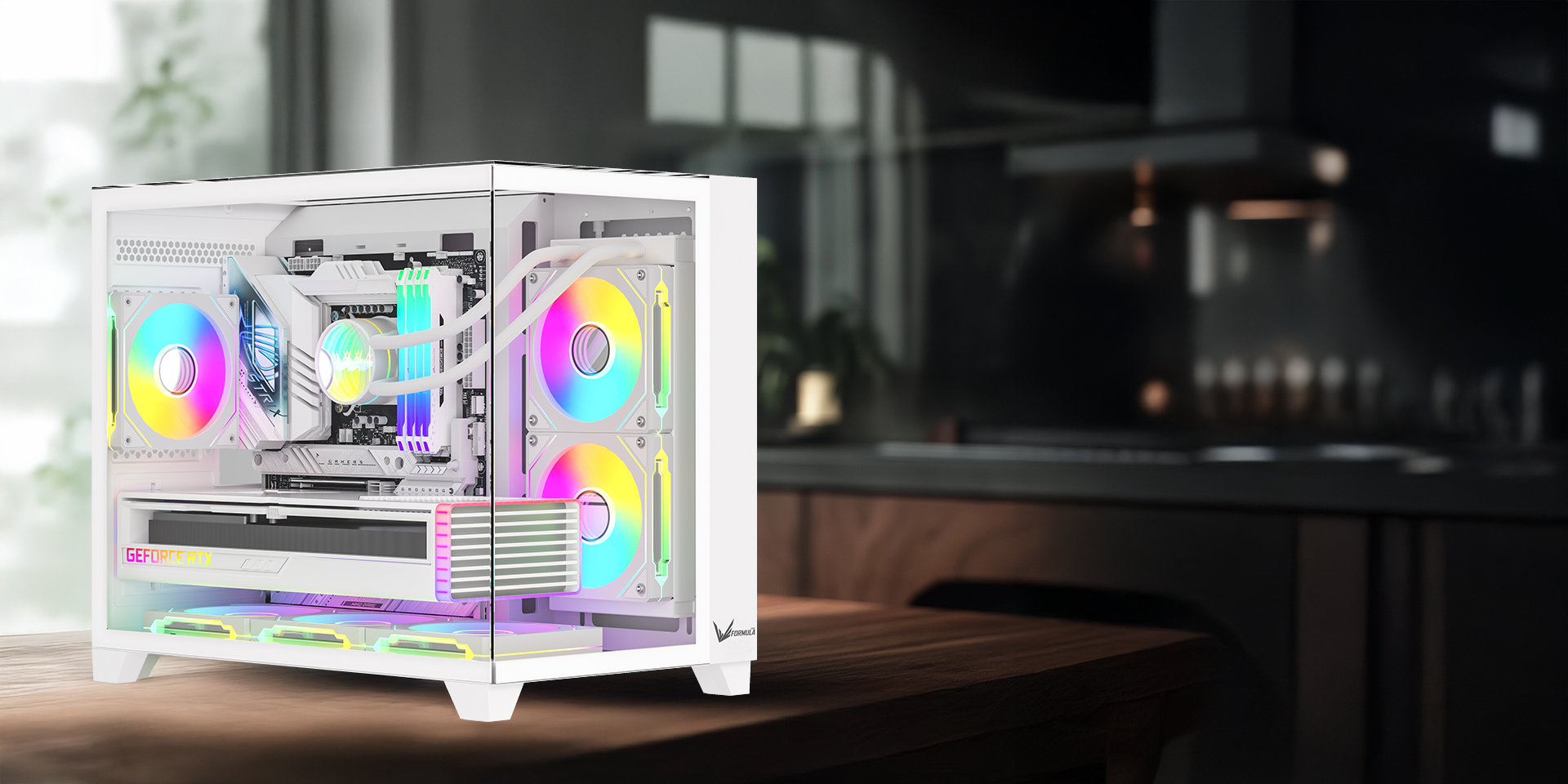

CRYSTAL-Z9ML-1920x960

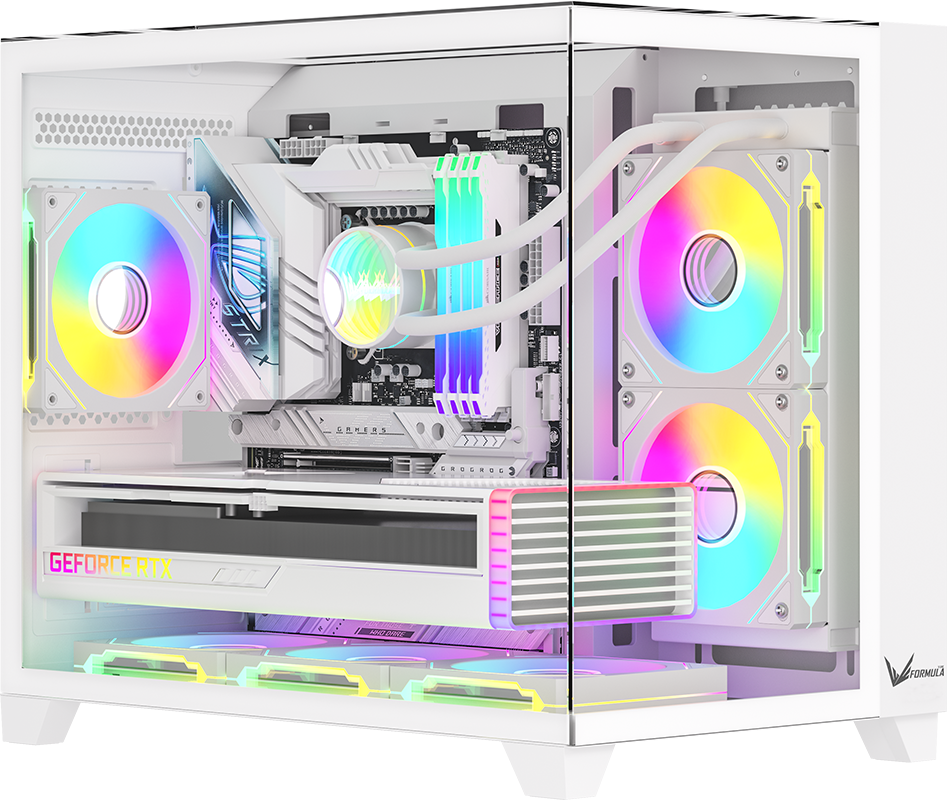

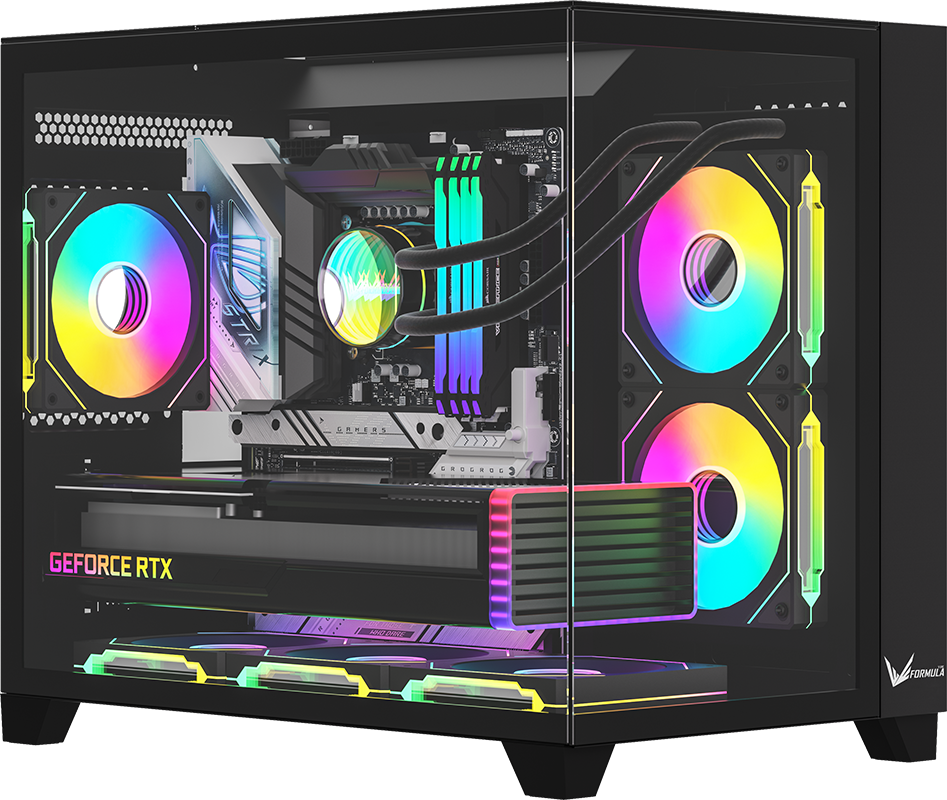

270-Degree Frameless Panoramic Design

    • 270-Degree Frameless Panoramic Design

      Experience unhindered visibility of your rig’s internal components with full tempered glass front, side and top panels, providing a seamless and unobstructed view.

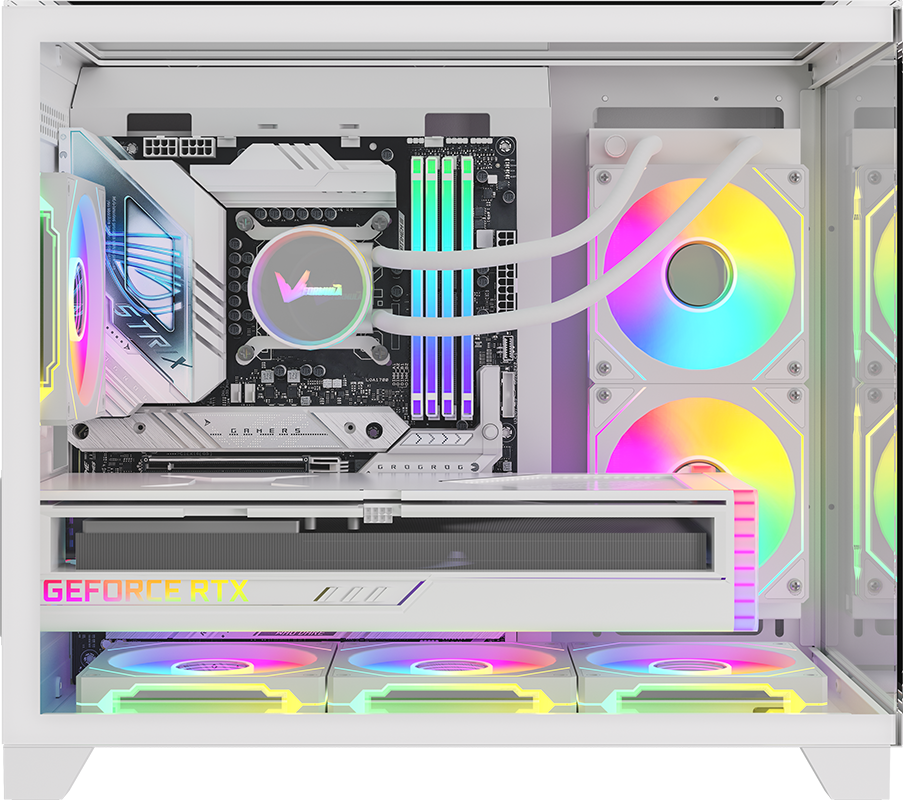

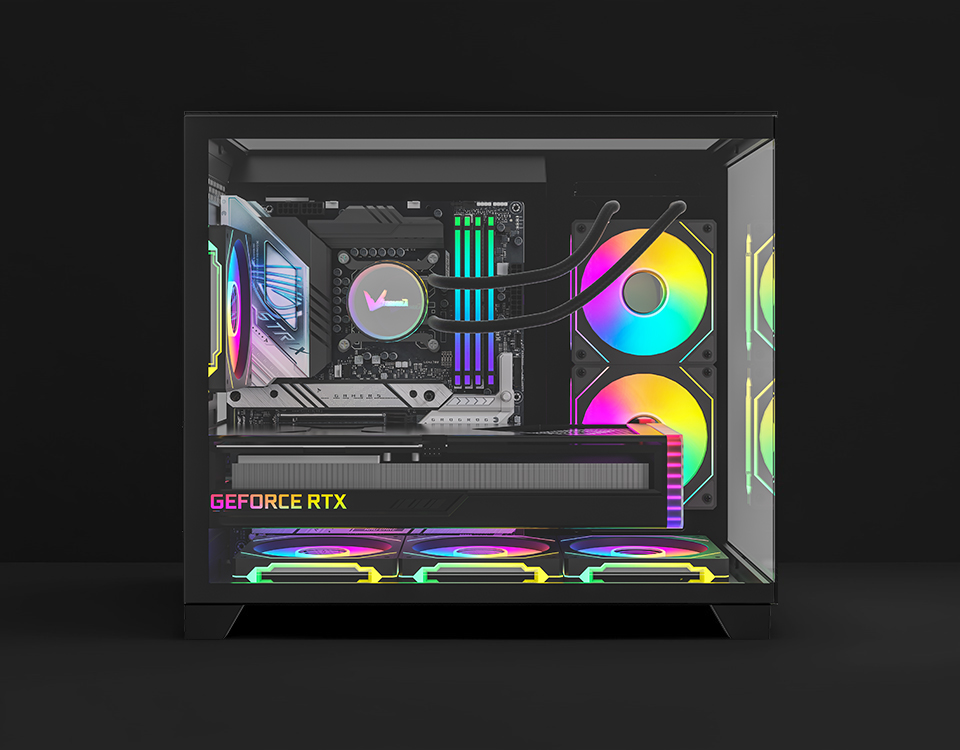

    • Superior Cooling Performance Design

      The Crystal Z9ML series supports side-mounted air or water cooling installations of up to 240mm and bottom-mounted installations of up to 360mm, with accommodation for up to six fans. Featuring a fully optimized internal circulation cooling system, our product ensures exceptional cooling performance for top-tier operations.

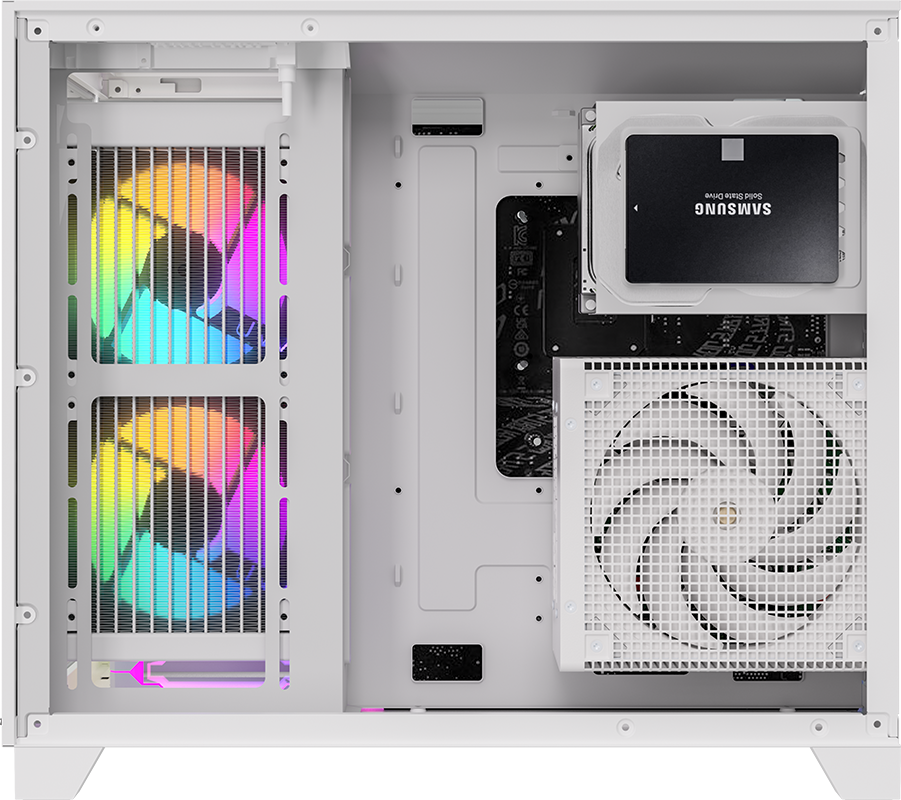

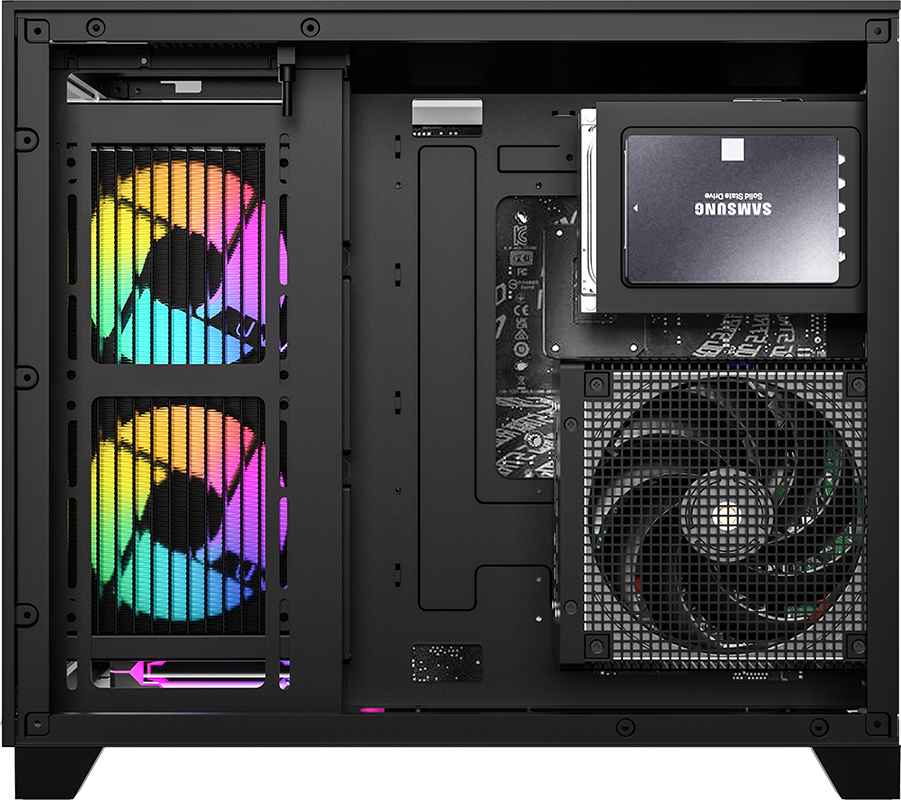

    • Storage Capability

      Supports up to 2 x 3.5” HDDs
      Supports up to 1 x 2.5” SSDs

Flexble Configuration

The Crystal Z9ML series offers sufficient space to support for Micro-ATX motherboards, providing ample space for maximum flexibility. It accommodates VGA cards up to 410mm in length and CPU cooler up to 165mm height.

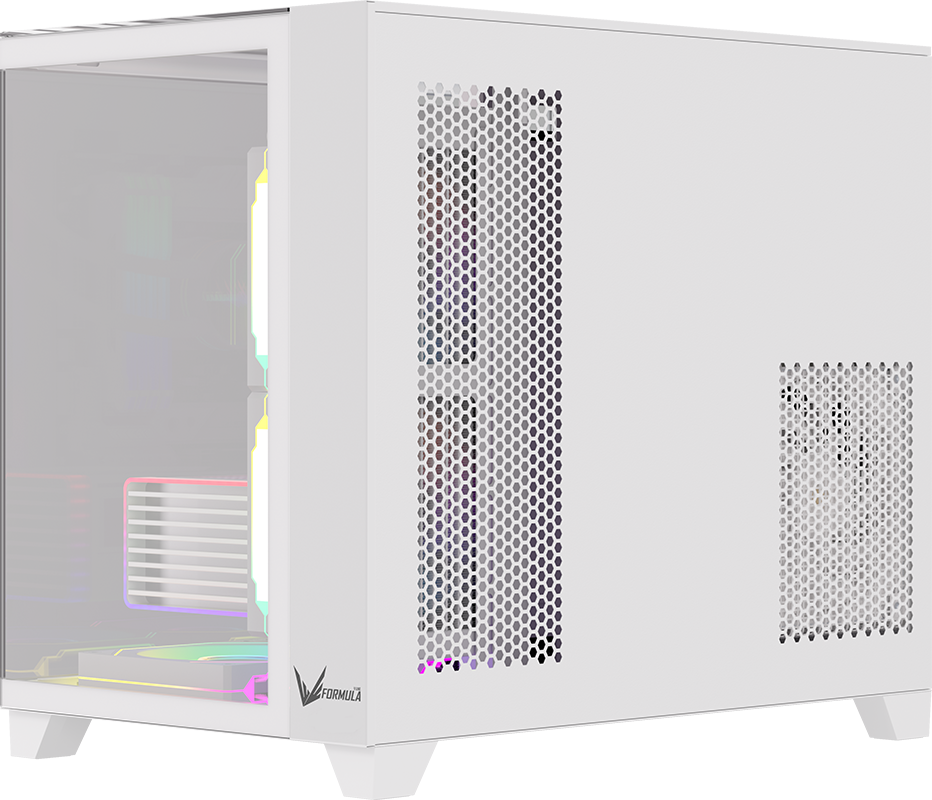

    • Effective Heat Dissipation System

      Numerous innovative ventilation designs have been embraced to enhance airflow. The three-dimensional heat dissipation duct effectively expels heat from internal hardware, ensuring efficient cooling.

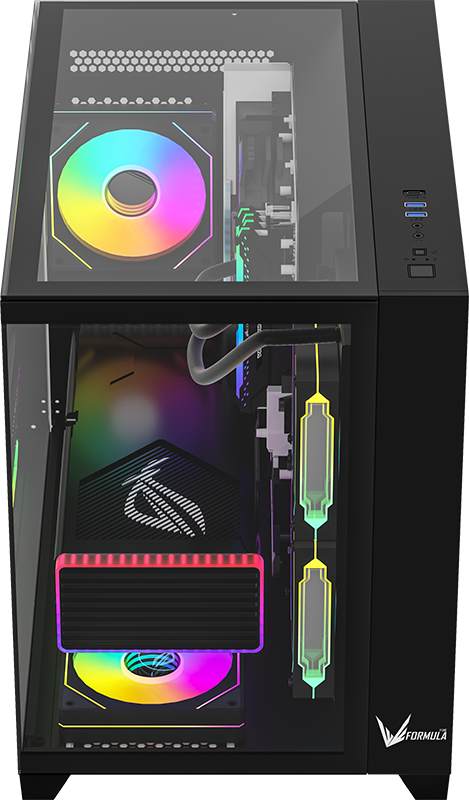

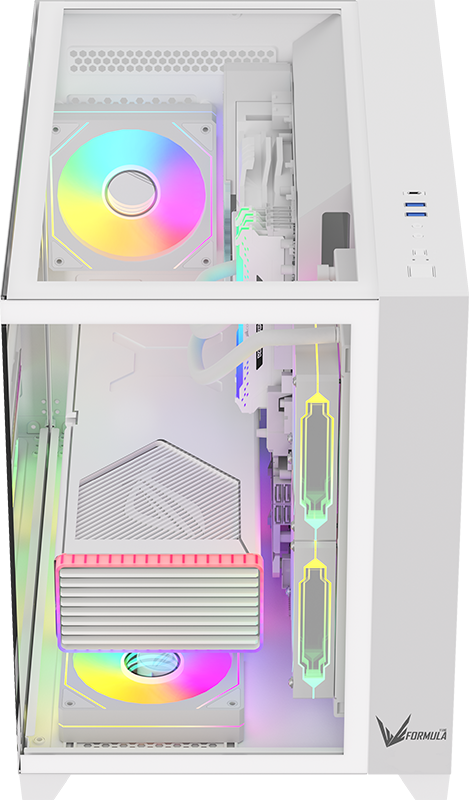

New Generation I/O Ports With Type C Equipped

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring Type-C / USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Crystal Z9ML

  • Model

    Crystal Z9ML

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.6mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    425 x 280 x 379mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    410mm Max.

  • CPU Cooler Clearance

    165mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, USB2.0 x 1, HD AUDIO

  • Power Supply

    ATX

  • Right Side radiator

    240mm Max.

  • Bottom radiator

    360mm Max.

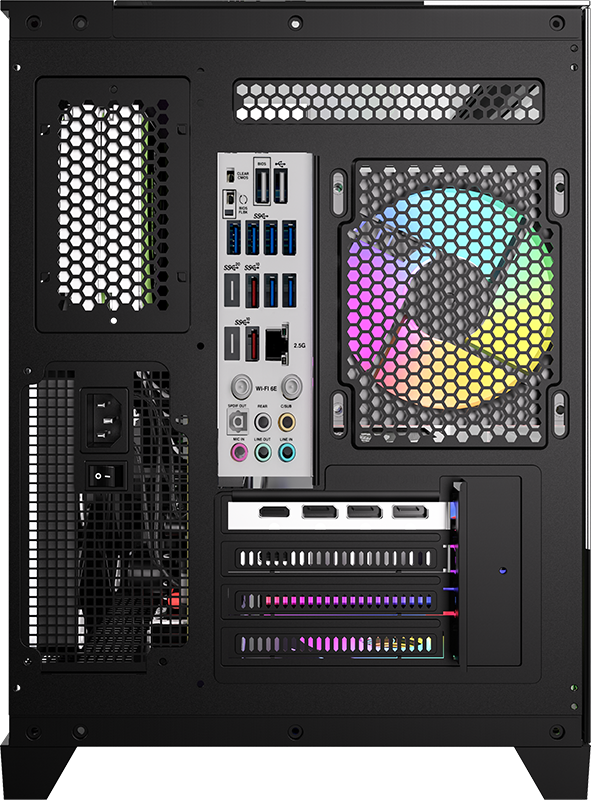

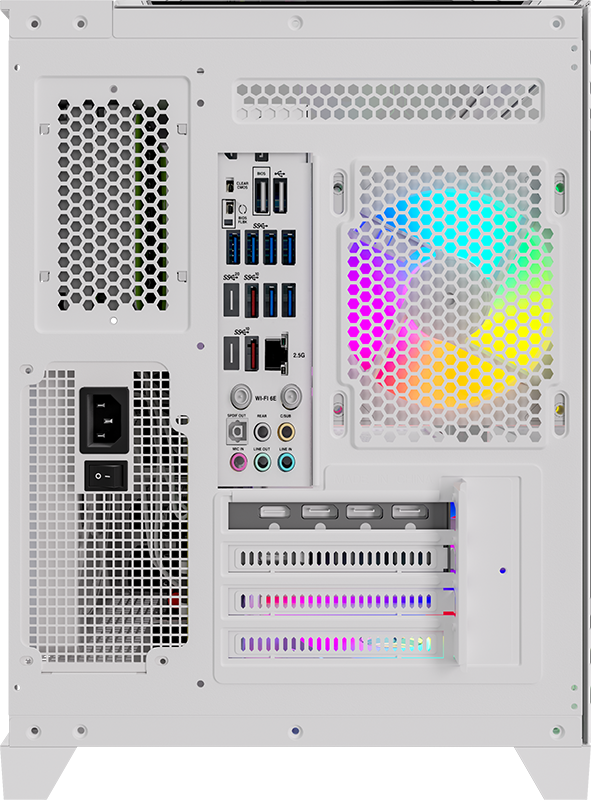

  • Rear fans

    2 x 120mm Max.

  • Bottom fan

    3 x 120mm Max.

  • Right Side fans

    2 x 120mm Max.

  • Net weight

    6.38 kg

  • Gross weight

    6.88 kg

  • EAN

    Crystal Z9ML Black: 4711401660903

    Crystal Z9ML White: 4711401660927

Crystal Z9ML Floe

  • Model

    Crystal Z9ML Floe

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.6mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    425 x 280 x 379mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    410mm Max.

  • CPU Cooler Clearance

    165mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, USB2.0 x 1, HD AUDIO

  • Power Supply

    ATX

  • Right Side radiator

    240mm Max.

  • Bottom radiator

    360mm Max.

  • Rear fans

    2 x 120mm Max.

    1 x 120mm FLOE 12BK/WH ARPW Included

  • Bottom fan

    3 x 120mm Max.

    3 x 120mm FLOE 12BK/WH ARPW Included

  • Right Side fans

    2 x 120mm Max.

    2 x 120mm FLOE 12BK/WH ARPW Included

  • Net weight

    6.38 kg

  • Gross weight

    6.88 kg

  • EAN

    Crystal Z9ML Floe Black: 4711401660910

    Crystal Z9ML Floe White: 4711401660934
