Crystal Z9M

- 270-degree frameless panoramic design.
- Superior Cooling Performance.
- Effective Heat Dissipation System.
- Flexible Configuration.
- Intelligent storage for HDD and cable management solution.
- New generation I/O Ports with Type C equipped.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

CRYSTAL-Z9M-1920x960

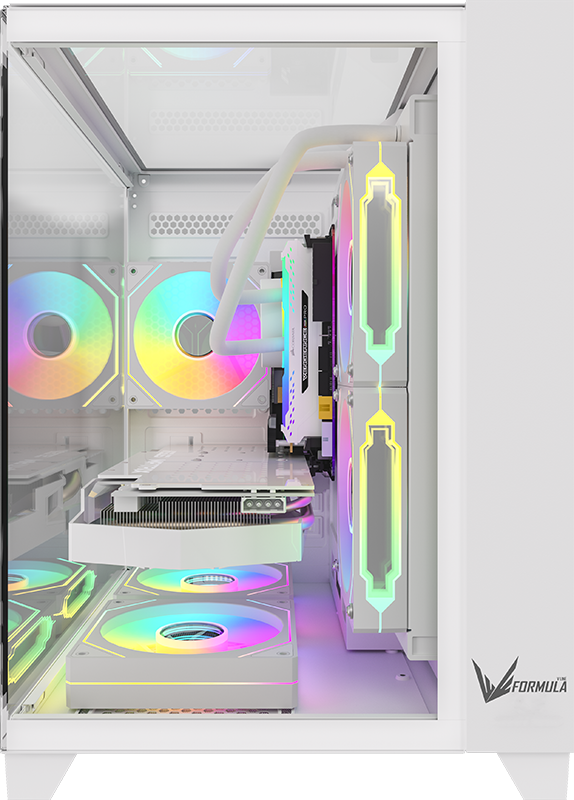

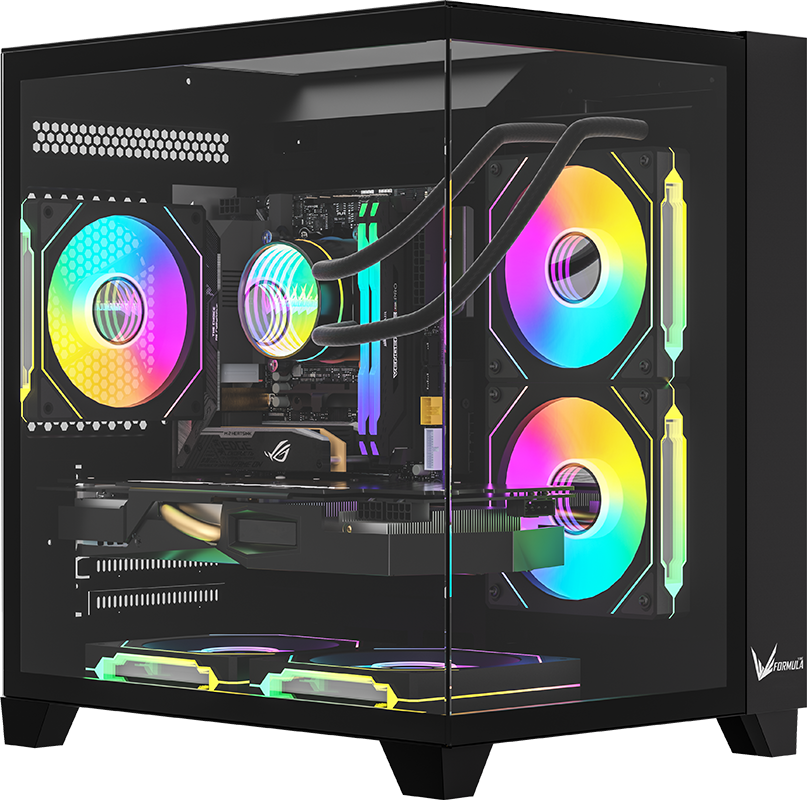

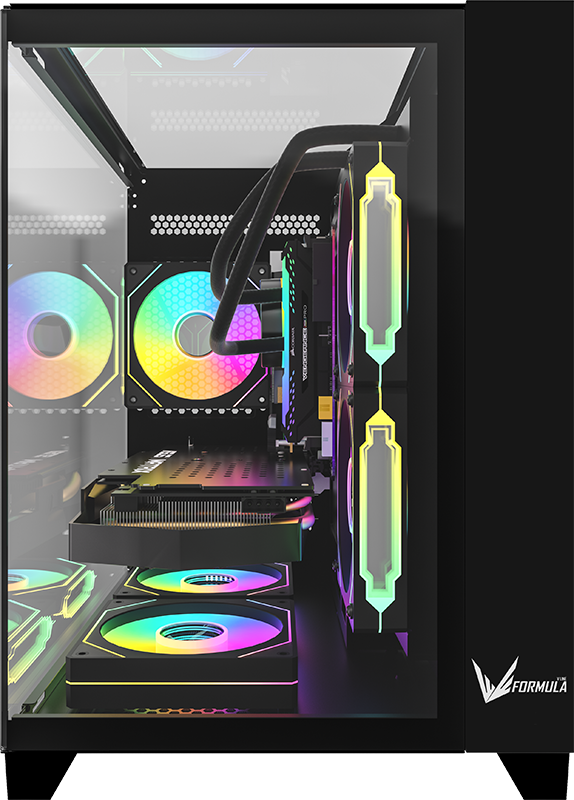

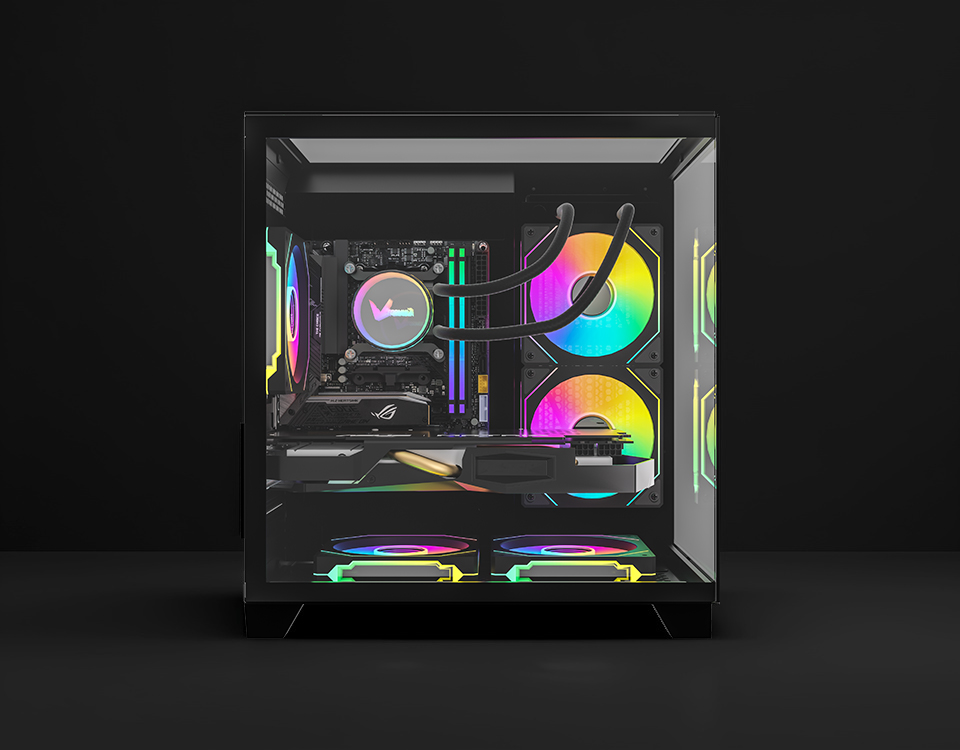

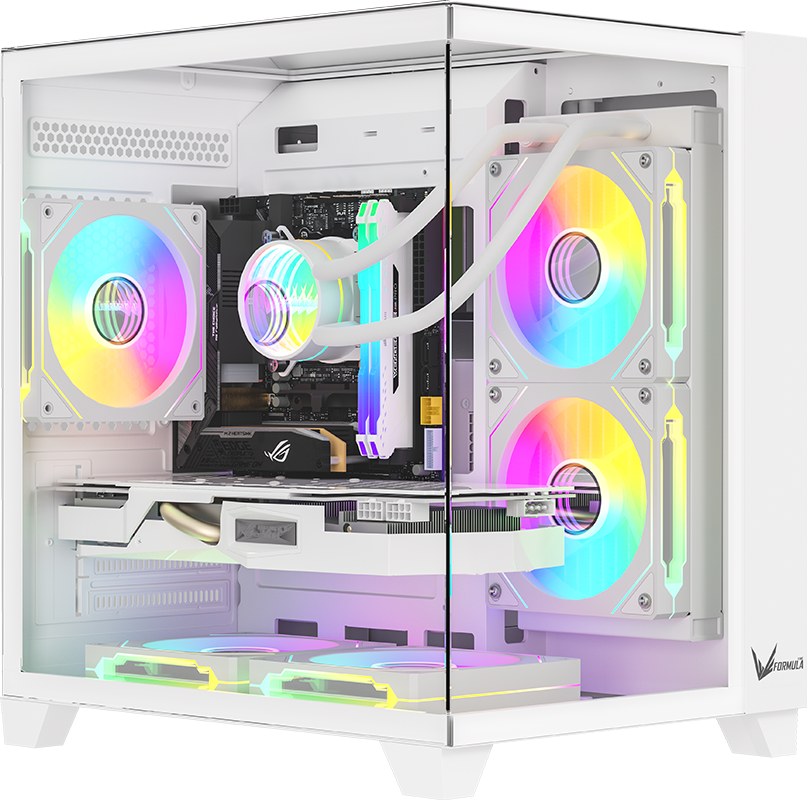

270-Degree Frameless Panoramic Design

    • 270-Degree Frameless Panoramic Design

      Experience unhindered visibility of your rig’s internal components with full tempered glass front, side and top panels, providing a seamless and unobstructed view.

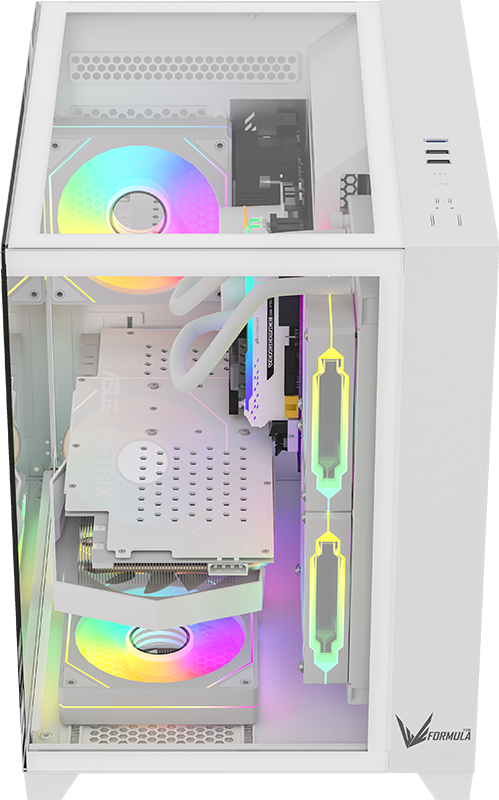

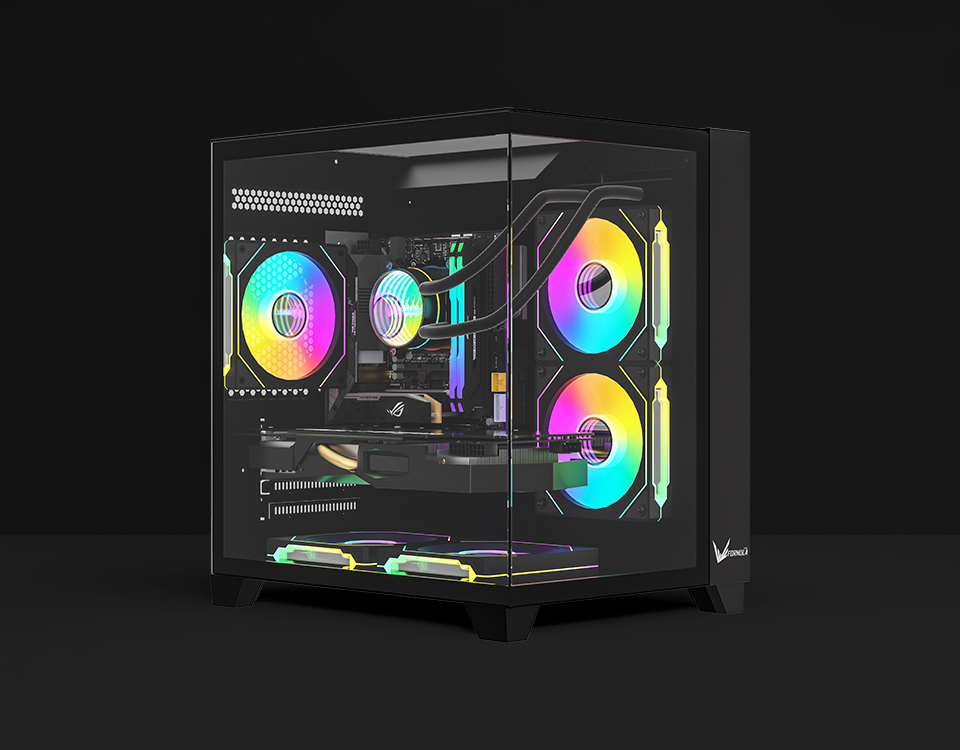

    • Superior Cooling Performance Design

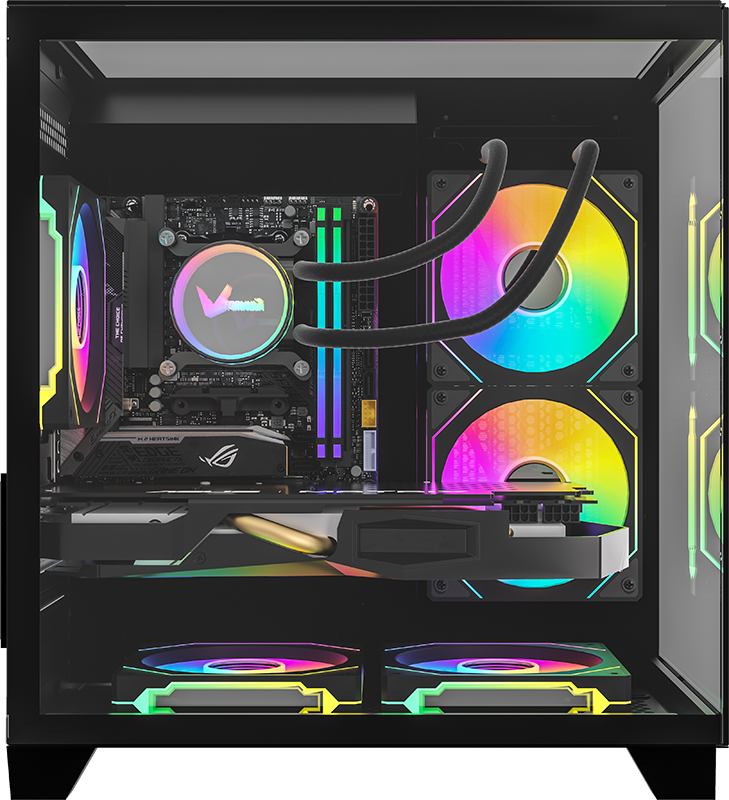

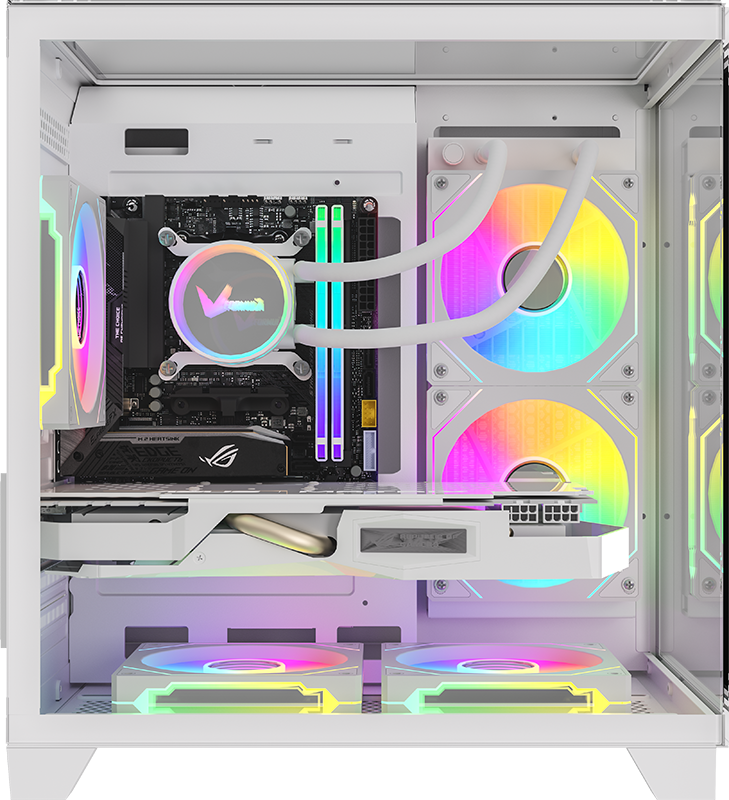

      The Crystal Z9M series supports side-mounted air or water cooling installations of up to 240mm and bottom-mounted installations of up to 360mm, with accommodation for up to six fans. Featuring a fully optimized internal circulation cooling system, our product ensures exceptional cooling performance for top-tier operations.

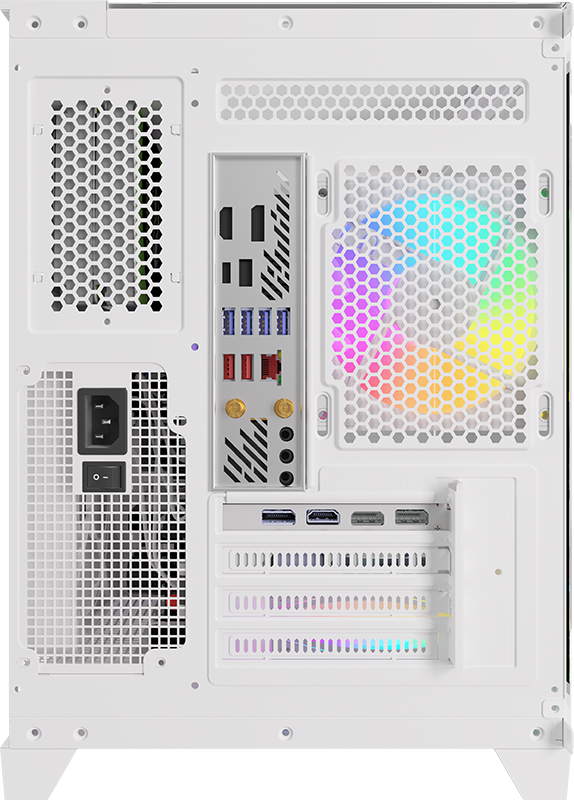

Flexble Configuration

The Crystal Z9M series offers sufficient space to support for Micro-ATX motherboards, providing ample space for maximum flexibility.
It accommodates VGA cards up to 330mm in length and CPU cooler up to 160mm height.

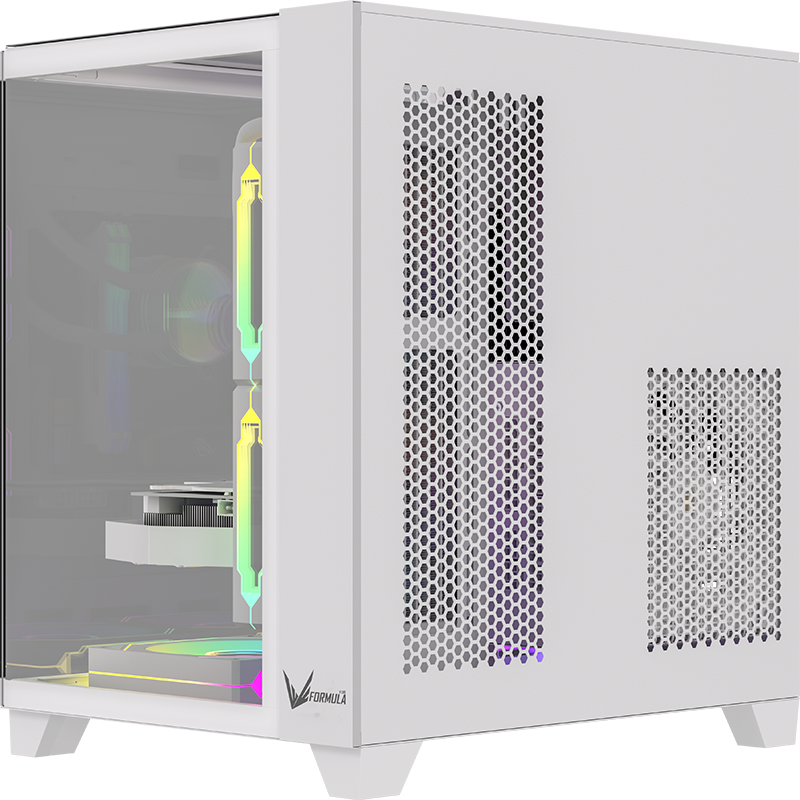

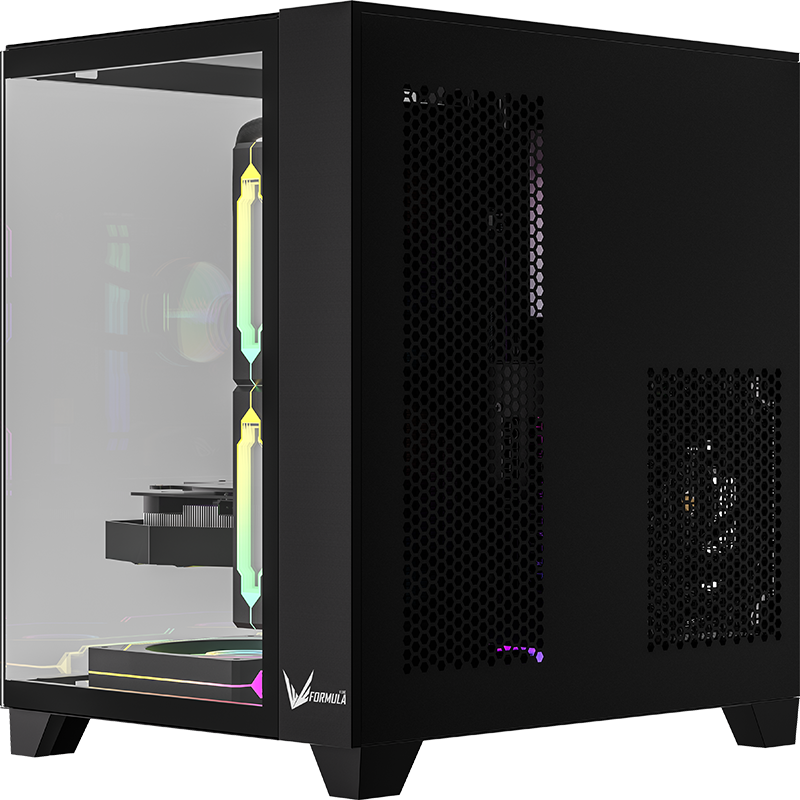

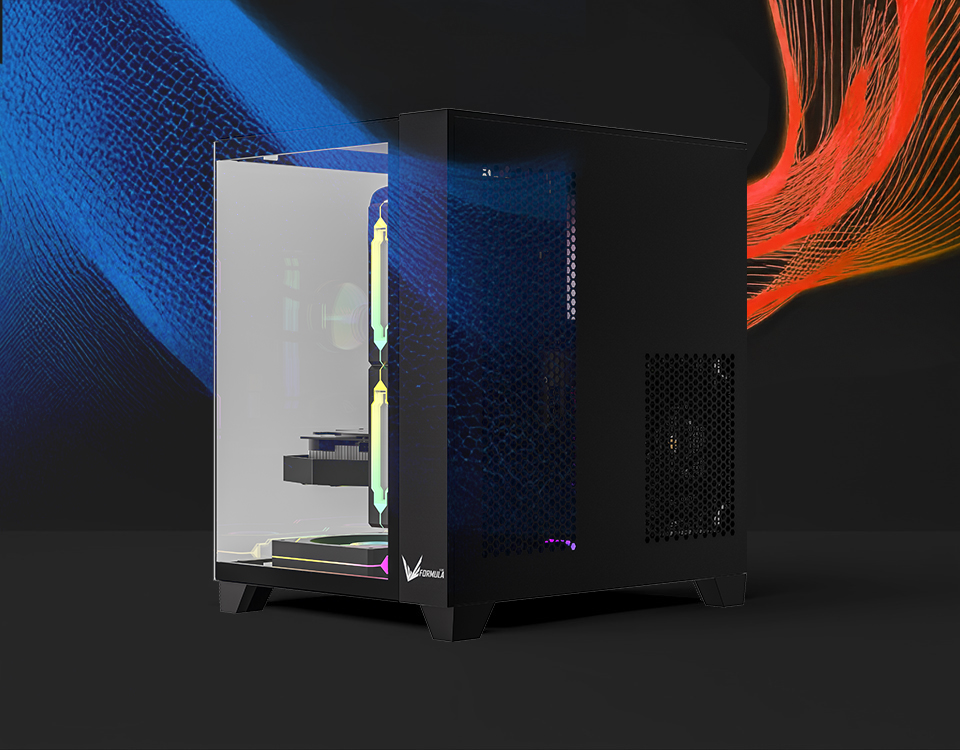

    • Effective Heat Dissipation System

      Numerous innovative ventilation designs have been embraced to enhance airflow. The three-dimensional heat dissipation duct effectively expels heat from internal hardware, ensuring efficient cooling.

    • Superior Cooling Performance Design

      The Crystal Z9M series offers sufficient space to support for Micro-ATX motherboards, providing ample space for maximum flexibility. It accommodates VGA cards up to 330mm in length and CPU cooler up to 160mm height.

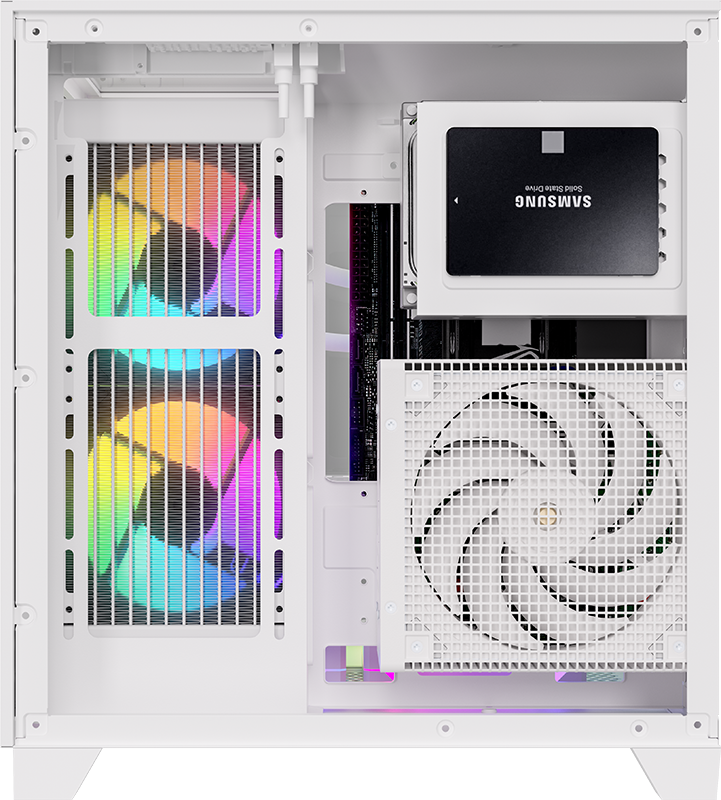

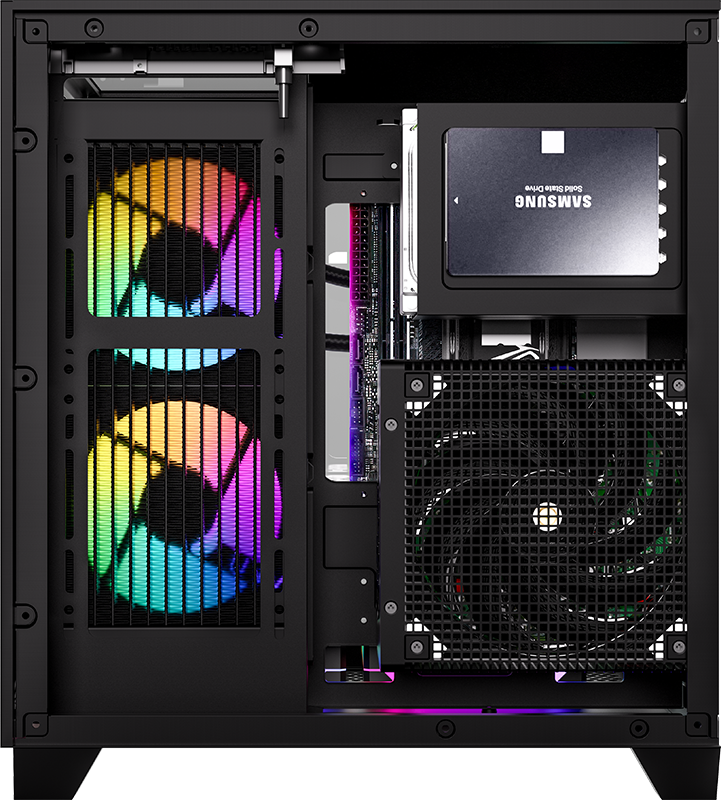

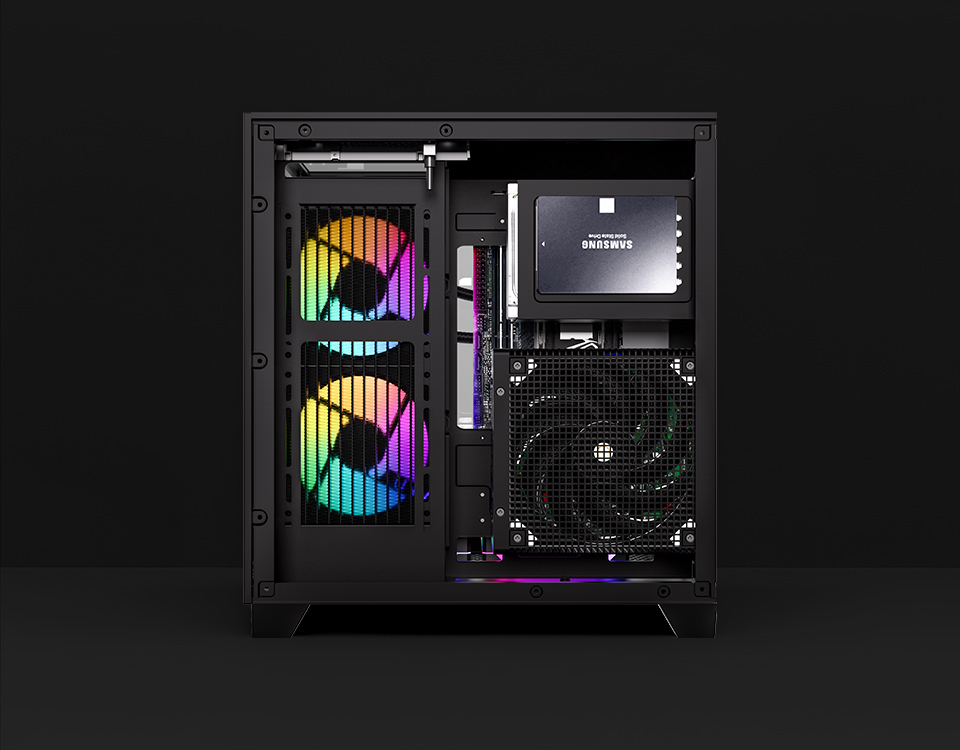

    • Storage Capability

      Supports up to 1 x 3.5” HDDs
      Supports up to 2 x 2.5” SSDs

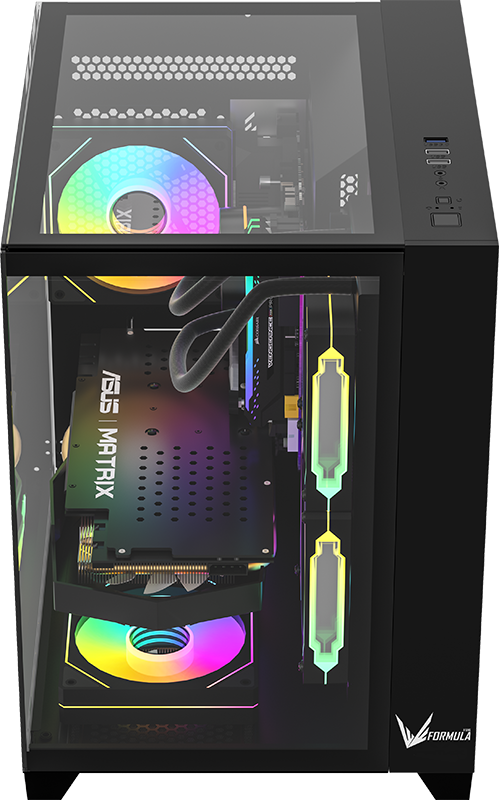

New Generation I/O Ports With Type C Equipped

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring Type-C / USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Crystal Z9M

  • Model

    Crystal Z9M

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.5mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    341 x 270 x 379 mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    330mm Max.

  • CPU Cooler Clearance

    160mm Max.

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Power Supply

    ATX

  • Right Side radiator

    240mm Max.

  • Bottom radiator

    240mm Max.

  • Rear fan

    1 x 120mm Max.

  • Bottom fans

    2 x 120mm Max.

  • Right Side fans

    2 x 120mm Fans Max

  • Net weight

    4.00 kg

  • Gross weight

    5.12 kg

  • EAN

    Crystal Z9M Black: 4711401660866

    Crystal Z9M White: 4711401660880

Crystal Z9M Floe

  • Model

    Crystal Z9M Floe

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.5mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    341 x 270 x 379 mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    330mm Max.

  • CPU Cooler Clearance

    160mm Max.

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Power Supply

    ATX

  • Right Side radiator

    240mm Max.

  • Bottom radiator

    240mm Max.

  • Rear fan

    1 x 120mm Max.

    1 x 120mm FLOE 12BK/WH ARPW Included

  • Bottom fans

    2 x 120mm Max.

    2 x 120mm FLOE 12BK/WH ARPW Included

  • Right Side fans

    2 x 120mm Fans Max

    2 x 120mm FLOE 12BK/WH ARPW Included

  • Net weight

    7.20 kg

  • Gross weight

    8.30 kg

  • EAN

    Crystal Z9M Floe Black: 4711401660873

    Crystal Z9M Floe White: 4711401660897
