Crystal Z8G

Panoramic Vision, Ultimate Performance

Experience the perfect blend of aesthetics and thermal efficiency with the Crystal Z8G. Featuring a stunning panoramic glass front and robust 0.7mm steel frame , this mid-tower chassis is engineered for the future—supporting massive 420mm GPUs and a 360mm top radiator. With a unique adjustable bottom fan bracket for targeted GPU cooling and support for up to 8 fans

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

Warranty periods may vary by region; please inquire with your point of purchase for details.

Variation

Color

Crystal Z8G-KV

Panoramic Vision, Ultimate Performance

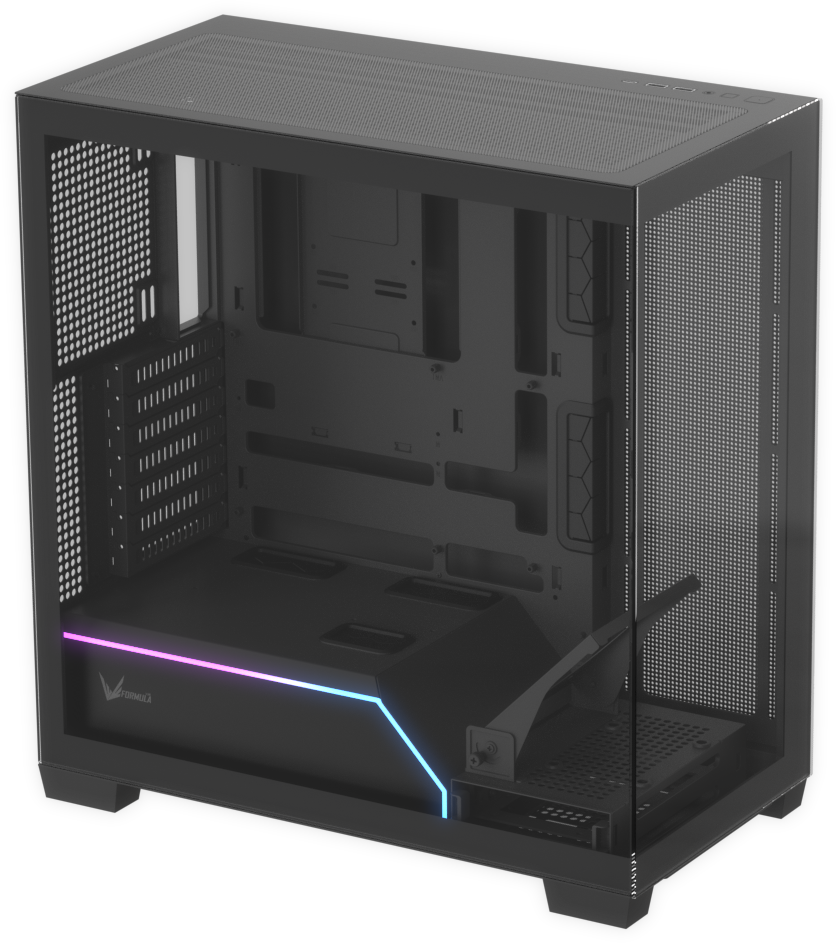

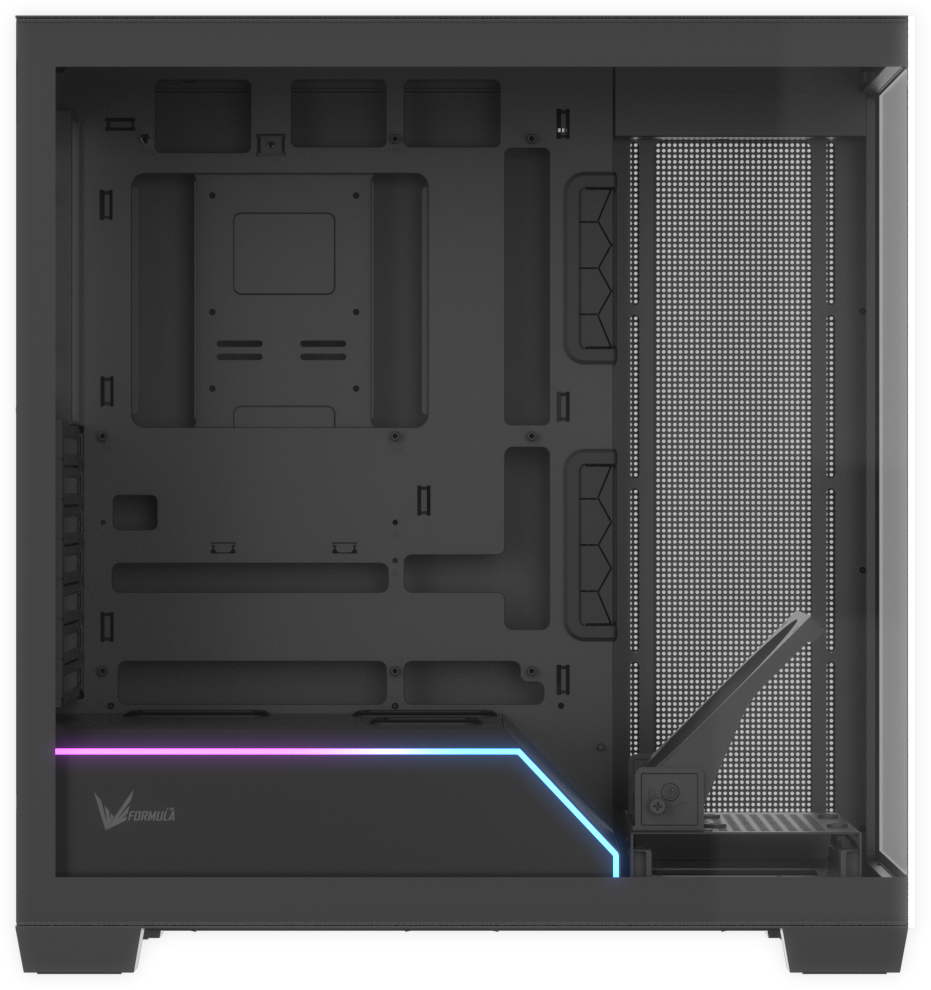

    • ARGB Power Shroud – Glow from Below

      A built-in ARGB light strip on the power shroud extends illumination from the bottom up, enhancing visual depth and creating a more immersive lighting experience.

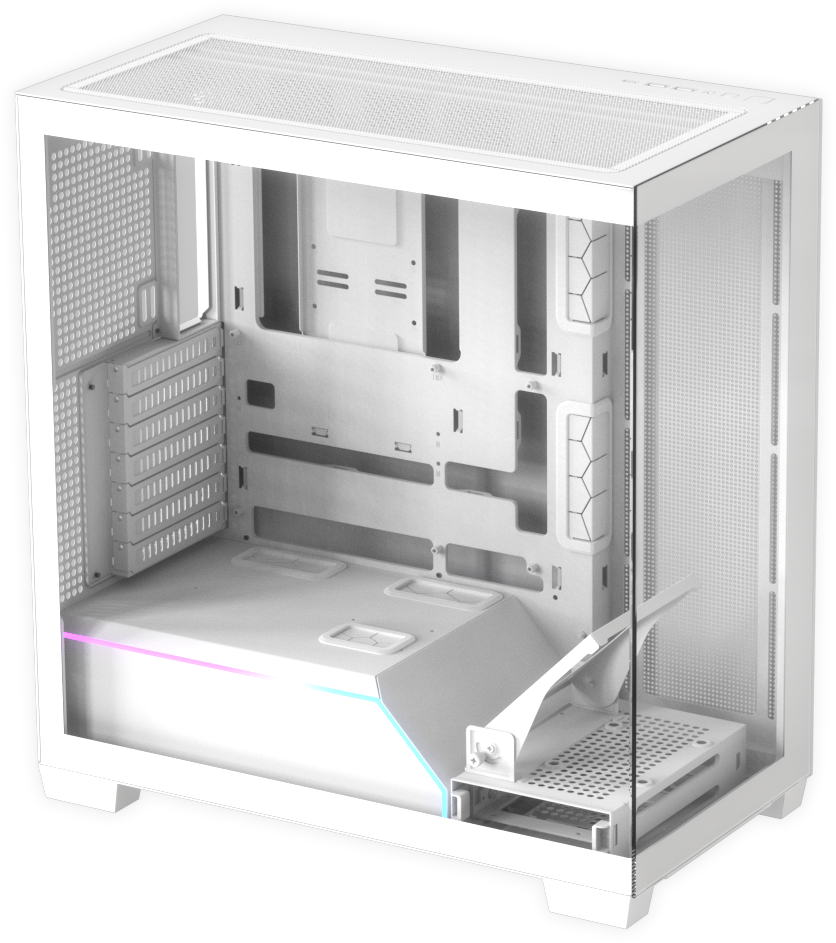

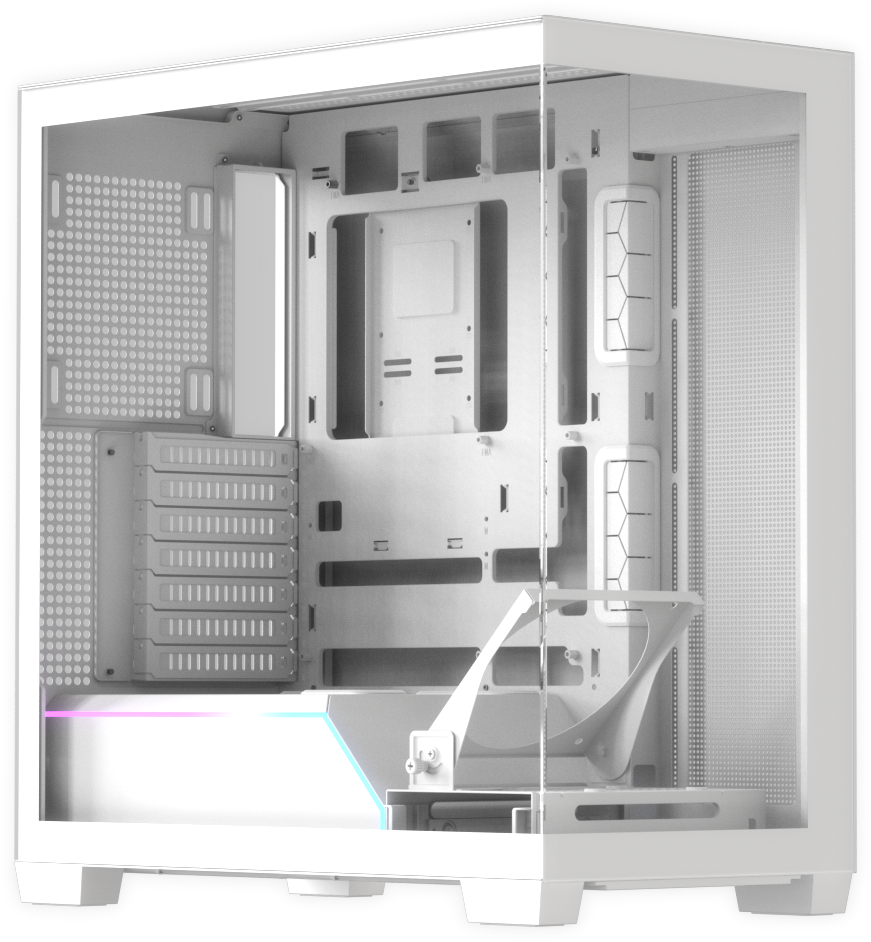

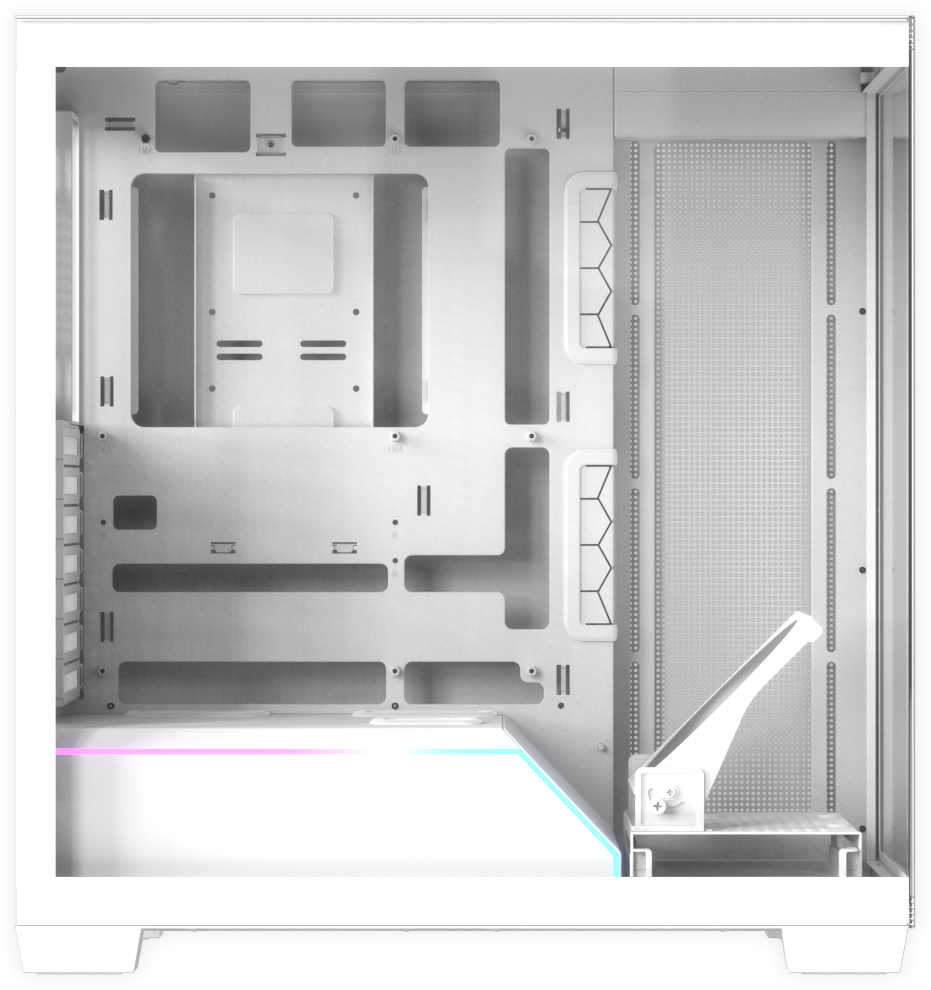

    • Adjustable Fan Bracket

      The bottom-mounted adjustable fan bracket supports a 120mm fan, allowing you to direct airflow precisely toward the GPU for enhanced cooling performance.

    • Top-Mounted 360mm Radiator Support

      The chassis supports up to a 360mm radiator on the top panel, delivering optimized cooling for your CPU and enabling a quieter, more stable high-performance build.

    • Flexible Cooling Layout

      Supports up to 8 x 120mm or 3 x 140mm fans, offering flexible cooling layouts for any build—whether you prioritize silent operation or maximum airflow.

    • Ready for the Future

      With up to 420mm of GPU clearance, the Crystal Z8G easily accommodates ultra-long graphic cards like the 5090 series, giving power users the freedom to upgrade without compromise.

    • Clean from Every Angle

      Equipped with dust filters on the top and bottom panels, the case keeps dust out to protect your components, prolong hardware lifespan, and ensure clean, stable performance.

    • Space for What Matters

      Supports 1 x 3.5″ HDD and 3 x 2.5″ SSDs, offering the perfect balance of storage capacity and speed for both your system and files.

    • Instant Vibrance and Airflow

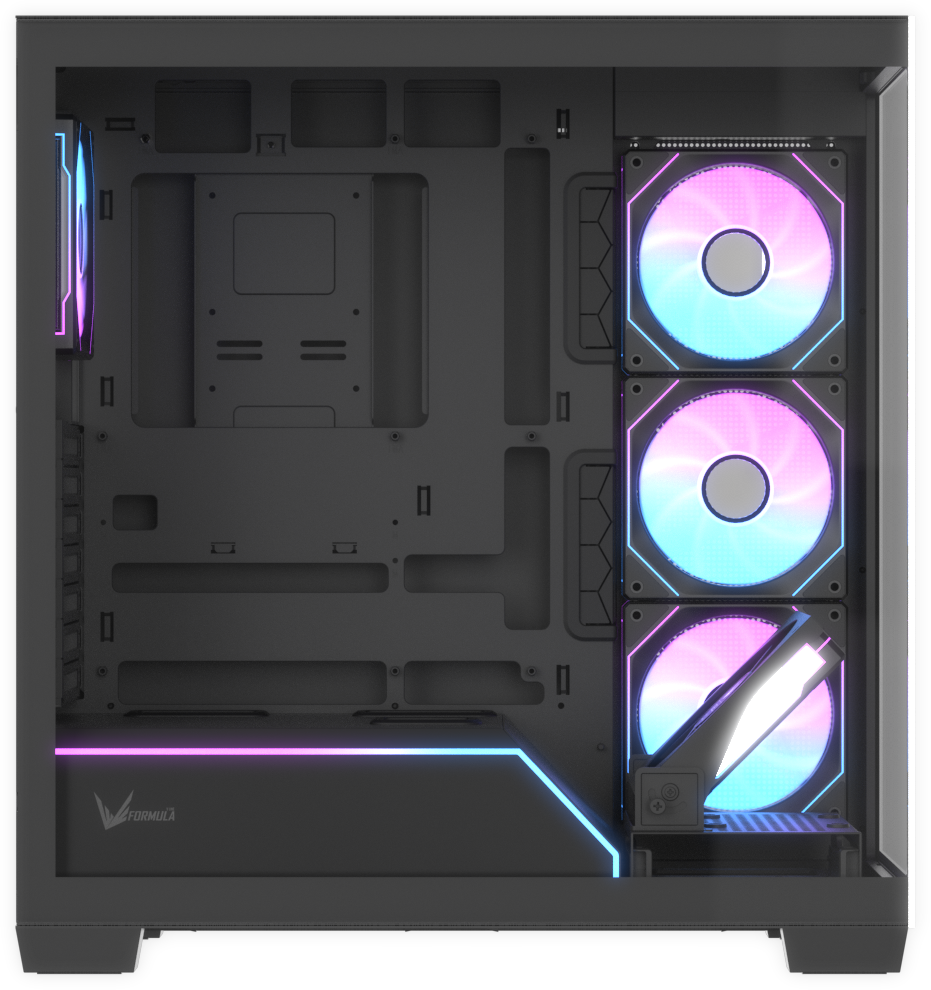

      Crystal Z8G Floe Version

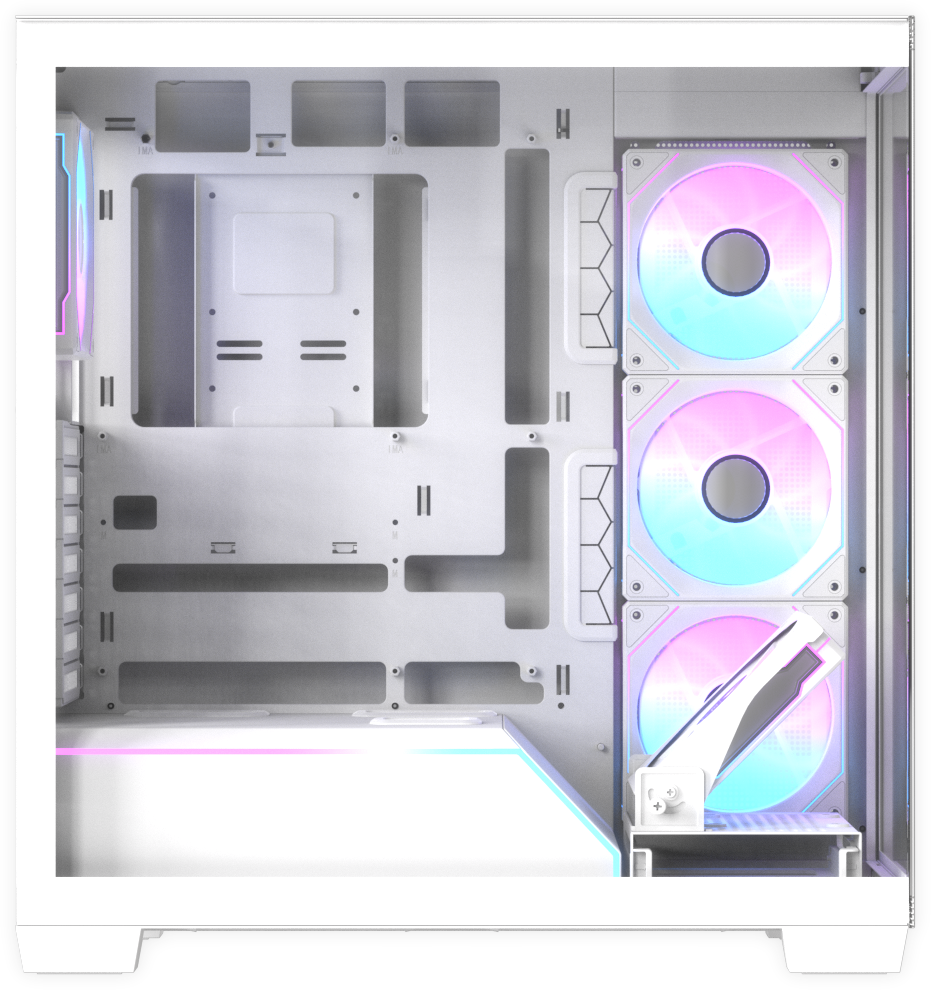

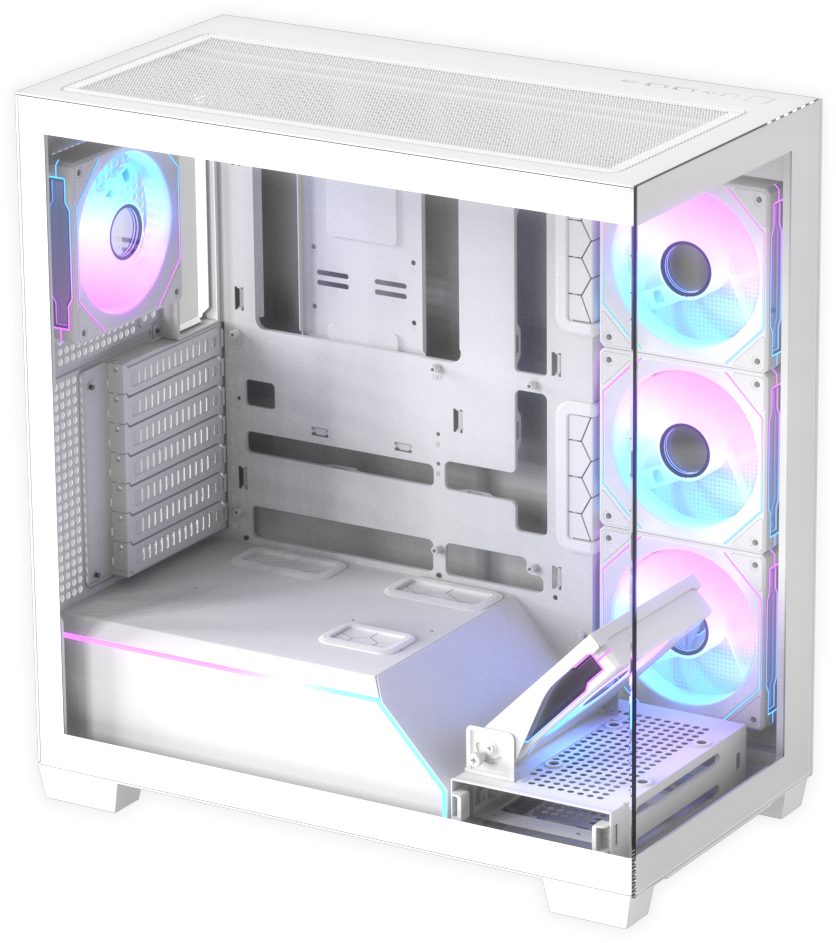

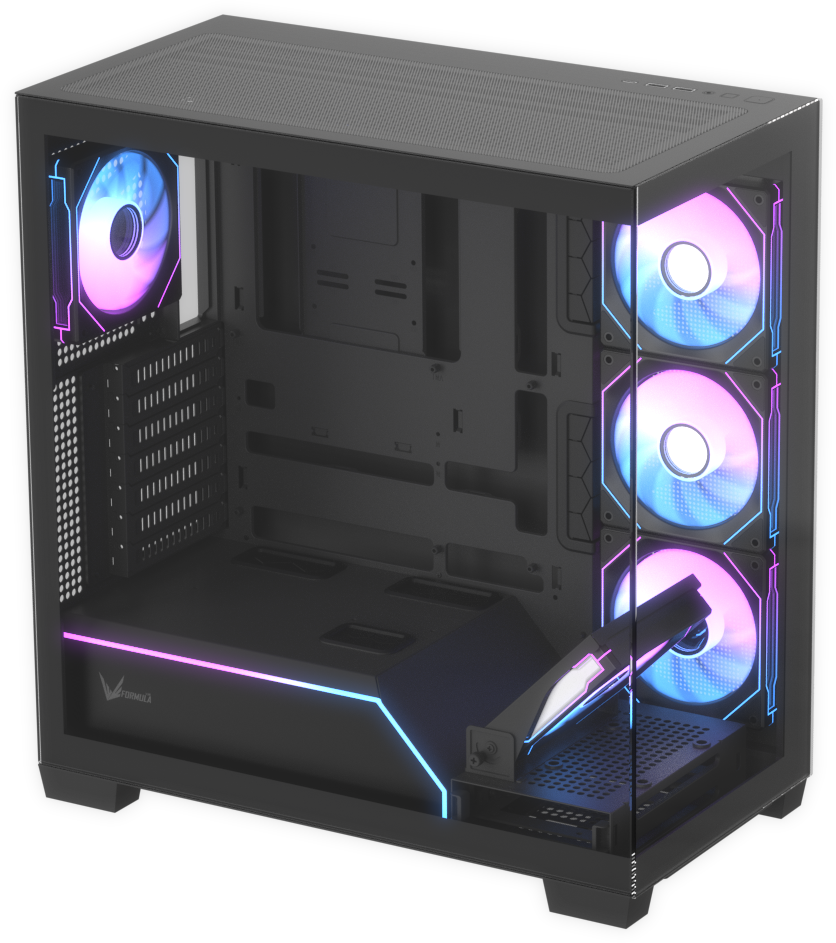

      The Crystal Z8G Floe version comes pre-installed with 5 ARGB fans, delivering vibrant lighting and smooth airflow right out of the box—no extra setup needed for a stunning and efficient build.

Crystal Z8G

  • Model

    Crystal Z8G

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    Steel

  • Front Panel Material

    Glass

  • Steel Thickness

    0.7 mm

  • Motherboards

    ATX / Micro-ATX / Mini-ITX

  • Case Dimensions

    L445 x W235 x H470 mm

  • 3.5” Drive Bays

    1 Max.

  • 2.5” Drive Bays

    3 Max.

  • Expansion Slots

    7

  • GPU Clearance

    Up to 420mm

  • CPU Cooler Clearance

    Up to 170 mm

  • Top Fans

    3 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x 120 or 1 x 140mm Max.

  • Bottom Fans

    1 x 120mm Max.

  • Side Fans

    3 x 120mm Max.

  • Top radiator

    360mm Max.

  • I/O Ports

    USB3.0 x 2 | USB C x 1 | HD Audio

  • Power Supply

    ATX 238mm

  • Net weight

  • Gross weight

  • EAN

    Crystal Z8G Black: 4711401668091

    Crystal Z8G FLOE Black: 4711401668107

    Crystal Z8G White: 4711401668114

    Crystal Z8G FLOE White: 4711401668121

  • Warranty Coverage

    2-Year Limited Warranty
    Warranty period may vary by region.
    Please consult your place of purchase for details.

Crystal Z8G FLOE Black

  • Cooling

    Side: 3 x Floe 12BK ARPW FANS included
    Rear: 1 x Floe 12BK ARPW FAN included
    Bottom: 1 x Floe 12BK ARPW FAN included

Crystal Z8G FLOE White

  • Cooling

    Side: 3 x Floe 12WH ARPW FANS included
    Rear: 1 x Floe 12WH ARPW FAN included
    Bottom: 1 x Floe 12WH ARPW FAN included
