Crystal Z8

Enhanced with an Additional Premium Mesh Panel
- Innovation Embodied: Our Inventive Front Fan Mounts
- Robust and Crystal-Clear Tempered Glass
- Superior Cooling Performance with Dual Chamber Design
- Safeguard Your PC with Integrated Filters
- Flexible Configuration
- Intelligent storage for HDD & cable management solution
- New generation I/O Ports with Type C equipped
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

CRYSTAL-Z8-1920x960

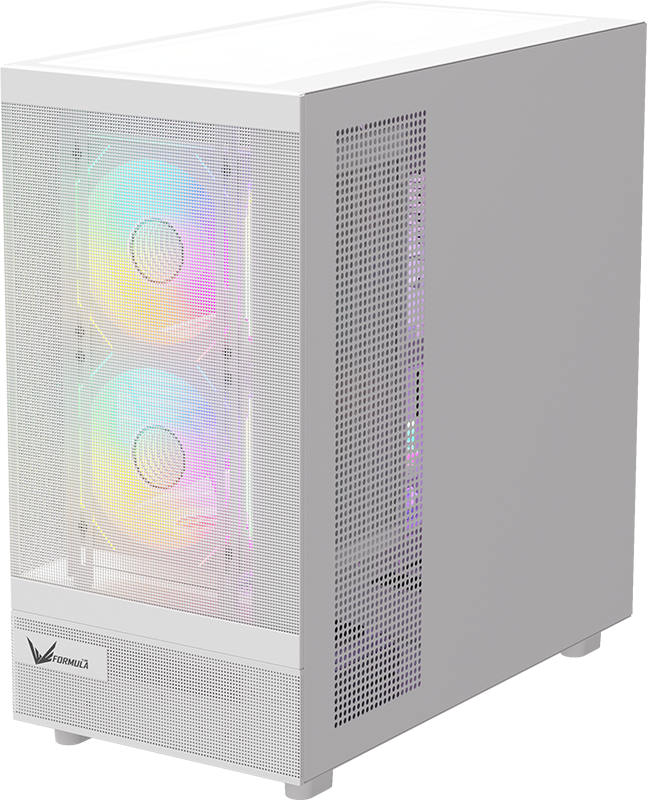

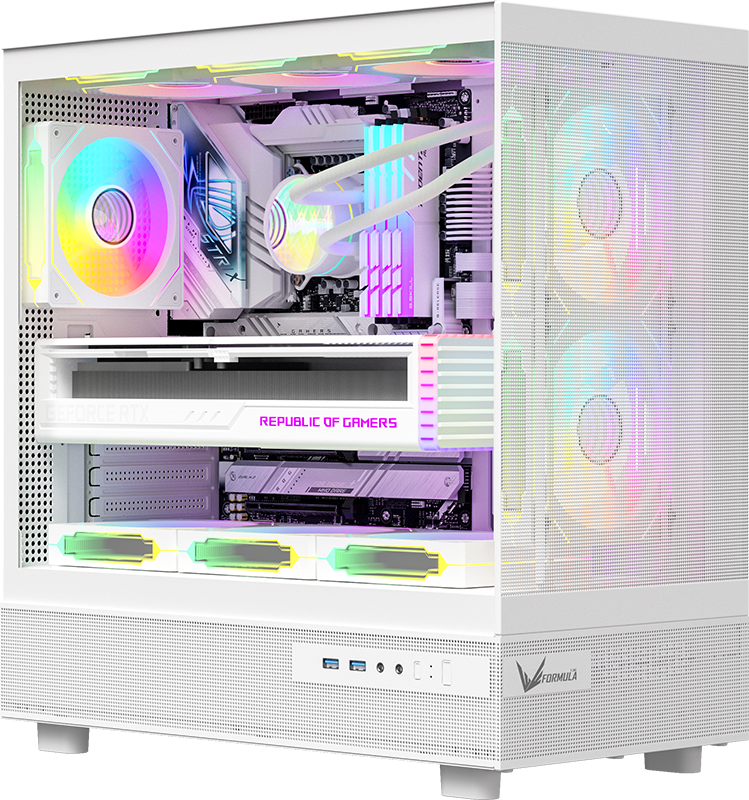

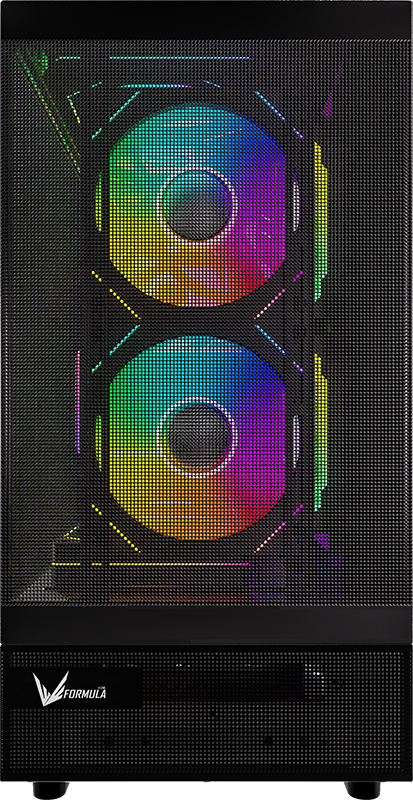

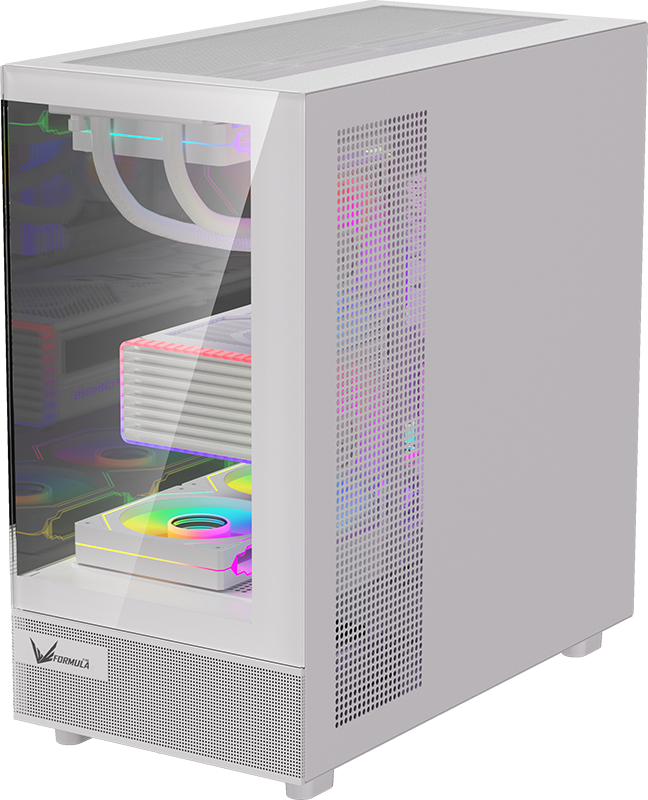

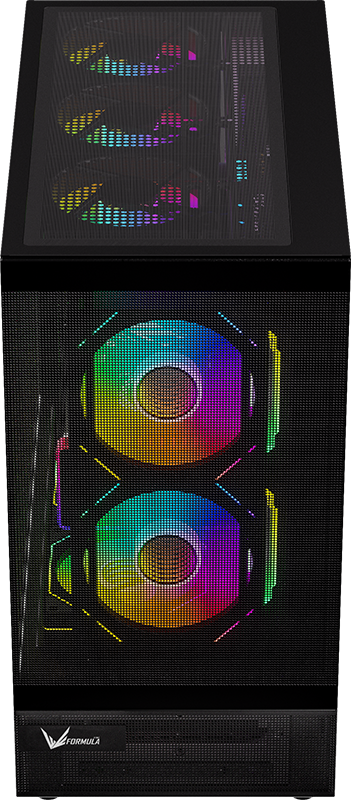

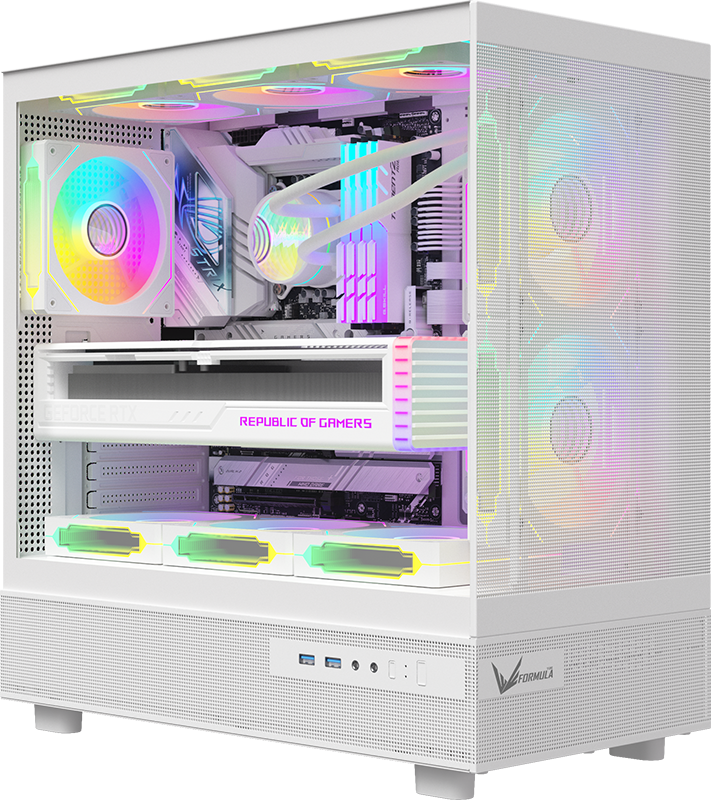

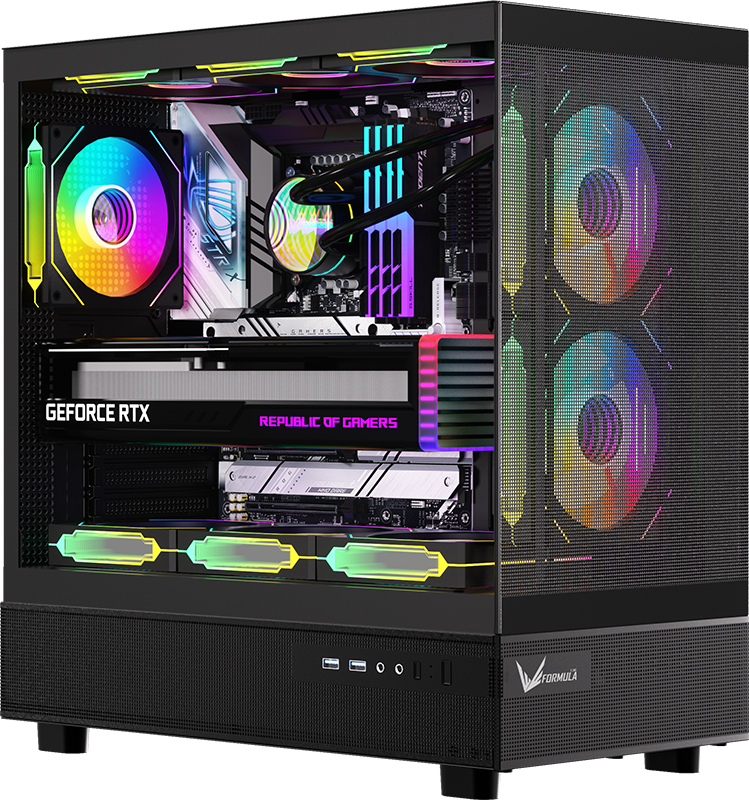

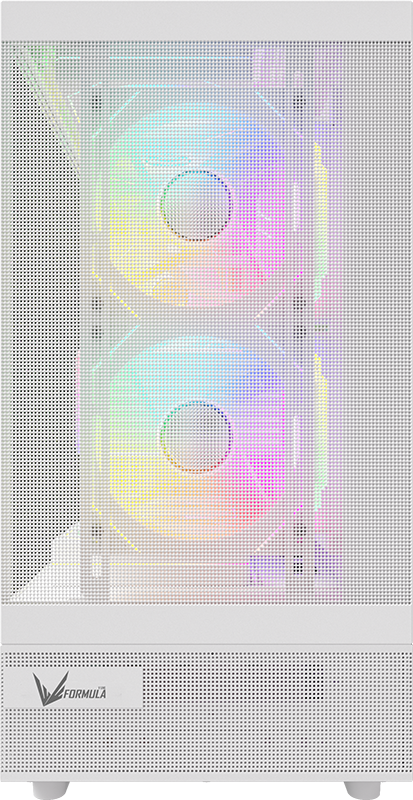

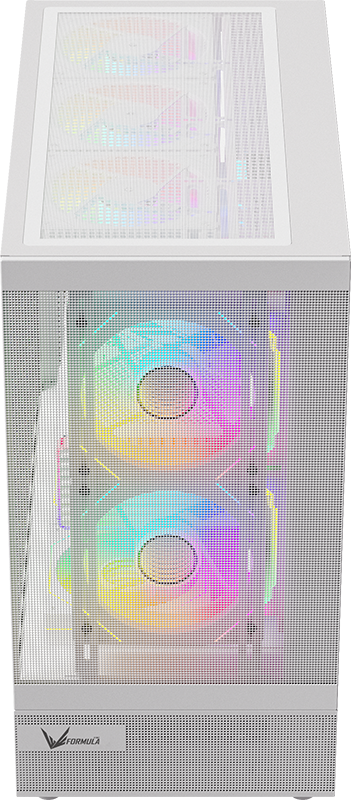

Enhanced with an Additional Premium Mesh Panel

    • Enhanced with an Additional Premium Mesh Panel

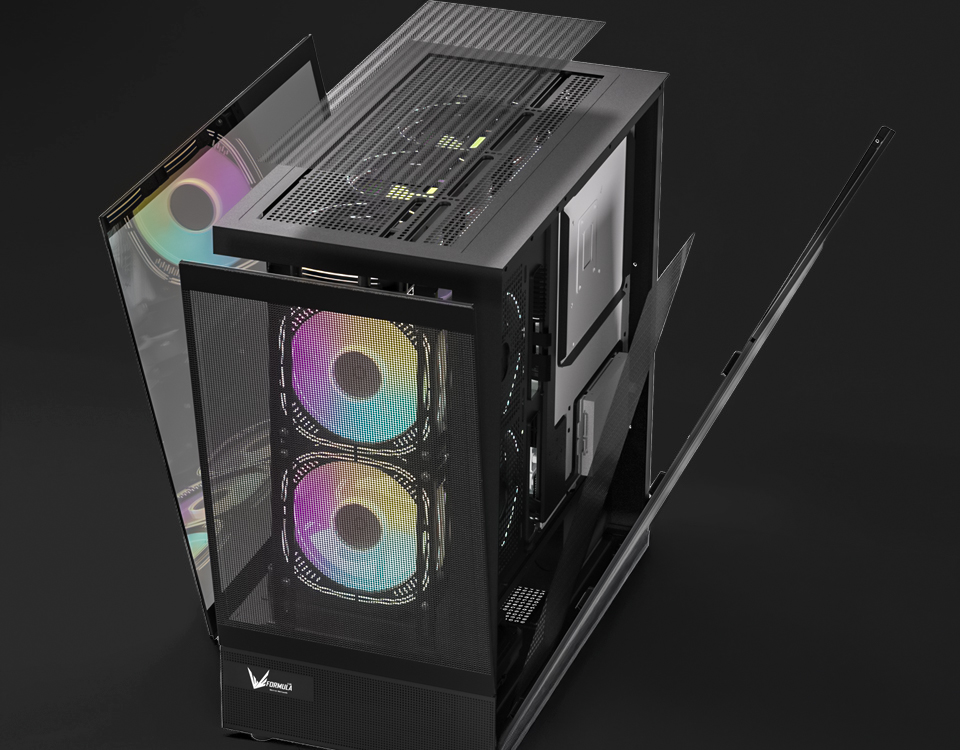

      Featuring two unique front panels, the transparent tempered glass panel showcases stunning RGB lighting effects, while the metal mesh panel provides ample airflow to enhance cooling. Additionally, the tool-free installation design allows you to easily replace the front panel.

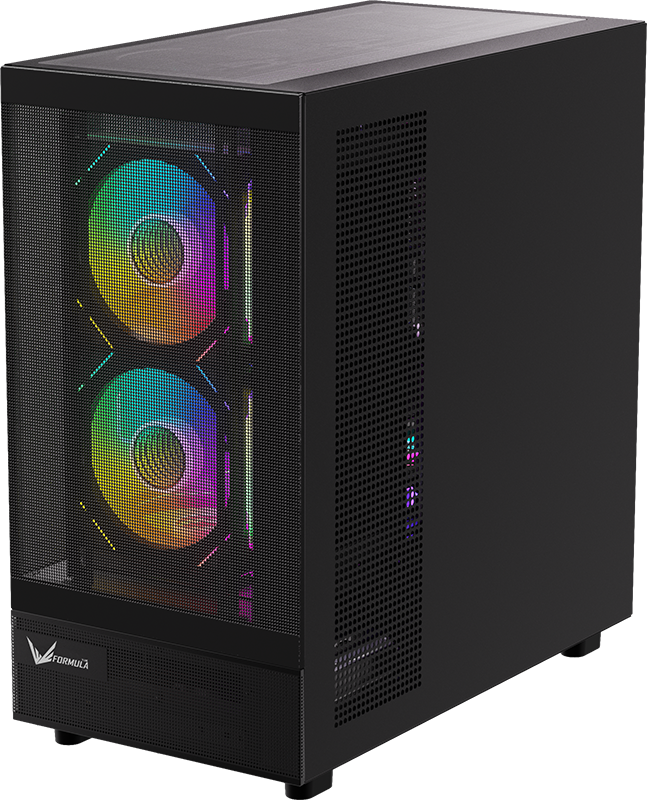

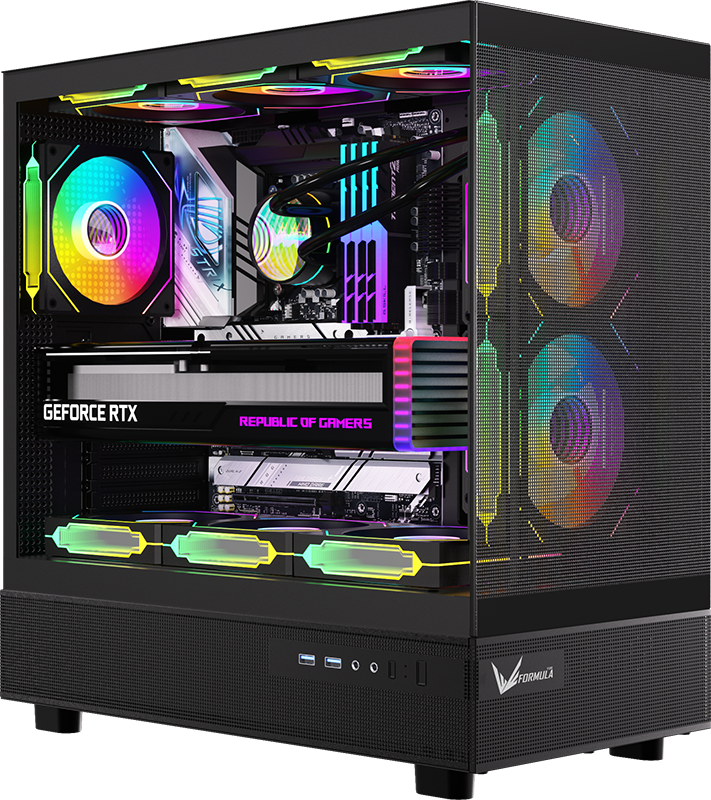

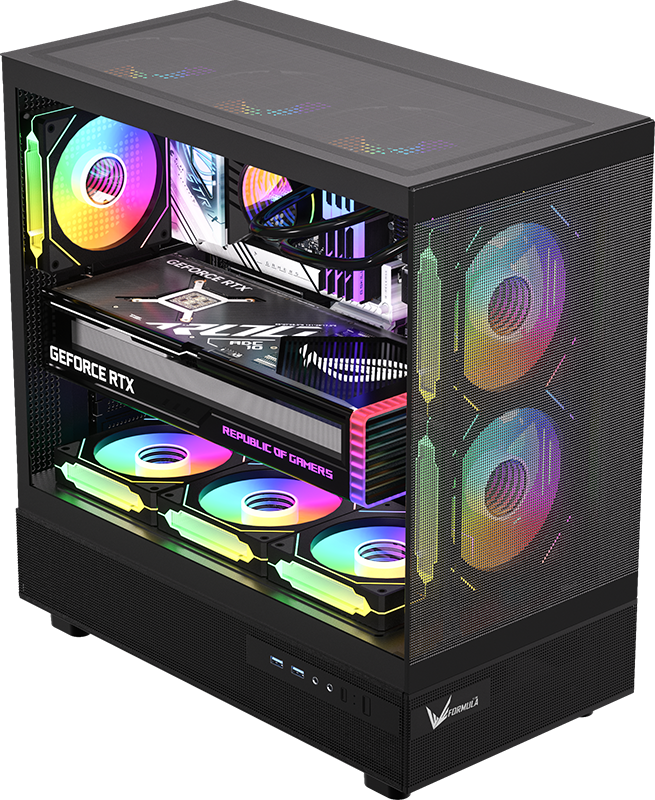

    • Innovation Embodied: Our Inventive Front Fan Mounts

      The Crystal Z8 series showcases a dynamic mesh panel, offering versatility to transform into a mesh case whenever desired. Accompanied by an adaptable rotating fan mount, you gain the flexibility to prioritize either cooling performance or aesthetics according to your preference.

Flexble Configuration

The Crystal Z8 series offers sufficient space to support for ATX, Micro-ATX, and Mini-ITX motherboards, providing ample space for maximum flexibility. It accommodates VGA cards up to 420mm in length and CPU cooler up to 185mm height.

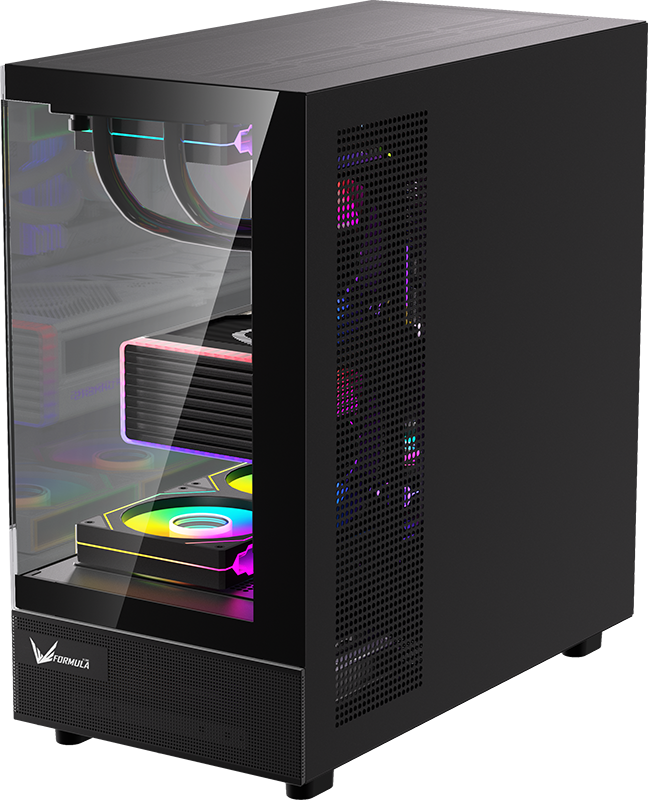

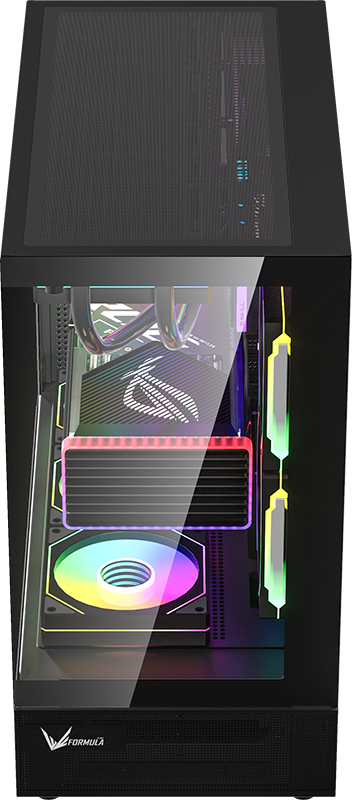

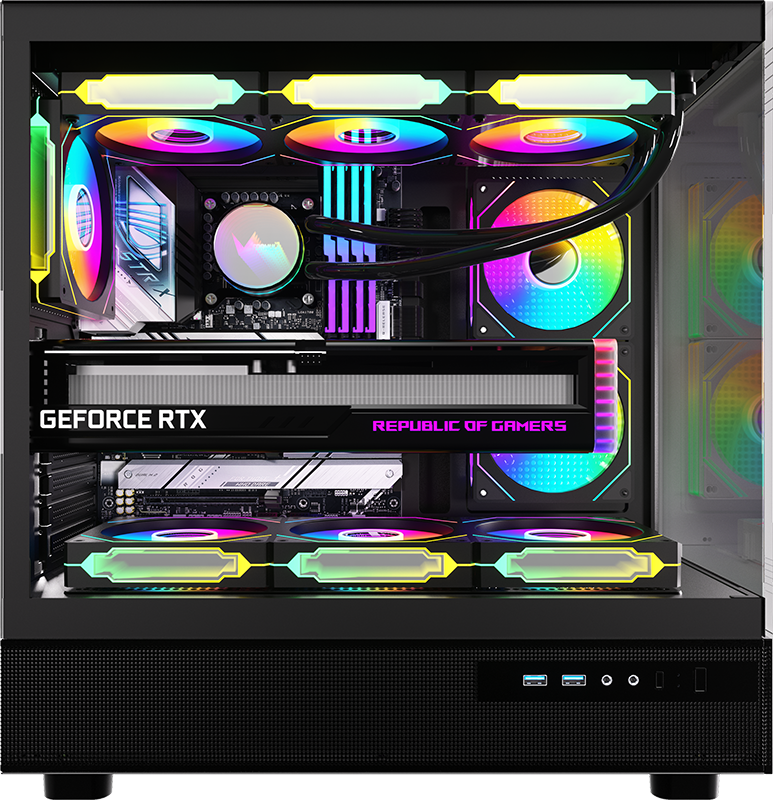

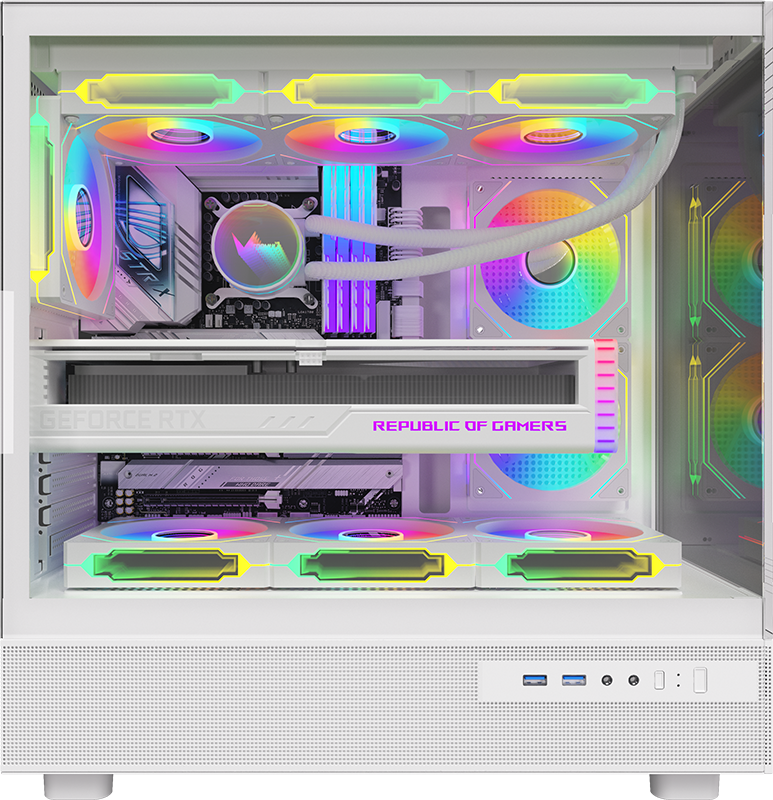

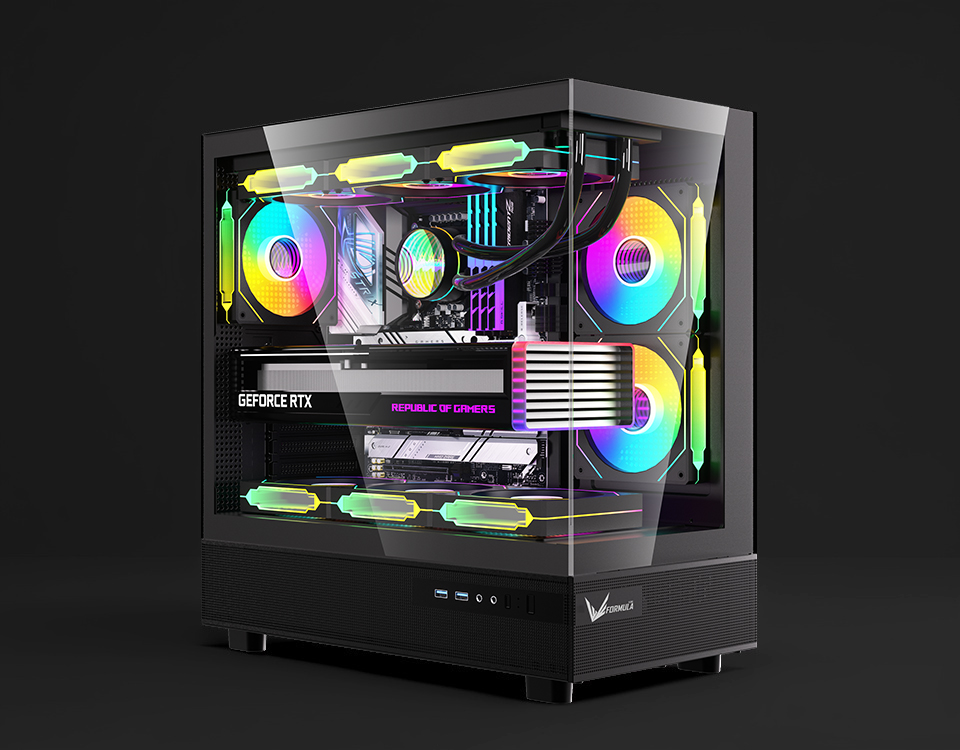

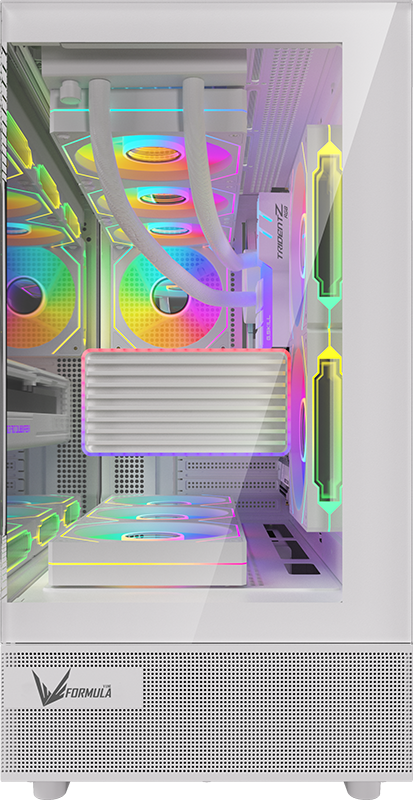

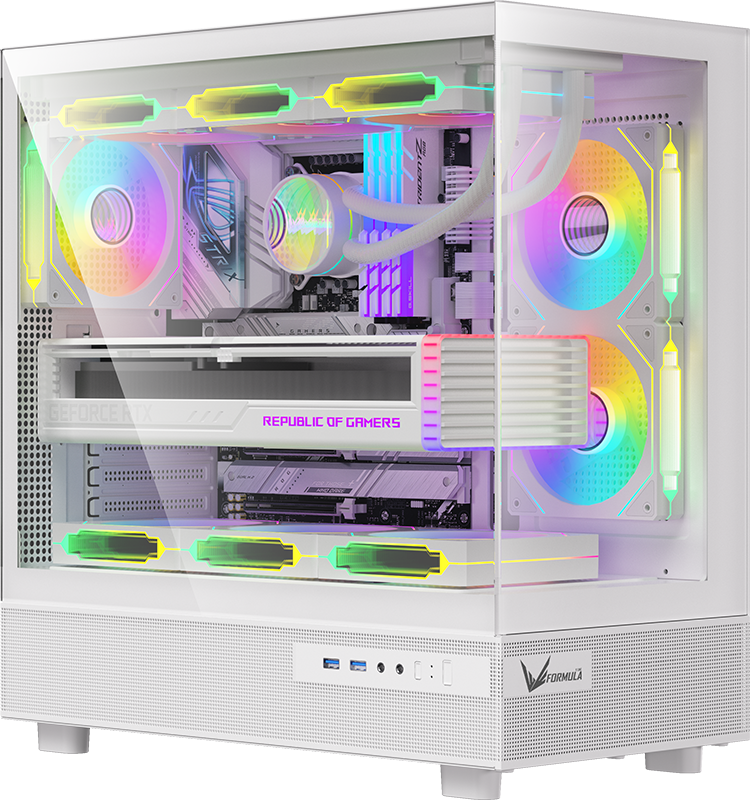

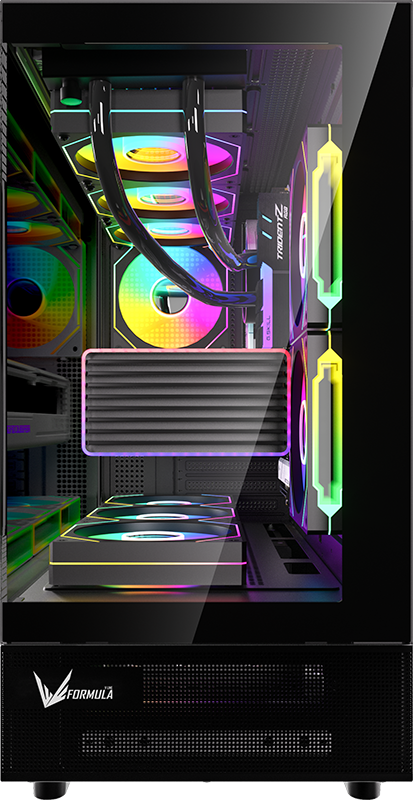

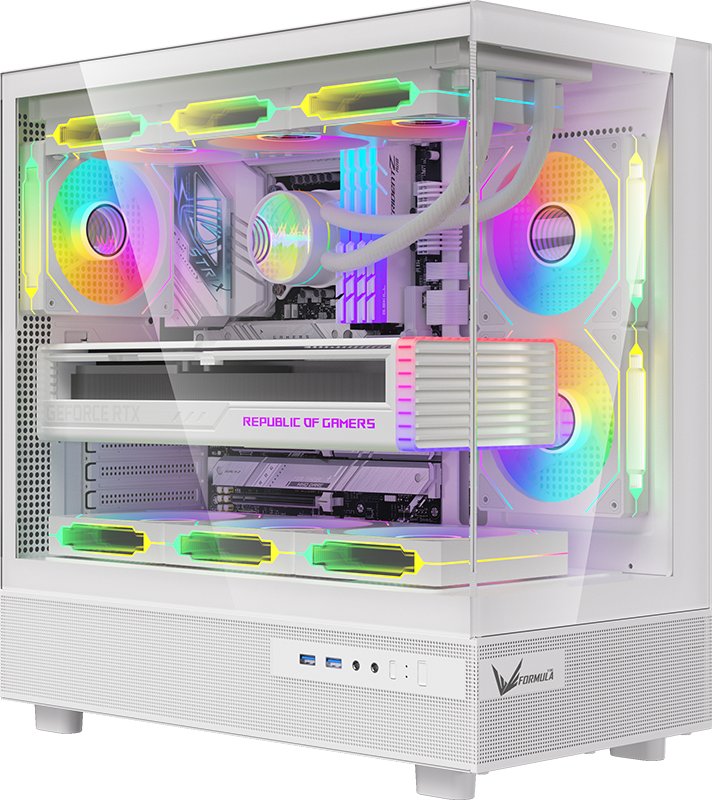

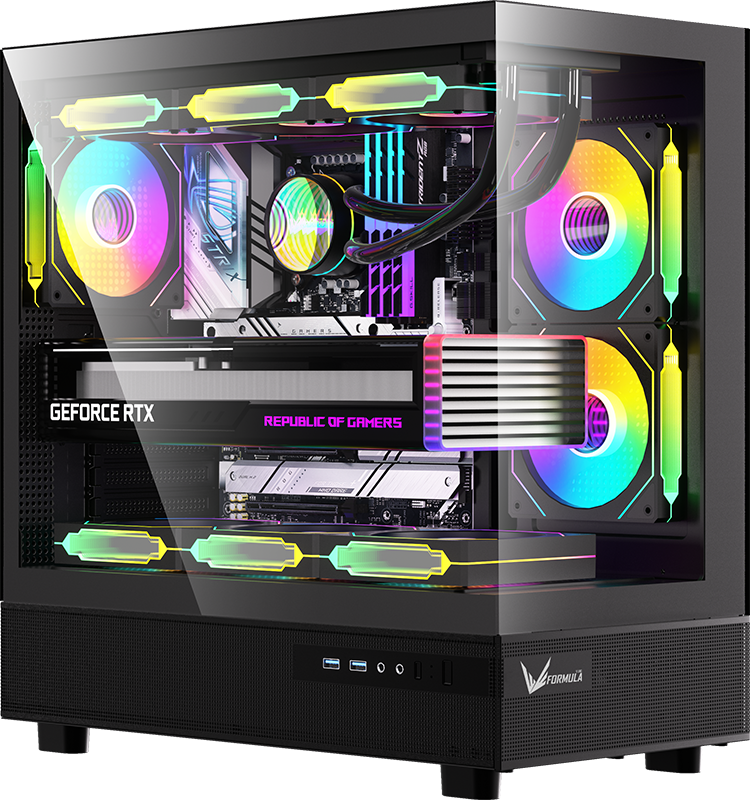

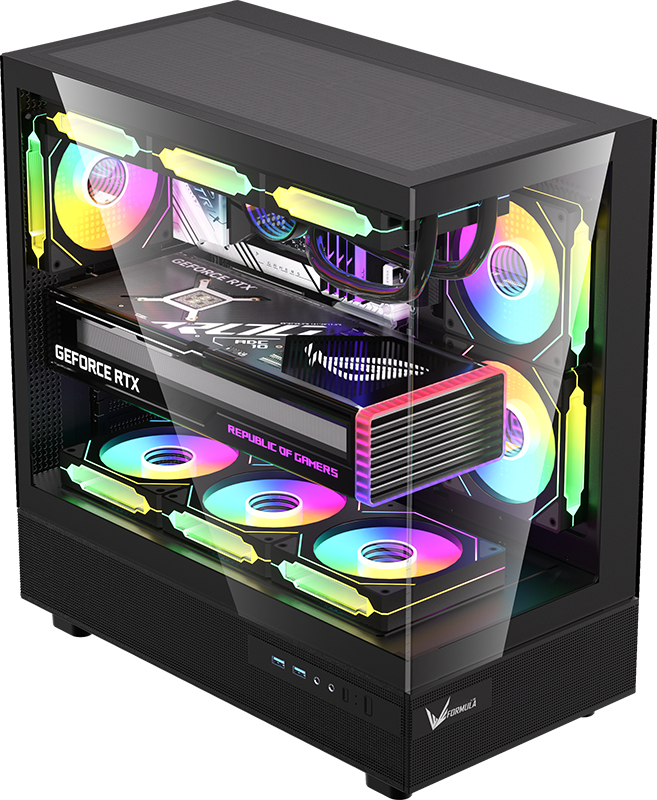

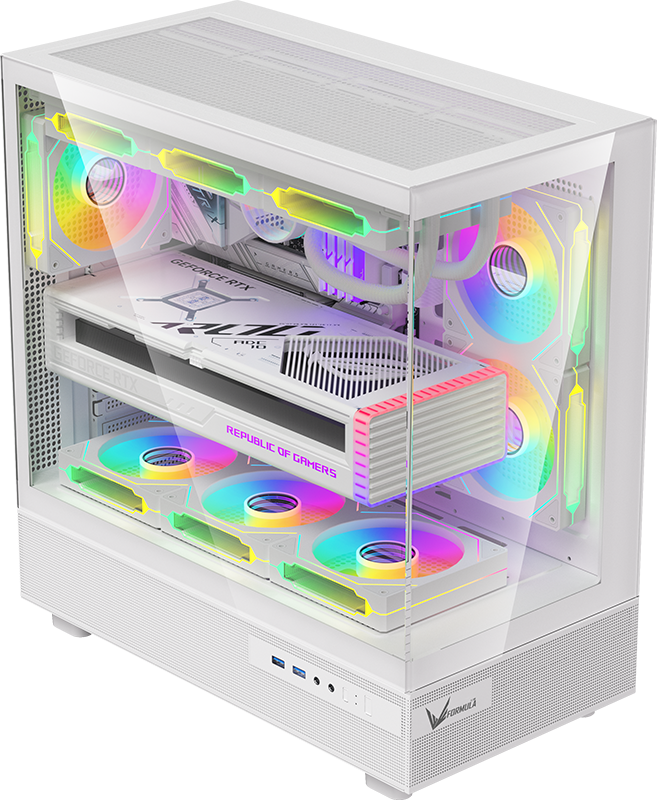

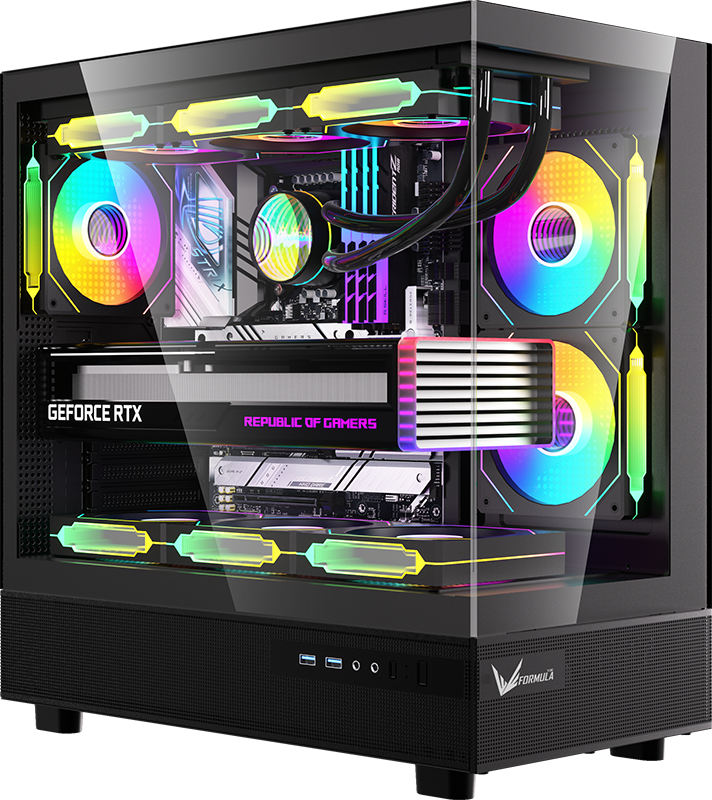

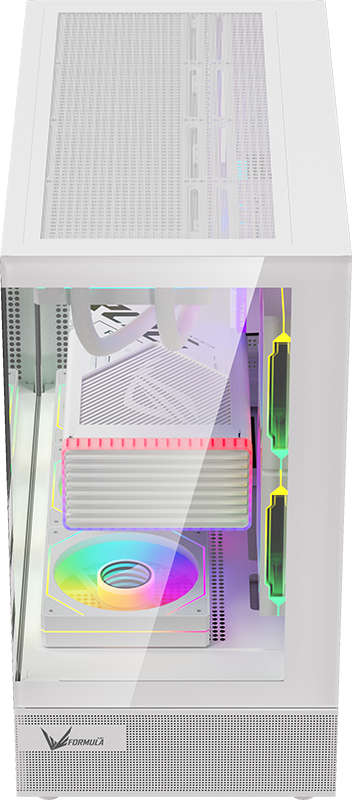

    • Robust And Crystal-Clear Tempered Glass

      Experience unhindered visibility of your rig’s internal components with full tempered glass front and side panels, providing a seamless and unobstructed view.

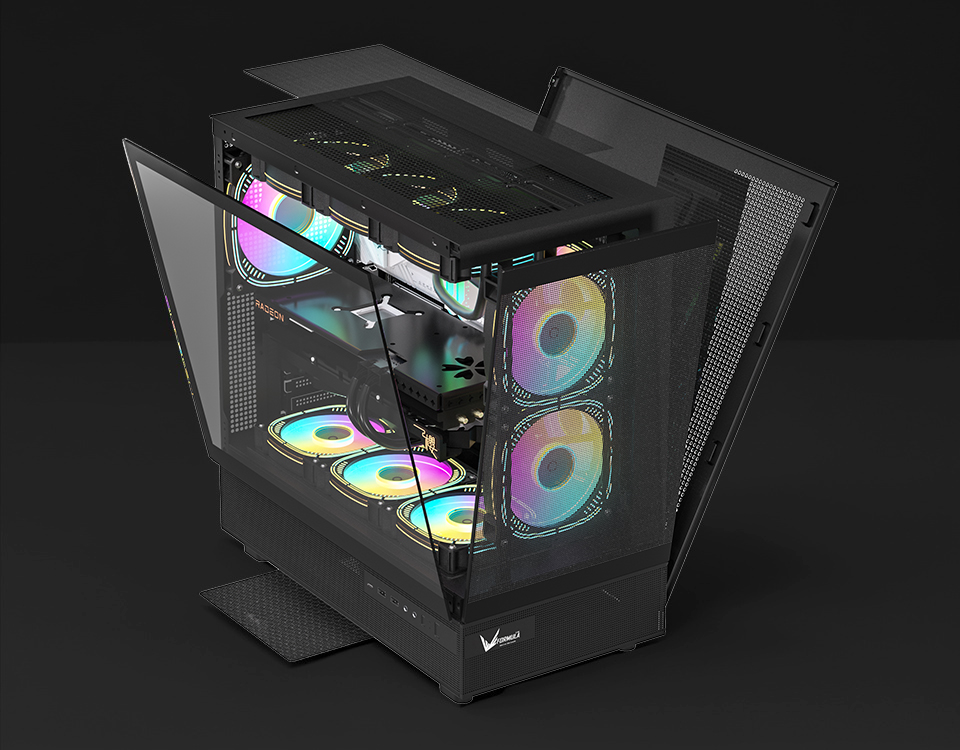

    • Safeguard Your Pc With Integrated Filters

      Crystal Z8 series boasts dedicated dust filters for the panels. This thoughtful design guarantees that your setup retains its sleek and tidy look, free from dust and debris.

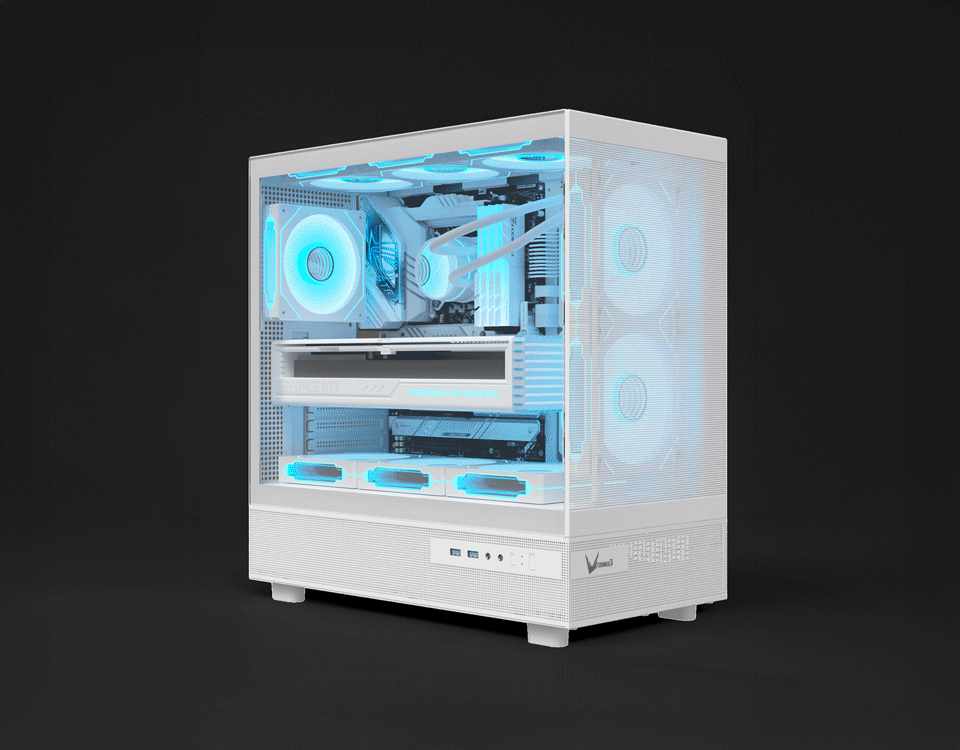

    • Superior Cooling Performance Design

      Crystal Z8 series support for up to 360mm air/water cooling installation at the top and accommodation for up to 9+2 fans (Mesh front panel supports 11 fans), our product features a fully optimized internal circulation cooling system, ensuring exceptional cooling performance for top-tier operation.

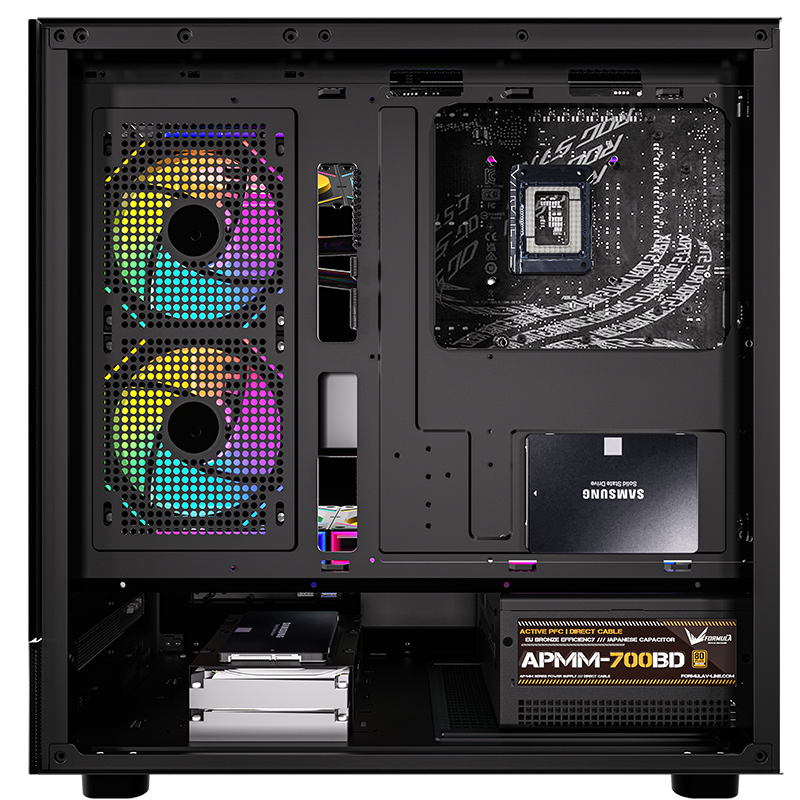

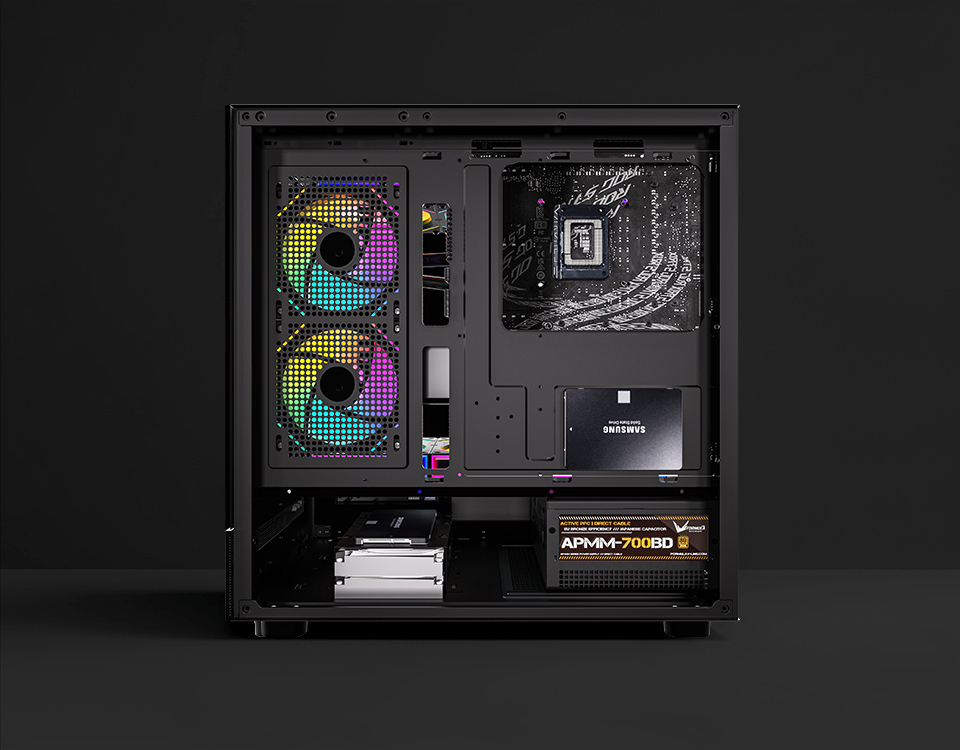

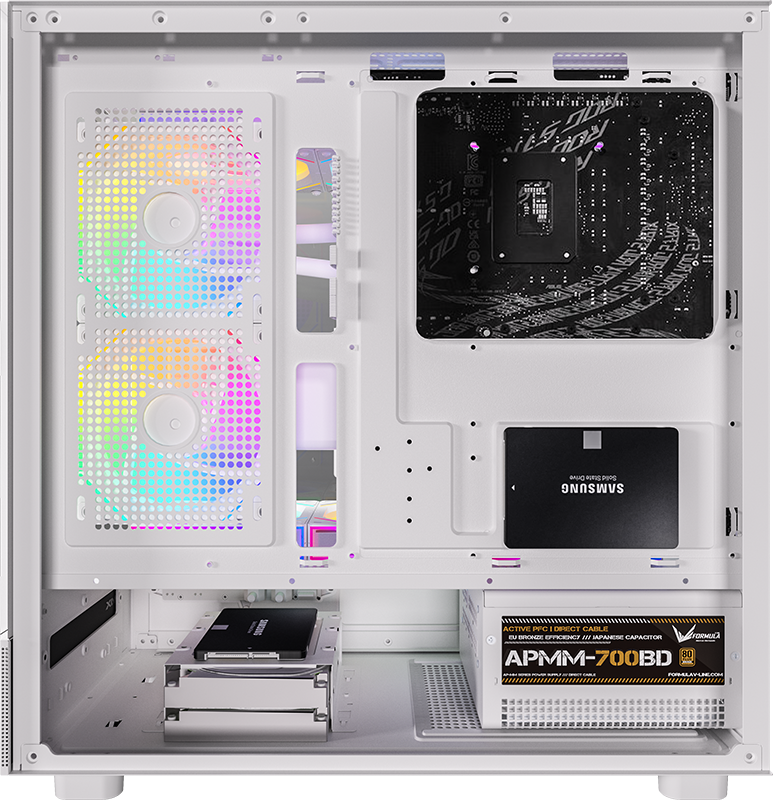

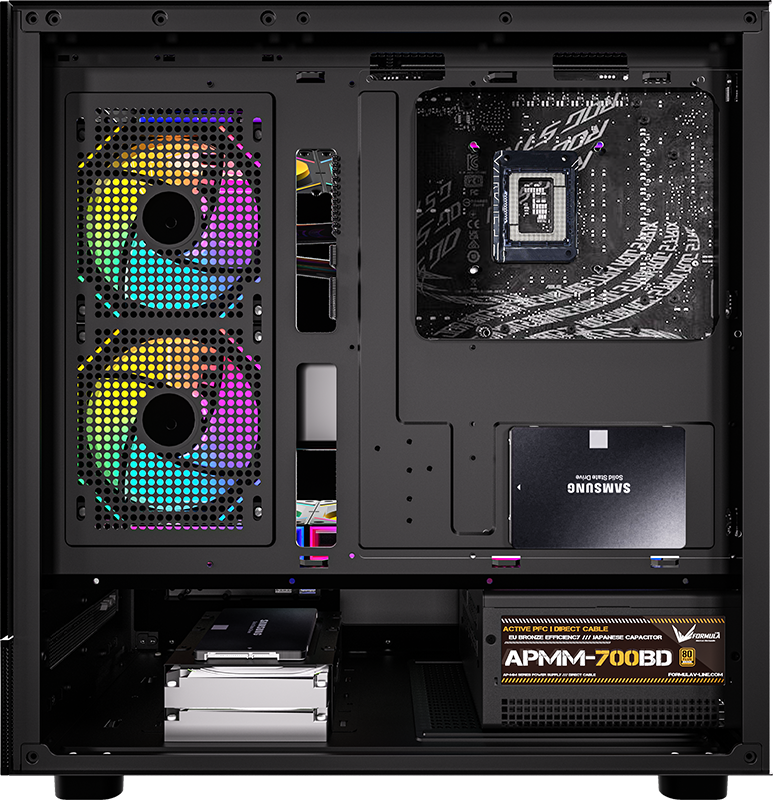

    • Intelligent Storage For SSD/HDD And Cable Management Solution

      The Crystal Z8 series supports the installation of 2 SSD or 2 HDDs on the bottom area, cleverly optimizing space usage and ensuring smooth airflow.

New Generation I/O Ports With Type C Equipped

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring Type-C / USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Crystal Z8

  • Model

    Crystal Z8

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.6mm

  • Body Material

    SPCC

  • Motherboards

    ATX / micro ATX / mini-ITX

  • Case Dimensions

    435 x 230 x 456mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    2

  • Expansion Slots

    7

  • GPU Clearance

    395mm Max.

  • CPU Cooler Clearance

    185mm Max.

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Top radiator

    360mm Max.

  • Front Fans

    2 x 140mm Max.

  • Top Fans

    3 x 140mm Max.

  • Rear Fan

    1 x 120mm or 1 x 140mm Max.

  • Bottom Fans

    3 x 120mm Max.

  • Right side Fans

    2 x 120mm Max.

  • Power Supply

    ATX

  • Net weight

    6.67 kg

  • Gross weight

    7.92 kg

  • EAN

    Crystal Z8 Black: 4711401660781

    Crystal Z8 White: 4711401660798

Crystal Z8 Cosmic

  • Model

    Crystal Z8 Cosmic

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.6mm

  • Body Material

    SPCC

  • Motherboards

    ATX / micro ATX / mini-ITX

  • Case Dimensions

    435 x 230 x 456mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    7

  • GPU Clearance

    395mm Max.

  • CPU Cooler Clearance

    185mm Max.

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Top radiator

    360mm Max.

  • Front Fans

    2 x 140mm Max.

  • Top Fans

    3 x 140mm Max.

  • Rear Fan

    1 x 120mm or 1 x 140mm Max.

    1 x Cosmic 12 FR (Included)

  • Bottom Fans

    3 x 120mm Max.

    3 x Cosmic 12 FR (Included)

  • Right side Fans

    2 x 120mm Max.

    2 x Cosmic 12 FR (Included)

  • Power Supply

    ATX

  • Net weight

    7.41 kg

  • Gross weight

    8.67 kg

  • EAN

    Crystal Z8 Cosmic Black: 4711401660804

    Crystal Z8 Cosmic White: 4711401660811

Crystal Z8 Floe

  • Model

    Crystal Z8 Floe

  • Color

    Black | White

  • Case Type

    Mid Tower

  • Steel Thickness

    0.6mm

  • Body Material

    SPCC

  • Motherboards

    ATX / micro ATX / mini-ITX

  • Case Dimensions

    435 x 230 x 456mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    7

  • GPU Clearance

    395mm Max.

  • CPU Cooler Clearance

    185mm Max.

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Top radiator

    360mm Max.

  • Front Fans

    2 x 140mm Max.

  • Top Fans

    3 x 140mm Max.

  • Rear Fan

    1 x 120mm or 1 x 140mm Max.

    1 x Floe 12 ARPW (Included)

  • Bottom Fans

    3 x 120mm Max.

    3 x Floe 12 ARPW (Included)

  • Right side Fans

    2 x 120mm Max.

    2 x Floe 12 ARPW (Included)

  • Power Supply

    ATX

  • Net weight

    7.63 kg

  • Gross weight

    8.89 kg

  • EAN

    Crystal Z8 Floe Black: 4711401660828

    Crystal Z8 Floe White: 4711401660835
