Crystal Z7
The Crystal Z7 is a spacious mid-tower case built for performance, with support for ATX, Micro ATX, and mini-ITX systems. With room for up to 11 fans, multiple radiator options, and angled cooling directed at the GPU, it ensures powerful airflow and efficient thermal performance. Flexible storage, premium dust protection, tool-free access, and clean cable management make it a smart balance of functionality, style, and convenience.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.
Variation
-
-
-

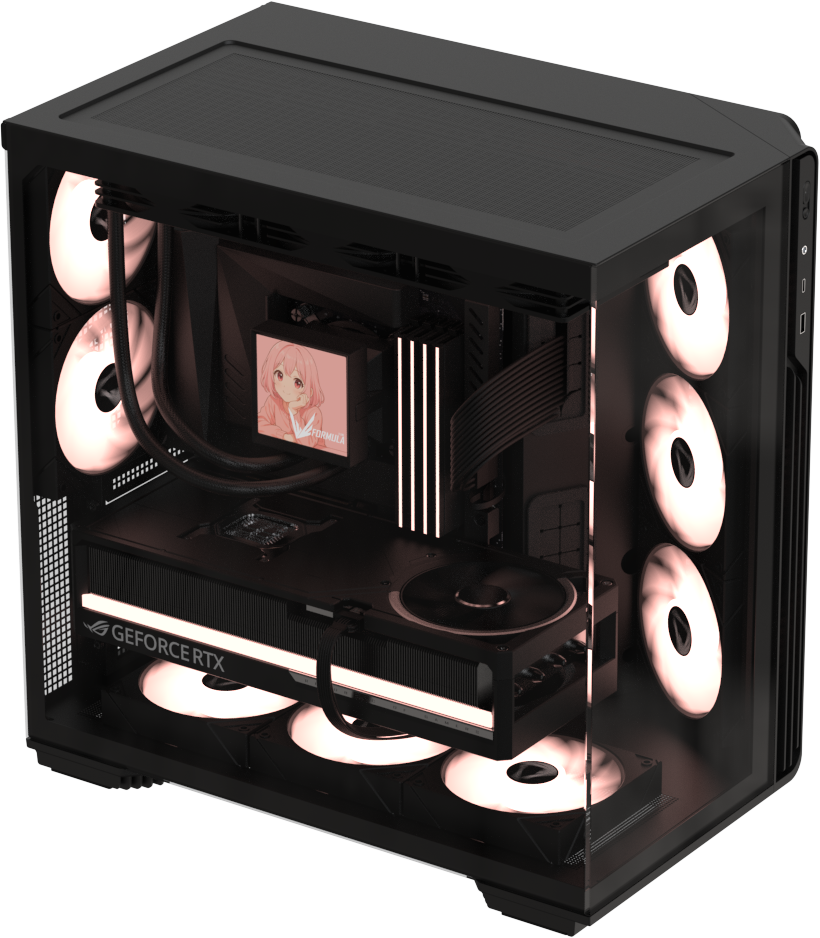

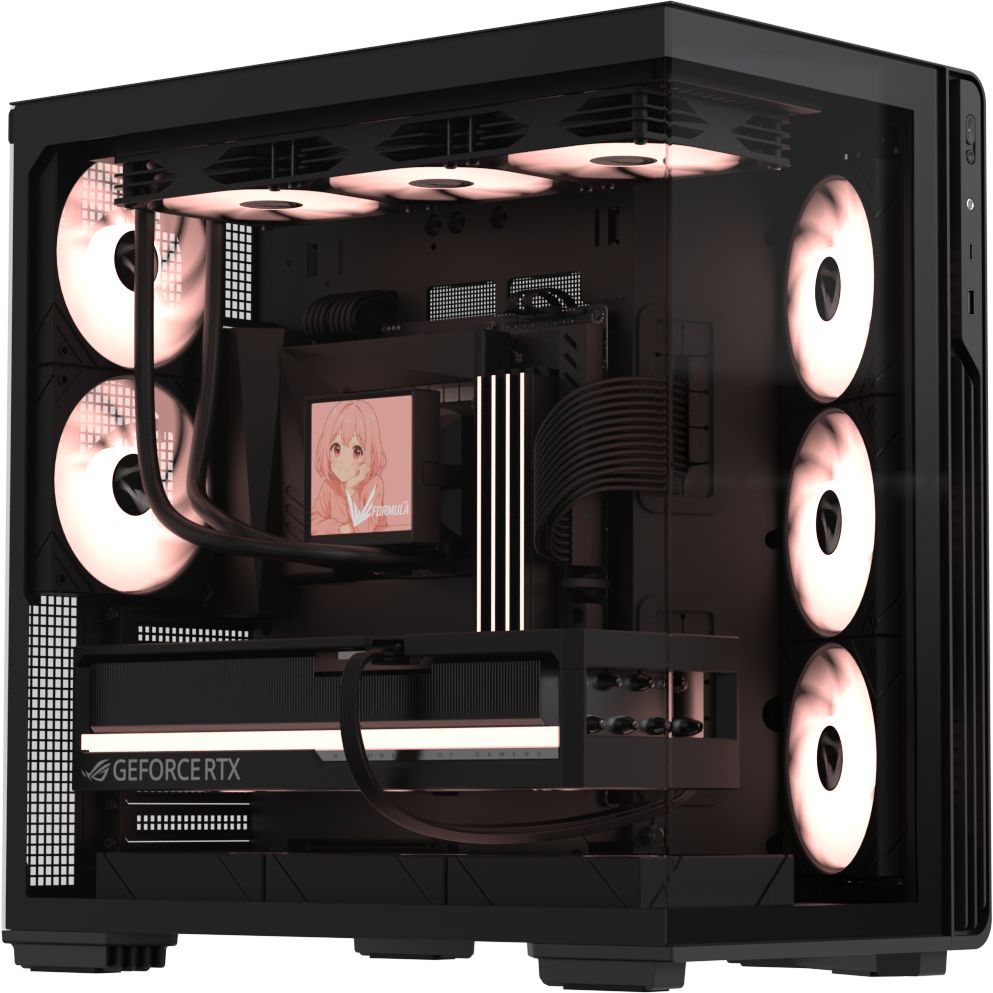

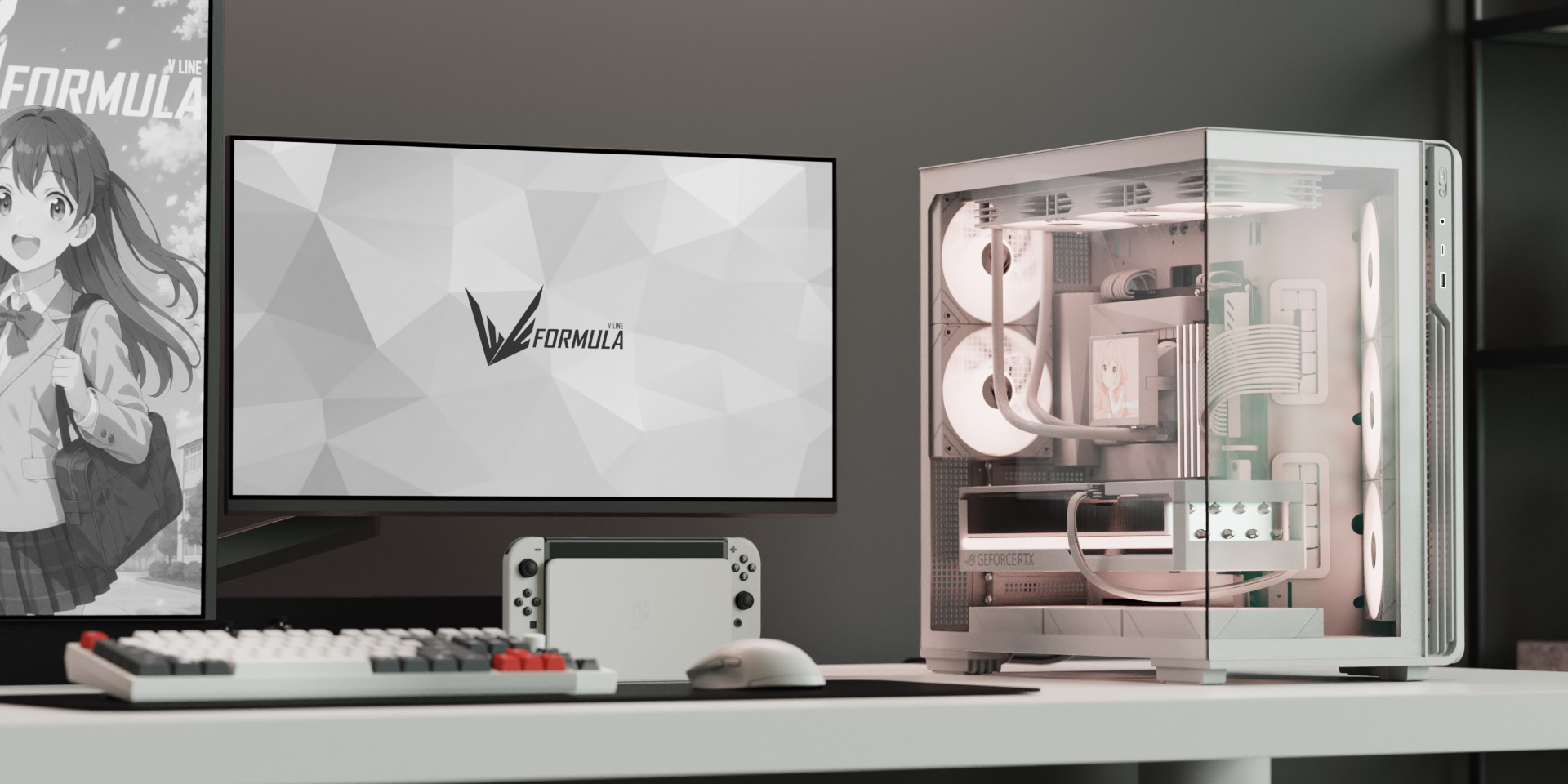

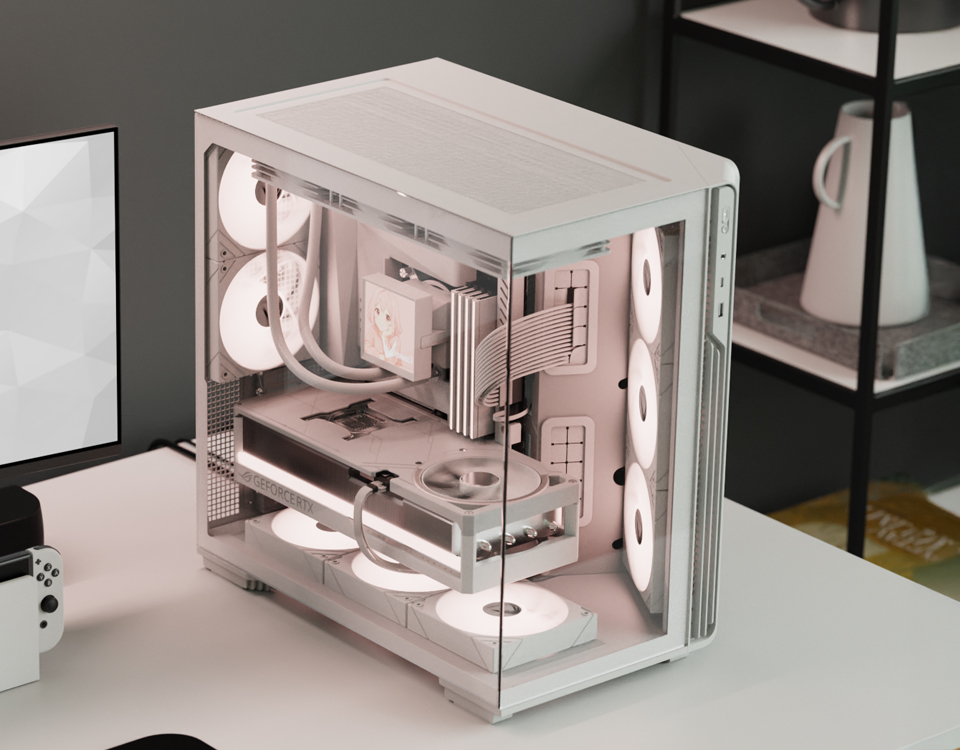

Build with Ease, Showcase with Style

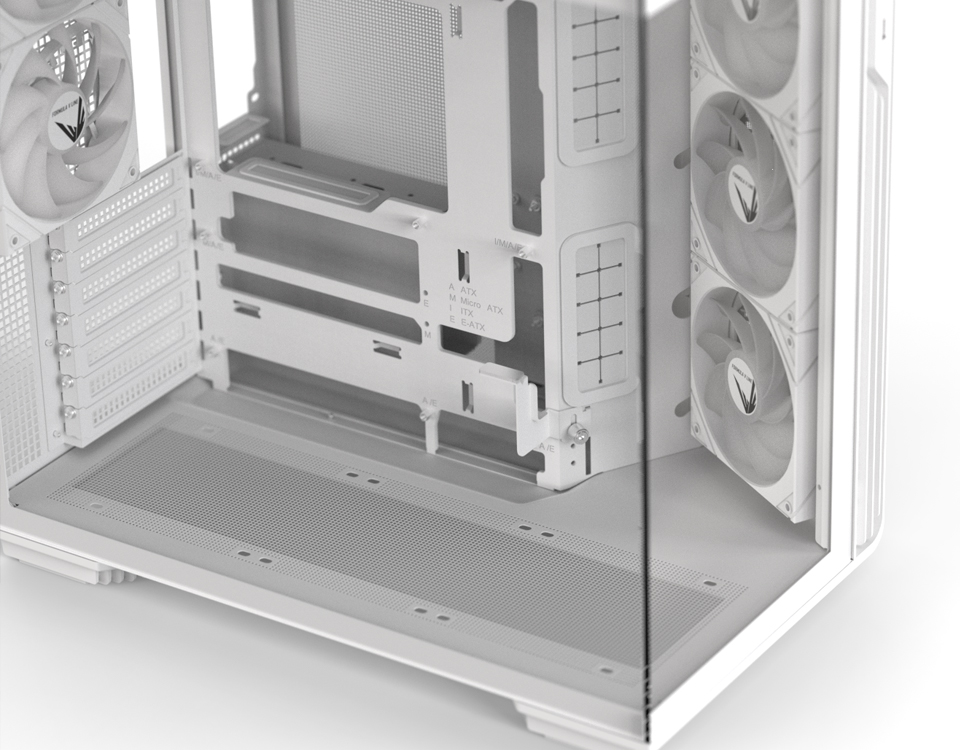

The generous interior ensures excellent hardware expandability while delivering a clean, stylish look. Enjoy a user-friendly building experience that combines functionality, aesthetics, and convenience.
-
-
-
-
Seamless Look, Clean Finish
A clean, premium chassis design with minimal visible screws for a sleek and refined look.
-
-
-
-

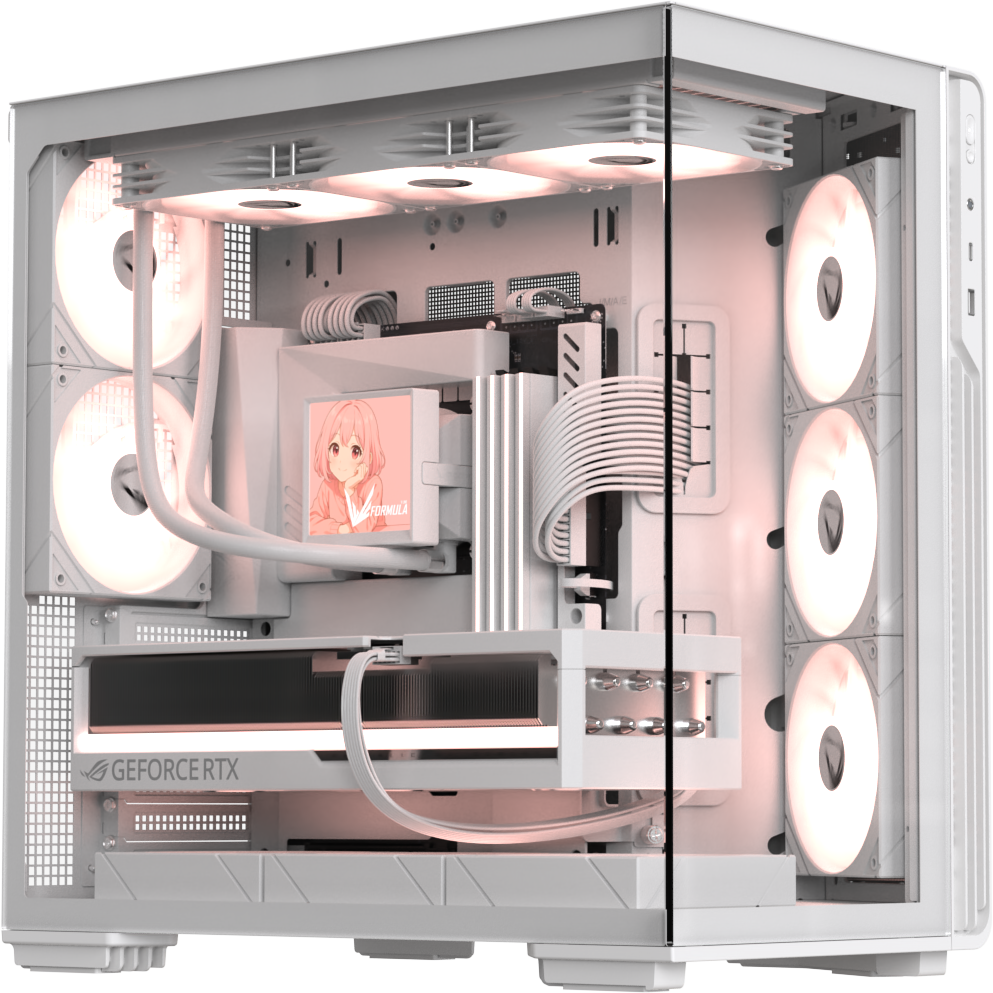

High-Transparency Glass
The white chassis features high-transparency glass with up to 97% light transmittance, elevating the visual appeal and showcasing your build with exceptional clarity.
-
-
-
-

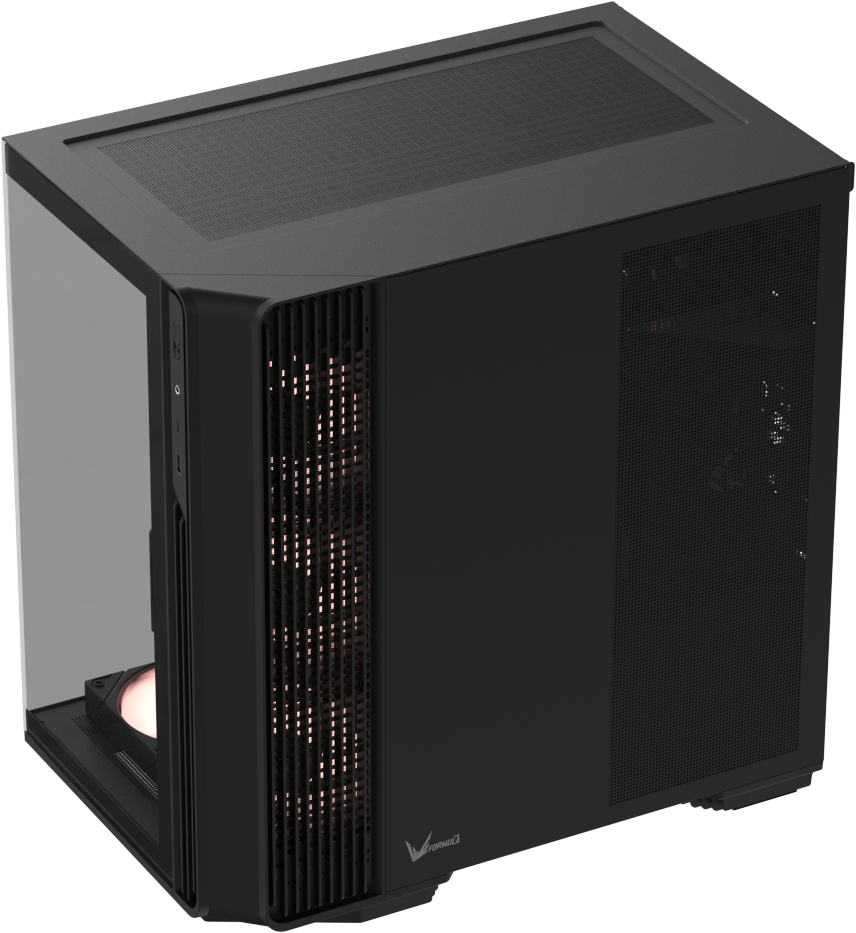

Breathe Easy: Enhanced Airflow, Cooler Performance

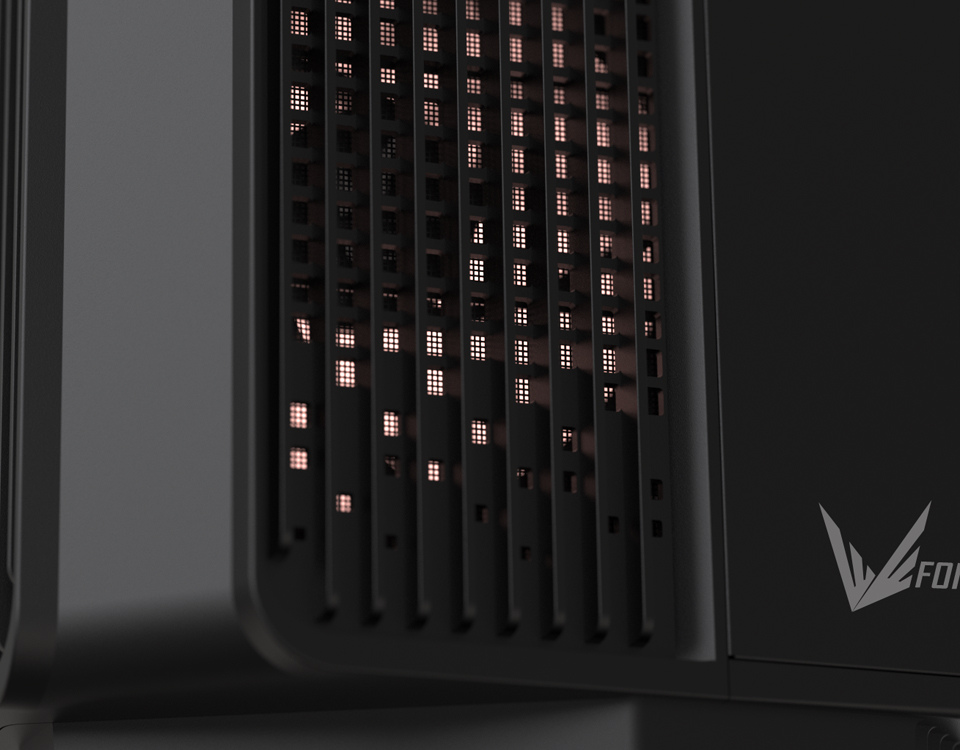

The side and front panels feature large openings for air intake or exhaust, significantly enhancing cooling efficiency and maintaining optimal system temperatures.
-
-
-
-
Enhanced Thermal Performance from the Top Down

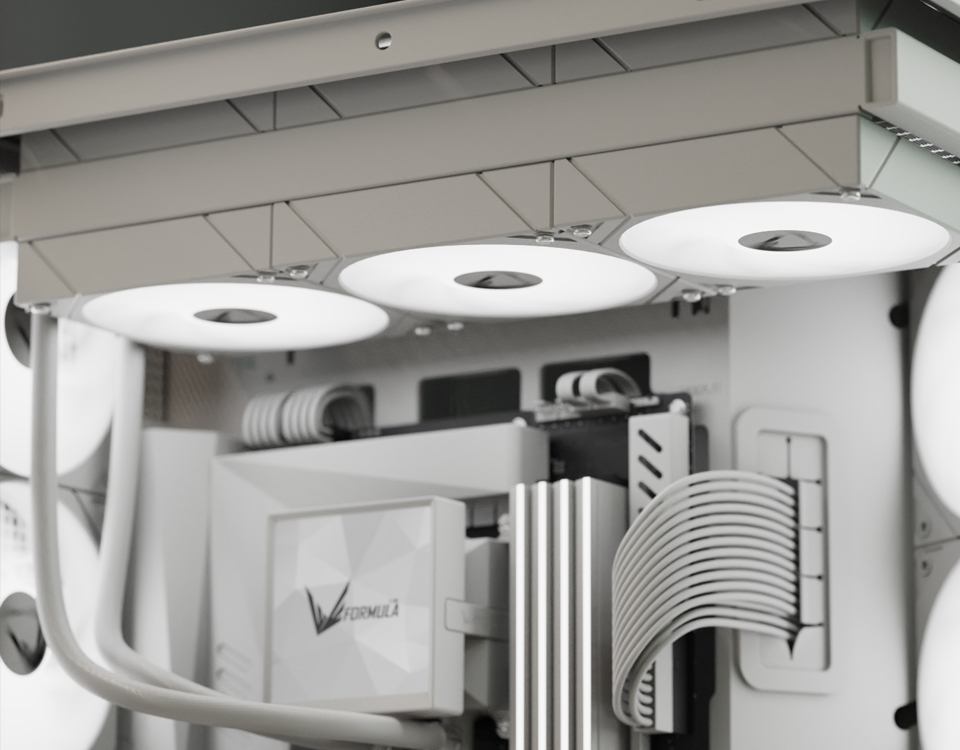

The top panel offers generous space for liquid cooling radiators, supporting a push-pull fan configuration to maximize cooling capacity and improve thermal performance.
-
-
-
-

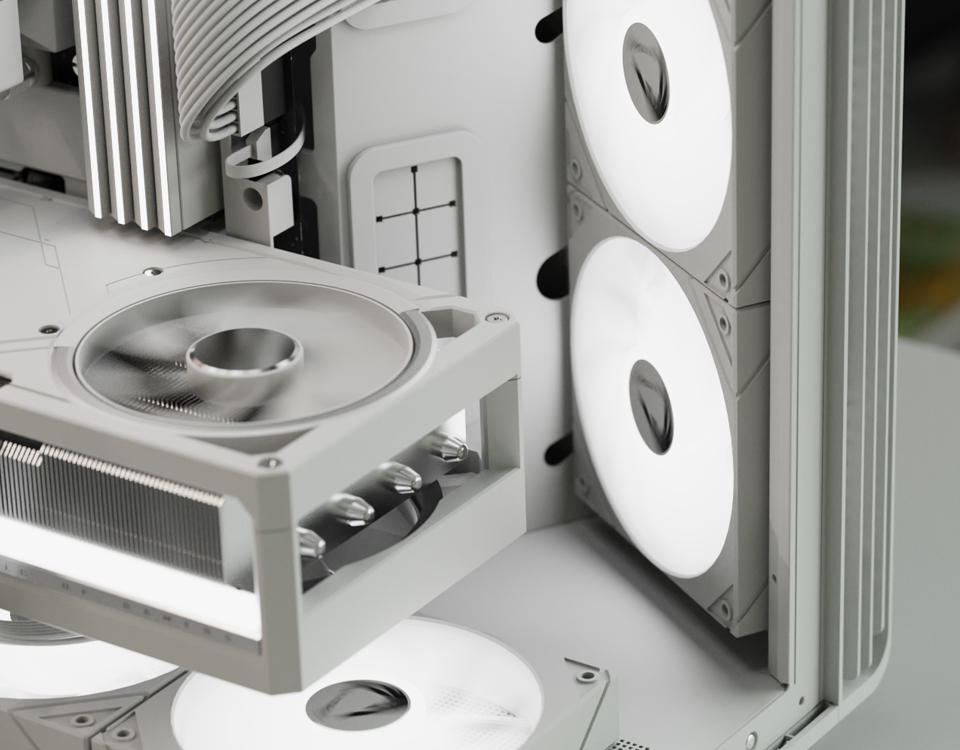

Angled Airflow, Optimized for GPUs
The side fan bracket is angled to direct cool air straight to the GPU, providing a more efficient cooling solution compared to standard setups that blow toward the side glass panel.
-
-
-
-

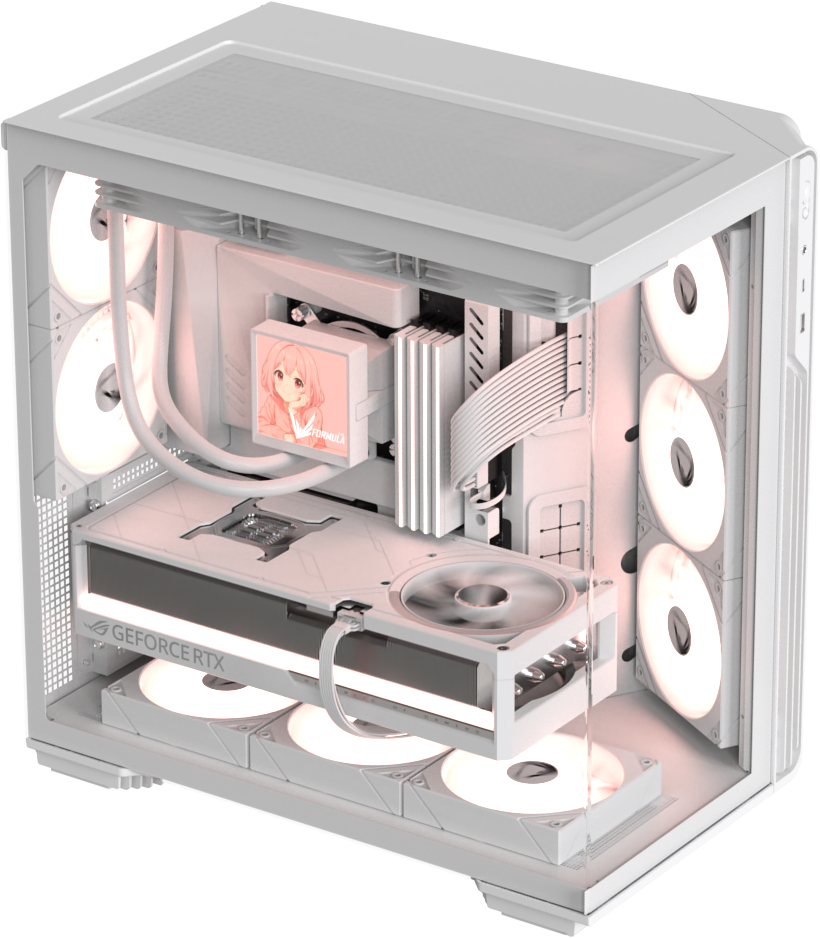

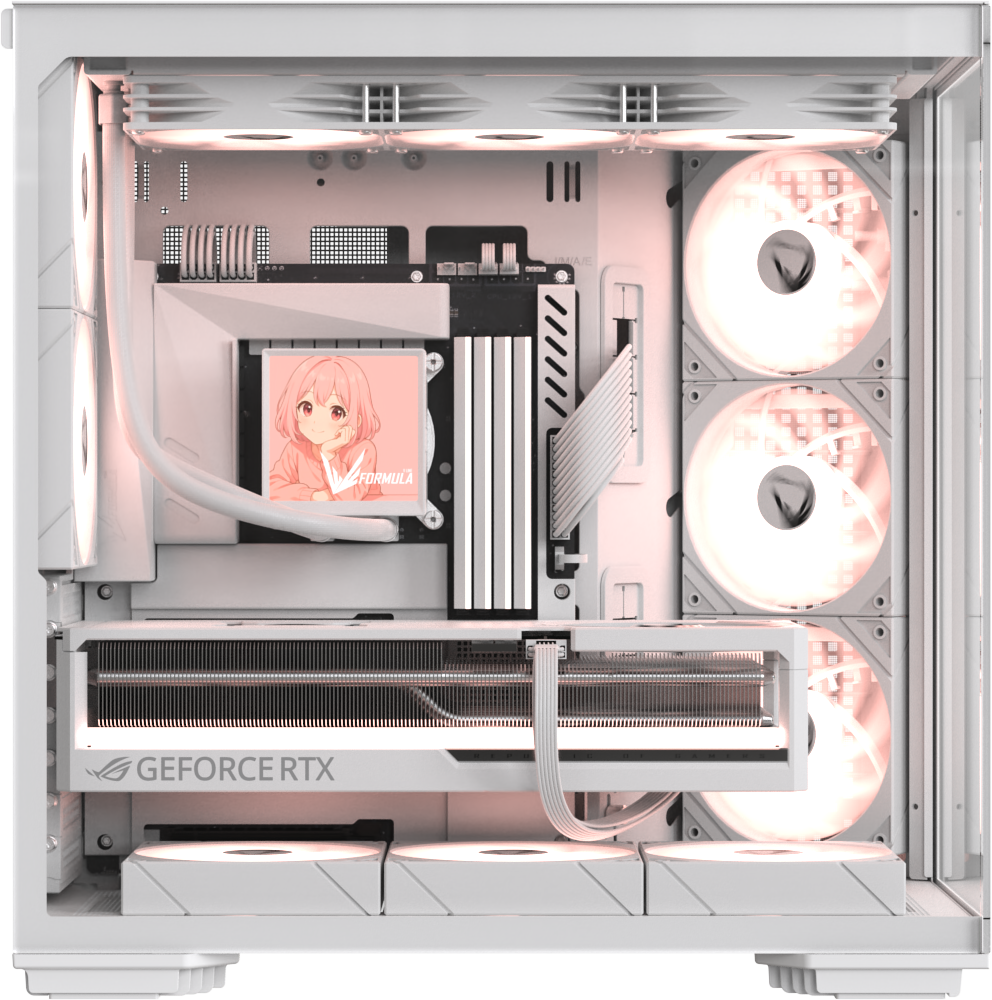

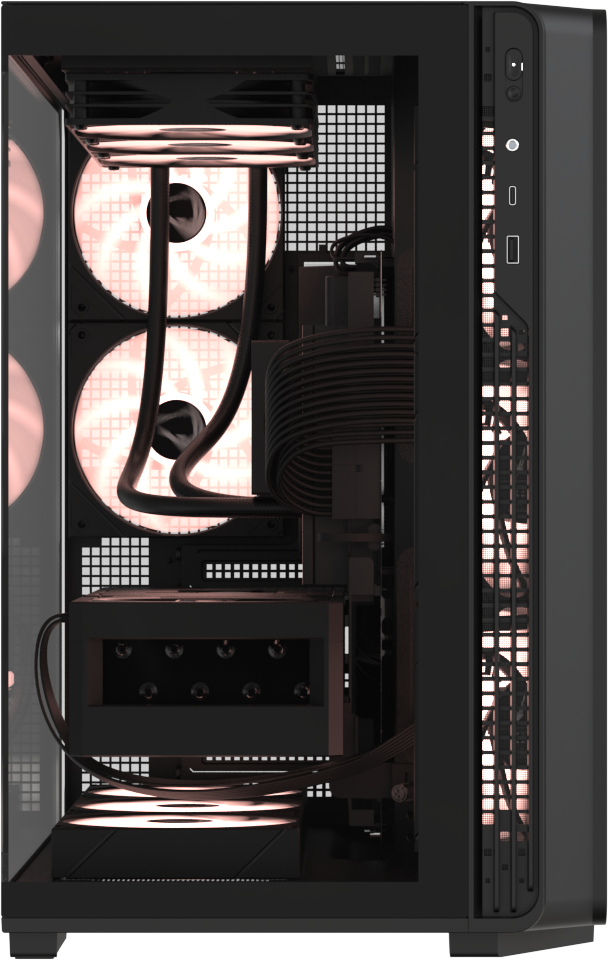

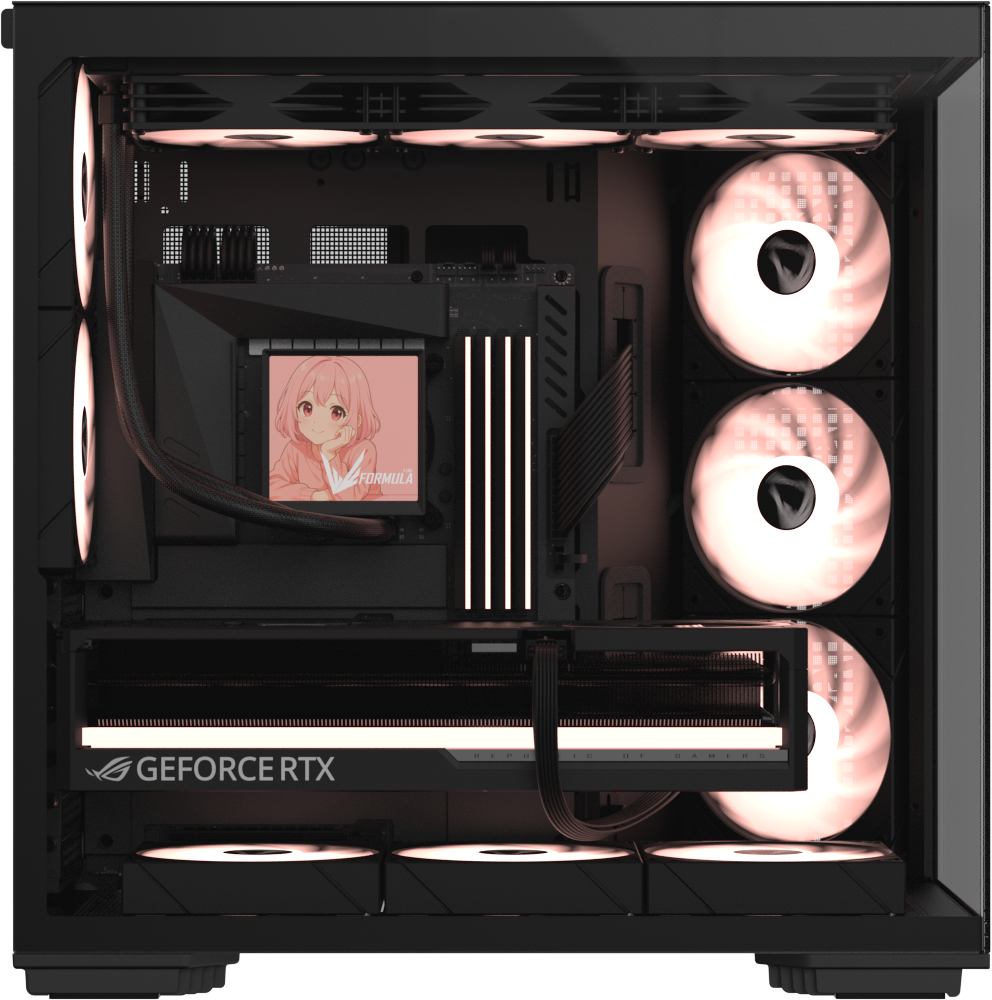

Dual-Chamber Design with GPU-Focused Airflow
Crystal Z7 series dual-chamber showcase case features a striking slanted front panel design and angled fan intakes that channel airflow directly to the GPU for improved cooling. A rotatable HDD cage cover allows for easy cable storage and concealment, keeping the build clean and organized.
-
-
-
-

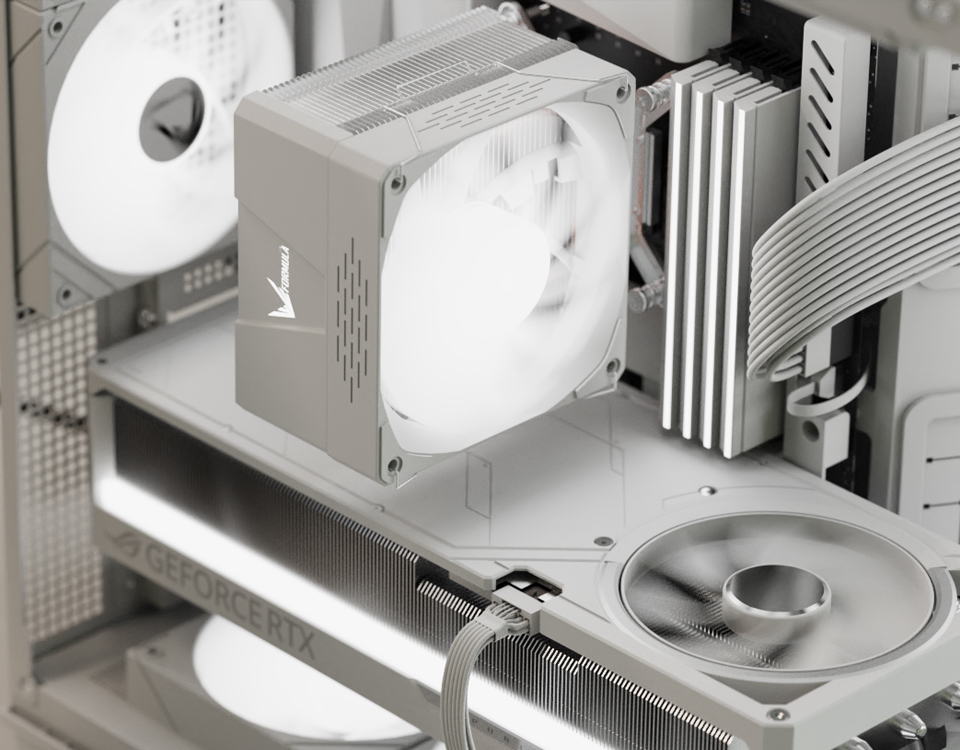

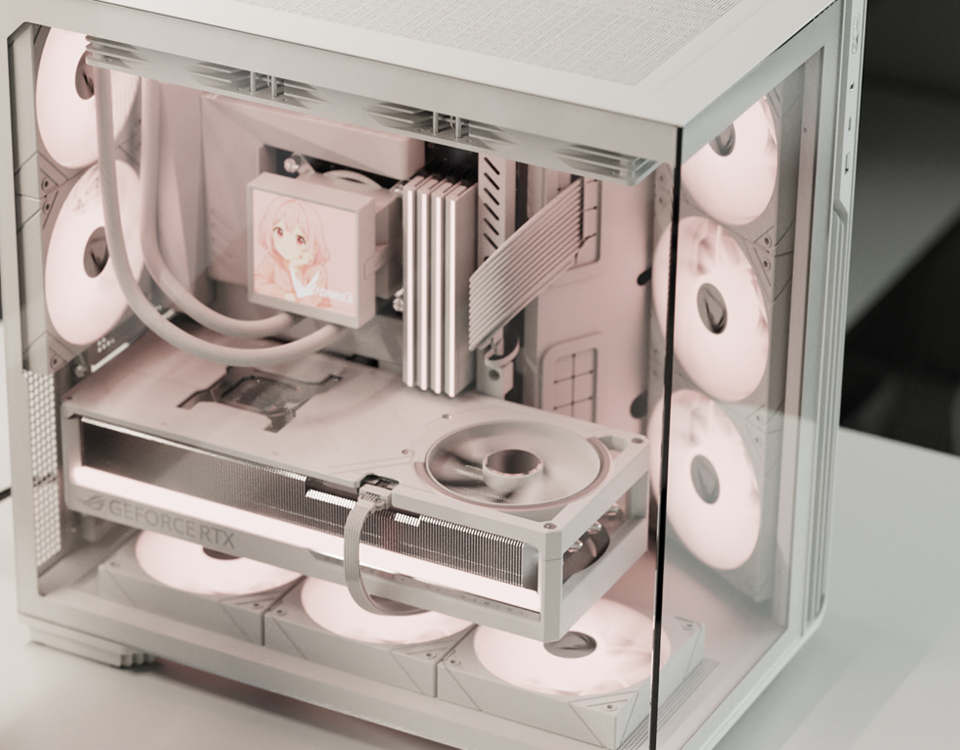

Spacious CPU and GPU Compatibility
Supports CPU air coolers up to 175mm in height and graphics cards up to 435mm in length, providing ample space for high-performance components.
-
-
-
-

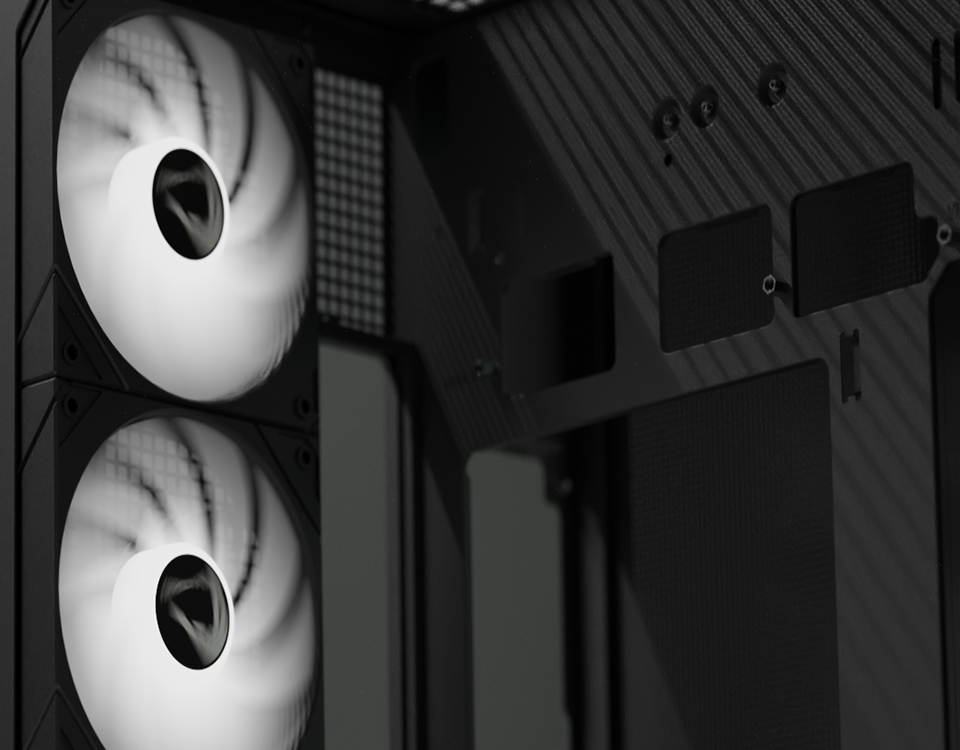

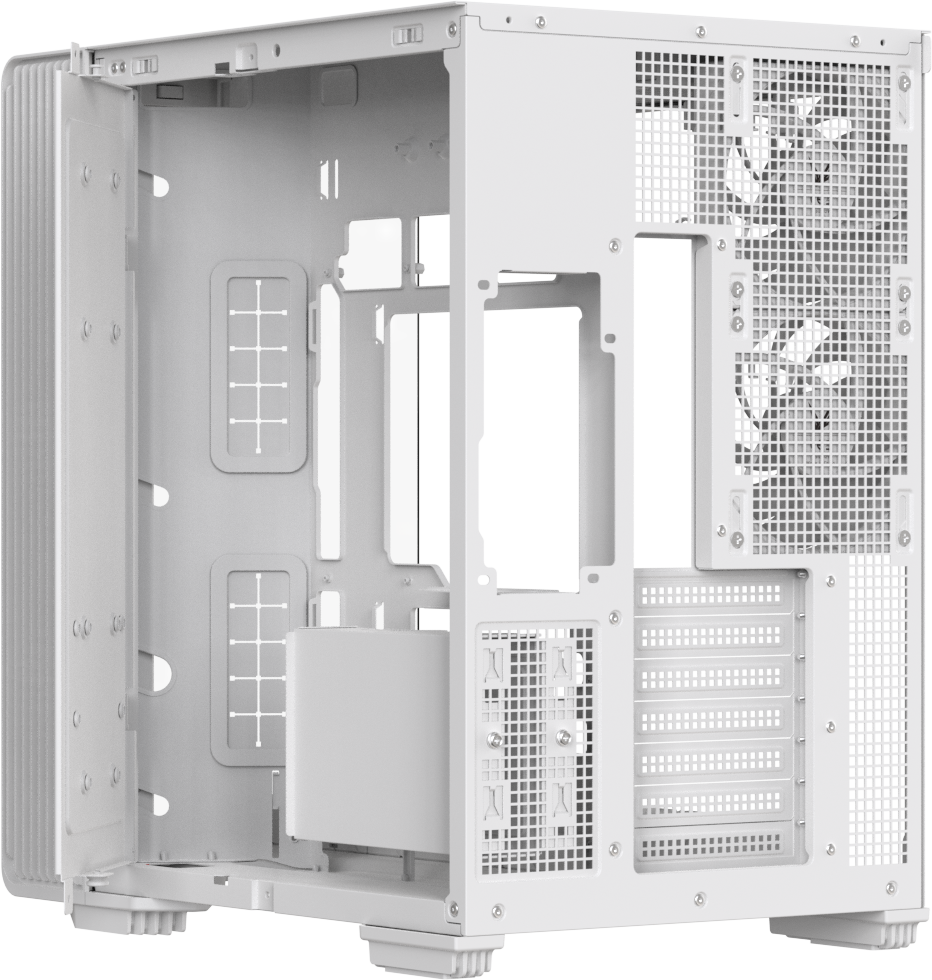

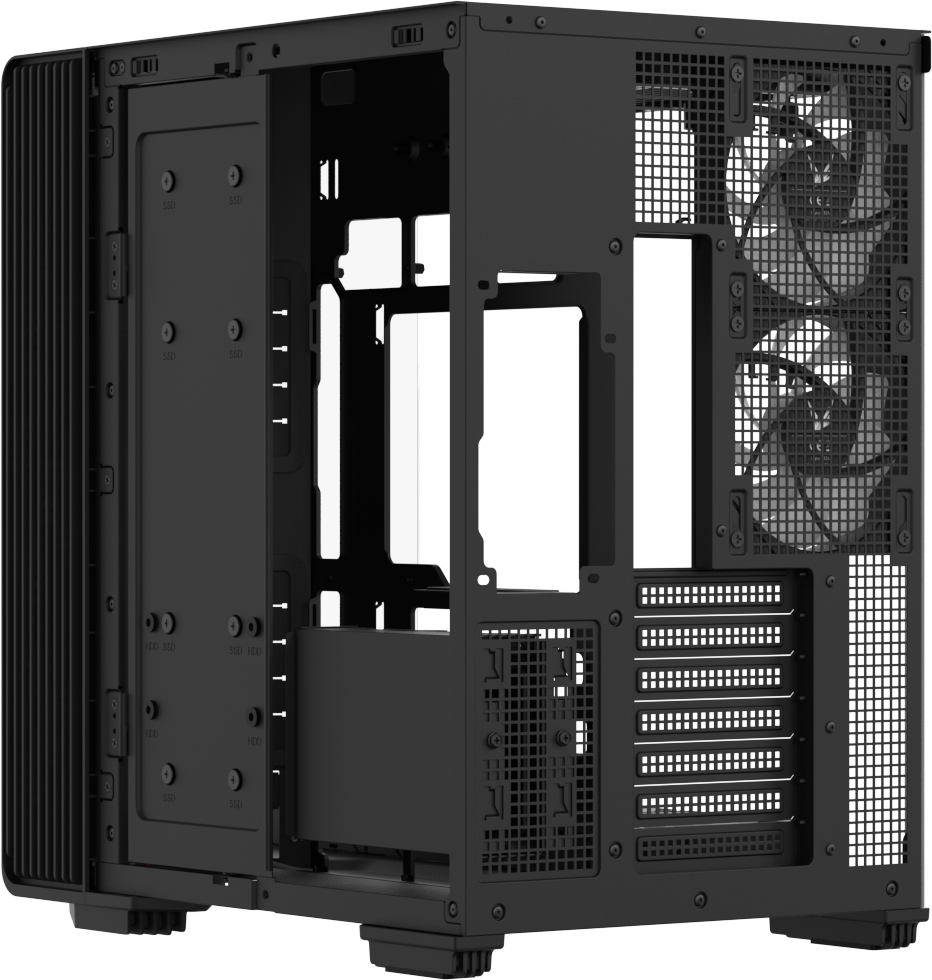

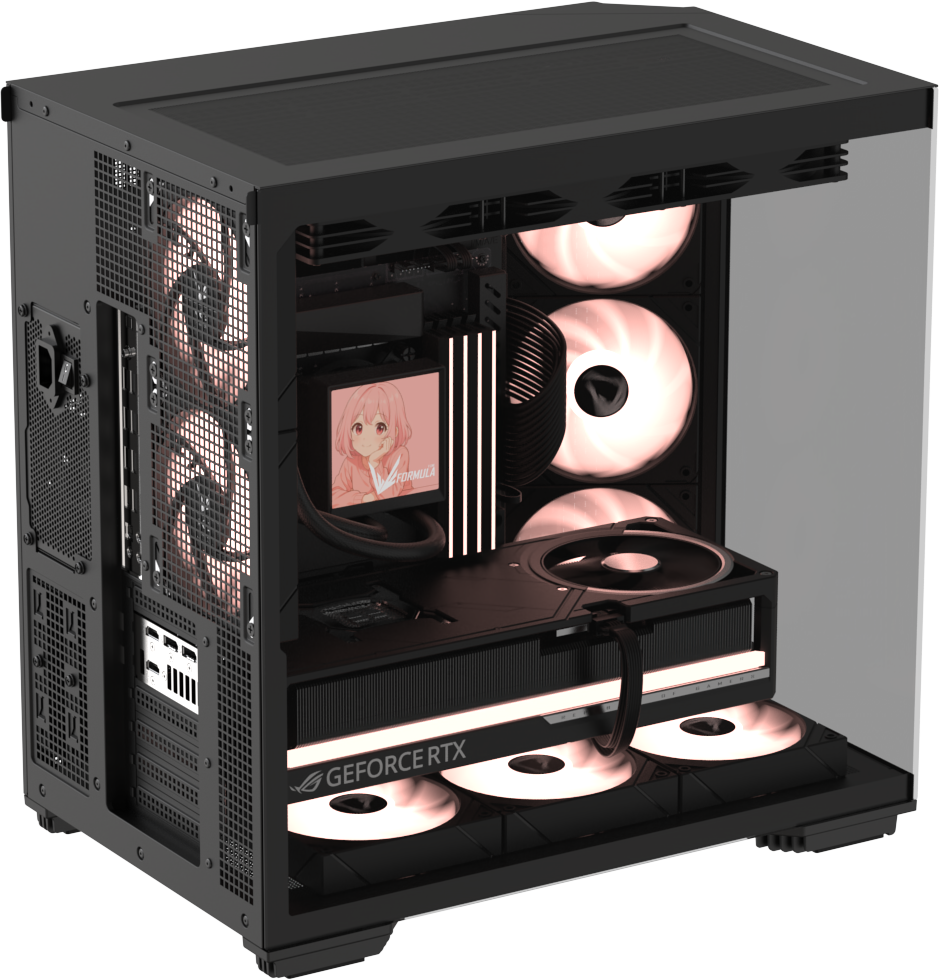

Dual 120mm Rear Fans for Superior Heat Exhaust
A unique dual 120mm rear fan setup greatly improves heat exhaust efficiency while enhancing the richness of ARGB lighting effects for a more striking visual display.
-
-
-
-
Front Nylon Dust Filter for Cleaner Airflow
The front panel is equipped with a nylon dust filter, enhancing dust filtration efficiency and helping to keep your system clean.
-
-
-
-

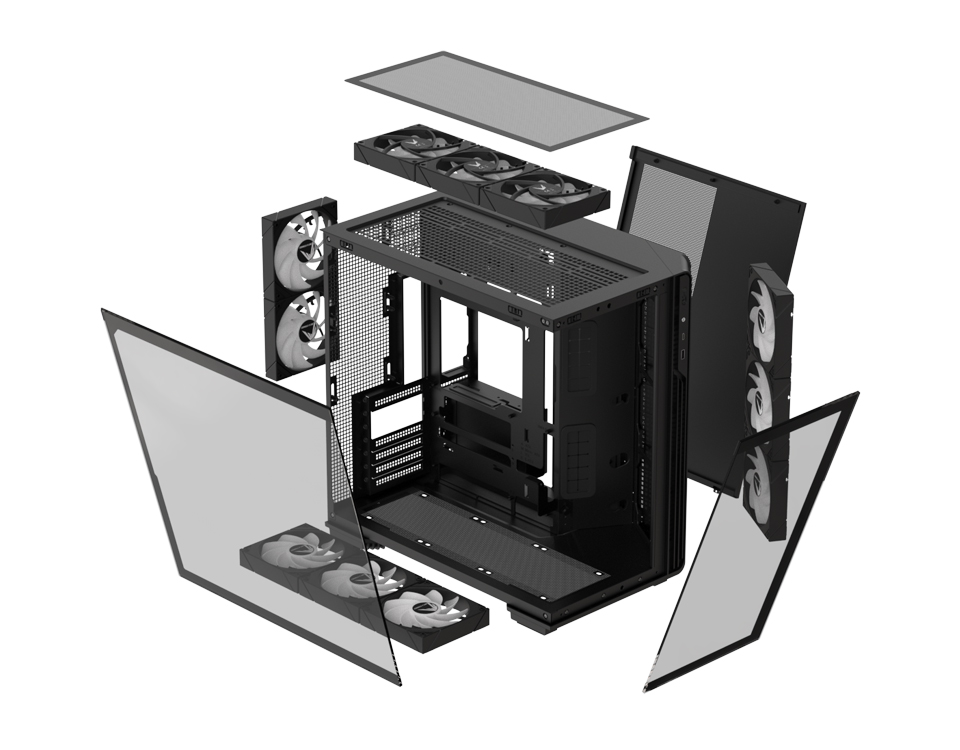

Powerful Airflow Meets Easy Maintenance
Supports up to eleven 120mm fans (top panel fits either 3 × 120mm or 2 × 140mm fans). Both the glass and steel side panels feature a tool-free quick-release design for easy installation and maintenance.
-
-
-
-
Keep the Airflow Strong, Keep the Dust Out

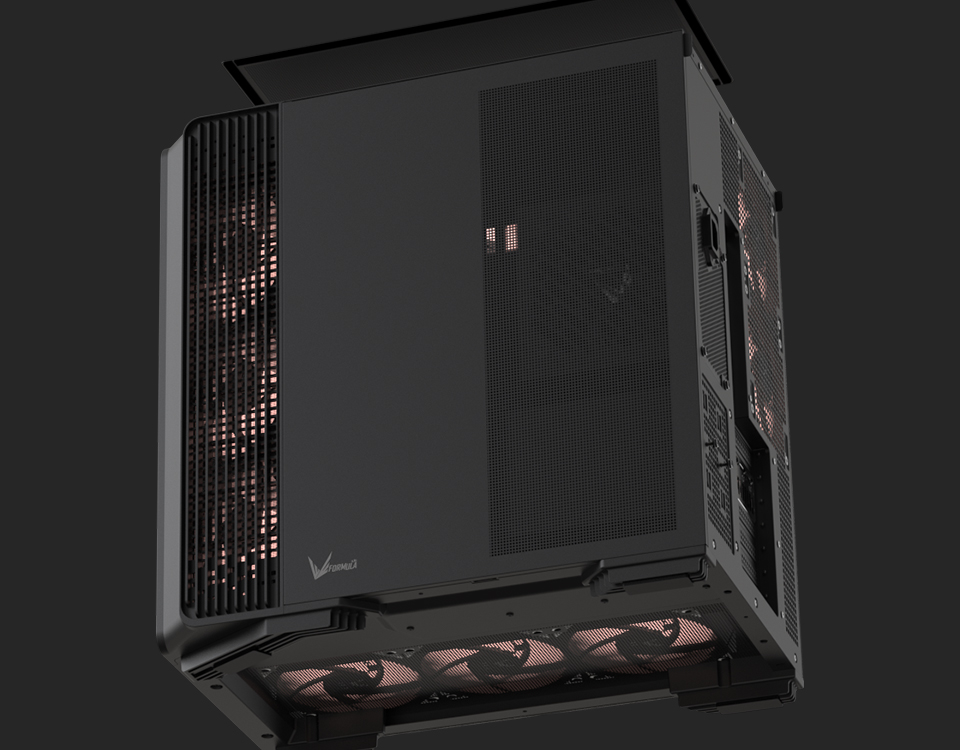

The top features a premium, edge-trimmed square-hole magnetic dust filter, while the side and bottom panels use high-density metal perforations to rotect against dust intrusion.
-
-
-
-

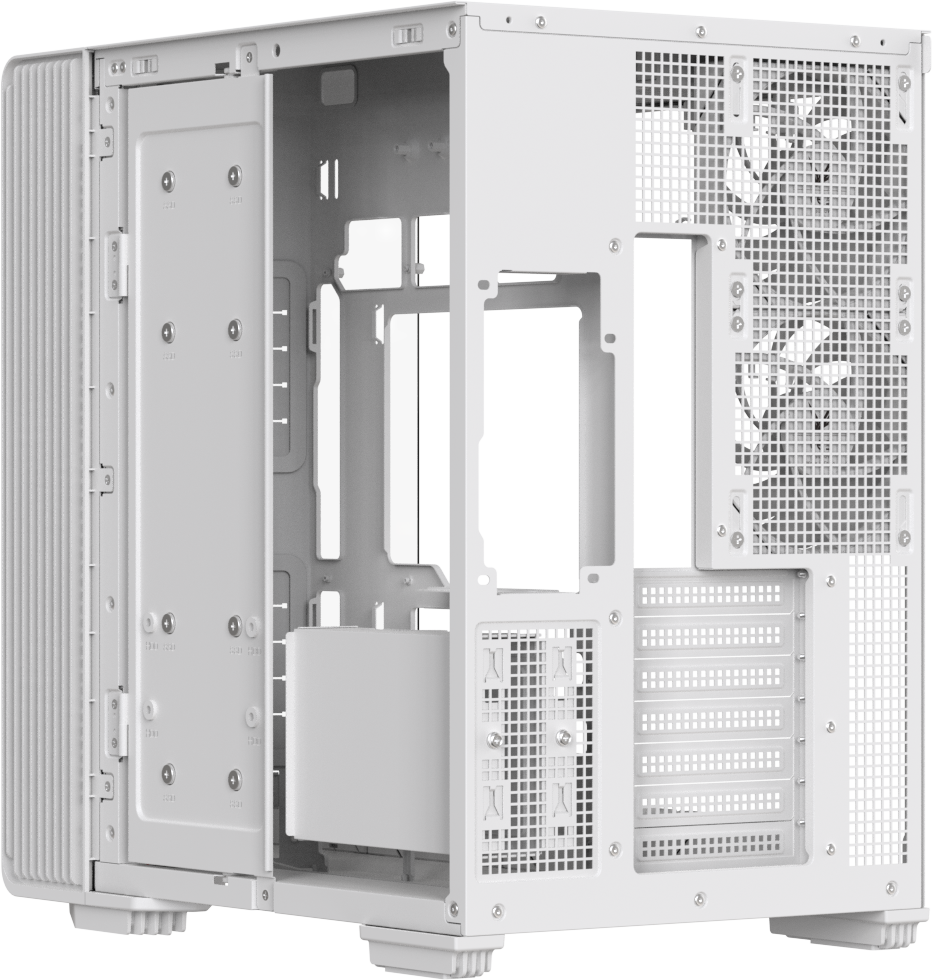

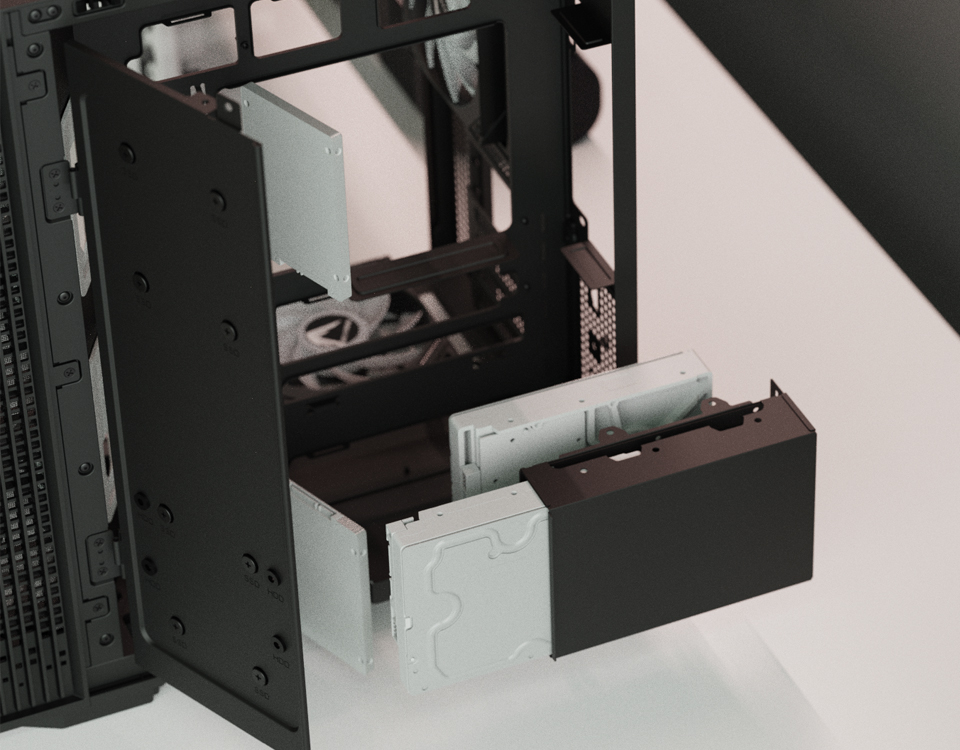

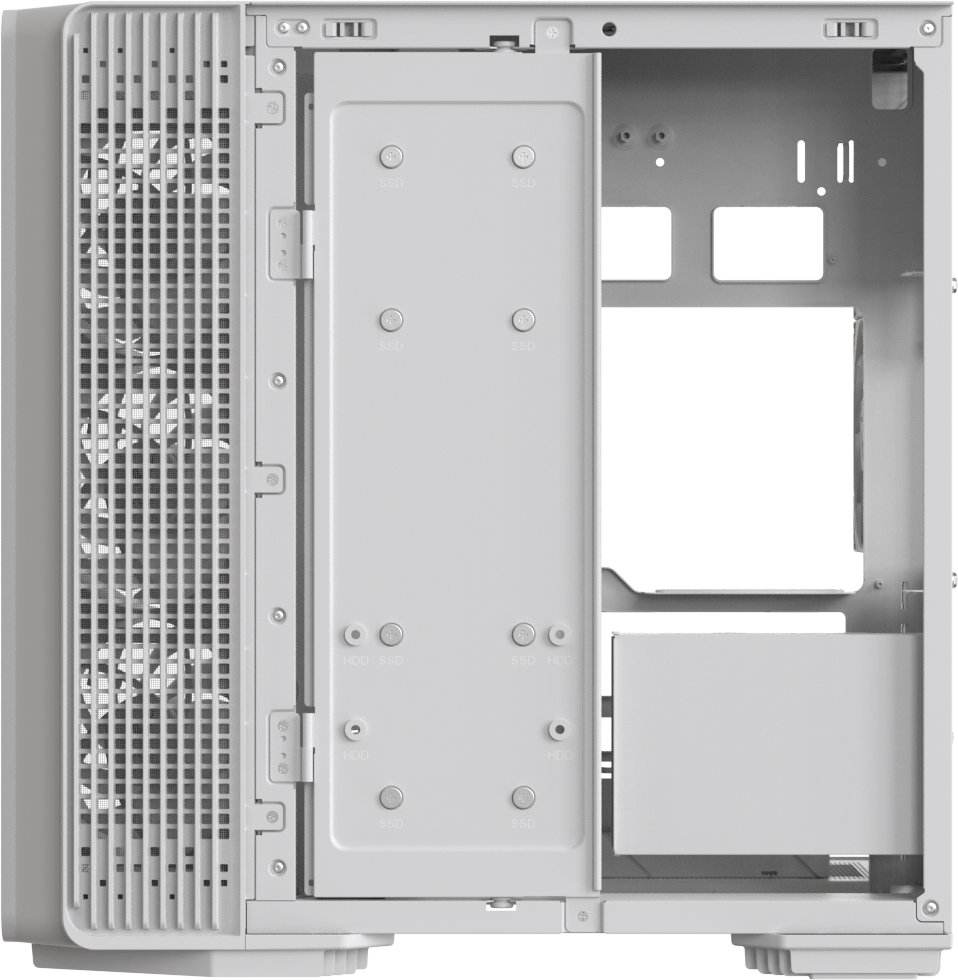

Rotating and Wall-Mount Brackets for Easy Storage Setup
Featuring both rotating and wall-mount HDD brackets, this case supports either 3 × 3.5″ HDDs + 1 × 2.5″ SSD, or 2 × 3.5″ HDDs + 2 × 2.5″ SSDs. The design combines clean aesthetics with convenient installation options.
-
-
-
-
Rotating Bracket for Easy Cable Organization
With a spacious 65mm cable management area, the rotatable HDD bracket allows you to easily store and organize cables, then conceal them with the rotating cover. Convenient, clean, and visually appealing.
-
-
-
-

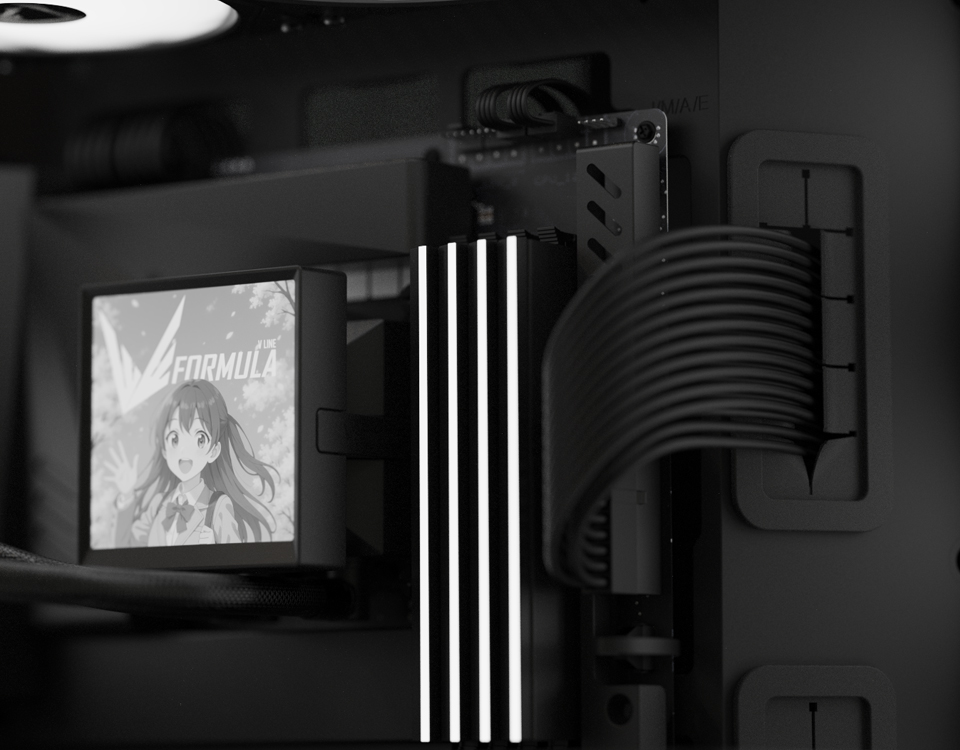

Smooth Cable Management, Cleaner Builds
Soft rubber grommets are used for cable pass- through, enhancing the overall aesthetics of your build.
-
-
-
-

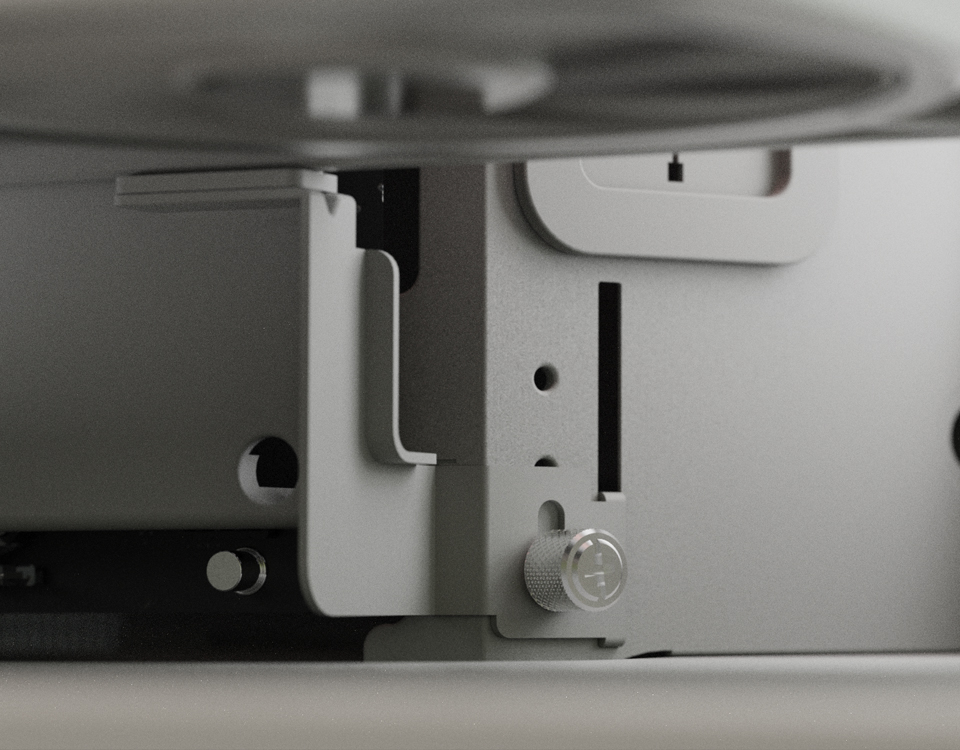

Invisible Stability for Your GPU
The standard GPU support bracket is designed to blend in seamlessly, remaining barely noticeable once the graphics card is installed. This ensures stable support without disrupting the overall look of your build.
-
-
-
-

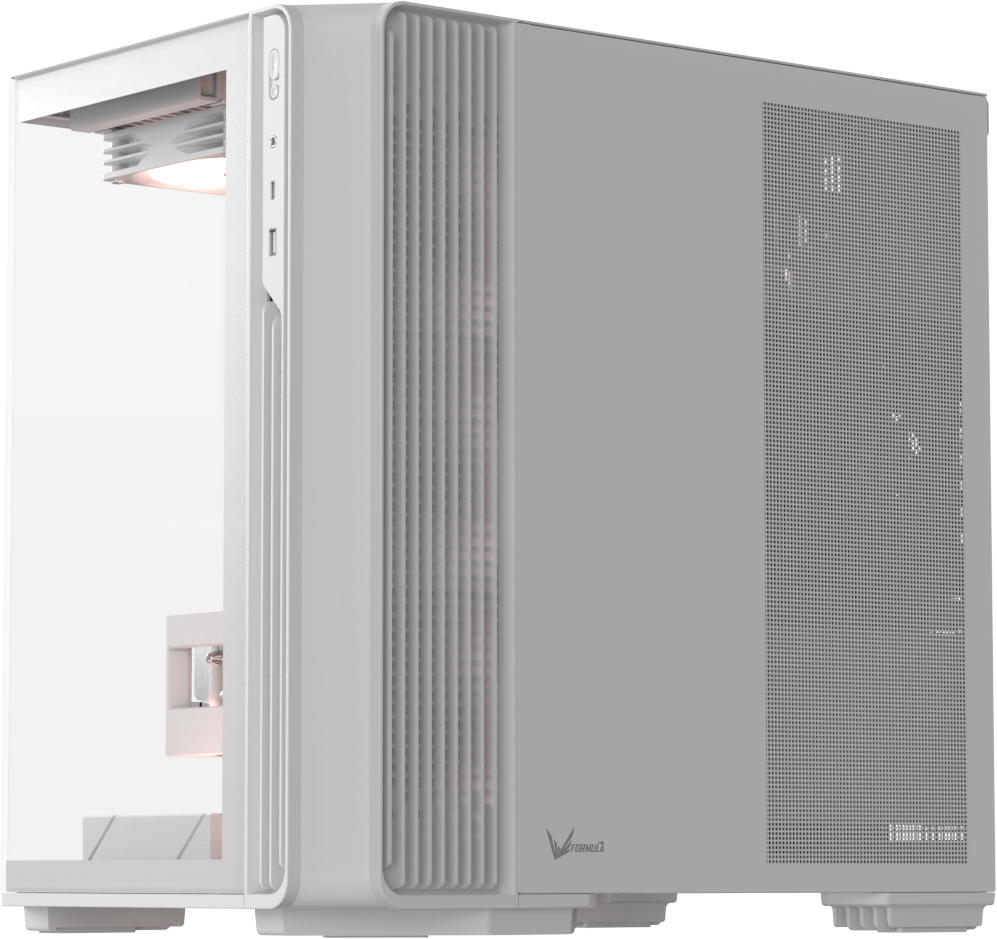

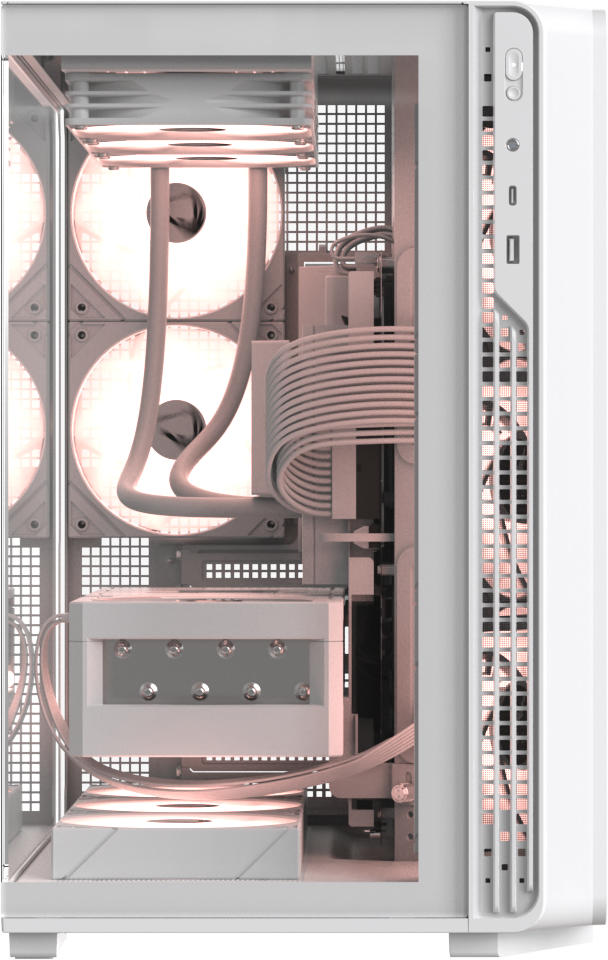

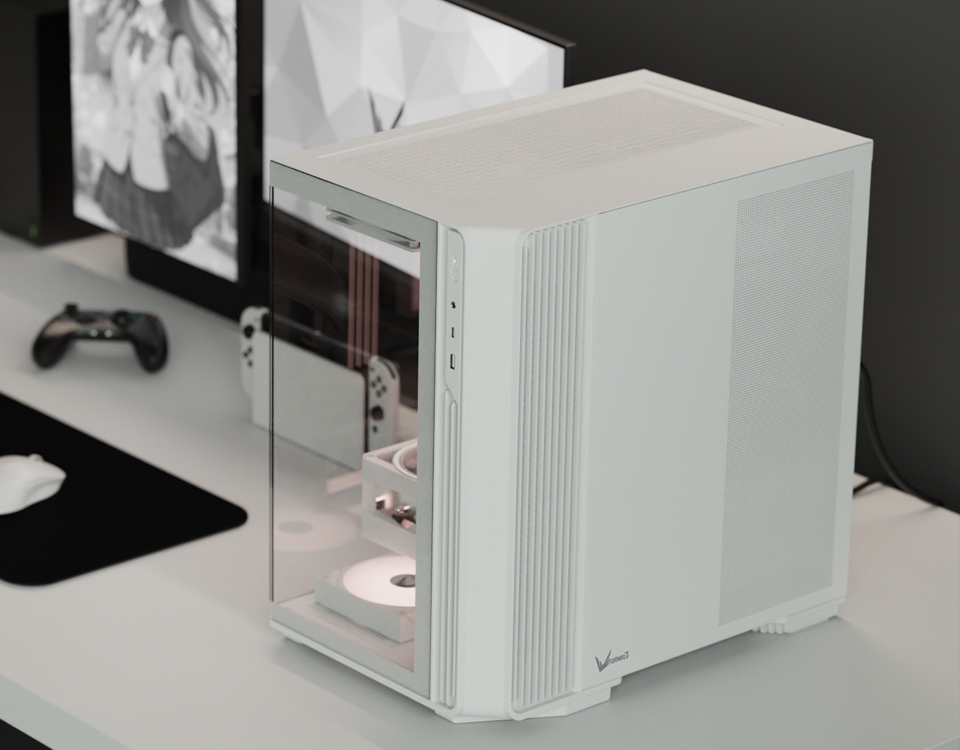

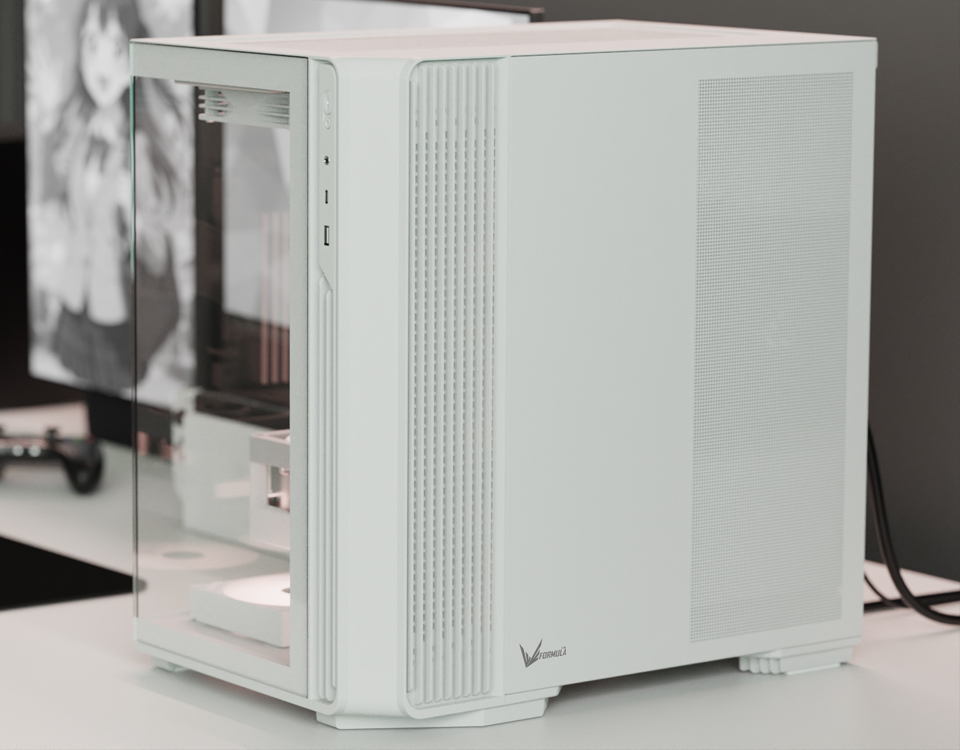

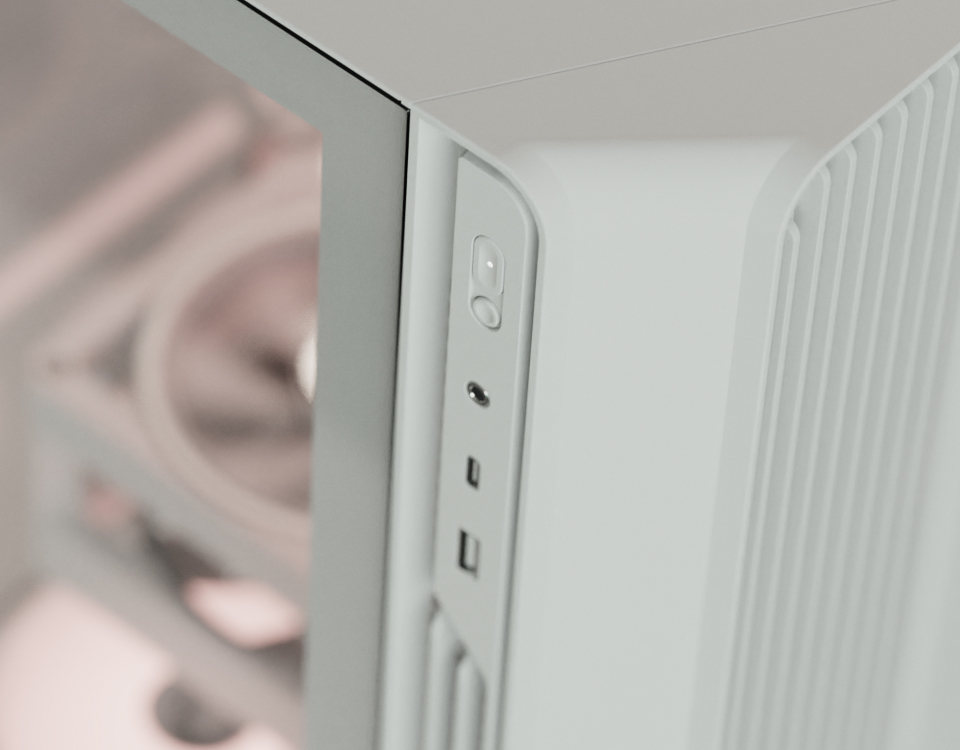

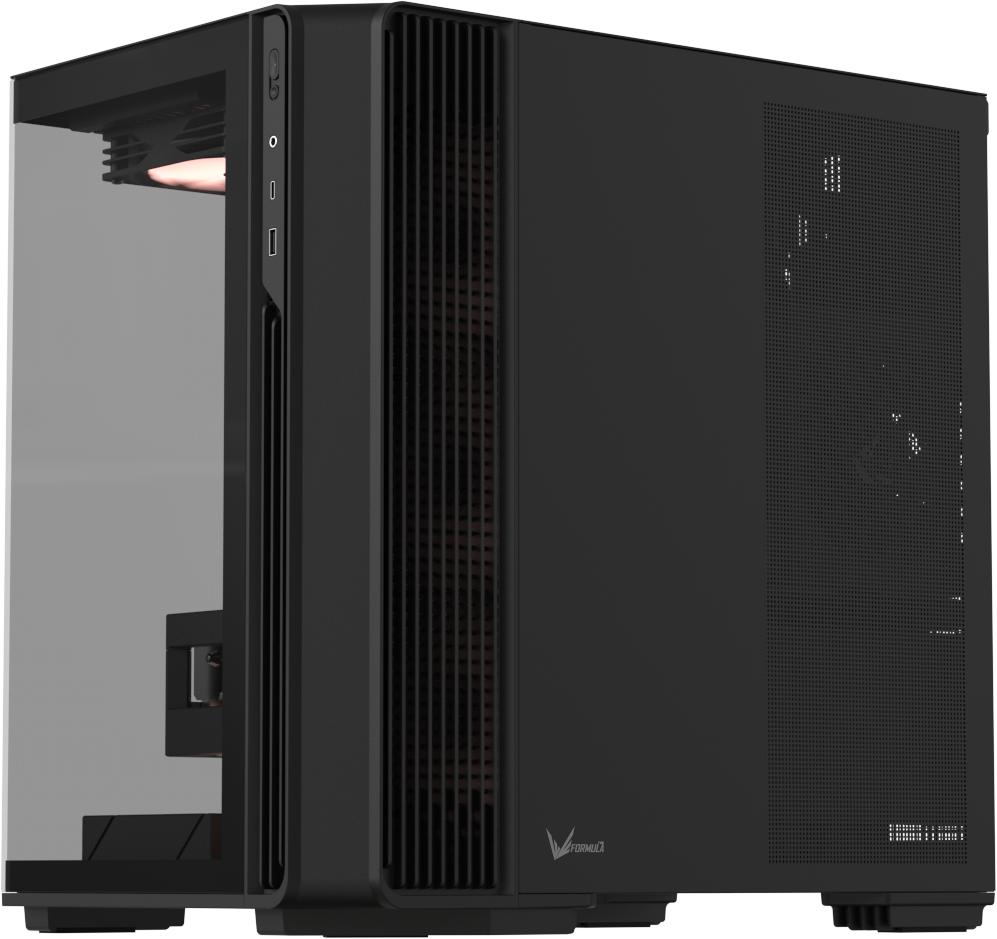

Sleek Slanted Panel with High-Speed USB-C
The slanted panel design gives the case a slimmer visual profile, while the Gen2× 2 Type-C port supports speeds up to 20Gbps for fast data transfer.
-
-
-
-
Two Versions Available (PA & SA)
The PA Version comes equipped with 4 × 120mm Performance ARGB PWM White fans, delivering higher airflow (60.36CFM) and stronger pressure (1.15 mm/H2O).
-
-
-
-
Two Versions Available (PA & SA)
The SA Version includes 4 × 120mm Standard ARGB PWM Black fans, offering quieter operation (25.5 dBA) with balanced cooling.
-
Crystal Z7
-
Model
Crystal Z7
-
Case Type
Mid Tower
-
Color
Black | White
-
Body Material
SPCC
-
Front Panel Material
Steel + Plastic
-
Steel Thickness
0.7 + 0.8mm
-
Motherboards
EATX (max. 305*277mm) / Support BTF 2025 type / ATX / MATX / ITX
-
Case Dimensions
290 x 453.6 x 457.7mm
-
3.5” Drive Bays
2 or 3 Max.
-
2.5” Drive Bays
1 or 2 Max.
-
Expansion Slots
7
-
GPU Clearance
435mm
-
CPU Cooler Clearance
175mm
-
Top Fans
3 x 120 or 2 x 140mm Max.
-
Rear Fans
2 x 120mm Max.
-
Bottom Fans
3 x 120mm Max.
-
Right Side Fans
3 x 120mm Max.
-
Top radiator
360mm Max.
-
I/O Ports
Type C x 1 (GEN2*2) x 1, USB3.0 x 1, HD Audio
-
Power Supply
ATX
-
Net weight
kg
-
Gross weight
kg
-
EAN
Crystal Z7 Black: 4711401666608
Crystal Z7 White: 4711401666639
Crystal Z7 SA
-
Model
Crystal Z7 SA
-
Case Type
Mid Tower
-
Color
Black | White
-
Body Material
SPCC
-
Front Panel Material
Steel + Plastic
-
Steel Thickness
0.7 + 0.8mm
-
Motherboards
EATX (max. 305*277mm) / Support BTF 2025 type / ATX / MATX / ITX
-
Case Dimensions
290 x 453.6 x 457.7mm
-
3.5” Drive Bays
2 or 3 Max.
-
2.5” Drive Bays
1 or 2 Max.
-
Expansion Slots
7
-
GPU Clearance
435mm
-
CPU Cooler Clearance
175mm
-
Top Fans
3 x 120 or 2 x 140mm Max.
-
Rear Fans
2 x 120mm Max.
2 x 120mm Standard ARGB PWM Black/White Fan Included)
-
Bottom Fans
3 x 120mm Max.
-
Right Side Fans
3 x 120mm Max.
3 x 120mm Standard ARGB PWM Black/White Fan Included)
-
Top radiator
360mm Max.
-
I/O Ports
Type C x 1 (GEN2*2) x 1, USB3.0 x 1, HD Audio
-
Power Supply
ATX
-
Net weight
kg
-
Gross weight
kg
-
EAN
Crystal Z7 SA Black: 4711401666615
Crystal Z7 SA White: 4711401666646
Crystal Z7 PA
-
Model
Crystal Z7 PA
-
Case Type
Mid Tower
-
Color
Black | White
-
Body Material
SPCC
-
Front Panel Material
Steel + Plastic
-
Steel Thickness
0.7 + 0.8mm
-
Motherboards
EATX (max. 305*277mm) / Support BTF 2025 type / ATX / MATX / ITX
-
Case Dimensions
290 x 453.6 x 457.7mm
-
3.5” Drive Bays
2 or 3 Max.
-
2.5” Drive Bays
1 or 2 Max.
-
Expansion Slots
7
-
GPU Clearance
435mm
-
CPU Cooler Clearance
175mm
-
Top Fans
3 x 120 or 2 x 140mm Max.
-
Rear Fans
2 x 120mm Max.
2 x 120mm Performance ARGB PWM Black/White Fan Included)
-
Bottom Fans
3 x 120mm Max.
-
Right Side Fans
3 x 120mm Max.
3 x 120mm Performance ARGB PWM Black/White Fan Included)
-
Top radiator
360mm Max.
-
I/O Ports
Type C x 1 (GEN2*2) x 1, USB3.0 x 1, HD Audio
-
Power Supply
ATX
-
Net weight
kg
-
Gross weight
kg
-
EAN
Crystal Z7 PA Black: 4711401666622
Crystal Z7 PA White: 4711401666653
