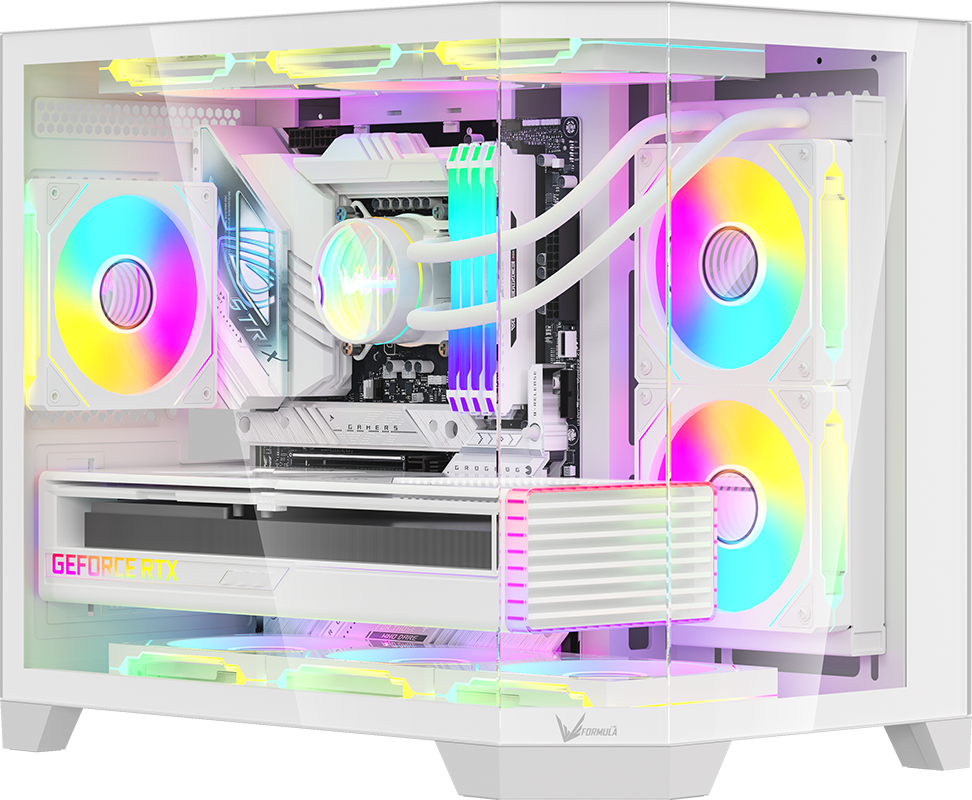

Crystal Z6M

Immerse yourself in a stunning showcase with the Crystal Z6M.

Designed with three-sided tempered glass panels, this case offers an expansive view of your build from multiple angles, allowing your components and RGB lighting to shine. Engineered for both aesthetics and functionality, the Crystal Z6M ensures optimal airflow, seamless cable management, and versatile hardware compatibility—making it the perfect choice for gamers and PC enthusiasts seeking style and performance in one sleek package.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

Crystal-Z6M-1920x960-1

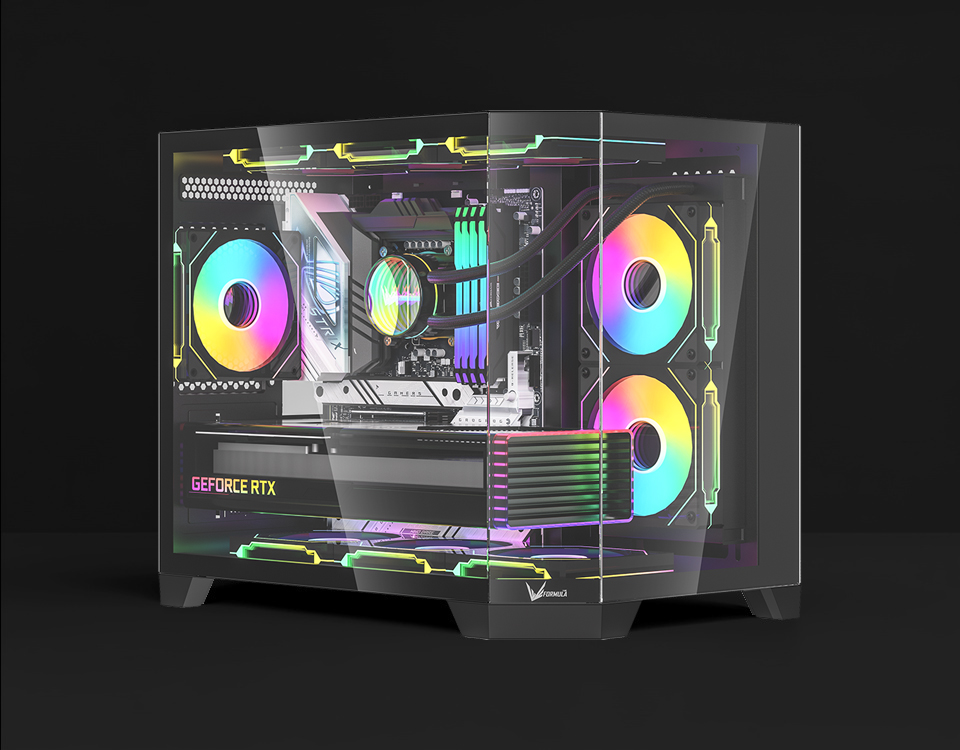

Seamless Glass Showcase

    • Seamless Glass Showcase

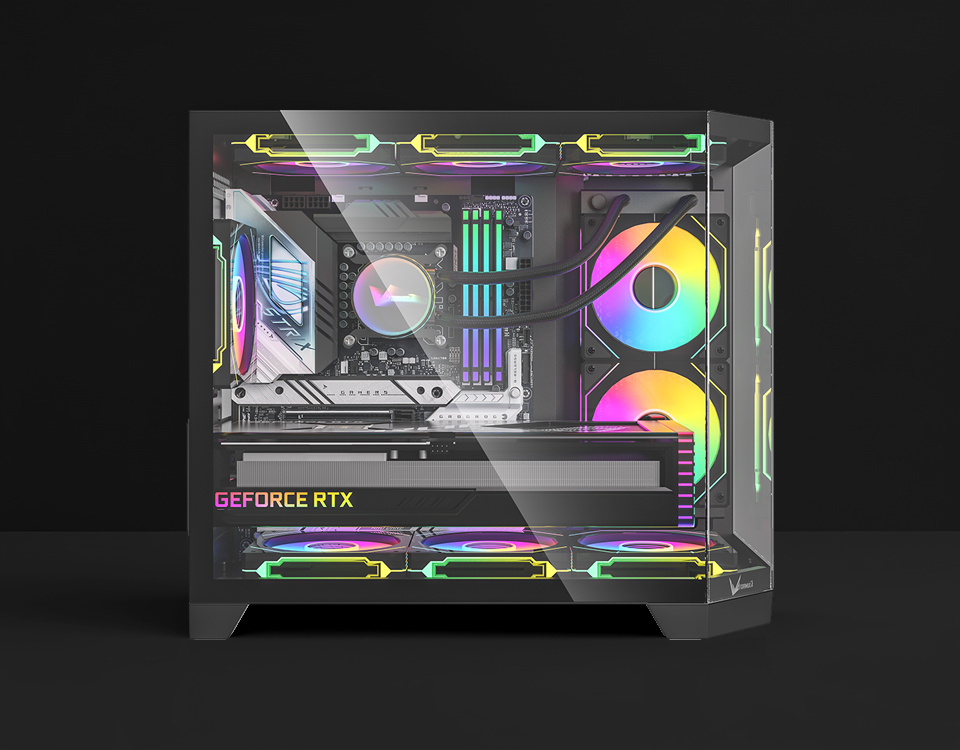

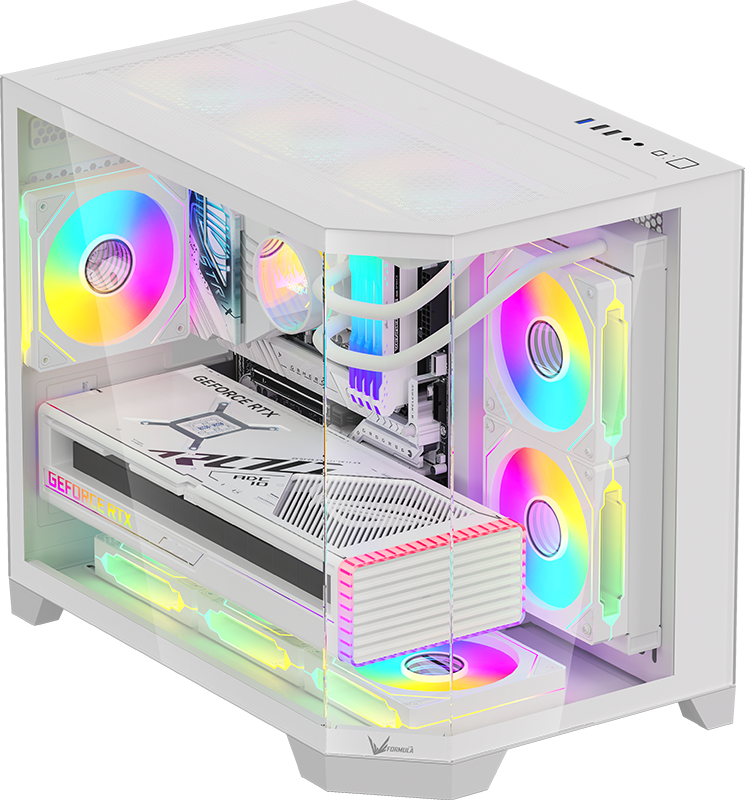

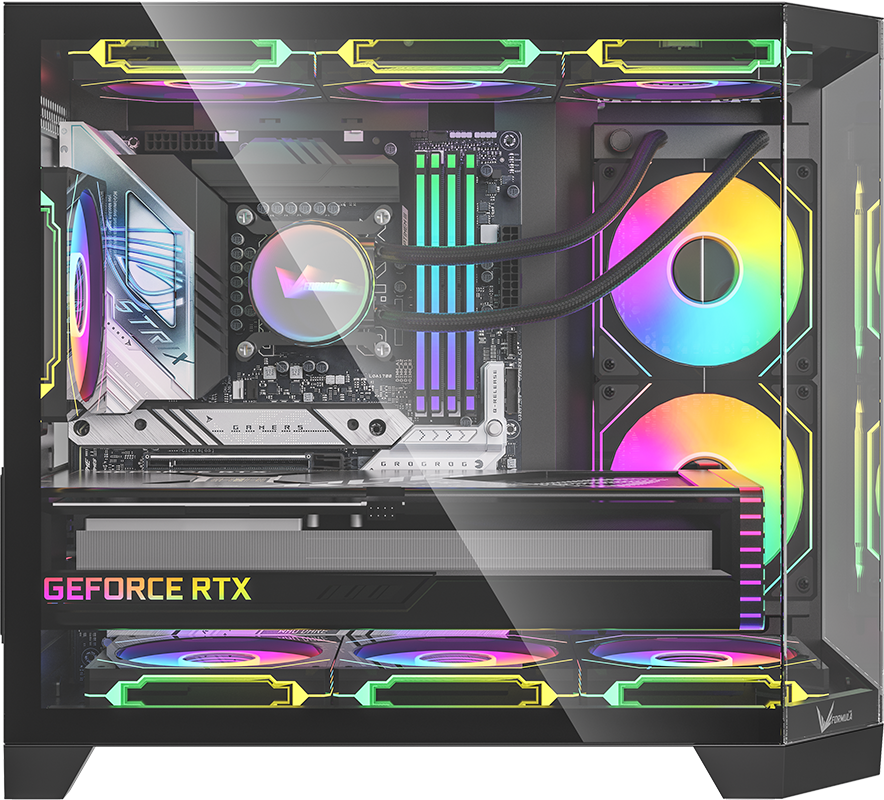

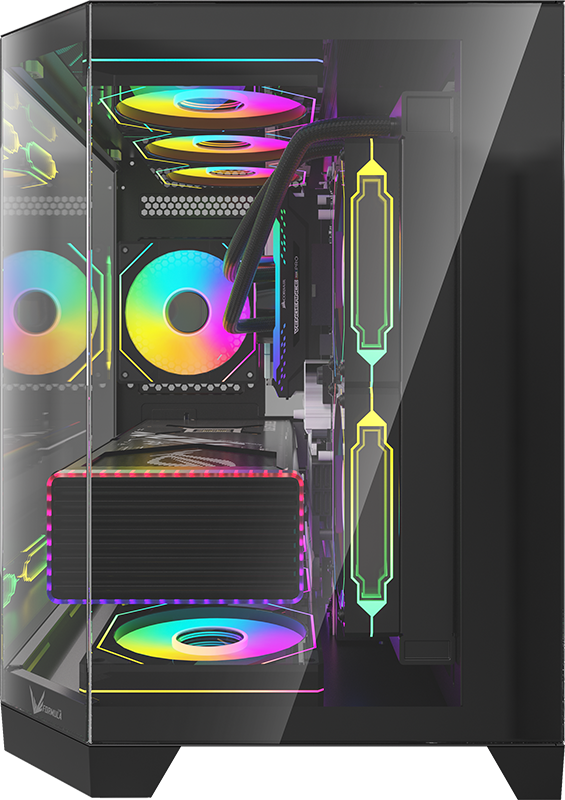

      Showcase your build with elegance through three-sided tempered glass on the front, side, and beveled panels, offering a wide, unobstructed view of your PC’s interior.

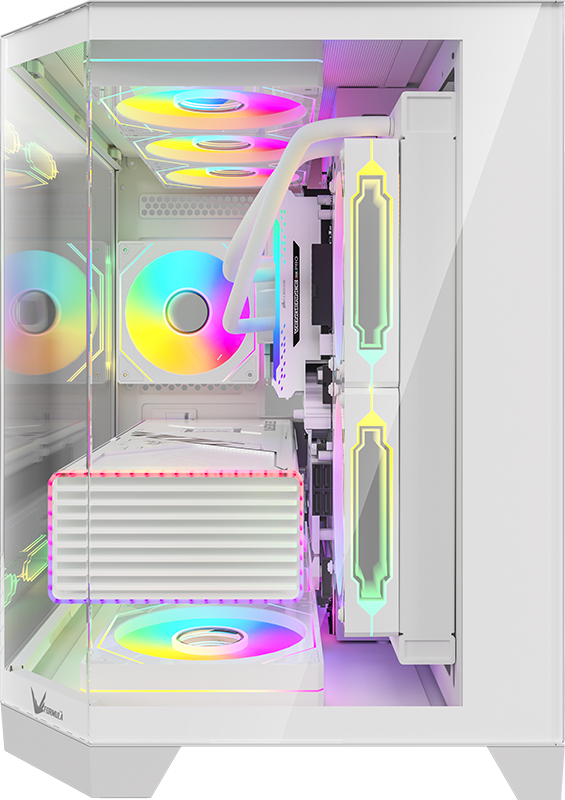

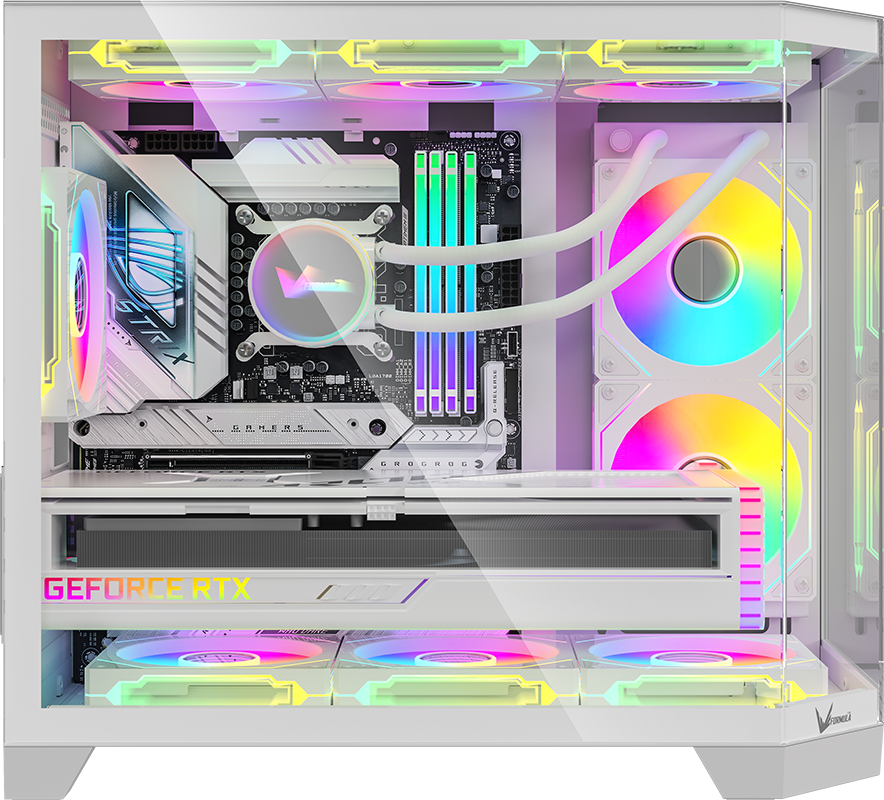

    • Versatile Cooling Options

      Gain mastery over your system’s temperature management using the Crystal Z6M.

      It accommodates up to 7 fans, enabling you to fine-tune your cooling performance.

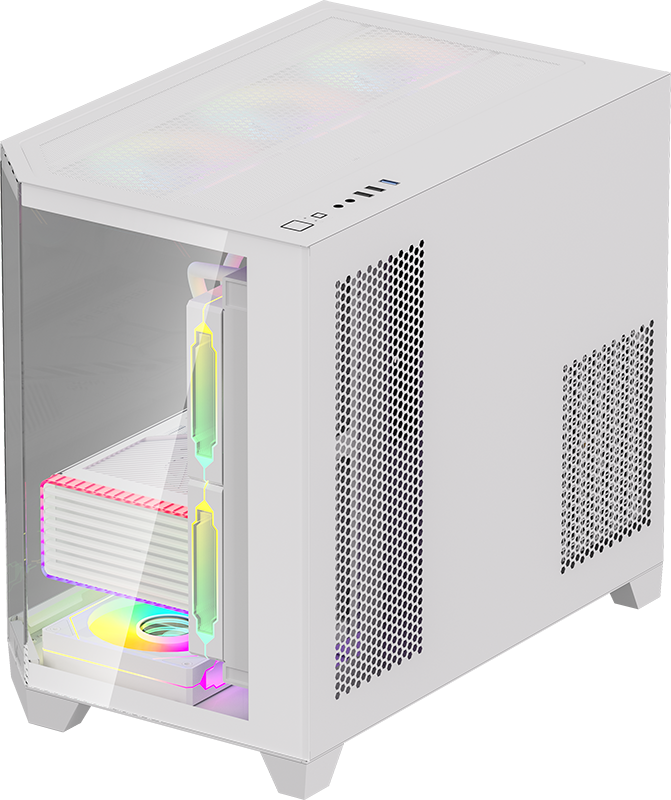

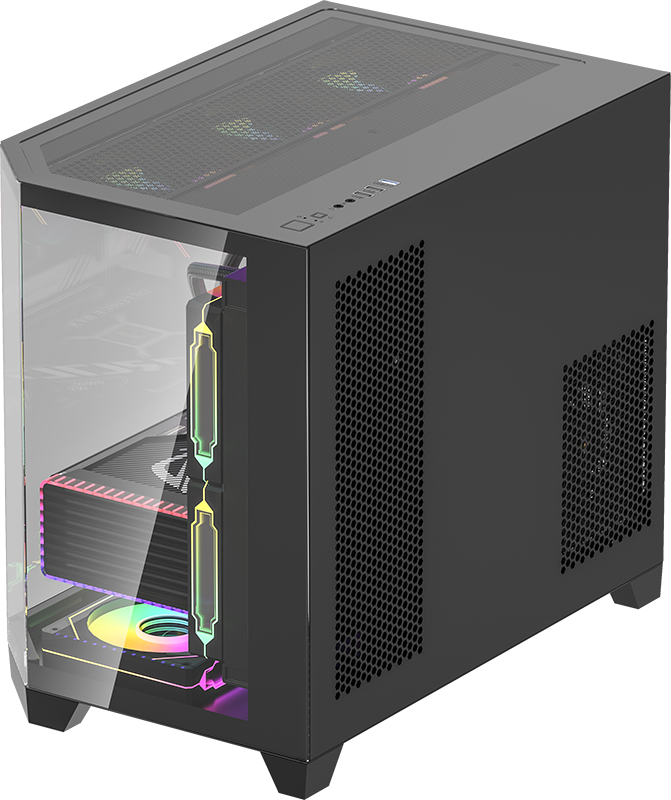

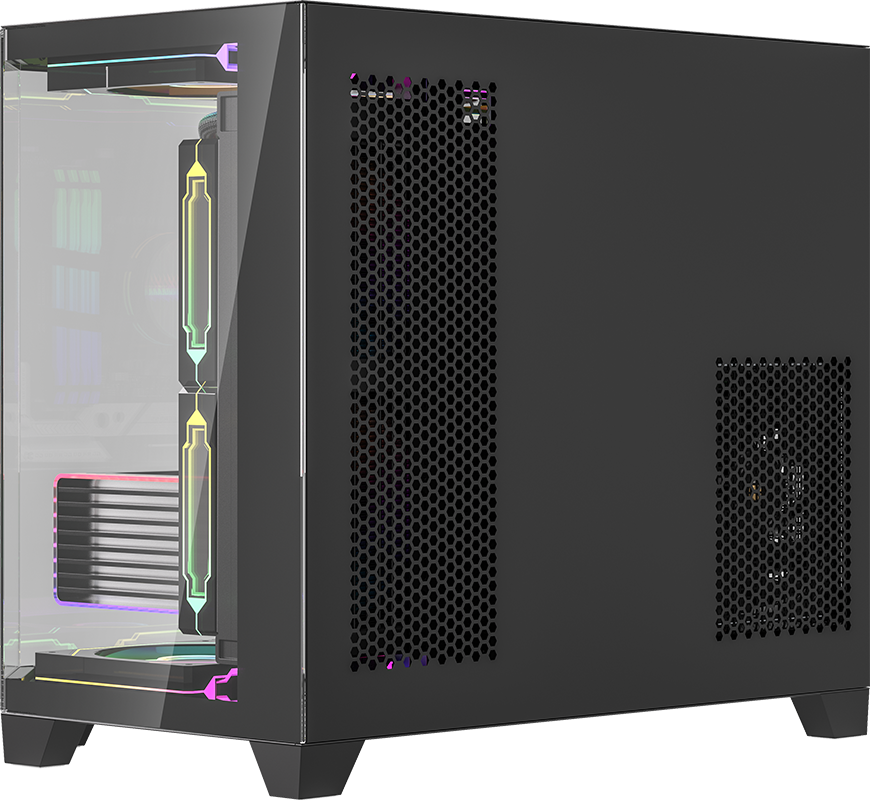

      The case includes side panel air vents, ensuring effective airflow and circulation, while the fans on the bottom panel offer targeted cooling for your GPU.

Compatibility and Expandability

Crystal Z6M is versatile, accommodating Micro-ATX, and Mini-ITX motherboards, ensuring compatibility for your build.

It can handle CPU coolers up to 160mm in height and graphics cards up to 330mm, enabling you to harness the full power of your hardware.

Convenient Access to your Media

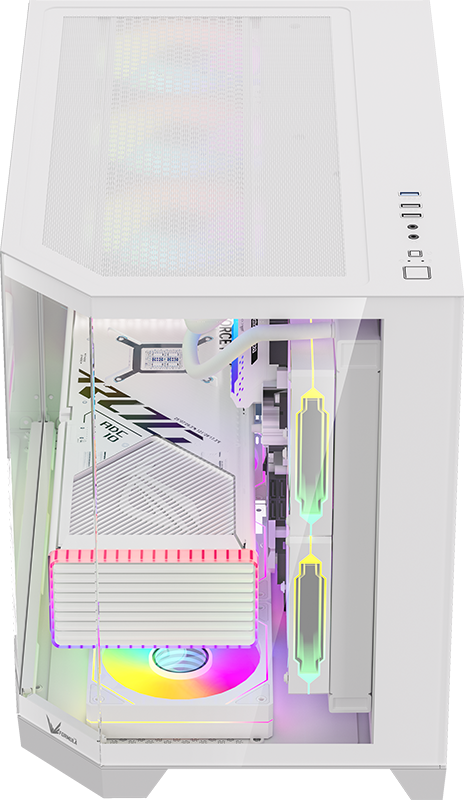

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.

Featuring one USB 2.0, one USD 3.0 and one Type C ports, along with HD audio, you’ll have all your essential connections readily accessible.

Crystal Z6M

  • Model

    Crystal Z6M

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.6mm

  • Motherboards

    micro ATX/mini-ITX

  • Case Dimensions

    339 x 270 x 350mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    4

  • GPU Clearance

    Supports GPU up to 330mm

  • CPU Cooler Clearance

    Supports CPU cooler up to 160mm

  • Top Fans

    2 x 120mm Max.

  • Rear Fan

    1 x 120mm Max.

  • Bottom Fans

    2 x 120mm Max.

  • Right side Fans

    2 x 120mm Max.

  • Top radiator

    240mm Max.

  • Right side

    240mm Max.

  • I/O Ports

    Type-C x 1, USB3.0 x 1, USB2.0 x 1, HD Audio

  • Power Supply

    ATX

  • Net weight

    3.87kg

  • Gross weight

    4.9kg

  • EAN

    Crystal Z6M Black: 4711401663416

    Crystal Z6M White: 4711401663430

Crystal Z6M Floe

  • Model

    Crystal Z6M Floe

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.6mm

  • Motherboards

    ATX/micro ATX/mini-ITX

  • Case Dimensions

    425 x 280 x 435mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    2

  • Expansion Slots

    7

  • GPU Clearance

    Supports GPU up to 410mm

  • CPU Cooler Clearance

    Supports CPU cooler up to 165mm

  • Top Fans

    2 x 120mm Max.

  • Rear Fan

    1 x 120mm ARPW Fan

  • Bottom Fans

    2 x 120mm Max.

  • Right side Fans

    2 x 120mm ARPW Fans.

  • Top radiator

    240mm Max.

  • Right side

    240mm Max.

  • I/O Ports

    Type-C x 1, USB3.0 x 2, HD Audio

  • Power Supply

    ATX

  • Net weight

    40.2kg

  • Gross weight

    5.05kg

  • EAN

    Crystal Z6M Floe Black: 4711401663423

    Crystal Z6M Floe White: 4711401663447
