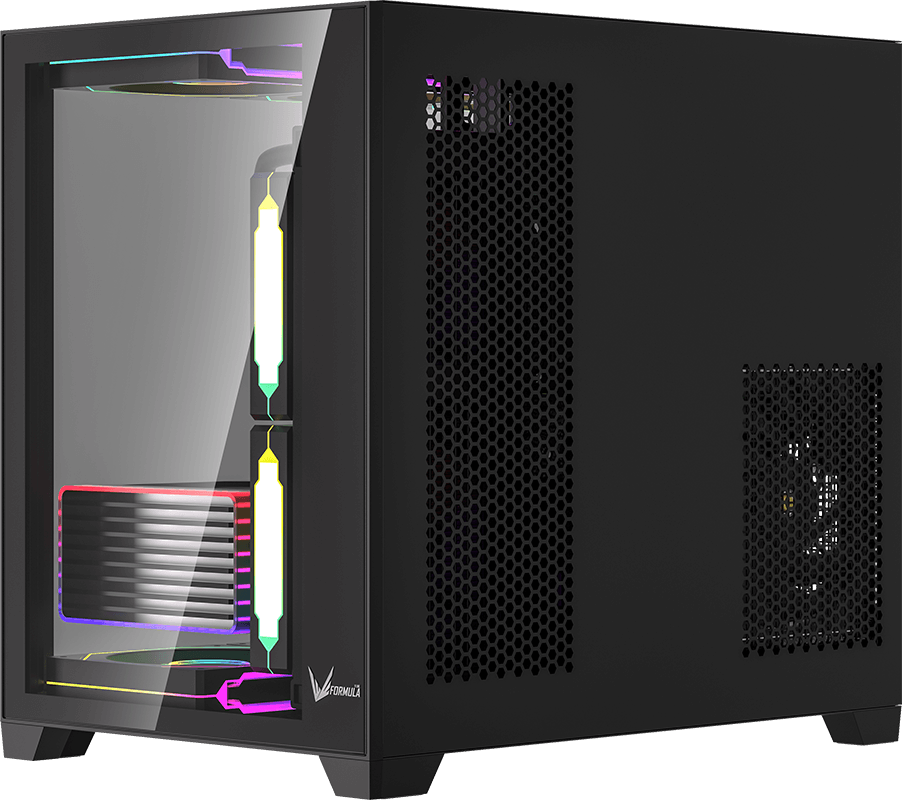

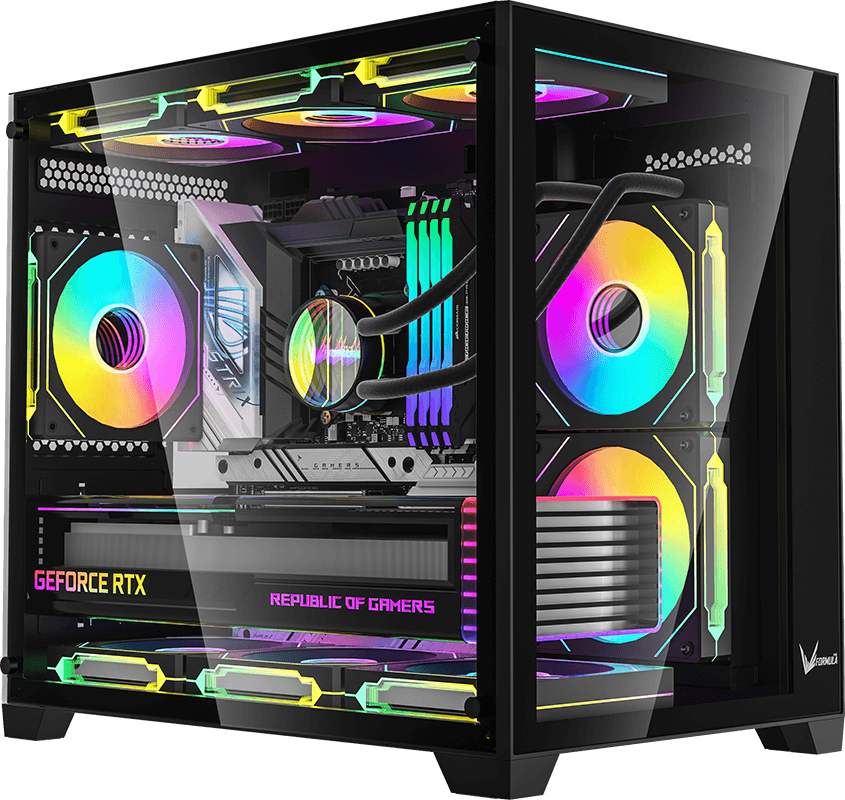

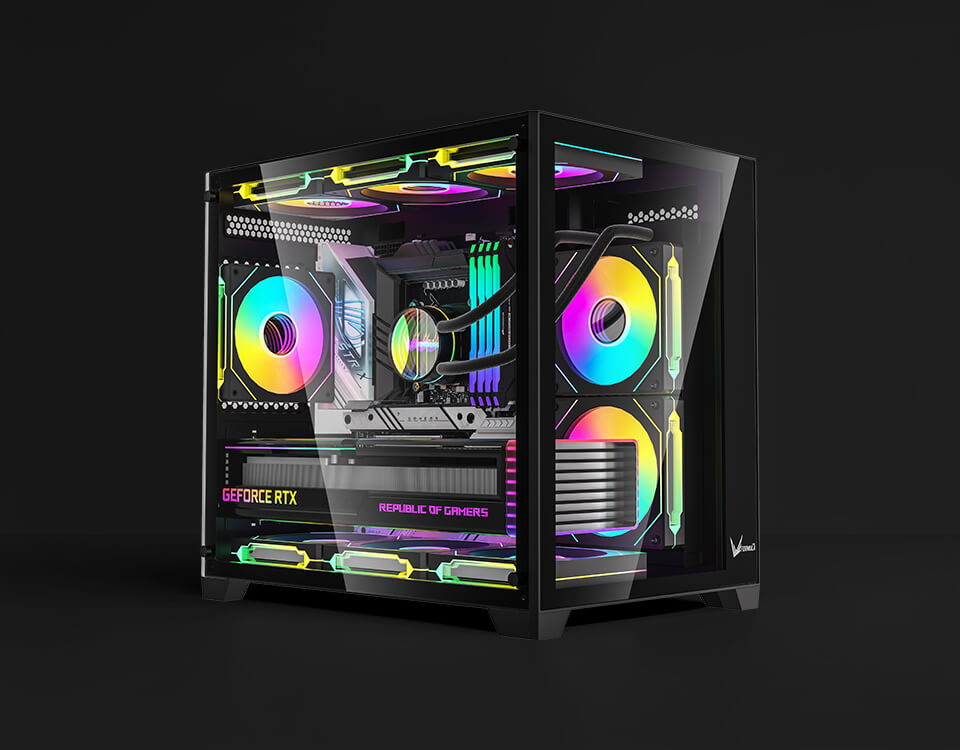

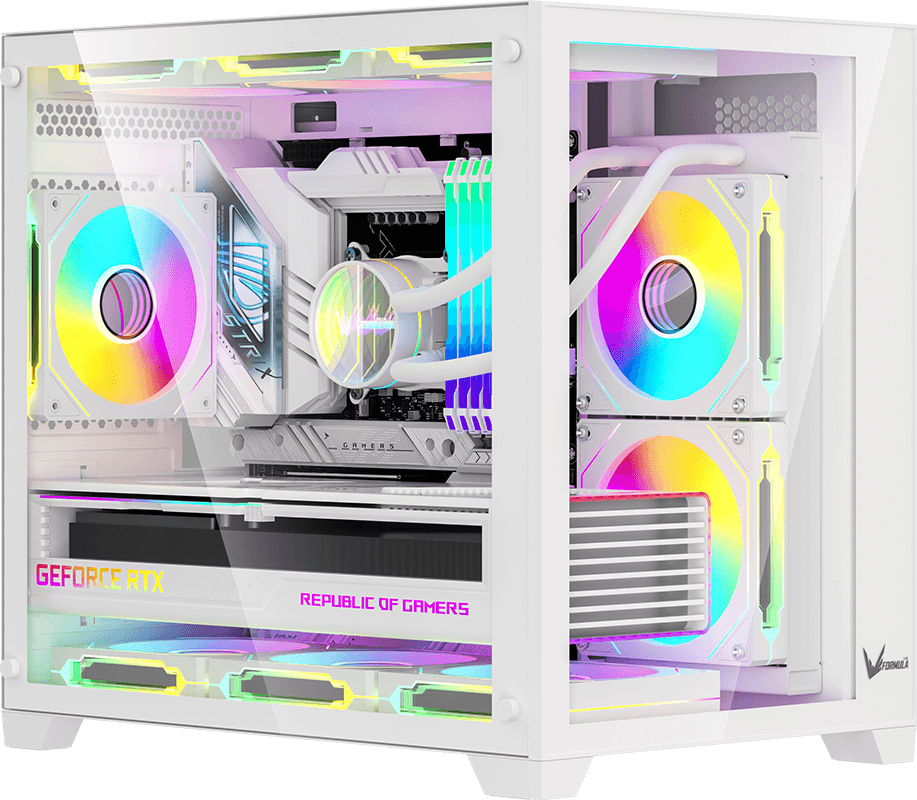

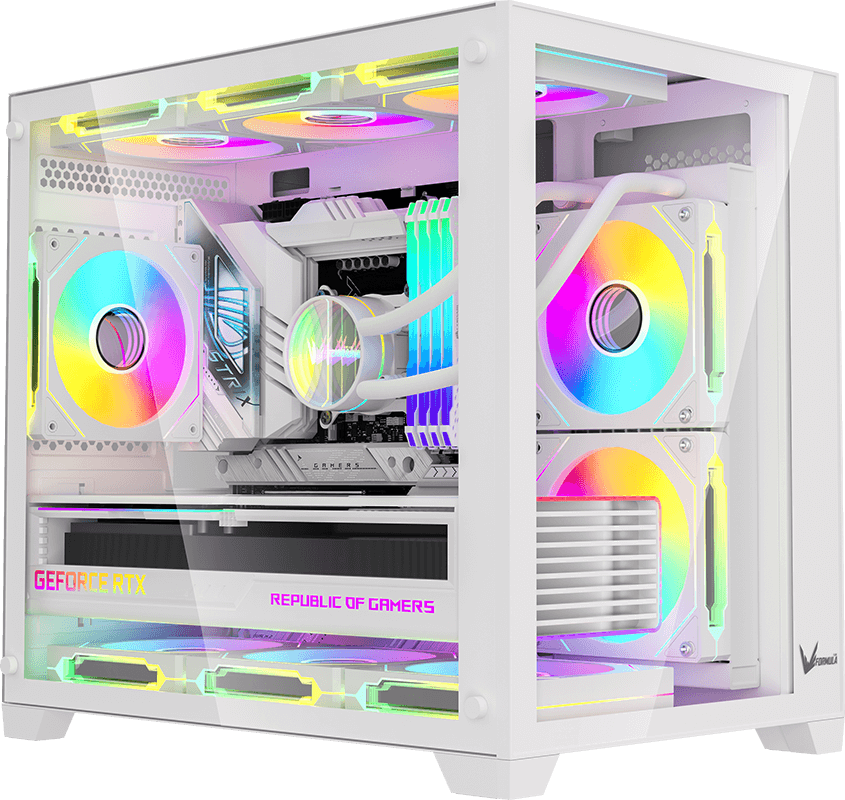

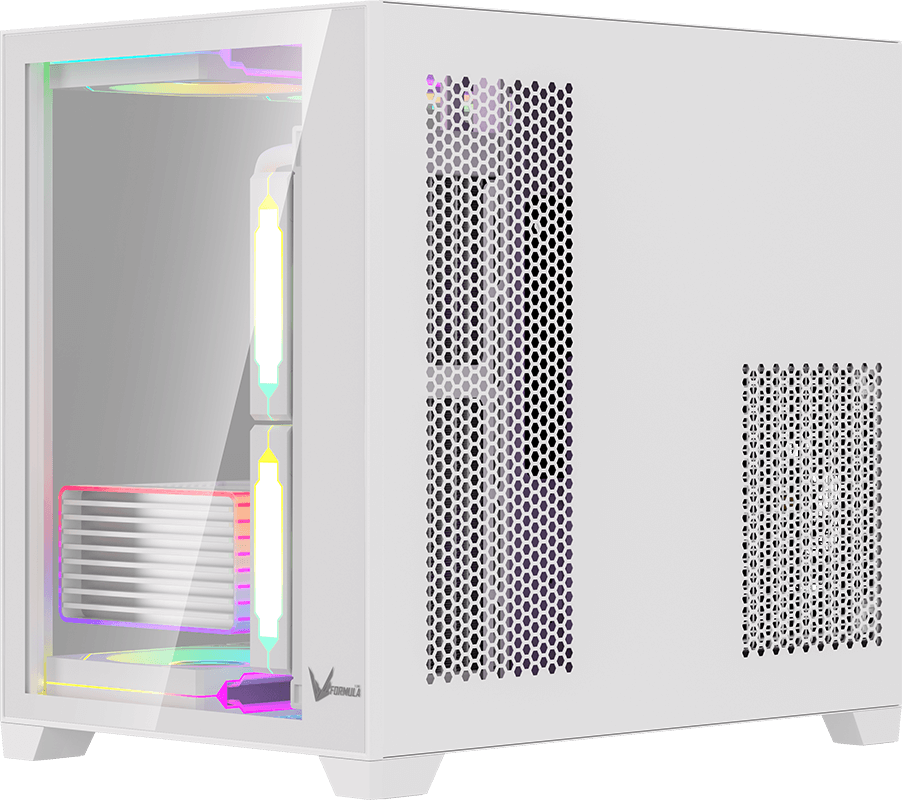

Crystal Z5

Enjoy an impressive panoramic view with the Crystal Z5. Its exceptional design lets you see your hardware through full tempered glass front and side panels. With an emphasis on sleek aesthetics, customizable RGB lighting, enhanced cooling, and effortless cable management, the Crystal Z5 is the ideal pick for gamers who want a blend of style and performance.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

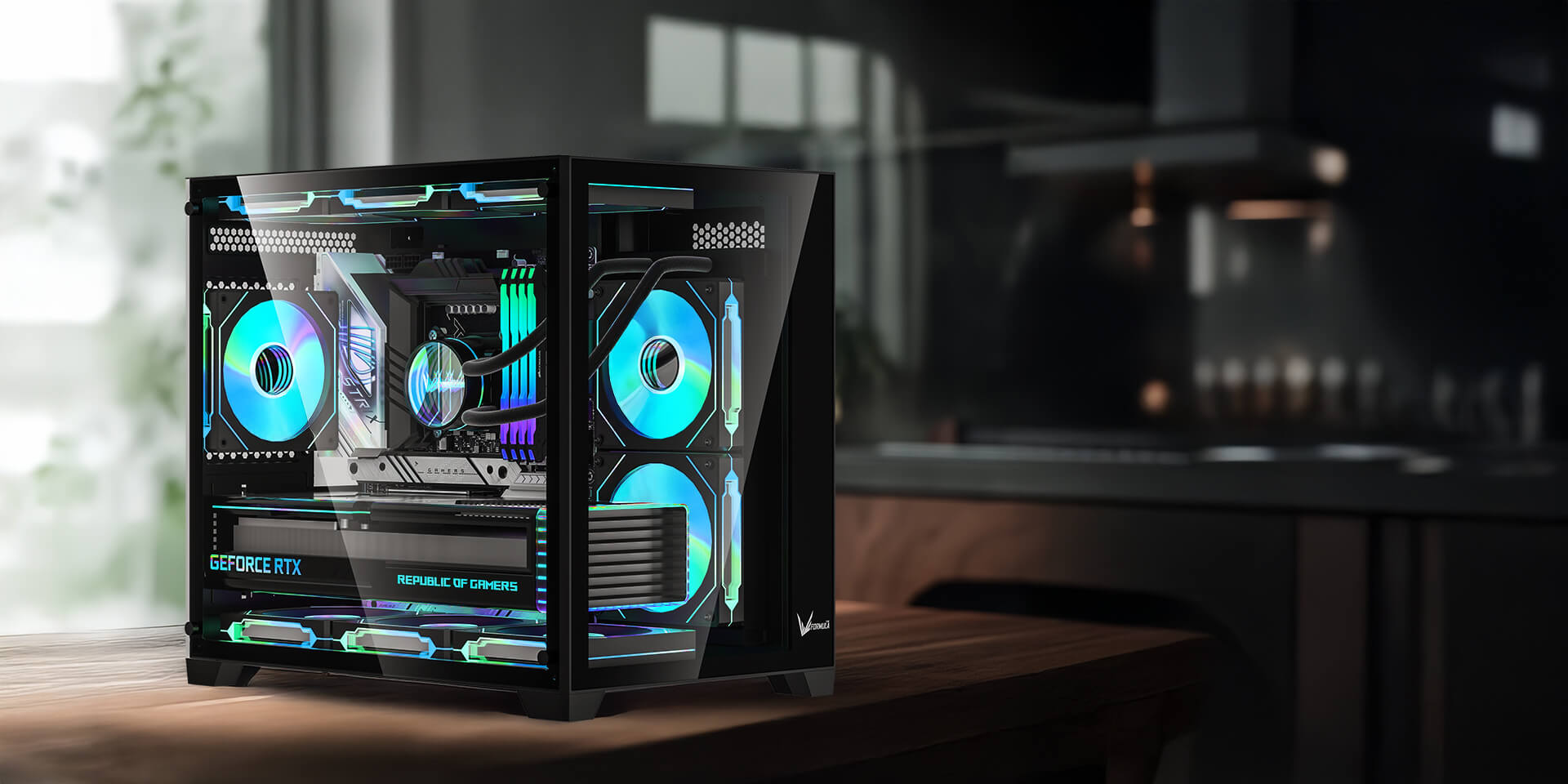

CRYSTAL-Z5-1920x960

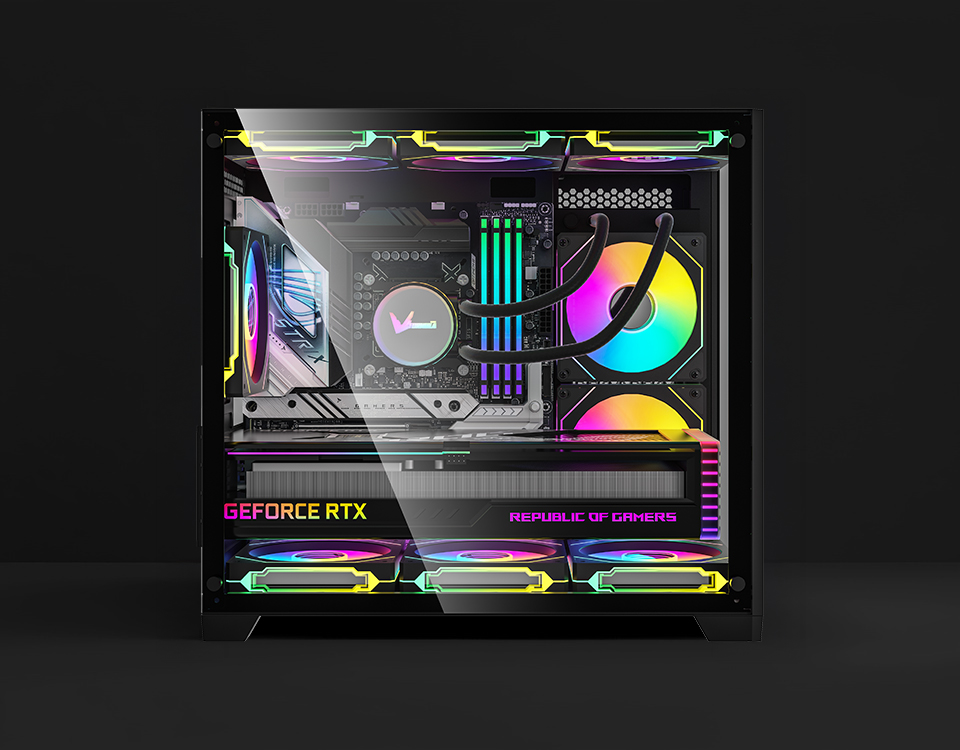

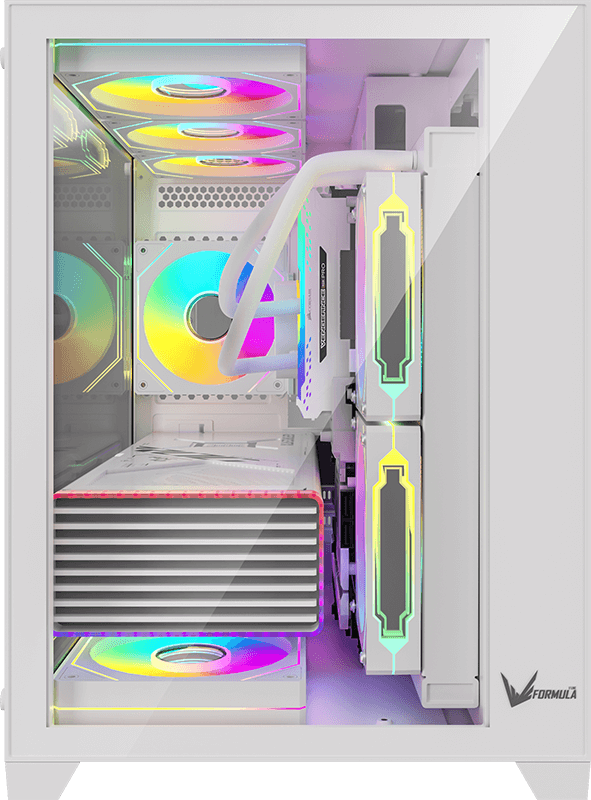

Panoramic Glass Panels

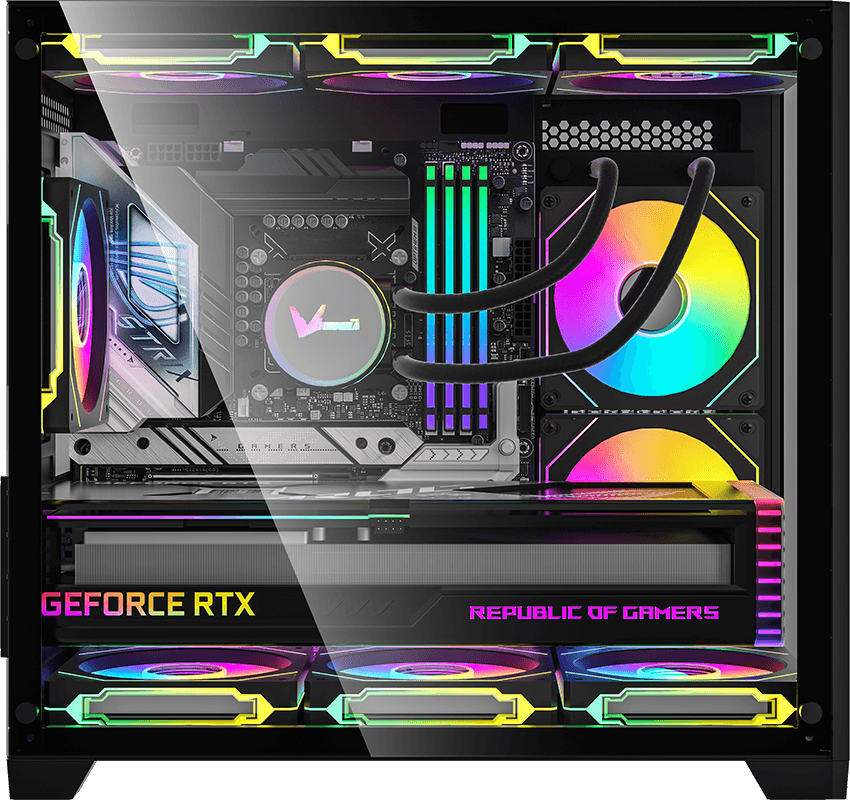

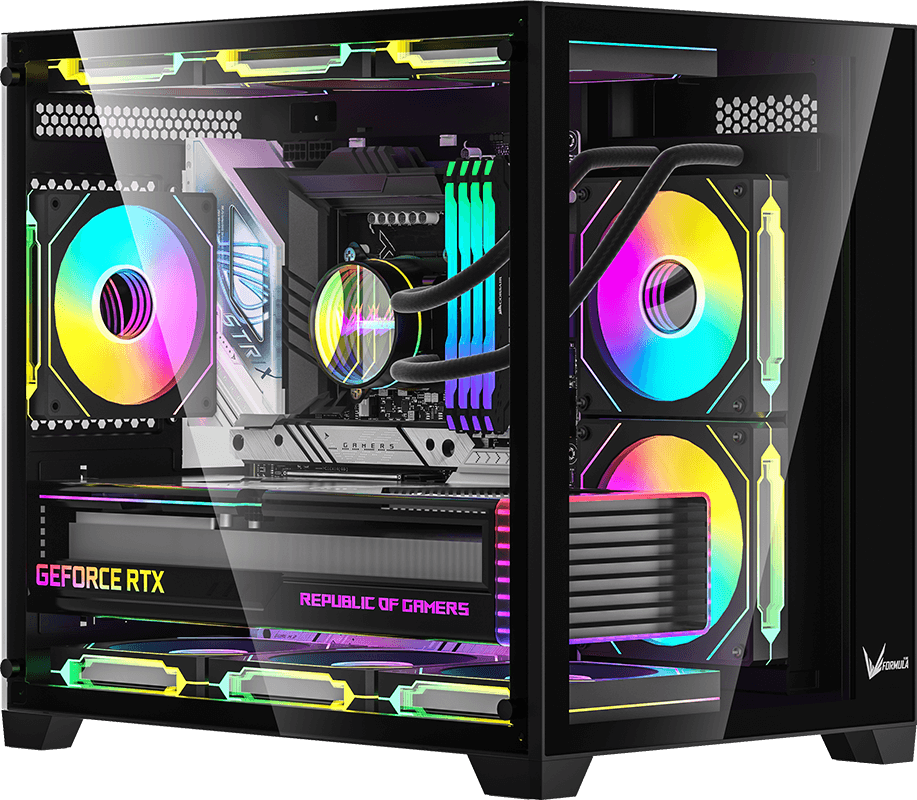

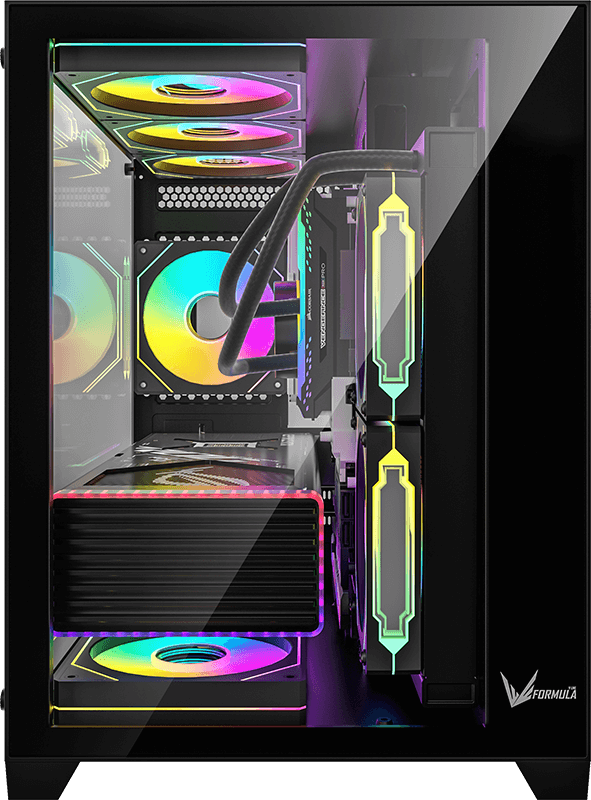

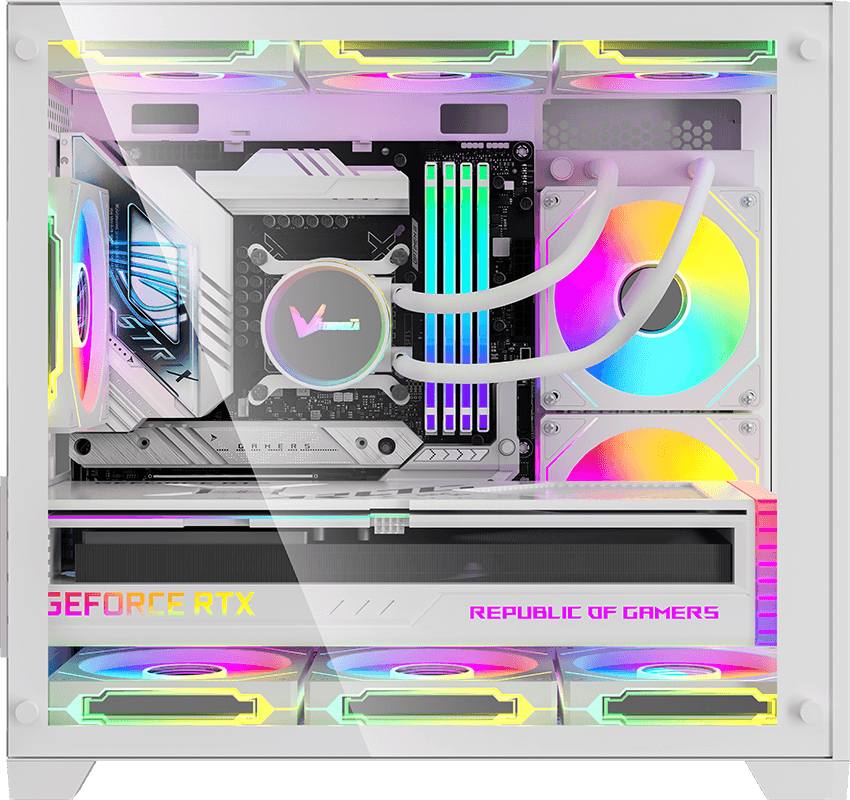

    • Panoramic Glass Panels

      Cooling fans have been relocated to the backplate, allowing the full tempered glass front and side panels to beautifully showcase the core of your rig. Present your high-performance components and vibrant RGB lighting in all their splendor.

    • Full Acrylic Side Panel

      Includes a clear acrylic side panel, allowing you to display your rig’s interior and showcase your components.

Flexble Configuration

CRYSTAL Z5 offers sufficient space to support for Micro-ATX / mini ITX motherboard, providing ample space for maximum flexibility. It accommodates VGA cards up to 365mm in length and CPU cooler up to 155mm height

    • Support Up To 240 Max Water Cooling

      CRYSTAL Z5 provides a crystal-clear tempered glass side panel for stunning showcase of your interior setup.

    • Support up to 7 fans max.

      With a fully optimized internal circulation cooling system, it provides outstanding cooling capabilities and superior performance.

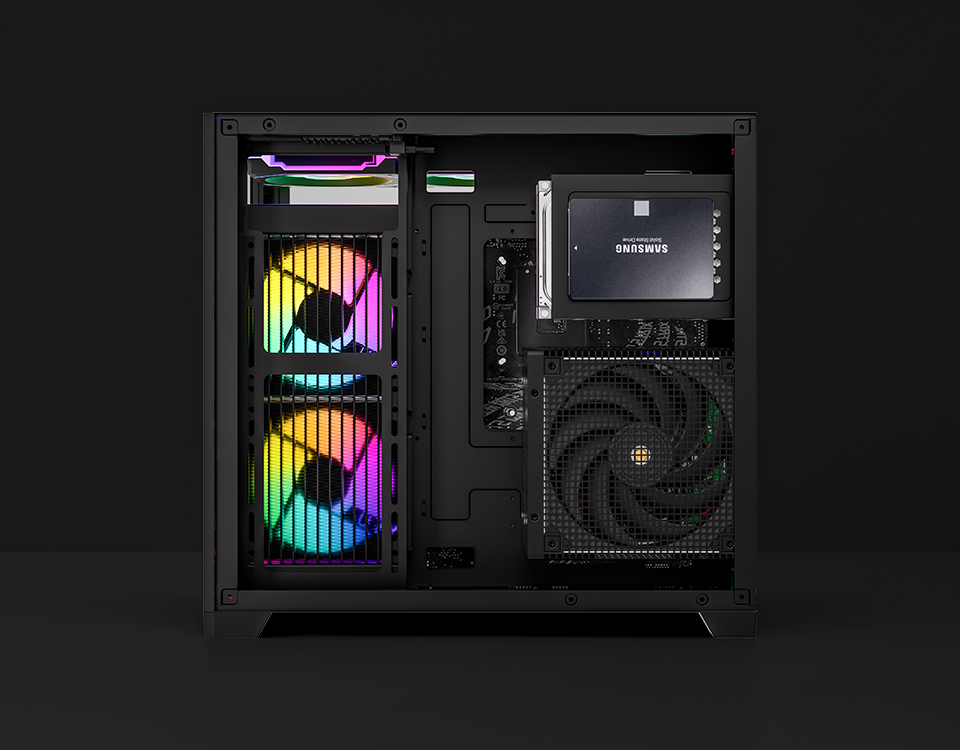

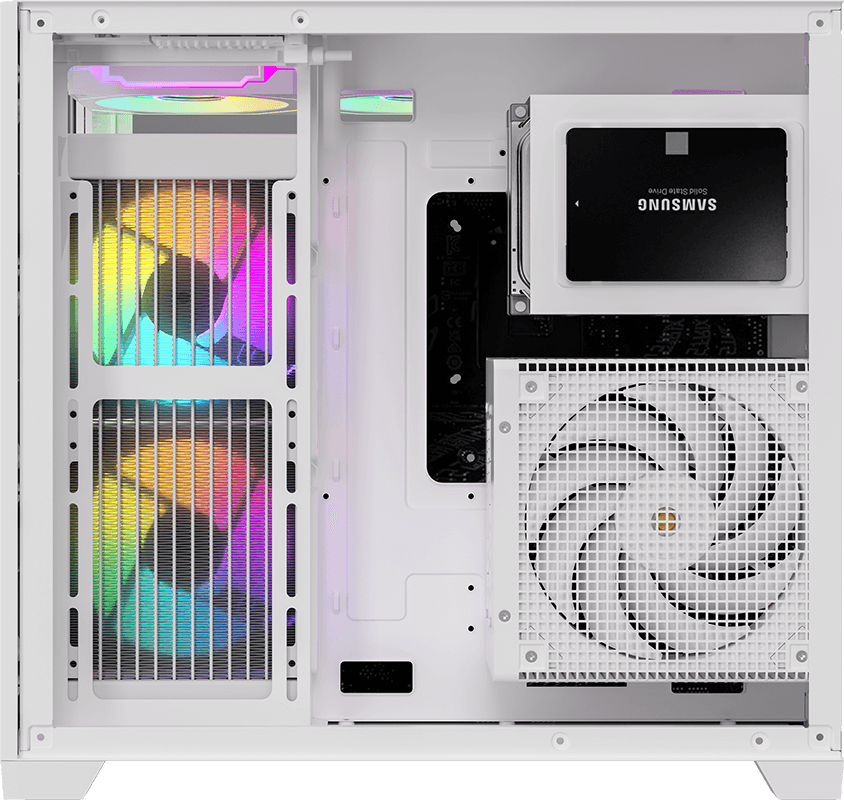

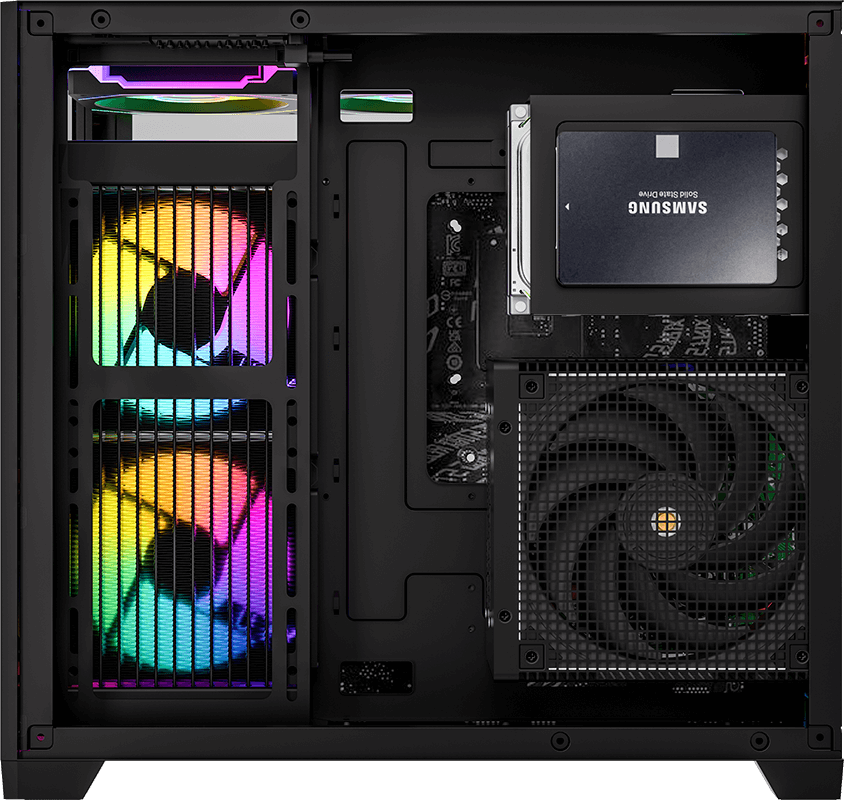

    • Storage Capability

      Supports up to 2 x 3.5” HDDs
      Supports up to 1 x 2.5” SSDs

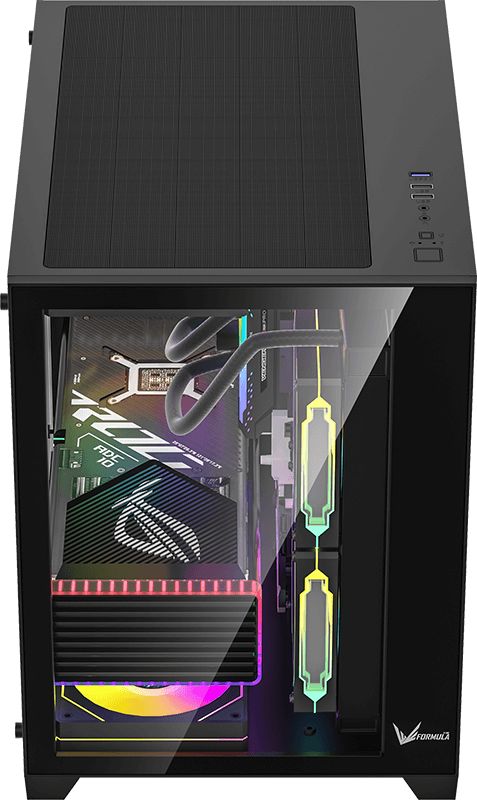

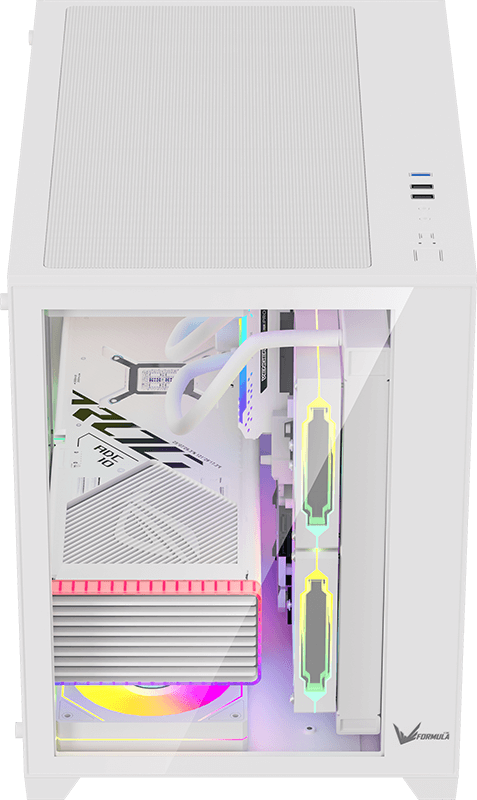

Convenient I/O Ports

Stay connected and access your peripherals effortlessly through the convenient 1/0 ports situated on the case’s top.
Featuring Type-C USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Crystal Z5

  • Model

    Crystal Z5

  • Color

    Black | White

  • Case Type

    Mini Tower

  • Steel Thickness

    0.8mm

  • Body Material

    SPCC

  • Motherboards

    MATX/mini-ITX

  • Case Dimensions

    388 x 270 x 368mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    365mm Max.

  • CPU Cooler Clearance

    155mm Max.

  • I/O Ports

    1x Type-C | USB3.0 x 1 | USB2.0 x 1 | HD AUDIO,MIC

  • Radiator

    240mm Max.

  • Top fans

    3 x 120mm Max.

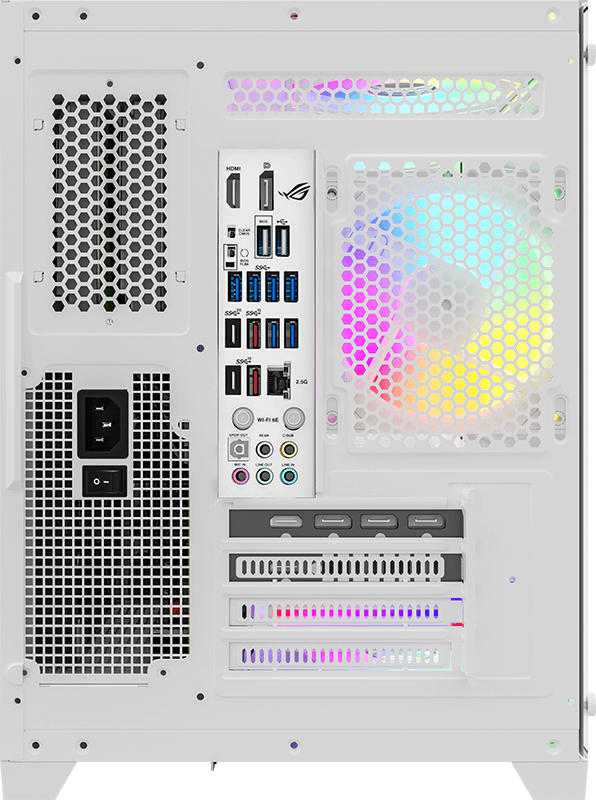

  • Rear fan

    1 x 120mm Max

    1 x 120mm Cosmic Fans Included

  • Bottom fans

    3 x 120mm Max.

  • Right Side fans

    2 x 120mm Max.

  • Net weight

    4.78 kg

  • Gross weight

    5.82 kg

  • EAN

    Crystal Z5TG Black: 4711401660019

    Crystal Z5TG White: 4711401660026
