Crystal Z2 | Z2 Plus
Enjoy a breathtaking panoramic view with the Crystal Z2 and Z2 Plus series. Designed with full tempered glass front and side panels, they offer a clear display of your hardware in a sleek, modern form. The Z2 Plus adds vibrant lighting options with ARGB and FRGB fan versions to match your style. With optimized airflow, streamlined cable management, and support for high-performance setups, the Crystal Z2 and Z2 Plus are perfect for gamers who value both aesthetics and functionality.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.
Variation

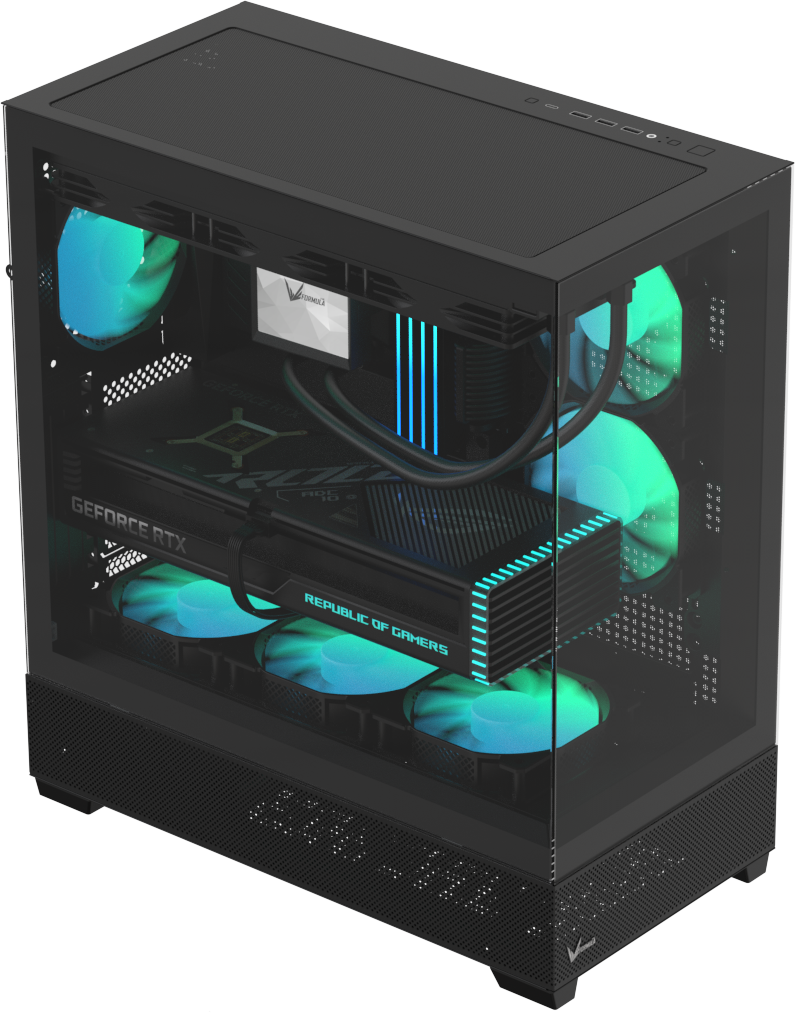

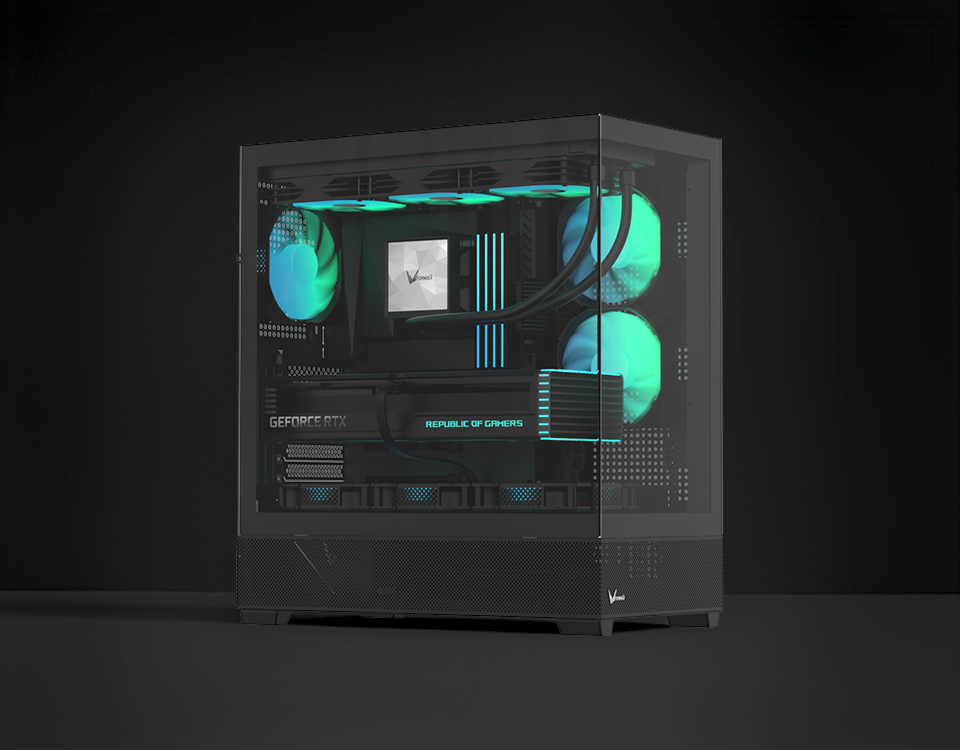

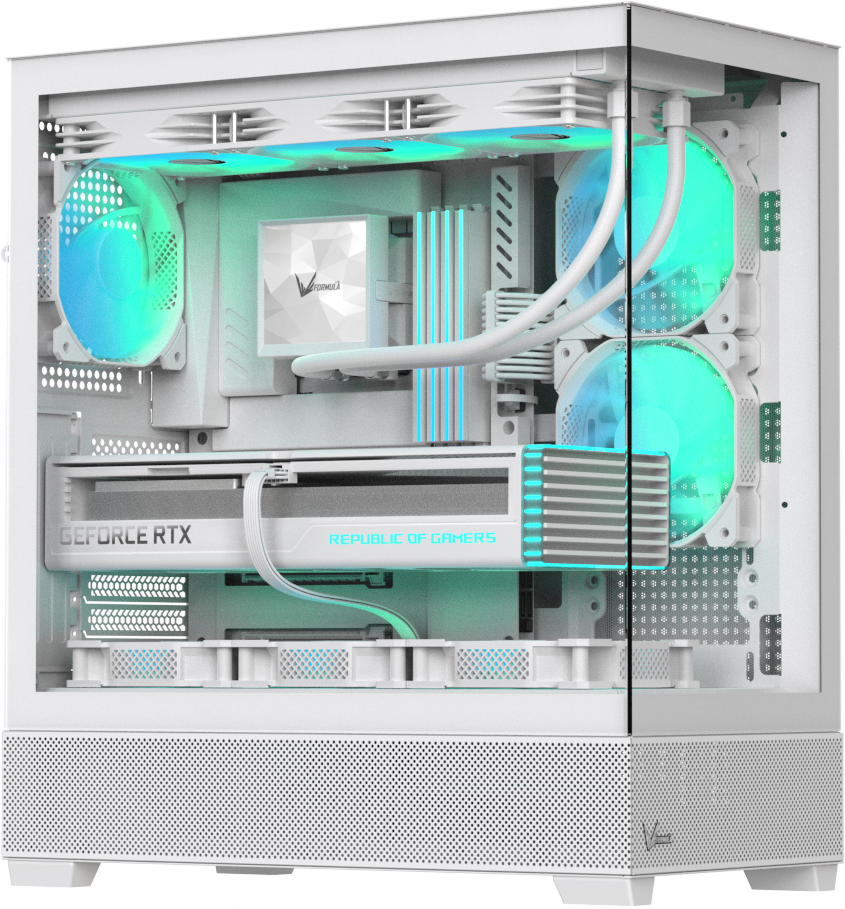

Seamless Glass Showcase
-
-
-
Seamless Glass Showcase

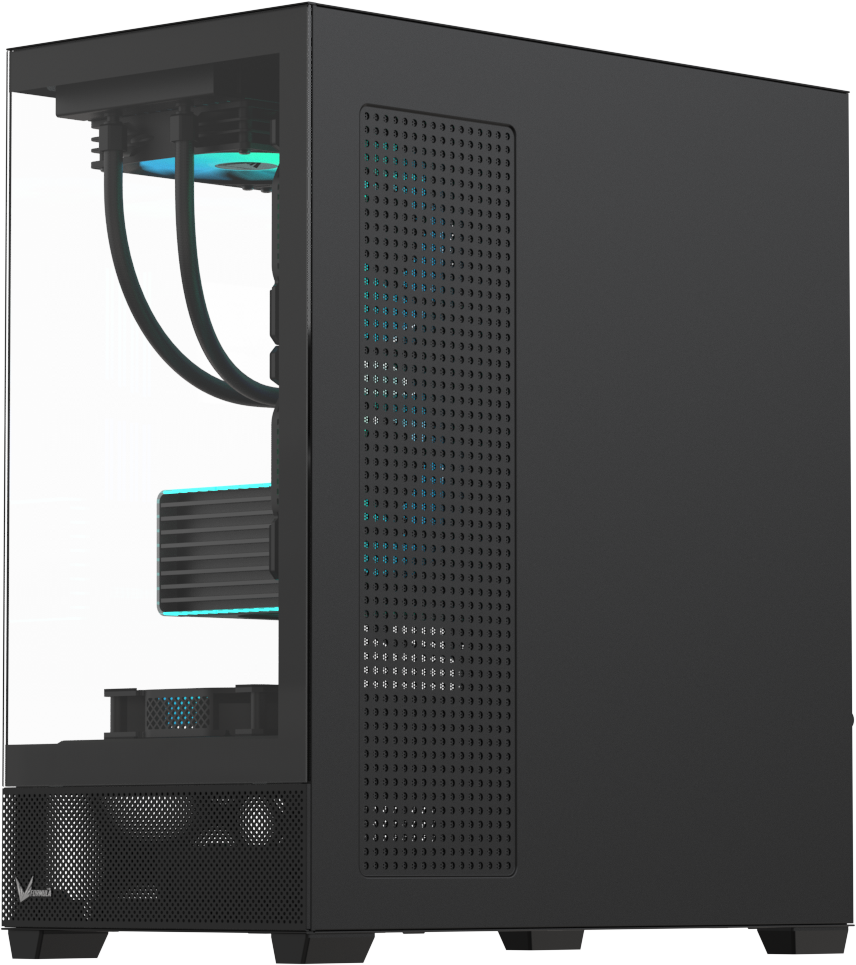

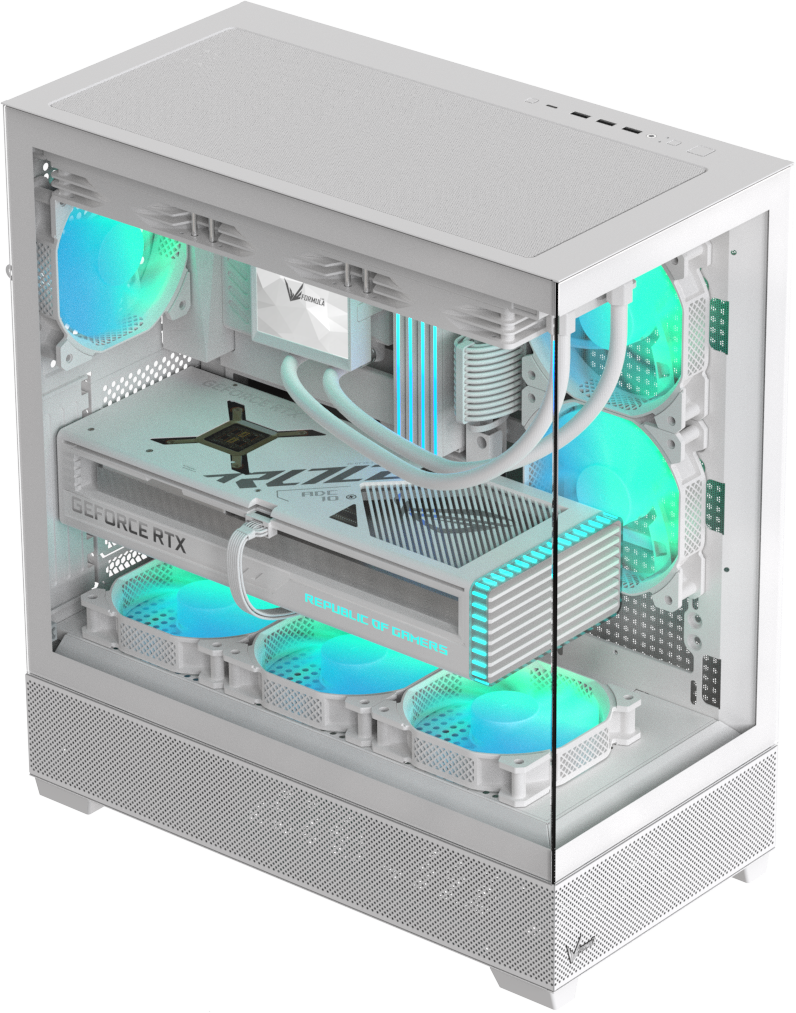

Showcase your build with elegance using panoramic tempered glass front and side panels, offering a wide, unobstructed view of your PC’s interior.
-
-
-
-

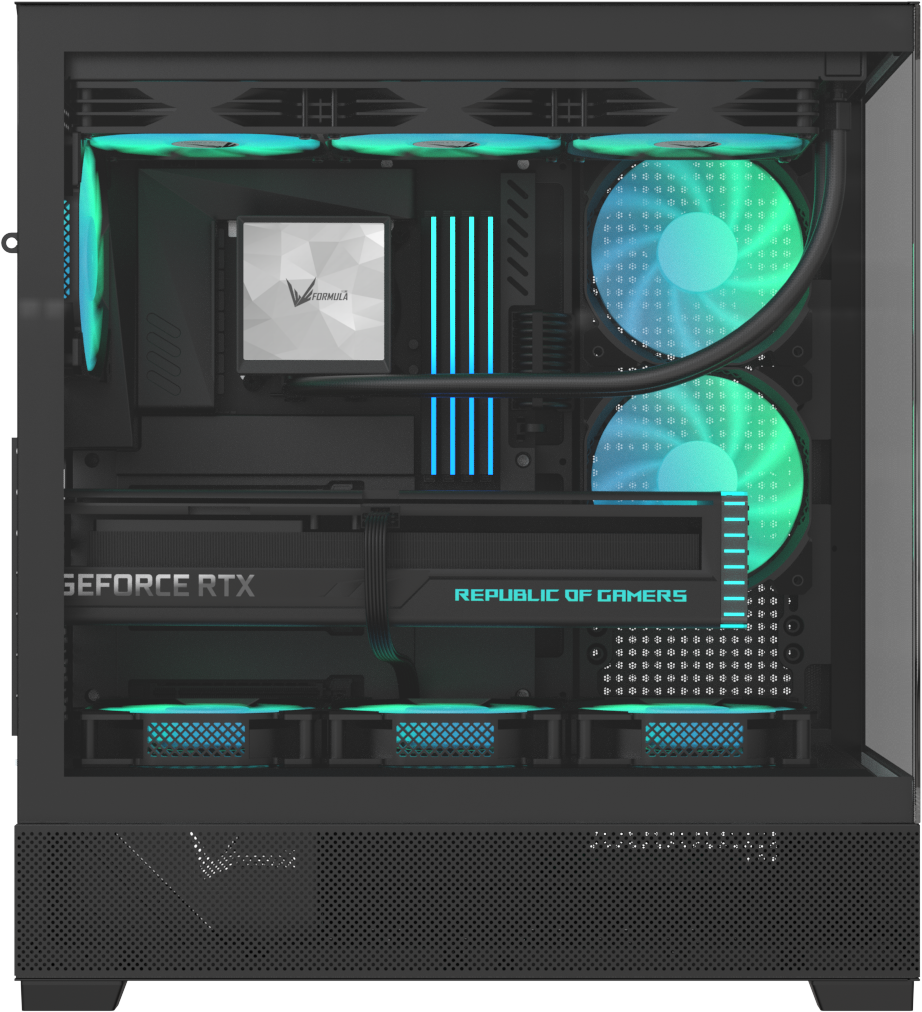

Versatile Cooling Options
Gain mastery over your system’s temperature management using the Crystal Z2 / Crystal Z2 Plus series.
It accommodates up to 9 fans, enabling you to fine-tune your cooling performance.

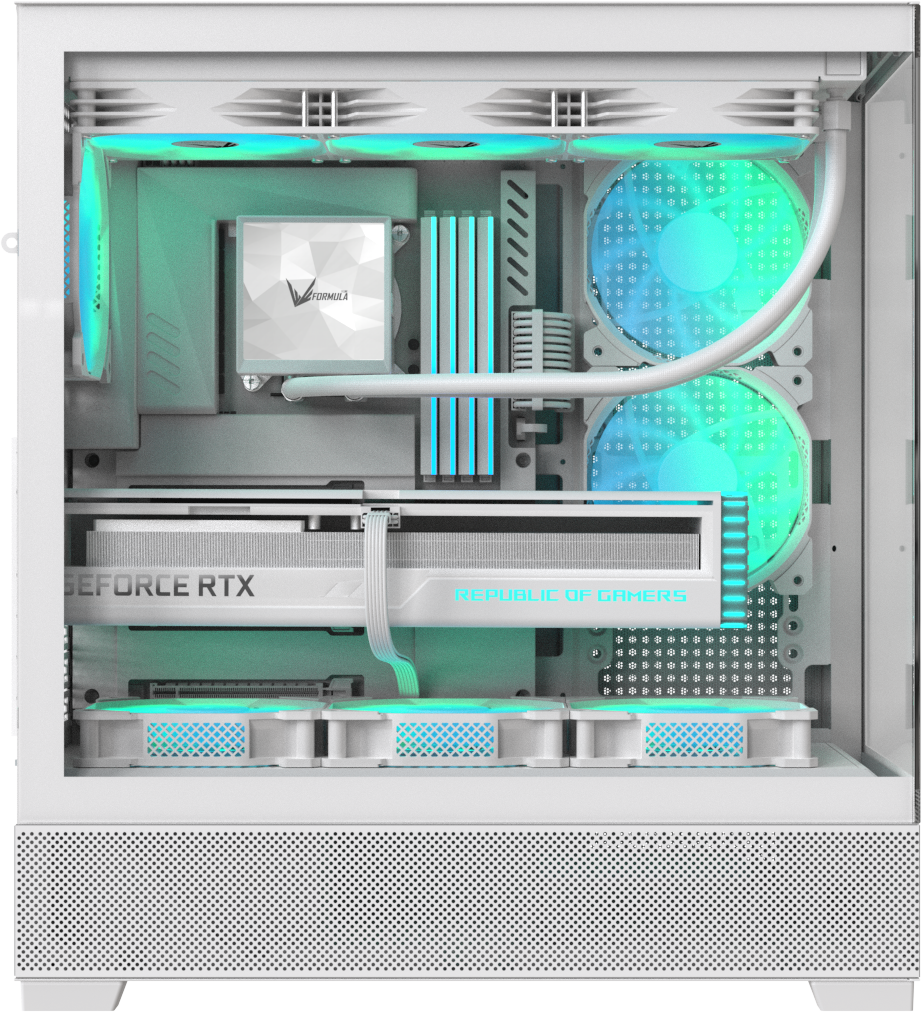

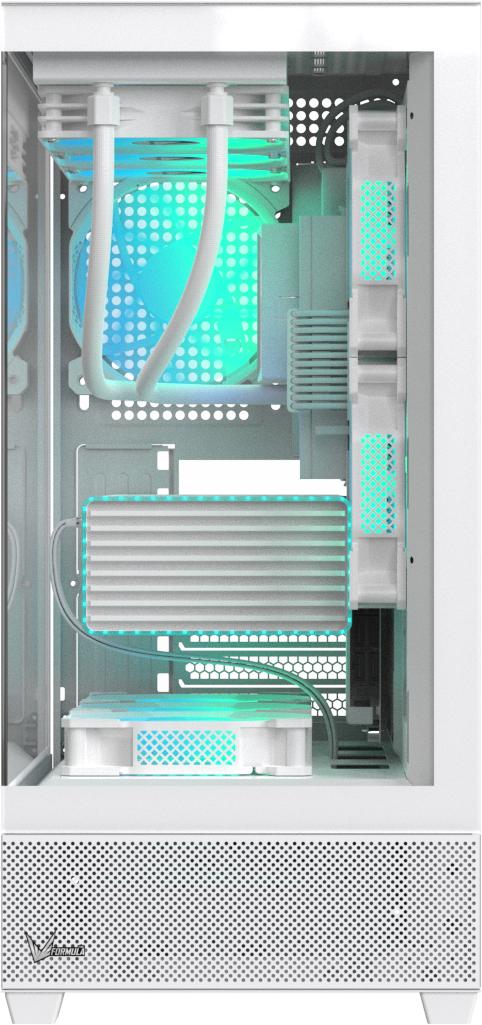

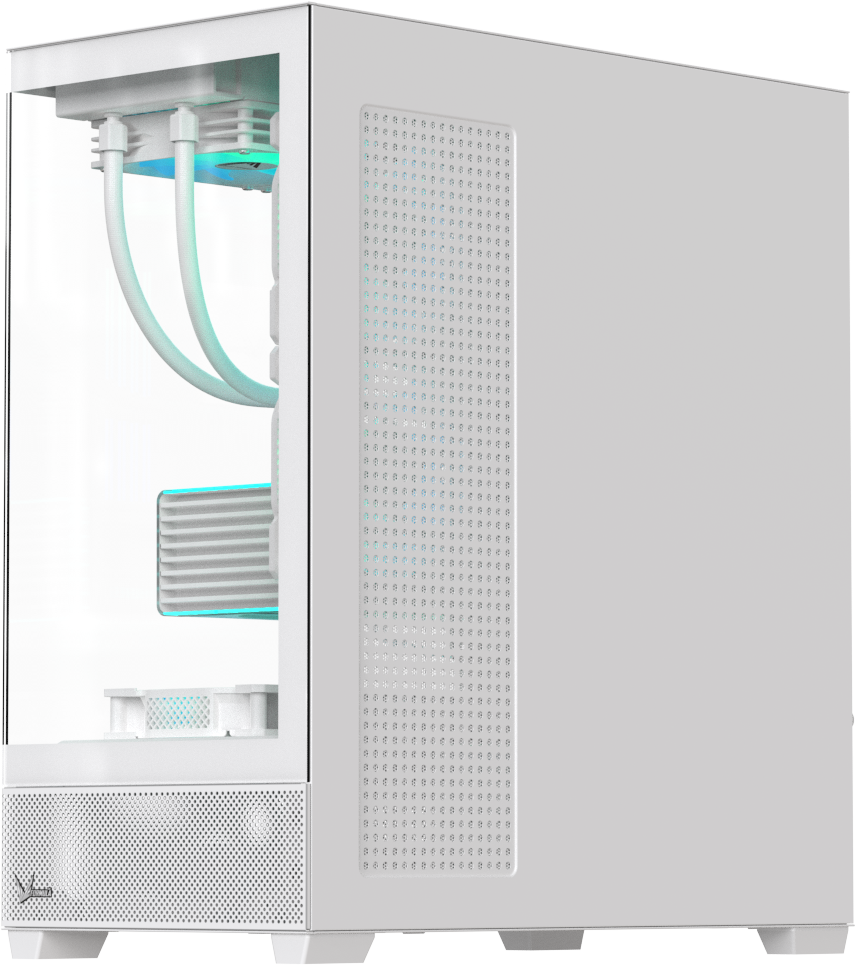

The case includes side panel air vents, ensuring effective airflow and circulation, while the fans on the bottom panel offer targeted cooling for your GPU.
-
-
-
-

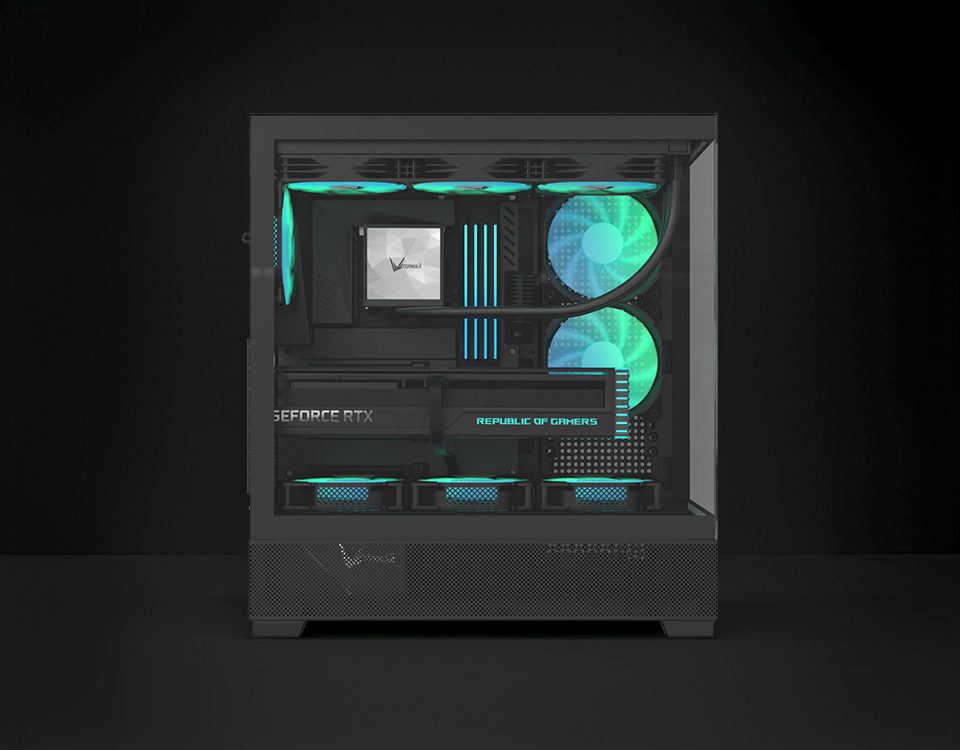

Vibrant Lighting Options
The Crystal Z2 Plus is available with Cosmic 12 ARPW fans for customizable lighting effects or Cosmic 12 FR fans for a fixed, radiant glow.
-
-
-
-

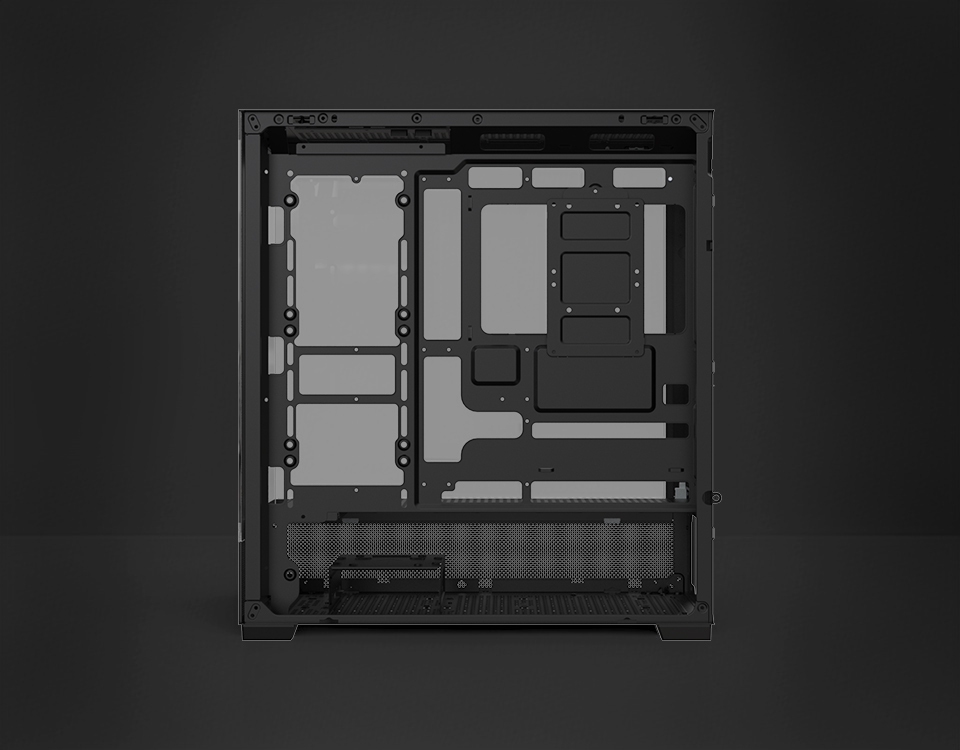

Dual Chamber Design

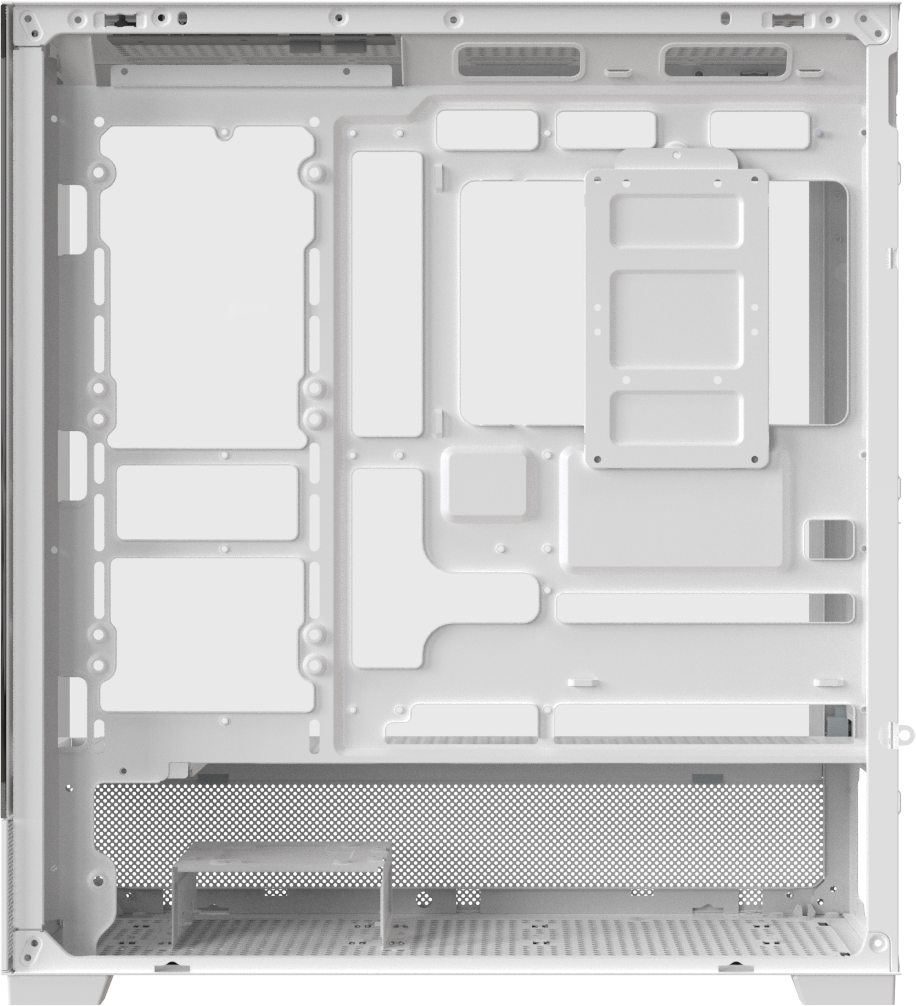

Thanks to the dual chamber design of the Crystal Z2 / Crystal Z2 Plus series, managing your cables is a breeze.
Experience enhanced airflow and a tidy, uncluttered interior that maximizes performance. The internal cable management offers plenty of room to efficiently route and conceal your cables.
-
-
-
-
Compatibility and Expandability
Crystal Z2 / Crystal Z2 Plus series is versatile, accommodating ATX, Micro-ATX, and Mini-ITX motherboards, ensuring compatibility for your build.
It can handle CPU coolers up to 170mm in height and high-end graphics cards up to 405mm, enabling you to harness the full power of your hardware.
-
-
-
-

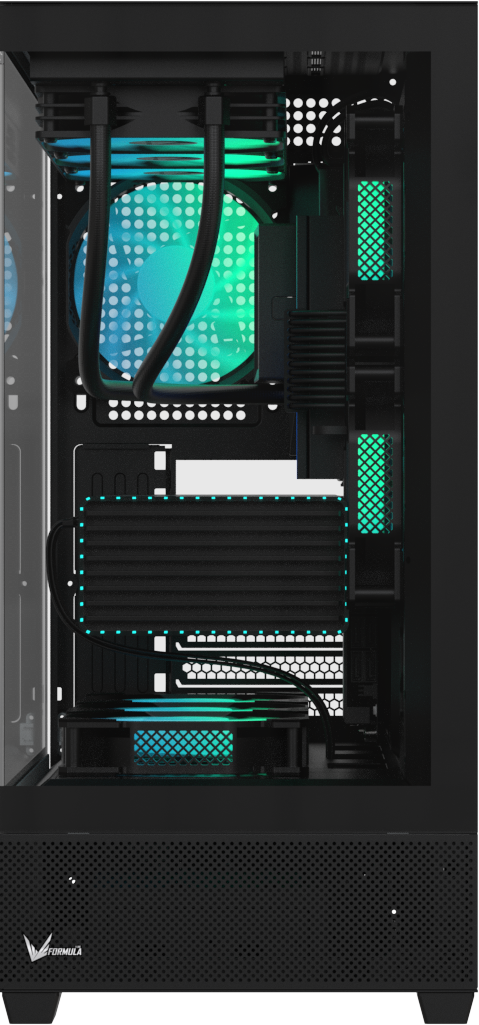

Compatible with Back-Connect Motherboards
The Crystal Z2 / Crystal Z2 Plus series supports back-connect motherboards, enabling seamless cable management by routing connections behind components.
This design ensures a cleaner look, improved airflow, and easier assembly.
-
Convenient Access To Your Media
Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring one USB 2.0, one USB 3.0 and one Type C ports, along with HD audio, you’ll have all your essential connections readily accessible.
Crystal Z2
-
Model
Crystal Z2
-
Case Type
Mid Tower
-
Color
Black | White
-
Body Material
SPCC
-
Steel Thickness
0.5mm
-
Motherboards
E-ATX / ATX / MATX / ITX
-
Case Dimensions
430 x 225 x 480mm
-
3.5” Drive Bays
2
-
2.5” Drive Bays
1
-
Expansion Slots
7
-
GPU Clearance
405mm
-
CPU Cooler Clearance
165mm
-
Top Fans
3 x 120 or 3 x 140mm Max.
-
Rear Fan
1 x 120mm Max.
-
Bottom Fans
3 x 120mm Max.
-
Right Side Fans
3 x 120mm Max.
-
Top radiator
360mm Max.
-
Rear radiator
120mm Max.
-
I/O Ports
Type C x 1, USB3.0 x 1, USB2.0 x 2, HD Audio
-
Power Supply
ATX
-
Net weight
kg
-
Gross weight
kg
-
EAN
Cyrstal Z2 Black: 4711401663270
Cyrstal Z2 White: 4711401663300
Crystal Z2 Plus FR
-
Model
Crystal Z2 Plus FR
-
Case Type
Mid Tower
-
Color
Black | White
-
Body Material
SPCC
-
Steel Thickness
0.5mm
-
Motherboards
E-ATX / ATX / MATX / ITX
-
Case Dimensions
430 x 225 x 480mm
-
3.5” Drive Bays
2
-
2.5” Drive Bays
1
-
Expansion Slots
7
-
GPU Clearance
405mm
-
CPU Cooler Clearance
165mm
-
Top Fans
3 x 120 or 3 x 140mm Max.
-
Rear Fan
1 x 120mm Max.
1 x Cosmic 12BK/WH FR Included
-
Bottom Fans
3 x 120mm Max.
-
Right Side Fans
3 x 120mm Max.
3 x Cosmic 12BK/WH FR Included
-
Top radiator
360mm Max.
-
Rear radiator
120mm Max.
-
I/O Ports
Type C x 1, USB3.0 x 1, USB2.0 x 2, HD Audio
-
Power Supply
ATX
-
Net weight
kg
-
Gross weight
kg
-
EAN
Cyrstal Z2 Plus Black FR: 4711401663287
Cyrstal Z2 Plus White FR: 4711401663317
Crystal Z2 Plus AR
-
Model
Crystal Z2 Plus AR
-
Case Type
Mid Tower
-
Color
Black | White
-
Body Material
SPCC
-
Steel Thickness
0.5mm
-
Motherboards
E-ATX / ATX / MATX / ITX
-
Case Dimensions
430 x 225 x 480mm
-
3.5” Drive Bays
2
-
2.5” Drive Bays
1
-
Expansion Slots
7
-
GPU Clearance
405mm
-
CPU Cooler Clearance
165mm
-
Top Fans
3 x 120 or 3 x 140mm Max.
-
Rear Fan
1 x 120mm Max.
1 x Cosmic 12BK/WH ARPW Included
-
Bottom Fans
3 x 120mm Max.
-
Right Side Fans
3 x 120mm Max.
3 x Cosmic 12BK/WH ARPW Included
-
Top radiator
360mm Max.
-
Rear radiator
120mm Max.
-
I/O Ports
Type C x 1, USB3.0 x 1, USB2.0 x 2, HD Audio
-
Power Supply
ATX
-
Net weight
kg
-
Gross weight
kg
-
EAN
Cyrstal Z2 Plus Black FR: 4711401663287
Cyrstal Z2 Plus White FR: 4711401663317
