Crystal Z1M | Z1M Plus

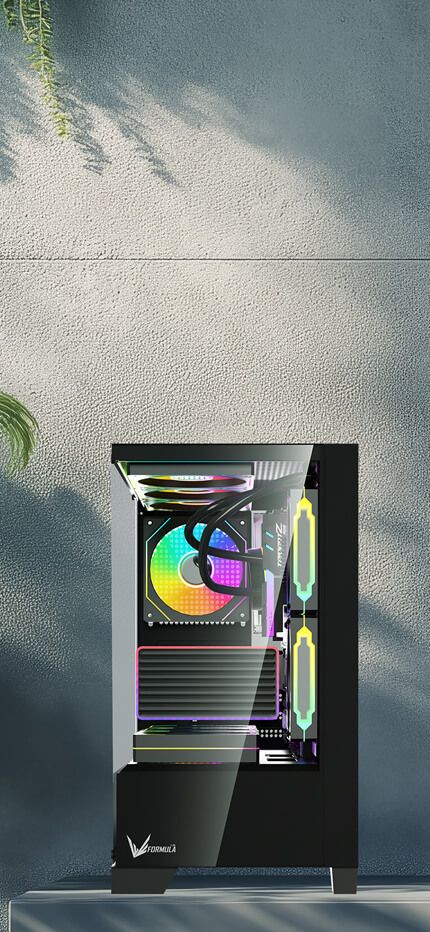

Enjoy an impressive panoramic view with the CRYSTAL Z1M.
Its exceptional design lets you see your hardware through full tempered glass front and side panels.
With an emphasis on sleek aesthetics, enhanced cooling structure, and effortless cable management, the Crystal Z1M is the ideal pick for gamers who want a blend of style and performance.
Compatible with Back-Connect Motherboards.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.
Warranty periods may vary by region; please inquire with your point of purchase for details.
270° Panoramic Glass Panels
-
270° Panoramic Glass Panels
Cooling fans have been relocated to the backplate, allowing the full tempered glass front and side panels to beautifully showcase the core of your rig. Present your high-performance components and vibrant RGB lighting in all their splendor.
-
Compatible With Back Connect Motherboards
Crystal Z1M supports back-connect motherboards, enabling seamless cable management by routing connections behind components. This design ensures a cleaner look, improved airflow, and easier assembly.
Dual Chamber Design
Thanks to the dual chamber design of the Crystal Z1M, managing your cables is a breeze.
Experience enhanced airflow and a tidy, uncluttered interior that maximizes performance. The internal cable management offers plenty of room to efficiently route and conceal your cables.
Compatibility And Expandability
Crystal Z1M is versatile, accommodating Micro-ATX, and mini-ITX motherboards, ensuring compatibility for your build. It can handle CPU coolers up to 165mm in
height and high-end graphics cards up to 380mm, enabling you to harness the full power of your hardware.
-
Versatile Cooling Options
Gain mastery over your system’s temperature management using the Crystal Z1M.
It accommodates up to 9 fans, enabling you to fine-tune your cooling performance.
The case includes side panel air vents, ensuring effective airflow and circulation, while the fans on the bottom panel offer targeted F cooling for your GPU.
-
Warranty Coverage
2-Year Limited Warranty
Warranty period may vary by region.
Please consult your place of purchase for details.
Modern Front I/O Connectivity
It features a front I/O panel with USB 3.0, USB Type-C (Plus Version), and HD audio ports, providing easy access to modern devices and peripherals.
Crystal Z1M
Model
Crystal Z1M
Color
Black
Case Type
Mini Tower
Steel Thickness
0.55mm
Body Material
SPCC
Motherboards
micro ATX / mini-ITX
Case Dimensions
390 x 229 x 390mm
3.5” Drive Bays
1
2.5” Drive Bays
1
Expansion Slots
5
GPU Clearance
380mm Max.
CPU Cooler Clearance
165mm Max.
I/O Ports
Type-C x 1, USB3.0 x 1, HD Audio
Top radiator
240mm Max.
Top fans
3 x 120mm Max.
Rear fan
1 x 120mm Max
Bottom Fans
3 x 120mm Max.
Right side fans
2 x 120mm Max.
Net weight
4.40 kg
Gross weight
5.40 kg
EAN
Crystal Z1M Black: 4711401660651
Crystal Z1M FR
Model
Crystal Z1M FR
Color
Black
Case Type
Mini Tower
Steel Thickness
0.55mm
Body Material
SPCC
Motherboards
micro ATX / mini-ITX
Case Dimensions
390 x 229 x 390mm
3.5” Drive Bays
1
2.5” Drive Bays
1
Expansion Slots
5
GPU Clearance
380mm Max.
CPU Cooler Clearance
165mm Max.
I/O Ports
Type-C x 1, USB3.0 x 1, HD Audio
Top radiator
240mm Max.
Top fans
3 x 120mm Max.
Rear fan
1 x Cosmic 12BK FR
Bottom Fans
3 x 120mm Max.
Right side fans
2 x Cosmic 12BK FR
Net weight
4.90 kg
Gross weight
5.84 kg
EAN
Crystal Z1M Plus Black FR: 4711401663256
Crystal Z1M AR
Model
Crystal Z1M AR
Color
Black
Case Type
Mini Tower
Steel Thickness
0.55mm
Body Material
SPCC
Motherboards
micro ATX / mini-ITX
Case Dimensions
390 x 229 x 390mm
3.5” Drive Bays
1
2.5” Drive Bays
1
Expansion Slots
5
GPU Clearance
380mm Max.
CPU Cooler Clearance
165mm Max.
I/O Ports
Type-C x 1, USB3.0 x 1, HD Audio
Top radiator
240mm Max.
Top fans
3 x 120mm Max.
Rear fan
1 x Cosmic 12BK ARPW
Bottom Fans
3 x 120mm Max.
Right side fans
2 x Cosmic 12BK ARPW
Net weight
4.90 kg
Gross weight
5.84 kg
EAN
Crystal Z1M Plus Black FR: 4711401663256
