Crystal Z1M

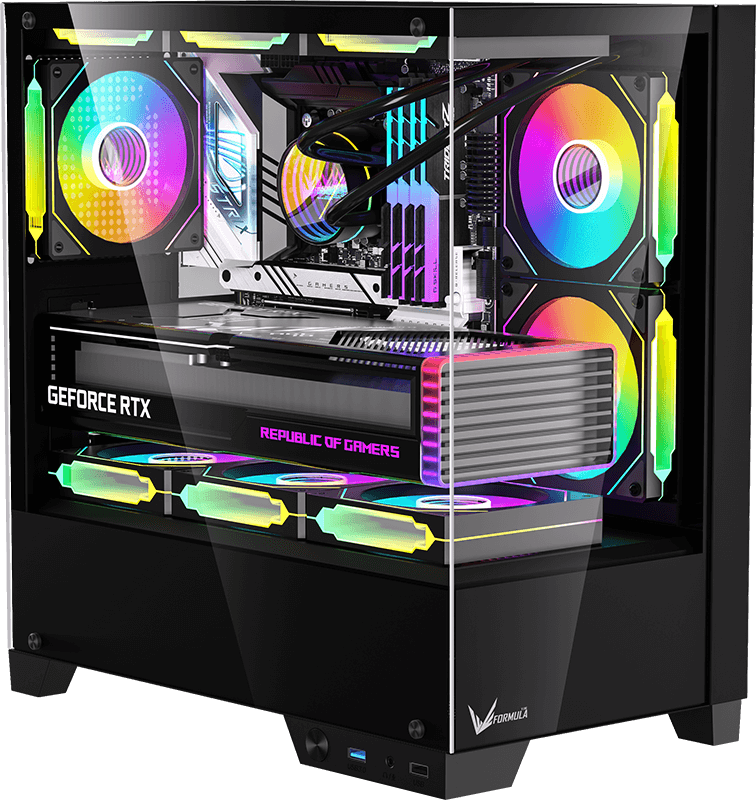

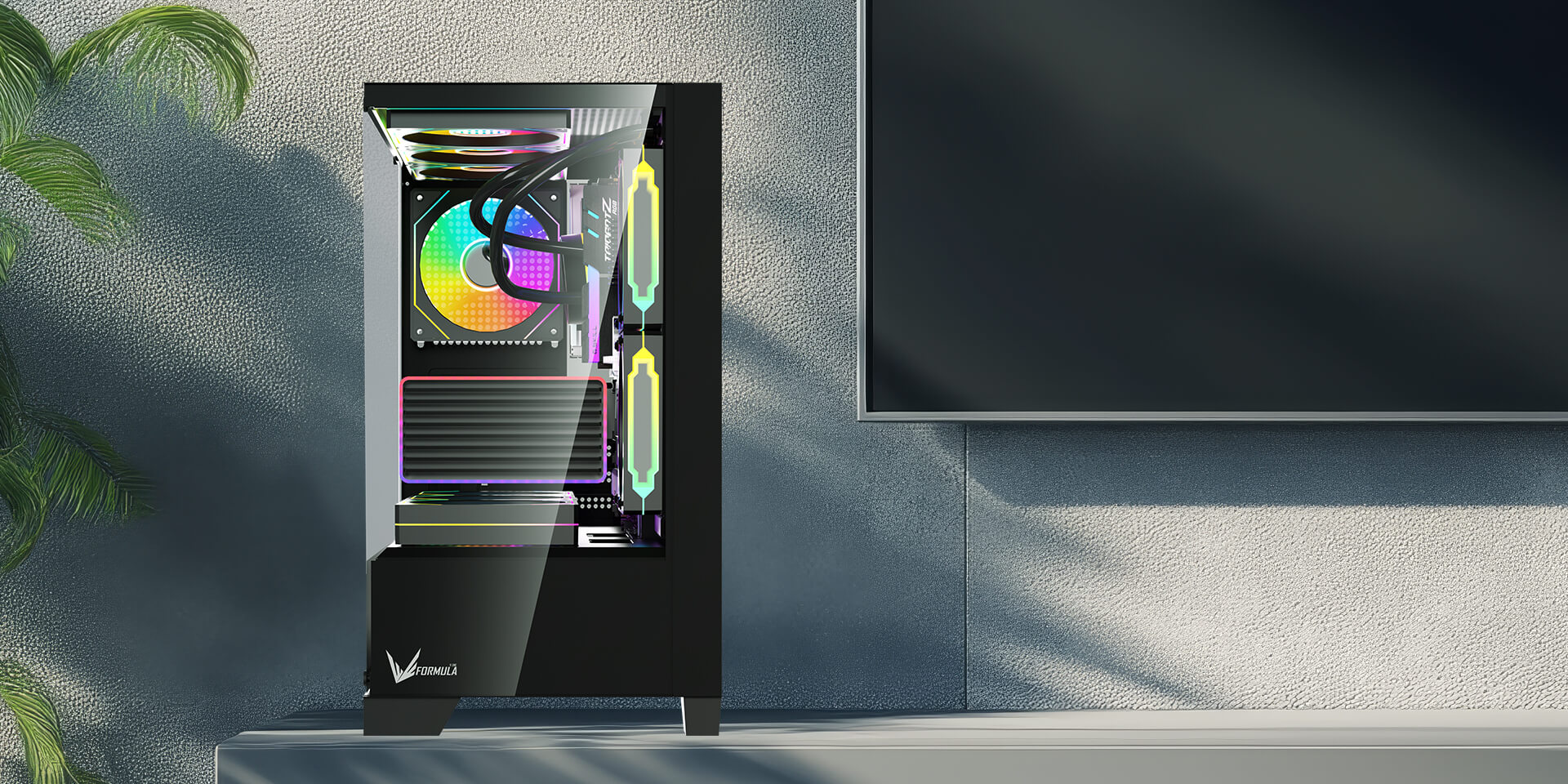

Enjoy an impressive panoramic view with the CRYSTAL Z1M. Its exceptional design lets you see your hardware through full tempered glass front and side panels. With an emphasis on sleek aesthetics, enhanced cooling structure, and effortless cable management, the Crystal Z1M is the ideal pick for gamers who want a blend of style and performance. Compatible with Back-Connect Motherboards.
The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

Z1M-1920x960

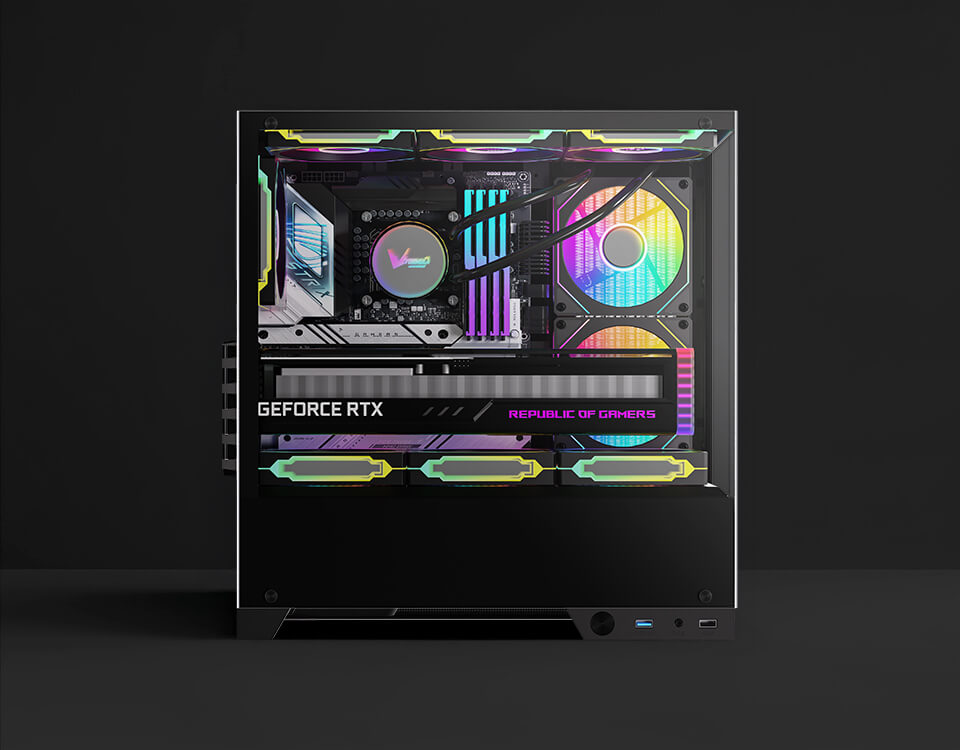

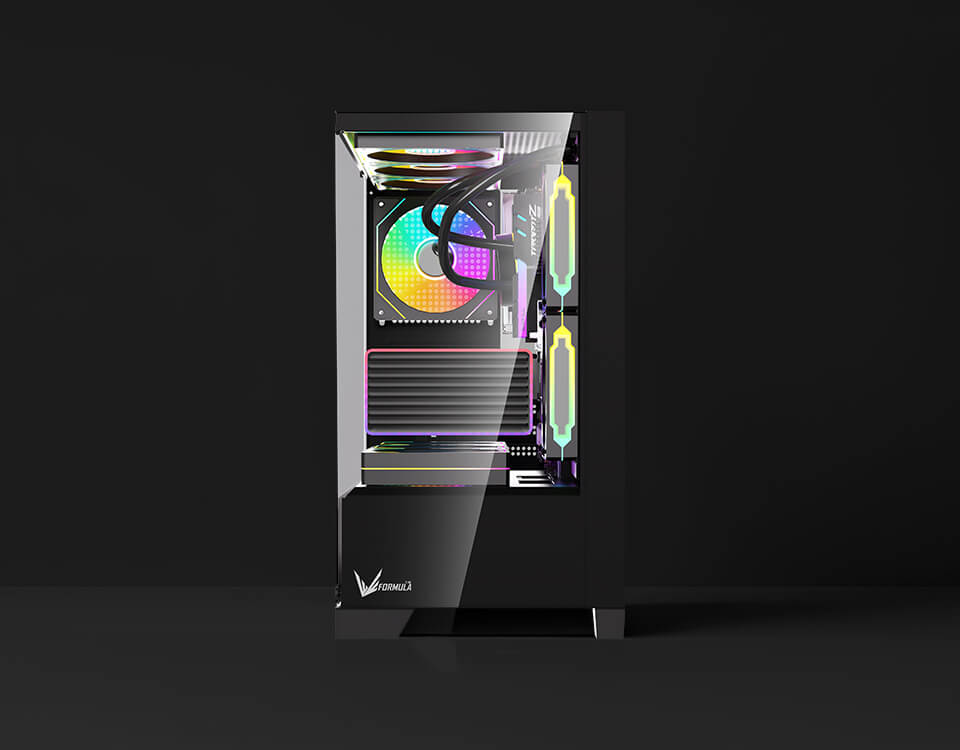

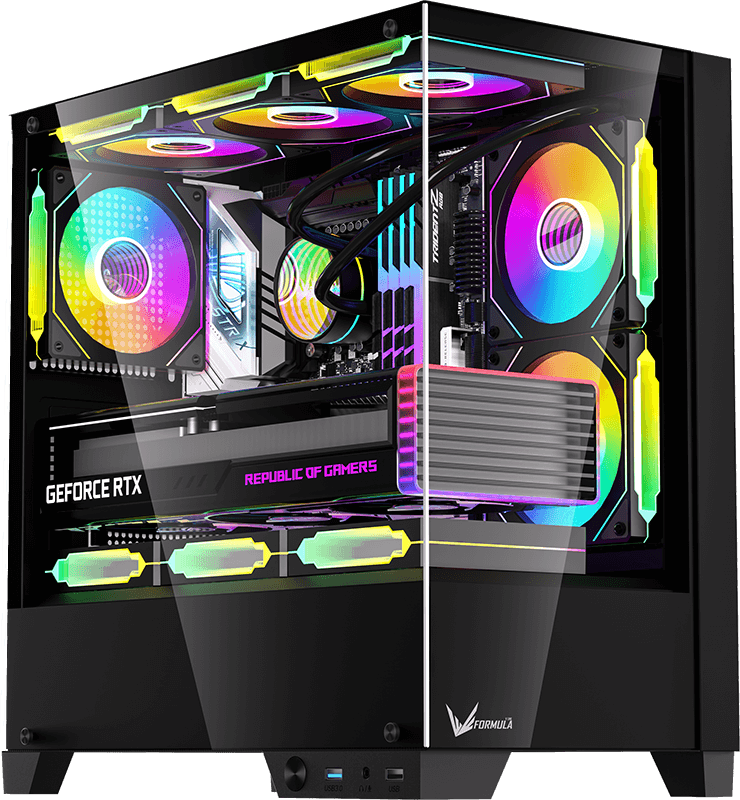

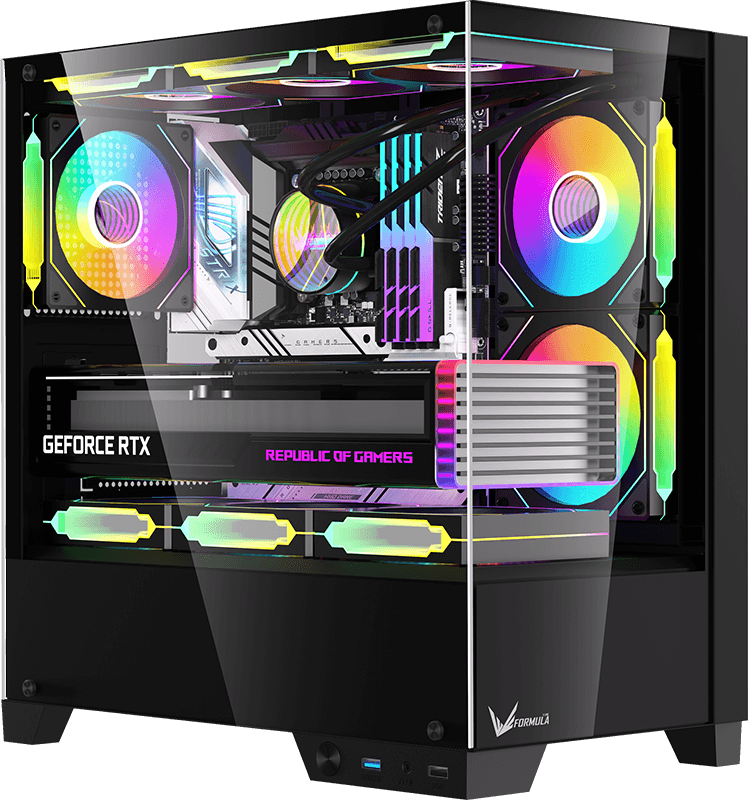

270° Panoramic Glass Panels

    • 270° Panoramic Glass Panels

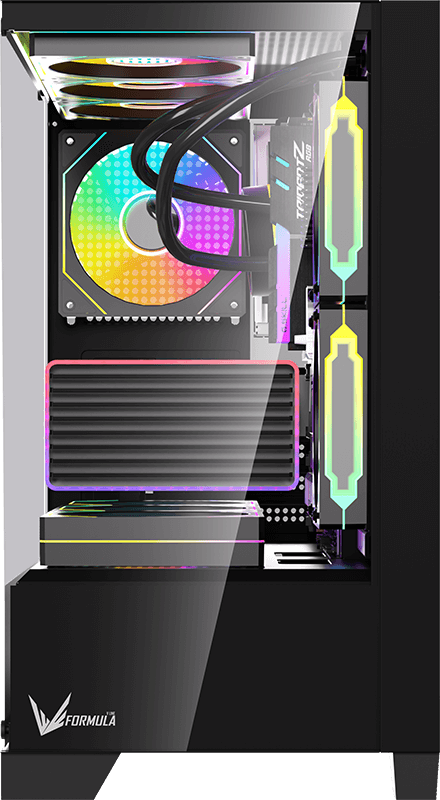

      Cooling fans have been relocated to the backplate, allowing the full tempered glass front and side panels to beautifully showcase the core of your rig. Present your high-performance components and vibrant RGB lighting in all their splendor.

    • Compatible With Back Connect Motherboards

      Crystal Z1M supports back-connect motherboards, enabling seamless cable management by routing connections behind components. This design ensures a cleaner look, improved airflow, and easier assembly.

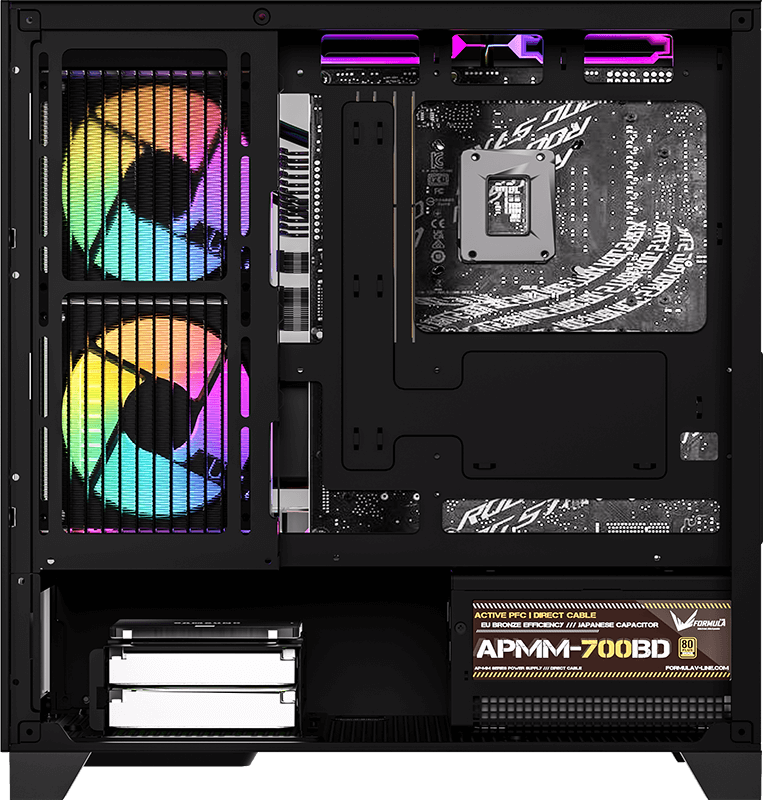

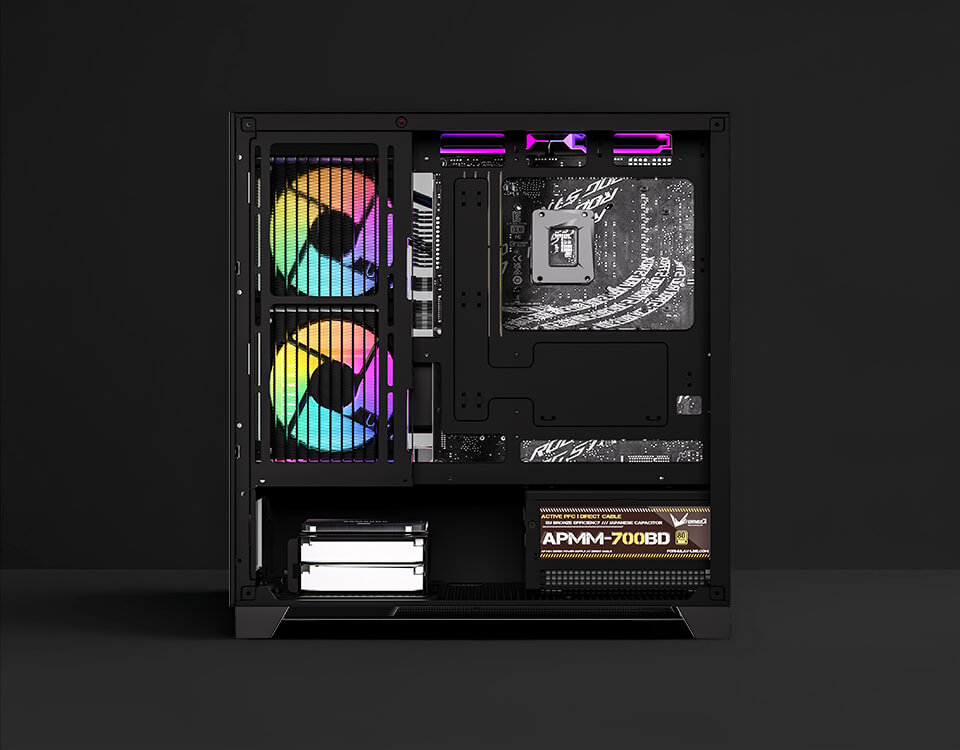

    • Dual Chamber Design

      Thanks to the dual chamber design of the Crystal Z1M, managing your cables is a breeze.
      Experience enhanced airflow and a tidy, uncluttered interior that maximizes performance. The internal cable management offers plenty of room to efficiently route and conceal your cables.

Compatibility And Expandability

Crystal Z1M is versatile, accommodating Micro-ATX, and mini-ITX motherboards, ensuring compatibility for your build. It can handle CPU coolers up to 165mm in
height and high-end graphics cards up to 380mm, enabling you to harness the full power of your hardware.

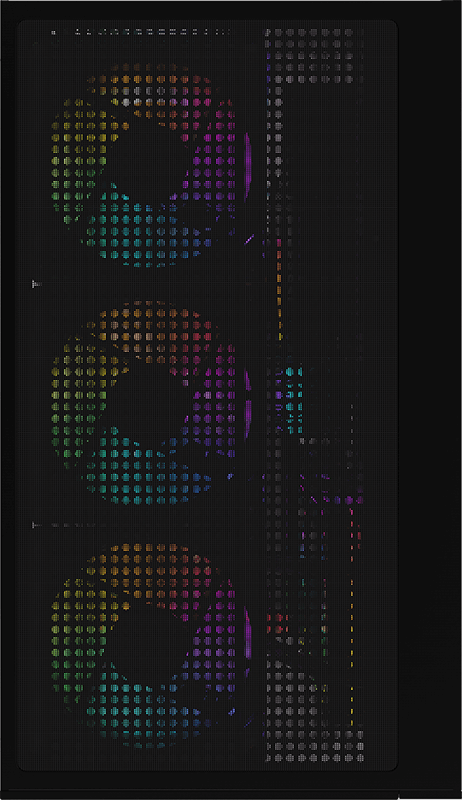

    • Versatile Cooling Options

      Gain mastery over your system’s temperature management using the Crystal Z1M.
      It accommodates up to 9 fans, enabling you to fine-tune your cooling performance.

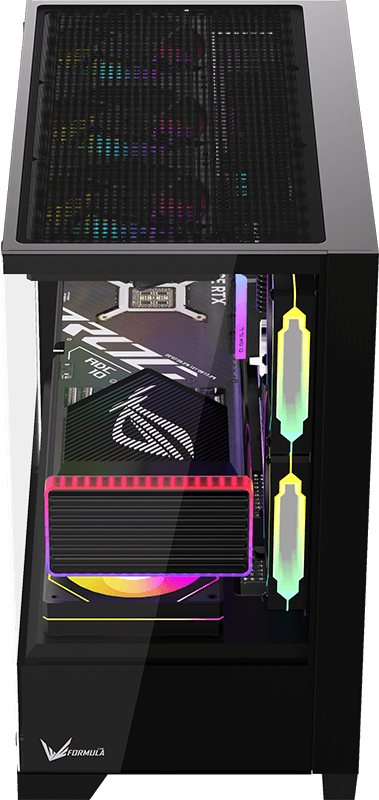

      The case includes side panel air vents, ensuring effective airflow and circulation, while the fans on the bottom panel offer targeted F cooling for your GPU.

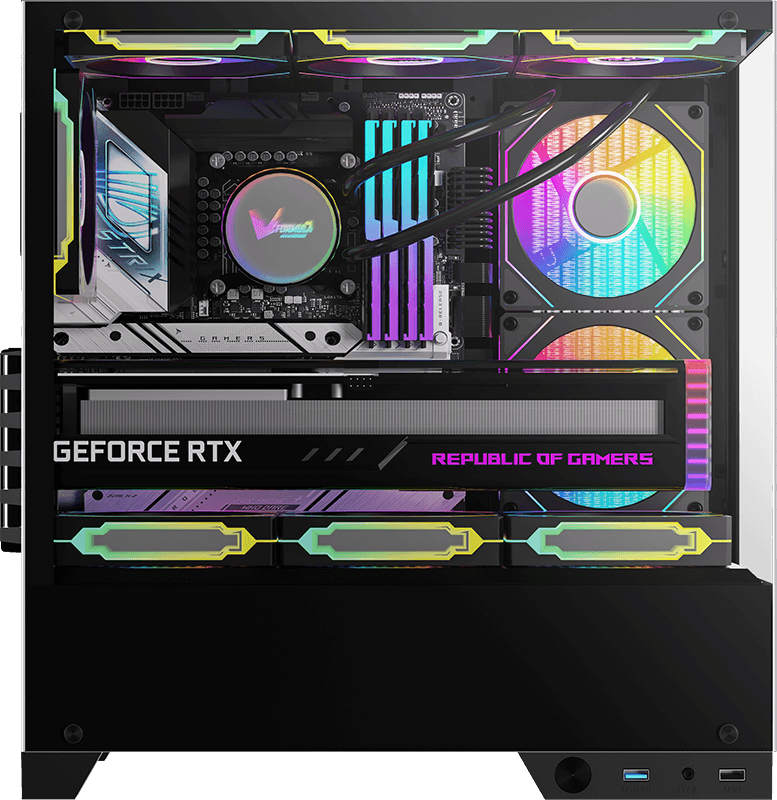

Modern Front I/O Connectivity

It features a front I/O panel with USB 3.0, USB Type-C (Plus Version), and HD audio ports, providing easy access to modern devices and peripherals.

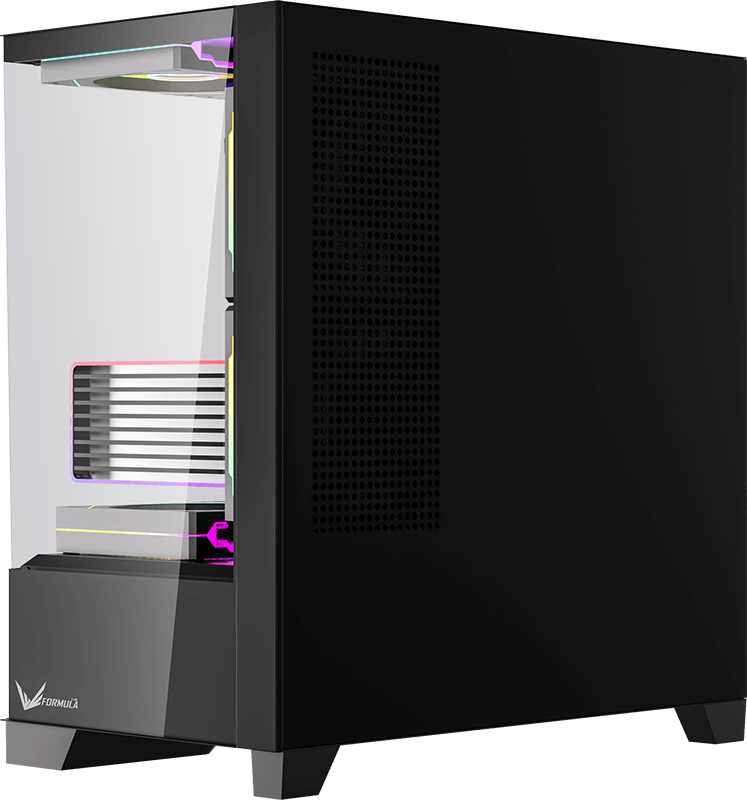

Crystal Z1M Black

  • Model

    Crystal Z1M

  • Color

    Black

  • Case Type

    Mini Tower

  • Steel Thickness

    0.55mm

  • Body Material

    SPCC

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    390 x 229 x 390mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    5

  • GPU Clearance

    380mm Max.

  • CPU Cooler Clearance

    165mm Max.

  • I/O Ports

    1 x USB3.0 | 1 x USB2.0 | HD audio

  • Top radiator

    240mm Max.

  • Top fans

    3 x 120mm Max.

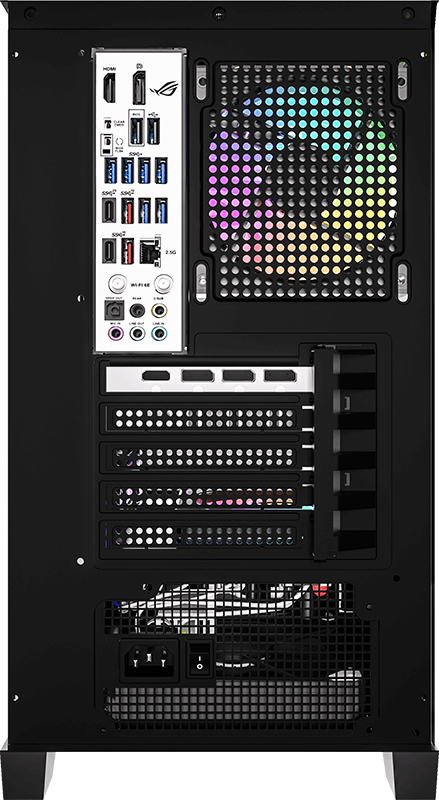

  • Rear fan

    1 x 120mm Max

  • Bottom Fans

    3 x 120mm Max.

  • Right side fans

    2 x 120mm Max.

  • Net weight

    4.40 kg

  • Gross weight

    5.40 kg

  • EAN

    Crystal Z1M Black: 4711401660651
