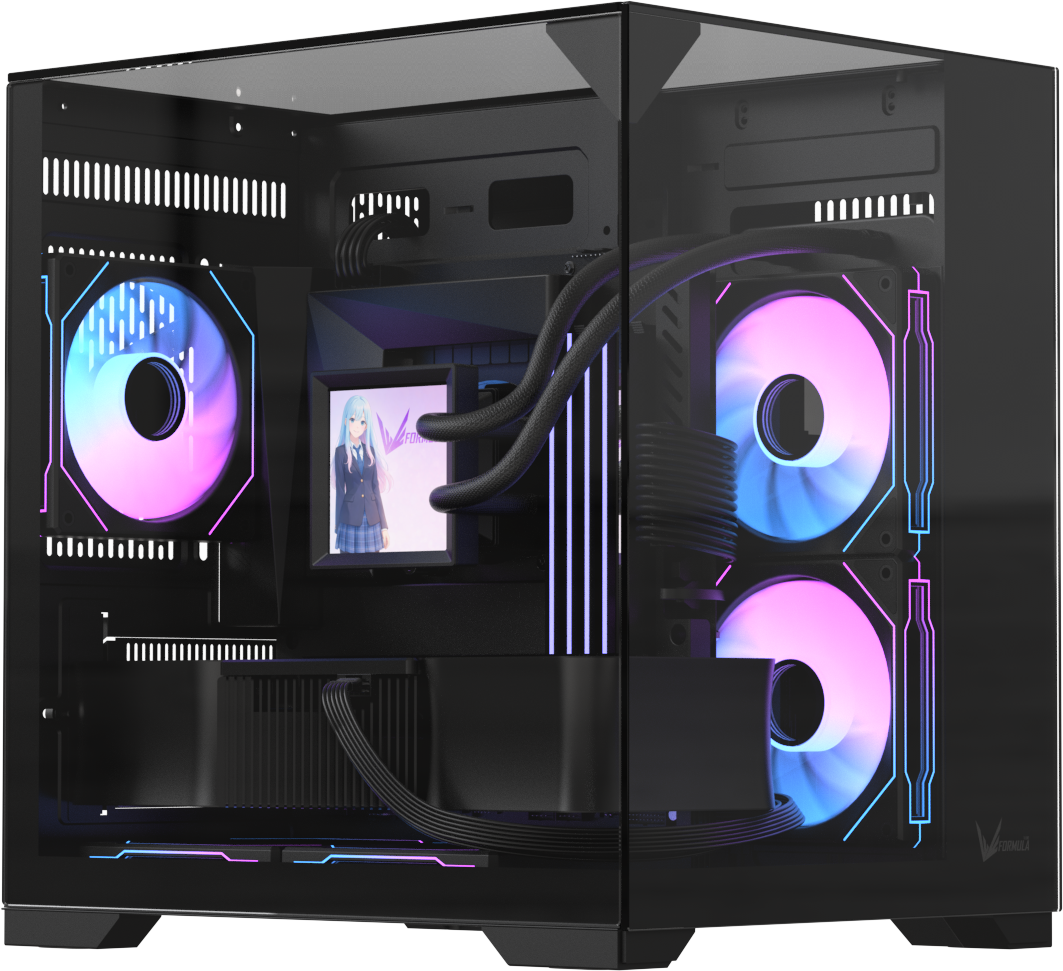

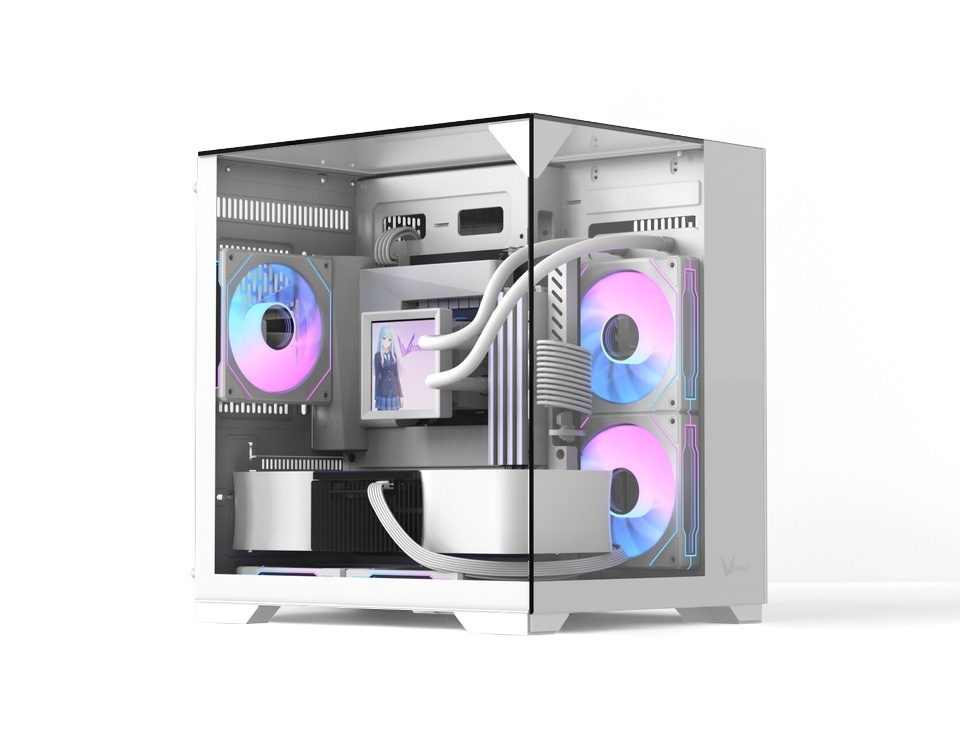

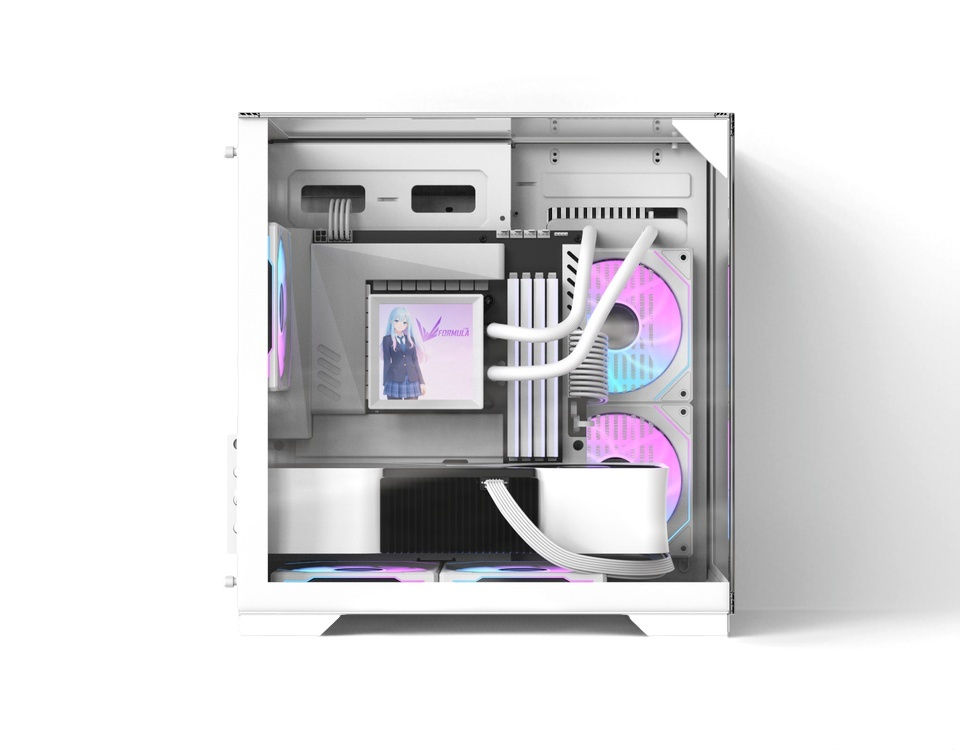

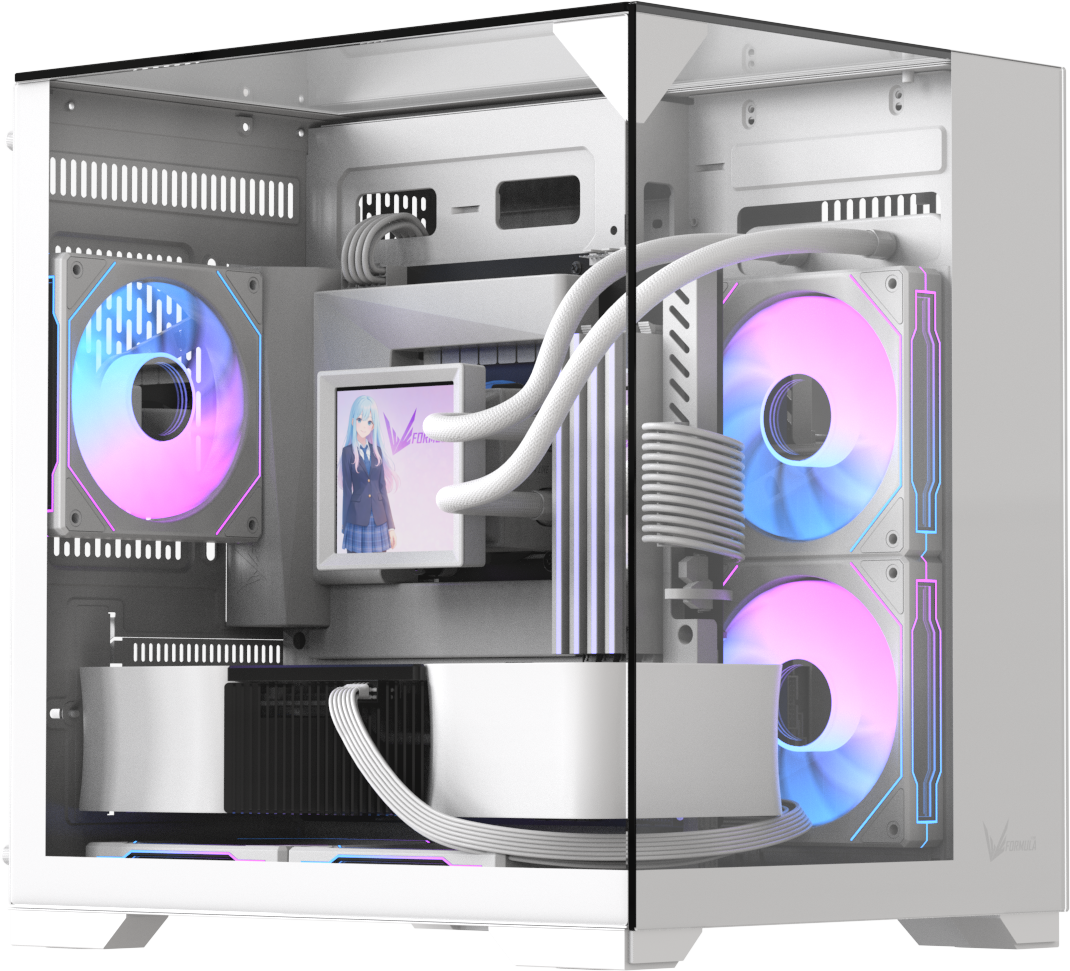

Crystal Z9M V2

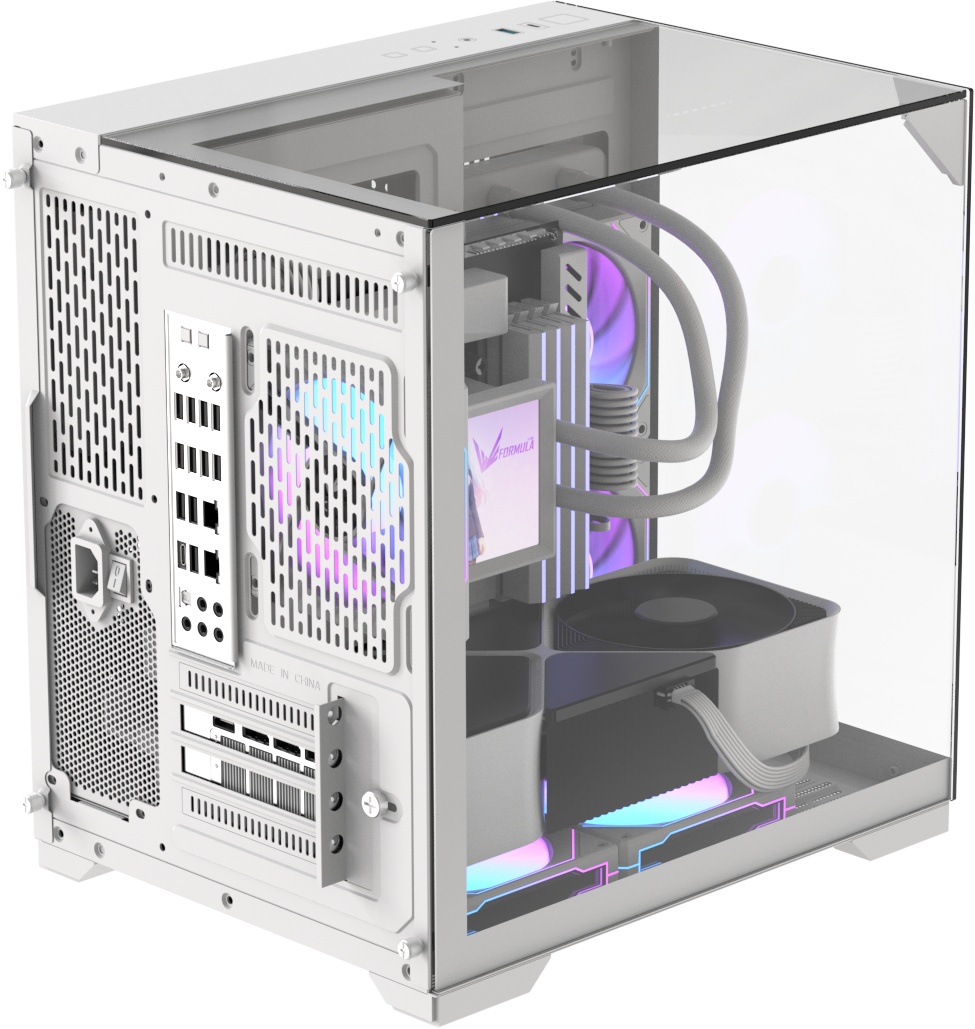

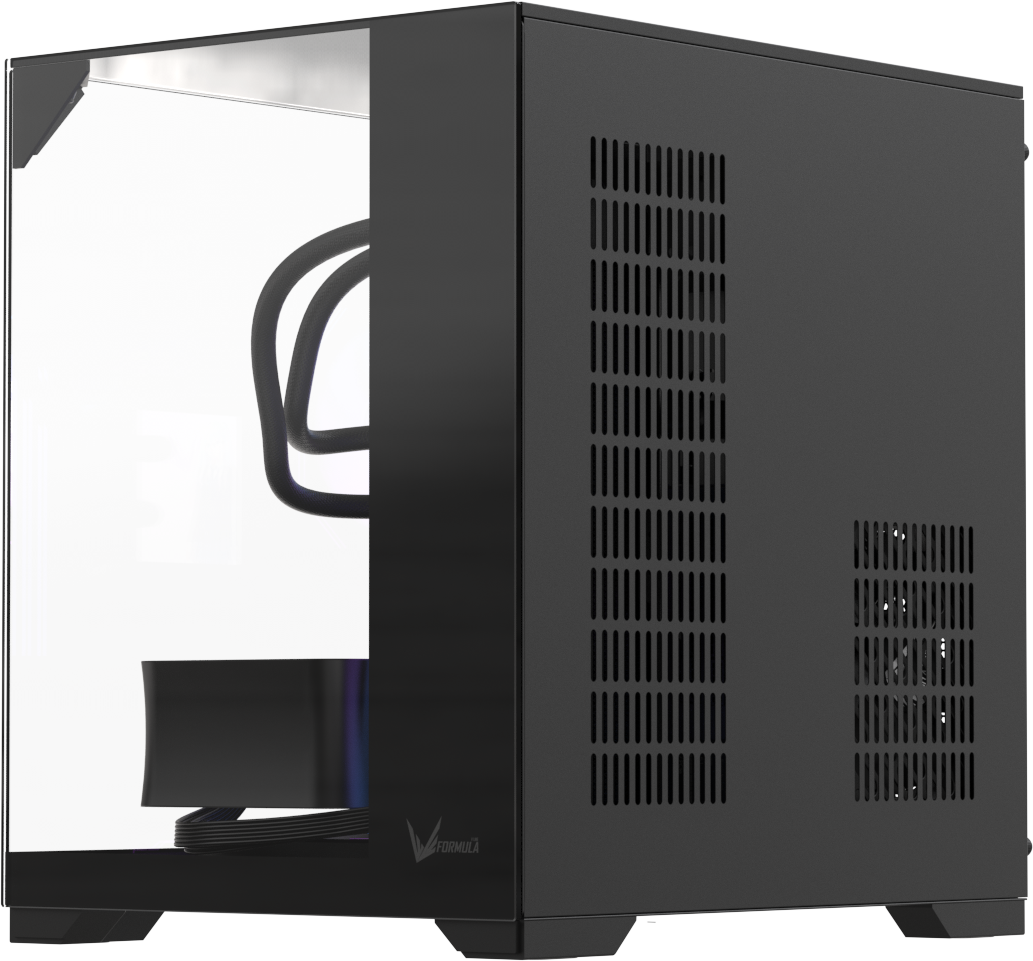

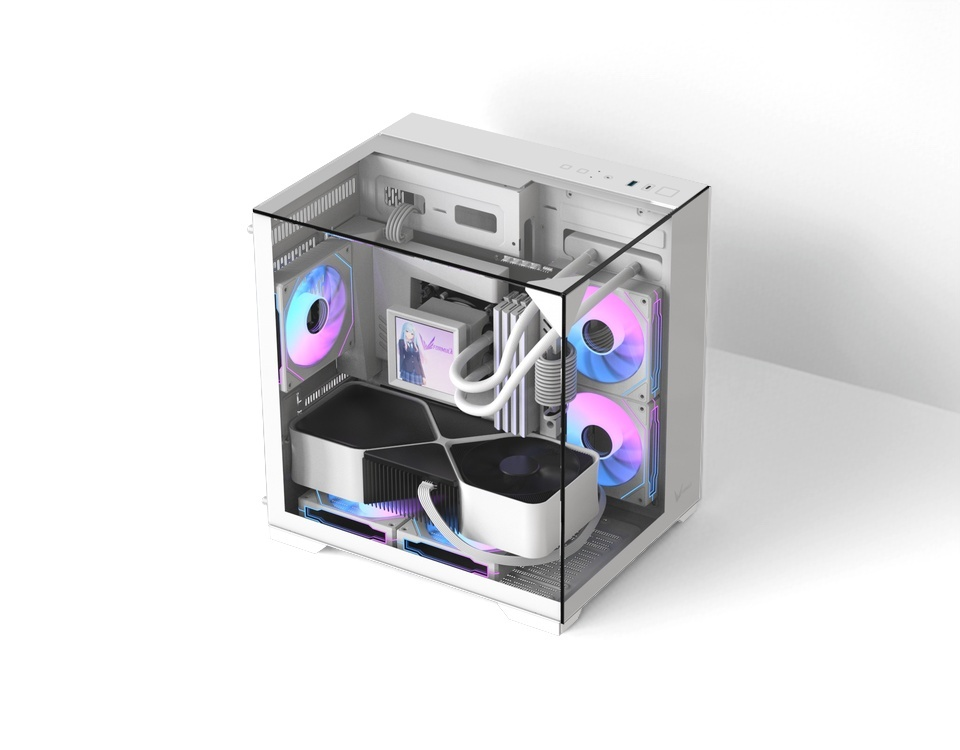

The Crystal Z9M V2 is a compact mATX case featuring a three-side tempered glass design for a clean panoramic display. With flexible fan and 240mm radiator support, it delivers efficient airflow and reliable thermal performance. An optimized interior layout ensures easy installation, clean cable management, and a balanced blend of style, performance, and space efficiency.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

Variation

Color

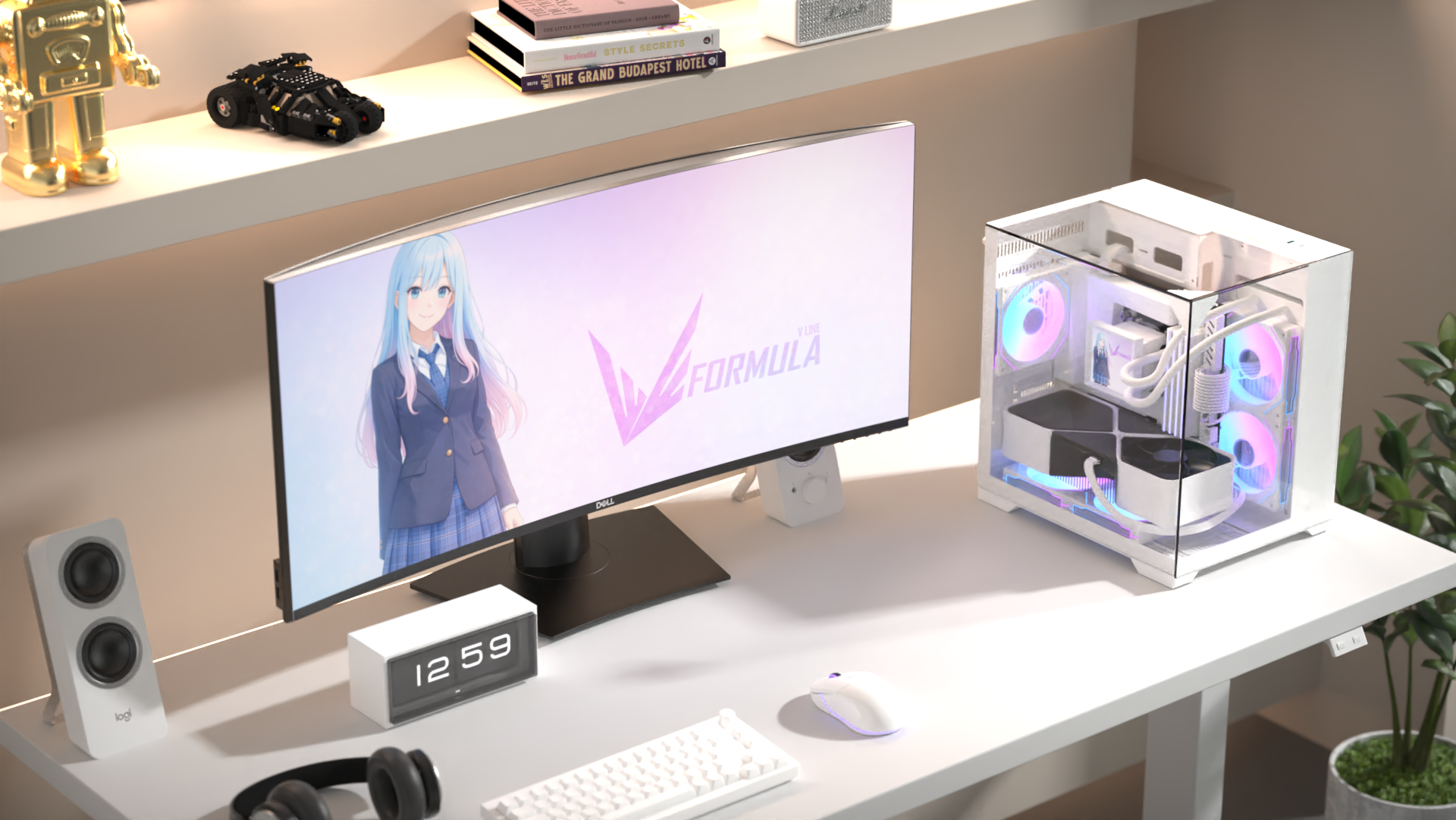

Crystal Z9M V2 Scenario Photo (2)

Panoramic Design, Compact Performance

Model Comparison

Crystal Z9M V2 builds upon the original Z9M with improved airflow options, a cleaner internal layout, and enhanced cooling flexibility.

Discover how the refinements elevate the building experience for modern mATX systems.lighting effects.



→ View Z9M vs Z9M V2 Comparison (PDF)

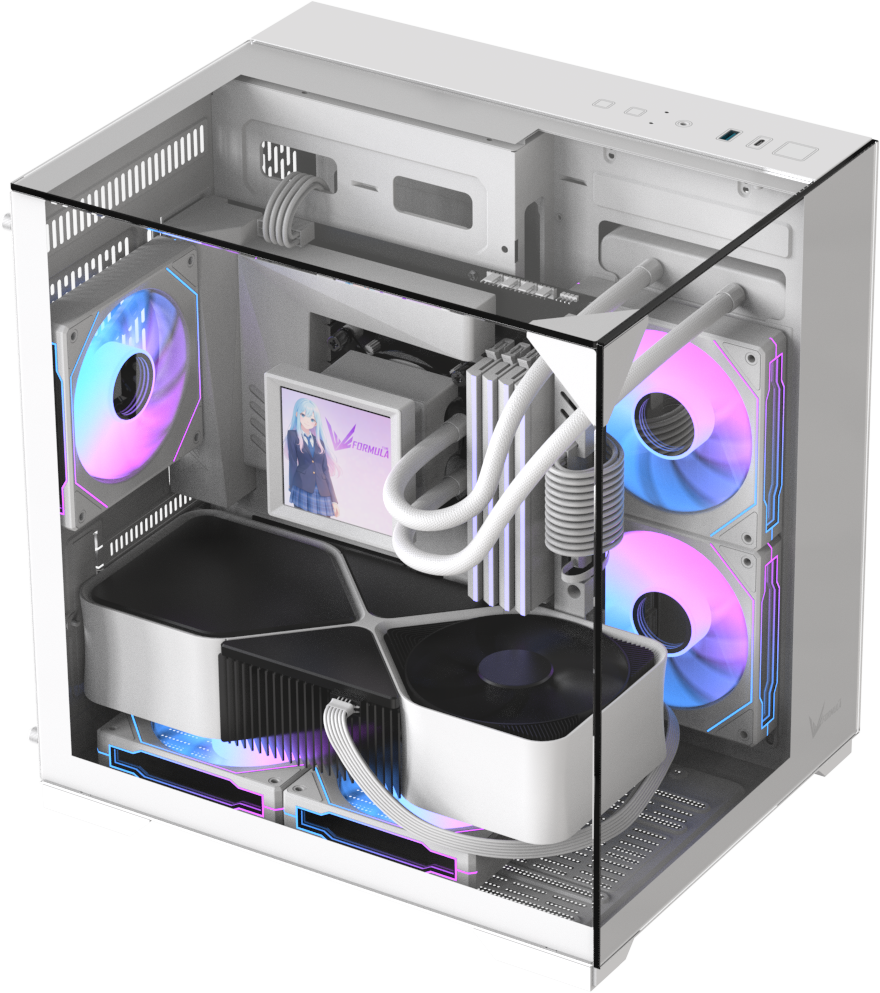

    • Panoramic Tempered Glass Design

      Triple tempered glass panels on the front, side, and top create a clean, panoramic view to showcase your components and lighting effects.

    • Compact mATX Form Factor

      Designed specifically for Micro-ATX builds, offering a space-efficient footprint without sacrificing performance or expandability.

    • Optimized Multi-Directional Airflow

      Supports cooling from rear, bottom, and right-side fan positions to maintain efficient airflow throughout the system.

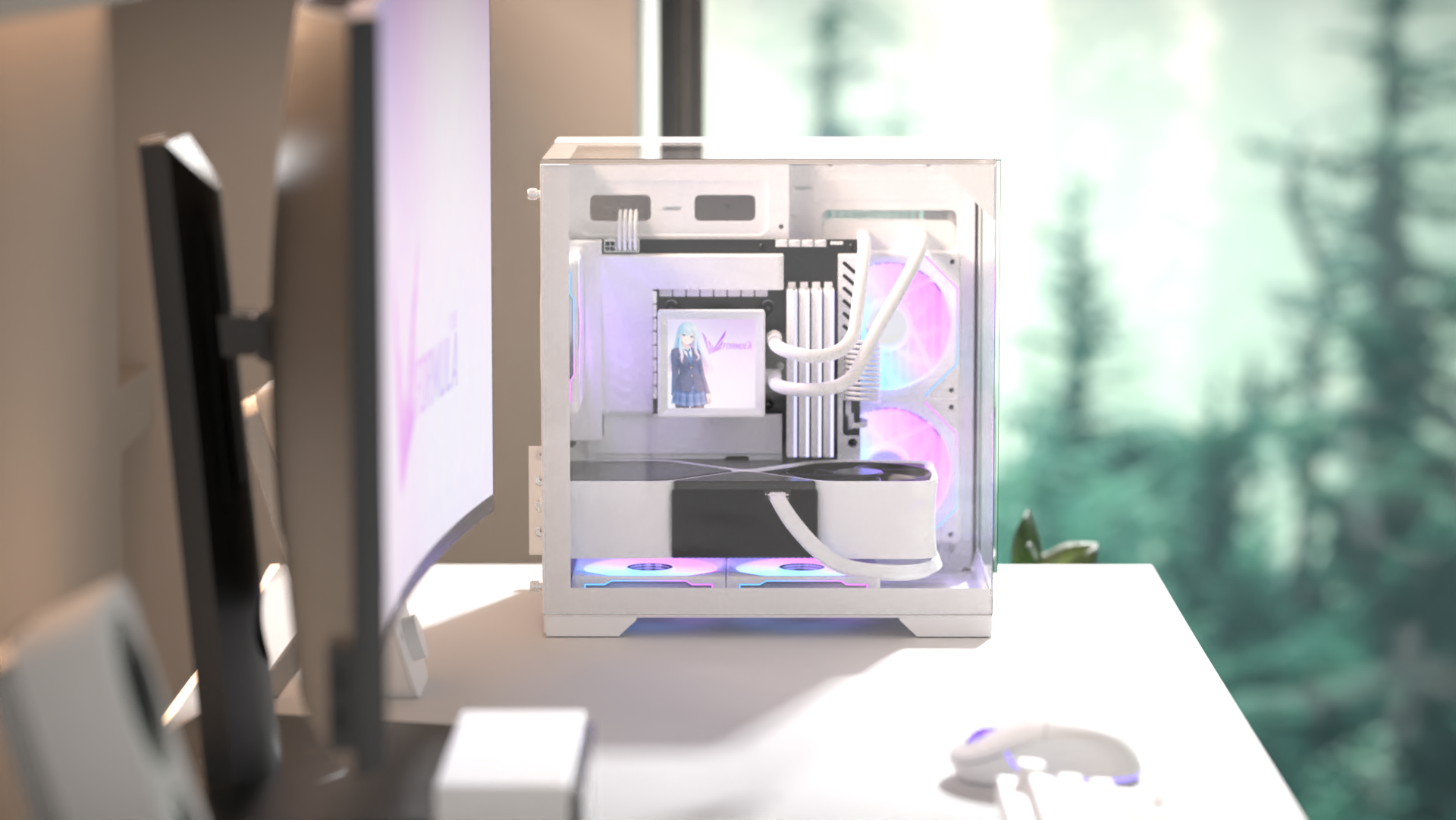

Crystal Z9M V2 Scenario Photo (3)

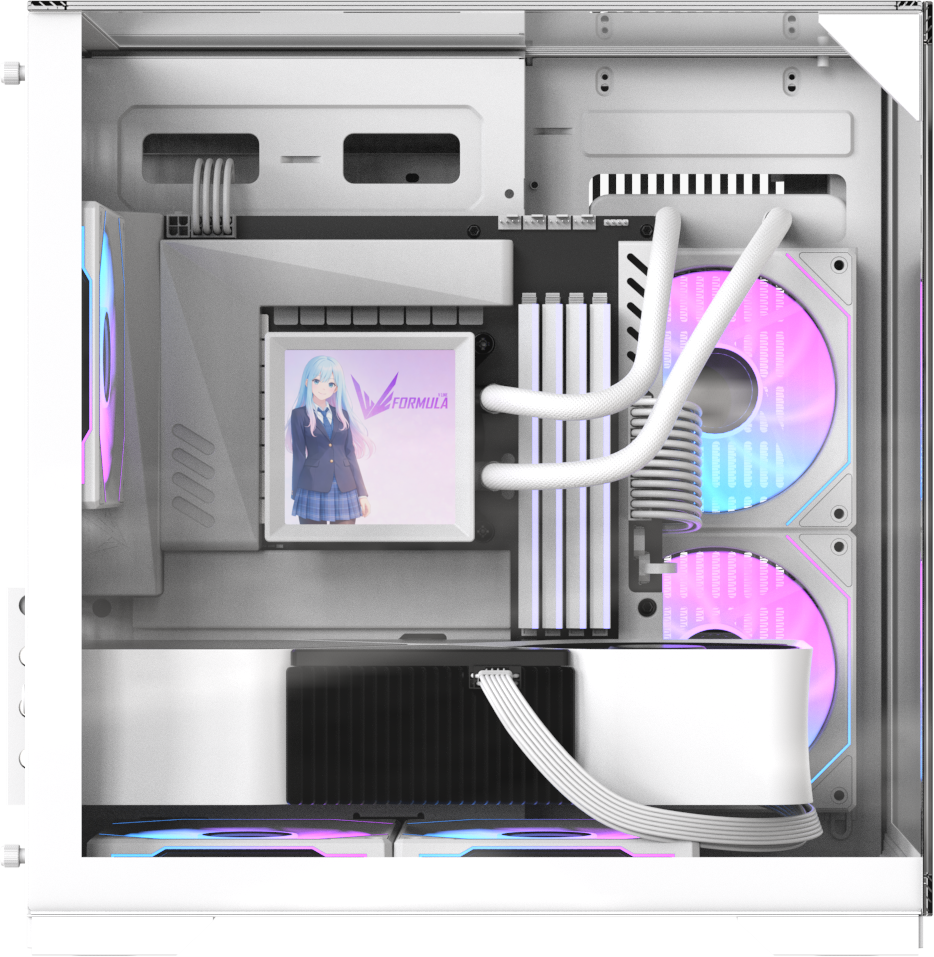

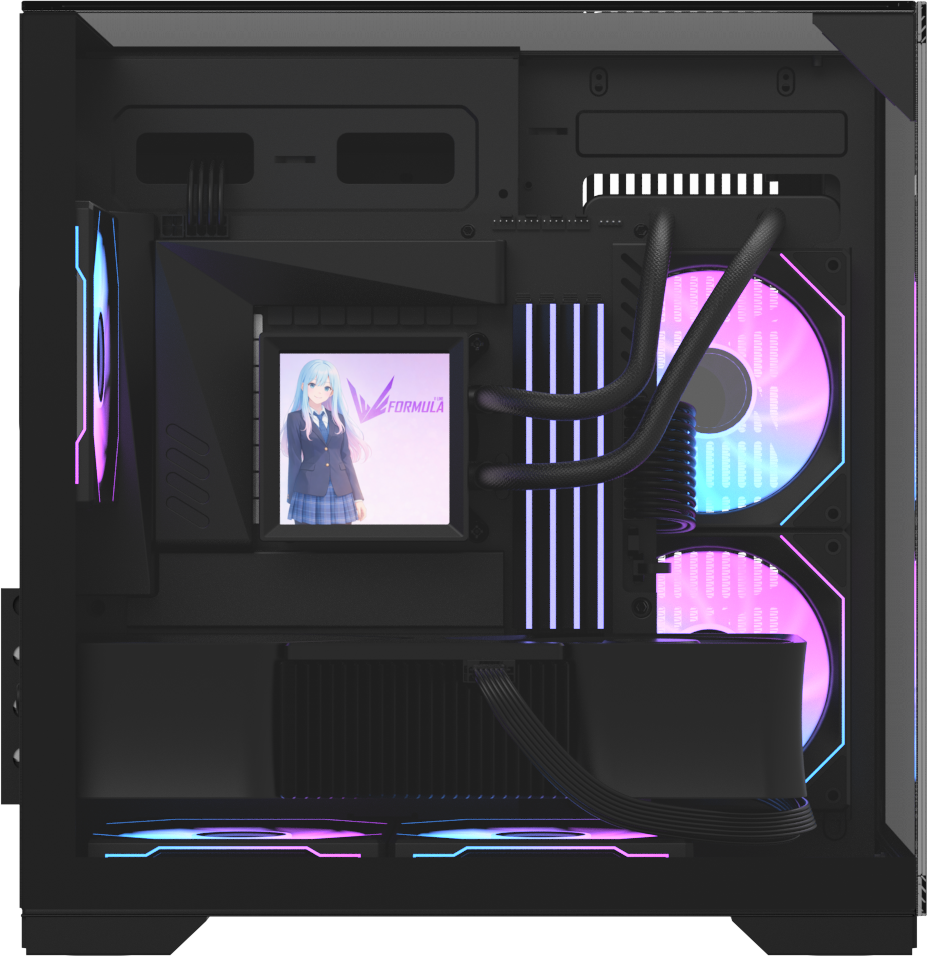

    • Advanced Liquid Cooling Support

      Compatible with up to a 240mm radiator on the right side, providing flexible options for high-performance liquid cooling setups.

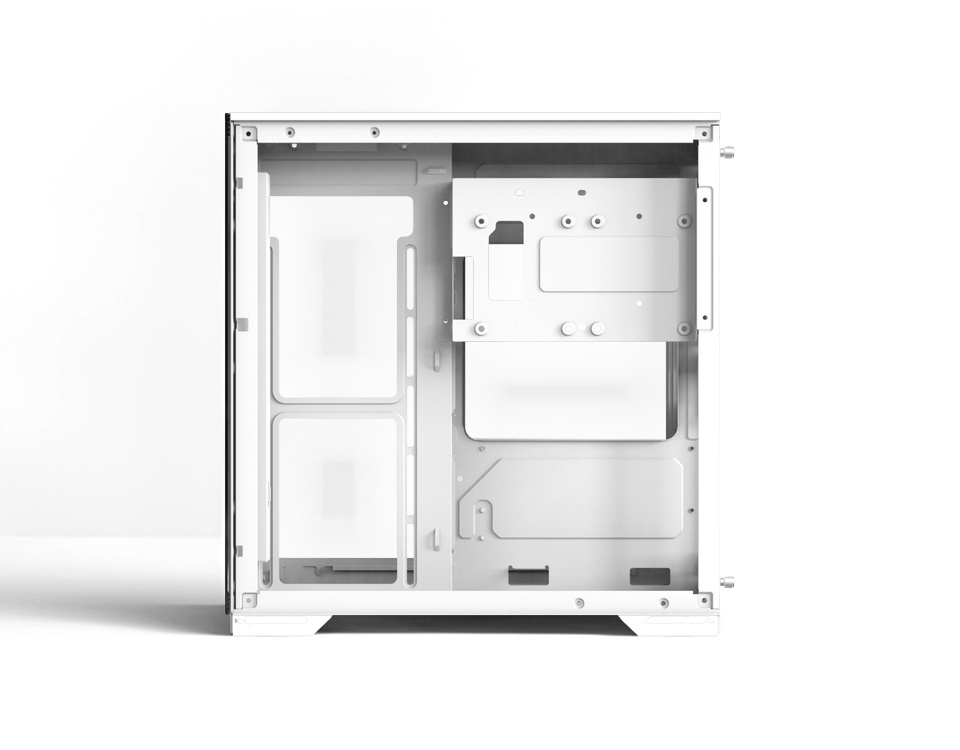

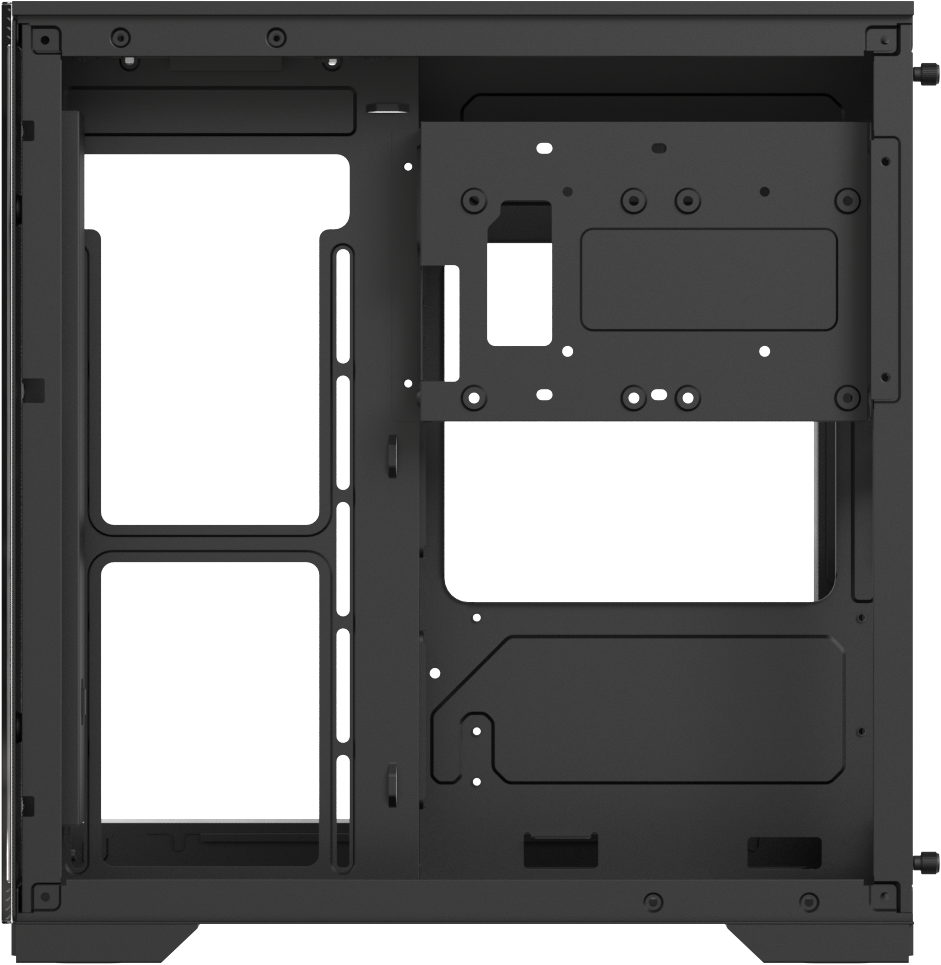

    • Clean Interior Layout for Easy Building

      Thoughtfully designed internal structure allows straightforward installation, efficient cable routing, and a tidy overall build.

    • ARGB-Ready Configuration (Floe Versions)

      Selected versions come pre-installed with ARGB fans, delivering vibrant lighting effects and synchronized visual appeal right out of the box.

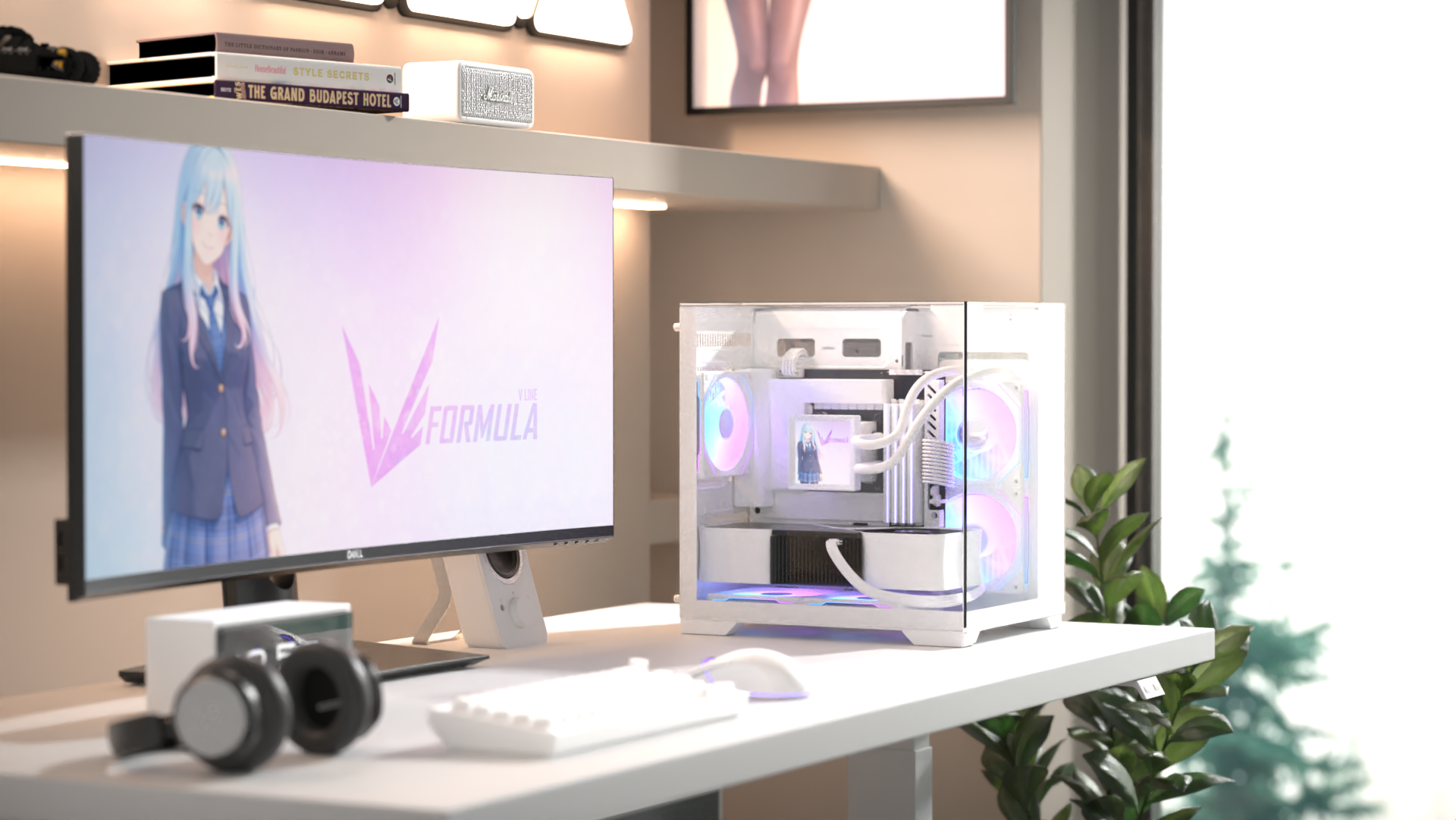

Crystal Z9M V2 Scenario Photo (1)

Crystal Z9M V2

  • Model

    Crystal Z9M V2

  • Case Type

    Micro-ATX Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    MATX / ITX

  • Case Dimensions

    350 x 277 x 380mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    4

  • GPU Clearance

    330mm

  • CPU Cooler Clearance

    160mm

  • Rear Fan

    1 x 120mm Max.

  • Bottom Fans

    2 x 120mm Max.

  • Right Side

    2 x 120mm Max.

  • Right Side radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z9M Black V2: 4711401667520

    Crystal Z9M White V2: 4711401667544

Crystal Z9M Floe V2

  • Model

    Crystal Z9M Floe V2

  • Case Type

    Micro-ATX Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    MATX / ITX

  • Case Dimensions

    350 x 277 x 380mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    4

  • GPU Clearance

    330mm

  • CPU Cooler Clearance

    160mm

  • Rear Fan

    1 x Floe 120mm ARGB Fan

  • Bottom Fans

    2 x 120mm Max.

  • Right Side

    2 x Floe 120mm ARGB Fan

  • Right Side radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1, HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal Z9M Floe Black V2: 4711401667537

    Crystal Z9M Floe White V2: 4711401667551
