Crystal U1M

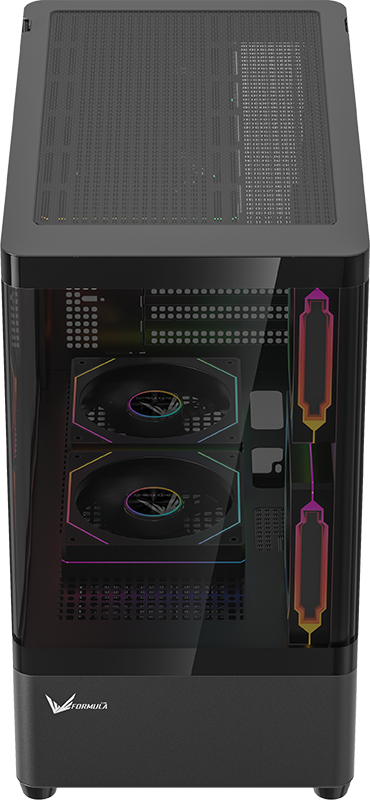

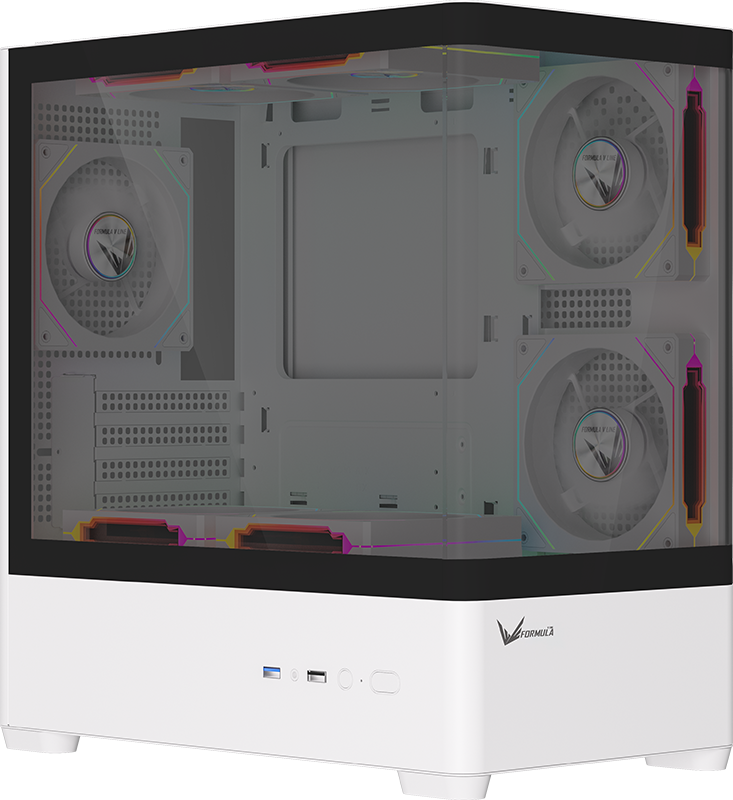

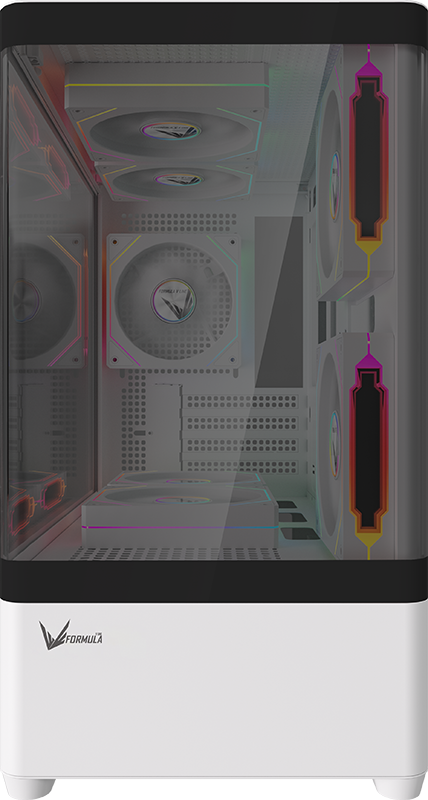

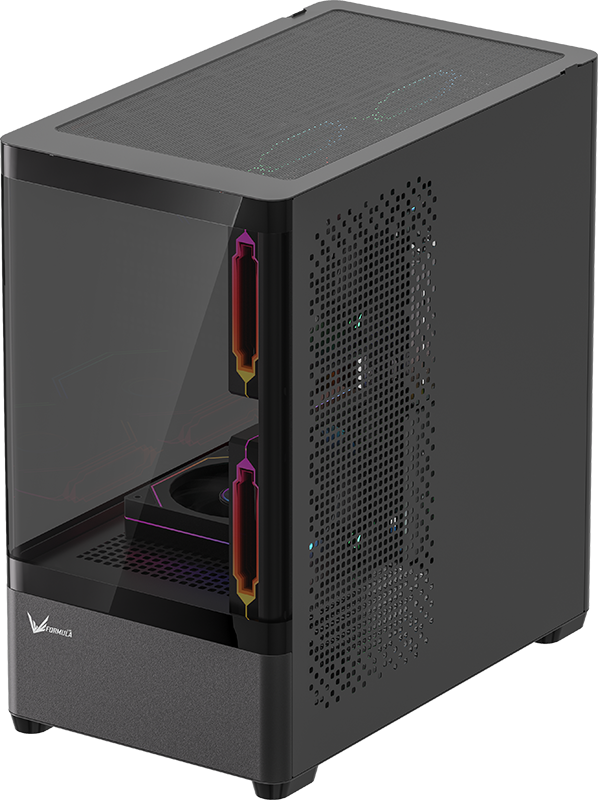

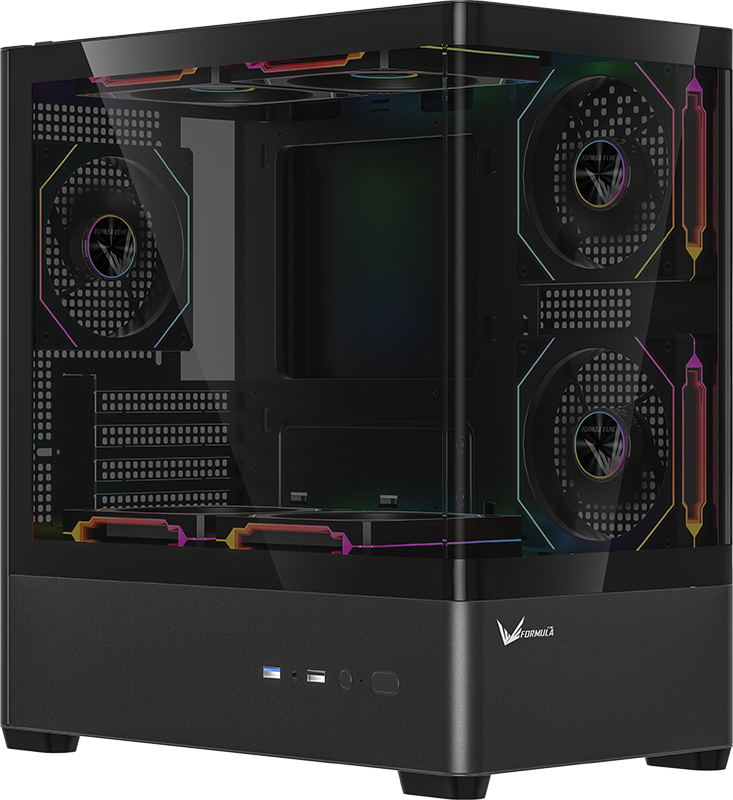

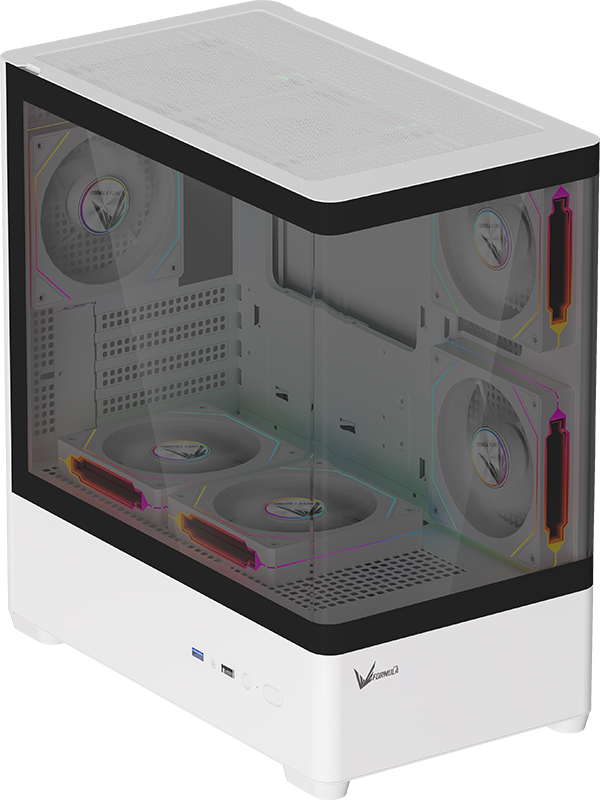

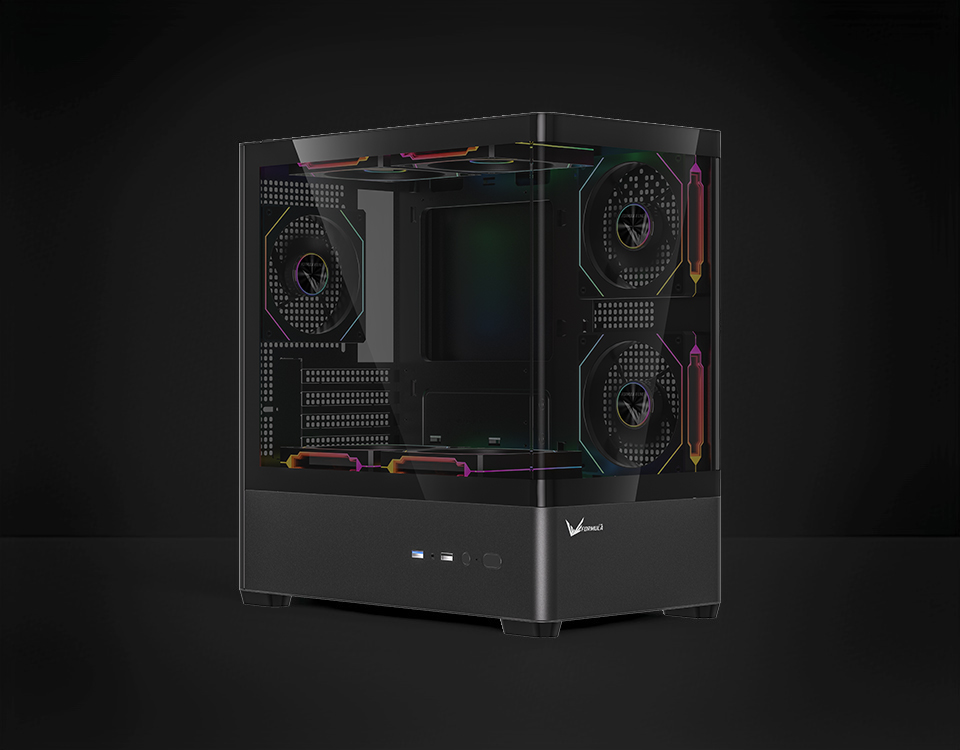

Crystal U1M is a compact micro-ATX case available in black or white, designed for clean builds with modern cooling support and subtle style.

It features a frameless curved acrylic front panel and tempered glass side panel for a sleek, panoramic presentation.

With multiple configurations—standard, Cosmic, and Floe—it offers flexible fan options and ARGB fan pre-installation to suit different lighting preferences.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

Variation

Color

Crystal-U1M-1920x960

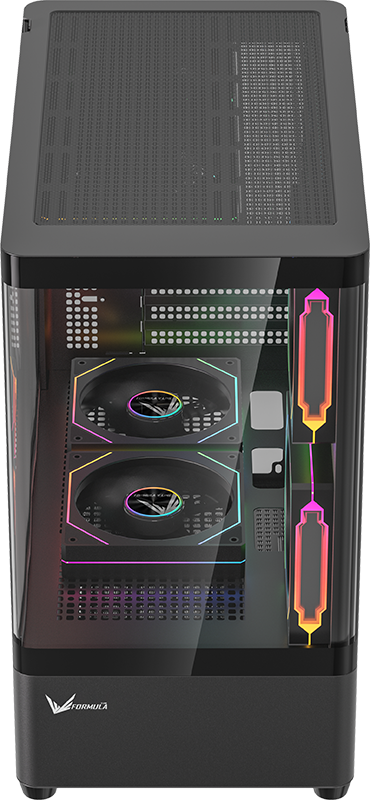

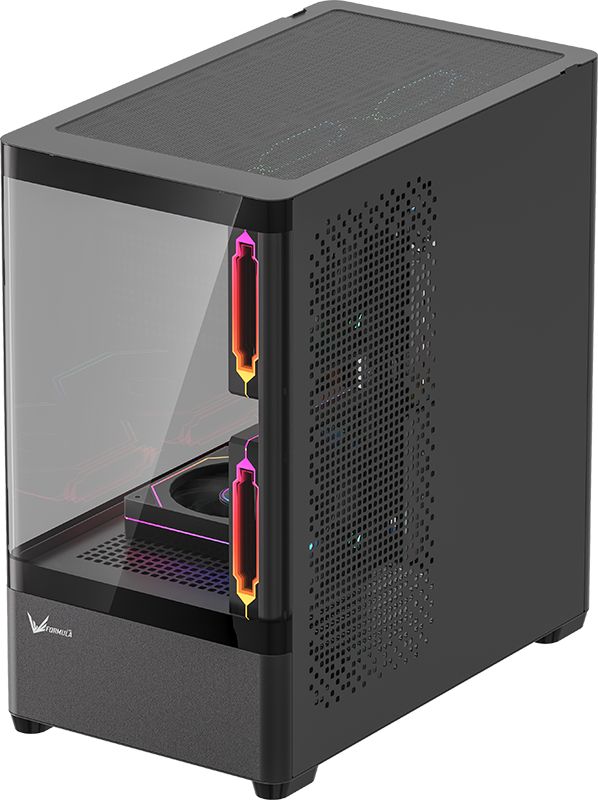

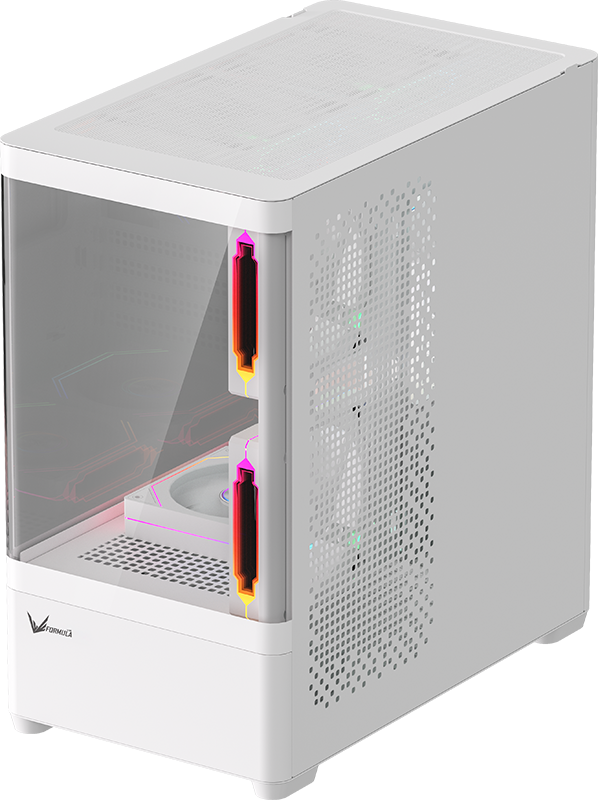

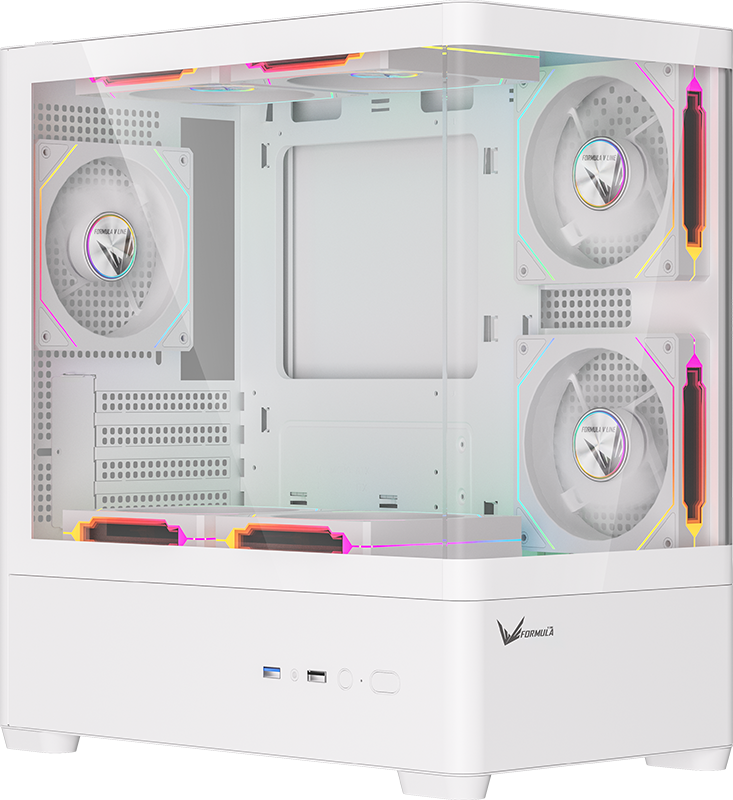

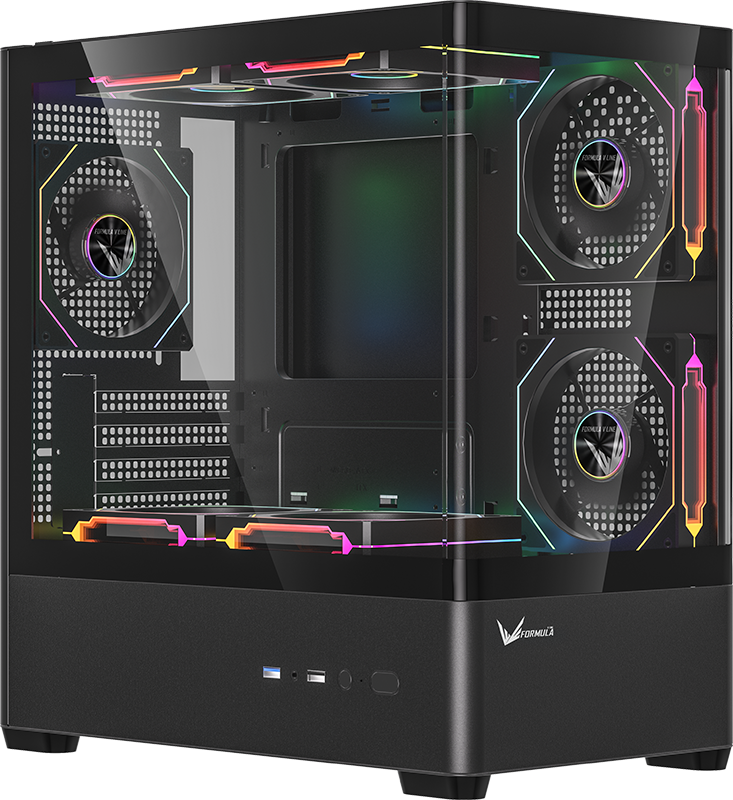

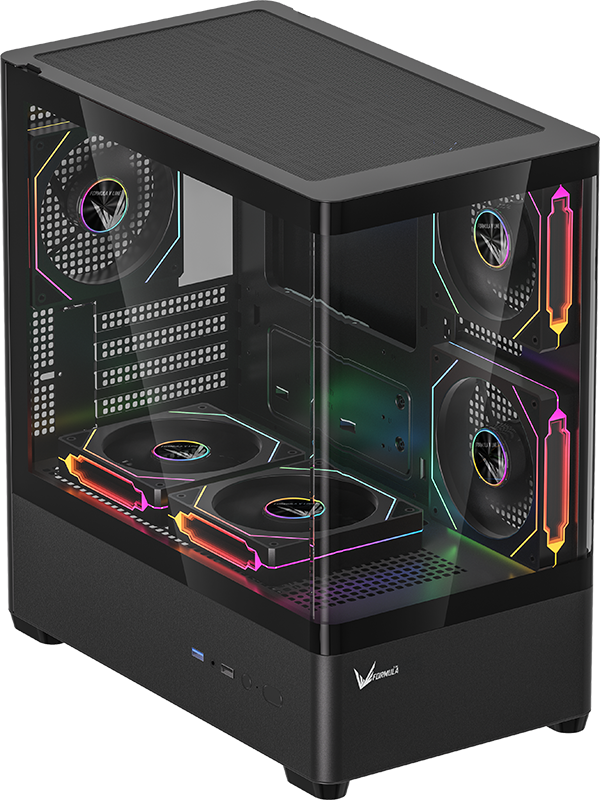

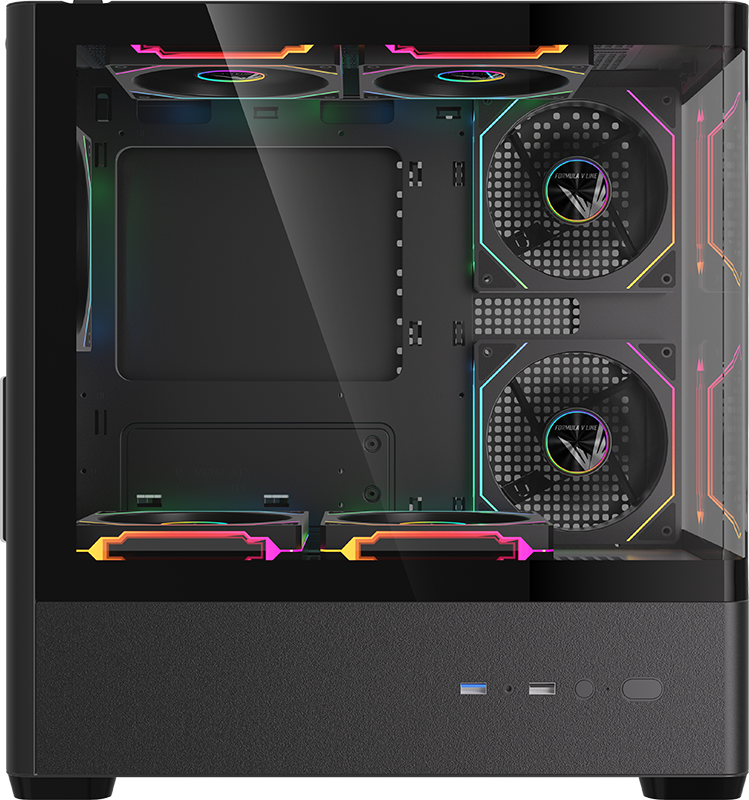

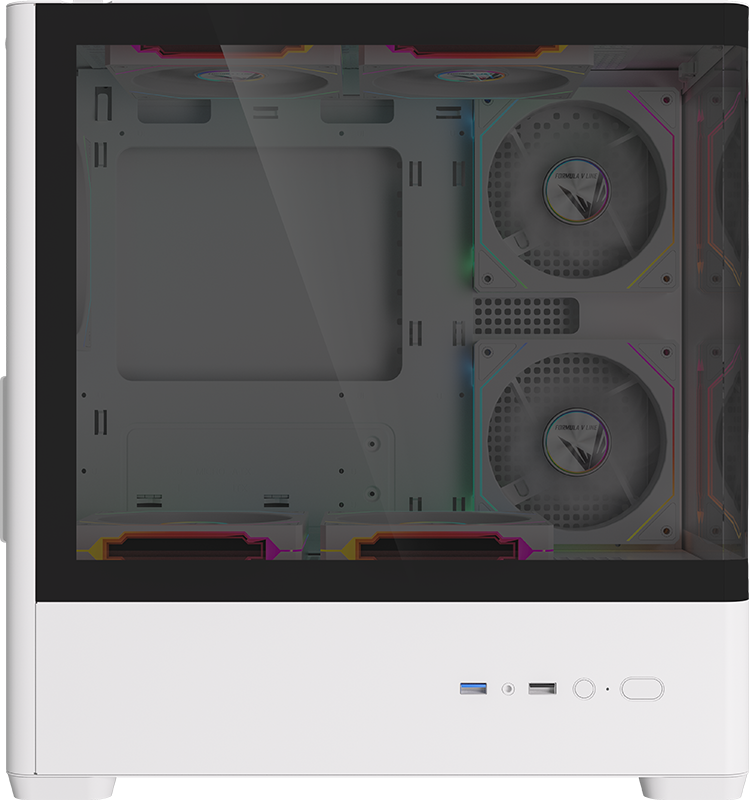

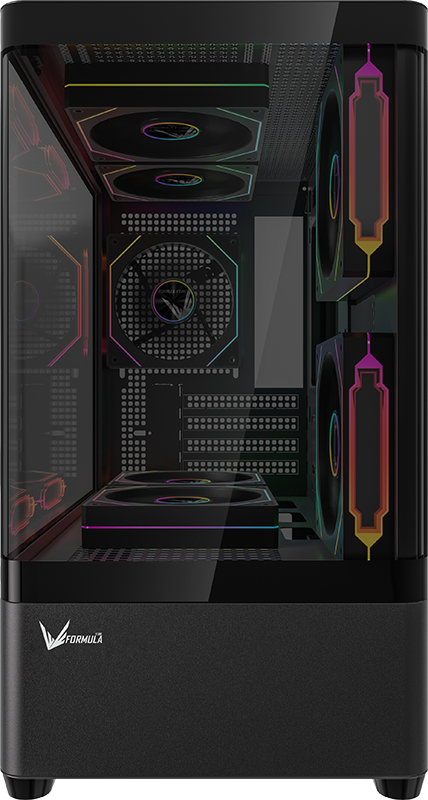

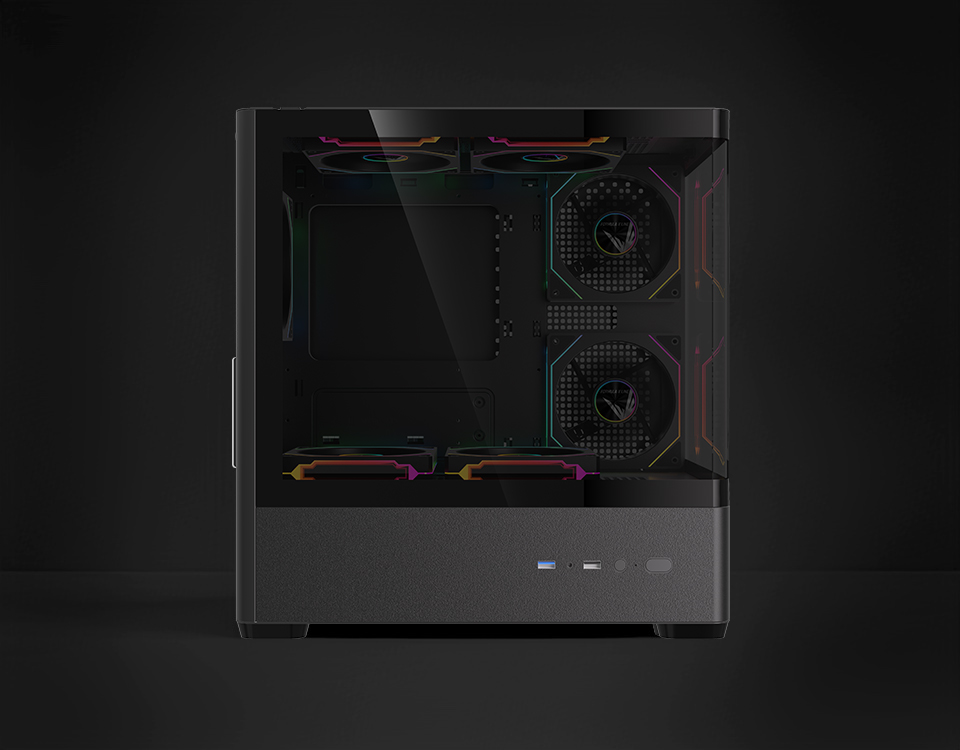

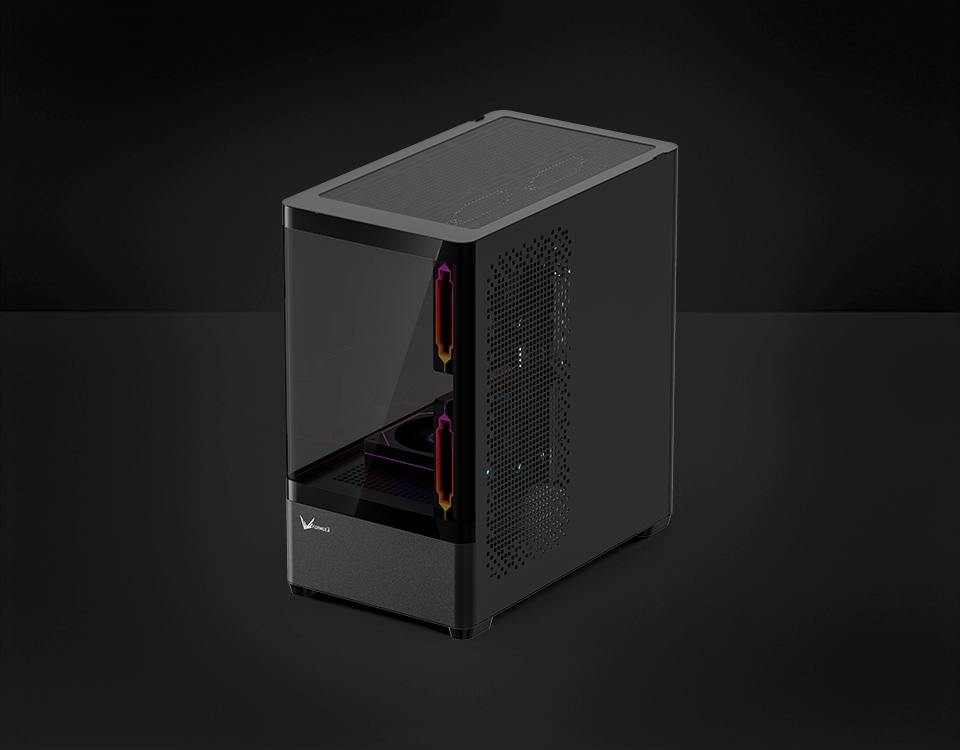

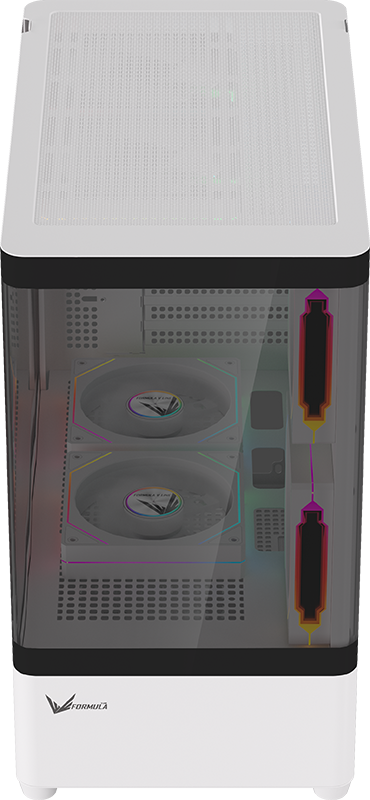

Curved Acrylic Front & Tempered Glass Side Panel

    • Curved Acrylic Front & Tempered Glass Side Panel

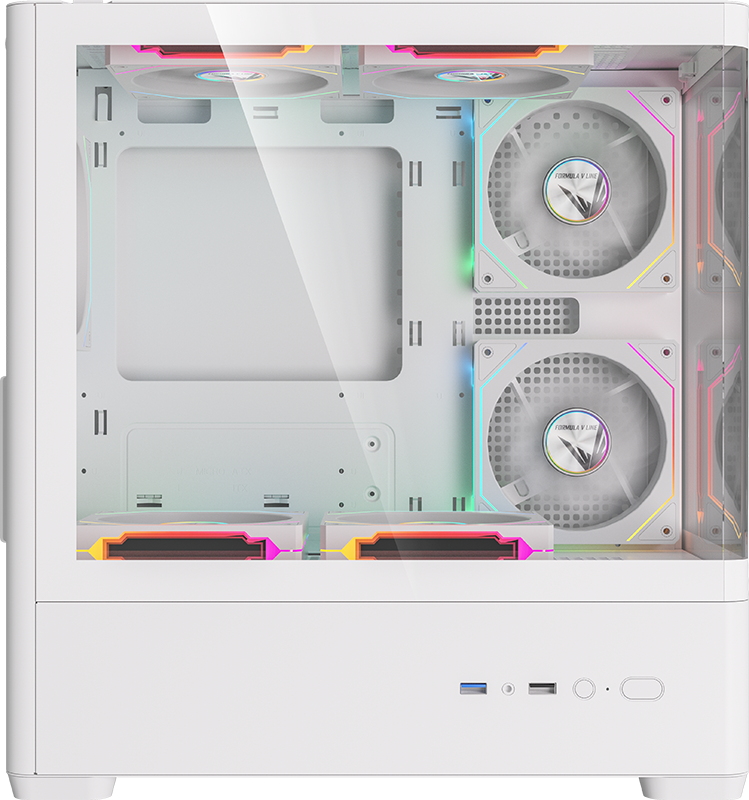

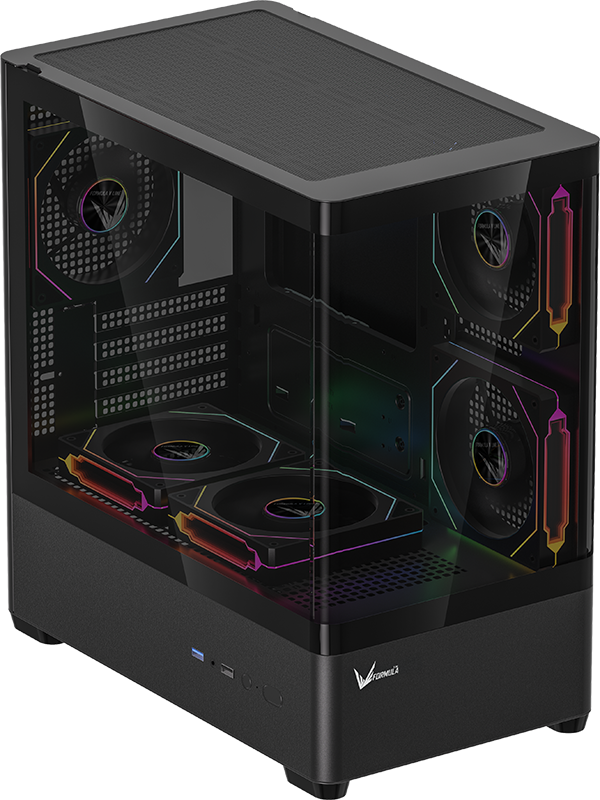

      Stylish curved acrylic front and panoramic tempered glass side panel showcase internal components with elegance.

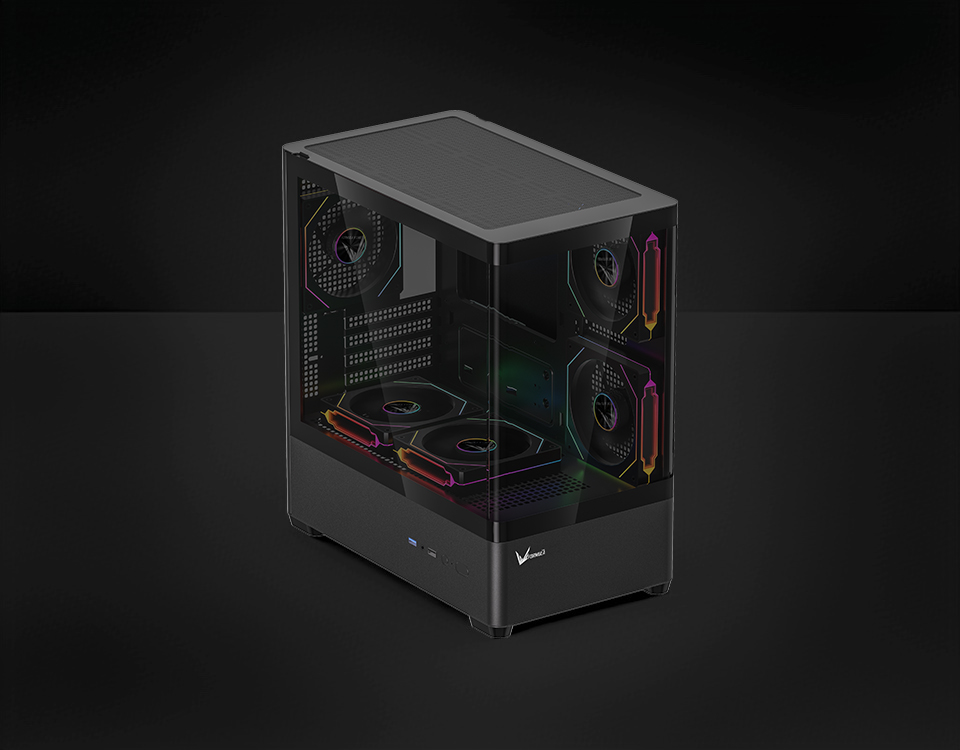

    • Flexible Cooling Layout

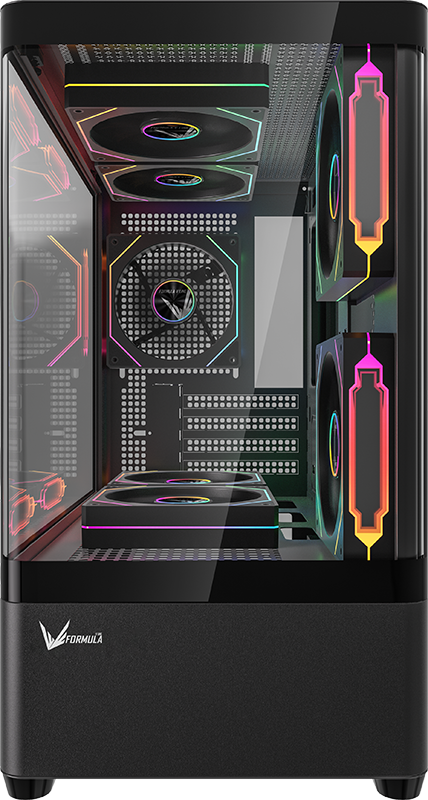

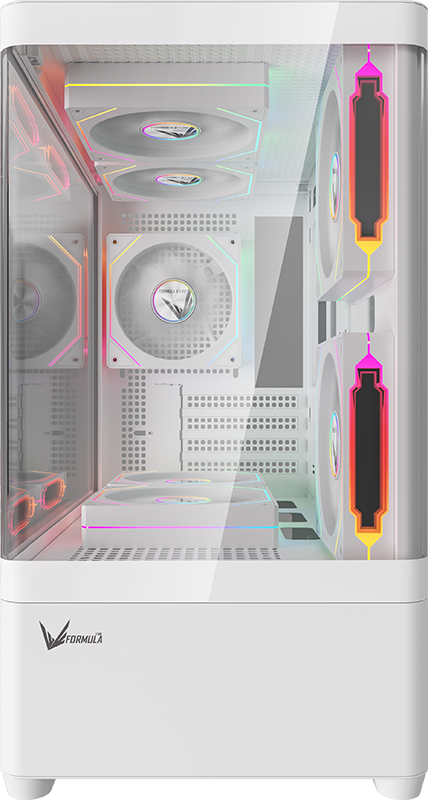

      Supports up to 7 fans across the top, motherboard side, bottom, and rear, enabling optimized airflow for various setups.

Compact Yet Spacious Design

Despite its compact size, it supports MATX motherboards, GPUs up to 362mm, and CPU coolers up to 168mm.

    • Modern Front I/O

      Equipped with USB Type-C, USB 3.0, USB 2.0, and HD audio ports for fast and accessible connectivity.

    • Multiple Editions for Lighting Preferences

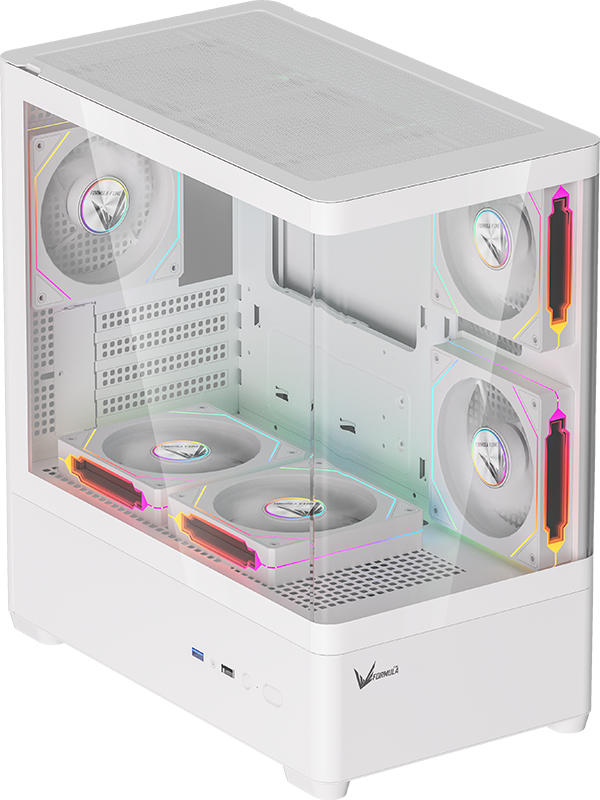

      Available in a standard version without fans, or Cosmic and Floe editions with pre-installed ARGB fans (Cosmic 12 or FLOE 12) for vivid lighting effects.

Crystal U1M

  • Model

    Crystal U1M

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    Micro-ATX / Mini-ITX

  • Case Dimensions

    378 x 220 x 402mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    362mm

  • CPU Cooler Clearance

    168mm

  • Top Fans

    2 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x 120mm Max.

  • Bottom Fans

    2 x 120mm Max.

  • M/B Side Fans

    2 x 120mm Max.

  • Top Radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1,HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal U1M Black: 4711401663706

    Crystal U1M White: 4711401663737

Crystal U1M Cosmic

  • Model

    Crystal U1M Cosmic

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    Micro-ATX / Mini-ITX

  • Case Dimensions

    378 x 220 x 402mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    362mm

  • CPU Cooler Clearance

    168mm

  • Top Fans

    2 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x Cosmic 120BK/WH ARPW.

  • Bottom Fans

    2 x 120mm Max.

  • M/B Side Fans

    2 x Cosmic 120BK/WH ARPW.

  • Top Radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1,HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal U1M Cosmic Black: 4711401663713

    Crystal U1M Cosmic White: 4711401663744

Crystal U1M Floe

  • Model

    Crystal U1M Floe

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    Micro-ATX / Mini-ITX

  • Case Dimensions

    378 x 220 x 402mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    362mm

  • CPU Cooler Clearance

    168mm

  • Top Fans

    2 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x Floe 120BK/WH ARPW.

  • Bottom Fans

    2 x 120mm Max.

  • M/B Side Fans

    2 x Floe 120BK/WH ARPW.

  • Top Radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1,HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal U1M Floe Black: 4711401663720

    Crystal U1M Floe White: 4711401663751
