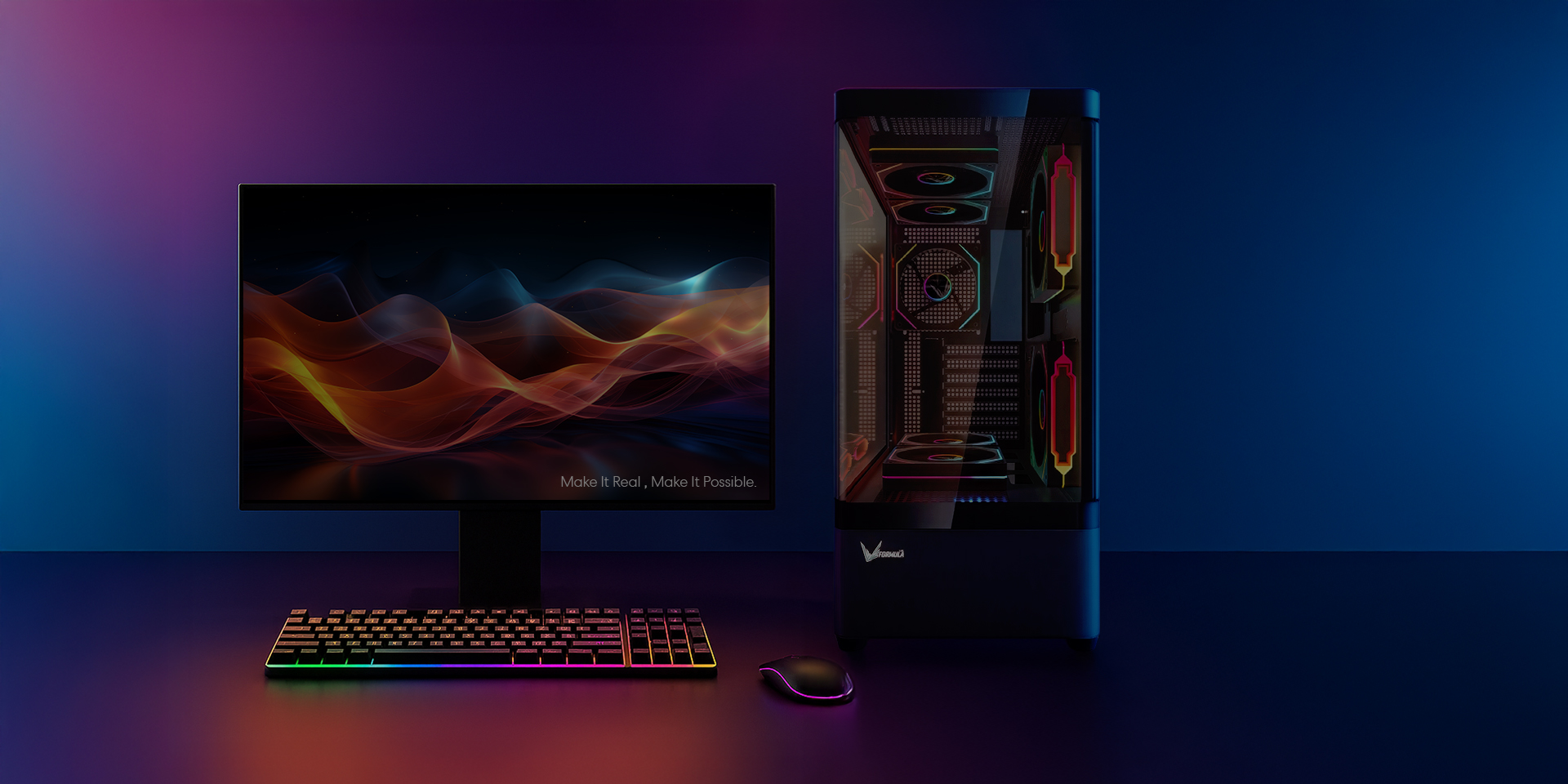

Crystal U1

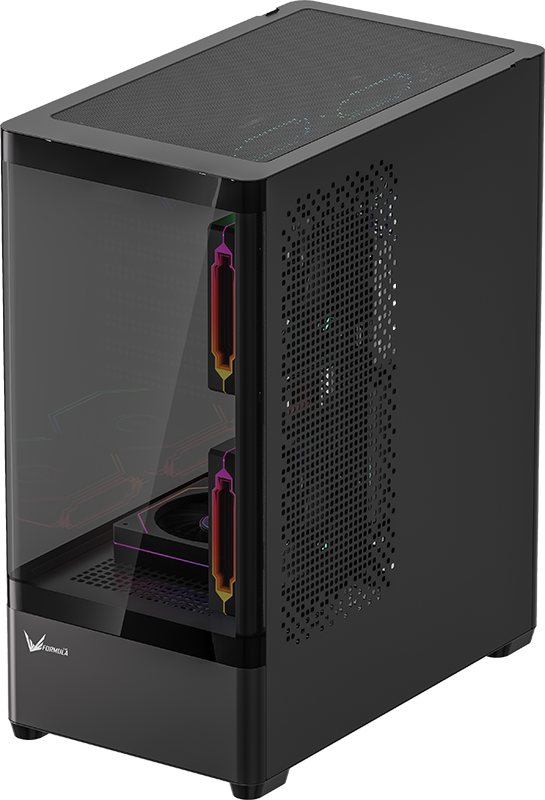

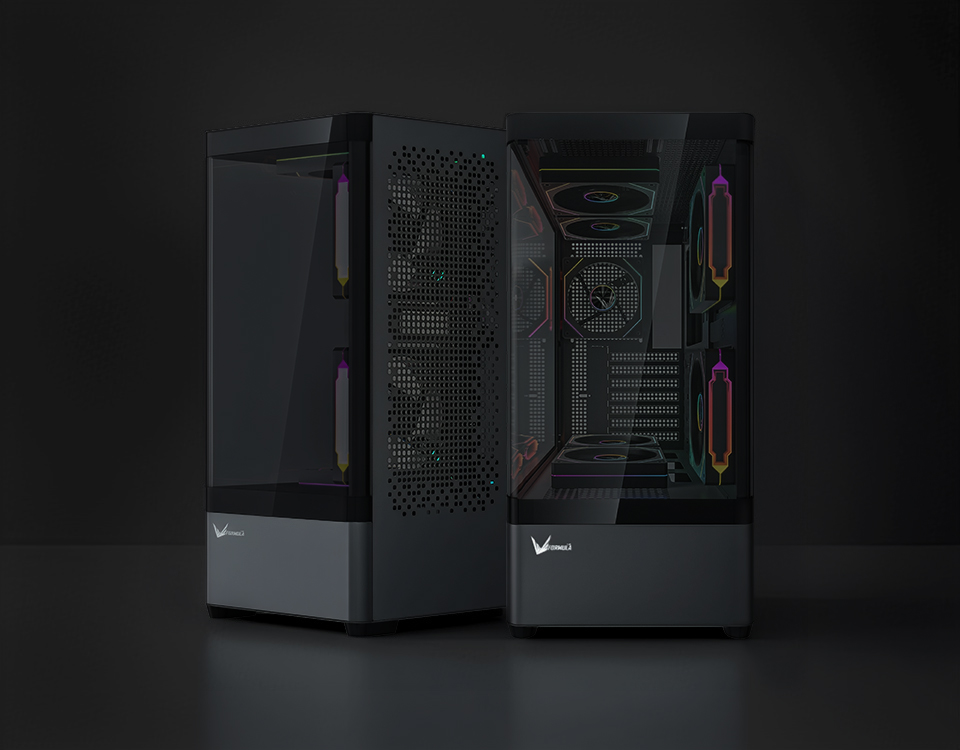

Crystal U1 is a compact mid-tower case available in black or white, designed for clean builds with modern cooling support and subtle style.

It features a frameless curved acrylic front panel and tempered glass side panel for a sleek, panoramic presentation.

With multiple configurations—standard, Cosmic, and Floe—it offers flexible fan options and ARGB fan pre-installation to suit different lighting preferences.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

Variation

Color

Crystal-U1-1920x960-2

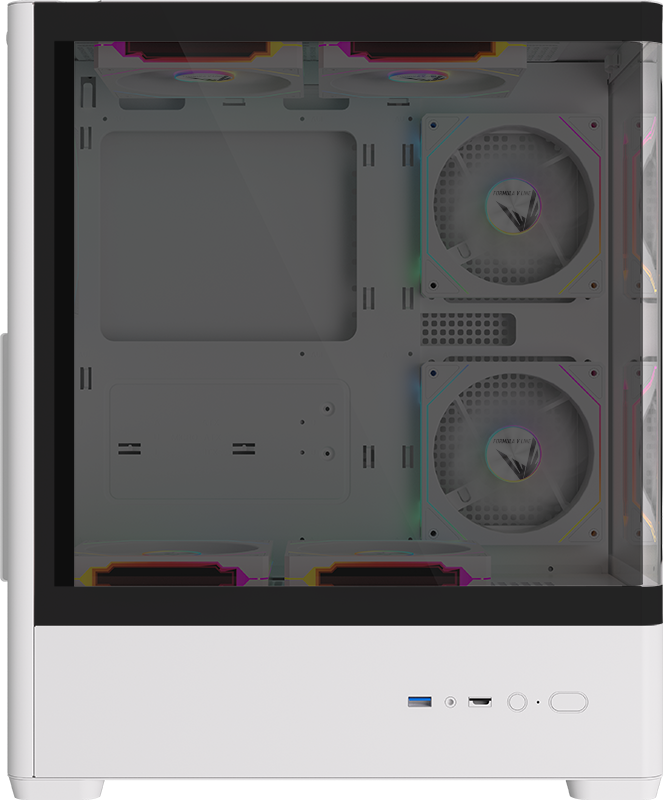

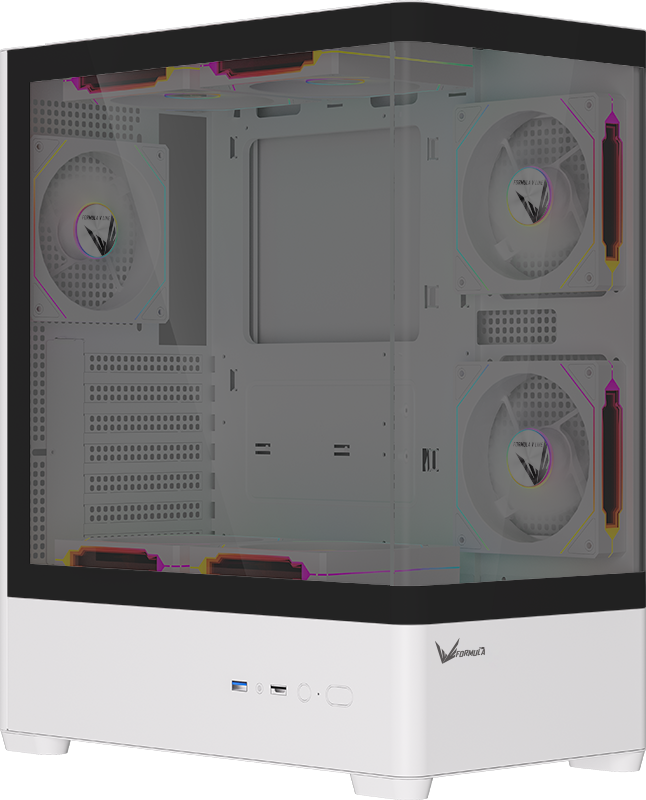

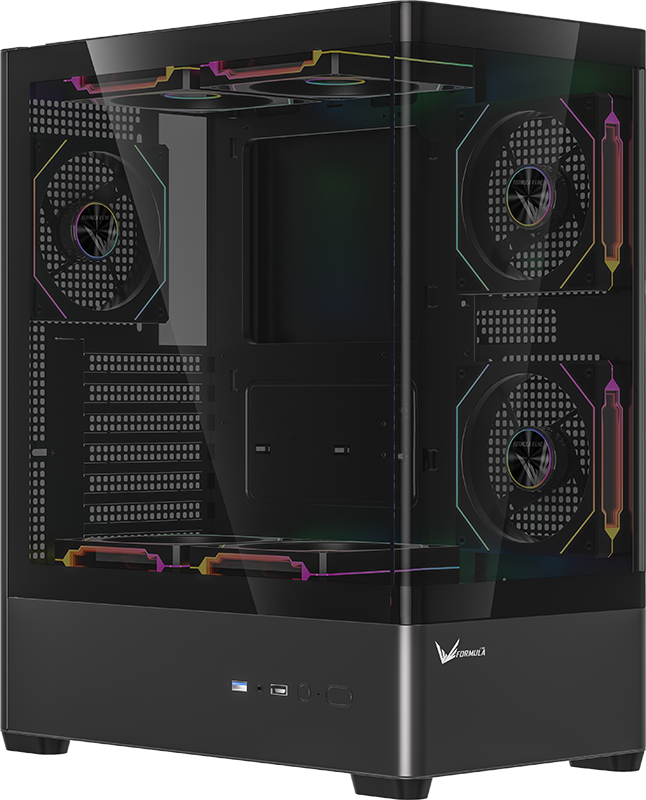

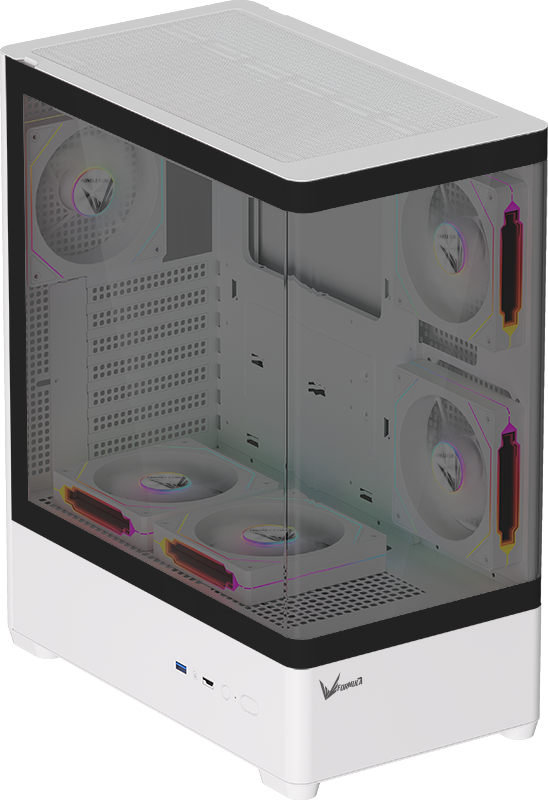

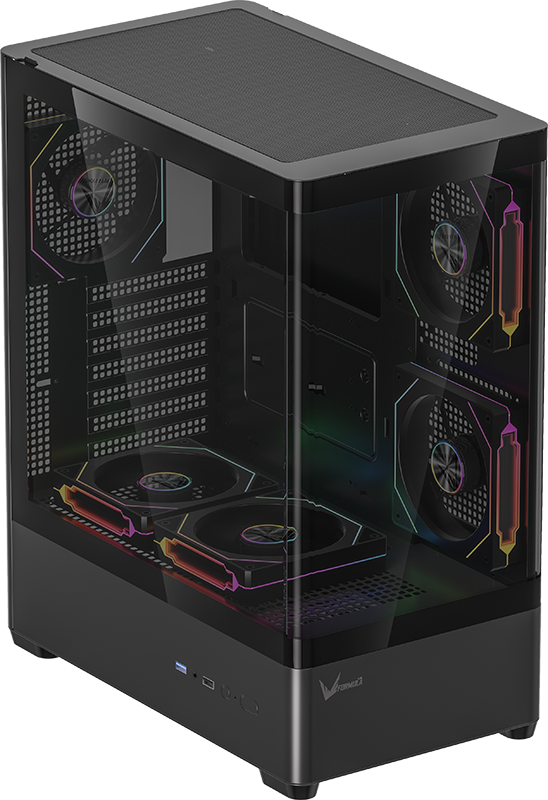

Curved Acrylic Front & Tempered Glass Side Panel

    • Curved Acrylic Front & Tempered Glass Side Panel

      Stylish curved acrylic front and panoramic tempered glass side panel showcase internal components with elegance.

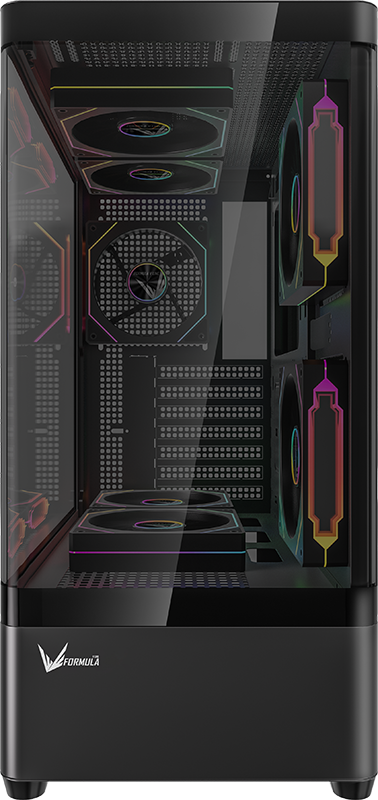

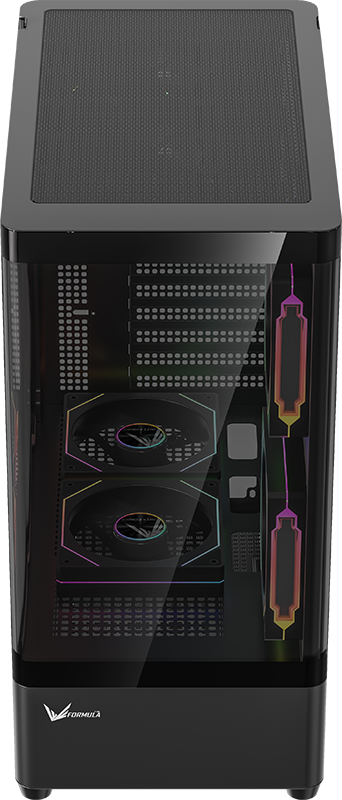

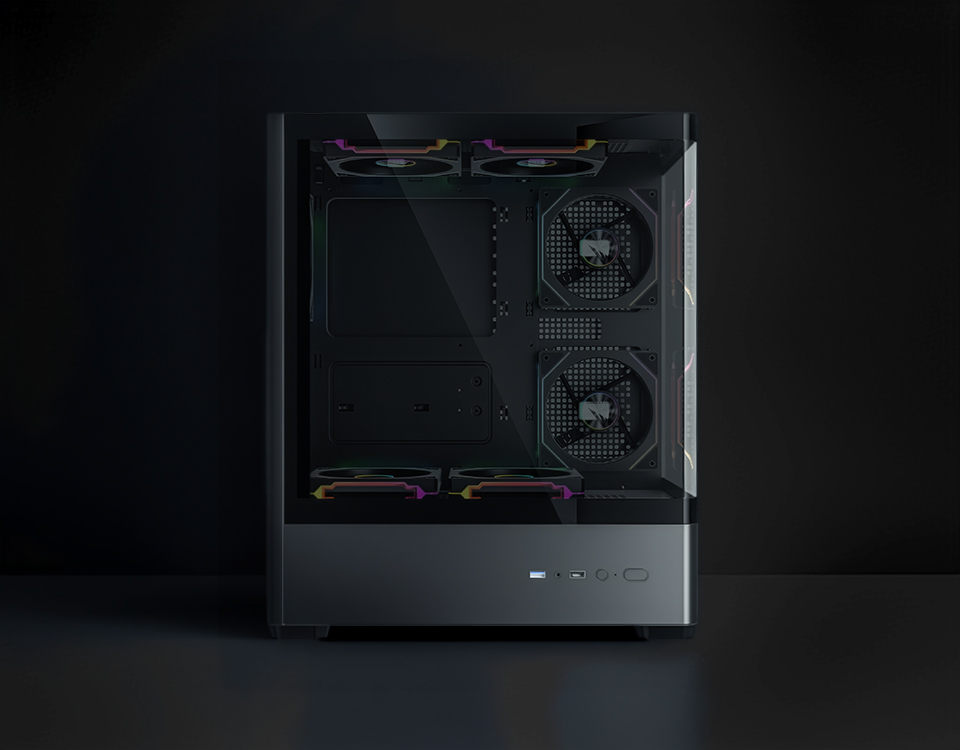

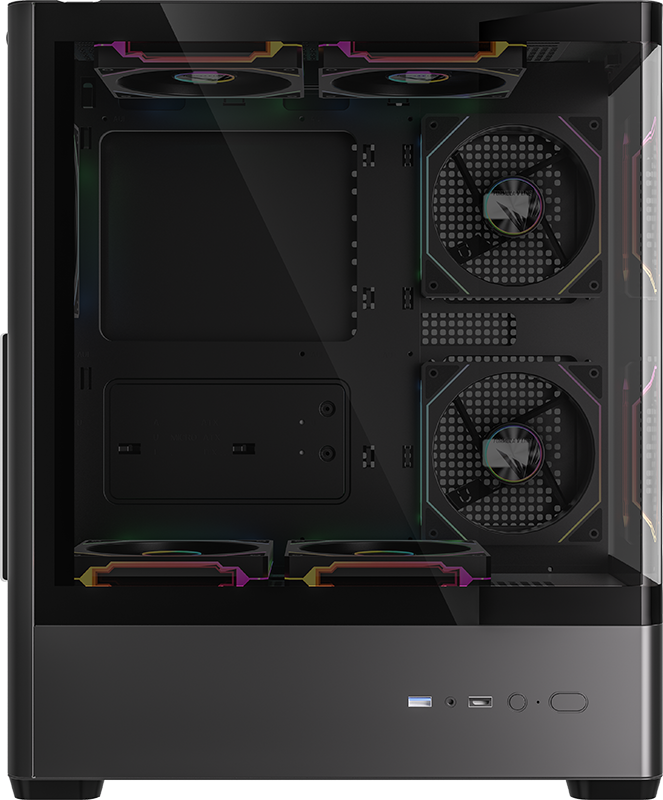

    • Flexible Cooling Layout

      Supports up to 7 fans across the top, motherboard side, bottom, and rear, enabling optimized airflow for various setups.

Compact Yet Spacious Design

Despite its compact size, it supports ATX motherboards, GPUs up to 362mm, and CPU coolers up to 168mm.

    • Modern Front I/O

      Equipped with USB Type-C, USB 3.0, USB 2.0, and HD audio ports for fast and accessible connectivity.

    • Multiple Editions for Lighting Preferences

      Available in a standard version without fans, or Cosmic and Floe editions with pre-installed ARGB fans (Cosmic 12 or FLOE 12) for vivid lighting effects.

Crystal U1

  • Model

    Crystal U1

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    ATX / MATX / ITX

  • Case Dimensions

    478 x 220 x 457mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    7

  • GPU Clearance

    362mm

  • CPU Cooler Clearance

    168mm

  • Top Fans

    3 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x 120mm Max.

  • Bottom Fans

    2 x 120mm Max.

  • M/B Side Fans

    2 x 120mm Max.

  • Top Radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1,HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal U1 Black: 4711401664253

    Crystal U1 White: 4711401664284

Crystal U1 Cosmic

  • Model

    Crystal U1 Cosmic

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    ATX / MATX / ITX

  • Case Dimensions

    478 x 220 x 457mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    7

  • GPU Clearance

    362mm

  • CPU Cooler Clearance

    168mm

  • Top Fans

    3 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x Cosmic 12BK/WH ARPW.

  • Bottom Fans

    2 x 120mm Max.

  • M/B Side Fans

    2 x Cosmic 12BK/WH ARPW.

  • Top Radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1,HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal U1 Cosmic Black: 4711401664260

    Crystal U1 Cosmic White: 4711401664291

Crystal U1 Floe

  • Model

    Crystal U1 Floe

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Motherboards

    ATX / MATX / ITX

  • Case Dimensions

    478 x 220 x 457mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    7

  • GPU Clearance

    362mm

  • CPU Cooler Clearance

    168mm

  • Top Fans

    3 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x Floe 12BK/WH ARPW.

  • Bottom Fans

    2 x 120mm Max.

  • M/B Side Fans

    2 x Floe 12BK/WH ARPW.

  • Top Radiator

    240mm Max.

  • I/O Ports

    Type C x 1, USB3.0 x 1,HD Audio

  • Power Supply

    ATX

  • Net weight

    kg

  • Gross weight

    kg

  • EAN

    Crystal U1 Floe Black: 4711401664277

    Crystal U1 Floe White: 4711401664307
