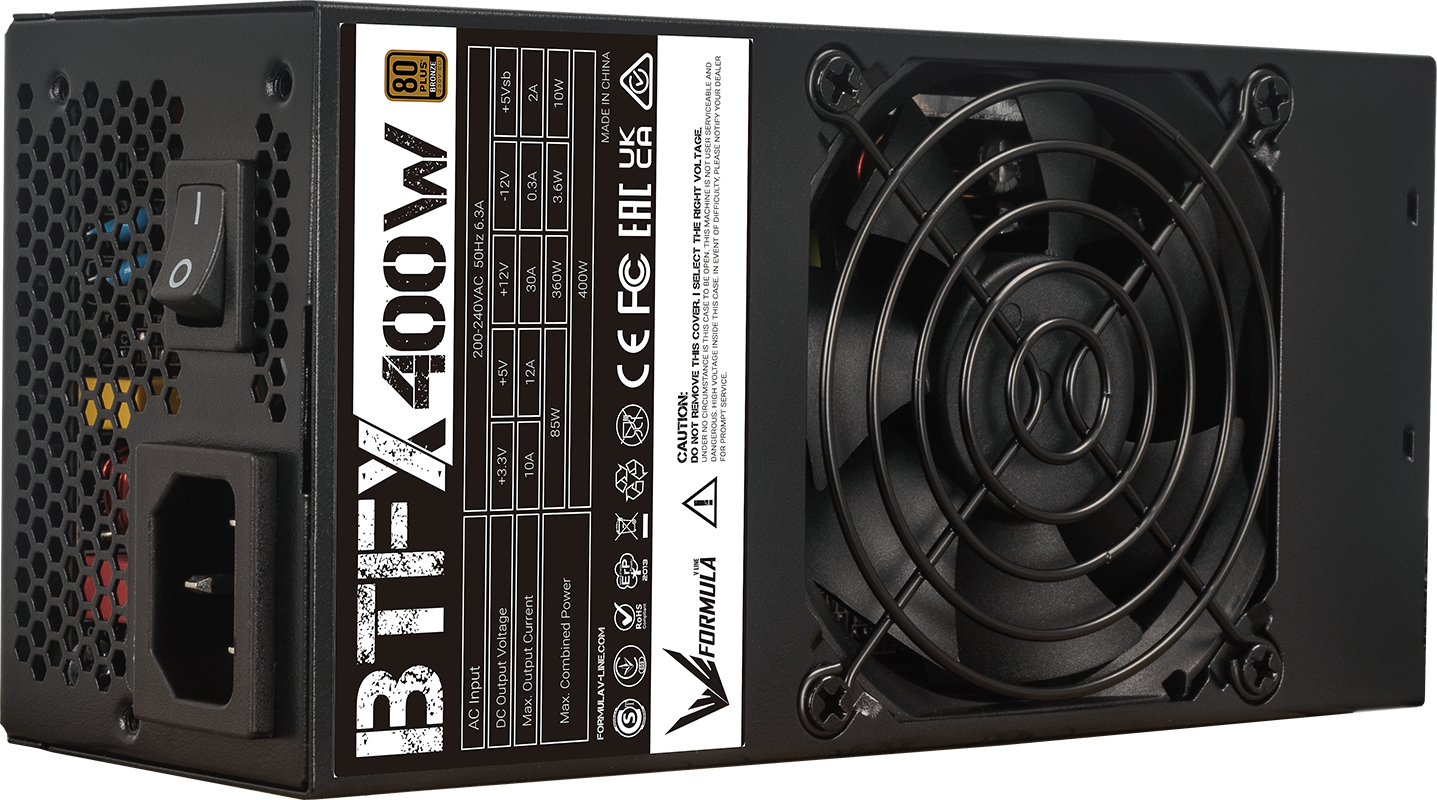

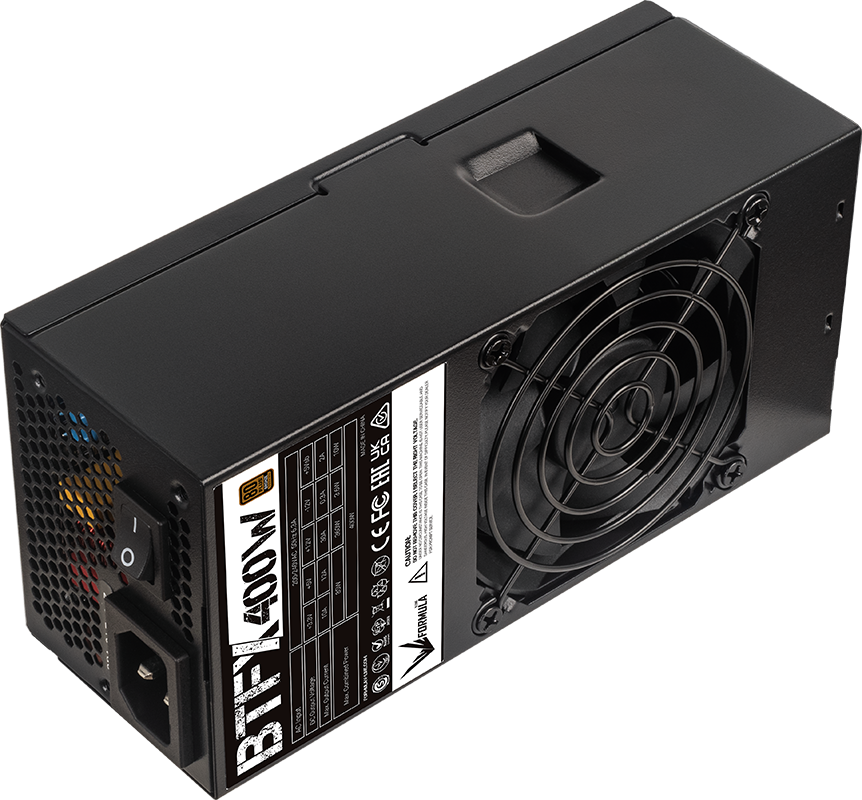

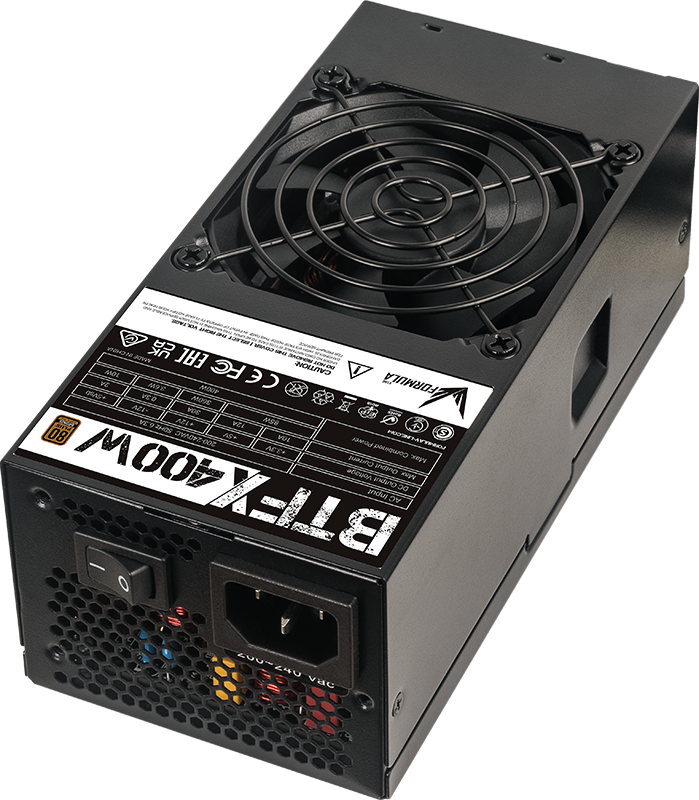

BTFX-400

The BTFX series power supplies offer 80 PLUS Bronze efficiency for reduced energy consumption. They feature reliable safety protections like OVP, UVP, OPP, and SCP, along with a sleek casing design for enhanced airflow. With DC to DC conversion and sufficient cable length and connectors, they ensure high stability, efficiency, and easy installation.

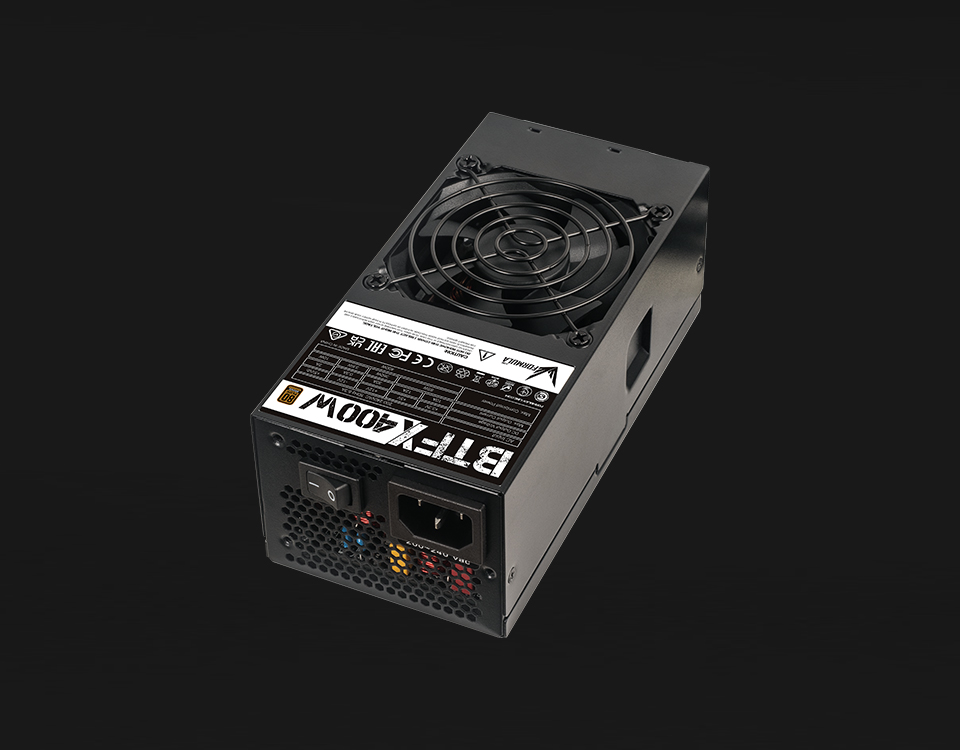

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

BTFX-400-1920x960

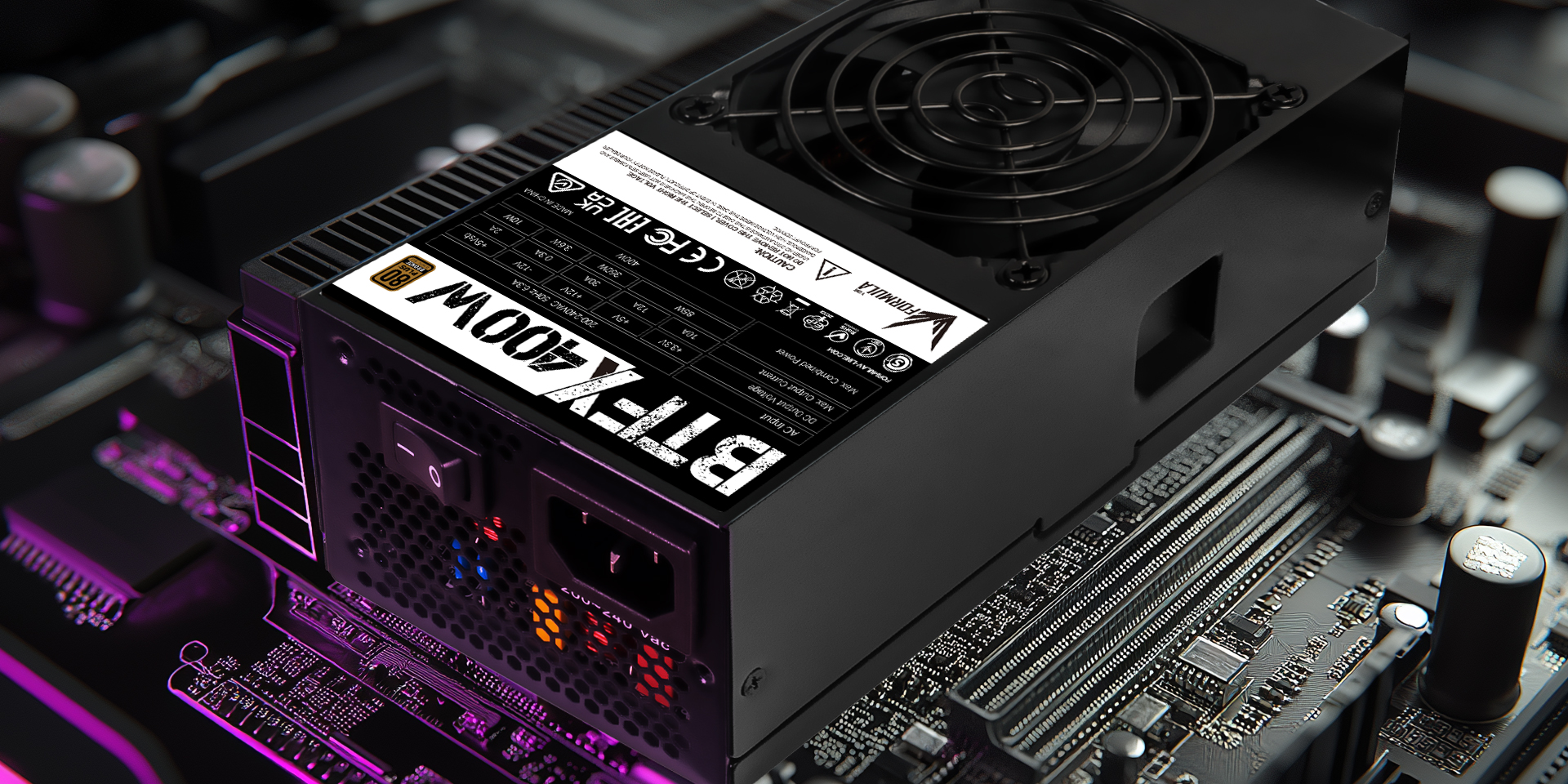

Elegant And Enhanced Airflow Casing Design

    • Elegant And Enhanced Airflow Casing Design

      The power supply’s sleek casing is designed to enhance airflow, promoting better cooling and system performance.

    • Sufficient Power Cable Length And Connectors

      With ample cable length and a variety of connectors, the power supply ensures compatibility and easy installation in various cases.

    • Uncompromising Craftsmanship

      Using 100% high-quality Japanese electrolytic capacitors, it has high stability and reliability, extending the service life of the power supply.

Power Up with Confidence: The Ultimate Protection in Your PSU

Engineered with top-quality components and rigorous testing, it’s built to withstand the most demanding usage scenarios, ensuring a stable and reliable power supply with OVP, UVP, OPP, SCP protection for your system.

    • Redefining Expectations

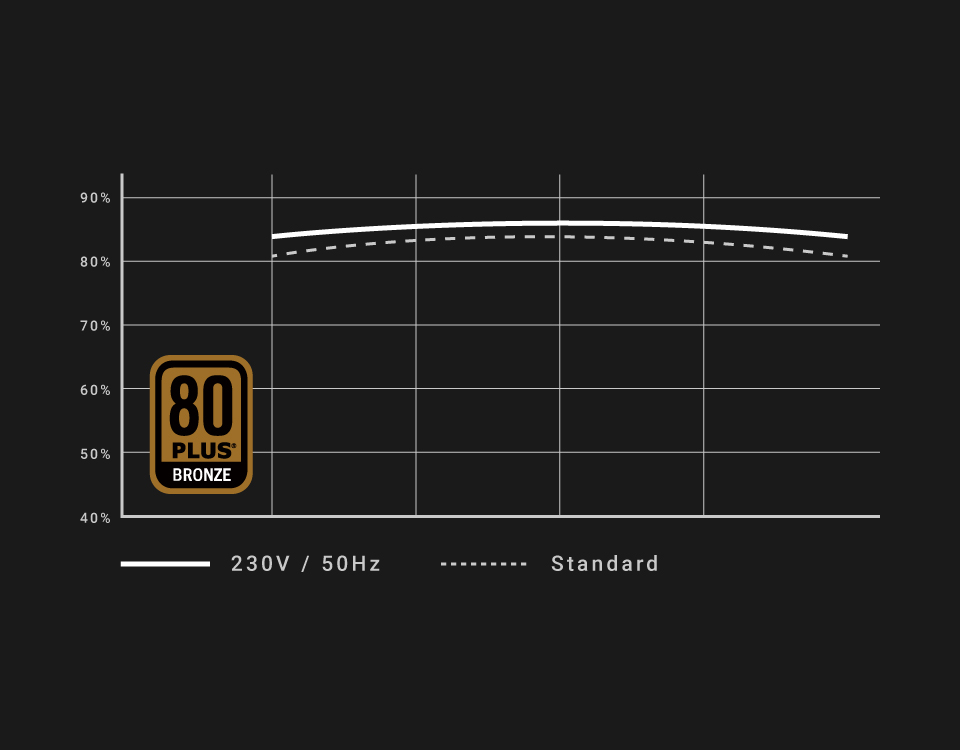

      Our 80Plus Bronze 230V EU ensures an impressive 88% efficiency, 88% PFC ≥ 0.90, at a 50% load, minimizing energy waste and maintaining lower emperatures. This leads to substantial cost savings while ensuring optimal performance.

    • Dc To Dc Conversion for High Stability and Efficiency

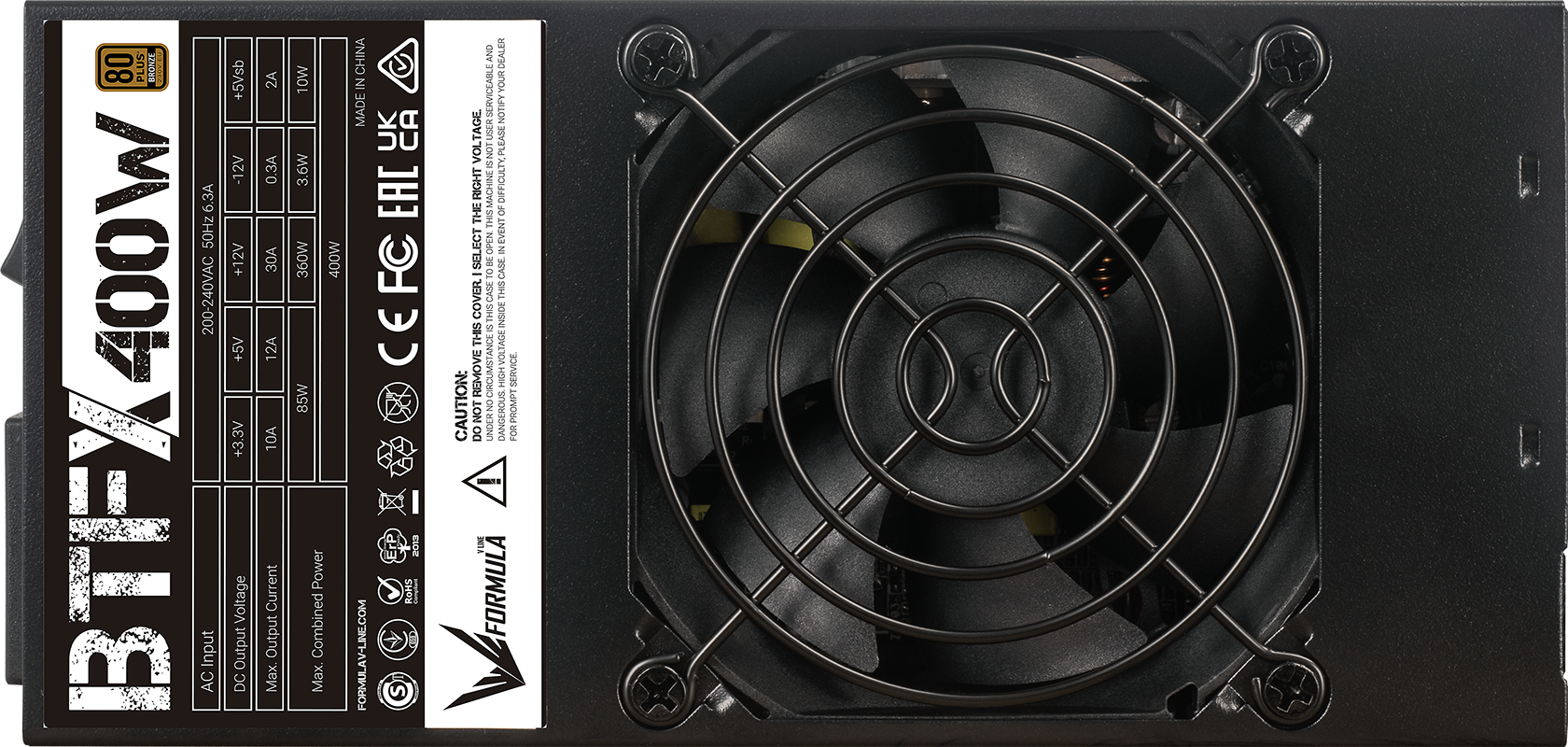

    • Whisper-Quiet Cooling Mastery For Your PSU

      Upgrade your PC’s cooling game with our Silent 12cm Hydro Bearing Fan featuring Smart Auto Thermal Control. This powerhouse addition to your PSU brings unparalleled tranquility and efficiency to your computing experience.

Specifications

  • Model

    BTFX-400

  • Dimension

    175 x 82 x 41mm

  • Real Watts

    400W

  • Efficiency

    80Plus Bronze

  • Input Voltage

    230V

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    80mm

  • Modular

    Direct Cable

  • Net Weight

    11.60 kg

  • Gross Weight

    12.32 kg

  • EAN

    BTFX-400: 4711401662112

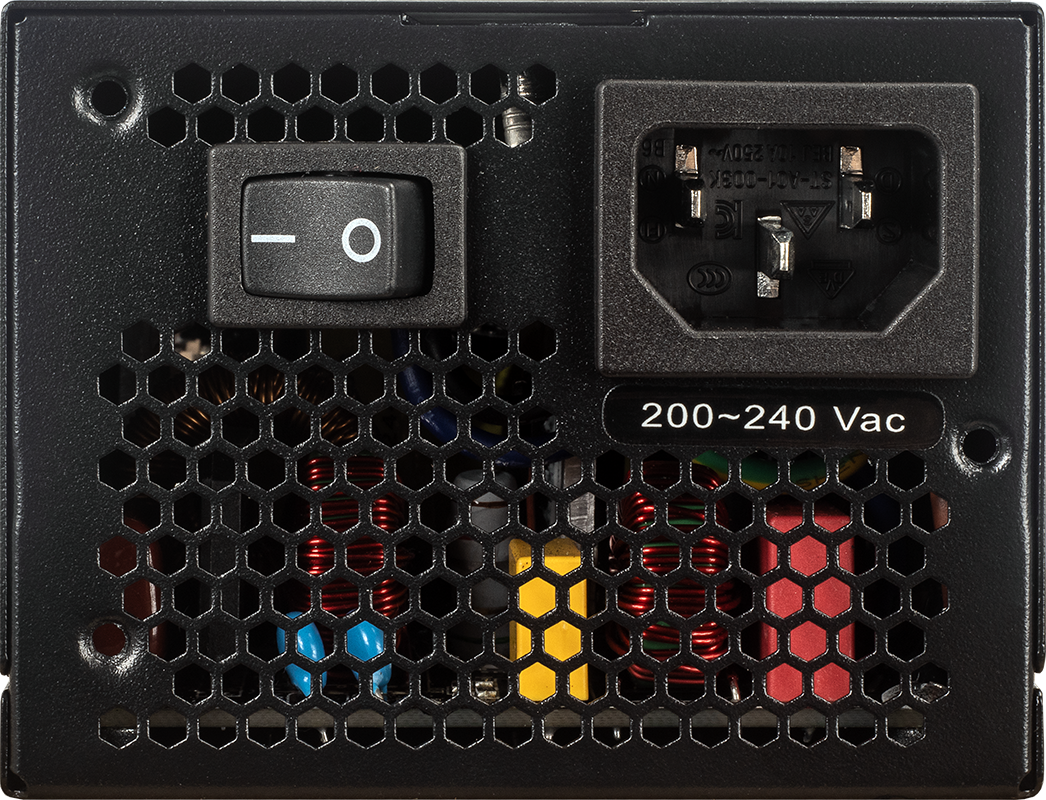

AC Input

  • AC

    200-240VAC 50Hz 6.3A

DC Output

  • 3.3V

    10A

  • 5V

    12A

  • 3.3V and 5V combined

    85W

  • +12V

    30A

  • -12V

    0.3A

  • +5Vsb

    2A

  • Total Power

    400W

Cable SPEC

  • Mainboard

    20+4Pin(370MM) x1

  • CPU

    4+4/(450mm) x1

  • PCI-E

    6+2pin/450mm x1

  • SATA / IDE

    Sata+ Sata+molex+ molex/370+ 150+ 150+ 150mm x1

  • SATA / IDE

    Sata+ molex+ fdd 4pin/370+150+150mm x1
