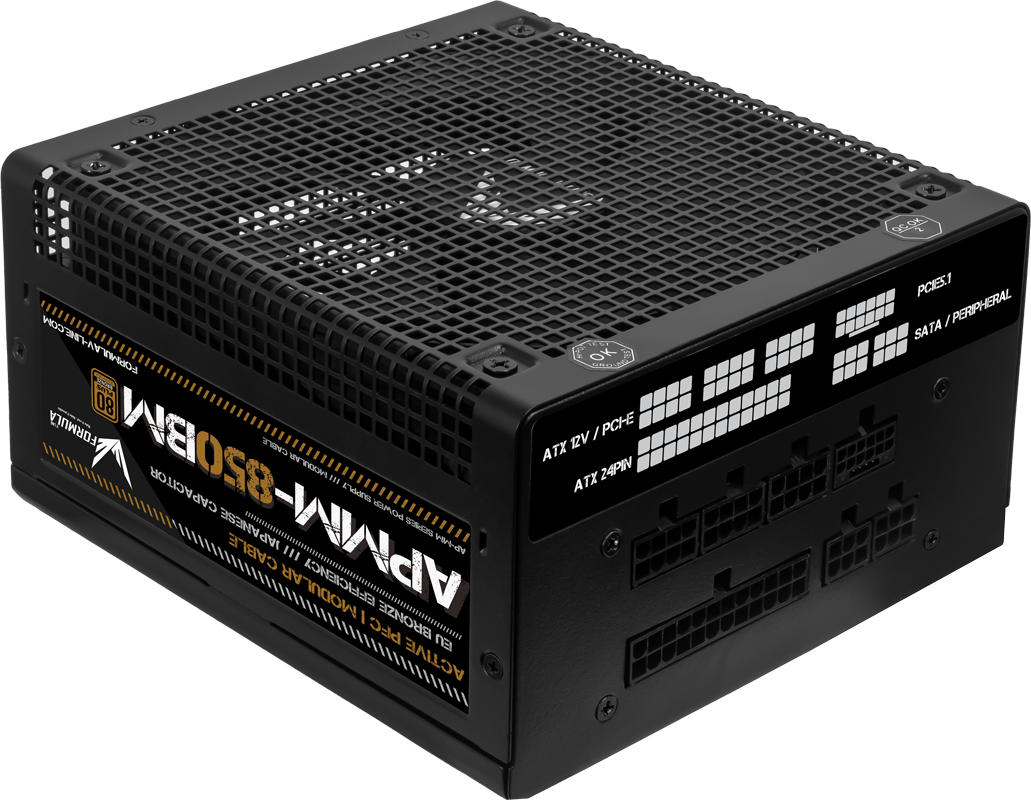

APMM-850BM

Experience reliable and efficient power delivery with our 80 PLUS 230V EU Bronze FULLY MODULAR PSU, 「APMM-850BM」.


Offering top-tier protection and outstanding performance at an unbeatable price, the APMM-850BM series is ideal for DIY PC builders seeking a power supply loaded with features without overspending.


The APMM-850BM is 80Plus Bronze 230V EU Certified, delivering up to 88%+ efficiency for optimized power performance.

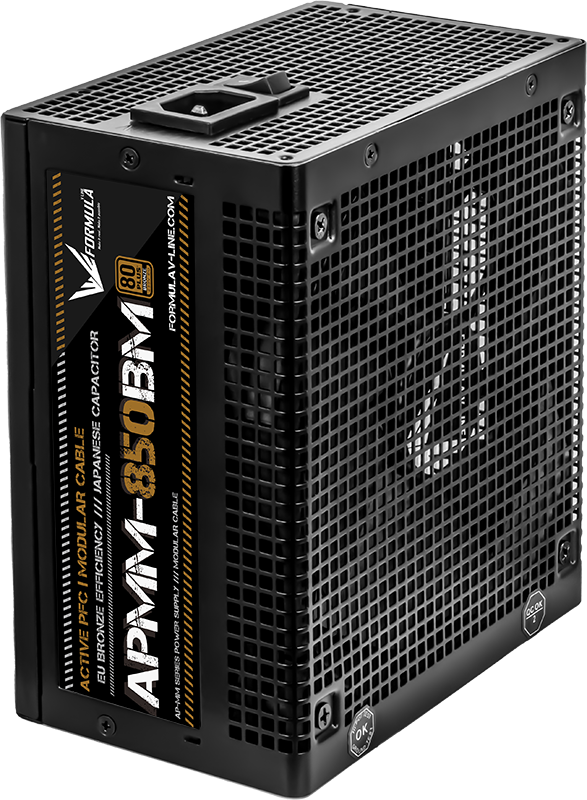

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

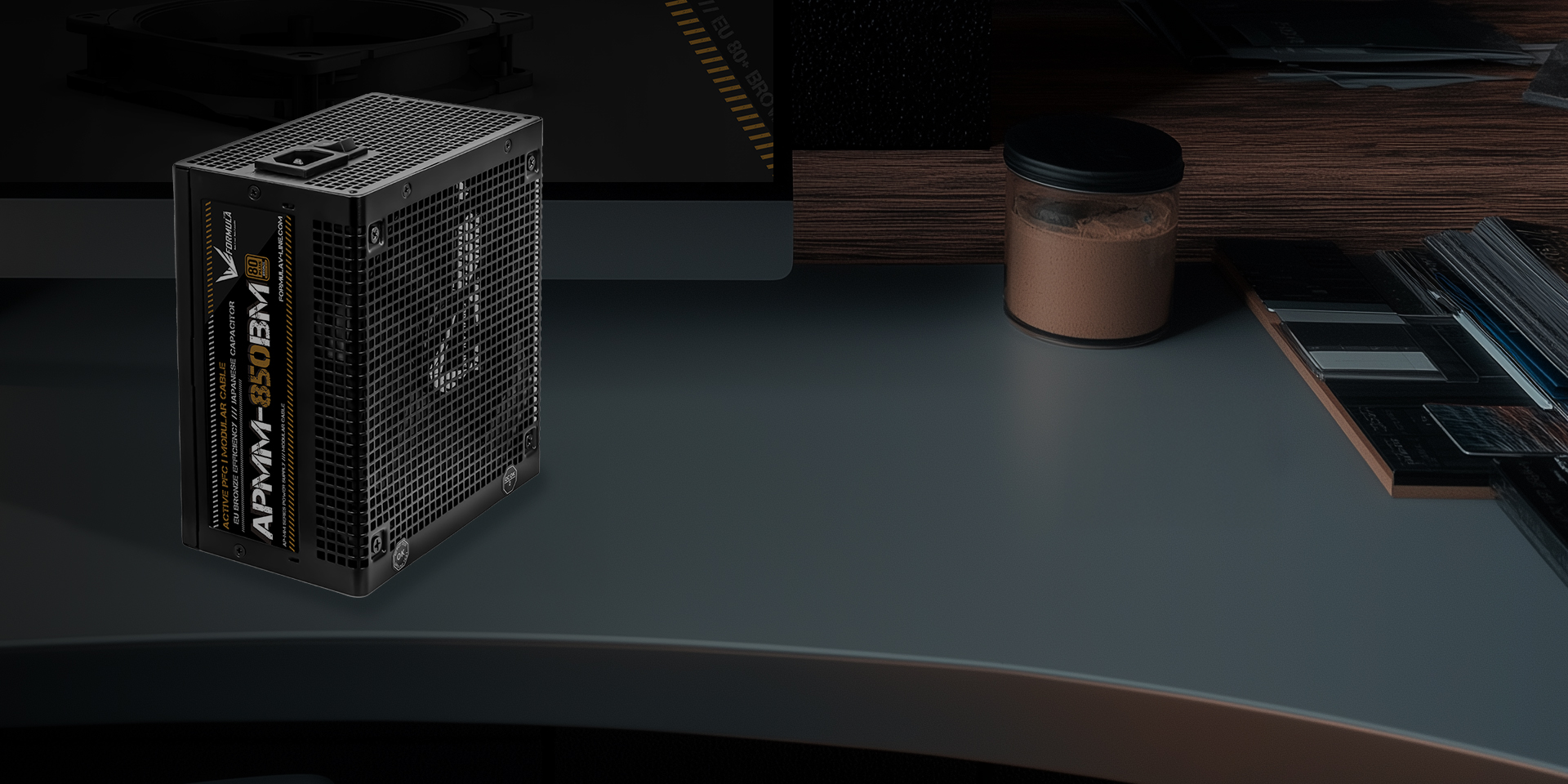

APMM-850BM-1920x960

Efficient, Fully Modular Power

    • Efficient, Fully Modular Power

      The APMM-850BM series fully modular power supplies provide dependable 80 PLUS Bronze EU 230V efficiency, allowing you to use only the necessary cables for a tidier build.

    • ATX 3.1 Ready: Embrace the Future

      The latest power specifications are here. ATX 3.1 introduces stricter voltage and current regulation standards for next-gen hardware. Included with the PSU is a 16-pin PCIe cable capable of elivering up to 600W to PCIe Gen 5.1 graphics cards, enabling high-performance power delivery for compact builds.

    • Redefining Expectations

      Our 80Plus Bronze 230V EU ensures an impressive 88% efficiency, 88% PFC ≥ 0.90, at a 50% load, minimizing energy waste and maintaining lower temperatures. This leads to ubstantial cost savings while ensuring optimal performance.

Power Up with Confidence: The Ultimate Protection in Your PSU

Engineered with top-quality components and rigorous testing, it’s built to withstand the most demanding usage scenarios, ensuring a stable and reliable power supply with OVP, UVP, OPP, SCP protection for your system.

    • More Stable And Efficient

      Supports the C6/C7 energy-saving state of intel’s latest processors, providing a more stable, efficient and energy-saving solution.

    • Uncompromising Craftsmanship

      Using 100% high-quality Japanese electrolytic capacitors, it has high stability and reliability, extending the service life of the power supply.

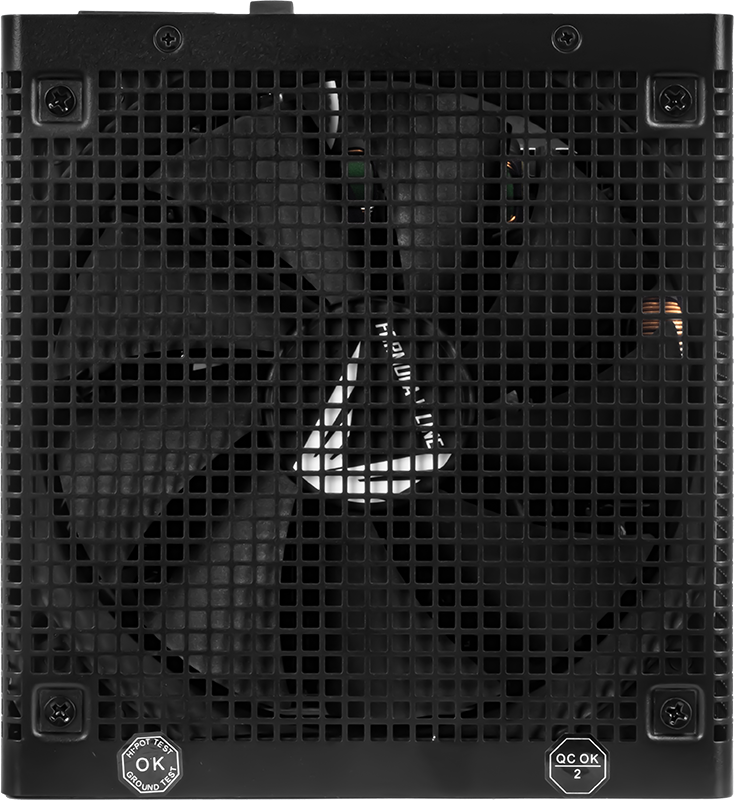

    • Whisper-Quiet Cooling Mastery For Your PSU

      Upgrade your PC’s cooling game with our 12CM FDB Fan featuring Smart Auto Thermal Control. This powerhouse addition to your PSU brings unparalleled tranquility and efficiency to your computing experience.

Specifications

  • Model

    APMM-850BM

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    850W

  • Efficiency

    80Plus Bronze

  • Input Voltage

    230V

  • Type

    ATX3.1 / PCIe5.1

  • Main Capacitor

    Japanese Capacitor

  • PFC

    APFC

  • Fan

    140mm FDB

  • Modular

    Full Modular

  • Net Weight

    15.35 kg

  • Gross Weight

    16.30 kg

  • EAN

    APMM-850BM: 4711401661344

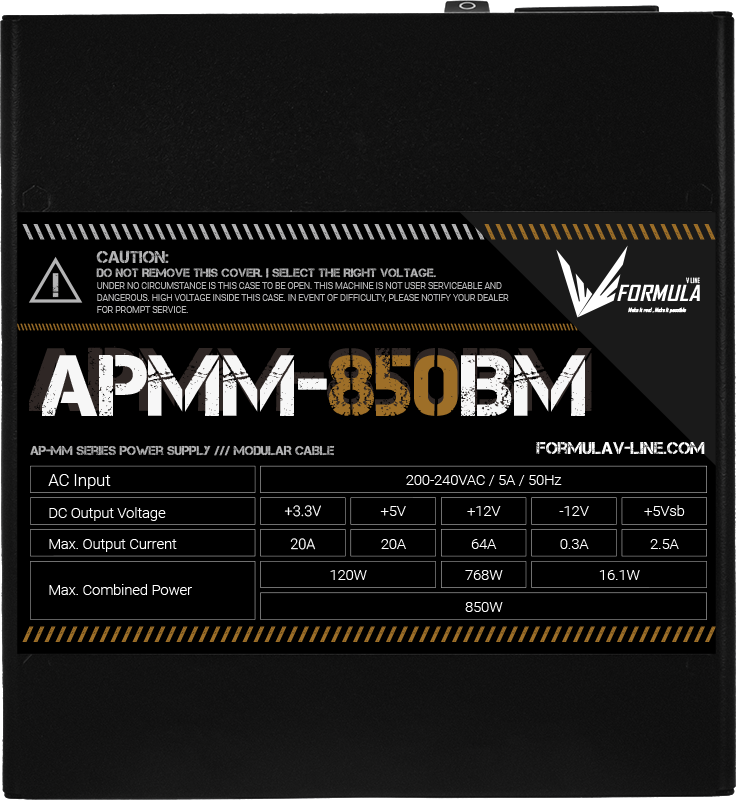

AC Input

  • AC

    200-240VAC / 5A / 50Hz

DC Output

  • 3.3V

    20A

  • 5V

    20A

  • 3.3V and 5V combined

    120W

  • +12V

    64A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    850W

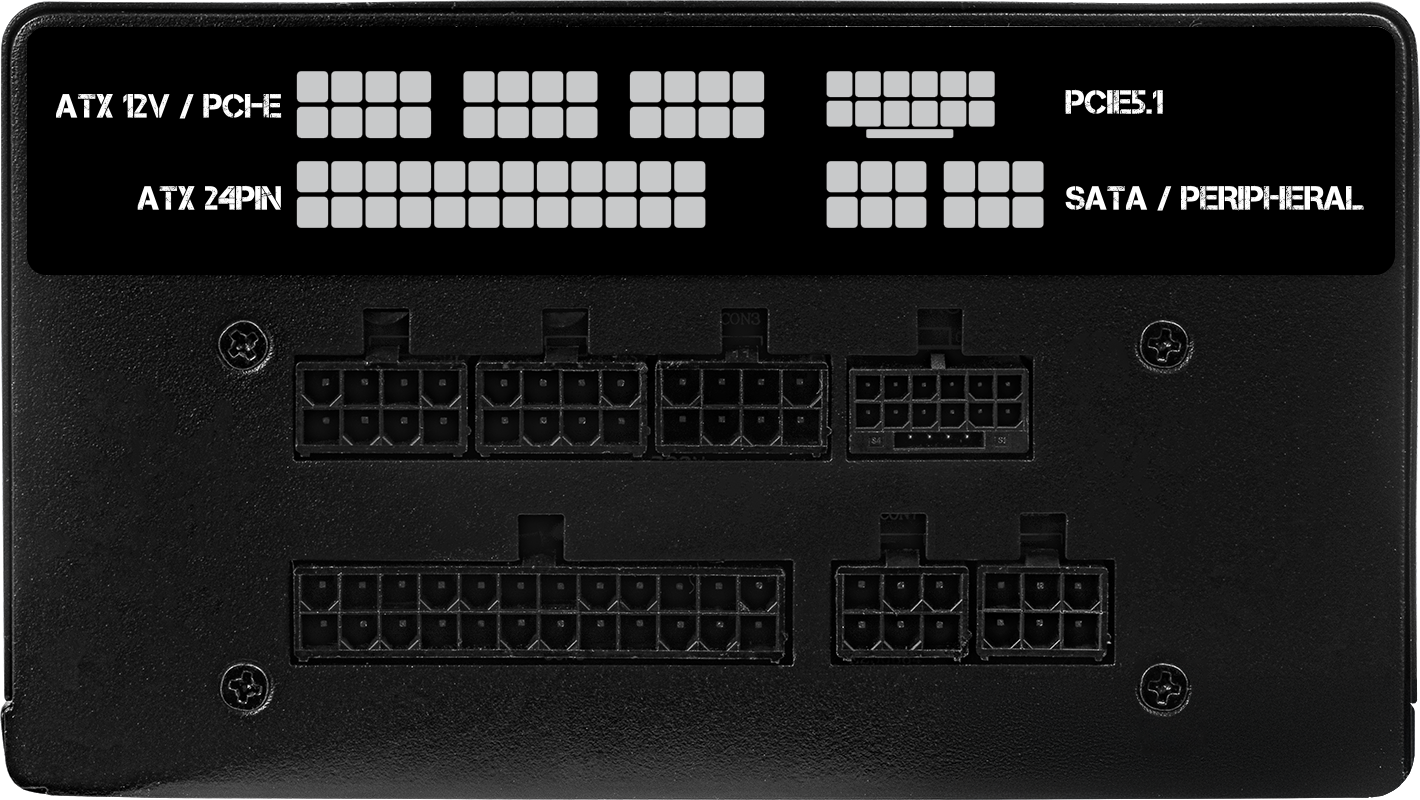

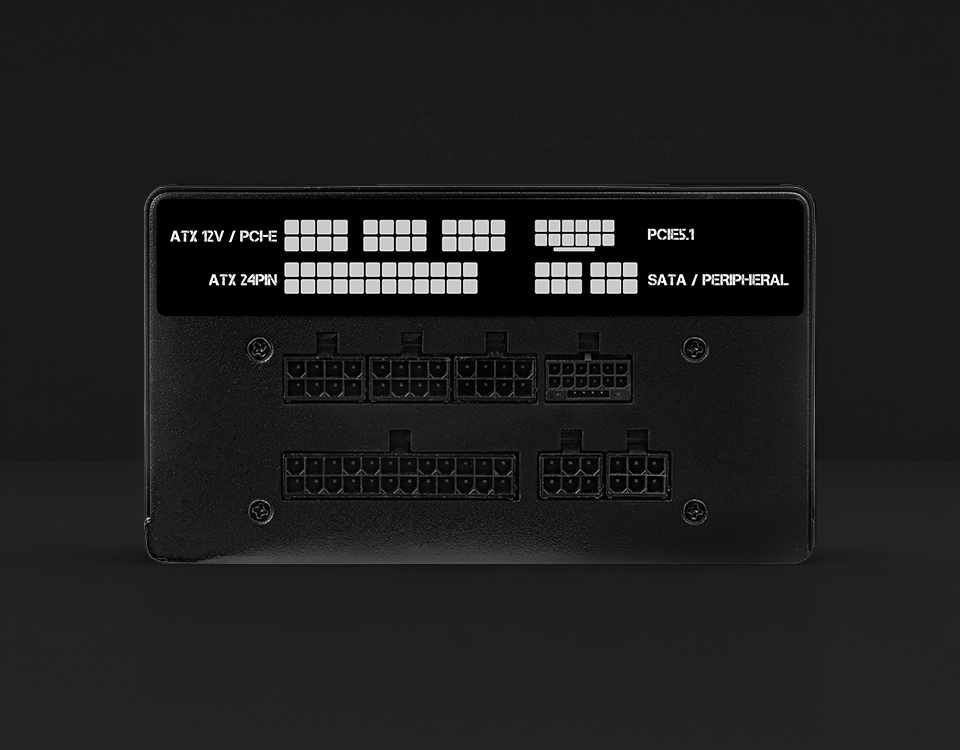

Cable SPEC

  • Mainboard

    20+4P (500mm) x1

  • CPU

    P8(4+4) (600mm) x1

  • PCI-E

    P8(6+2) to P8(6+2) (550mm) x2

  • PCIe5.1

    PCIe 5.1 H++ 12V-2X6 12VHPWR 16Pin (550mm, 600W) x1

  • SATA / IDE

    SATA (500mm)+ SATA (150mm)+ SATA (150mm)+ IDE(150mm) x1

  • SATA / IDE

    SATA (500mm)+ SATA (150mm)+ IDE (150mm)+ IDE(150mm) x 1
