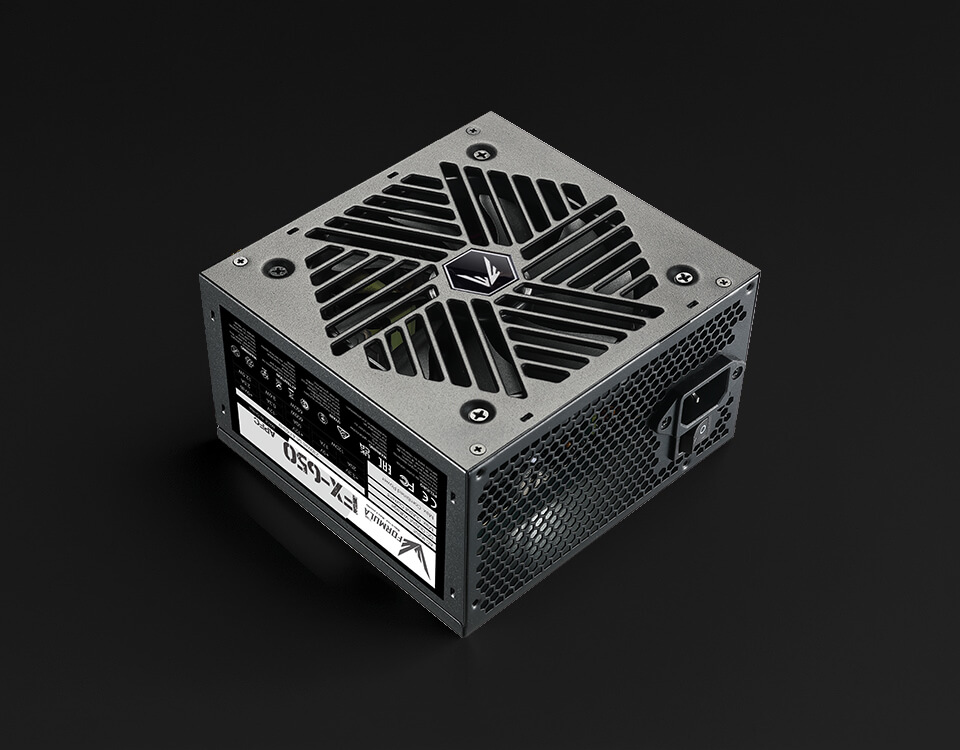

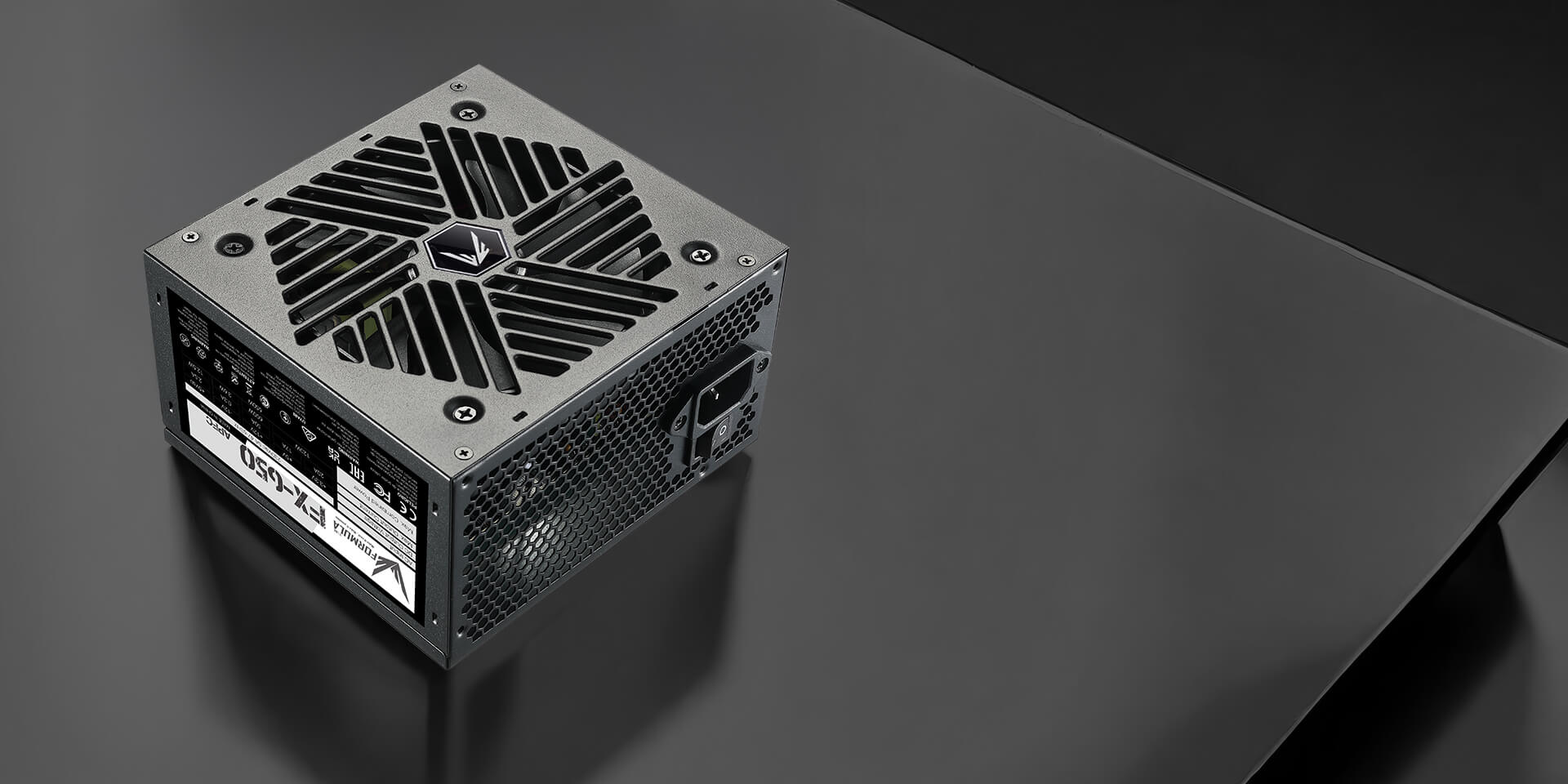

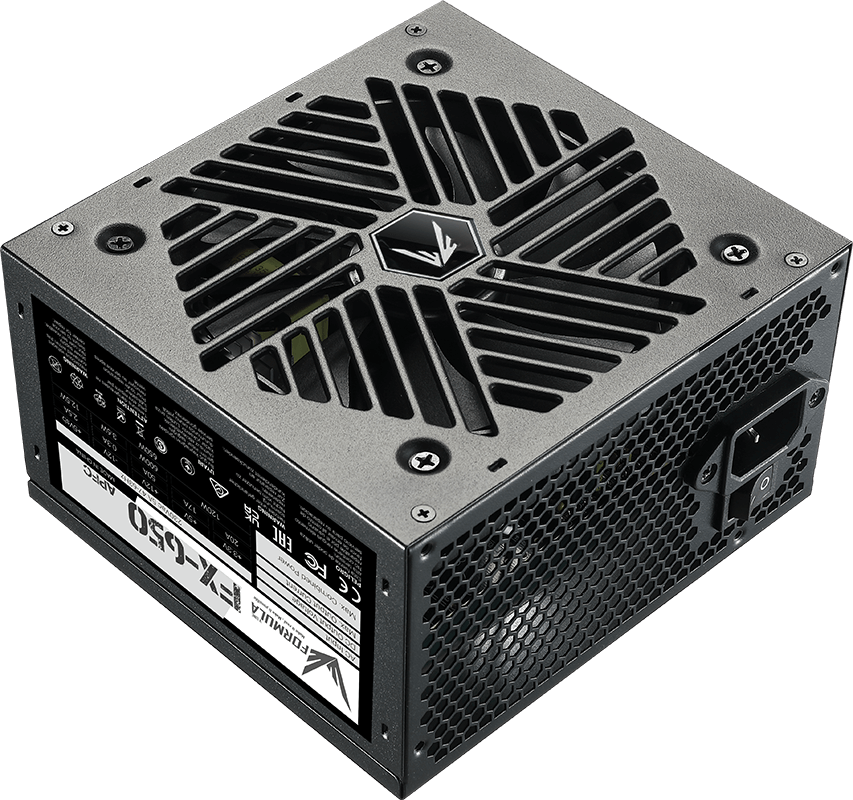

FX-650
Top choice for budget-conscious beginners in system building.
Compatible with ATX 12V 2.3.
The enhanced transformer enables robust support for heavy 12V-loaded systems.
The robust single +12V rail provides a compatible DC output.
Quiet 12cm fan with finely-tuned thermal fan speed management for reduced noise.
OPP/OVP/UVP/SCP/SIP electrical protection included.
Incorporates built-in APFC (Active Power Factor Correction) with rates exceeding 0.9
Meet 80+ Efficiency.
Variation
The Best Value
-
-
-
The Best Value
Our priority is to provide an affordable power supply unit that’s easy to install while still offering great quality and top-notch performance.
-
Reliability
The FX PSU is perfect for those who are new to building systems. It comes with an improved transformer and a 12cm fan that’s smartly designed for efficient cooling.
-
-
-
-
Active Power Factor Correction
Incorporates built-in APFC (Active Power Factor Correction) with rates exceeding 0.9
-
Meet 80+ White Efficiency
Compliant with the 80 PLUS Efficiency Standard. This superior efficiency not only reduces energy wastage but also maintains lower temperatures, leading to substantial cost savings.
-
Specifications
-
Model
FX-650
-
Dimension
140 x 150 x 86mm
-
Real Watts
650W
-
Input Voltage
230V
-
PFC
APFC
-
Fan
120mm
-
Modular
Direct Cable
-
Net Weight
15.60 kg
-
Gross Weight
16.50 kg
-
EAN
FX-650: 4711401660118
AC Input
-
AC
230Vac 4A 47-63Hz
DC Output
-
3.3V
20A
-
5V
17A
-
3.3V and 5V combined
120W
-
+12V
50A
-
-12V
0.3A
-
+5Vsb
2.5A
-
Total Power
650W
Cable SPEC
-
Mainboard
20+4Pin 18AWG exposed length(500mm) x1
-
CPU
4+4Pin 18AWG exposed length(550mm) x1
-
PCI-E
PCIe 6+2P 18AWG exposed length(400mm)+PCIe 6+2P(150mm) x1
-
SATA / IDE
Sata 18AWG exposed length(350mm)+PATA(150mm) x2
-
SATA / IDE
SATA 18AWG exposed length(350mm)+Sata(150mm)+Sata((150mm)+PATA(150mm) x1
