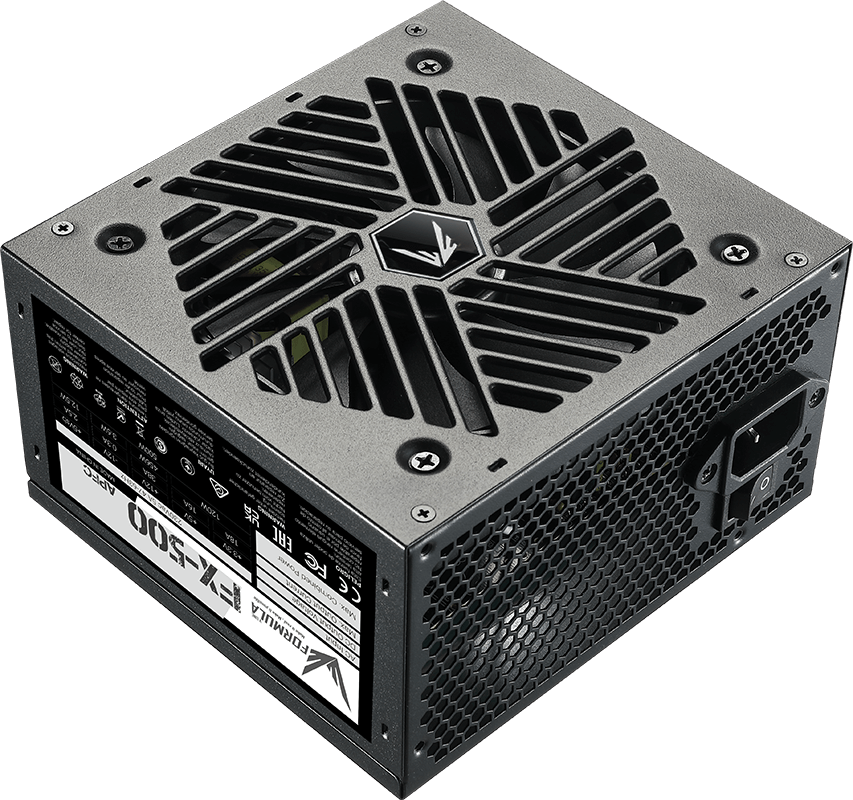

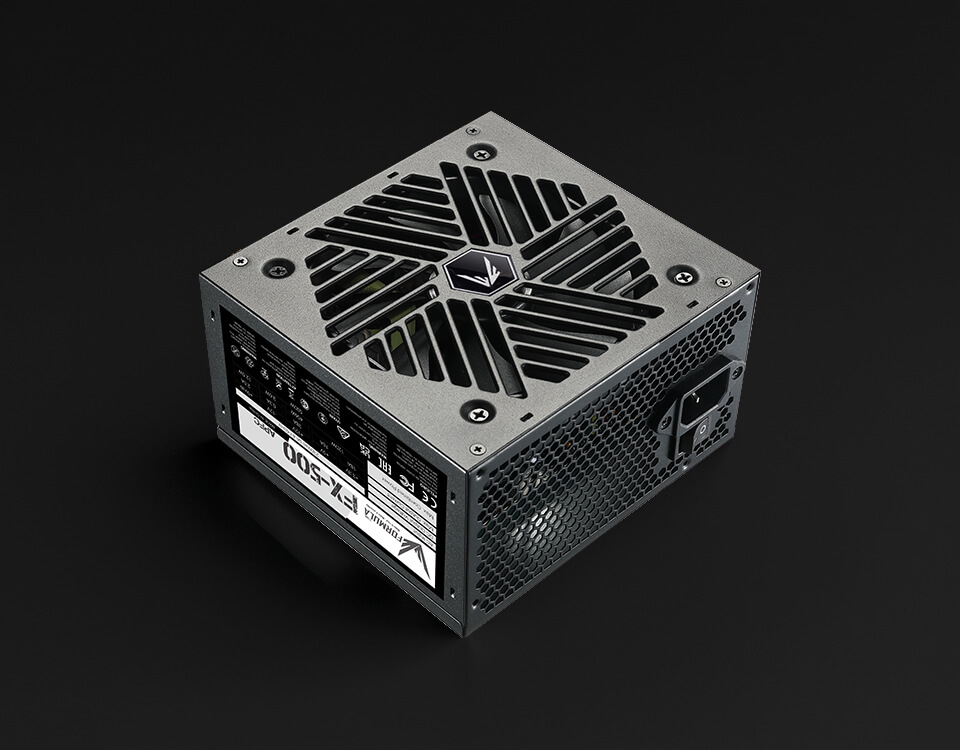

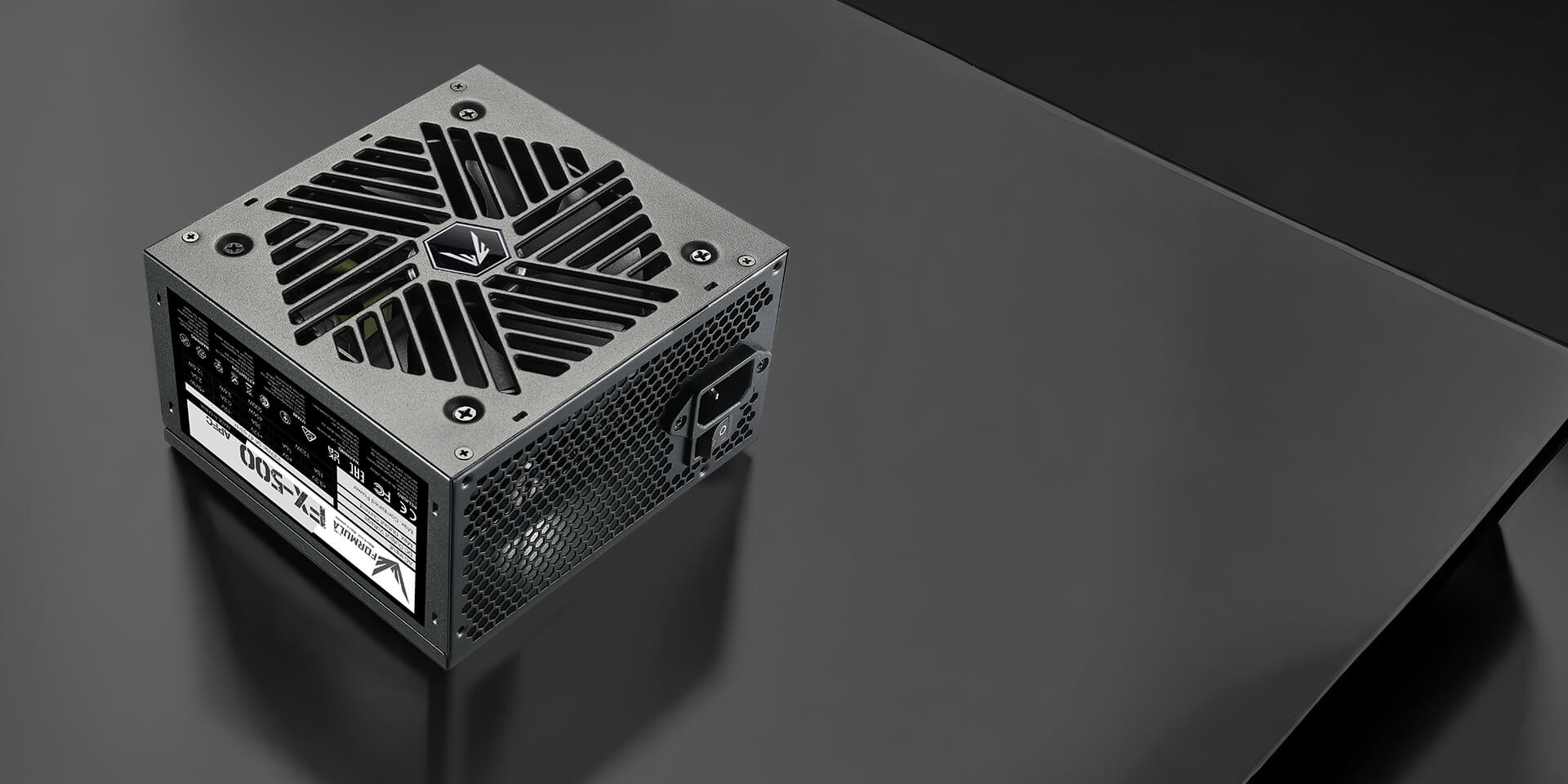

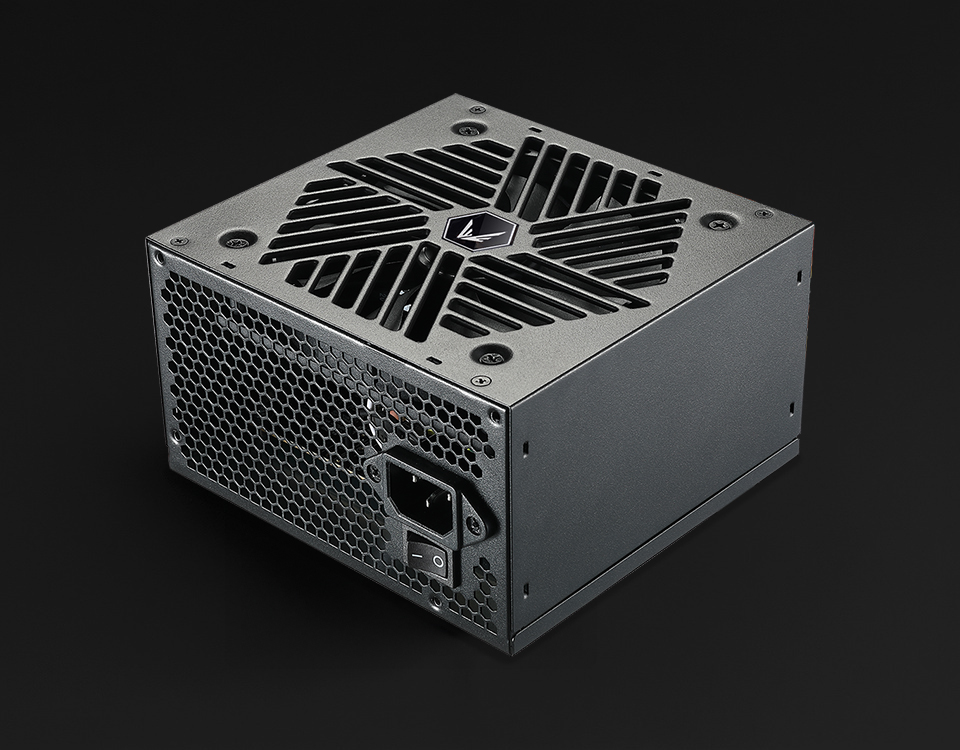

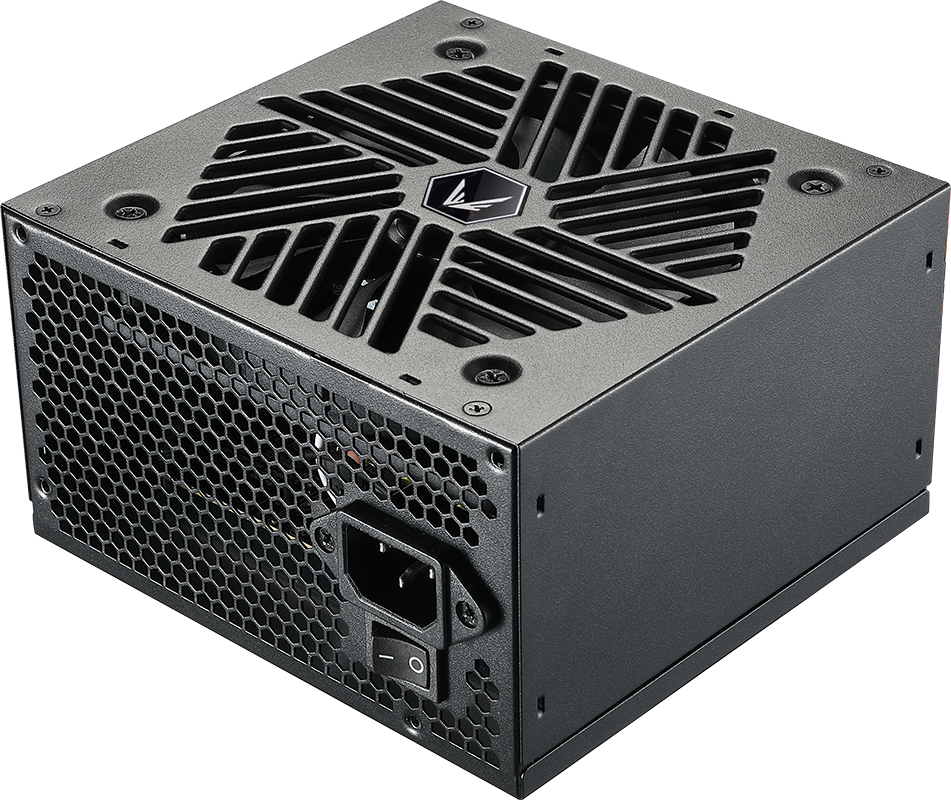

FX-500

Top choice for budget-conscious beginners in system building.

Compatible with ATX 12V 2.3.


The enhanced transformer enables robust support for heavy 12V-loaded systems.


The robust single +12V rail provides a compatible DC output.

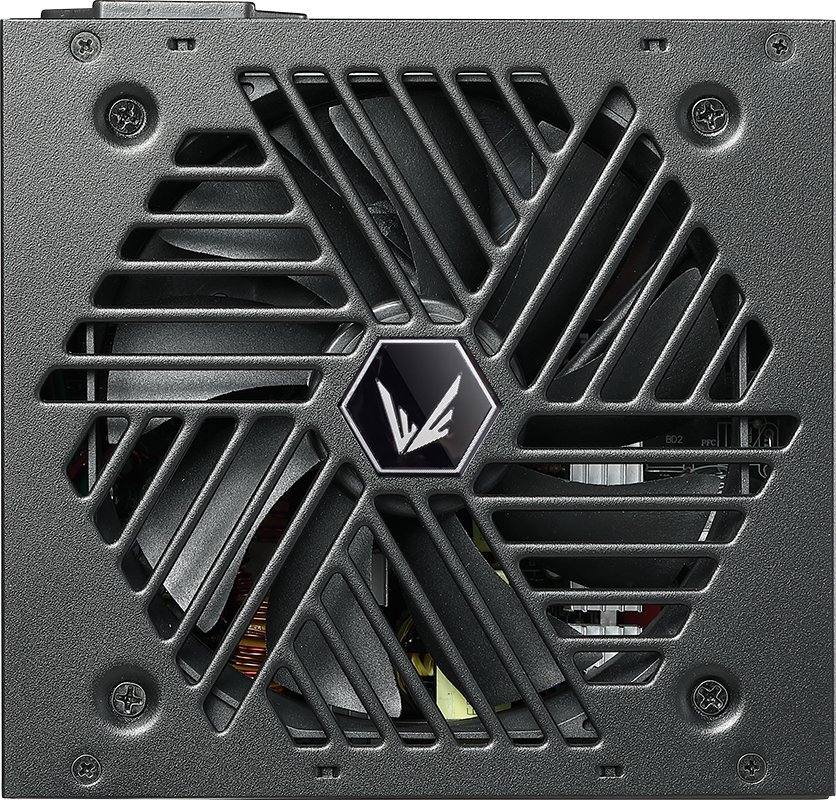

Quiet 12cm fan with finely-tuned thermal fan speed management for reduced noise.


OPP/OVP/UVP/SCP/SIP electrical protection included.


Incorporates built-in APFC (Active Power Factor Correction) with rates exceeding 0.9


Meet 80+ Efficiency.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration

Variation

Type

FX-500-1920x960

The Best Value

    • The Best Value

      Our priority is to provide an affordable power supply unit that’s easy to install while still offering great quality and top-notch performance.

    • Reliability

      The FX PSU is perfect for those who are new to building systems. It comes with an improved transformer and a 12cm fan that’s smartly designed for efficient cooling.

    • Active Power Factor Correction

      Incorporates built-in APFC (Active Power Factor Correction) with rates exceeding 0.9

    • Meet 80+ White Efficiency

      Compliant with the 80 PLUS Efficiency Standard. This superior efficiency not only reduces energy wastage but also maintains lower temperatures, leading to substantial cost savings.

Specifications

  • Model

    FX-500

  • Dimension

    140 x 150 x 86mm

  • Real Watts

    500W

  • Input Voltage

    230V

  • PFC

    APFC

  • Fan

    120mm

  • Modular

    Direct Cable

  • Net Weight

    14.32 kg

  • Gross Weight

    15.22 kg

  • EAN

    FX-500: 4711401660088

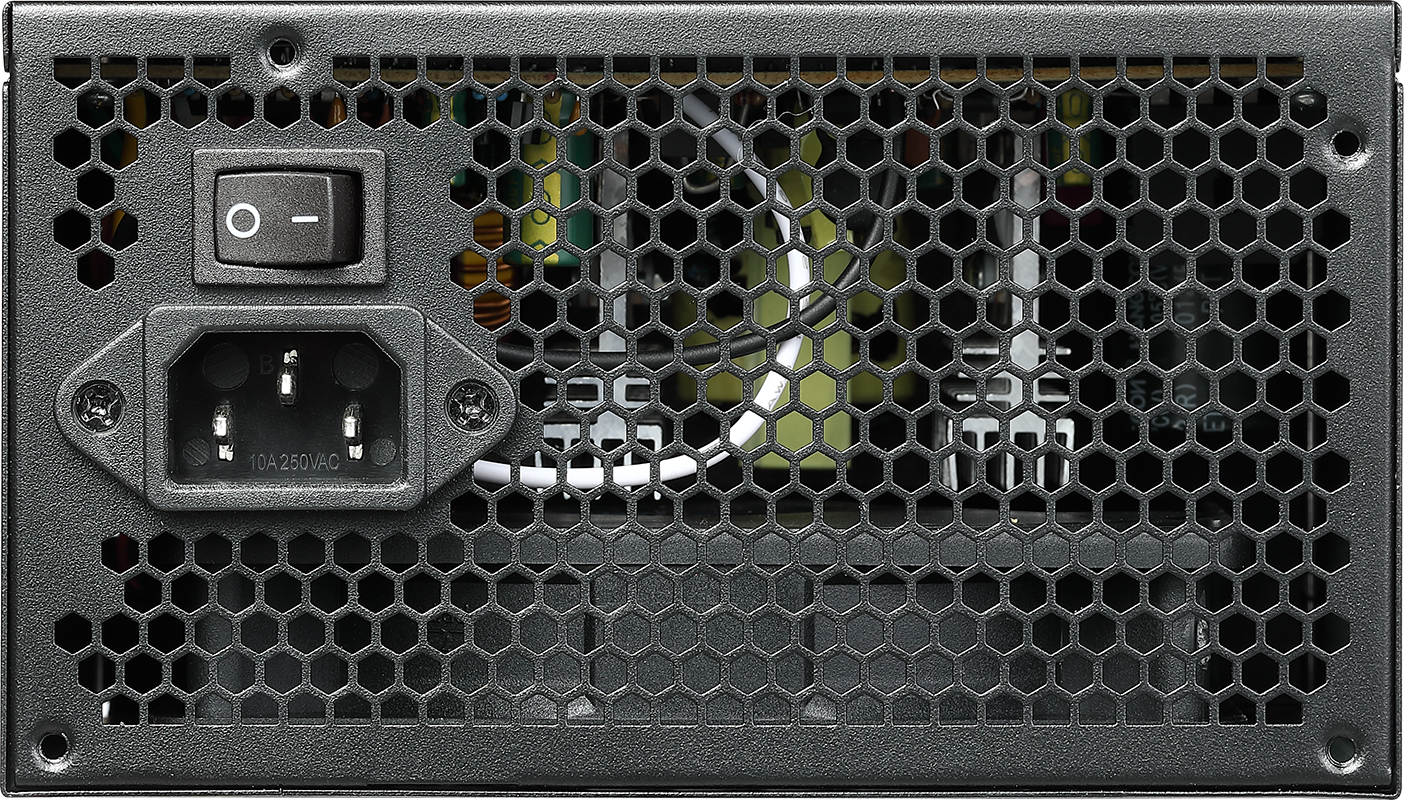

AC Input

  • AC

    230Vac 4A 47-63Hz

DC Output

  • 3.3V

    18A

  • 5V

    16A

  • 3.3V and 5V combined

    120W

  • +12V

    38A

  • -12V

    0.3A

  • +5Vsb

    2.5A

  • Total Power

    500W

Cable SPEC

  • Mainboard

    20+4Pin 18AWG exposed length(500mm) x1

  • CPU

    4+4Pin 18AWG exposed length(550mm) x1

  • PCI-E

    PCIe 6+2P 18AWG exposed length(400mm) x1

  • SATA / IDE

    Sata 20AWG exposed length(350mm)+PATA(150mm) x1

  • SATA / IDE

    SATA 20AWG exposed length(350mm)+Sata(150mm)+PATA((150mm)+PATA(150mm) x1
