Air Mesh G6 | G6 Plus

Air Mesh G6 features a front-mounted PSU layout that reduces chassis width while maintaining strong airflow performance. Paired with dual front intake fans and optimized bottom ventilation, the case delivers efficient cooling in a compact footprint.

The cooling and hardware layout shown in the product photos is for reference only.

Please check the website’s product specifications for the actual configuration.

Variation

Color

Air Mesh G6-KV-1

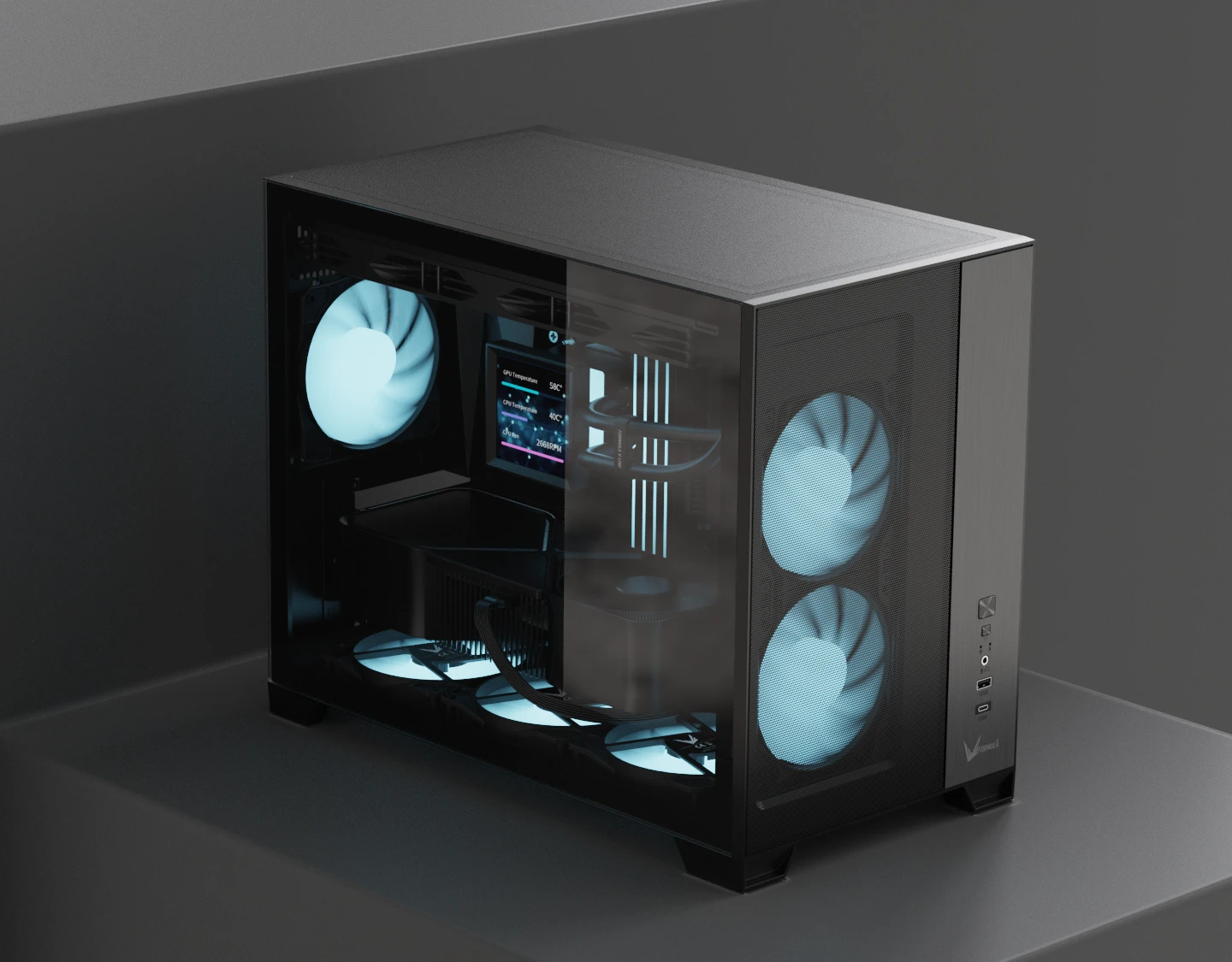

High-Airflow Compact Design

    • Slim Front-PSU Design

      The front-mounted power supply layout reduces overall width while keeping interior airflow unobstructed. This design maintains strong thermal performance without adding bulk to your setup.

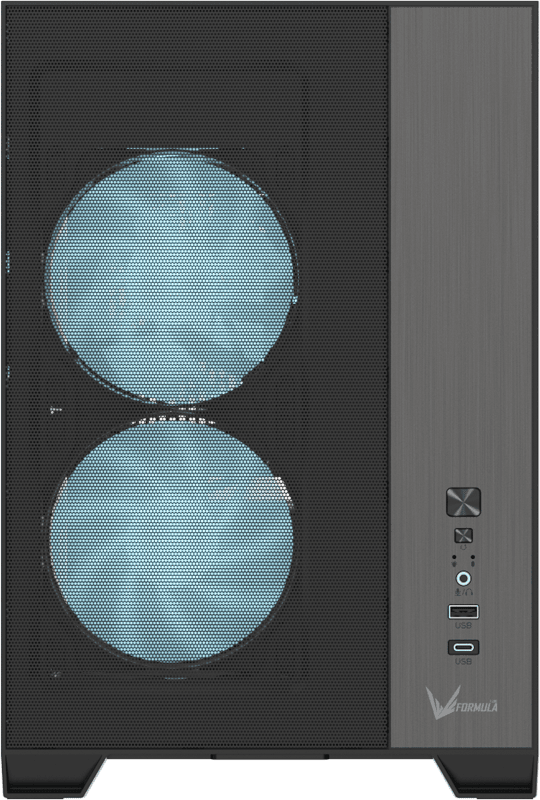

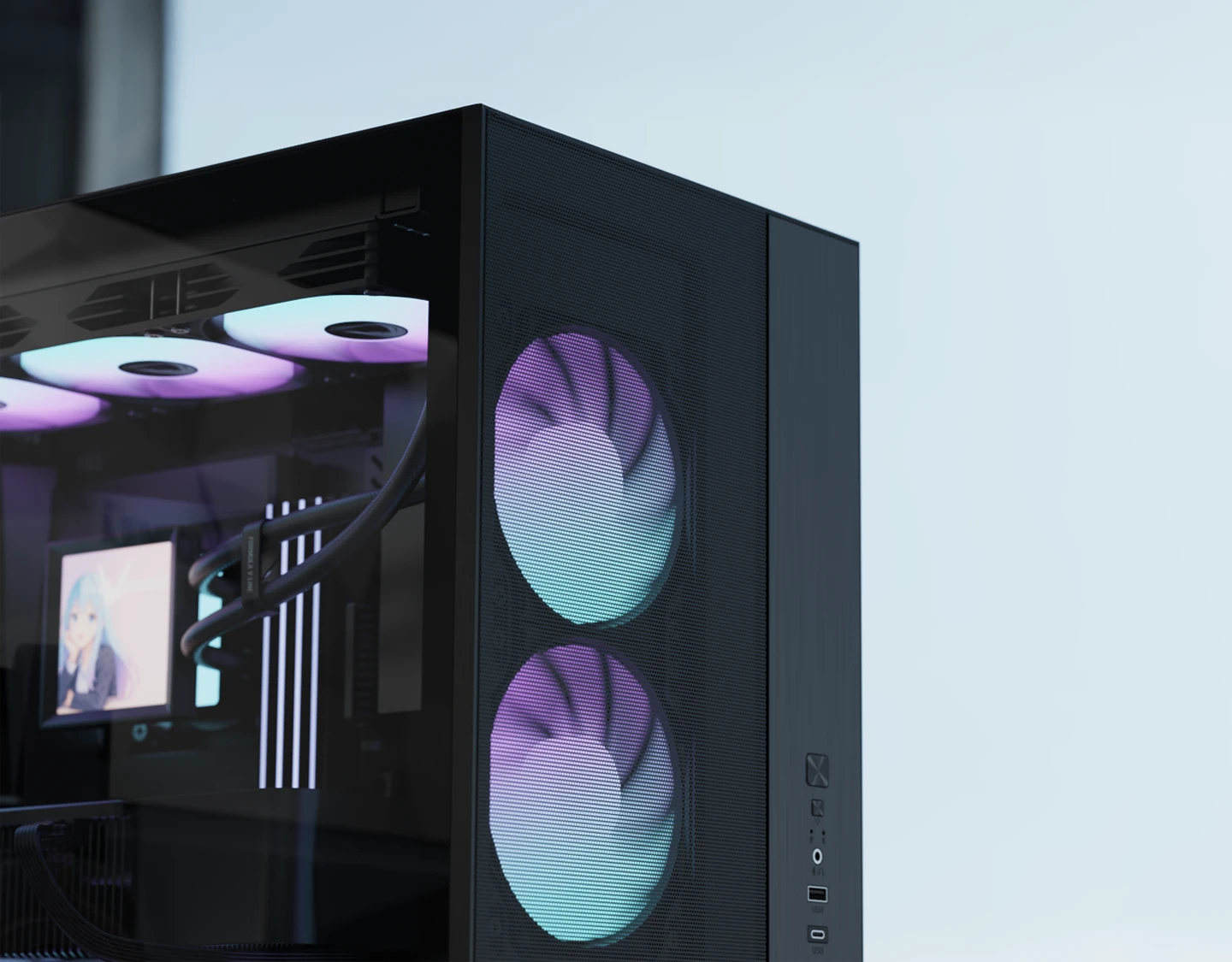

    • Large Mesh Front Airflow Intake

      A wide-open mesh front panel maximizes intake ventilation, enhanced with a brushed-metal decorative plate for a clean and refined look.

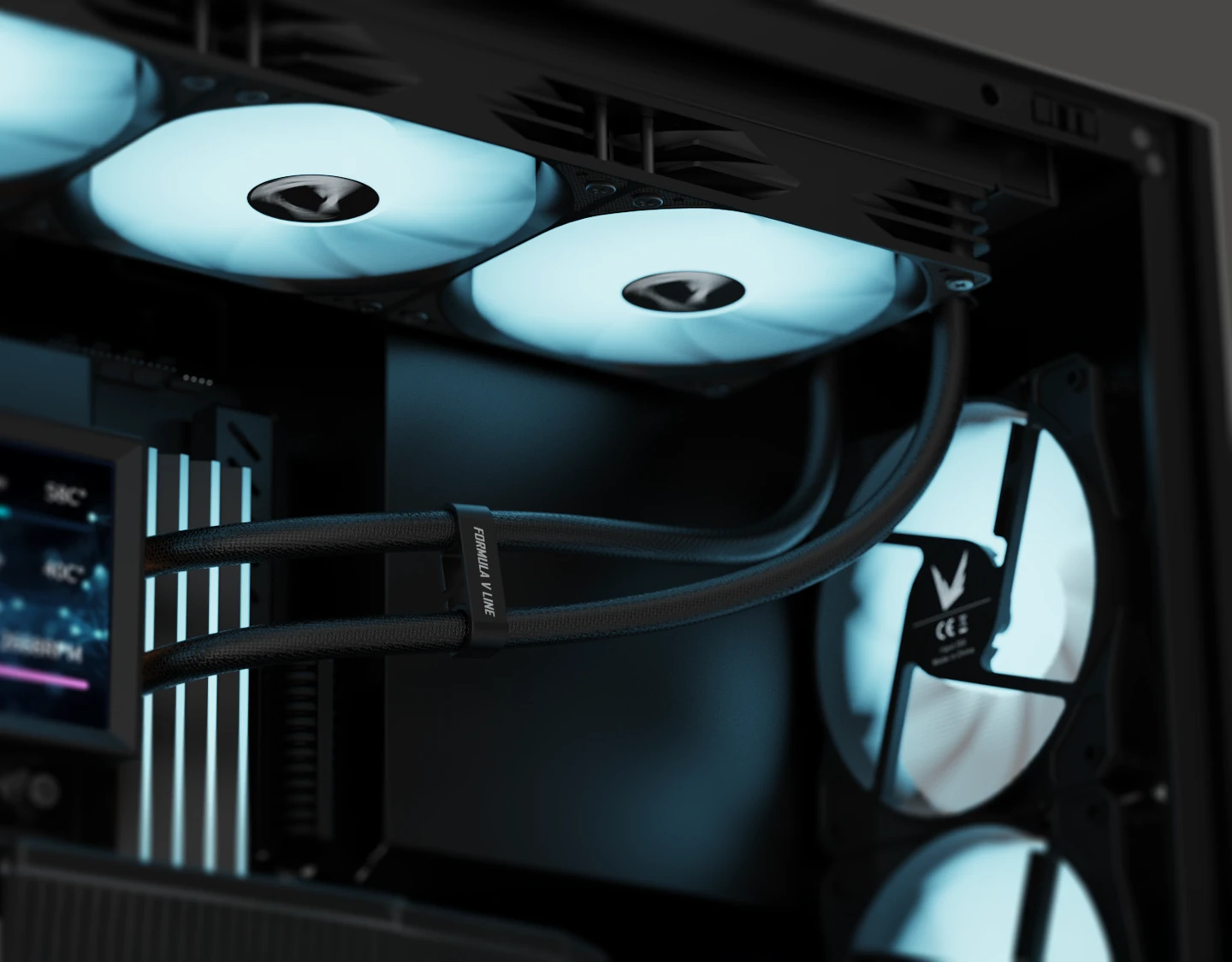

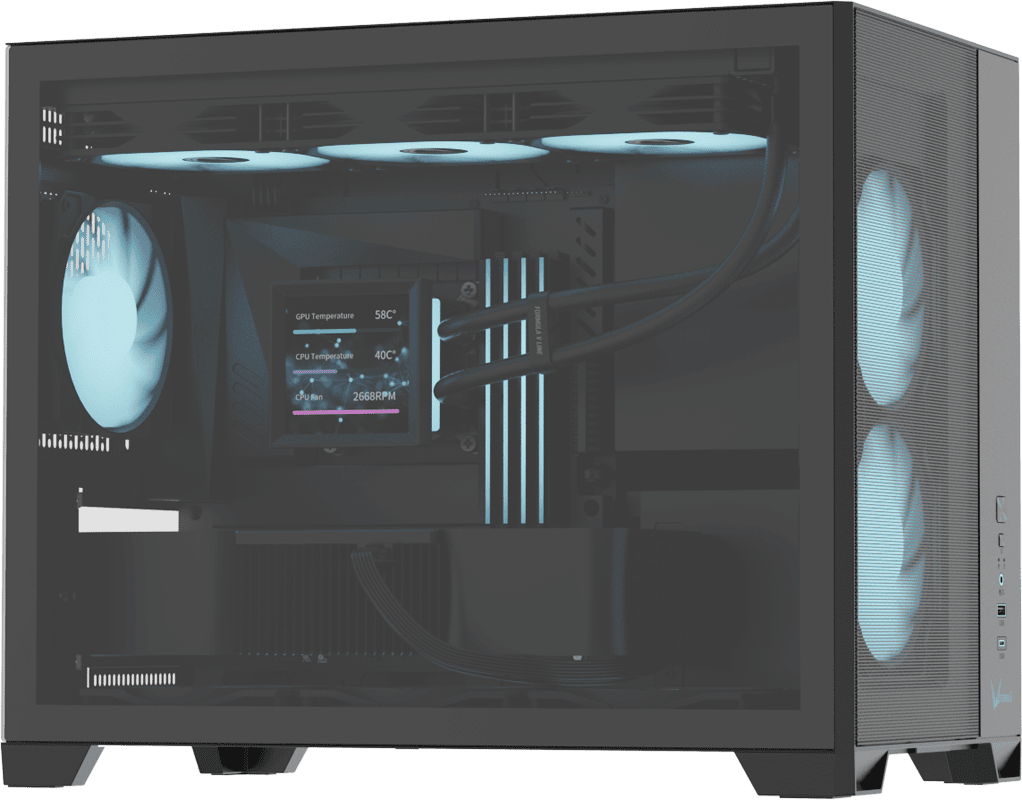

    • Top-Mounted 360mm Radiator Support

      The top panel supports up to a 360mm radiator, offering flexible and powerful liquid-cooling compatibility.

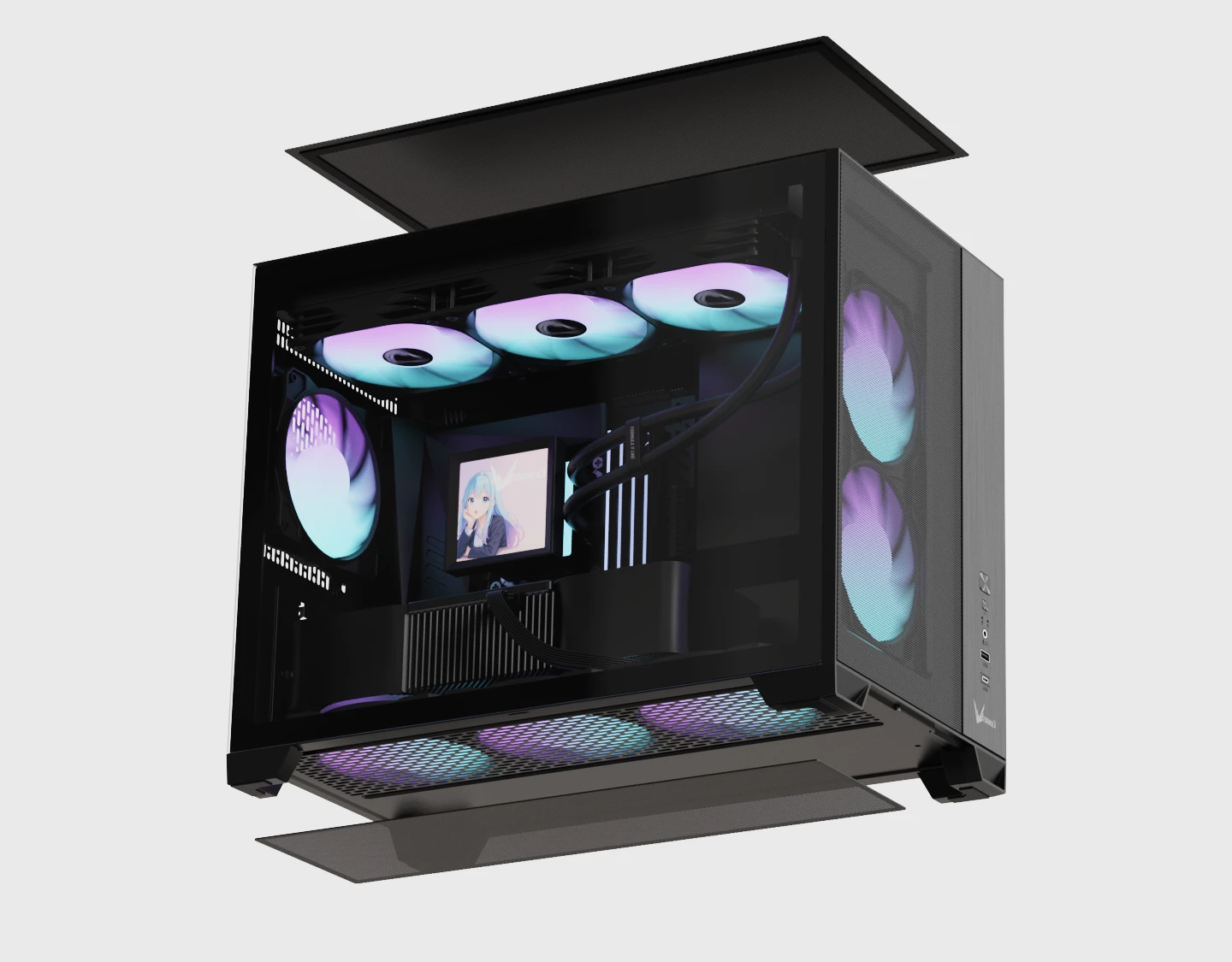

    • Easy-Clean Dust Filter Design

      Both the top and bottom of the chassis include removable dust filters, allowing for quick cleaning and consistent airflow performance.

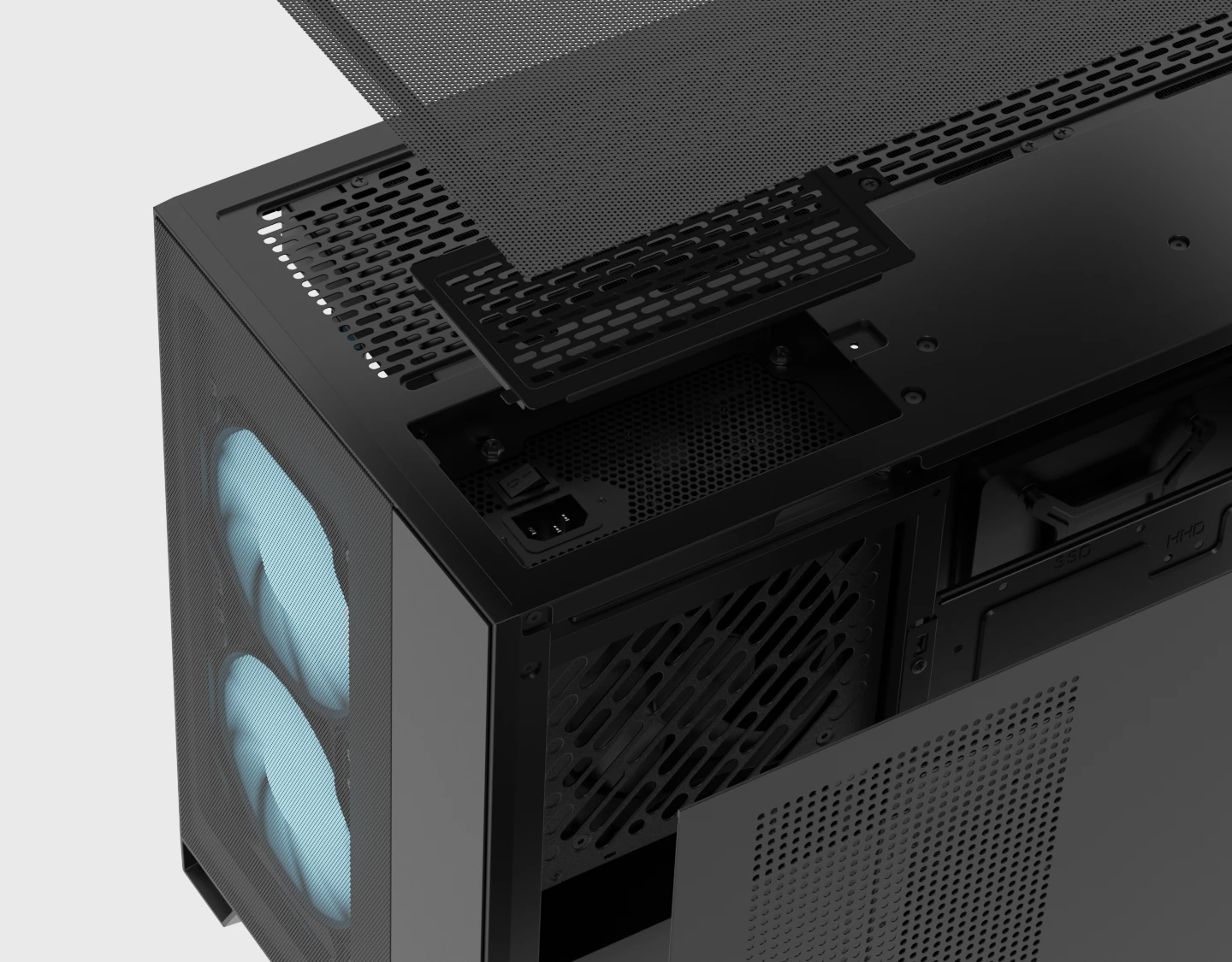

    • Optimized Front-PSU Layout

      The front-mounted PSU layout simplifies installation and cable routing, aided by an included extension cable for a cleaner build.

Enhanced Friendly Design

Features built to simplify installation and enhance user accessibility.

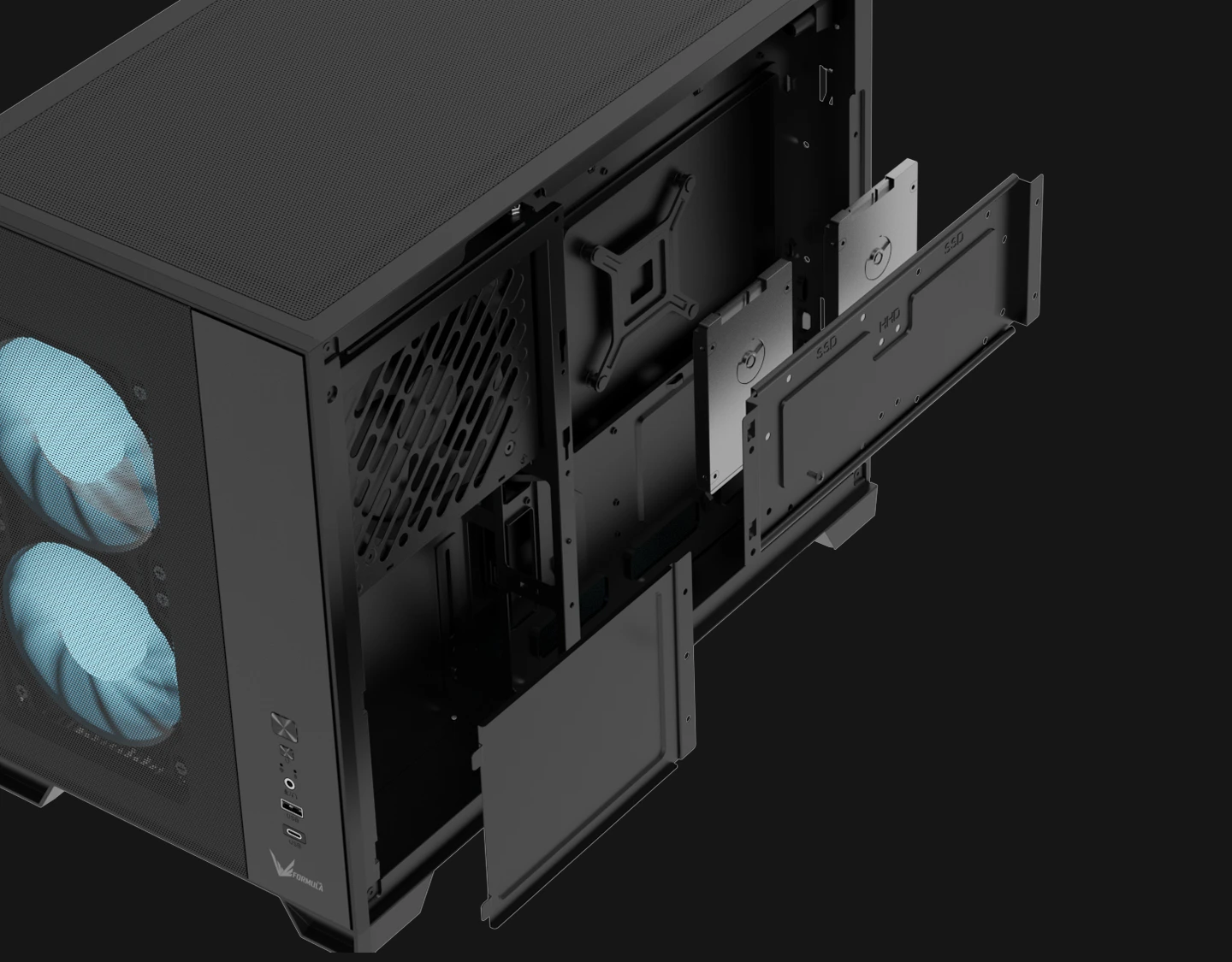

    • Removable Drive Bracket & Cable Cover

      The removable bracket supports either two SSDs or one 3.5″ HDD, while the PSU shroud cover helps keep the build layout clean and organized.

Adjustable GPU Support Bracket

A built-in adjustable support bracket prevents GPU sag and can be vertically aligned to accommodate different graphics card thicknesses.

    • Pre-Installed Triple ARGB Fans

      The Air Mesh G6 Plus version includes three pre-installed daisy-chained ARGB fans, providing strong airflow and vibrant lighting right out of the box.

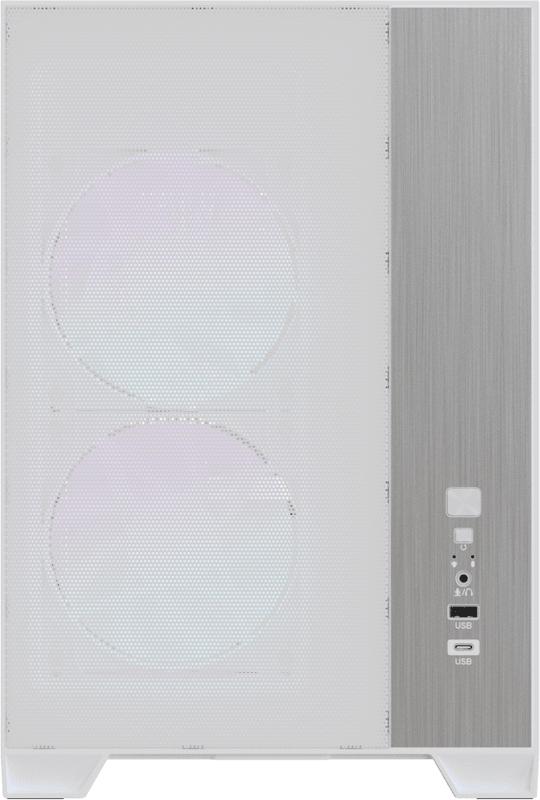

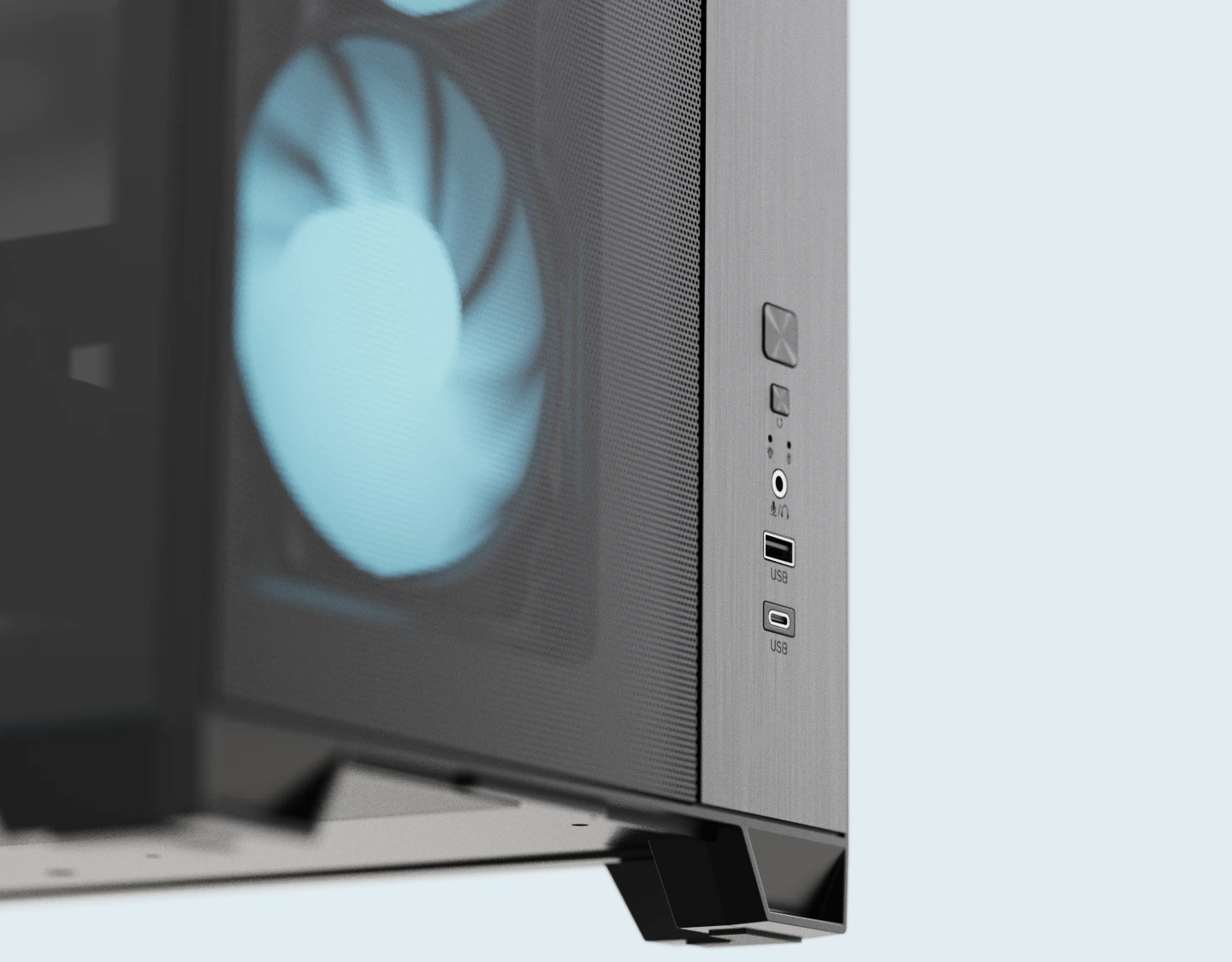

    • Fast & Convenient Front I/O

      Equipped with a USB 3.0 port and a Gen 2 Type-C connector, the front I/O delivers fast and convenient connectivity for daily use.

Air Mesh G6

  • Model

    Air Mesh G6

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    Steel

  • Front Panel Material

    Steel / Plastic

  • Steel Thickness

    0.6mm

  • Motherboards

    Micro-ATX / Mini-ITX

  • Case Dimensions

    246 × 445 × 365 mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    2

  • Expansion Slots

    5

  • GPU Clearance

    Up to 405 mm

  • CPU Cooler Clearance

    Up to 165 mm

  • Front Fans

    2 x 120mm Max.

  • Rear Fan

    1 x 120mm

  • Top Fan

    3 x 120mm

  • Bottom Fan

    3 x 120mm

  • Top Radiator

    240 / 360 mm

  • I/O Ports

    USB 3.0 × 1, USB-C × 1, HD Audio

  • Power Supply

    ATX, up to 160 mm

  • Net weight

  • Gross weight

    4.25 kg

  • EAN

    Air Mesh G6 Black: 4711401667308

    Air Mesh G6 Plus Black AR: 4711401667315

    Air Mesh G6 White: 4711401667322

    Air Mesh G6 Plus White AR: 4711401667339

Air Mesh G6 Plus Black AR

  • Cooling

    Front: 2 x 120mm ARGB fans included
    Rear: 1 x 120mm ARGB fan included

Air Mesh G6 Plus White AR

  • Cooling

    Front: 2 x 120mm ARGB fans included
    Rear: 1 x 120mm ARGB fan included
