Air Mesh G4 | G4 Plus

Air Mesh G4 | Air Mesh G4 Plus balances compact design, stylish aesthetics, and essential features for small to mid-range gaming

or workstation builds.

The cooling and hardware layout shown in the product photos is for reference only. Please check the website’s product specifications for the actual configuration.

Warranty periods may vary by region; please inquire with your point of purchase for details.

Variation

Color

Air-Mesh-G4_G4-Plus-1920x960

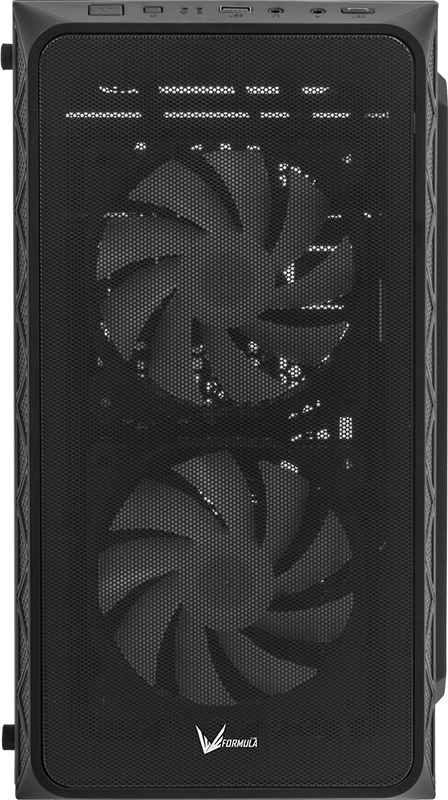

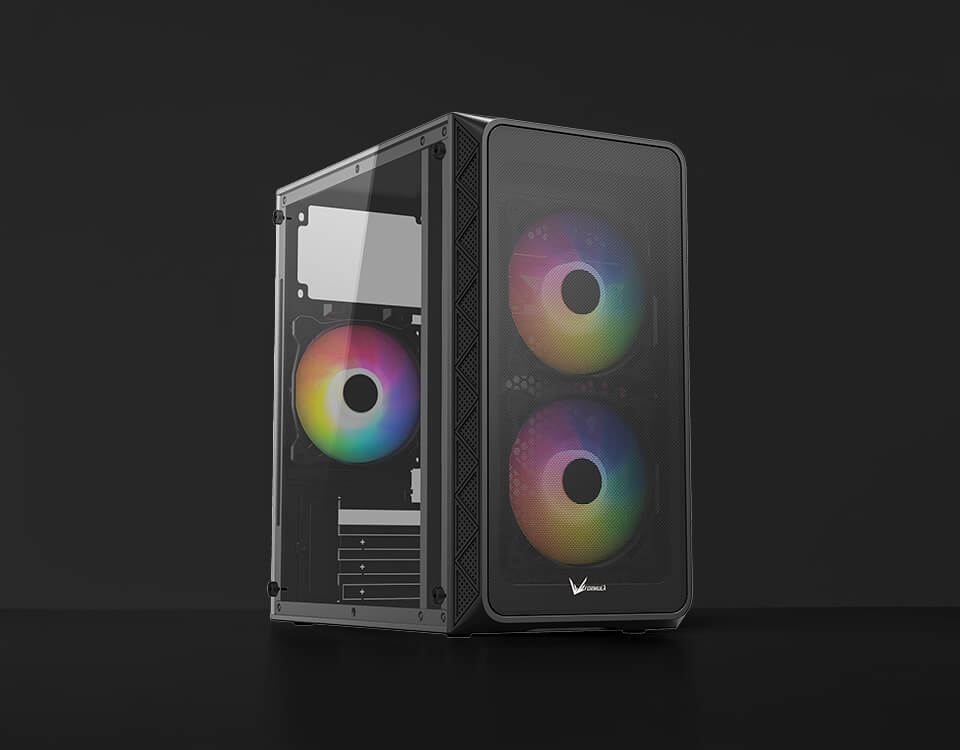

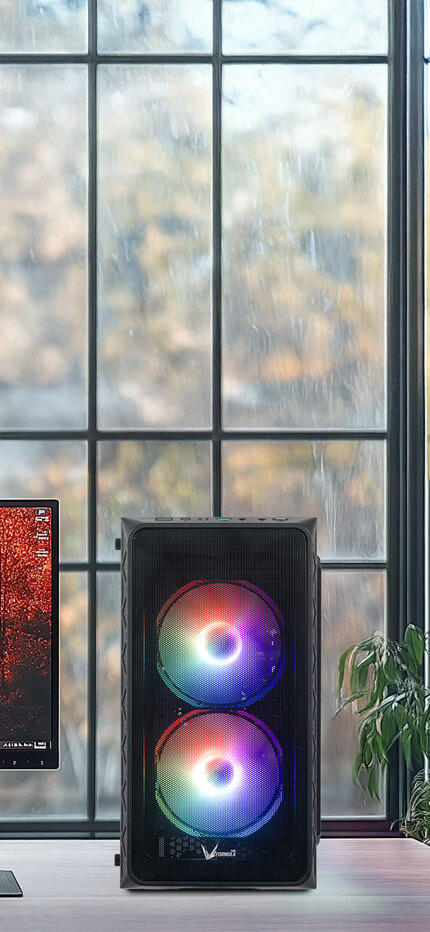

Array Mesh Front Panel Design

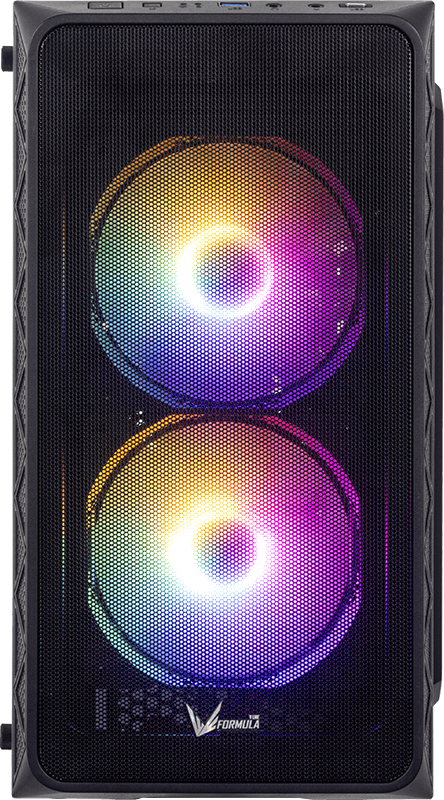

    • Stylish Front Mesh Panel Design

      Sleek mesh front panel design with vibrant RGB fan lighting and all-black color coating for an eye-catching appearance.

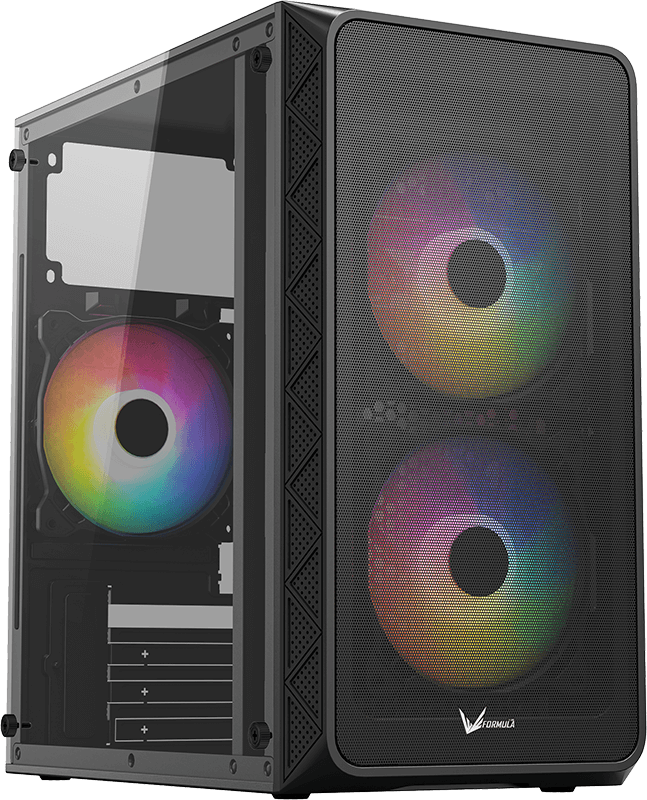

    • Clear Acrylic Side Panel For Component Display

      The left side of the case has a transparent acrylic panel, allowing a clear view of the internal components and RGB lighting effects.

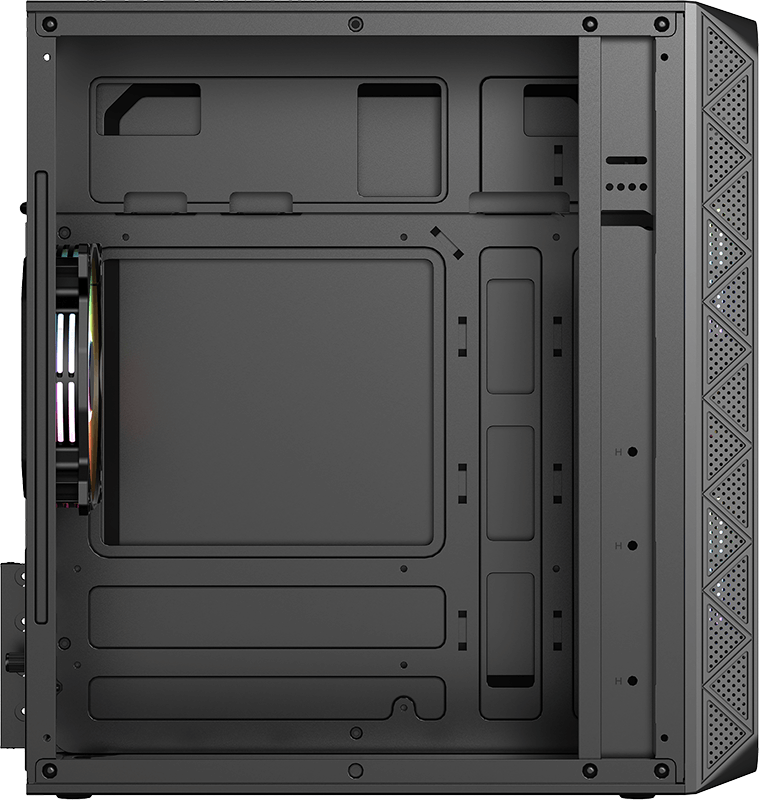

Optimized Space For Key Components

With support for Micro-ATX and ITX motherboards, 286mm graphics cards, and 157mm CPU coolers, this case offers ample space for powerful configurations.

    • Support up to 360 max water cooling

      With up to 360mm cooling installation at the font & top, it offers superior dissipation.

    • Storage Capability

      Supports up to 1 x 3.5” HDDs
      Supports up to 2 x 2.5” SSDs

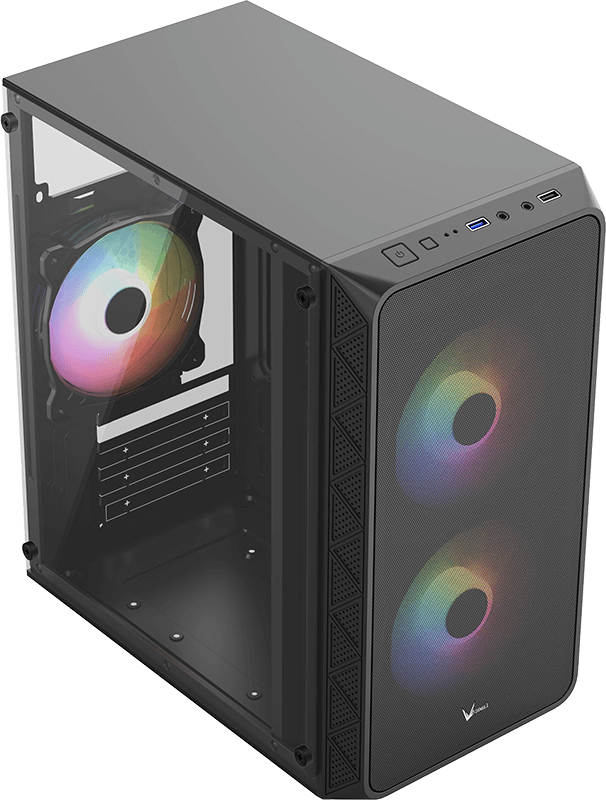

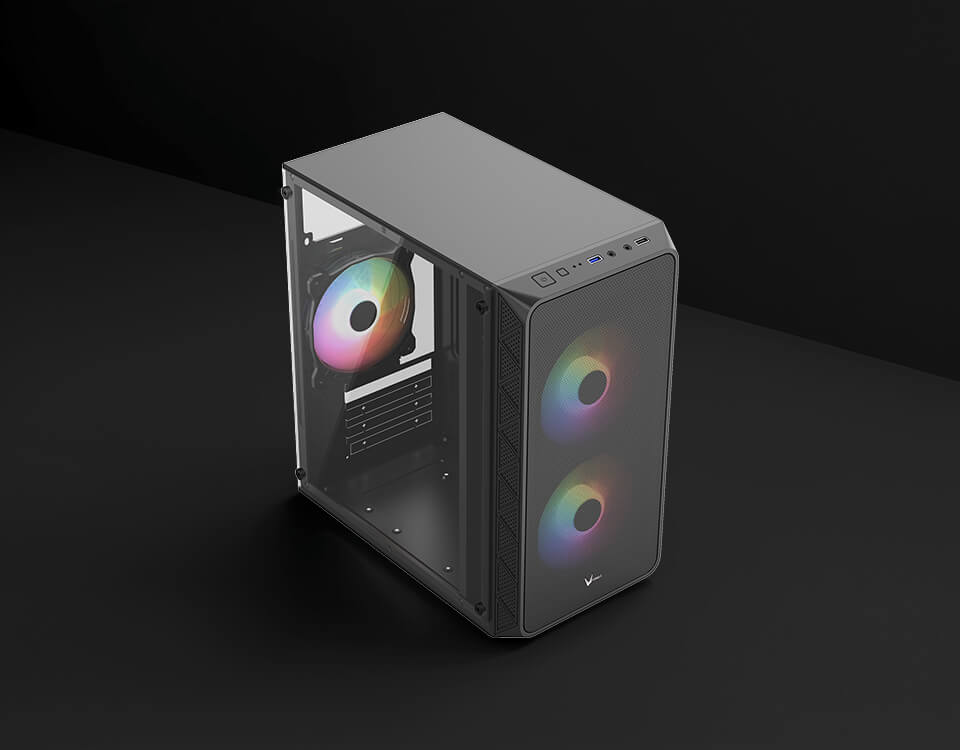

Convenient I/O Ports

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring Type-C / USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Air Mesh G4

  • Model

    Air Mesh G4

  • Case Type

    Mini Tower

  • Color

    Black

  • Body Material

    SPCC

  • Steel Thickness

    0.5mm

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    290 x 183 x 350mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    4

  • GPU Clearance

    286mm Max.

  • CPU Cooler Clearance

    157mm Max.

  • Front Fans

    2 x 120mm Max.

  • Rear Fan

    1 x 12BK Fan

  • Front radiator

    240mm Max.

  • I/O Ports

    1 x USB3.0 | 1 x USB2.0 | HD audio

  • Power Supply

    ATX

  • Net weight

    2.14 kg

  • Gross weight

    2.68 kg

  • EAN

    Air Mesh G4 Black: 4711401660637

Air Mesh G4 Plus

  • Model

    Air Mesh G4 Plus

  • Case Type

    Mini Tower

  • Color

    Black

  • Body Material

    SPCC

  • Steel Thickness

    0.5mm

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    290 x 183 x 350mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    4

  • GPU Clearance

    286mm Max.

  • CPU Cooler Clearance

    157mm Max.

  • Front Fans

    2 X Cosmic 12BK FR

  • Rear Fan

    1 X Cosmic 12BK FR

  • Front radiator

    240mm Max.

  • I/O Ports

    1 x Type C | 1 x USB3.1 | 1 x USB2.0 | HD audio

  • Power Supply

    ATX

  • Net weight

    2.39 kg

  • Gross weight

    2.98 kg

  • EAN

    Air Mesh G4 Plus Black: 4711401660644

Air Mesh G4 Plus AR

  • Model

    Air Mesh G4 Plus AR

  • Case Type

    Mini Tower

  • Color

    Black

  • Body Material

    SPCC

  • Steel Thickness

    0.5mm

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    290 x 183 x 350mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    2

  • Expansion Slots

    4

  • GPU Clearance

    286mm Max.

  • CPU Cooler Clearance

    157mm Max.

  • Front Fans

    2 X Cosmic 12BK ARPW

  • Rear Fan

    1 X Cosmic 12BK ARPW

  • Front radiator

    240mm Max.

  • I/O Ports

    1 x Type C | 1 x USB3.1 | 1 x USB2.0 | HD audio

  • Power Supply

    ATX

  • Net weight

    Air Mesh G4: 2.14kg

    Air Mesh G4 Plus: 2.39kg

  • Gross weight

    Air Mesh G4: 2.68kg

    Air Mesh G4 Plus: 2.98kg

  • EAN

    Air Mesh G4 Plus Black AR: 4711401663492

  • Warranty Coverage

    2-Year Limited Warranty
    Warranty period may vary by region.
    Please consult your place of purchase for details.
