Air Mesh G3 | G3 Plus

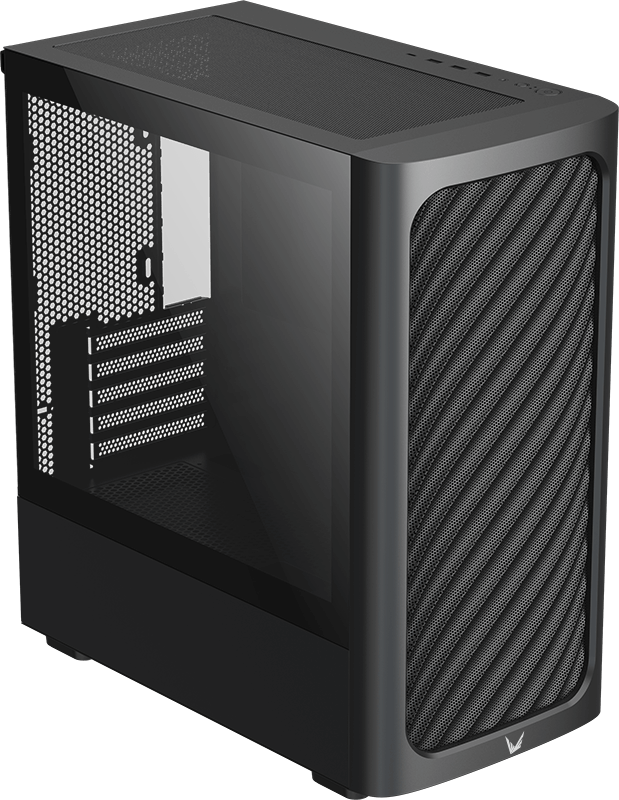

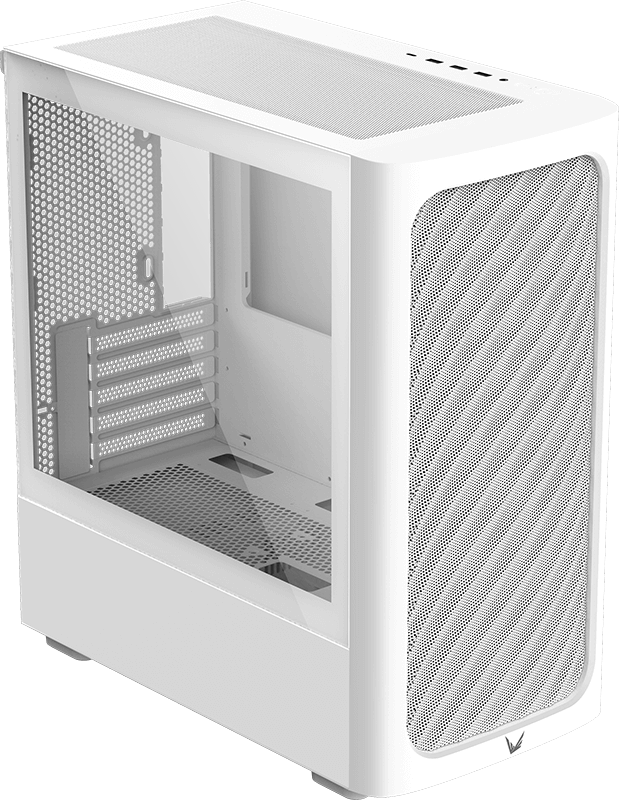

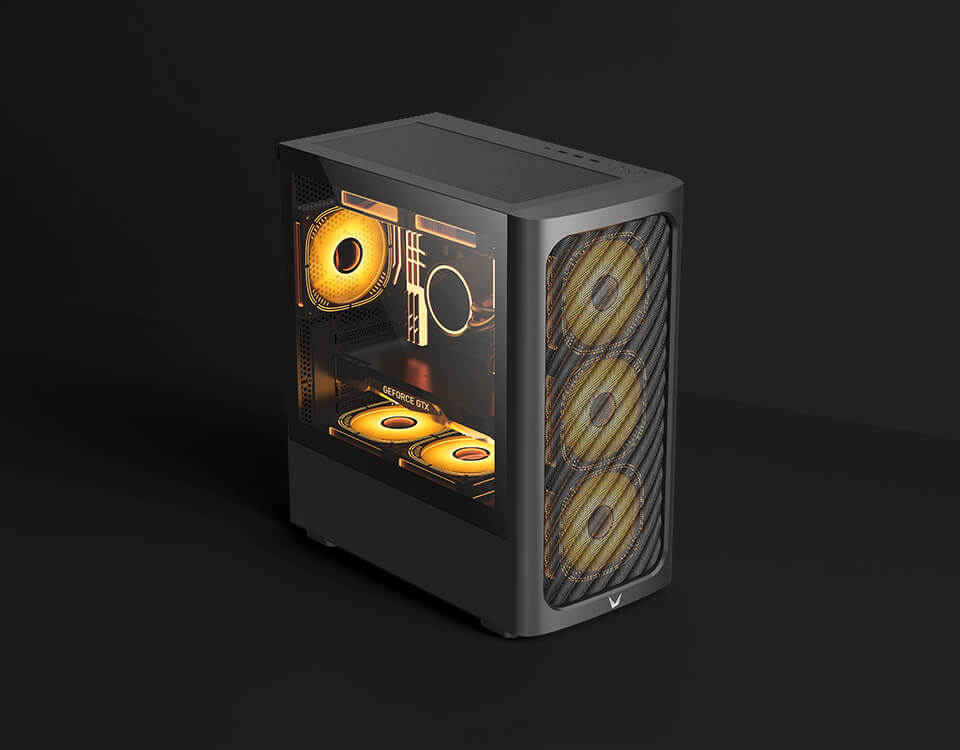

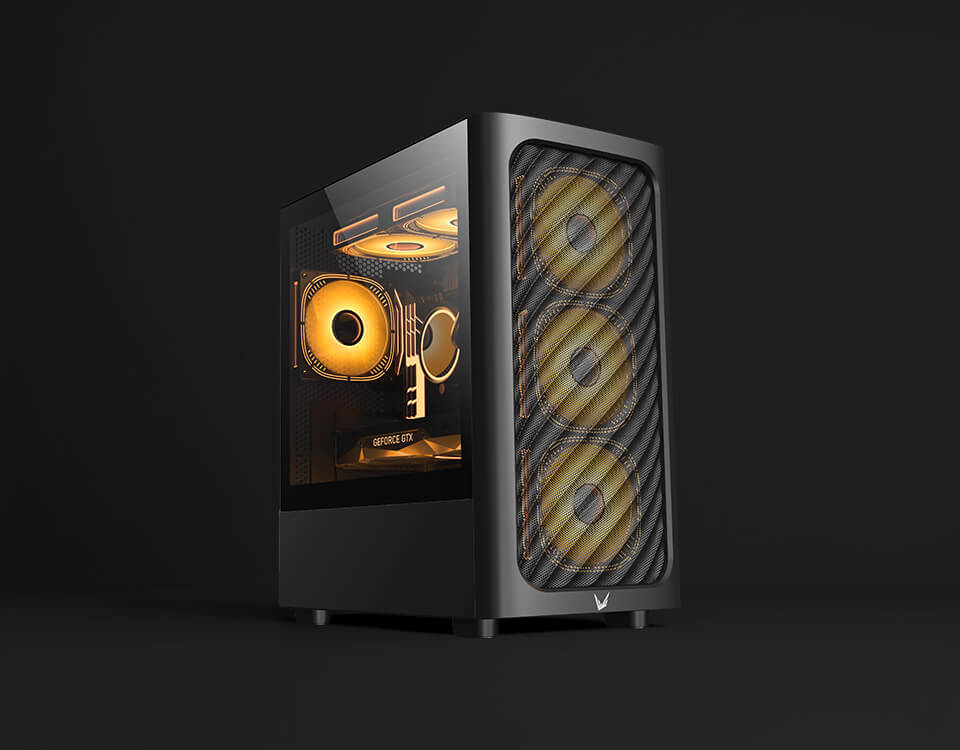

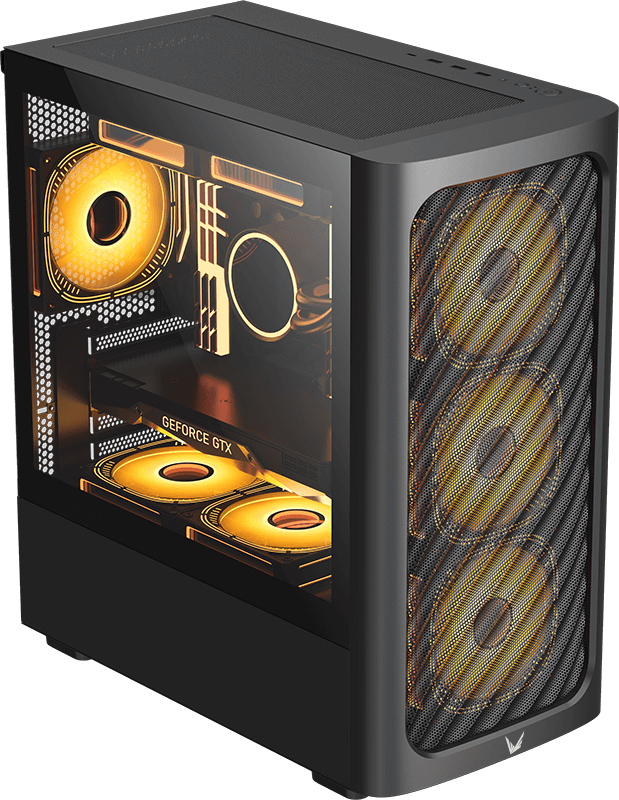

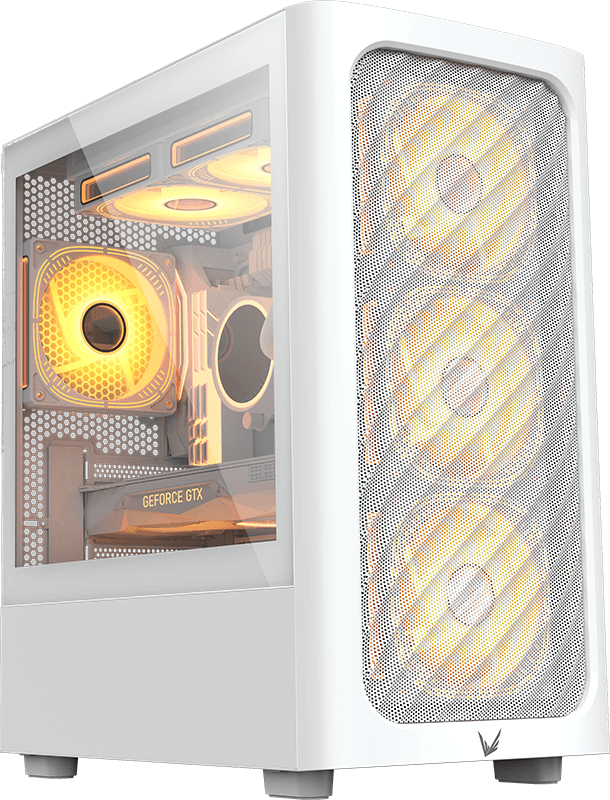

The Air Mesh G3 is a Micro-ATX case with a sleek, unique wavy mesh front panel made of plastic and steel for optimal airflow, paired with a tempered glass side panel to highlight your build.

Despite its compact form, it offers ample space for high-end components, versatile cooling options, and up to four storage drives. With a professional matte black finish and convenient front I/O connectivity, it seamlessly combines functionality and style for gamers and PC enthusiasts.

The cooling and hardware layout shown in the product photos is for reference only.

Please check the website’s product specifications for the actual configuration.

Variation

Type

Air-Mesh-G3_G3-Plus-1920x960

Optimal Cooling Support

    • Optimal Cooling Support

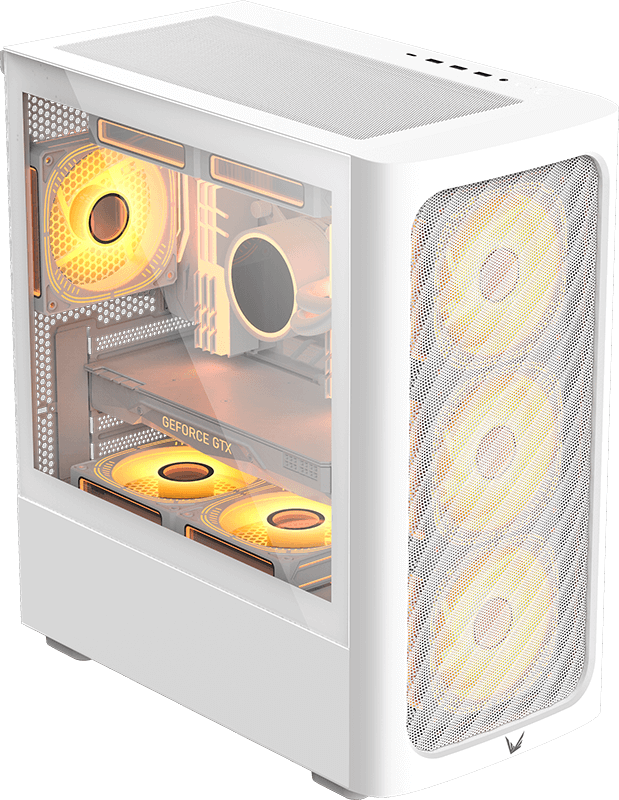

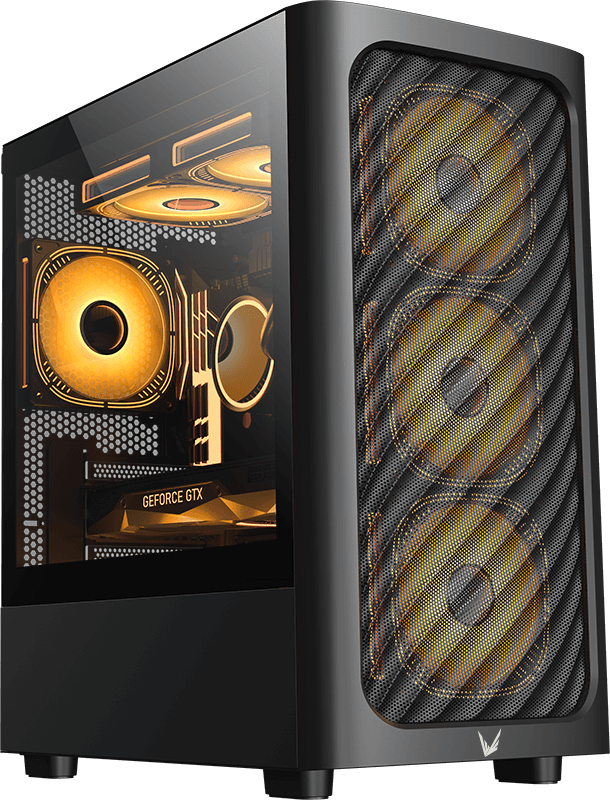

      The Air Mesh G3 offers support for up to 8 fans and 240/280mm liquid cooling at the top and front, providing the flexibility to maximize your cooling setup for peak performance.

    • Dual Chamber Design

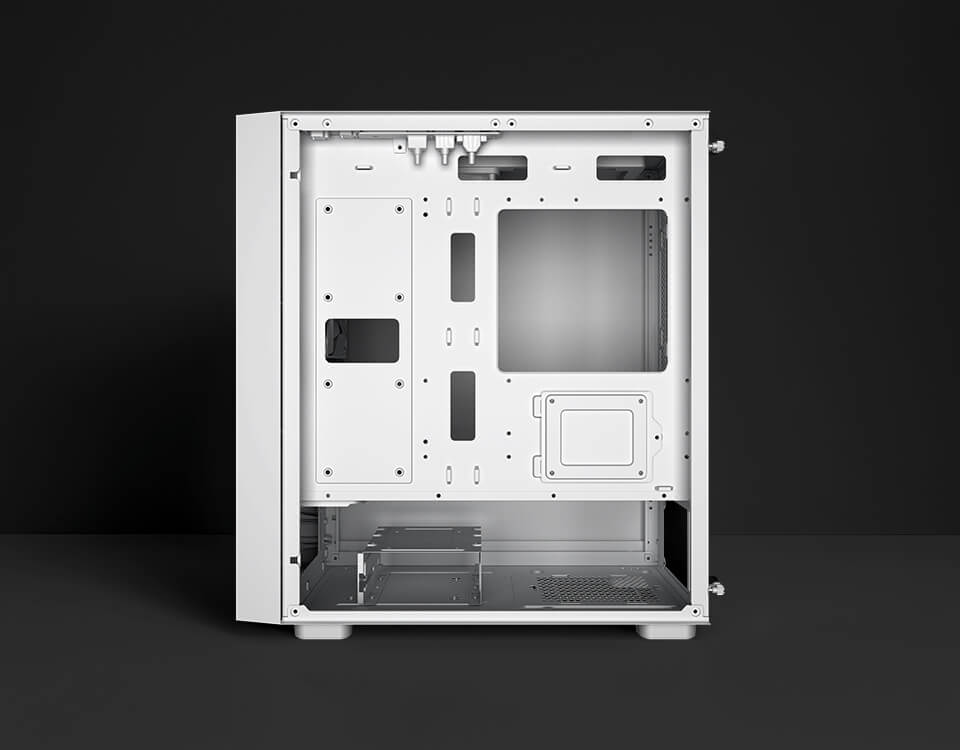

      Designed with a dual chamber layout to efficiently divert heat away from the primary chamber, resulting in more effective cooling throughout.

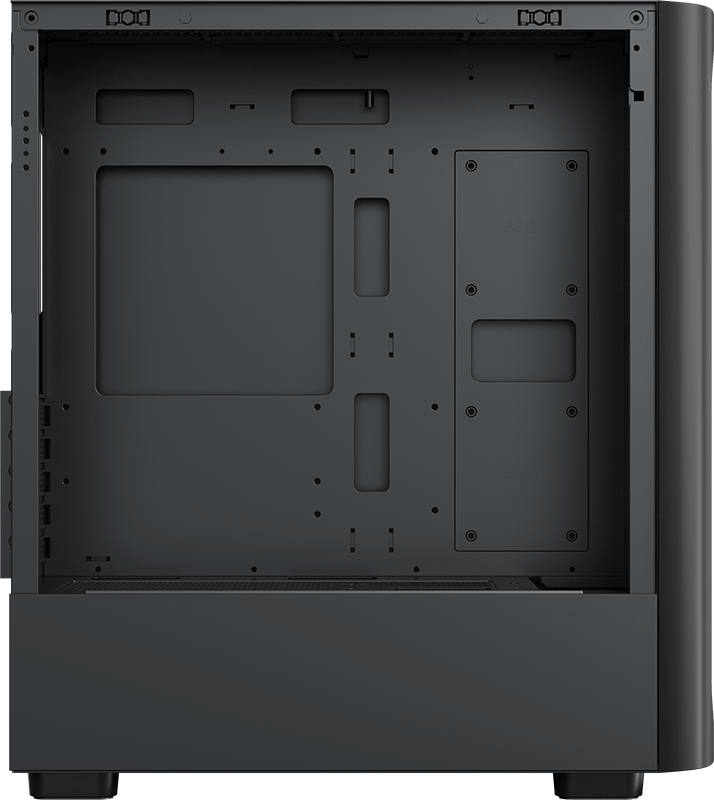

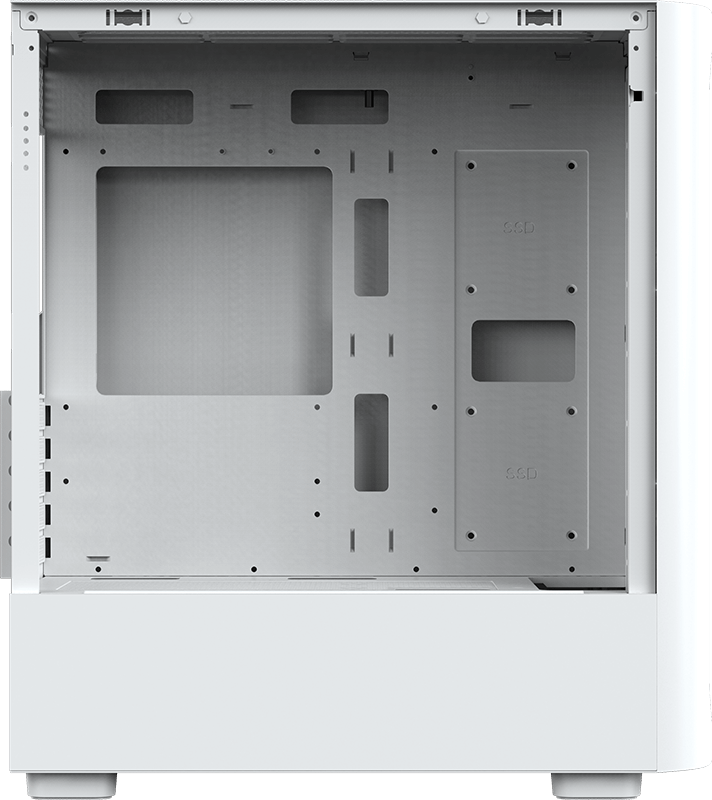

Spacious Interior Space

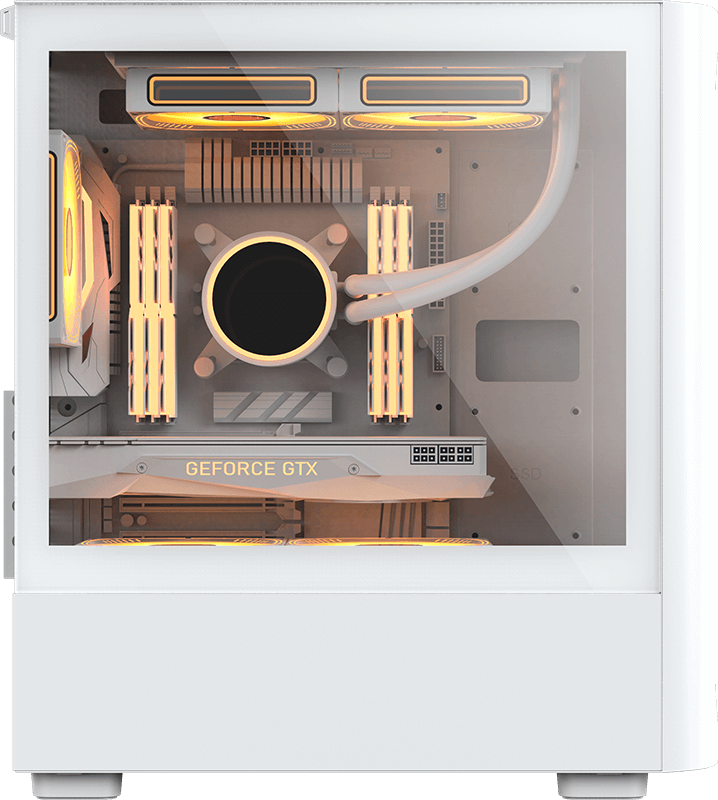

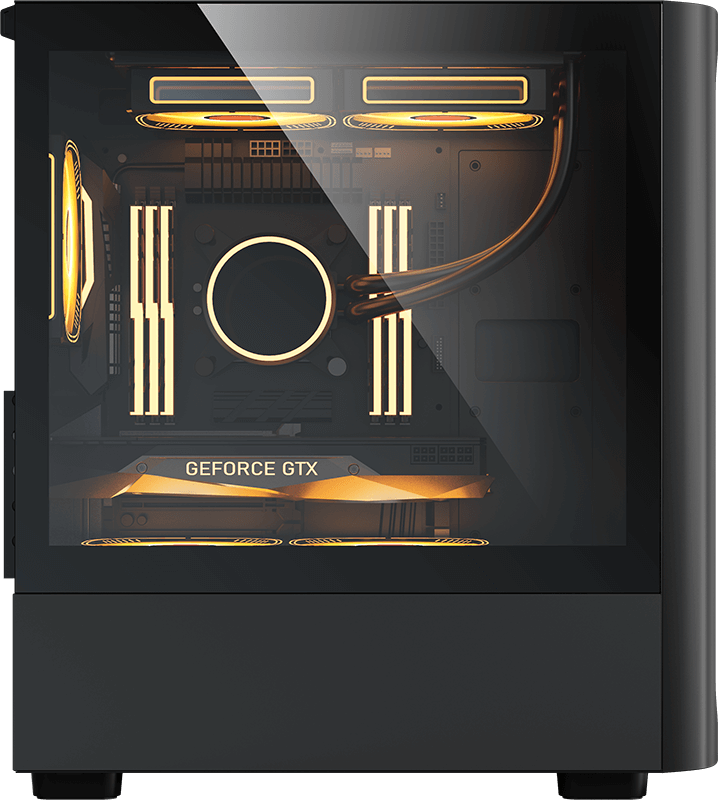

Supports Micro-ATX motherboards, up to 340mm graphics cards, and 165mm CPU coolers, providing ample room for high-performance components.

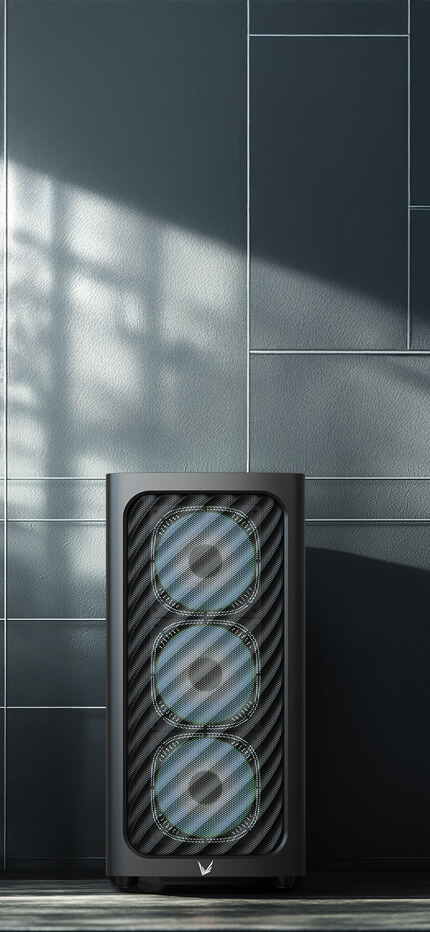

    • Sleek, Wavy Stylish Design

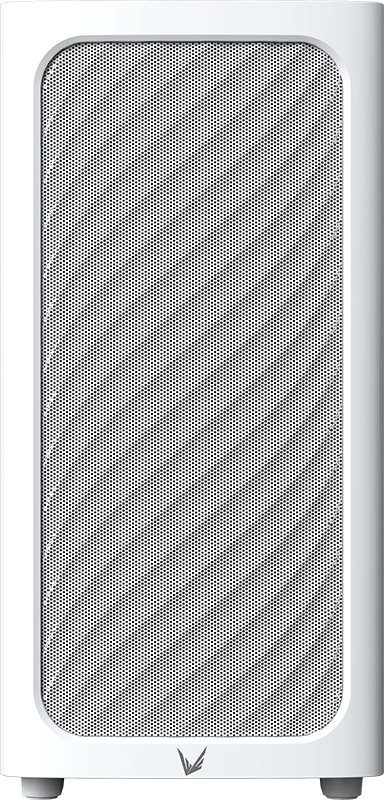

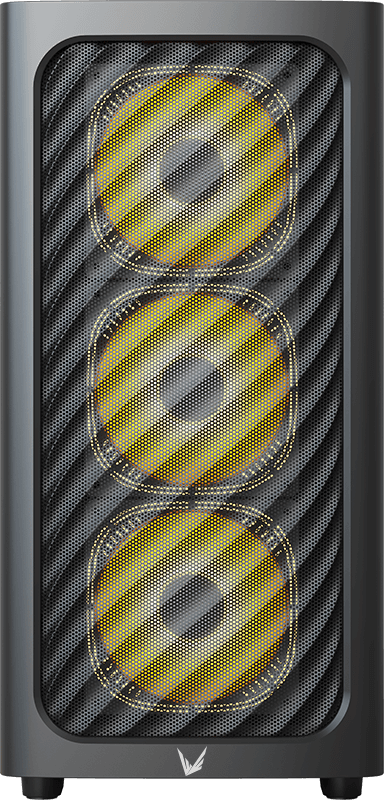

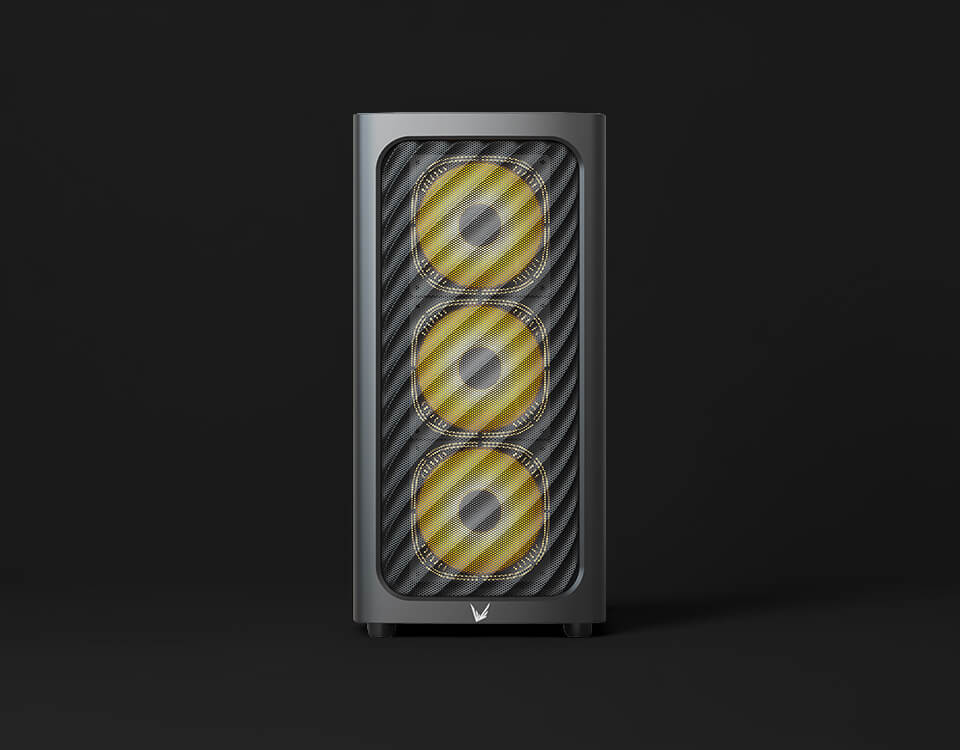

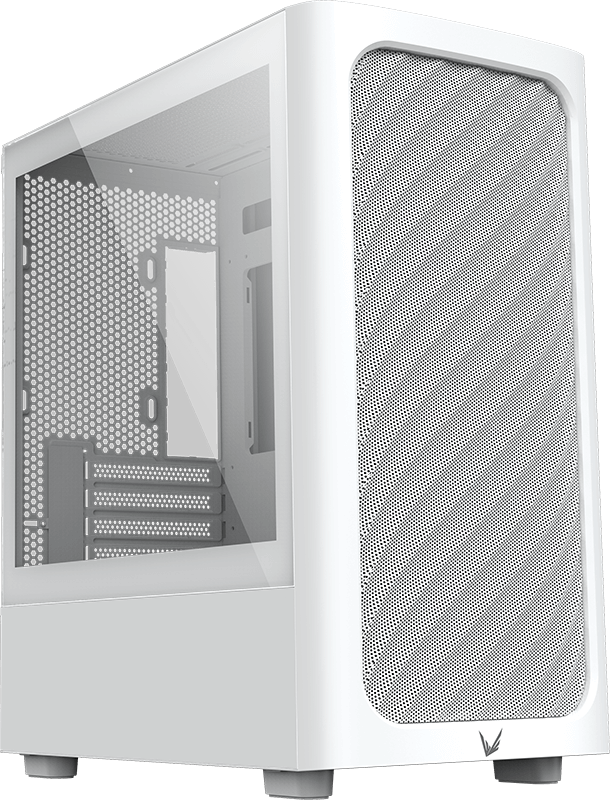

      The Air Mesh G3 features a sleek, wavy mesh front panel crafted from plastic and steel for optimal airflow, complemented by a tempered glass side panel to showcase your build.

    • Storage Capability

      Supports up to 3 x 3.5” HDDs
      Supports up to 2 x 2.5” SSDs

Convenient I/O Ports

Stay connected and access your peripherals effortlessly through the convenient I/O ports situated on the case’s top.
Featuring Type-C / USB 3.0 / USB 2.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Air Mesh G3

  • Model

    Air Mesh G3 Plus

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.6mm

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    398 x 215 x 446mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    3

  • Expansion Slots

    5

  • GPU Clearance

    340mm Max.

  • CPU Cooler Clearance

    165mm Max.

  • Front Fans

    3 x 120mm or 2 x 140mm Max.

  • Top Fans

    2 x 120mm or 2 x 140mm Max.

  • Rear Fan

    1 x 120mm Max.

    1 x 12 BK or WH Fan included

  • Bottom Fans

    2 x 120mm Max.

  • Front radiator

    280mm Max.

  • Top radiator

    280mm Max.

  • I/O Ports

    Air Mesh G3 Version: 1 x USB3.0 | 2 x USB2.0 | HD audio

  • Net weight

    5.10 kg

  • Gross weight

    6.30 kg

  • EAN

    Air Mesh G3 Black: 4711401662907

    Air Mesh G3 White: 4711401662914

Air Mesh G3 Plus

  • Model

    Air Mesh G3 Plus

  • Case Type

    Mid Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.6mm

  • Motherboards

    micro ATX / mini-ITX

  • Case Dimensions

    398 x 215 x 446mm

  • 3.5” Drive Bays

    2

  • 2.5” Drive Bays

    3

  • Expansion Slots

    5

  • GPU Clearance

    340mm Max.

  • CPU Cooler Clearance

    165mm Max.

  • Front Fans

    3 x 120mm or 2 x 140mm Max.

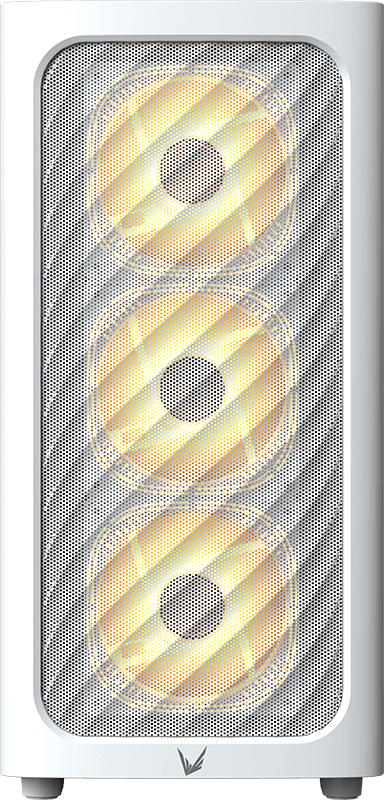

    3 x 120mm ARGB BK or WH Fans included

  • Top Fans

    2 x 120mm or 2 x 140mm Max.

  • Rear Fan

    1 x 120mm Max.

    1 x 120mm ARGB BK or WH Fan included.

  • Bottom Fans

    2 x 120mm Max.

  • Front radiator

    280mm Max.

  • Top radiator

    280mm Max.

  • I/O Ports

    Type-C x 1 | 2 x USB3.0 | 1 x USB2.0 | HD audio

  • Net weight

    5.55 kg

  • Gross weight

    6.75 kg

  • EAN

    Air Mesh G3 Plus Black: 4711401662921

    Air Mesh G3 Plus White: 4711401662938
