Air Mesh G2 | G2 Plus

Stylish Front Mesh Panel Design

Superior Cooling Performance

Flexible Configuration

A crystal-clear tempered glass side panel

Storage for HDD/SSD and cable management solution

Convenient I/O Ports

The cooling and hardware layout shown in the product photos is for reference only.

Please check the website’s product specifications for the actual configuration.

Variation

Color

Air-Mesh-G2-1920x960

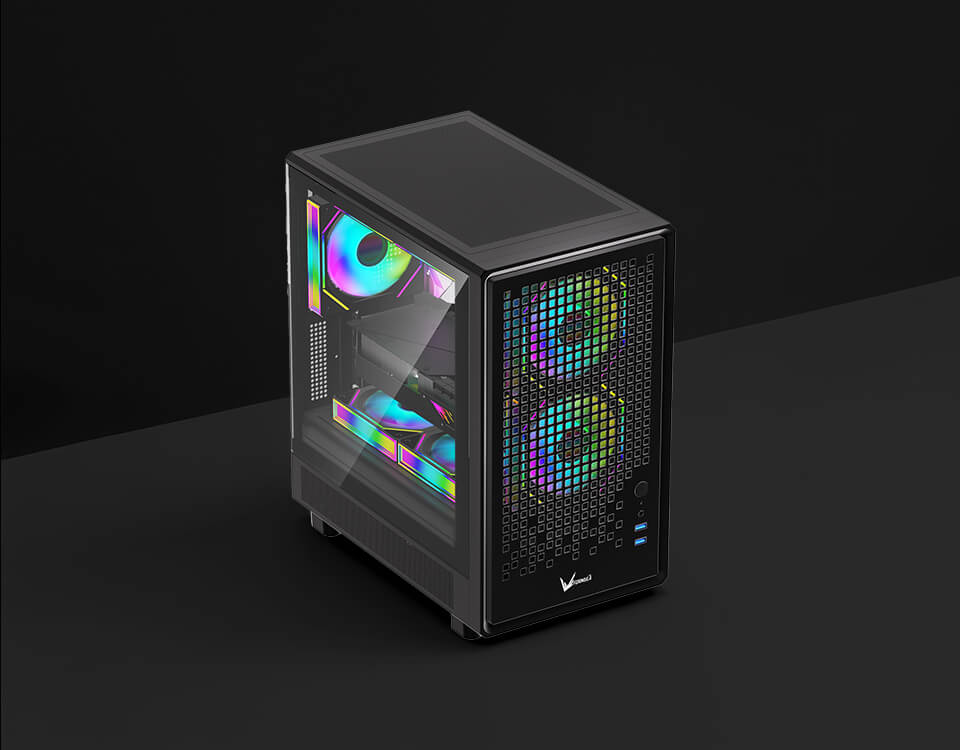

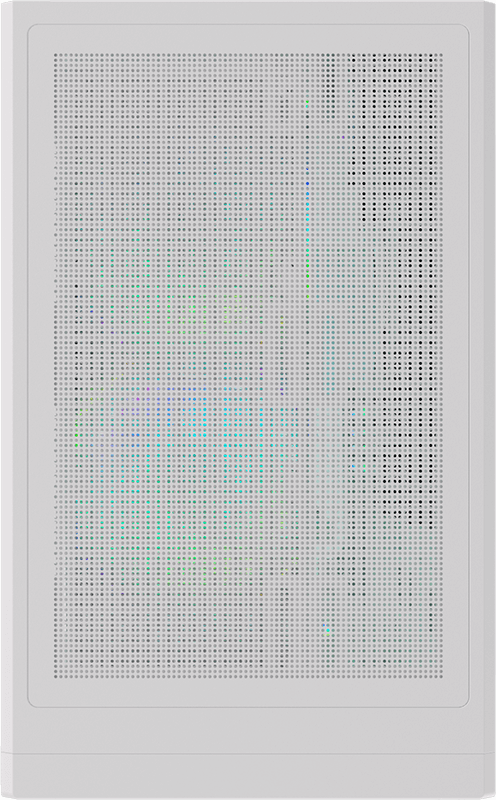

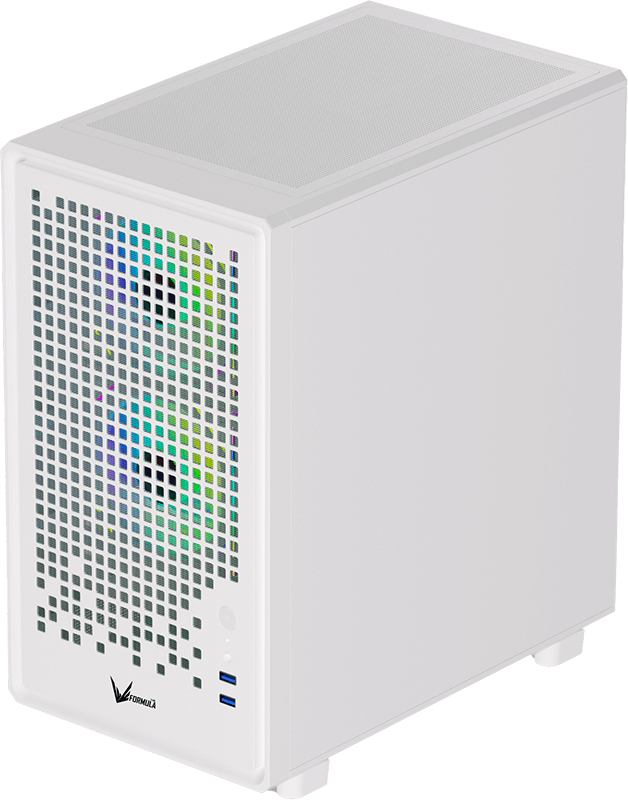

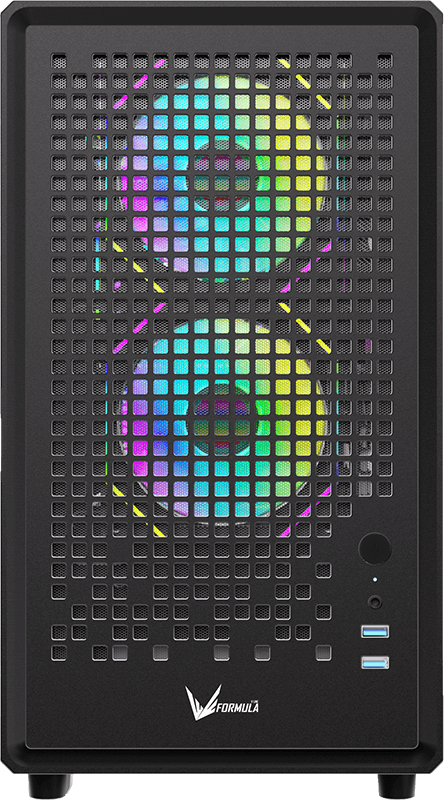

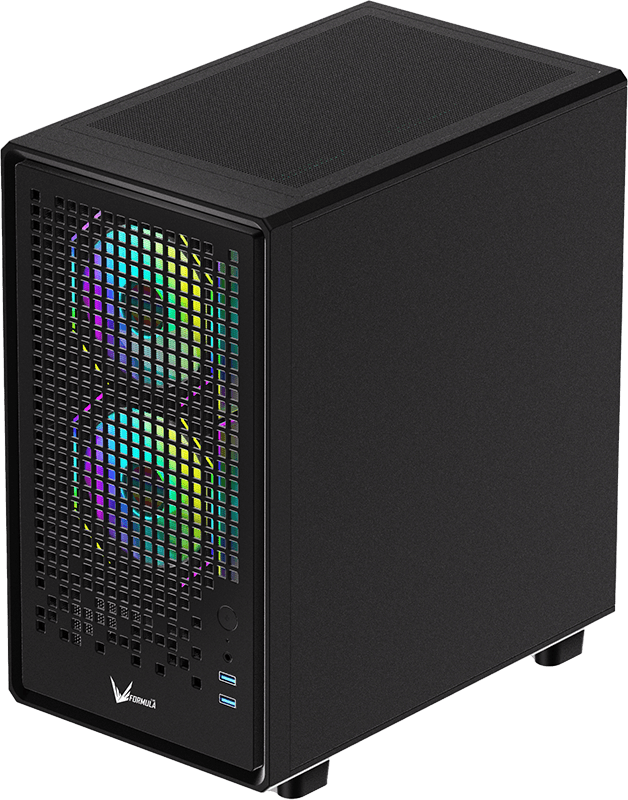

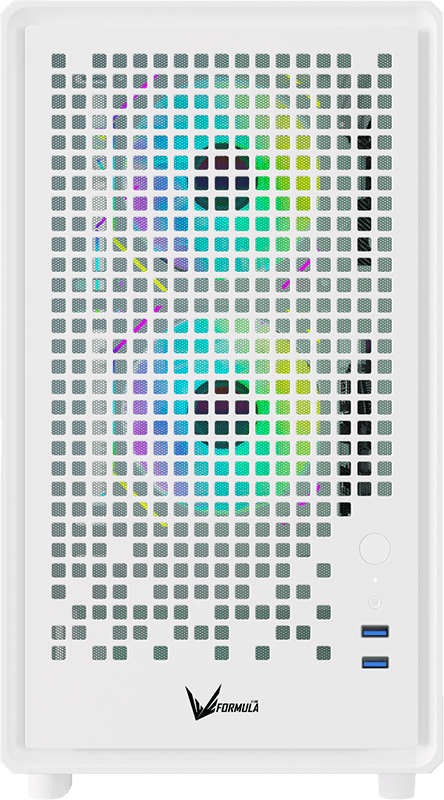

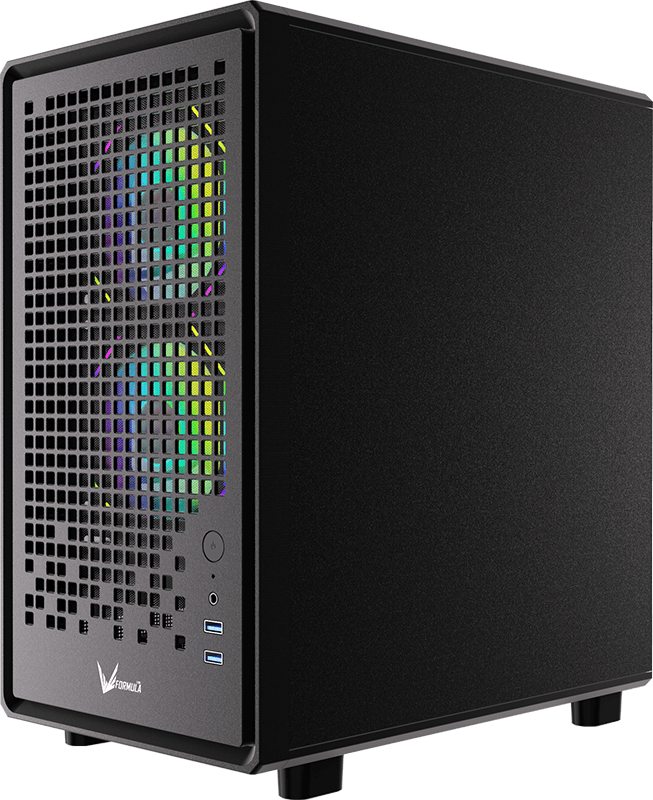

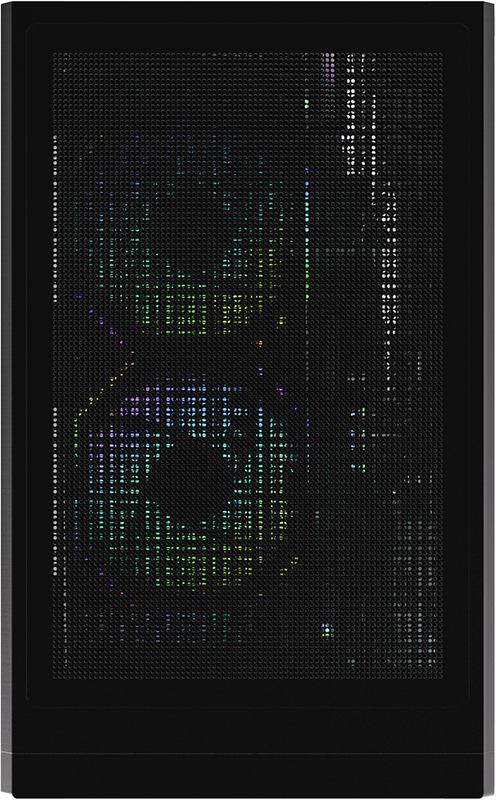

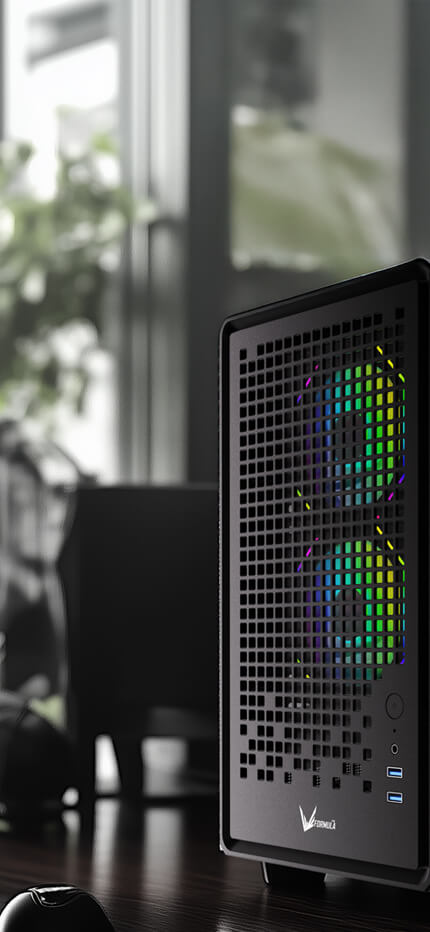

Stylish Front Mesh Panel Design

    • Stylish Front Mesh Panel Design

      Sleek mesh front panel design with vibrant RGB fan lighting and all-black color coating for an eye-catching appearance.

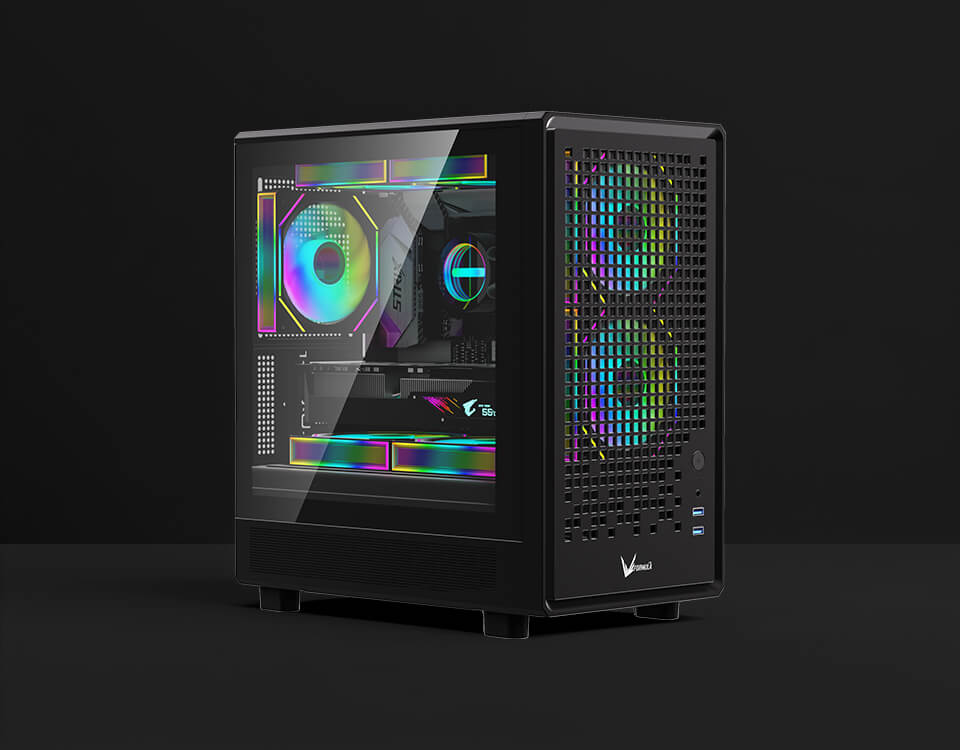

    • Superior Cooling Performance Design

      Experience superior cooling potential with support for up to 7 fans, including three pre-installed 12 cm Cosmic RGB fans.
      Enhance cooling efficiency further with optional 240 radiator support, all complemented by a full mesh front bezel design to optimize heat dissipation.

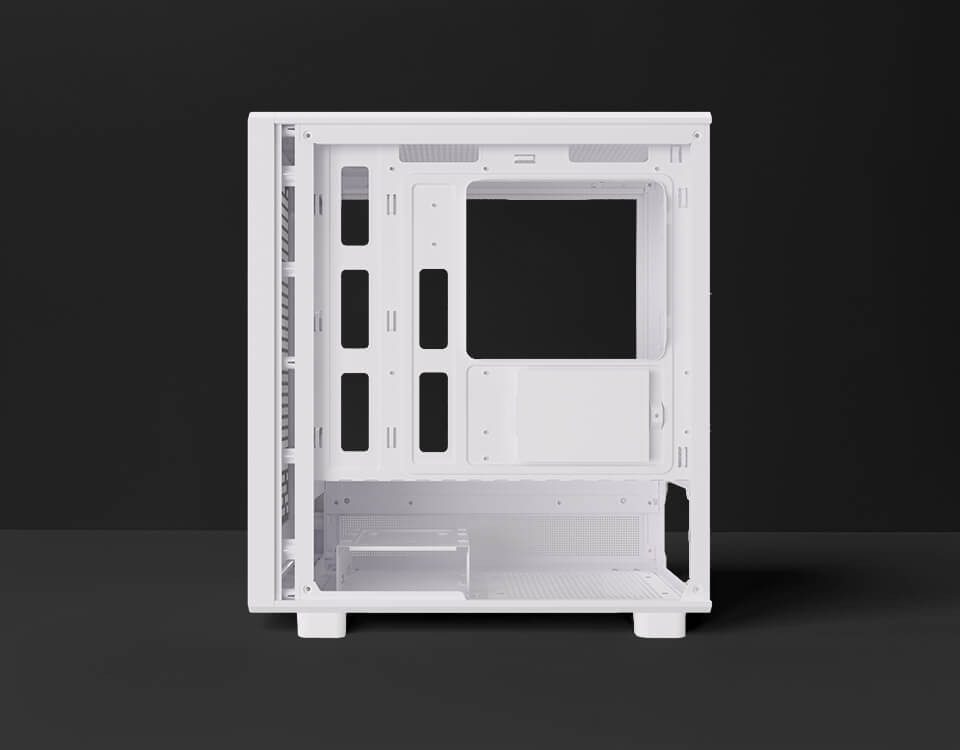

Flexble Configuration

AIR MESH G2 offers sufficient space to support for Micro-ATX motherboard, providing ample space for maximum flexibility.
It accommodates VGA cards up to 310mm in length and CPU cooler up to 180mm height

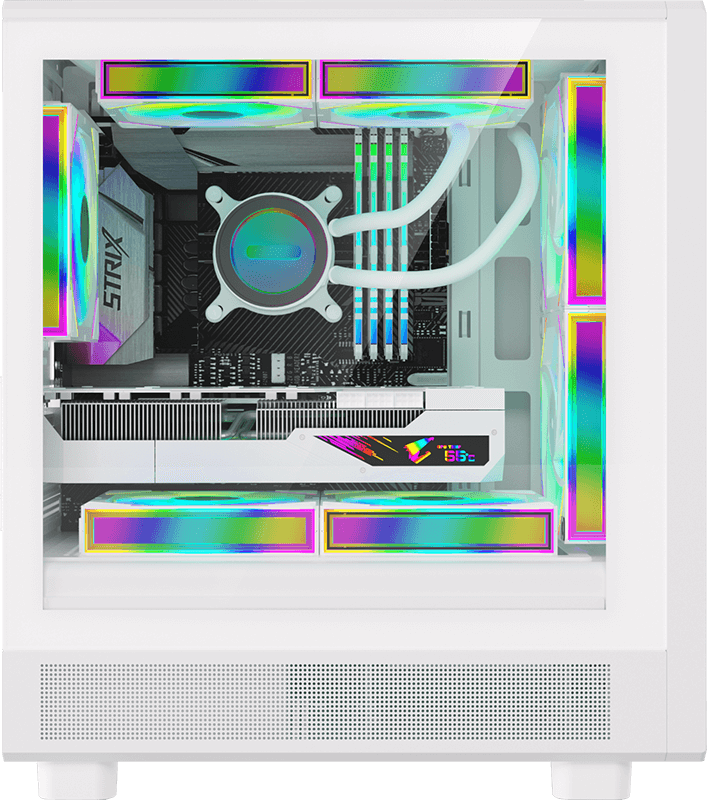

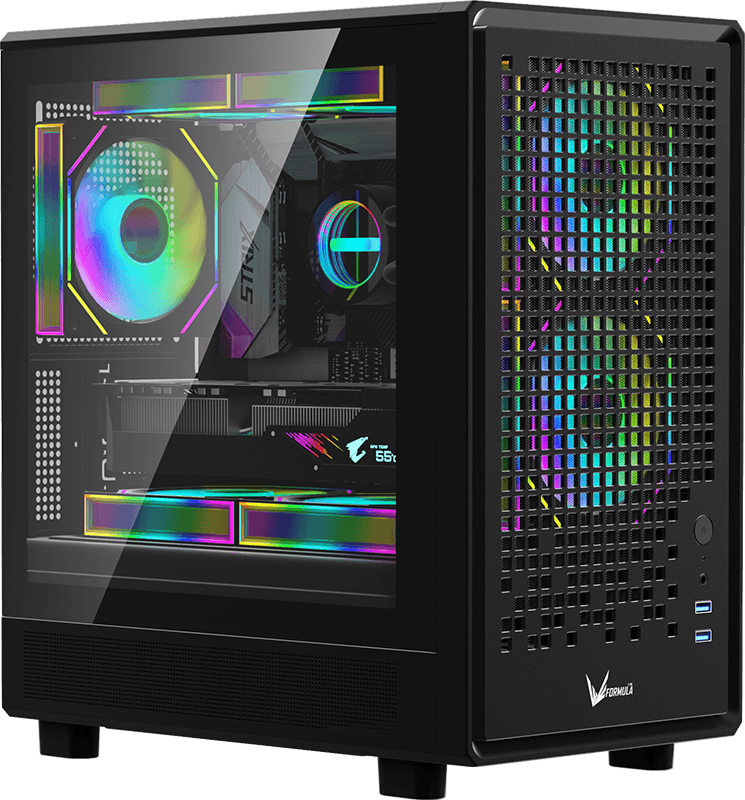

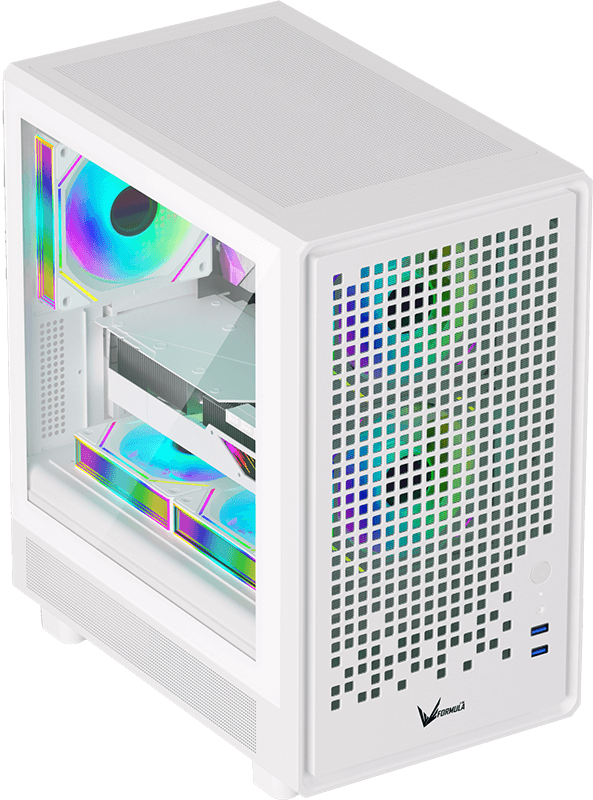

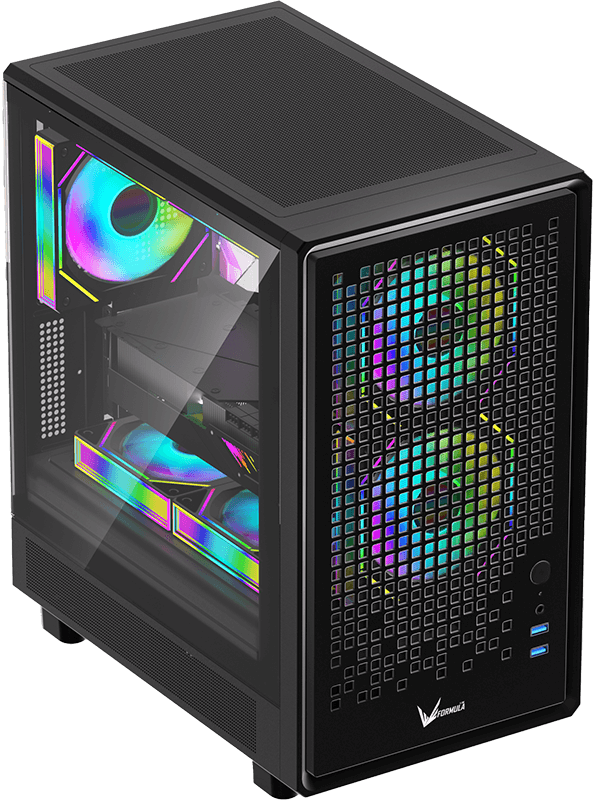

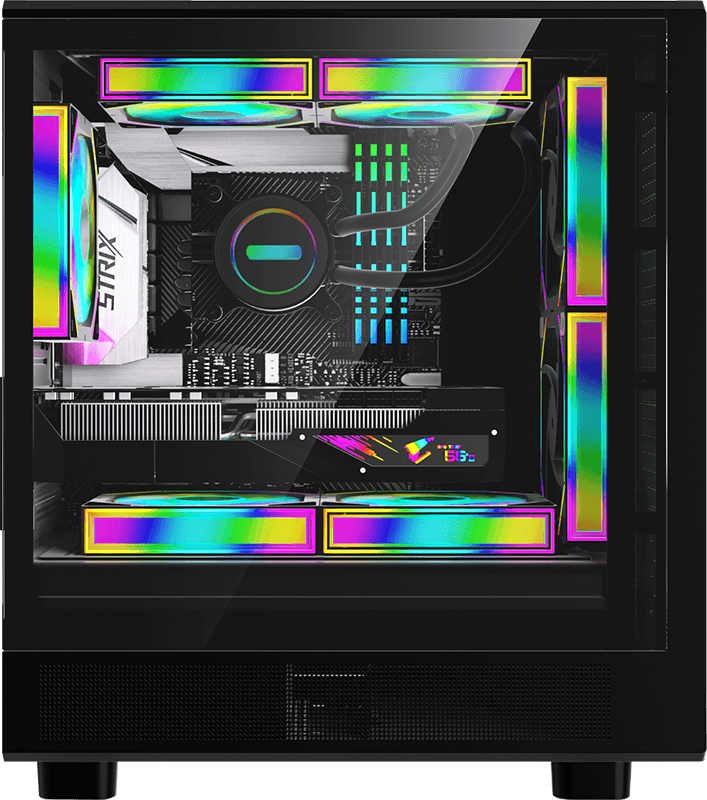

    • A Crystal-Clear Tempered Glass Side Panel

      Air Mesh G2 provides a crystal-clear tempered glass side panel for stunning showcase of your interior setup.

    • Storage Capability

      Supports up to 1 x 3.5” HDDs
      Supports up to 1 x 2.5” SSDs

Convenient I/O Ports

Stay connected and access your peripherals effortlessly through the convenient I/0 ports situated on the case’s top.
Featuring USB 3.0 ports, along with HD audio, you’ll have all your essential connections readily accessible.

Air Mesh G2

  • Model

    Air Mesh G2

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.5mm

  • Motherboards

    micro ATX/mini-ITX

  • Case Dimensions

    330 x 218 x 380mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    Supports GPU up to 310mm

  • CPU Cooler Clearance

    Supports CPU cooler up to 180mm

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Front Fans

    2 x Cosmic 12BK/WH FR

  • Top Fans

    2 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x Cosmic 12BK/WH FR

  • Bottom Fans

    2 x 120mm Max.

  • Top radiator

    240mm Max.

  • Power Supply

    ATX

  • Net weight

    3.62kg

  • Gross weight

    4.50kg

  • EAN

    Air Mesh G2 Black: 4711401660842

    Air Mesh G2 White: 4711401660620

Air Mesh G2 Plus AR

  • Model

    Air Mesh G2 Plus AR

  • Case Type

    Mini Tower

  • Color

    Black | White

  • Body Material

    SPCC

  • Steel Thickness

    0.5mm

  • Motherboards

    micro ATX/mini-ITX

  • Case Dimensions

    330 x 218 x 380mm

  • 3.5” Drive Bays

    1

  • 2.5” Drive Bays

    1

  • Expansion Slots

    4

  • GPU Clearance

    Supports GPU up to 310mm

  • CPU Cooler Clearance

    Supports CPU cooler up to 180mm

  • I/O Ports

    TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC

  • Front Fans

    2 x Cosmic 12BK/WH ARPW

  • Top Fans

    2 x 120 or 2 x 140mm Max.

  • Rear Fan

    1 x Cosmic 12BK/WH ARPW

  • Bottom Fans

    2 x 120mm Max.

  • Top radiator

    240mm Max.

  • Power Supply

    ATX

  • Net weight

    3.62kg

  • Gross weight

    4.50kg

  • EAN

    Air Mesh G2 Plus Black AR: 4711401663485

    Air Mesh G2 Plus White AR: 4711401663478
